INFINITI QX30 2017 Owner's Manual

NOTE
4-138Display screen, heater and air conditioner, and audio system

5 Starting and driving
Precautions when starting and driving..........5-4
Exhaust gas (carbon monoxide) ............5-4
Three-way catalyst (if equipped) ............5-4
Tire Pressure Monitoring System (TPMS) .......5-5
On pavement and off-road driving precautions . . .5-10
Avoiding collision and rollover ............5-10
Off-road recovery .................... .5-11
Rapid air pressure loss .................5-11
Drinking alcohol/drugs and driving ..........5-12
Driving safety precautions ...............5-12
All-wheel drive (AWD) driving safety precautions
(if so equipped) .................... .5-14
Infiniti Vehicle Immobilizer system ............5-14
Ignition switch ....................... .5-15
Steering lock ...................... .5-15
Key positions ...................... .5-15
Before starting engine .................. .5-16
Starting engine ....................... .5-16
Starting procedure with the key ............5-16
Driving the vehicle ..................... .5-18
Driving with Automatic Transmission .........5-18
Parking brake .........................5-25
Applying/releasing manually ..............5-25
Applying automatically (vehicles with automatic
transmission) ...................... .5-26Releasing automatically
................5-26
Emergency braking .................. .5-26
Idle Stop/Start System (if equipped) ...........5-27
Automatic engine switch-off ..............5-27
Automatic engine start .................5-28
Deactivating/activating the Idle Stop/Start
function ..........................5-28
L
ane departure warning (LDW) system(if equipped) . .5-29
LDW system operation .................5-30
How to enable/disable the LDW system .......5-31
LDW system limitations .................5-31
LDW system temporarily unavailable .........5-33
System malfunction .................. .5-34
System maintenance ..................5-34
Blind Spot Warning (BSW) system (if equipped) . . . .5-35 BSW system operation .................5-36
How to enable/disable the BSW system ......5-38
BSW system limitations ................5-38
System temporarily unavailable ............5-43
Radar maintenance .................. .5-44
FCC Notice ....................... .5-44
Cruise control ....................... .5-44
Cruise control operations ................5-45

Intelligent Cruise Control (ICC) system (Full speed range)
(if equipped).........................5-47
ICC system operation ..................5-48
ICC switch (cruise control lever) ...........5-49
ICC system display and indicators ..........5-49
Operating ICC ...................... .5-50
ICC Limitations ..................... .5-54
Tips for driving with the ICC system .........5-56
System temporarily unavailable ............5-59
System maintenance ..................5-60
Forward emergency braking (FEB) system (if
equipped) .......................... .5-60
FEB system operation ..................5-61
Turning the FEB system on/off ............5-64
FEB system limitations .................5-65
System temporarily unavailable ............5-65
System maintenance ..................5-66
FCC Notice ....................... .5-67
Active sound enhancement ................5-67
Active sound enhancement ..............5-68
Intelligent Parking Assist (IPA) (if equipped) ......5-68
Important safety notes .................5-68
Detecting parking spaces ...............5-69
Parking ..........................5-70
Exiting a parking space .................5-71
Canceling IPA ...................... .5-73Parking sensor system (if equipped)
...........5-73
Parking sensor overview ................5-75
Range of the sensors ..................5-79
Parking sensor system OFF switch ..........5-79
Parking sensor function settings ...........5-80
Problems with parking sensor system ........5-81
Break-in schedule ..................... .5-81
Fuel efficient driving tips ..................5-82
Increasing fuel economy ..................5-83
Four-Wheel Drive (4WD) (if equipped) ..........5-83
Parking ........................... .5-84
Switching off

the engine ................5-86
Extended parking ................... .5-86
Electric power steering system ..............5-86
Brake system .........................5-87
Brake precautions ................... .5-87
Anti-lock Braking System (ABS) ............5-88
Vehicle Dynamic Control (VDC) system .........5-90
Traction Control System (TCS) .............5-91
Characteristics of VDC ..................5-91
EBD (electronic brake force distribution) ......5-92
Steer Control ...................... .5-92
Hill Start Assist (HSA) ................... .5-93

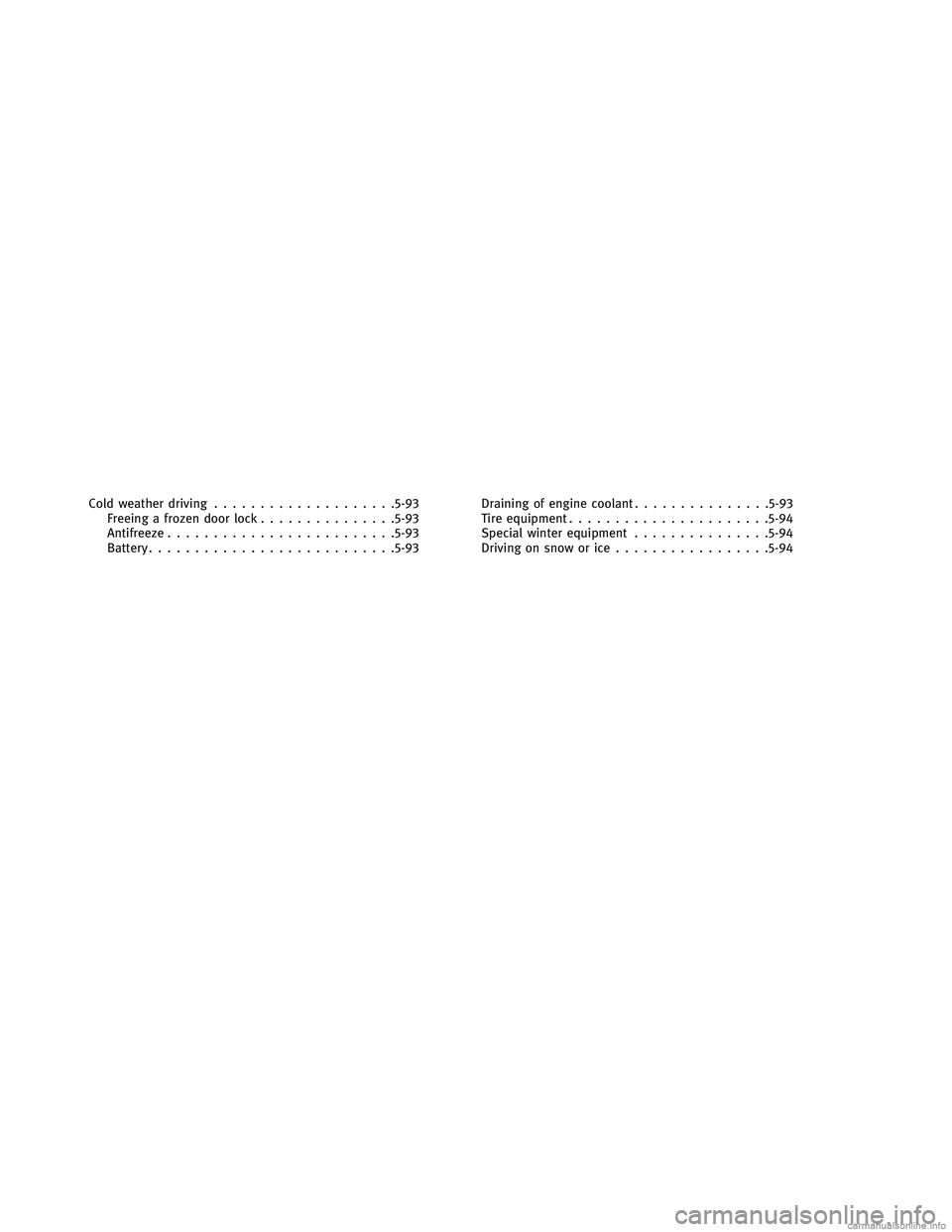

Cold weather driving................... .5-93
Freeing a frozen door lock ...............5-93
Antifreeze .........................5-93
Battery .......................... .5-93Draining of engine coolant
...............5-93
Tire equipment ..................... .5-94
Special winter equipment ...............5-94
Driving on snow or ice .................5-94

WARNING
•Never leave children or adults who would
normally require the support of others alone
in your vehicle. Pets should not be left alone
either. They could unknowingly activate
switches or controls and inadvertently be-
come involved in a serious accident and in-
jure themselves. On hot, sunny days, tem-
peratures in a closed vehicle could quickly
become high enough to cause severe or
possibly fatal illness to people or animals.
•Properly secure all cargo to help prevent it
from sliding or shifting. Do not place cargo
higher than the seatbacks. In a sudden stop
or collision, unsecured cargo could cause
personal injury.
•To avoid raising the center of gravity exces-
sively, do not exceed the rated capacity of
the roof rack (if so equipped) and evenly
distribute the load.
EXHAUST GAS (CARBON MONOXIDE)
WARNING
•Do not breathe exhaust gas; it contains col-
orless and odorless carbon monoxide. Car-
bon monoxide is dangerous. It can cause
unconsciousness or death.
•If you suspect that exhaust fumes are enter-
ing the vehicle, drive with all windows fully
open, and have the vehicle inspected imme-
diately.
•Do not run the engine in closed spaces such
as a garage.
•Do not park the vehicle with the engine run-
ning for an extended period of time.
•Keep the lift gate closed while driving, oth-
erwise exhaust gas could be drawn into the
passenger compartment. If you must drive
with the lift gate open, follow these precau-
tions:– Open all the windows.
– Turn the air recirculation switch off and
set the fan control to the highest level to
circulate the air.
•If electrical wiring or other cable connec-
tions must pass to a trailer through the seal
ion the lift gate or body, follow the manufac- turer’s recommendations to prevent carbon
monoxide entry into the vehicle.
•The exhaust system and body should be
inspected by a qualified mechanic when-
ever:
– You suspect that exhaust fumes are en-
tering into the passenger compartment.
– You notice a change in the sound of the
exhaust system.
– You have had an accident involving dam-
age to the exhaust system, underbody,
or rear of the vehicle.
THREE-WAY CATALYST (IF EQUIPPED)
The three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gas in the three-way catalyst is burned at high
temperatures to help reduce pollutants.
WARNING
•The exhaust gas and the exhaust system
are very hot. Keep people, animals and
flammable materials away from the exhaust
system components.
PRECAUTIONS WHEN STARTING AND
DRIVING
5-4Starting and driving

•Do not stop or park the vehicle over flam-
mable materials such as dry grass, waste-
paper or rags. They may ignite and cause a
fire.
CAUTION
•Do not use leaded gasoline. (SeeRecom-
mended fluids/lubricants and capacities in
the 9. Maintenance and Schedules sec-
tion.) Deposits from leaded gasoline seri-
ously reduce the ability of the three-way
catalyst to help reduce exhaust pollutants
and/or damage the three-way catalyst.
•Keep your engine tuned up. Malfunctions in
the ignition, fuel injection, or electrical sys-
tems may cause overrich fuel to flow into
the three-way catalyst, causing it to over-
heat. Do not keep driving if the engine mis-
fires, or if noticeable loss of performance or
other unusual operating conditions are de-
tected. Have the vehicle inspected
promptly. It is recommended you visit an
INFINITI retailer for this service.
•Avoid driving with an extremely low fuel
level. Running out of fuel could cause the engine to misfire, damaging the three-way
catalyst.
•Do not race the engine while warming it up.
•Do not push or tow your vehicle to start the
engine.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
Each tire, including the spare (if present),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead totire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects
a malfunction, the telltale will flash for approxi-
mately one minute and then remain continu-
ously illuminated. This sequence will continue
upon subsequent vehicle start-ups as long as
the malfunction exists. When the malfunction
indicator is illuminated, the system may not be
able to detect or signal low tire pressure as
intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of
replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from working
properly. Always check the TPMS telltale after
replacing one or more tires or wheels on your
vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS to con-
tinue to function properly.
Starting and driving5-5

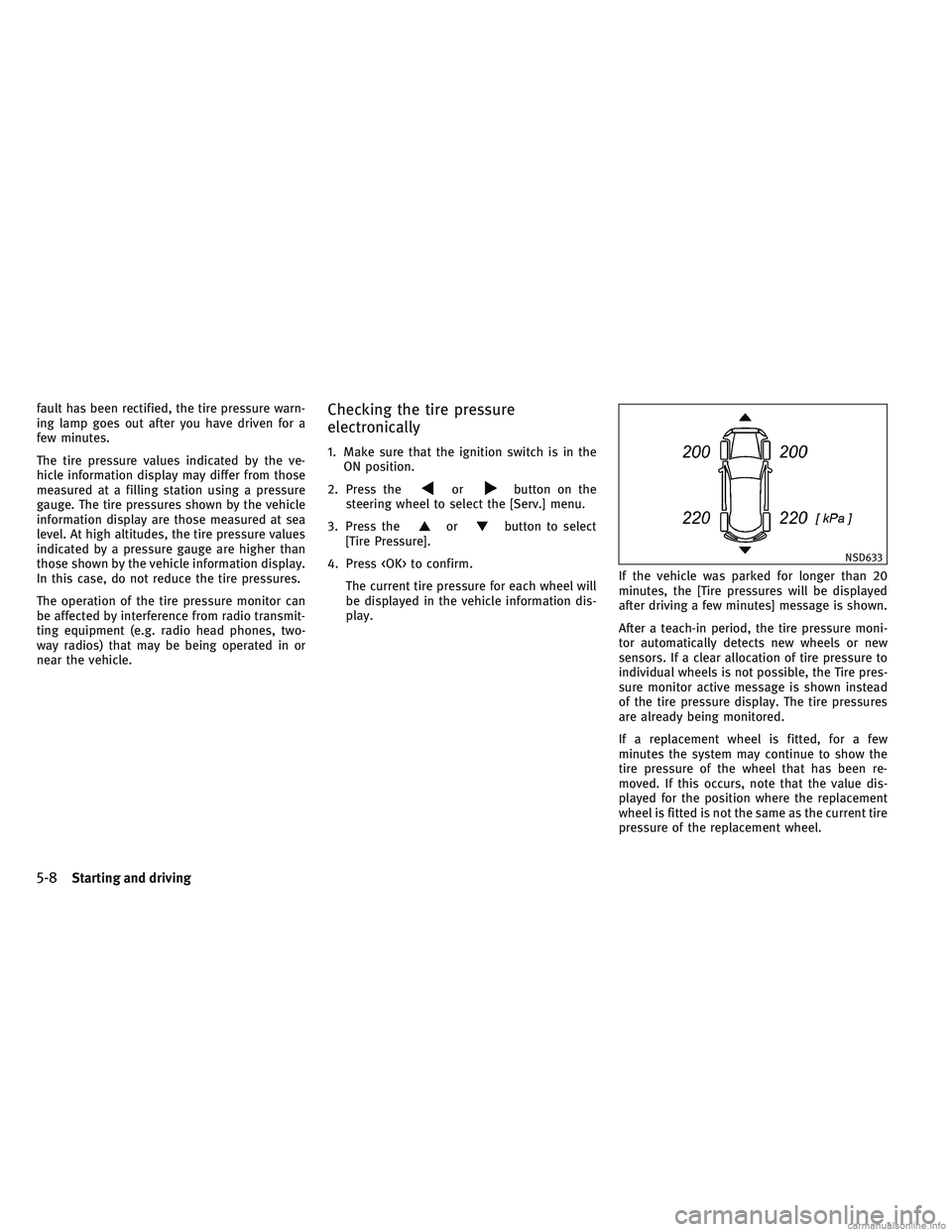

The vehicle’s wheels have sensors fitted that
monitor the tire pressures in all four tires The
tire pressure monitor warns you if the pressure
drops in one or more of the tires The tire
pressure monitor only functions if the corre-
sponding sensors are fitted to all wheels.
Information on tire pressures is shown in the
vehicle information display. After a few minutes
of driving, the current tire pressure of each tire
is shown in the [Serv.] menu of the vehicle
information display.
WARNING
•Radio waves could adversely affect electri-
cal medical equipment. Those who use a
pacemake should contact their electrical
medical equipment manufacturer for the
pssible influences before use.
•If the low tire pressure warning light illumi-
nates or a tire pressure-related warning is
displayed by the vehicle information dis-
play while driving, avoid sudden steering
maneuvers or abrupt braking, reduce ve-
hicle speed, pull off the road to a safe loca-
tion and stop the vehicle as soon as pos-
sible. Driving with under-inflated tires may
permanently damage the tires and increase
the likelihood of tire failure. Serious vehicle
damage could occur and may lead to an ac-cident and could result in serious personal
injury. Check the tire pressure for all four
tires. Adjust the tire pressure to the recom-
mended COLD tire pressure shown on the
tire and loading information label to turn
the low tire pressure warning light OFF. If
you have a flat tire, replace it with a replace-
ment tire as soon as possible.
•If a replacement wheel is fitted without an
INFINITI TPMS Sensor, the TPMS will not
function and the low tire pressure warning
light will flash for approximately 1 minute.
The light will remain on after 1 minute. It is
recommended you contact an INFINITI re-
tailer as soon as possible for tire replace-
ment and/or system resetting.
•For models with run-flat tires, although you
can continue driving with a punctured run-
flat tire, remember that vehicle handling
stability is reduced, which could lead to an
accident and personal injury. Also, driving a
long distance at high speeds may damage
the tires.
– Do not drive at speeds above 50 MPH (80
km/h) and do not drive more than ap-
proximately 93 miles (150 km) with a
punctured run-flat tire. The actual dis-
tance the vehicle can be driven on a flat
NSD633
5-6Starting and driving

tire depends on outside temperature, ve-
hicle load, road conditions and other fac-
tors.
– If you detect any unusual sounds or vi-
brations while driving with a punctured
run-flat tire, pull off the road to a safe
location and stop the vehicle as soon as
possible. The tire may be seriously dam-
aged and need to be replaced.
•Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
•If you used Emergency Tire Sealant to repair
a minor tire puncture, the TPMS sensor
should be checked when repairing or re-
placing the tire (for models equipped with
the emergency tire puncture repair kit). It is
recommended you visit an INFINITI retailer
for this service.
•INFINITI recommends using only INFINITI
Genuine Emergency Tire Sealant provided
with your vehicle. Other tire sealants may
damage the valve stem seal which can
cause the tire to lose air pressure (for mod-
els equipped with the emergency tire punc-
ture repair kit).
CAUTION
•The TPMS may not function properly when
the wheels are equipped with snow chains
or the wheels are buried in snow.
•Do not place metalized film or any metal
parts (antenna, etc.) on the windows. This
may cause poor reception of the signals
from the tire pressure sensors, and the
TPMS will not function properly.
It is the driver’s responsibility to set the tire
pressure to the recommended cold tire pressure
suitable for the operating situation (see
Wheels and tires in the8. Do-it-yourself
section). Note that the correct tire pressure for
the current operating situation must first be
taught-in to the tire pressure monitor (see
Restarting TPMS later in this section).
If there is a substantial loss of pressure, the
warning threshold for the warning message is
aligned to the reference values taught-in. Re-
start the tire pressure monitor after adjusting to
the cold tire pressure. The current pressures are
saved as new reference values. This will ensure
that a warning message will only appear if the
tire pressure drops significantly. The tire pressure monitor does not warn you of
an incorrectly set tire pressure.
TPMS is not able to warn you of a sudden loss
of pressure, e. g. if the tire is penetrated by a
foreign object. In the event of a sudden loss of
pressure, bring the vehicle to a halt by braking
carefully. Avoid abrupt steering maneuvers.
TPMS has a yellow warning lamp in the combi-
nation meter for indicating a pressure loss or
malfunction. Depending on how the warning
lamp flashes or lights up, a tire pressure that is
too low or a malfunction in TPMS is indicated:
•If the warning lamp is lit continuously, the
tire pressure on one or more tires is signifi-
cantly too low. TPMS is not malfunctioning.
•If the warning lamp flashes for around a
minute and then remains lit constantly, the
TPMS is malfunctioning.
In addition to the warning lamp, a message
appears in the vehicle information display. Ob-
serve the information on display messages (see
Safety systems in the2. Instruments and
controls section
It may take up to ten minutes for a malfunction
of the tire pressure monitor to be indicated. A
malfunction will be indicated by the tire pres-
sure warning lamp flashing for approximately
one minute and then remaining lit. When the
Starting and driving5-7

fault has been rectified, the tire pressure warn-
ing lamp goes out after you have driven for a
few minutes.
The tire pressure values indicated by the ve-
hicle information display may differ from those
measured at a filling station using a pressure
gauge. The tire pressures shown by the vehicle
information display are those measured at sea
level. At high altitudes, the tire pressure values
indicated by a pressure gauge are higher than
those shown by the vehicle information display.
In this case, do not reduce the tire pressures.
The operation of the tire pressure monitor can
be affected by interference from radio transmit-
ting equipment (e.g. radio head phones, two-
way radios) that may be being operated in or
near the vehicle.Checking the tire pressure
electronically
1. Make sure that the ignition switch is in theON position.
2. Press the
orbutton on the
steering wheel to select the [Serv.] menu.
3. Press the
orbutton to select
[Tire Pressure].
4. Press to confirm. The current tire pressure for each wheel will
be displayed in the vehicle information dis-
play. If the vehicle was parked for longer than 20
minutes, the [Tire pressures will be displayed
after driving a few minutes] message is shown.
After a teach-in period, the tire pressure moni-
tor automatically detects new wheels or new
sensors. If a clear allocation of tire pressure to
individual wheels is not possible, the Tire pres-
sure monitor active message is shown instead
of the tire pressure display. The tire pressures
are already being monitored.
If a replacement wheel is fitted, for a few
minutes the system may continue to show the
tire pressure of the wheel that has been re-
moved. If this occurs, note that the value dis-
played for the position where the replacement
wheel is fitted is not the same as the current tire
pressure of the replacement wheel.
NSD633
5-8Starting and driving

Tire Pressure Monitoring System
warning messages
If the tire pressure monitor detects a pressure
loss in one or more tires, a warning message is
shown in the vehicle information display and
the yellow tire pressure monitor warning lamp
comes on.
•If the [Please Correct Tire Pressure] (yellow)
message appears in the vehicle information
display, the tire pressure in at least one tire
is too low and must be corrected at the next
opportunity. If the system detects that new
sensors have been fitted (IDs do not match
those stored, and the pressure is not fea-
sible, or is less than 14% under the norm
then the [Please Correct Tire Pressure] mes-
sage will be displayed in white.
•If the [Check Tires] (red) message appears in
the vehicle information display, the tire pres-
sure in one or more tires has dropped sig-
nificantly and the tires must be checked.
•If the [Warning Tire Malfunction] (red) mes-
sage appears in the vehicle information dis-
play, the tire pressure in one or more tires
has dropped suddenly and the tires must be
checked.
•If the [Tire Press. Sensor(s) Missing] mes-
sage appears in the vehicle information dis-
play, one or more sensors are missing or
cannot be detected. This could be the result
of fitting a replacement wheel/tire.
Observe the instructions and safety notes in the
display messages in the vehicle information
display.
If the wheel positions on the vehicle are inter-
changed, the tire pressures may be displayed
for the wrong positions for a short time. After a
few minutes of driving, this is rectified and the
tire pressures are displayed for the correct
positions.
Restarting TPMS
To keep the TPMS functioning properly, the
restart operation must be performed in the
following cases:
•When the tire pressure is adjusted
•When a tire or a wheel is replaced
•When the tires are rotated
When you restart the tire pressure monitor, all
existing warning messages are deleted and the
warning lamps go out. The monitor uses the
currently set tire pressures as the reference
values for monitoring. In most cases, the tire
pressure monitor will automatically detect the new reference values after you have changed
the tire pressure. However, you can also define
reference values manually as described here.
The tire pressure monitor then monitors the
new tire pressure values.
Perform the following procedures to restart the
TPMS.
NOTE
Before restarting, make sure that the tire pres-
sures are set properly on all four tires for the
respective operating conditions. The recom-
mended tire pressures can be found in the tire
pressure placard on the driver’ door pillar.
1. Make sure that the ignition switch is in the
ON position.
2. Press the
orbutton on the
steering wheel to select the [Serv.] menu.
3. Press the
orbutton to select
[Tire Pressure].
4. Press to confirm. The vehicle information display shows the
current tire pressure for each tire or the [Tire
pressures will be displayed after driving a
few minutes] message.
Starting and driving5-9
