INFINITI QX30 2017 Owners Manual

Display settings
1. Push

Volume settings
Volume setting items can be turned on/off and the sound for various functions including audio, phone (ringtone, incoming, and outgoing volumes),
navigation voice guidance (if equipped) and the system beeps can be adjusted.
1. Push

Language settings
From the Language screen, you can change the display language used by the system.
1. Push

Clock settings
Clock settings can be changed.
1. Push

ADDITIONAL SYSTEM INFORMATION
System Start-Up
Due to the large number of features and capa-
bilities that the INFINITI InTouch system needs
to load on start-up, it may take up to a minute
for all functions (such as Apps) to be available.
The system will display the message indicating
that the application is loading during this time.
During the start-up period, hard button controls
for audio will become available before start-up
is complete. Features will become available in
the following order.
•Audio volume and music playback
•Audio Full Screen Access
•Full App Availability – System will display
the message indicating the completion of the
application loading process.
System Response Delay
INFINITI InTouch uses an operating system like
those found on many computers, tablets and
cell phones. Like these devices, processing
speed may vary, and system response delays or
resets may occur intermittently. This does not
indicate a malfunction, and further information
on system operation can be found below.In most situations, simply waiting a few mo-
ments longer should be sufficient for the pend-
ing operations to complete.
If the system temporarily does not respond to
commands, the system can be easily reset.
Simply push down the Audio Power knob for at
least 5 seconds. The system will turn off and
restart.
After restart, all functions should be available.
•Audio will resume, but if you were using
Bluetooth® Audio or an Audio App, the
connection may need to be re-established.
•If a navigation route was set, the route
should resume automatically (models with
navigation system).
•If a phone call was in progress, the call may
be temporarily transferred back to the hand-
set.
System Reset
As noted above, intermittent system resets may
occur during normal operation. You may also
wish to reset the system if you find that a
particular feature is not loading or responding.
Often, a quick system reset will resolve any
issue you may be experiencing. After restart, all
functions will be available as described above.System Updates
Like many digital devices, the INFINITI InTouch
system is designed to allow for software up-
dates as enhancements are developed and ad-
ditional features added. If you have questions
about system performance, it is recommended
you contact your INFINITI retailer to ensure that
your vehicle has had the latest available soft-
ware installed.
Operating Tips
INFINITI InTouch provides several methods of
operation to suit your preferences. The follow-
ing are suggested operating tips.
•Operating the INFINITI Controller, Steering
Wheel Controls, or other controls too quickly
can cause a lag between the control and the
display. Operate the controls carefully and
allow the system to respond to your request.
•INFINITI recommends using Voice Recogni-
tion whenever possible to select options
while driving. Some touch screen functional-
ity is intentionally unavailable during driving.
Please view the available voice commands by
pushing<
>on the steering wheel and
then selecting a category on the display.
4-16Display screen, heater and air conditioner, and audio system

•In some situations, the system may not be
able to recognize your command even if you
say the exact command. This can be due to
noise conditions or an accent.
•Bluetooth® Compatibility: Some wireless
devices do not allow phonebook downloads,
text messaging, or other Bluetooth® audio
functions. Some wireless devices may only
have partial functionality of these features
even though the phone is compatible for
hands-free communication. If your phone is
listed as compatible and you are still expe-
riencing issues, please confirm that your
phone also has the latest software updates.
Additional help
For additional technical information, please
contact us online at OWNERS.www.infinitiusa-
.com or call us at 1–800–662–6200, menu
option 6.
ARearView Monitor display
BINFINITI controller
C

•The RearView Monitor is a convenience fea-
ture but it is not a substitute for proper
backing up. Always turn and look out the
windows, and check mirrors to be sure that
it is safe to move before operating the ve-
hicle. Always back up slowly.
•The system is designed as an aid to the
driver in showing large stationary objects
directly behind the vehicle, to help avoid
damaging the vehicle.
•The distance guide line and the vehicle
width line should be used as a reference
only when the vehicle is on a level paved
surface. The distance viewed on the monitor
is for reference only and may be different
than the actual distance between the ve-
hicle and displayed objects.
CAUTION
Do not scratch the camera lens when cleaning
dirt or snow from the lens.
The RearView Monitor system automatically
shows a rear view of the vehicle when the shift
lever is placed in the R (Reverse) position.
The radio can still be heard while the RearView
Monitor is active.To display the rear view, the RearView Monitor
system uses a camera located just above the
vehicle’s rear license plate
1.
REARVIEW MONITOR SYSTEM
OPERATION
With the ignition switch in the ON position,
move the shift lever to the R (Reverse) position
to operate the RearView Monitor.
HOW TO READ THE DISPLAYED LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper.
•Red line1: approx. 1.5 ft (0.5 m)
•Yellow line2: approx. 3 ft (1 m)
•Green line3: approx. 7 ft (2 m)
•Green line4: approx. 10 ft (3 m)
Vehicle width guide lines
5:
Indicate the approximate vehicle width when
backing up.
NAA1642SAA1896Z
4-18Display screen, heater and air conditioner, and audio system

Predicted course lines6:
Indicate the predicted course when backing up.
The predicted course lines will be displayed on
the monitor when the shift lever is in the R
(Reverse) position and the steering wheel is
turned. The predicted course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
The vehicle width guide lines and the width of
the predicted course lines are wider than the
actual width and course.
DIFFERENCE BETWEEN PREDICTED AND
ACTUAL DISTANCES
The displayed guidelines and their locations on
the ground are for approximate reference only.
Objects on uphill or downhill surfaces or pro-
jecting objects will be actually located at dis-
tances different from those displayed in the
monitor relative to the guidelines (refer to illus-
trations). When in doubt, turn around and view
the objects as you are backing up, or park and
exit the vehicle to view the positioning of
objects behind the vehicle.
Backing up on a steep uphill
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
viewed in the monitor farther than it appears.
Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
viewed in the monitor closer than it appears.
NAA1675NAA1676
Display screen, heater and air conditioner, and audio system4-19

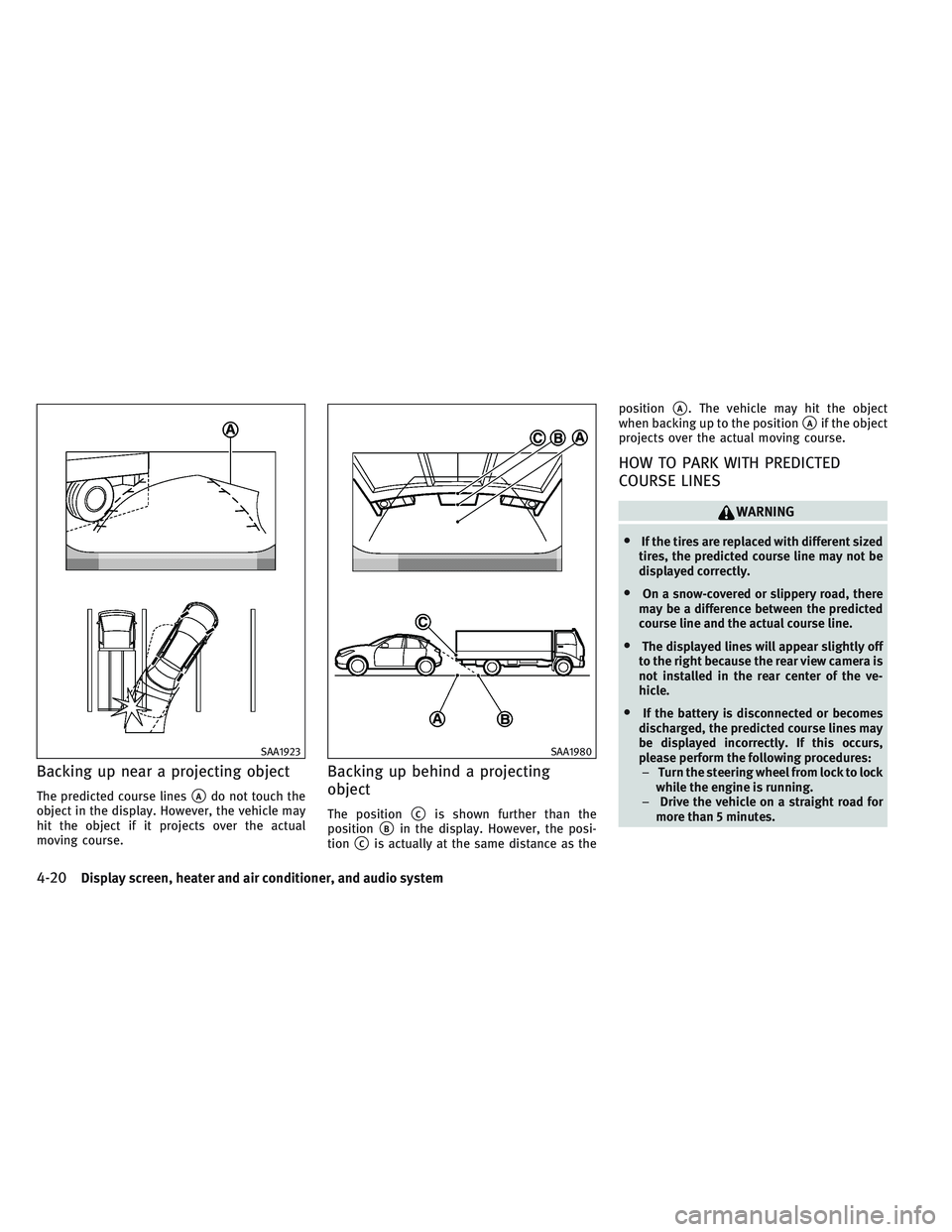

Backing up near a projecting object
The predicted course linesAdo not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual
moving course.
Backing up behind a projecting
object
The positionCis shown further than the
position
Bin the display. However, the posi-
tion
Cis actually at the same distance as theposition
A. The vehicle may hit the object
when backing up to the position
Aif the object
projects over the actual moving course.
HOW TO PARK WITH PREDICTED
COURSE LINES
WARNING
•If the tires are replaced with different sized
tires, the predicted course line may not be
displayed correctly.
•On a snow-covered or slippery road, there
may be a difference between the predicted
course line and the actual course line.
•The displayed lines will appear slightly off
to the right because the rear view camera is
not installed in the rear center of the ve-
hicle.
•If the battery is disconnected or becomes
discharged, the predicted course lines may
be displayed incorrectly. If this occurs,
please perform the following procedures:
–Turn the steering wheel from lock to lock
while the engine is running.
–Drive the vehicle on a straight road for
more than 5 minutes.
SAA1923SAA1980
4-20Display screen, heater and air conditioner, and audio system

•When the steering wheel is turned with the
ignition switch in the ACC position, the pre-
dicted course lines may be displayed
incorrectly.ke
The vehicle width and predicted course lines
are wider than the actual width and course.
1. Visually check that the parking space is safe
before parking your vehicle.2. The rear view of the vehicle is displayed on
the screenAas illustrated when the shift
lever is moved to the R (Reverse) position.
SAA1897
Display screen, heater and air conditioner, and audio system4-21
