Intelligent Cruise Control (ICC) system
(Full speed range) (if equipped)..............5-47
ICC system operation..................5-48
ICC switch (cruise control lever)...........5-49
ICC system display and indicators..........5-49
Operating ICC.......................5-50
ICC Limitations......................5-54
Tips for driving with the ICC system.........5-55
System temporarily unavailable............5-58
System maintenance..................5-59
Forward emergency braking (FEB) system
(if equipped).........................5-60
FEB system operation..................5-61
Turning the FEB system on/off............5-63
FEB system limitations.................5-64
System temporarily unavailable............5-65
System maintenance..................5-66
FCC Notice........................5-66
Active sound enhancement................5-67
Active sound enhancement..............5-67
Intelligent Parking Assist (IPA) (if equipped)......5-68
Important safety notes.................5-68
Detecting parking spaces...............5-69
Parking..........................5-70
Exiting a parking space.................5-72
Canceling IPA.......................5-73Parking sensor system (if equipped)...........5-73
Parking sensor overview................5-75
Range of the sensors..................5-79
Parking sensor system OFF switch..........5-79
Parking sensor function settings...........5-80
Problems with parking sensor system........5-81
Break-in schedule......................5-81
Fuel efficient driving tips..................5-82
Increasing fuel economy..................5-83
Four-Wheel Drive (4WD) (if equipped)
..........5-83
Parking............................5-84
Switching off the engine................5-85
Extended parking....................5-86
Electric power steering system..............5-86
Brake system.........................5-87
Brake precautions....................5-87
Anti-lock Braking System (ABS)............5-88
Vehicle Dynamic Control (VDC) system.........5-90
Traction Control System (TCS).............5-91
Characteristics of VDC..................5-91
EBD (electronic brake force distribution)......5-92
Steer Control.......................5-92
Hill Start Assist (HSA)....................5-93
Cold weather driving....................5-93
Freeing a frozen door lock...............5-93
Antifreeze.........................5-93

CAUTION
•Do not use leaded gasoline. (SeeRecom-
mended fluids/lubricants and capacitiesin
the9. Maintenance and Schedulessec-
tion.) Deposits from leaded gasoline seri-
ously reduce the ability of the three-way
catalyst to help reduce exhaust pollutants
and/or damage the three-way catalyst.
•Keep your engine tuned up. Malfunctions in
the ignition, fuel injection, or electrical sys-
tems may cause overrich fuel to flow into
the three-way catalyst, causing it to over-
heat. Do not keep driving if the engine mis-
fires, or if noticeable loss of performance or
other unusual operating conditions are de-
tected. Have the vehicle inspected
promptly. It is recommended you visit an
INFINITI retailer for this service.
•Avoid driving with an extremely low fuel
level. Running out of fuel could cause the
engine to misfire, damaging the three-way
catalyst.
•Do not race the engine while warming it up.
•Do not push or tow your vehicle to start the
engine.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
Each tire, including the spare (if present),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the sys-
tem is not operating properly. The TPMS malfunc-
tion indicator is combined with the low tire
pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi-
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the mal-
function exists. When the malfunction indicator is
illuminated, the system may not be able to detect
or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of reasons,
including the installation of replacement or alter-
nate tires or wheels on the vehicle that prevent
the TPMS from working properly. Always check
the TPMS telltale after replacing one or more tires
or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
The vehicle’s wheels have sensors fitted that
monitor the tire pressures in all four tires The
tire pressure monitor warns you if the pressure
drops in one or more of the tires The tire
pressure monitor only functions if the corre-
sponding sensors are fitted to all wheels.
Information on tire pressures is shown in the
vehicle information display. After a few minutes
of driving, the current tire pressure of each tire
is shown in the [Serv.] menu of the vehicle
information display.
Starting and driving5-5

WARNING
•Radio waves could adversely affect electri-
cal medical equipment. Those who use a
pacemake should contact their electrical
medical equipment manufacturer for the
pssible influences before use.
•If the low tire pressure warning light illumi-
nates or a tire pressure-related warning is
displayed by the vehicle information dis-
play while driving, avoid sudden steering
maneuvers or abrupt braking, reduce ve-
hicle speed, pull off the road to a safe loca-
tion and stop the vehicle as soon as pos-
sible. Driving with under-inflated tires may
permanently damage the tires and increase
the likelihood of tire failure. Serious vehicle
damage could occur and may lead to an ac-cident and could result in serious personal
injury. Check the tire pressure for all four
tires. Adjust the tire pressure to the recom-
mended COLD tire pressure shown on the
tire and loading information label to turn
the low tire pressure warning light OFF. If
you have a flat tire, replace it with a replace-
ment tire as soon as possible.
•If a replacement wheel is fitted without an
INFINITI TPMS Sensor, the TPMS will not
function and the low tire pressure warning
light will flash for approximately 1 minute.
The light will remain on after 1 minute. It is
recommended you contact an INFINITI re-
tailer as soon as possible for tire replace-
ment and/or system resetting.
•For models with run-flat tires, although you
can continue driving with a punctured run-flat
tire, remember that vehicle handling stability
is reduced, which could lead to an accident
and personal injury. Also, driving a long dis-
tance at high speeds may damage the tires.
–Do not drive at speeds above 50 MPH (80
km/h) and do not drive more than approxi-
mately 93 miles (150 km) with a punctured
run-flat tire. The actual distance the ve-
hicle can be driven on a flat tire depends
on outside temperature, vehicle load, road
conditions and other factors.
–If you detect any unusual sounds or
vibrations while driving with a punctured
run-flat tire, pull off the road to a safe
location and stop the vehicle as soon as
possible. The tire may be seriously dam-
aged and need to be replaced.
•Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
•If you used Emergency Tire Sealant to repair
a minor tire puncture, the TPMS sensor
should be checked when repairing or re-
placing the tire (for models equipped with
the emergency tire puncture repair kit). It is
recommended you visit an INFINITI retailer
for this service.
•INFINITI recommends using only INFINITI
Genuine Emergency Tire Sealant provided
with your vehicle. Other tire sealants may
damage the valve stem seal which can
cause the tire to lose air pressure (for mod-
els equipped with the emergency tire punc-
ture repair kit).
NSD633
5-6Starting and driving

CAUTION
•The TPMS may not function properly when
the wheels are equipped with snow chains
or the wheels are buried in snow.
•Do not place metalized film or any metal
parts (antenna, etc.) on the windows. This
may cause poor reception of the signals
from the tire pressure sensors, and the
TPMS will not function properly.
It is the driver’s responsibility to set the tire
pressure to the recommended cold tire pressure
suitable for the operating situation (see
Wheels and tiresin the8. Do-it-yourself
section). Note that the correct tire pressure for
the current operating situation must first be
taught-in to the tire pressure monitor (see
Restarting TPMSlater in this section).
If there is a substantial loss of pressure, the
warning threshold for the warning message is
aligned to the reference values taught-in. Re-
start the tire pressure monitor after adjusting to
the cold tire pressure. The current pressures are
saved as new reference values. This will ensure
that a warning message will only appear if the
tire pressure drops significantly.
The tire pressure monitor does not warn you of
an incorrectly set tire pressure.TPMS is not able to warn you of a sudden loss
of pressure, e. g. if the tire is penetrated by a
foreign object. In the event of a sudden loss of
pressure, bring the vehicle to a halt by braking
carefully. Avoid abrupt steering maneuvers.
TPMS has a yellow warning lamp in the combi-
nation meter for indicating a pressure loss or
malfunction. Depending on how the warning
lamp flashes or lights up, a tire pressure that is
too low or a malfunction in TPMS is indicated:
•If the warning lamp is lit continuously, the
tire pressure on one or more tires is signifi-
cantly too low. TPMS is not malfunctioning.
•If the warning lamp flashes for around a
minute and then remains lit constantly, the
TPMS is malfunctioning.
In addition to the warning lamp, a message
appears in the vehicle information display. Ob-
serve the information on display messages (see
Safety systemsin the2. Instruments and
controlssection
It may take up to ten minutes for a malfunction
of the tire pressure monitor to be indicated. A
malfunction will be indicated by the tire pres-
sure warning lamp flashing for approximately
one minute and then remaining lit. When the
fault has been rectified, the tire pressure warn-
ing lamp goes out after you have driven for a
few minutes.The tire pressure values indicated by the ve-
hicle information display may differ from those
measured at a filling station using a pressure
gauge. The tire pressures shown by the vehicle
information display are those measured at sea
level. At high altitudes, the tire pressure values
indicated by a pressure gauge are higher than
those shown by the vehicle information display.
In this case, do not reduce the tire pressures.
The operation of the tire pressure monitor can
be affected by interference from radio transmit-
ting equipment (e.g. radio head phones, two-
way radios) that may be being operated in or
near the vehicle.Checking the tire pressure
electronically
1. Make sure that the ignition switch is in the
ON position.
2. Press the
orbutton on the
steering wheel to select the [Serv.] menu.
3. Press the
orbutton to select
[Tire Pressure].
4. Press to confirm.
The current tire pressure for each wheel will
be displayed in the vehicle information dis-
play.
Starting and driving5-7

If the vehicle was parked for longer than 20
minutes, the [Tire pressures will be displayed
after driving a few minutes] message is shown.
After a teach-in period, the tire pressure moni-
tor automatically detects new wheels or new
sensors. If a clear allocation of tire pressure to
individual wheels is not possible, the Tire pres-
sure monitor active message is shown instead
of the tire pressure display. The tire pressures
are already being monitored.
If a replacement wheel is fitted, for a few
minutes the system may continue to show the
tire pressure of the wheel that has been re-
moved. If this occurs, note that the value dis-
played for the position where the replacement
wheel is fitted is not the same as the current tire
pressure of the replacement wheel.
Tire Pressure Monitoring System
warning messages
If the tire pressure monitor detects a pressure loss
in one or more tires, a warning message is shown
in the vehicle information display and the yellow
tire pressure monitor warning lamp comes on.
•If the [Please Correct Tire Pressure] (yellow)
message appears in the vehicle information
display, the tire pressure in at least one tire
is too low and must be corrected at the next
opportunity. If the system detects that new
sensors have been fitted (IDs do not match
those stored, and the pressure is not fea-
sible, or is less than 14% under the norm
then the [Please Correct Tire Pressure] mes-
sage will be displayed in white.
•If the [Check Tires] (red) message appears in
the vehicle information display, the tire pres-
sure in one or more tires has dropped sig-
nificantly and the tires must be checked.
•If the [Warning Tire Malfunction] (red) message
appears in the vehicle information display, the
tire pressure in one or more tires has dropped
suddenly and the tires must be checked.
•If the [Tire Press. Sensor(s) Missing] mes-
sage appears in the vehicle information dis-
play, one or more sensors are missing or
cannot be detected. This could be the result
of fitting a replacement wheel/tire.Observe the instructions and safety notes in the
display messages in the vehicle information
display.
If the wheel positions on the vehicle are inter-
changed, the tire pressures may be displayed
for the wrong positions for a short time. After a
few minutes of driving, this is rectified and the
tire pressures are displayed for the correct
positions.
Restarting TPMS
To keep the TPMS functioning properly, the
restart operation must be performed in the
following cases:
•When the tire pressure is adjusted
•When a tire or a wheel is replaced
•When the tires are rotated
When you restart the tire pressure monitor, all
existing warning messages are deleted and the
warning lamps go out. The monitor uses the
currently set tire pressures as the reference
values for monitoring. In most cases, the tire
pressure monitor will automatically detect the
new reference values after you have changed
the tire pressure. However, you can also define
reference values manually as described here.
The tire pressure monitor then monitors the
new tire pressure values.
NSD633
5-8Starting and driving

WARNING
Failure to follow the warnings and instructions
for proper use of the BSW system could result
in serious injury or death.
•The Blind Spot Warning (BSW) system is
not a replacement for proper driving proce-
dure and is not designed to prevent contact
with vehicles or objects. When changing
lanes, always use the side and rear mirrors
and turn and look in the direction you will
move to ensure it is safe to change lanes.
Never rely solely on the BSW system.
The Blind Spot Warning (BSW) system can help
alert the driver of other vehicles in adjacent
lanes when changing lanes.The BSW system uses radar sensors
Ain-
stalled near the rear bumper to detect other
vehicles beside your vehicle in an adjacent
lane.The radar sensors can detect vehicles on either
side of your vehicle within the detection zone
shown as illustrated. This detection zone starts
from the outside mirror of your vehicle and
extends approximately 10 ft (3 m) behind the
rear bumper, and approximately 10 ft (3 m)
sideways.
NAA1727SSD1030ZDetection zone
BLIND SPOT WARNING (BSW) SYSTEM (IF
EQUIPPED)
Starting and driving5-35

BSW SYSTEM OPERATION
1Side indicator light
2Steering wheel mounted controls
3Vehicle information display
AMENU barThe BSW system operates above approximately
20 MPH (30 km/h). When the BSW is activated,
the side indicator light illuminates in yellow up
to a speed of 20 MPH (30 km/h). At speeds
above 20 MPH (30 km/h), the indicator light
goes out and the BSW system is operational.Illustration 1:If the radar sensors detect a
vehicle in the detection zone, the BSW indicator
light
1located by the outside mirrors illumi-
nates.
NSD623
SSD1026ZIllustration 1
5-36Starting and driving

Illustration 2:If the turn signal is then acti-
vated, the system chimes (twice) and the BSW
indicator light flashes. The BSW indicator light
continues to flash until the detected vehicles
leave the detection zone.
NOTE
•The BSW indicator lights illuminate for a few
seconds when the ignition switch is placed in
the ON position.
•The brightness of the BSW indicator lights is
adjusted automatically depending on the
brightness of the ambient light.
•If a vehicle comes into the detection zone
after the driver activates the turn signal, then
only the BSW indicator light flashes and no
chime sounds. (SeeAnother vehicle ap-
proaching from behindlater in this section.)A chime sounds if the radar sensors have
already detected vehicles when the driver acti-
vates the turn signal.
WARNING
•Do not use the BSW system when towing a
trailer because the system may not function
properly.
•Excessive noise (for example audio system
volume, open vehicle window) will interfere
with the chime sound, and it may not be
heard.
•The radar sensors may not be able to detect
and activate BSW when certain objects are
present such as:
–Pedestrians, bicycles, animals
–Several types of vehicles such as motor-
cycles
–Oncoming vehicles
–Vehicles remaining in the detection
zone when you accelerate from a stop.
–A vehicle merging into an adjacent lane
at a speed approximately the same as
your vehicle.
–A vehicle approaching rapidly from be-
hind.
–A vehicle which your vehicle overtakes
rapidly.
•Severe weather or road spray conditions
may reduce the ability of the radar to detect
other vehicles.
•The radar sensors detection zone is de-
signed based on a standard lane width.
When driving in a wider lane, the radar sen-
sors may not detect vehicles in an adjacent
lane. When driving in a narrow lane, the
radar sensors may detect vehicles driving
two lanes away.
•The radar sensors are designed to ignore
most stationary objects, however objects
such as guardrails, walls, foliage and
parked vehicles may occasionally be de-
tected. This is a normal operating condition.
SSD1031ZIllustration 2
Starting and driving5-37

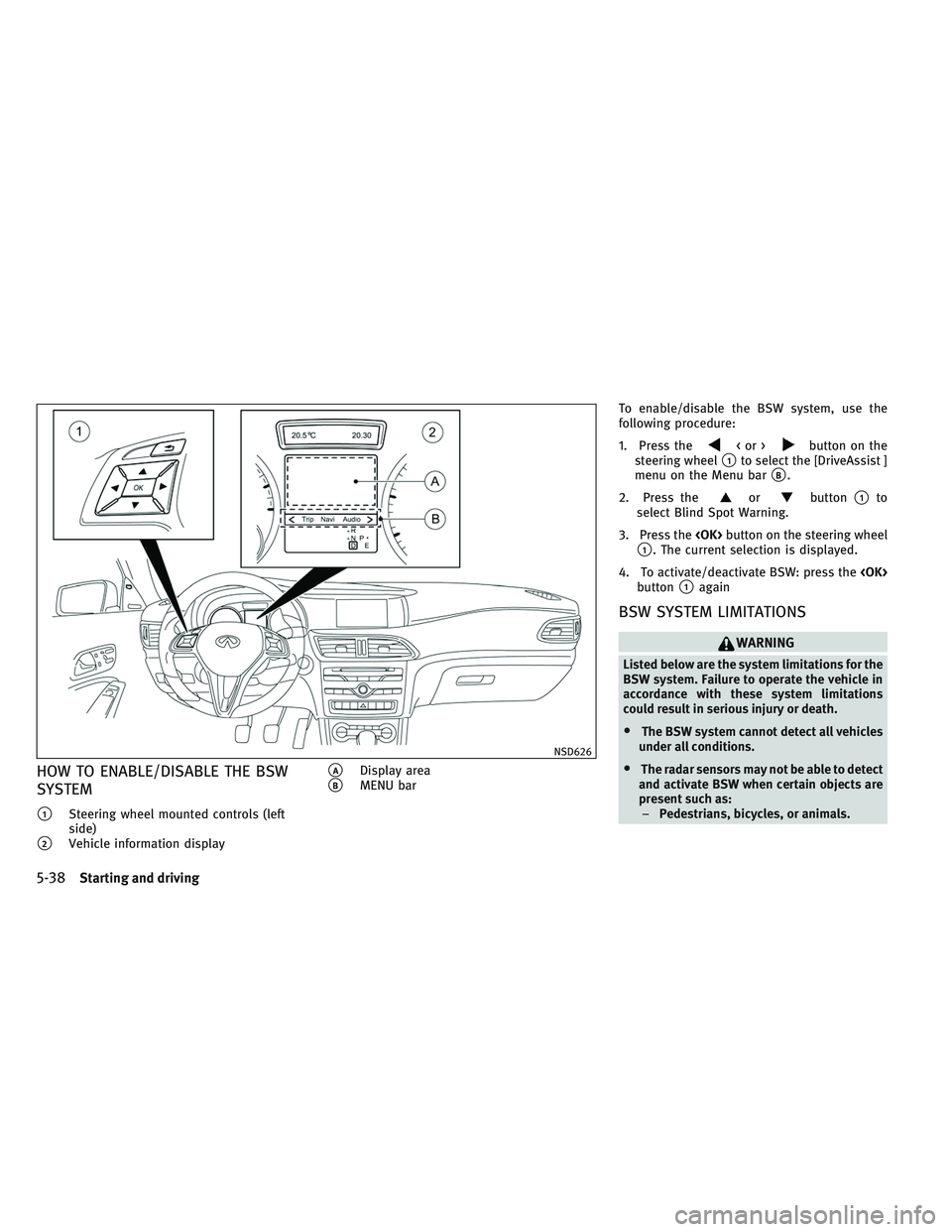

HOW TO ENABLE/DISABLE THE BSW
SYSTEM
1Steering wheel mounted controls (left
side)
2Vehicle information display
ADisplay area
BMENU barTo enable/disable the BSW system, use the
following procedure:
1. Press the
button on the
steering wheel
1to select the [DriveAssist ]
menu on the Menu bar
B.
2. Press the
orbutton1to
select Blind Spot Warning.
3. Press thebutton on the steering wheel
1. The current selection is displayed.
4. To activate/deactivate BSW: press the
button
1again
BSW SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for the
BSW system. Failure to operate the vehicle in
accordance with these system limitations
could result in serious injury or death.
•The BSW system cannot detect all vehicles
under all conditions.
•The radar sensors may not be able to detect
and activate BSW when certain objects are
present such as:
–Pedestrians, bicycles, or animals.
NSD626
5-38Starting and driving

–Vehicles such as motorcycles, low
height vehicles, or high ground clear-
ance vehicles.
–Oncoming vehicles.
–Vehicles remaining in the detection
zone when you accelerate from a stop.
–A vehicle merging into an adjacent lane
at a speed approximately the same as
your vehicle.
–A vehicle that is too close to your ve-
hicle.
–A vehicle approaching rapidly from be-
hind.
–A vehicle which your vehicle overtakes
rapidly.
•The radar sensors detection zone is de-
signed based on a standard lane width.
When driving in a wider lane, the radar sen-
sors may not detect vehicles in an adjacent
lane. When driving in a narrow lane, the
radar sensors may detect vehicles driving
two lanes away.
•The radar sensors are designed to ignore
most stationary objects, however objects
such as guardrails, walls, foliage and
parked vehicles may occasionally be de-
tected. This is a normal operating condition.
•The following conditions may reduce the
ability of the radar to detect other vehicles:
–Severe weather
–Road spray
–Ice build-up on the vehicle
–Frost build-up on the vehicle
–Dirt build- up on the vehicle
•Do not attach stickers (including transpar-
ent material), install accessories or apply
additional paint near the radar sensors.
These conditions may reduce the ability of
the radar to detect other vehicles.
•Do not use the BSW system when towing a
trailer because the system may not function
properly.
•Excessive noise (e.g. audio system volume,
open vehicle window) will interfere with the
chime sound, and it may not be heard.
•The BSW system may not provide a warning
for vehicles that pass through the detection
zone quickly.
Another vehicle approaching from
behind
Illustration 1: The BSW indicator light illumi-
nates if a vehicle enters the detection zone from
behind in an adjacent lane.
However, if the overtaking vehicle is travelling
much faster than your vehicle, the indicator
light may not illuminate before the detected
vehicle is beside your vehicle. Always use the
side and rear mirrors and turn and look in the
direction your vehicle will move to ensure it is
safe to change lanes.
SSD1026ZIllustration 1 – Approaching from behind
Starting and driving5-39
