INSTRUMENT BRIGHTNESS CONTROL
The light sensor in the combination meter au-
tomatically controls the brightness of the in-
strument panel
In daylight, the displays in the combination
meter are not illuminated
The lighting in the combination meter, displays
and controls in the vehicle interior can be
adjusted using the brightness control knob.
The brightness control knob
1is located be-
hind the steering wheel.
Turn the brightness control knob clockwise or
counterclockwise. If the light switch is set to
orthe brightness is dependent
upon the brightness of the ambient light.
FRONT FOG LIGHTS
In conditions where visibility is poor due to fog,
snow or rain, the fog lights improve visibility as
well as making it easier for other road users to
see you. They can be operated together with the
side lights or together with the side lights and
low beam headlights.
To switch on the fog lights:
•Turn the ignition switch to the ON position or
start the engine.
•Turn the light switch toor.
•Press thebutton. The greenindicator light in the combination meter
lights upTo switch off the front fog lights:
•press thebutton The greenindicator light in the combination meter
turns off.
Only vehicles with front fog lights are equipped
with the “Fog lights” function.
REAR FOG LIGHT
The rear fog light improves the visibility of your
vehicle in heavy fog for the following traffic.
Please observe the country-specific laws on the
use of rear fog lights.
NOTE
The front fog lights must be switched on before
the rear fog light will operate.
To switch on the rear fog light:
•Turn the ignition switch to the ON position or
start the engine.
•Turn the light switch toor.
•Press thebutton. The yellowindicator light in the combination meter
lights up
NIC2615NIC2699
FOG LIGHT SWITCH (IF SO EQUIPPED)
2-68Instruments and controls

Press and hold thebutton until the side
windows are in the desired position.
To interrupt convenience opening: release the
button.
Convenience closing feature
WARNING
When the convenience closing feature is oper-
ating, parts of the body could become trapped
in the closing area of the side window. There is
a risk of injury. Observe the complete closing
procedure when the convenience closing fea-
ture is operating. When closing make sure that
no parts of the body are in the closing area.
For vehicles with Intelligent key:The key can
also be used to carry out the following functions
simultaneously:
•Lock the vehicle
•Close the side windows
The driver’s door and the door at which the
handle is used must both be closed. The key
must be outside the vehicle. The gap between
the key and the corresponding door handle
should not be greater than 1 m.
Press and hold the
button until the side
windows are fully closed.To interrupt convenience closing: release the
button.
You can also use the keyless locking feature to
activate convenience closing:
Touch recessed sensor surface
1on the door
handle until the side windows are fully closed.
NOTE
Make sure you only touch recessed sensor sur-
face
1.
To interrupt convenience opening: release the
recessed sensor surface
1on the door handle.
Resetting the side windows
If a side window can no longer be closed fully,
you must reset it.
1.
Switch the ignition switch to the ON position.
2. Close the door.
3. Pull the corresponding switch on the door
control panel until the side window is com-
pletely closed
4. Hold the switch for an additional second.
NPA1478
Instruments and controls2-73

To unlock the vehicle:touch the inner surface of
the door handle.
To lock the vehicle:touch sensor surface
1.or
2.
Make sure that you do not touch the inner
surface of the door handle.
Convenience closing feature:touch recessed
sensor surface
1for an extended period. (See
Convenience closing featurein the
2. Instruments and controlssection).To unlock the lift gate: press the lift gate switch
1.
When unlocking, the turn signals flash once
When locking, they flash three times.
NOTE
When the locator lighting is activated, it lights
up when it is dark after the vehicle is unlocked
with the intelligent key (see separate operating
instructions).
You can also set an audible signal to con firm
that the vehicle has been locked. The audible
signal can be activated or deactivated using the
on-board computer (seeActivating/
deactivating the acoustic locking confirmation
in the2. Instruments and controlssection)LOCKING WITH THE MECHANICAL KEY
The driver’s door can be locked/unlocked from
outside using the mechanical key if the battery
is dead.
To lock the door, insert the mechanical key into
the driver’s door key cylinder and turn it to-
wards the front of the vehicle
1.
To unlock the door, turn the key towards the
rear of the vehicle
2.
SeeMechanical keyearlier in this section for
instructions on accessing the Intelligent Key
system mechanical key.
NPA1489NPA1479SPA2602Z
Pre-driving checks and adjustments3-5

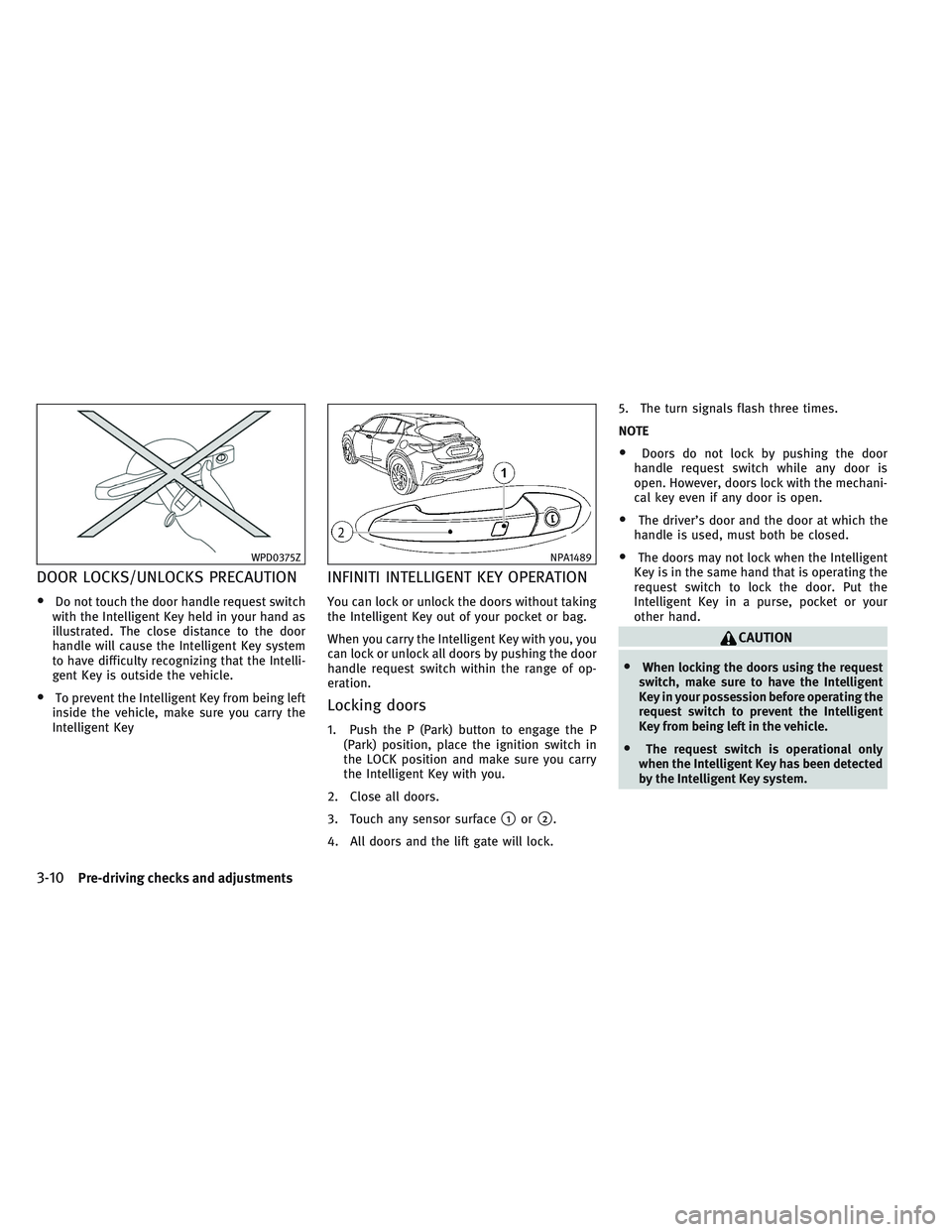

DOOR LOCKS/UNLOCKS PRECAUTION
•Do not touch the door handle request switch
with the Intelligent Key held in your hand as
illustrated. The close distance to the door
handle will cause the Intelligent Key system
to have difficulty recognizing that the Intelli-
gent Key is outside the vehicle.
•To prevent the Intelligent Key from being left
inside the vehicle, make sure you carry the
Intelligent Key
INFINITI INTELLIGENT KEY OPERATION
You can lock or unlock the doors without taking
the Intelligent Key out of your pocket or bag.
When you carry the Intelligent Key with you, you
can lock or unlock all doors by pushing the door
handle request switch within the range of op-
eration.
Locking doors
1. Push the P (Park) button to engage the P
(Park) position, place the ignition switch in
the LOCK position and make sure you carry
the Intelligent Key with you.
2. Close all doors.
3. Touch any sensor surface
1or2.
4. All doors and the lift gate will lock.5. The turn signals flash three times.
NOTE
•Doors do not lock by pushing the door
handle request switch while any door is
open. However, doors lock with the mechani-
cal key even if any door is open.
•The driver’s door and the door at which the
handle is used, must both be closed.
•The doors may not lock when the Intelligent
Key is in the same hand that is operating the
request switch to lock the door. Put the
Intelligent Key in a purse, pocket or your
other hand.
CAUTION
•When locking the doors using the request
switch, make sure to have the Intelligent
Key in your possession before operating the
request switch to prevent the Intelligent
Key from being left in the vehicle.
•The request switch is operational only
when the Intelligent Key has been detected
by the Intelligent Key system.
WPD0375ZNPA1489
3-10Pre-driving checks and adjustments

Unlocking doors
1. Carry the Intelligent Key.
2. Touch the inner surface of the door handle.
3. All doors and the lift gate will unlock.
4. The turn signals flash once.
CHANGING THE SETTINGS OF THE
LOCKING SYSTEM
You can change the settings of the locking
system. This means that only the driver’s door
and the fuel-filler lid are unlocked when the
vehicle is unlocked. This is useful if you fre-
quently travel alone.
To change the setting:simultaneously press the
andbuttons for approximately 6
seconds.
NOTE
If the setting of the locking system is changed
within the signal range of the vehicle, pressing
the
andbutton will lock or unlock
the vehicle.The key now functions as follows:
To unlock the driver’s door:press the
button once.
To unlock centrally:press the
button
twice.
To lock centrally:press the
button.
The Intelligent key function is changed as fol-
lows:
To unlock the driver’s door:touch the inner
surface of the door handle on the driver’s door.
To unlock centrally:touch the inner surface of
the door handle on the front passenger door or
the rear door.
To lock centrally:touch the outer sensor surface
on one of the door handles
To restore the factory settings:simultaneously
press the
andbutton for approxi-
mately 6 seconds.
Pre-driving checks and adjustments3-11

Bird’s-eye view:
WARNING
•Objects in the bird’s-eye view will appear
farther than the actual distance.
•Tall objects, such as a curb or a vehicle, may
be misaligned or not displayed at the seam
of the views.
•Objects that are above the camera cannot
be displayed.
•The view for the bird’s-eye view may be
misaligned when the camera position al-
ters.
•A line on the ground may be misaligned and
is not seen as being straight at the seam of
the views. The misalignment will increase
as the line proceeds away from the vehicle.
•Tire angle display does not indicate the
actual tire angle.
The bird’s-eye view shows the overhead view of the
vehicle, which helps confirm the vehicle position.
The vehicle icon1shows the position of the
vehicle.
NOTE
The size of the vehicle icon on the bird’s-eye view
may differ somewhat from the actual vehicle.
The areas that the cameras cannot cover2are
indicated in black.
The non-viewable area
2is highlighted in
yellow for several seconds after the bird’s-eye
view is displayed. It will be shown only the first
time after the ignition switch is placed in the ON
position.
When the corner of the vehicle moves closer to
an object, the corner sensor indicator
3ap-
pears.Front-side view
:
Guiding lines that indicate the approximate
width and the front end of the vehicle are
displayed on the monitor.
The front-of-vehicle line
1shows the front part
of the vehicle.
The side-of-vehicle line
2shows the approxi-
mate vehicle width including the outside mir-
rors.
The extensions
3of both the front1and side
2lines are shown with a green dotted line.
The corner sensor indicator
4will appear
when a corner of the vehicle moves closer to an
object.
NAA1681SAA1842ZLeft-Hand Drive (LHD) models*
4-28Display screen, heater and air conditioner, and audio system

A[Settings] key
B

MOD SYSTEM OPERATION
The MOD system will activate automatically
under the following conditions:
•When the shift lever is in the R (Reverse)
position.
•When thebutton is pressed to
switch from a different screen to the camera
view on the display.
•When vehicle speed decreases below ap-
proximately 5 MPH (8 km/h).
•When the ignition switch is placed in the OFF
position and then back to the ON position.
NOTE
•The MOD system does not detect moving
objects in the front-side view. The MOD icon
is not displayed on the screen when in this
view.
•While the parking sensor warning tone is
sounding, the MOD system does not chime.The MOD system operates in the following
conditions when the camera view is displayed:
When the shift lever is in the R (Reverse)
position and the vehicle speed is approximately
5 MPH (8 km/h ) or less, the MOD system
detects moving objects in the camera view. The
MOD system will not operate if the lift gate is
open.
When the MOD system detects moving objects
near the vehicle, a chime will be heard and a
yellow frame
1will be displayed on the moni-
tor.
While the MOD system continues to detect
moving objects, the yellow frame continues to
be displayed.The yellow frame
1is displayed on each view
in the rear view modes.
A blueicon is displayed in the view
where the MOD system is operative. A gray
MOD icon is displayed in the view where the
MOD system is not operative.
NAA1781Bird’s-eye viewNAA1782Front view / rear view
Display screen, heater and air conditioner, and audio system4-39

Setting item Result
[Navigation]* Display the Navigation setting screen.
Refer to the Navigation Owner’s Manual for details.
[Audio]Display the Audio settings screen.
SeeAudio settingsearlier in this section
[Screen] Set the screen display to the preferred settings.
SeeScreen settingsearlier in this section
[Volume Adjustment] Set the volume for each item.
SeeVolume settingsearlier in this section
[Clock]Set the Clock to your preferred settings.
SeeClock settingsearlier in this section
[InTouch Services] Set INFINITI InTouch
TMServices.
Refer to the Navigation Owner’s Manual for details.
[Voice recognition] Set Minimize Voice Feedback to on/off and the audio setting for voice recognition use.
[Camera/Sonar] Set the camera and parking sensor (sonar) to the preferred settings.
SeeAround View Monitor settingearlier in this section
[Other] [Language] Set the language to the preferred settings.
SeeLanguage settingsearlier in this section
[Keyboard Type] Set the Keyboard Type to [QWERTY] or [ABC].
[Low on Fuel Alert] Set the fuel low notification to on/off.
[Software information] Display the software information.
* : Models with navigation system.
NOTE
•The displayed items vary depending on the
vehicle model and equipped options.
•The order of displayed items can be sorted.
Display screen, heater and air conditioner, and audio system4-123

MONITOR SYSTEM
Symptom Possible cause Possible solution
The image on the display is not clear. The front of the camera lens is dirty. Gently wipe off the dirt with a damp soft cloth.
Moisture drops such as rain or snow form on the
camera lens.Gently wipe off the drops with a soft cloth.
Light such as sunlight or a headlight beam from
another vehicle directly enters the camera.This is not a malfunction. It will return to normal
when the light disappears.
Moisture condensation occurs in the camera lens due
to rapid temperature change.This is not a malfunction. It will return to normal after
driving for short period of time.
Objects on the display may not be clear in a dark
place or at night.Adjust the brightness or the contrast settings of the
screen.
The image on the display flickers. The vehicle is under fluorescent light. This is not a malfunction.
The colors of the object on the display look different
from those of the actual object.This is a typical phenomenon for cameras. This is not a malfunction.
Image does not appear on the display. The shift lever is not shifted to the R (Reverse)
position.Shift the shift lever to the R (Reverse) position.
[Automatic Display with Sonar] is OFF. Set [Automatic Display with Sonar] to ON.
The image appears on the display from the wrong
angle.The lift gate is open. Close the lift gate.
The image on the display is not clearly visible. Strong light or reflected light enters the camera. This is not a malfunction.
The sensor is not detective. There is ice or snow on the sensor. Flush out ice and snow with warm water.
There is dirt, mud or wax on the sensor. Gently wipe off the dirt with a damp soft cloth.
Vertical lines appear on the image. Strong reflected light from the bumper enters the
camera.This is not a malfunction.
Display screen, heater and air conditioner, and audio system4-137
