Radio frequency statement
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harm-
ful interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
NOTE
Changes or modification not expressly approved
by the party responsible for compliance could
void the user’s authority to operate the equip-
ment.
For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this
device may not cause harmful interference, and
(2) this device must accept any interference re-
ceived, including interference that may cause
undesired operation of the device.
WARNING
Failure to follow the warnings and instructions
for proper use of the FEB system could result in
serious personal injury or death.
•The FEB system is a supplemental aid to the
driver. It is not a replacement for the driver’s
attention to traffic conditions or responsi-
bility to drive safely. It cannot prevent acci-
dents due to carelessness or dangerous
driving techniques.
•The FEB system does not function in all
driving, traffic, weather and road
conditions.
The FEB system can assist the driver when there
is a risk of a forward collision with the vehicle
ahead in the traveling lane.The FEB system uses a radar sensorAlocated
behind the INFINITI logo to measure the dis-
tance to the vehicle ahead in the traveling lane.
NSD645
FORWARD EMERGENCY BRAKING (FEB)
SYSTEM (IF EQUIPPED)
5-60Starting and driving

Distance warning function
The distance warning function can help you to
minimize the risk of a collision with the vehicle
in front or reduce the effects of such a collision.
If the distance warning function detects that
there is a risk of a collision, you will be warned
visually and audibly.
The distance warning function issues a warning
at speeds:
•Of approximately 20 MPH (30 km/h) or
more, if, over several seconds the distance
maintained to the vehicle traveling in front is
insufficient. The distance warning light then
lights up in the combination meter.
•Of approximately 4 MPH (7 km/h) or more, if
you rapidly approach a vehicle in front. An
intermittent warning tone will then sound
and the distance warning light will light up in
the combination meter.
If a warning is issued:
•Brake immediately in order to increase the
distance from the vehicle in front.
or
•Take evasive action provided it is safe to do
so.
WARNING
Due to the nature of the system, particularly
complicated but non-critical driving conditions
may also cause the system to display a
warning.
Up to a speed of approximately 45 MPH (70
km/h), the distance warning function can also
react to stationary (stopped or parked) vehicles.
If you approach a stationary vehicle and the
distance warning function detects a risk of a
collision, the system will alert you both visually
and acoustically.
Autonomous braking function
If the driver does not react to the distance
warning signal in a critical situation, the FEB
system can assist with the autonomous braking
function
The autonomous braking function can help the
driver to avoid an accident or reduces the
effects of an accident.
The autonomous braking function is available in
the following speed ranges:
•4–125 MPH (7-200 km/h) for moving ve-
hicles
•4–30 MPH (7 -50 km/h) for stationary ve-
hicles
Adaptive brake assist function
Adaptive brake assist function provides braking
assistance in hazardous situations at speeds
above 4MPH (7 km/h). It uses radar sensor
technology to assess the traffic situation.
If the system detects a risk of collision with the
vehicle in front, it calculates the braking force
necessary to avoid a collision. If you apply the
brakes forcefully, the adaptive brake assist
function will automatically increase the braking
force to a level suitable for the traffic condi-
tions.
NSD598Distance warning light
5-62Starting and driving

2. Press theorbutton to select
[Emergency Brake].
3. Press thebutton on the steering wheel
1. The current selection is displayed.
4. To activate/deactivate the FEB system:
press thebutton again
When the FEB system is deactivated, the
symbolCappears in the vehicle information
display.
NOTE
The FEB system will be automatically turned on
when the engine is restarted.
FEB SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for the
FEB system. Failure to operate the vehicle in
accordance with these system limitations
could result in serious injury or death.
•The FEB system cannot detect all vehicles
under all conditions.
•The radar sensor does not detect the follow-
ing objects:
–Pedestrians or animals
–Oncoming vehicles
–Crossing vehicles
•The radar sensor has some performance
limitations. For stationary vehicles, the FEB
system will not function when the vehicle is
driven at speeds over:
–Approximately 31 MPH (50 km/h) for the
Autonomous braking function.
•The radar sensor may not detect a vehicle
ahead in the following conditions:
–Dirt, ice, snow or other material covering
the radar sensor.
–Interference by other radar sources.
–Snow or heavy rain.
–If the vehicle ahead is narrow (e.g. mo-
torcycle).
–If the vehicle ahead is in a different lane.–Under strong radar reflections, for ex-
ample, in a multi-level parking garage.
–New vehicle or after a maintenance of
the FEB system. For additional informa-
tion, seeBreak-in schedulelater in this
section
–When driving on a steep downhill slope
or roads with sharp curves.
–When towing a trailer.
•In some road or traffic conditions, the FEB
system may intervene unnecessarily or give
an unnecessary warning. Always pay care-
ful attention to the traffic situation. Do not
rely solely on the distance warning function
and terminate the intervention if necessary.
•Braking distances increase on slippery sur-
faces.
•The system is designed to automatically check
the sensor’s functionality, within certain limi-
tations. The system may not detect some forms
of obstruction of the sensor area such as ice,
snow, stickers, for example. In these cases, the
system may not be able to warn the driver prop-
erly. Be sure that you check, clean and clear the
sensor area regularly.
•Excessive noise will interfere with the warn-
ing chime sound, and the chime may not be
heard.
NSD630
5-64Starting and driving

SYSTEM TEMPORARILY UNAVAILABLE
If the FEB stops working due to a malfunction or
some other reason, one of the following three
messages will be displayed in the vehicle infor-
mation display.
•[Emergency Brake Currently Unavailable See
Operator’s Manual]
•[Emergency Brake Inoperative]
•[Radar Sensors Dirty See Operator’s Manual]
For each of these messages, possible causes
and solutions are listed below.
[Emergency Brake Currently Unavailable See
Operator’s Manual]:The FEB system is tempo-
rarily inoperative. Possible causes:
•The radar sensor system is temporarily
inoperative, for example, due to electromag-
netic radiation emitted by nearby TV or radio
stations or other sources of electromagnetic
radiation.
•The system is outside the operating tem-
perature range.
•The on-board voltage is too low.
Once the causes listed above no longer apply,
the display message goes out. The FEB system
is operative again.If the display message does not disappear:
•Pull over and stop the vehicle safely as soon
as possible, paying attention to road and
traffic conditions.
•Secure the vehicle against rolling away.
•Switch off the engine.
[Emergency Brake Inoperative]:The FEB system
is temporarily inoperative due to a malfunction.
The adaptive brake assist function may also
have failed.
It is recommended you visit an INFINITI retailer.
[Radar Sensors Dirty See Operator’s Manual]:
The FEB system is temporarily restricted or
inoperative. Possible causes:
•The sensor behind the INFINITI logo is dirty.
•The function of the FEB system is impaired
due to heavy rain or snow.
A warning tone also sounds.
Once the causes listed above no longer apply,
the display message goes out. The FEB system
is operative again.If the display message does not disappear:
•Pull over and stop the vehicle safely as soon
as possible, paying attention to road and
traffic conditions.
•Secure the vehicle against rolling away.
•Switch off the engine.
•Clean the area around the sensors.
•Restart the engine. The display message
disappears.
Starting and driving5-65

SYSTEM MAINTENANCE
The sensorAis located behind the INFINITI
logo at the front of the vehicle.
To keep the system operating properly, be sure
to observe the following:
•Always keep the sensor area of the INFINITI
logo clean.
•Do not strike or damage the areas around
the sensor.
•Do not cover or attach stickers or similar
objects on the front bumper near the sensor
area. This could cause failure or malfunction.
•Do not attach metallic objects near the
sensor area (brush guard, etc.). This could
cause failure or malfunction.
•Do not alter, remove or paint the front grille
or INFINITI logo.
FCC NOTICE
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harm-
ful interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
NOTE
Changes or modification not expressly approved
by the party responsible for compliance could
void the user’s authority to operate the equip-
ment.
For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this
device may not cause harmful interference, and
(2) this device must accept any interference re-
ceived, including interference that may cause
undesired operation of the device.
NSD645
5-66Starting and driving

IPA is an electronic parking aid with ultrasound.
It detects vehicles and open spaces on both
sides of the vehicle. A parking symbol indicates
a suitable parking space. Active steering inter-
vention can assist you during parking and when
exiting a parking space. The driver controls the
accelerator, brake and gear shift. You may also
use the parking sensor system (seeParking
sensor system (if equipped)later in this sec-
tion).
IMPORTANT SAFETY NOTES
WARNING
•IPA is only an aid. It is not a substitute for
your attention to the immediate surround-
ings. The responsibility for safe maneuver-
ing and parking remains with you.
•Make sure that no persons, animals or ob-
jects are in the maneuvering range
•When the parking sensor system is deacti-
vated, IPA is also unavailable.
•While parking or pulling out of a parking
space, the vehicle swings out and can drive
onto areas of the oncoming lane. This could
cause you to collide with other road users.
There is a risk of an accident.
•Pay attention to other road users. Stop the
vehicle if necessary or cancel the IPA park-
ing procedure
•This system is not designed to prevent con-
tact with small or moving objects.
•If your vehicle sustains damage to the bumper
fascia, leaving it misaligned or bent, the sens-
ing zone may be altered causing inaccurate
measurement of obstacles or false alarms.
•This system is not designed to prevent con-
tact with small or moving objects.
•If your vehicle sustains damage to the bumper
fascia, leaving it misaligned or bent, the sens-
ing zone may be altered causing inaccurate
measurement of obstacles or false alarms.
CAUTION
Do not drive over obstacles such as curbs, as
you may damage the wheels or tires.
IPA may also display spaces not suitable for
parking, for example:
•Parking or stopping prohibition.
•In front of driveways or entrances and exits.
•Unsuitable surfaces.Parking tips:
•On narrow roads, drive as closely as pos-
sible past the parking space.
•Parking spaces that are littered or over-
grown might be identified or measured incor-
rectly.
•Parking spaces that are partly occupied by
trailer towing bars might not be identified as
such or be measured incorrectly.
•Snowfall or heavy rain may lead to a parking
space being measured inaccurately.
•Pay attention to the parking sensor system
warning messages during the parking proce-
dure.
•You can intervene in the steering procedure
to correct it at any time. IPA will then be
canceled.
•When transporting a load which protrudes
from your vehicle, you should not use IPA.
•Never use IPA when snow chains are fitted.
•Make sure that the tire pressures are always
correct. This has a direct influence on the
parking characteristics of the vehicle.
INTELLIGENT PARKING ASSIST (IPA) (IF
EQUIPPED)
5-68Starting and driving

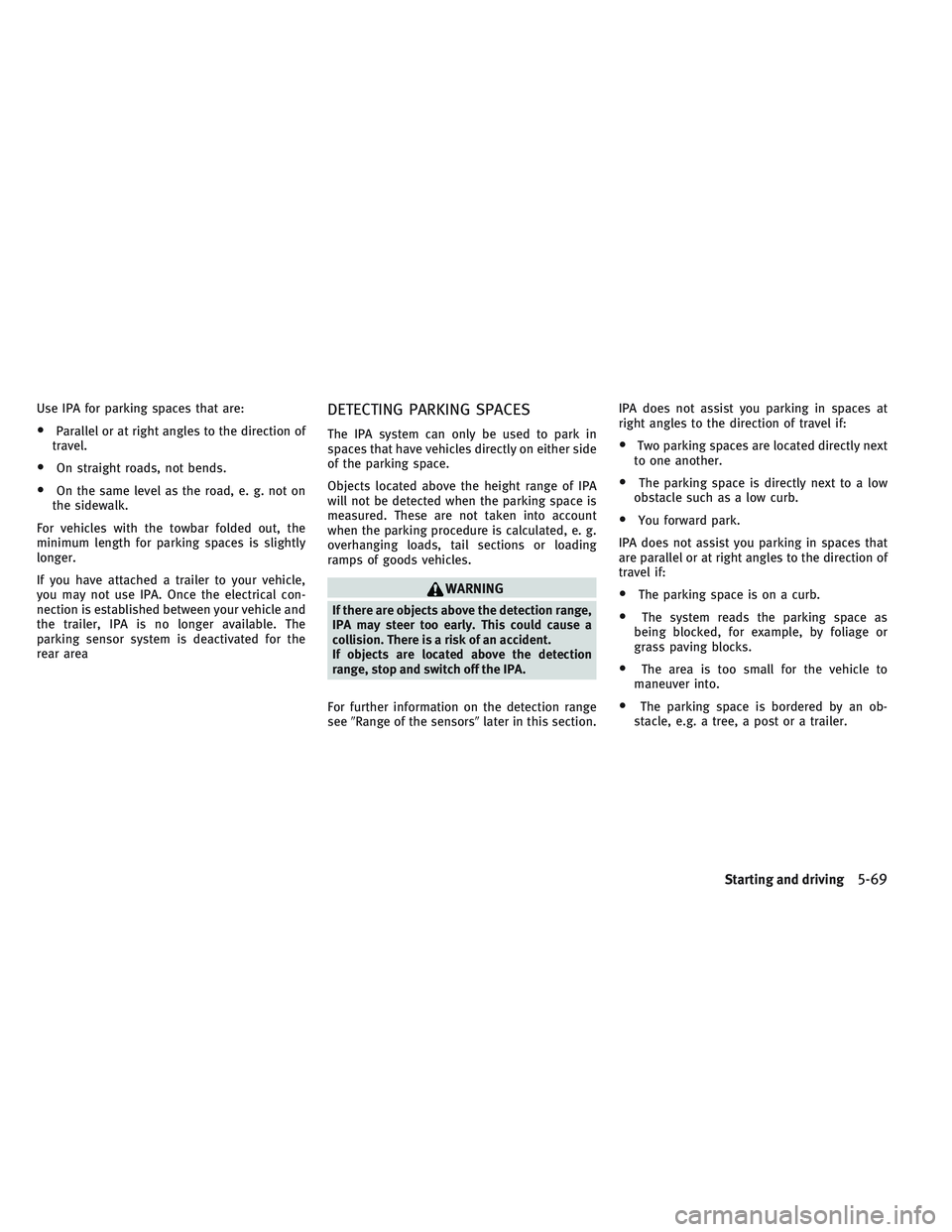

Use IPA for parking spaces that are:
•Parallel or at right angles to the direction of
travel.
•On straight roads, not bends.
•On the same level as the road, e. g. not on
the sidewalk.
For vehicles with the towbar folded out, the
minimum length for parking spaces is slightly
longer.
If you have attached a trailer to your vehicle,
you may not use IPA. Once the electrical con-
nection is established between your vehicle and
the trailer, IPA is no longer available. The
parking sensor system is deactivated for the
rear area
DETECTING PARKING SPACES
The IPA system can only be used to park in
spaces that have vehicles directly on either side
of the parking space.
Objects located above the height range of IPA
will not be detected when the parking space is
measured. These are not taken into account
when the parking procedure is calculated, e. g.
overhanging loads, tail sections or loading
ramps of goods vehicles.
WARNING
If there are objects above the detection range,
IPA may steer too early. This could cause a
collision. There is a risk of an accident.
If objects are located above the detection
range, stop and switch off the IPA.
For further information on the detection range
seeRange of the sensorslater in this section.IPA does not assist you parking in spaces at
right angles to the direction of travel if:
•Two parking spaces are located directly next
to one another.
•The parking space is directly next to a low
obstacle such as a low curb.
•You forward park.
IPA does not assist you parking in spaces that
are parallel or at right angles to the direction of
travel if:
•The parking space is on a curb.
•The system reads the parking space as
being blocked, for example, by foliage or
grass paving blocks.
•The area is too small for the vehicle to
maneuver into.
•The parking space is bordered by an ob-
stacle, e.g. a tree, a post or a trailer.
Starting and driving5-69

1Detected parking space on the left.
2Parking symbol.
3Detected parking space on the right.
IPA is activated automatically when driving for-
wards. The system is operational at speeds of
up to approximately 19 MPH (30 km/h). While in
operation, the system independently locates
and measures parking spaces on both sides of
the vehicle
IPA will only detect parking spaces:
•Adjacent to the vehicle.
•Parallel or at right angles to the direction of
travel.
•That are parallel to the direction of travel
and are at least 5 ft (1.5 m) wide.
•That are parallel to the direction of travel
and at least 3.3 ft (1.0 m) longer than your
vehicle.
•That are at right angles to the direction of
travel and at least 3.3 ft (1.0 m) wider than
your vehicle.
NOTE
IPA cannot measure the length of a parking
space if it is at right angles to the direction of
travel. You will need to judge whether your ve-
hicle will fit in the parking space
When driving at speeds below 19 MPH (30
km/h) you will see parking symbol
2as a
status indicator in the vehicle information dis-
play. When a parking space has been detected,
an arrow towards the right
3or the left1also
appears. IPA only displays parking spaces on
the front-passenger side as standard. Parking
spaces on the driver’s side are displayed as
soon as the turn signal on the driver’s side is
activated. When parking on the driver’s side,
this must remain activated until you confirm the
use of IPA by pressing thebutton on the
steering wheel. The system automatically deter-
mines whether the parking space is parallel or
at right angles to the direction of travel.
A parking space is displayed while you are
driving past it, and until you are approximately
50 ft (15 m) away from it.
PARKING
NOTE
When the parking sensor system detects ob-
stacles, you are responsible for braking in good
time.
1. Stop the vehicle when the parking symbol
shows the desired parking space in the
combination meter
2. Shift into position R.
The [Start Park Assist? Yes: OK No:]
message appears in the vehicle information
display.
3. To cancel the procedure: press the
button on the steering wheel or pull away
or
4. To park using IPA press thebutton on
the steering wheel. The Park Assist [Observe
surroundings] message appears in the ve-
hicle information display.
5. Release the steering wheel.
6. Back up the vehicle, being ready to brake at
all times. When backing up, drive at a speed
below 5 MPH (10 km/h). Otherwise, IPA will
be canceled.
NSD612Upper display
5-70Starting and driving

7. Stop as soon as the parking sensor system
sounds the continuous warning tone, if not
before. Maneuvering may be required in
tight parking spaces.
The [Park Assist active Select D Observe
surroundings] message appears in the ve-
hicle information display.
8. Select transmission position D (Drive) while
the vehicle is stationary.
IPA immediately steers in the other direction.
The [Park Assist Observe surroundings] mes-
sage appears in the vehicle information dis-
play.
NOTE
You will achieve the best results by waiting
for the steering procedure to complete before
pulling away.
9. Drive forwards and be ready to brake at all
times.
Maneuvering may be required in tight park-
ing spaces. Drive forward and back up as
prompted by the parking sensor system
warning displays, several times if necessary.10. Stop as soon as the parking sensor system
sounds the continuous warning tone, if not
before.
The [Park Assist active Select R] [Observe
surroundings] message appears in the ve-
hicle information display.
As soon as the parking procedure is com-
plete the [Park Assist switched off] mes-
sage appears and a warning tone sounds.
The vehicle is now parked.
11. Before leaving the vehicle, secure the ve-
hicle against rolling away unintentionally:
•The electric parking brake must be applied.
•The transmission must be in position P
(Park) and the transmission position dis-
play must show P in the vehicle informa-
tion display.
•The key must be removed from the
ignition switch.
•On uphill or downhill gradients, the front
wheels must be turned towards the curb.
IPA no longer supports you with steering inter-
ventions. When IPA is finished, you must steer
again yourself. The parking sensor system is
still available.Parking tips:
•The way your vehicle is positioned in the
parking space after parking is dependent on
various factors. These include the position
and shape of the vehicles parked in front and
behind it and the conditions of the location.
It may be the case that IPA guides you too far
into a parking space, or not far enough into
it. In some cases, it may also lead you across
or onto the curb. If necessary you should
cancel the parking procedure with IPA.
•During the parking maneuver, the system
will indicate when you should shift to R
(Reverse) or D (Drive). However, you can
freely choose to shift gear whenever you feel
you need to. Should the transmission change
take place too early, the parking procedure
will be canceled. A sensible parking position
can no longer be achieved from this position.
Starting and driving5-71

EXITING A PARKING SPACE
In order that IPA can support when exiting the
parking space:
•You need to have parked using IPA.
•The border of the parking space must be
high enough at the front and the rear. A curb
stone is too small, for example.
•The border of the parking space must not be
too wide, as the position of the vehicle must
not exceed an angle of 45 degrees to the
starting position as it is manoeuvred into the
parking space.
•A total front and back maneuvering distance
of at least 1.0 m must be available.
IPA can only assist you with exiting a parking
space if you have parked the vehicle parallel to
the direction of travel using IPA.
WARNING
•IPA is only an aid. It is not a substitute for
your attention to the immediate surround-
ings. The responsibility for safe maneuver-
ing and parking remains with you.
•Make sure that no persons, animals or ob-
jects are in the maneuvering range.
•When the parking sensor system is deacti-
vated, IPA is also unavailable.
•While parking or pulling out of a parking
space, the vehicle swings out and can drive
onto areas of the oncoming lane. This could
cause you to collide with other road users.
There is a risk of an accident.
•Pay attention to other road users. Stop the
vehicle if necessary or cancel the IPA park-
ing procedure.
1. Start the engine.
2. Release the electric parking brake.
3. Switch on the turn signal in the direction
you are pulling away.
4.Vehicles with automatic transmission:shift
the transmission to position D or R
The [Start Park Assist? Yes: OK No:]
message appears in the vehicle information
display.
5. To cancel the procedure: press the
button on the steering wheel or pull away
or
6. To exit a parking space using IPA: press the
button on the steering wheel The ParkAssist [Observe surroundings] message ap-
pears in the display.
7. Release the steering wheel.
8.
Pull away, being ready to brake at all times
Do not exceed a maximum speed of approxi-
mately 5 MPH (10 km/h) when exiting a park-
ing space. Otherwise, IPA will be canceled.
WARNING
While parking or pulling out of a parking
space, the vehicle swings out and can drive
onto areas of the oncoming lane. This could
cause you to collide with other road users.
There is a risk of an accident.
9. Depending on the message or as required,
shift the transmission to position D or R.
IPA immediately steers in the other direc-
tion. The [Observe surroundings] message
appears in the display.
NOTE
You will achieve the best results by waiting
for the steering procedure to complete before
pulling away.
If you back up after activation, the steering
wheel is moved to the straight-ahead posi-
tion.
5-72Starting and driving
