Message Possible causes/consequences and solutions
[Check Left Daytime Running
Light] or [Check Right Day-
time Running Light]The left or right-hand daytime driving light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Adaptive front lighting sys-
tem Inoperative]The Adaptive Front Lighting System is faulty. The lights remain available without the Adaptive Front Lighting System.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Malfunction See Operator’s
Manual]The exterior lighting is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Auto Lamp Function inop-
erative]The light sensor is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Switch Off Lights]The side lights are still switched on when you leave the vehicle. A warning tone also sounds.
Turn the light switch to.
[High beam assist Currently
Unavailable See Operator’s
Manual]High beam assist is deactivated and temporarily inoperative. Possible causes:
•The windshield is dirty in the camera’s field of vision.•Visibility is impaired due to heavy rain, snow or fog.
Clean the windshield.
If the system detects that the camera is fully operational again, the [High beam assist Available Again] message is displayed.
[High beam assist Inopera-
tive]High beam assist is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
2-42Instruments and controls

Driving systems
Message Possible causes/consequences and solutions
[Lane Departure Warning
Currently Unavailable See
Operator’s Manual]Lane Departure Warning is deactivated and temporarily inoperative.
Possible causes:
•The windshield is dirty in the camera’s field of vision.•Visibility is impaired due to heavy rain, snow or fog.•There have been no lane markings for an extended period.•The lane markings are worn, dark or covered, e.g. by dirt or snow.
Once the causes listed above no longer apply, the display message goes out.
Lane Departure Warning is operational again.
If the display message does not disappear:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away.
3. Clean the windshield
[Lane Departure Warning
Inoperative]Lane Departure Warning is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Blind Spot Warning Cur-
rently Unavailable See Op-
erator’s Manual]Blind Spot Warning is temporarily inoperative. Possible causes:
•The function is impaired due to heavy rain or snow.•The radar sensor system is temporarily inoperative, e.g. due to electromagnetic radiation emitted by nearby TV or radio stations or
other sources of electromagnetic radiation.
•The radar sensor system is outside the operating temperature range.
The yellow indicator lights also light up in the exterior mirrors.
Once the causes listed above no longer apply, the display message goes out.
Blind Spot Warning is operational again.
If the display message does not disappear:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away.
3. Restart the engine
2-46Instruments and controls

Message Possible causes/consequences and solutions
[Blind Spot Warning Not
Available When Towing a
Trailer See Operator’s
Manual]Blind Spot Warning is deactivated while towing a trailer.
You have established the electrical connection between the trailer and your vehicle.
Press on the steering wheel to confirm the display message.
[Blind Spot Warning
Inoperative]Blind Spot Warning (BSW) is faulty.
The BSW indicator lights also light up.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Park Assist Canceled] The driver’s door is open and the driver’s seat belt has not been fastened.
Repeat the parking process with the seat belt fastened and the driver’s door closed.
You inadvertently touched the steering wheel while steering intervention was active.
While steering intervention is active, make sure not to touch the steering wheel.
The vehicle has started to skid and VDC has intervened.
Use Intelligent Park Assist again later.
[Park Assist Inoperative] You have just carried out a large number of turning or parking maneuvers.
Intelligent Park Assist will become available again after approximately ten minutes.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Restart the engine.
If the display message continues to be displayed, have the system checked. It is recommended you visit an INFINITI retailer for this
service.
The parking sensor system is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Park Assist Finished] The vehicle is parked. A warning tone also sounds.
The display message disappears automatically.
[ICC Off]
Intelligent Cruise Control has been deactivated (seeIntelligent Cruise Control (ICC) system (Full speed range) (if equipped)in the5.
Starting and drivingsection).
If it was not deactivated by the driver, a warning tone also sounds.
Instruments and controls2-47

Message Possible causes/consequences and solutions
[ICC Now Available] Intelligent Cruise Control is operational again after having been temporarily unavailable. You can now reactivate IntelligentCruise
Control (seeIntelligent Cruise Control (ICC) system (Full speed range) (if equipped)in the5. Starting and drivingsection)
[ICC Currently Unavailable
See Operator’s Manual]Intelligent Cruise Control is temporarily inoperative.
Possible causes:
•The function is impaired due to heavy rain or snow.•The radar sensor system is temporarily inoperative, e.g. due to electromagnetic radiation emitted by nearby TV or radio stations or
other sources of electromagnetic radiation.
•The system is outside the operating temperature range.•The on-board voltage is too low.
A warning tone also sounds.
Once the causes listed above no longer apply, the display message goes out.
Intelligent Cruise Control is operational again.
If the display message does not disappear:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away
3. Restart the engine
[ICC Inoperative] Intelligent Cruise Control is faulty. Forward Emergency Braking may also have become inoperative.
A warning tone also sounds.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[ICC Suspended] You have depressed the accelerator pedal. Intelligent Cruise Control is no longer controlling the speed of the vehicle.
Remove your foot from the accelerator pedal.
[ICC---MPH] An activation condition for Intelligent Cruise Control is not fulfilled.
Check the activation conditions for Intelligent Cruise Control (seeIntelligent Cruise Control (ICC) system (Full speed range) (if equipped)
in the5. Starting and drivingsection)
[ICC and Speed Limiter Inop-
erative]Intelligent Cruise Control and Speed Limiter are faulty.
A warning tone also sounds.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
2-48Instruments and controls

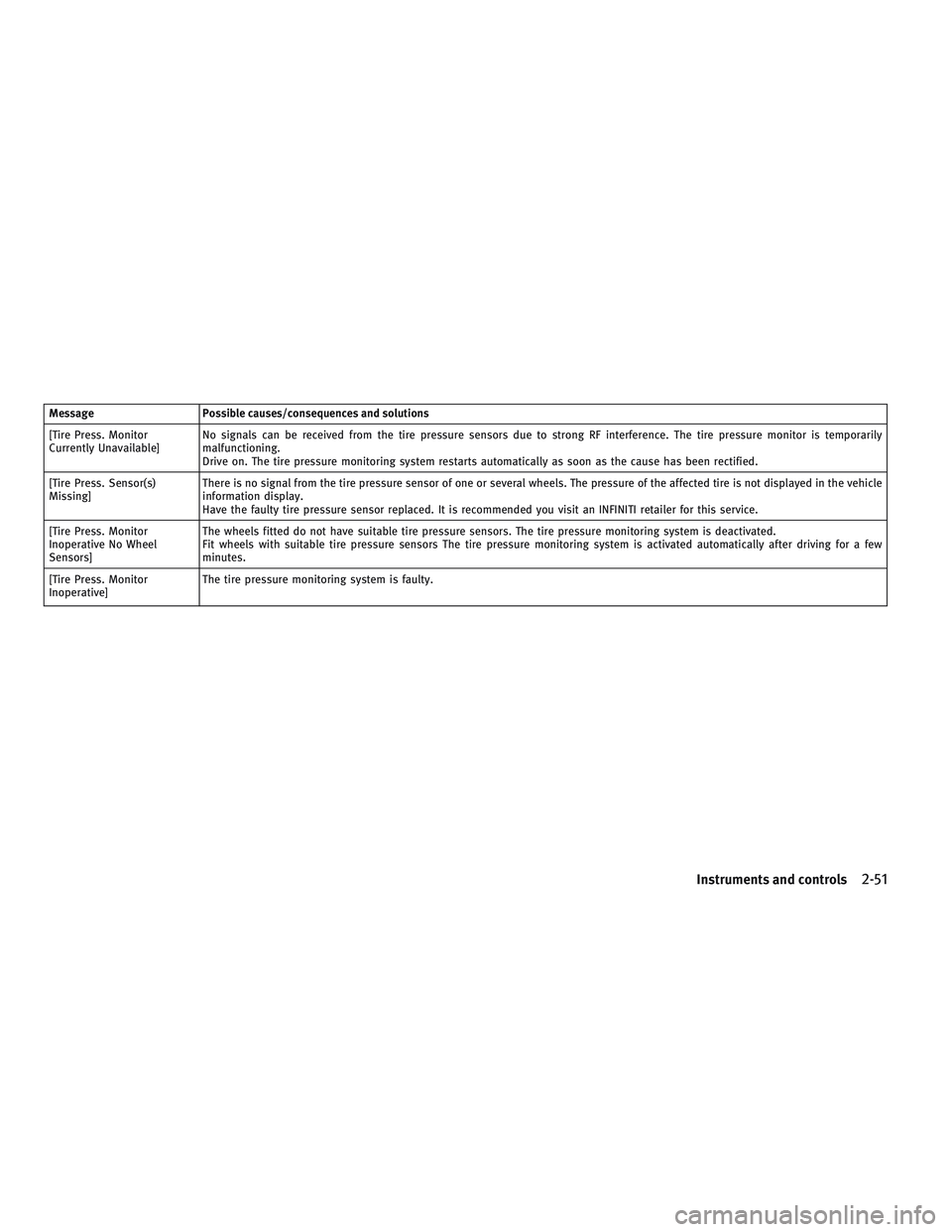

Message Possible causes/consequences and solutions
[Tire Press. Monitor
Currently Unavailable]No signals can be received from the tire pressure sensors due to strong RF interference. The tire pressure monitor is temporarily
malfunctioning.
Drive on. The tire pressure monitoring system restarts automatically as soon as the cause has been rectified.
[Tire Press. Sensor(s)
Missing]There is no signal from the tire pressure sensor of one or several wheels. The pressure of the affected tire is not displayed in the vehicle
information display.
Have the faulty tire pressure sensor replaced. It is recommended you visit an INFINITI retailer for this service.
[Tire Press. Monitor
Inoperative No Wheel
Sensors]The wheels fitted do not have suitable tire pressure sensors. The tire pressure monitoring system is deactivated.
Fit wheels with suitable tire pressure sensors The tire pressure monitoring system is activated automatically after driving for a few
minutes.
[Tire Press. Monitor
Inoperative]The tire pressure monitoring system is faulty.
Instruments and controls2-51

SWITCHING THE WINDSHIELD WIPERS
ON/OFF
1Windshield wipers off.
2Intermittent wipe, low (rain sen-
sor set to low sensitivity).
3Intermittent wipe, high (rain sen-
sor set to high sensitivity).
4Continuous wipe, slow.
5Continuous wipe, fast.
ASingle wipe/
wipe the windshield using washer fluid.
The windshield wiper and washer operate when
the ignition switch is in the ON position.
Turn the combination switch to the desired
position.
Rain sensor (if equipped)
CAUTION
•Do not touch the rain sensor and around it
when the wiper switch is in theorposition and the ignition switch is in
the ON position. The wipers may operate
unexpectedly and cause an injury or may
damage a wiper.
•The rain-sensing auto wipers are intended
for use during rain. If the switch is left in the
orposition, the wipers may
operate unexpectedly when dirt, finger-
prints, oil film or insects are stuck on or
around the sensor. The wipers may also op-
erate when exhaust gas or moisture affect
the rain sensor.
•When the windshield glass is coated with
water repellent, the speed of the rain-
sensing auto wipers may be higher even
though the amount of the rainfall is small.
•Be sure to turn off the rain-sensing auto
wiper system when you use a car wash.
•The rain-sensing auto wipers may not oper-
ate if rain does not hit the rain sensor even if
it is raining.
•Using genuine wiper blades is recom-
mended for proper operation of the rain-
sensing auto wiper system. For additional
information, refer toWiper bladesin the
8. Do-it-yourselfsection.
•Vehicles with a rain sensor: if the wind-
shield becomes dirty in dry weather condi-
tions, the windshield wipers may be acti-
vated inadvertently. This could damage the
windshield wiper blades or scratch the
windshield.
For this reason, you should always switch
off the windshield wipers in dry weather.
Vehicles with a rain sensor: in the
orposition, the appropriate wiping fre-
quency is automatically set according to the
intensity of the rain. In the
position, the
rain sensor is more sensitive than in the
position, causing the windshield wiper to wipe
more frequently.
If the wiper blades are worn, the windshield will
no longer be wiped properly. This could prevent
you from observing the traffic conditions.
The rain-sensing auto wiper system uses the
rain sensor located on the upper part of the
windshield.
NIC2810Combination switch
Instruments and controls2-59

To deactivate the de-icer:
•Press thebutton. The indicator lamp
in thebutton turns off. The previous
settings are reactivated. Air-recirculation
mode remains deactivated.
or
•Automatic climate control: press the
button. The indicator lamp in the
button turns off. Airflow and air distribution
are set to automatic mode.
or
•Air-conditioning system or automatic cli-
mate control: adjust the temperature control
(seeHeater and air conditionerin the4.
Display screen, heater and air conditioner,
and audio systemDisplay screen, heater and
air conditioner, and audio systemsection).
HEADLIGHT SWITCH
1Left-hand parking lights
2Right-hand parking lights
3Side lights and license plate
lighting
4Automatic headlight mode, con-
trolled by the light sensor
5Low beam/high beam headlights
6Rear fog light
7Front fog lights (if equipped)
8Headlight aiming control (halogen head-
lights only)
INFINITI recommends that you consult the local
regulations concerning the use of lights.If you hear a warning tone when you leave the
vehicle, the side lights may still be switched on.
Turn the light switch to.
The exterior lighting (except the side lights/
parking lights) switches off automatically if you:
•Remove the key from the ignition switch (if
equipped).
•Open the driver’s door with the ignition
switch in the OFF position.
CAUTION
Use the headlights with the engine running to
avoid discharging the vehicle battery.
NIC2619LED headlightsNIC2697Halogen headlights
HEADLIGHT AND TURN SIGNAL SWITCHES
2-62Instruments and controls

Automatic headlight mode
is the preferred light switch setting. The
light setting is automatically selected according
to the brightness of the ambient light (excep-
tion: poor visibility due to weather conditions
such as fog, snow or spray):
•Ignition switch in ACC or ON position: the
side lights are switched on or off automati-
cally depending on the brightness of the
ambient light.
•With the engine running: if you have
switched on the daytime driving lights func-
tion in the vehicle information display, the
side lights and low beam headlights are
switched on or off automatically depending
on the brightness of the ambient light.
To switch on automatic headlight mode:turn the
light switch to.
WARNING
When the light switch is set to , the
low-beam headlights may not be switched on
automatically if there is fog, snow or other
causes of poor visibility due to the weather
conditions such as spray. There is a risk of an
accident
In such situations, turn the light switch to
.The automatic headlight feature is only an aid.
The driver is responsible for the vehicle lighting
at all times.
The daytime driving lights improve the detect-
ability of your vehicle during the day.
WARNING
When the daytime running light system is ac-
tive, tail lights on your vehicle are not on. It is
necessary at dusk to turn on your headlights.
Failure to do so could cause an accident injur-
ing yourself and others.
When the side lights and low-beam headlights
are switched on, the green
(side lights)
and(low-beam headlights) indicator
lights in the combination meter light up.
Low-beam headlights
When the ignition is switched on and the light
switch is in theposition, the side lights
and low-beam headlights are switched on even
if the light sensor does not sense dark ambient
light conditions. This is advantageous when
there is fog or rain.To switch on the low-beam headlights:
•Switch the ignition switch to the ON posi-
tion, or start the engine.
•Turn the light switch to. The greenindicator light in the combination me-
ter lights up.
Side lights
NOTE
Always park your vehicle safely and sufficiently
lit according to legal standards. To reduce the
chance of a discharged vehicle battery, avoid the
continuous use of the
sidelights or park-
ing lights for several hours.
To switch on:turn the light switch to
. The
greenindicator light in the combination
meter lights up.
Parking lights
Switching on the parking lights ensures that the
corresponding side of the vehicle is illuminated.
To switch on the parking lights:
•The key is not in the ignition switch or the
switch is in the OFF position.
•Turn the light switch to(left-hand
side of the vehicle) or(right-hand
side of the vehicle).
Instruments and controls2-63

HIGH BEAM ASSIST (LED HEADLIGHT
ONLY)
You can use this function to set the headlights
to change between low beam and high beam
automatically. The system recognizes vehicles
with their lights on, either approaching from the
opposite direction or traveling in front of your
vehicle, and consequently switches the head-
lights from high beam to low beam.
The system automatically adapts the low beam
headlight range depending on the distance to
the other vehicle. Once the system no longer
detects any other vehicles, it switches on the
high beam headlights again.
The system’s optical sensor is located behind
the windshield near the overhead control panel.
WARNING
•The high beam assist system is a conve-
nience but is not a substitute for safe driv-
ing operation. The driver should remain
alert at all times, ensure safe driving prac-
tices and switch the high beams and low
beam manually when necessary.
•The high beam or low beam may not switch
automatically under the following condi-
tions. Switch the high beam and low beam
manually.
–During bad weather (rain, fog, snow,
wind, etc.).
–When a light source similar to a head-
light or tail light is in the vicinity of the
vehicle.
–When the headlights of the oncoming
vehicle or the leading vehicle are turned
off, when the color of the light is affected
due to foreign materials on the lights, or
when the light beam is out of position.
–When there is a sudden, continuous
change in brightness.
–When driving on a road that passes over
rolling hills, or a road that has level dif-
ferences.
–When driving on a road with many
curves.–When a sign or mirror-like surface is
reflecting intense light towards the front
of the vehicle.
–When the container, etc. being towed by
a leading vehicle is reflecting intense
light.
–When a headlight on your vehicle is
damaged or dirty.
–When the vehicle is leaning at an angle
due to a punctured tire, being towed, etc.
•The timing of switching the low beam and
high beam may change under the following
situations.
–The brightness of the headlights of the
oncoming vehicle or leading vehicle.
–The movement and direction of the on-
coming vehicle and the leading vehicle.
–When only one light on the oncoming
vehicle or the leading vehicle is illumi-
nated.
–When the oncoming vehicle or the lead-
ing vehicle is a two-wheeled vehicle.
–Road conditions (incline, curve, the road
surface, etc.).
–The number of passengers and the
amount of luggage.
•High beam Assist does not recognize road
users:
–Who have no lights, e.g. pedestrians.
NDS595
2-66Instruments and controls

–Who have low intensity lighting, e. g.
cyclists.
–Whose lighting is blocked, e.g. by a
barrier.
•In very rare cases, High beam Assist recog-
nizes road users too late or not at all. In this,
or in similar situations, the automatic high
beam headlights will not be deactivated or
activated regardless. There is a risk of an
accident.
•Always carefully observe the traffic condi-
tions and switch off the high beam head-
lights in good time.
CAUTION
High beam Assist cannot compensate for road
and weather circumstances while driving. The
system saves the driver from having to operate
the switch. The driver always remains respon-
sible for choosing the correct light setting.
Specific situations in which to operate the
headlight switch manually:
•In heavy rain, snowy conditions. (general
poor visibility and bad weather conditions).
•When the vehicle sensors are dirty, covered
or broken.
Switching High Beam Assist on/off
To switch on:
Turn the light switch to and press the
combination switch beyond the pressure point
in the direction of arrow
3. Theindicator
light in the vehicle information display lights up
when it is dark and the light sensor switches on
the low-beam headlights.
If you are driving at speeds above approxi-
mately 28 MPH (45 km/h) the headlight range is
set automatically depending on the distance
between the vehicle and other road users.
If you are driving at speeds above approximately
34 MPH (55 km/h) and no other road users are
detected, the high beam headlights are switched
on automatically. The
indicator light in the
combination meter also lights up.
If you are driving at speeds below approxi-
mately 28 MPH (45 km/h) or other road users
are detected or the roads are adequately lit The
high beam headlights are switched off auto-
matically. The
indicator light in the
combination meter goes out. The
indica-
tor light in the vehicle information display re-
mains lit.
To deactivate
:
Move the combination switch back to its normal
position Theindicator light in the vehicle
information display goes out.
HEADLIGHTS MISTED UP ON THE
INSIDE
Certain climatic and physical conditions may
cause moisture to form in the headlight. This
moisture does not affect the functionality of the
headlight.
NIC2618
Instruments and controls2-67
