of the seat. If someone becomes
trapped, immediately release the
memory function position button The
adjustment is stopped.
•If children activate the memory func-
tion, they could become trapped, espe-
cially if they are unattended. There is a
risk of injury.
When leaving the vehicle, always take
the key with you and lock the vehicle.
Never leave children unattended in the
vehicle.
The memory function can be used at any
time, e.g. even when the key isn't in the igni-
tion lock.
STORING SETTINGS
With the memory function, you can store up
to three different settings.
•Seat and seatback position
•Driver's side: position of the exterior mir-
rors on the driver's and front-passenger
sides.
To store settings:
1.
Adjust the seat (see "Power seat adjustment"
in the "1. Safety — seats, seat belts and
supplemental restraint system" section).
2. Adjust the exterior mirror on the driver's side (see "Adjusting" in the "3. Pre-driving
checks and adjustments" section).
3. Briefly press the M memory button
1,
and then press preset position button 1, 2
or 3
2within three seconds.
The settings are stored in the selected
preset position. A tone sounds when the
settings have been completed.
CALLING UP A STORED SETTING
Press and hold the relevant preset position
button 1, 2 or 3 until the seat and exterior
mirrors are in the stored position.
NOTE
The setting procedure is interrupted as soon
as you release the storage position button.
3-22Pre-driving checks and adjustments

MEMO
Pre-driving checks and adjustments3-23

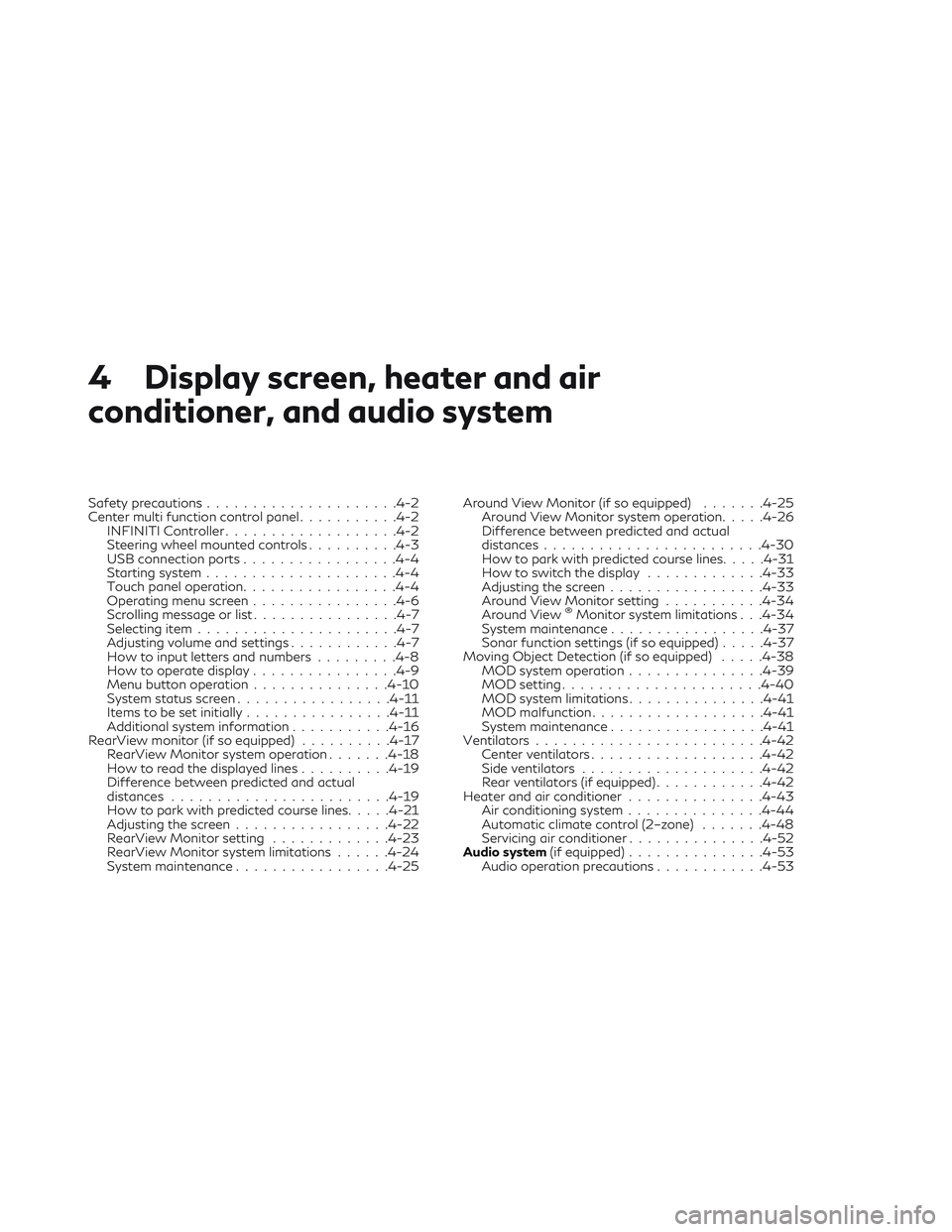

4 Display screen, heater and air
conditioner, and audio system
Safety precautions.................... .4-2
Center multi function control panel ...........4-2
INFINITI Controller .................. .4-2
Steering wheel mounted controls ..........4-3
USB connection ports ................ .4-4
Starting system .................... .4-4
Touch panel operation ................ .4-4
Operating menu screen ................4-6
Scrolling message or list ................4-7
Selecting item ..................... .4-7
Adjusting volume and settings ............4-7
How to input letters and numbers .........4-8
How to operate display ................4-9
Menu button operation ...............4-10
System status screen ................ .4-11
Items to be set initially ................4-11
Additional system information ...........4-16
RearView monitor (if so equipped) ..........4-17
RearView Monitor system operation .......4-18
How to read the displayed lines ..........4-19
Difference between predicted and actual
distances ....................... .4-19
How to park with predicted course lines .....4-21
Adjusting the screen ................ .4-22
RearView Monitor setting .............4-23
RearView Monitor system limitations ......4-24
System maintenance ................ .4-25Around View Monitor (if so equipped)
.......4-25
Around View Monitor system operation .....4-26
Difference between predicted and actual
distances ....................... .4-30
How to park with predicted course lines .....4-31
How to switch the display .............4-33
Adjusting the screen ................ .4-33
Around View Monitor setting ...........4-34
Around View
®Monitor system limitations . . .4-34
System maintenance ................ .4-37
Sonar function settings (if so equipped) .....4-37
Moving Object Detection (if so equipped) .....4-38
MOD system operation ...............4-39
MOD setting ..................... .4-40
MOD system limitations ...............4-41
MOD malfunction .................. .4-41
System maintenance ................ .4-41
Ventilators ........................ .4-42
Center ventilators .................. .4-42
Side ventilators ................... .4-42
Rear ventilators (if equipped) ............4-42
Heater and air conditioner ...............4-43
Air conditioning system ...............4-44
Automatic climate control (2–zone) .......4-48
Servicing air conditioner ...............4-52
Audio system (if equipped).............. .4-53
Audio operation precautions ............4-53

Names and functions of audio control
buttons........................ .4-64
Main audio operation ............... .4-65
Radio .......................... .4-67
Compact Disc (CD) player ..............4-71
USB (Universal Serial Bus) connection port . . .4-72
iPod player ...................... .4-75
Bluetooth® streaming audio ............4-78
Audio settings .................... .4-82
Disc/USB memory device care and
cleaningDiscs .................... .4-84
USB memory device ................ .4-84
Gracenote® End User License Agreement . . .4-84
Bluetooth® Hands-Free Phone System .......4-85
Regulatory information ...............4-87
Phone ......................... .4-88
Connecting Bluetooth® device ..........4-90
Hands-free text messaging assistant .......4-91
Phone and text message settings .........4-94
Bluetooth® information ...............4-98
INFINITI InTouch Apps overview ...........4-98
Using Applications ................. .4-99
Vehicle Apps ..................... .4-99Vehicle Apps Manager (if equipped)
......4-102
Major Apps available for use in this system . .4-103
Examples of how Vehicle Apps is used . . . .4-104
Mobile Apps .................... .4-104
Getting user ID and password ..........4-104
Notes on linking smartphone App to vehicle .4-105
Using smartphone applications .........4-105
INFINITI Voice Recognition system .........4-105
Using Voice Recognition system .........4-105
Before starting ................... .4-105
Giving voice commands ..............4-106
Voice recognition settings .............4-116
Information menu ................... .4-117
SiriusXM Travel Link® ...............4-118
Settings menu ................... .4-122
Troubleshooting guide ................ .4-124
Customer assistance ............... .4-124
System

unit ..................... .4-124
Audio system .................... .4-125
Bluetooth® Hands-Free Phone System . . . .4-132
Monitor system .................. .4-135
Voice recognition ................. .4-136

WARNING
•Do not adjust the heater and air condi-
tioner controls or audio controls while
driving so that full attention may be
given to vehicle operation.
•Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the sys-
tem may result in accident, fire or elec-
tric shock.
•If you noticed any foreign objects enter-
ing the system hardware, spilled liquid
on the system, or noticed smoke or
fumes coming out from the system, or
any other unusual operation is ob-
served, stop using the system immedi-
ately. It is recommended that you con-
tact the nearest INFINITI retailer.
Ignoring such conditions may lead to an
accident, fire or electric shock.
•Do not disassemble or modify this sys-
tem. If you do, it may lead to an accident,
fire, or electric shock.
•Park the vehicle in a safe location and
apply the parking brake to view the im-
ages on the front center display screen.
CAUTION
Do not use the system when the engine is
not running for extended periods of time to
prevent battery discharge.
INFINITI CONTROLLER
1

Push again to display the Display View Bar
and the display views.
Push and hold to hear the current guidance
for a programmed route.
<
>(models without navigation system).
Push to display the hands-free phone opera-
tion screen.
When you receive a phone call, push this
switch to answer the call.
2

USB CONNECTION PORTS
The front console compartment contains the
USB connection ports.
1USB/iPod connection port:
Connect to play media from an iPod®,
iPhone® or a USB memory device. When
using INFINITI InTouch Apps with an
iPhone®, connect via a USB cable. Refer
to the device manufacturer’s owner in-
formation regarding the proper use and
care of the device.
CAUTION
•Depending on the size and shape of USB
device, the console lid may not fully
close. Do not force the console lid closed
as this may damage the USB device. NOTE
•Even when iPods® or iPhones® are con-
nected to both of the two USB/iPod ®
connection ports, the system recognizes
only one of the connected iPods® or iP-
hones® at a time.
•Only one of the two connected USB de-
vices can be operated by the voice recog-
nition system.
STARTING SYSTEM
The system starts when the ignition switch is
placed in the ACC or ON position.
Start-up warning (models with
navigation system)
For this system, when the ignition switch is
placed in the ACC or ON position, the
start-up screen is displayed.
Touch [OK] after reading and agreeing to the
message. If you do not agree to the message,
some of Infiniti InTouch
TMfunctions will be
disabled.
NOTE
•Do not keep the INFINITI InTouch system
turned on with the engine stopped. Doing
so may discharge the vehicle battery.
When you use INFINITI InTouch, always
keep the engine running.
•Once you select [Decline] on the start-up
screen, the [OK]/[Decline] screen will not
be displayed for 30 days.
TOUCH PANEL OPERATION
CAUTION
•The glass screen on the liquid crystal dis-
play may break if it is hit with a hard or
sharp object. If the glass screen breaks,
do not touch it. Doing so could result in
an injury.
•To clean the display, use a soft, dry
cloth. If additional cleaning is necessary,
use a small amount of neutral detergent
with a soft cloth. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
•Do not splash any liquid such as water or
car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
NAA1628
4-4Display screen, heater and air conditioner, and audio system

WARNING
•ALWAYS give your full attention to
driving.
•Avoid using vehicle features that could
distract you. If distracted, you could lose
control of your vehicle and cause an
accident.
Screen illustrations
•The illustrations in this manual are repre-
sentatives of various models and may not
be identical with the design and specifica-
tions of your vehicle.
•Icons and menu items displayed on the
screen may be abbreviated or omitted
from the screen illustrations when appro-
priate. The omitted icons and menu items
are described as dotted lines as illustrated. Basic touch panel operation methods are ex-
plained here.
•Touch
Select and execute the selected key on the
screen.
5GH0158XZNAA1783
Display screen, heater and air conditioner, and audio system4-5

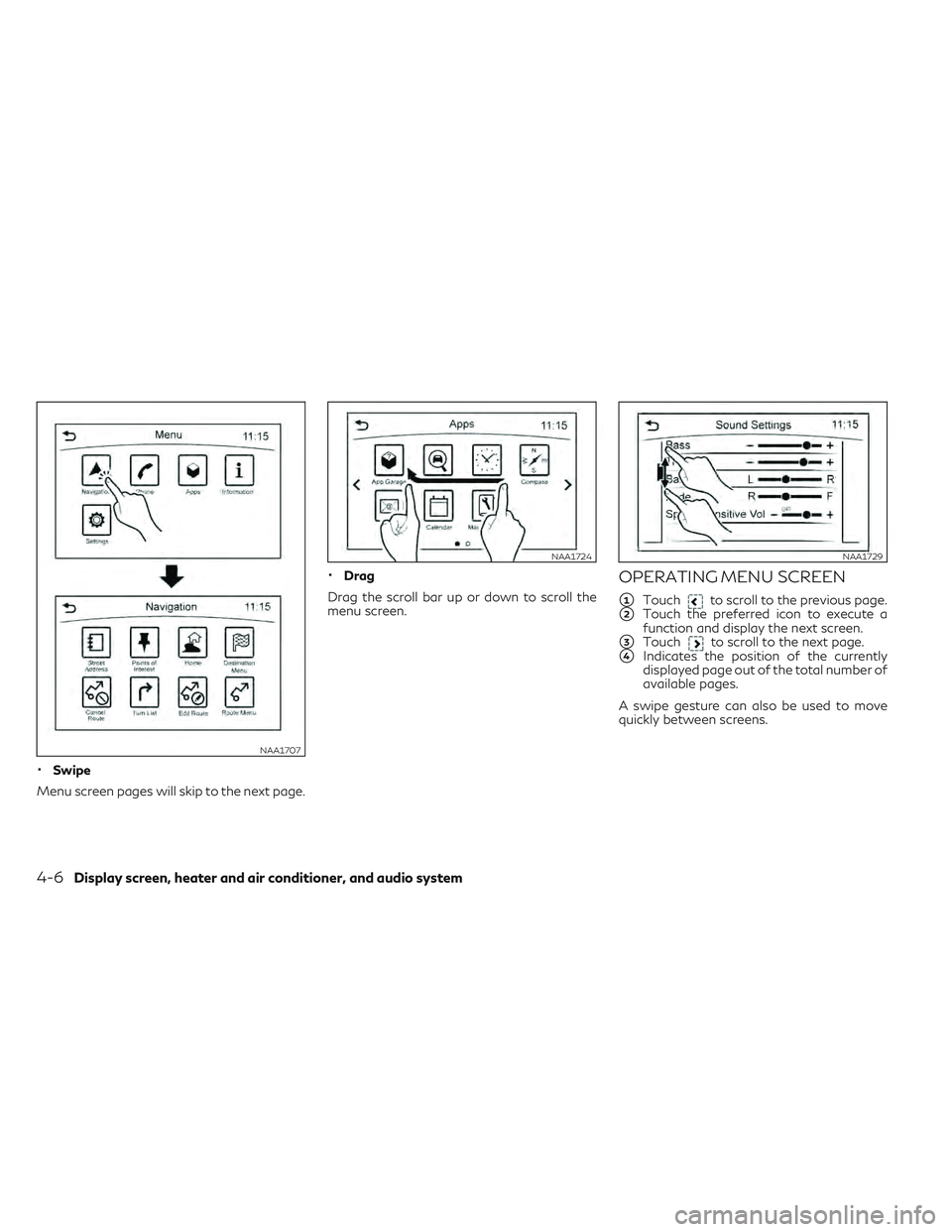

•Swipe
Menu screen pages will skip to the next page.
•Drag
Drag the scroll bar up or down to scroll the
menu screen.OPERATING MENU SCREEN
1Touchto scroll to the previous page.
2Touch the preferred icon to execute a
function and display the next screen.
3Touchto scroll to the next page.
4Indicates the position of the currently
displayed page out of the total number of
available pages.
A swipe gesture can also be used to move
quickly between screens.
NAA1707
NAA1724NAA1729
4-6Display screen, heater and air conditioner, and audio system

SCROLLING MESSAGE OR LIST
1Drag the scroll bar up or down to scroll
the message or list up or down.
2Touch the preferred item.
3If a listed item name is not completely
displayed (due to length), touchto
display the hidden part of the name.
4Touch []or[] to scroll the
message or list one item at a time.
Touch [
]or[] to skip to the next
page.
SELECTING ITEM
Touch an item to select it.
Touch [
] to return to the previous
screen.
ADJUSTING VOLUME AND
SETTINGS
Level of volume, brightness, etc. can be ad-
justed.
NAA17255GH0030XZNAA1730
Display screen, heater and air conditioner, and audio system4-7
