AUTOMATIC CLIMATE
CONTROL (2–ZONE)
1Sets the temperature, left
2Sets climate control to automatic mode
3Demists the windshield
4Increases the airflow
5Sets the air distribution
6Display
7Activates/deactivates air-recirculation
mode
8Switches climate control on/off
9Sets the temperature, right
NAA1705
4-48Display screen, heater and air conditioner, and audio system
Page 242 of 538
10Activates/deactivates the Max Cool
function
11Activates/deactivates cooling with air
dehumidification
12Reduces the airflow
13Switches the rear window heating on/
off
14Switches the ZONE function on/off
Operating tips
A number of tips and recommendations to
enable you to get the most out of your auto-
matic climate control are listed below:
•Activate climate control using theandbuttons. The indicator lights in
theandbuttons light up.
•Set the temperature to 70°F(22°C)
•Only use the "Windshield demisting" func-
tion briefly until the windshield is clear
again.
•Only use air-recirculation mode briefly, for
example if there are unpleasant outside
odors or when in a tunnel. The windows
could otherwise mist up as no fresh air is
drawn into the vehicle in air-recirculation
mode
•Use thefunction to adopt the tem-
perature settings on the driver's side for
the front-passenger side as well. The indi-
cator light in the
button goes out.
•If you change the settings of the climate
control system, the climate status display
appears for approximately three seconds
at the bottom of the screen in the center
display (see separate operating instruc-
tions). You will see the current settings of
the various climate control functions.
Idle Stop/Start function
During automatic engine switch-off, the Cli-
mate control only operates at a reduced ca-
pacity. If you require the full climate control
output, you can switch off the Idle Stop/
Start function by pressing the ECO button
(see " Idle Stop/Start System (if equipped)" in
the "5. Starting and driving" section).
Switching automatic climate
control on/off
When the climate control is switched off, the
air supply and air circulation are also
switched off. The windows could mist up.
Therefore, only switch off climate control
briefly.
Make sure the ignition switch is in the ON
position.
To activate:
Press the
button The indicator light in
thebutton lights up. Airflow and air
distribution are set to automatic mode. or
Press the
button. The indicator light in
thebutton goes out. The previous set-
tings are reactivated.
To deactivate:
Press the
button. The indicator light in
thebutton lights up.
NOTE
Automatic climate control: switch on climate
control primarily using the
button.
Activating/deactivating the cooling
with air dehumidification function
If you deactivate the "Cooling with air dehu-
midification" function, the air inside the ve-
hicle will not be cooled. The air inside the
vehicle will also not be dehumidified. The
windows can mist up more quickly. There-
fore, only deactivate the "Cooling with air
dehumidification" function briefly.
The "Cooling with air dehumidification" func-
tion is only available when the engine is run-
ning. The air inside the vehicle is cooled and
dehumidified according to the temperature
selected.
Condensation may drip from the underside of
the vehicle when cooling mode is active. This
is normal and not a sign that there is a mal-
function.
Display screen, heater and air conditioner, and audio system4-49
Page 243 of 538
To activate:
Press the
button The indicator light in
thebutton lights up.
To deactivate:
Press the
button. The indicator light in
thebutton goes out. The cooling with
air dehumidification function has a delayed
switch-off feature.
Problems with the "Cooling with air dehu-
midification" function:
Problem: The indicator light in the
but-
ton flashes three times or remains off. The
cooling with air dehumidification function
cannot be activated.
Cause and solution: The cooling with air de-
humidification function has been deactivated
due to a malfunction. Have the system
checked. It is recommended you visit an
INFINITI retailer for this service.
Setting automatic climate control
to automatic mode
Only automatic climate control features the
"Control climate control automatically" func-
tion.
In automatic mode, the set temperature is
maintained automatically at a constant level
The system automatically regulates the tem- perature of the dispensed air, the airflow and
the air distribution.
The automatic mode functions optimally
when the "Cooling with air dehumidification"
function is activated. If desired, cooling with
air dehumidification can be deactivated.
If you deactivate the "Cooling with air-
dehumidification" function, the air inside the
vehicle will not be cooled. The air inside the
vehicle will also not be dehumidified. The
windows can mist up more quickly. There-
fore, only deactivate the "Cooling with air-
dehumidification" function briefly.
To set climate control to automatic mode:
Make sure the ignition switch is in the ON
position.
Set the desired temperature.
To activate: press the
button The indi-
cator light in thebutton lights up. Au-
tomatic air distribution and airflow are acti-
vated.
To switch to manual mode: press the
orbutton
or
Press the
orbutton. The indicator
light in thebutton goes out. Automatic
air distribution and airflow are deactivated.
Setting the temperature
Different temperatures can be set for the
driver's and front-passenger sides. The set
temperature is automatically maintained at a
constant level.
Make sure the ignition switch is in the ON
position.
To increase or reduce temperature: turn con-
trol
1or9counterclockwise or clockwise.
Only change the temperature setting in small
increments. Start at 70°F(22°C).
Setting the air distribution
Directs the airflow through the demis- ter ventilators.
Directs the airflow through the centerand side air ventilators.
Directs the airflow through the foot-
well air ventilators.
Directs the airflow through the center and side air ventilators as well as the
footwell air ventilators.
Directs the airflow through the centerand side air ventilators as well as the
demister ventilators.
Directs the airflow through the foot-
well and demister ventilators.
Directs the airflow through the demis- ter ventilators, the center and side air
ventilators as well as the footwell air
ventilators.
4-50Display screen, heater and air conditioner, and audio system
Page 244 of 538
NOTE
Regardless of the air distribution setting,
airflow is always directed through the side
air ventilators. The side air ventilators can
only be closed if the adjusters are turned
clockwise until they engage.
To set the air distribution:
1. Make sure the engine is running.
2. Press the
orbutton repeat-
edly until the desired symbol appears in
the display.
Setting the airflow
1. Make sure the ignition switch is in the ON position.
2. To increase or reduce airflow: press the
orbutton.
Switching the ZONE function
on/off
This function is only available with automatic
climate control.
To activate: press the
button. The in-
dicator light in thebutton lights up. The
temperature setting for the driver's side is not
adopted for the front-passenger side.
To deactivate: press the
button. The
indicator light in thebutton goes out. The temperature setting for the driver's side
is adopted for the front-passenger side.
Defogging the windshield
You can use this function to de-ice the wind-
shield or to defog the inside of the windshield
and the side windows.
NOTE
You should only select the "Windshield de-
misting" function until the windshield is clear
again.
Activating the "Windshield demisting"
function:
Make sure the ignition switch is in the ON
position.
To activate: press the
button The indi-
cator light in thebutton lights up.
The climate control system switches to the
following functions:
•High airflow
•High temperature
•Air distribution to the windshield and front
side windows
•Air-recirculation mode off NOTE
•The "Windshield demisting" function auto-
matically sets the blower output to the
optimum demisting effect. As a result, the
airflow may increase or decrease auto-
matically after the
button is pressed.
•You can adjust the blower output manu-
ally while the "Windshield demisting" func-
tion is in operation. Press the
orbutton.
Deactivating the "Windshield demisting"
function:
Press the
button. The indicator light in
thebutton goes out. The previous set-
tings are reactivated Air-recirculation mode
remains deactivated.
or
Turn temperature control
1or9counter-
clockwise or clockwise.
Defogging the windows
Windows misted up on the inside:
1. Activate the
"Cooling with air dehu-
midification" function.
2. Activate automatic mode
.
3. If the windows continue to mist up, acti- vate the
"Windshield demisting"
function.
Display screen, heater and air conditioner, and audio system4-51
Page 245 of 538
NOTE
You should only select this setting until the
windshield is clear again.
Windows misted up on the outside:
1. Activate the windshield wipers.
2. Set the air distribution to
or.
NOTE
You should only select this setting until the
windows are clear again.
Air recirculation mode
You can deactivate the flow of fresh air if
unpleasant odors are entering the vehicle
from outside. The air already inside the ve-
hicle will then be recirculated.
If you activate air-recirculation mode, the
windows can mist up more quickly, in particu-
lar at low temperatures. Only use air recircu-
lation mode briefly to prevent the windows
misting up.
Activating air recirculation mode:
Make sure the ignition switch is in the ON
position.
Press the
button. The indicator light in
thebutton lights up.
Air-recirculation mode is activated automati-
cally at high outside temperatures or high levels of pollution. When air-recirculation
mode is activated automatically, the indicator
light in the
button is not lit. Outside air
is added after about 30 minutes.
Deactivating air recirculation mode:
Press the
button. The indicator light in
thebutton goes out.
NOTE
Air-recirculation mode is deactivated auto-
matically:
•After approximately five minutes at out-
side temperatures below approximately
45°F(7°C).
•After approximately five minutes if the
"Cooling with air dehumidification" func-
tion is deactivated.
•After approximately 30 minutes at outside
temperatures above approximately 45 ° F
(7 °C) if the cooling with air dehumidifica-
tion function is activated.
SERVICING AIR CONDITIONER
WARNING
The air conditioner system contains refrig-
erant under high pressure. To avoid per-
sonal injury, any air conditioner service should be done only by an experienced
technician with the proper equipment.
The air conditioner system in your vehicle is
charged with a refrigerant designed with the
environment in mind.
This refrigerant will not harm the earth’s
ozone layer.
Special charging equipment and lubricant are
required when servicing your vehicle’s air
conditioner. Using improper refrigerants or
lubricants will cause severe damage to the air
conditioner system. (See "Air conditioner sys-
tem refrigerant and oil recommendations" in
the "9. Maintenance and Schedules" section.)
An INFINITI retailer will be able to service
your environmentally friendly air conditioner
system.
Air conditioner filter
The air conditioner system is equipped with
an air conditioner filter. To make sure the air
conditioner heats, defogs, and ventilates ef-
ficiently, replace the filter in accordance with
the specified maintenance intervals listed in
the separate maintenance booklet. It is rec-
ommended you visit an INFINITI retailer for
this service.
4-52Display screen, heater and air conditioner, and audio system
Page 246 of 538
The filter should be replaced if the air flow
decreases significantly or if windows fog up
easily when operating the heater or air con-
ditioner.AUDIO OPERATION
PRECAUTIONS
WARNING
•The driver must not attempt to operate
the audio system while the vehicle is in
motion, so that full attention may be
given to vehicle operation.
•Park the vehicle in a safe location and
apply the parking brake before operat-
ing the audio system and playing movies
(if equipped).
CAUTION
•Operate the audio system only when the
vehicle engine is running. Operating the
audio system for extended periods of
time with the engine turned off can dis-
charge the vehicle battery.
•Do not allow the system to get wet. Ex-
cessive moisture such as spilled liquids
may cause the system to malfunction.
Radio
Turn the ignition switch to the ACC or ON
position before turning on the radio. If you
listen to the radio when the engine is not
running, the ignition switch should be pushed
to the ACC position.
Radio reception is affected by station signal
strength, distance from radio transmitter,
buildings, bridges, mountains and other ex-
ternal influences. Intermittent changes in re-
ception quality are normally caused by these
external influences.
Using a cellular phone in or near the vehicle
may influence radio reception quality.
Radio reception
Your radio system is equipped with state-of-
the-art electronic circuits to enhance radio
reception. These circuits are designed to ex-
tend reception range, and to enhance the
quality of that reception.
However there are some general character-
istics of both FM and AM radio signals that
can affect radio reception quality in a moving
vehicle, even when the best quality equip-
ment is used. These characteristics are com-
pletely normal in a given reception area, and
do not indicate any malfunction in your radio
system.
AUDIO SYSTEM (IF EQUIPPED)
Display screen, heater and air conditioner, and audio system4-53
Page 247 of 538

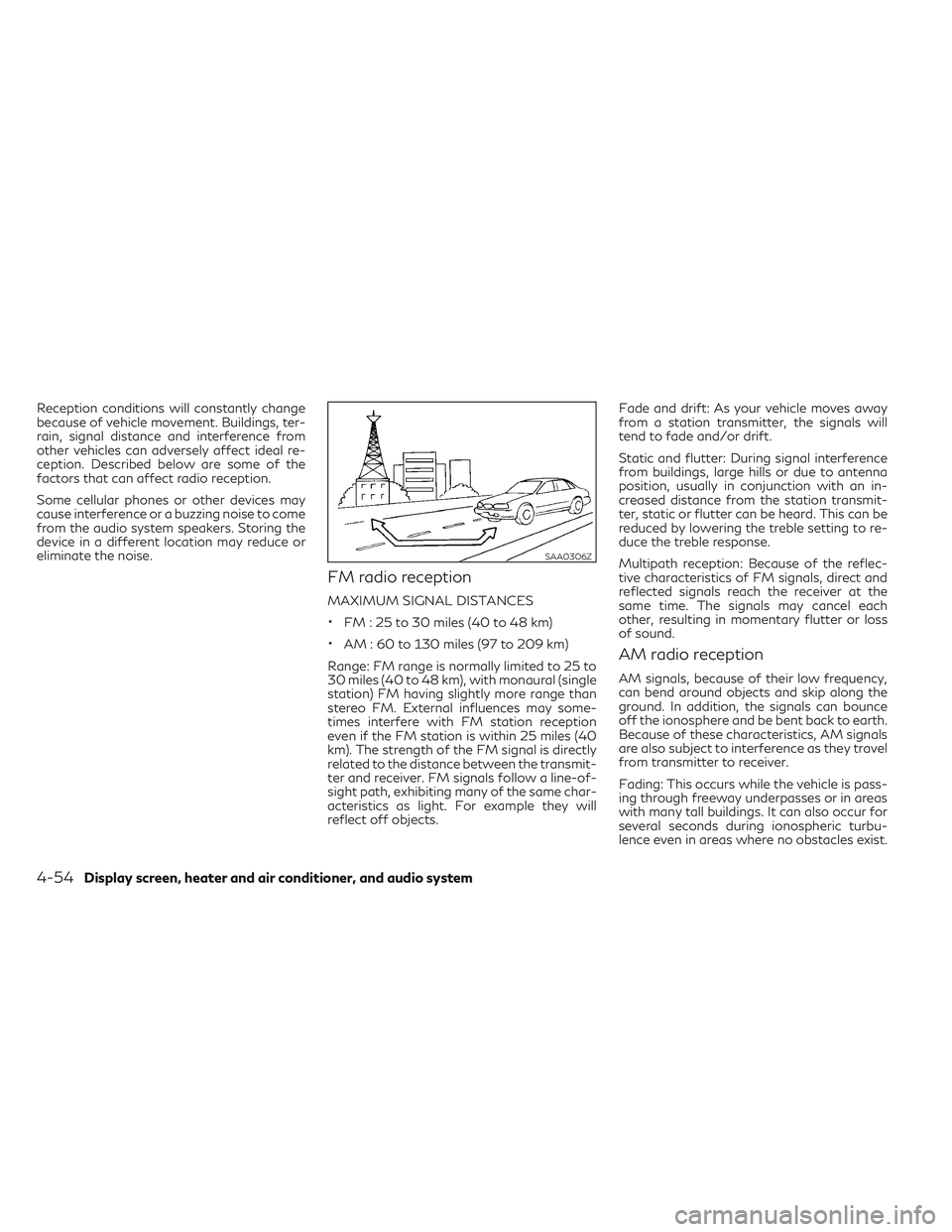

Reception conditions will constantly change
because of vehicle movement. Buildings, ter-
rain, signal distance and interference from
other vehicles can adversely affect ideal re-
ception. Described below are some of the
factors that can affect radio reception.
Some cellular phones or other devices may
cause interference or a buzzing noise to come
from the audio system speakers. Storing the
device in a different location may reduce or
eliminate the noise.
FM radio reception
MAXIMUM SIGNAL DISTANCES
•FM : 25 to 30 miles (40 to 48 km)
•AM : 60 to 130 miles (97 to 209 km)
Range: FM range is normally limited to 25 to
30 miles (40 to 48 km), with monaural (single
station) FM having slightly more range than
stereo FM. External influences may some-
times interfere with FM station reception
even if the FM station is within 25 miles (40
km). The strength of the FM signal is directly
related to the distance between the transmit-
ter and receiver. FM signals follow a line-of-
sight path, exhibiting many of the same char-
acteristics as light. For example they will
reflect off objects. Fade and drift: As your vehicle moves away
from a station transmitter, the signals will
tend to fade and/or drift.
Static and flutter: During signal interference
from buildings, large hills or due to antenna
position, usually in conjunction with an in-
creased distance from the station transmit-
ter, static or flutter can be heard. This can be
reduced by lowering the treble setting to re-
duce the treble response.
Multipath reception: Because of the reflec-
tive characteristics of FM signals, direct and
reflected signals reach the receiver at the
same time. The signals may cancel each
other, resulting in momentary flutter or loss
of sound.AM radio reception
AM signals, because of their low frequency,
can bend around objects and skip along the
ground. In addition, the signals can bounce
off the ionosphere and be bent back to earth.
Because of these characteristics, AM signals
are also subject to interference as they travel
from transmitter to receiver.
Fading: This occurs while the vehicle is pass-
ing through freeway underpasses or in areas
with many tall buildings. It can also occur for
several seconds during ionospheric turbu-
lence even in areas where no obstacles exist.
SAA0306Z
4-54Display screen, heater and air conditioner, and audio system
Page 248 of 538
Static: Caused by thunderstorms, electrical
power lines, electric signs and even traffic
lights.
HD RadioTMTechnology reception
(for U.S.)
HD RadioTMTechnology reception needs to
be activated to receive HD Radio broadcasts,
see "Audio settings" later in this section.
This enables you to receive radio broadcasts
digitally (where available), providing a better
quality sound with clear reception. When this
feature is not activated or HD Radio broad-
casts are not available, you will receive ana-
log radio (AM/FM) broadcasts.
Satellite radio reception
When the satellite radio is used for the first
time or the battery has been replaced, the
satellite radio may not work properly. This is
not a malfunction. Wait more than 10 min-
utes with the satellite radio ON and the ve-
hicle outside of any metal or large building for
the satellite radio to receive all of the neces-
sary data.
The satellite radio requires an active SiriusXM
Satellite Radio subscription. The satellite ser-
vice is a available only to those at least 18 and
older in the 48 contiguous United States. The satellite radio performance may be af-
fected if cargo carried on the roof blocks the
satellite radio signal.
If possible, do not put cargo near the satellite
antenna.
The build up of ice on the satellite radio an-
tenna can affect satellite radio performance.
Remove the ice to restore satellite radio re-
ception.
Trademarks
HD Radio Technology manufactured under
license from iBiquity Digital Corporation. U.S.
and Foreign Patents. HD Radio
TMand the
HD, HD Radio, and Arc logos are proprietary
trademarks of iBiquity Digita; Corp.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by
DENSO CORPORATION is under license.
Other trademarks and trade names are those
of their respective owners.
SiriusXM services require a subscription after
trial period and are sold separately or as a
package. Our satellite service is available only
to those at least 18 and older in the 48 con- tiguous USA and DC. For more information
visit www.siriusxm.com.
Required SiriusXM Satellite Radio and
SiriusXM Travel Link monthly subscriptions
are sold separately. Sirius XM Travel Link is
only available in select markets. For more
information, see www.sirius.com/travellink
“Made for iPod®” and “Made for iPhone®”
mean that an electronic accessory has been
designed to connect specifically to iPod® or
iPhone®, respectively, and has been certified
by the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance
with safety and regulatory standards. Please
note that the use of this accessory with
iPod® or iPhone® may affect wireless per-
formance.
Apple, the Apple logo, iPhone®, iPod®, iPod
classic®, iPod nano®, and iPod touch® are
trademarks of Apple Inc., registered in the
U.S. and other countries. Lightning is a trade-
mark of Apple Inc. App Store is a service mark
of Apple Inc.
Music recognition technology and related
data are provided by Gracenote®. Gracenote
Display screen, heater and air conditioner, and audio system4-55
Page 249 of 538
is the industry standard in music recognition
technology and related content delivery. For
more information, visit www.gracenote.com.
CD and music-related data from Gracenote,
Inc., copyright
c2000 to present
Gracenote. Gracenote Software, copyright
c2000 to present Gracenote. One or more
patents owned by Gracenote apply to this
product and service. See the Gracenote web-
site for a non-exhaustive list of applicable
Gracenote patents. Gracenote, CDDB, Musi-
cID, MediaVOCS, the Gracenote logo and
logotype, and the “Powered by Gracenote”
logo are either registered trademarks or
trademarks of Gracenote in the United States
and/or other countries.
App Store
SM
Apple and the Apple logo are trademarks of
Apple Inc., registered in the U.S. and other
countries. App Store is a service mark of
Apple Inc.
Google Play
TM
Google Play is a trademark of Google Inc.
Google
c2012 Google Inc. All rights reserved.
Google CalendarTMcalendaring application is
a trademark of Google Inc.
Compact Disc (CD) player
•Do not force a compact disc into the CD
insert slot. This could damage the CD
and/or CD player.
•Trying to load a CD with the CD door
closed could damage the CD and/or CD
player.
•During cold or rainy weather, the player
may malfunction due to the humidity. If
this occurs, remove the CD and dehu-
midify or ventilate the player completely.
•The player may skip while driving on rough
roads.
•The CD player sometimes cannot function
when the passenger compartment tem-
perature is extremely high. Decrease the
temperature before use.
•Only use high quality 4.7 in (12 cm) round
discs that have the “COMPACT disc DIGI-
TAL AUDIO” logo on the disc or packag-
ing.
•Do not expose the CD to direct sunlight.
•CDs that are of poor quality, are dirty,
scratched, or covered with fingerprints, or
that have pin holes may not work properly.
•The following CDs may not work properly: – Copy control compact discs (CCCD)
– Recordable compact discs (CD-R)
– Rewritable compact discs (CD-RW)
•Do not use the following CDs as they may
cause the CD player to malfunction. – 3.1 in (8 cm) discs
SAA0480
4-56Display screen, heater and air conditioner, and audio system
Page 250 of 538
– CDs that are not round
– CDs with a paper label
– CDs that are warped, scratched, orhave abnormal edges
•This audio system can only play prere-
corded CDs. It has no capabilities to record
or burn CDs.
•If a CD cannot be played, one of the fol-
lowing messages will be displayed.
[Disc Reading Error]
Indicates a CLV/Focus, TOC or Access
error. Check and re-insert the CD. Make
sure that it is inserted correctly.
[Please Eject Disc]
Indicates a mechanism error. If the CD can
be ejected, eject and re-insert the CD. If
the CD cannot be ejected, have the system
checked. It if recommended you contact
an INFINITI retailer for this service.
[File type is not supported]
Indicates that no readable files are found
on the inserted CD. Check the data on your
CD.
USB (Universal Serial Bus)
connection port/ iPod
The Media Hub is located in the center con-
sole and consists of the USB connectors. 1) USB/iPod connection port
Connect to play media from an iPod®,
iPhone® or a USB memory device. When
using INFINITI InTouch Apps with an
iPhone®, connect via a USB cable. Refer
to the device manufacturer’s owner infor-
mation regarding the proper use and care
of the device.
WARNING
Do not connect, disconnect or operate the
USB device while driving. Doing so can be a
distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.
CAUTION
•Do not force the USB device into the
USB port. Inserting the USB device
tilted or upside down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.
•Do not grab the USB port cover (if
equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.
•Do not leave the USB cable in a place
where it can be pulled unintentionally.
Pulling the cable may damage the port.
The vehicle is not equipped with a USB de-
vice. USB devices should be purchased sepa-
rately as necessary.
This system cannot be used to format USB
devices. To format a USB device, use a per-
sonal computer.
In some areas, the USB device for the front
seats plays only sound without images for
regulatory reasons, even when the vehicle is
parked.
NAA1628
Display screen, heater and air conditioner, and audio system4-57
