INFINITI QX30 2018 Owners Manual

PHONE
Connecting Bluetooth®
Hands-Free Phone
The cellular phone must be connected to the
Bluetooth® Hands-Free Phone System be-
fore commencing operation. Up to 5 cellular
phones can be connected to the system.
See "Connecting Bluetooth® device" later in
this section
Phone selection
Select one of the connected devices for op-
eration.
1. Push

Receiving a call
When you received a phone call, a notifica-
tion message is displayed on the touch screen
display with a ring tone.
Taking a call:
To answer a call, take one of the following
actions.
•Push<>on the steering wheel.
•Push <>on the INFINITI controller
(models without navigation system).
•Touch [Answer].
Reject a call:
To reject a call, touch [Decline]. Receiving a call while on the line to another
person:
When another phone call is received while on
the line to another person, a message box
informing you of the incoming call will appear
on the display.
Available items
Avail-
able
items
Action
[An-
swer] Take the second call and put the first
call on hold.
[De-
cline] Reject the second call and keep the first
call on line.
During a call
There are various options available during a
call. Select one of the following options dis-
played on the screen if necessary.
Available items
Avail-
able
itemsAction
[Switch
Call]* Answer another incoming call. The per-
son you are talking to will be placed on
hold. Push once more to speak to the
person on hold again.
[Hang
Up] This disconnects the person you are
currently connected to and will connect
you to the person who is on hold.
[Mute]/
[Cancel
Mute] When muted, your voice will not be
heard by the person on the other end of
the line.
NAA1654NAA1655NAA1721
Display screen, heater and air conditioner, and audio system4-89

Avail-
able
itemsAction
[Hold
Call]** Place the call on hold.
[Enter
Digits] Using the touch tone, send digits to the
connected party for using services such
as voicemail.
[Use
Hand-
set] Transfer the call to the cellular phone.
[End All
Calls]* Hang up all calls including the ones that
were on hold.
*: Available when multiple lines are con-
nected.
**: Available when a single line is connected.
•To adjust the volume of the person's voice
to be louder or quieter, push <->/<+>on
the steering wheel or turn >
on the audio main button, while talking on
the phone.
•Touch [Mute] if you do not want your
voice to be heard by the person on the
other end of the line.
CONNECTING BLUETOOTH®
DEVICE
Your vehicle is equipped with a Bluetooth®
Hands-Free Phone System and Bluetooth®
streaming audio device. If you are an owner
of a compatible Bluetooth® enabled cellular
phone or Bluetooth® audio device, you can
set up the wireless connection between your
cellular phone and the in-vehicle phone mod-
ule, or Bluetooth® audio and in-vehicle audio
module. With Bluetooth® wireless technol-
ogy, you can make or receive a telephone call
with your cellular phone in your pocket and
listen to music on your Bluetooth® streaming
audio device via the in-vehicle system.
Connecting cellular phone/audio
device
1. Push

Bluetooth® settings
The Bluetooth® settings can be set in detail
according to the user's preference.
1. Push

3) Turn “Show Notification” ON fromBluetooth® setting menu on your iPhone
®.
4) Connect iPhone® from vehicle setting menu.
Displaying received message list
1. To display the phone menu screen, takeone of the following actions:
•Push

•[Play]/[Stop]:
Touch [Play] to have the hands-free
phone system read out the received mes-
sage. Touch [Stop] to stop reading.
•[Add Template]:
The received text message can be added
to the template (text list).
•[Call]:
If the sender of the message is registered
in the Phonebook, touch this menu to
make a call to the sender.
•After the message is read out, a message
box will appear and an action can be se-
lected.
[Reply] Create a reply message.
"Sending a text message" later in this
section
[Next] Have the system read out the next mes- sage.
•If the sender's name and address is regis-
tered in the Phonebook, the name of the
sender is displayed as sender information
on the screen.

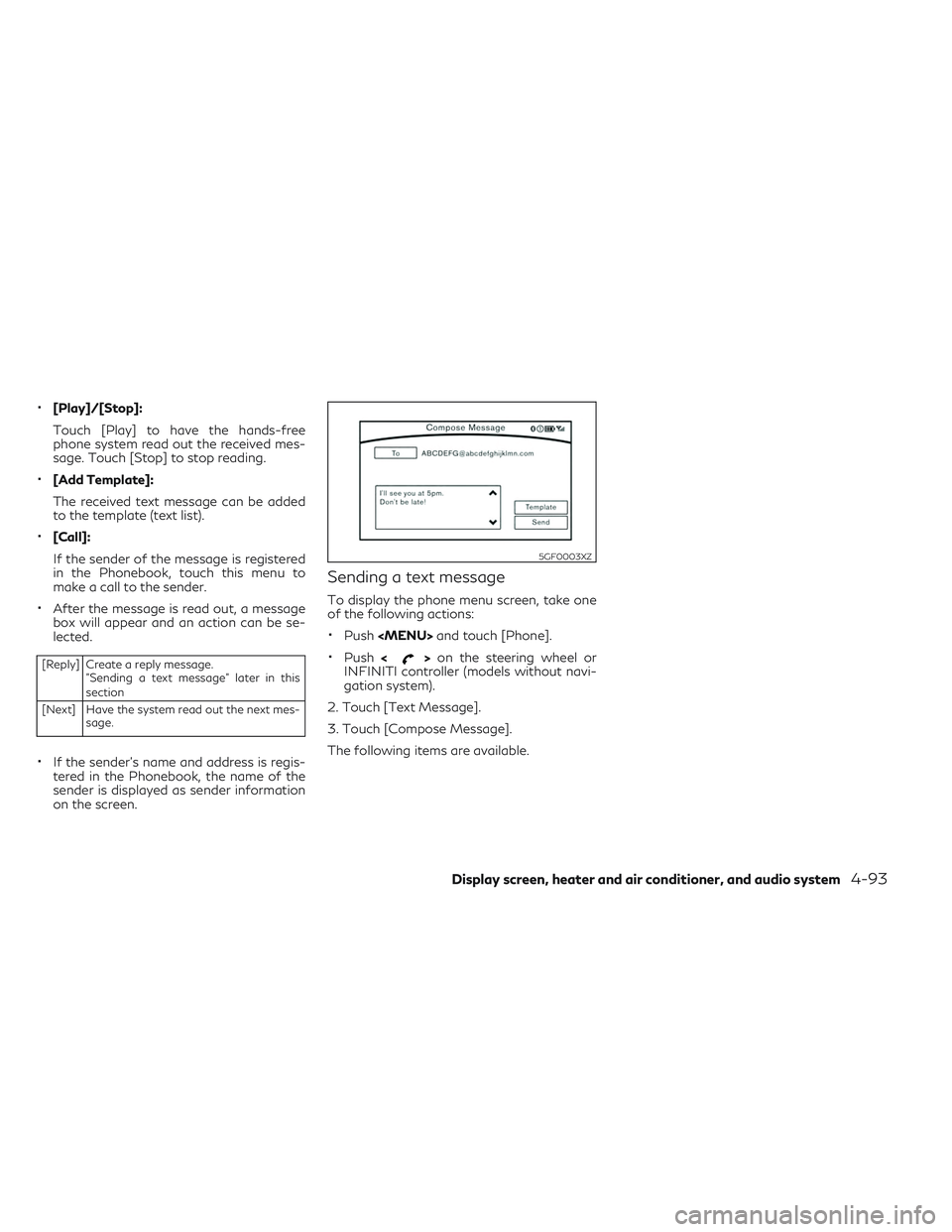

Sending a text message
To display the phone menu screen, take one
of the following actions:
•Push

Available itemAction
[To] [Keypad] Type in the address of the recipient using the keypad. Touch
[OK] to confirm the address.
[Phonebook] Select a recipient from the phonebook and touch [OK] to confirm.
[Template] Select from list Select an item from the message list. The selected text will be added to the message to be sent.
[Edit Text Message
Replies] Select an item in the message list to be edited. Use the keypad
to edit the text and touch [OK] to complete editing.
[Send] Touch to send the message.PHONE AND TEXT MESSAGE
SETTINGS
Phone settings
The Bluetooth® Hands-Free Phone System
can be set in detail according to the user's
preference.
1. Push

Incoming Call Settings:
Setting itemAction
[Ringtone] Select a type of ringtone.
Phonebook/Favorites Settings:
Setting itemAction
[Configure
Phonebook
Settings] [Automatic Transfer Set-
tings]
[Phonebook Auto
Download]Turn automatic download of the phonebook from the cellular phone on/off.
[Call History Download] Turn automatic download of the cellular phone call history on/off.
[Manual Phonebook
Transfer] [Transfer and Overwrite]
(Depending on cellular
phone)Manually transfer information from the phonebook on the cellular phone.
[Transfer and Add] (De-
pending on cellular
phone)
[Delete Phonebook] To delete a single item, select the item you wish to delete from the list. Touch [Delete All]
to delete all items. To delete multiple items, touch [Multiple Selection].
[Favorites Set-
tings] [Delete Favorites]
To delete a single item, select the item you wish to delete from the list. Touch [Delete All]
to delete all items. To delete multiple items, touch [Multiple Selection].
[Add to Favorites] [From Phonebook] Select items from the phonebook of the in-vehicle system to add to the favorites. [From Outgoing Calls] Select items from the outgoing calls list of the in-vehicle system to add to the favorites.
[From Incoming Calls] Select items from the incoming calls list of the in-vehicle system to add to the favorites.
[From Missed Calls] Select items from the missed calls list of the in-vehicle system to add to the favorites.
[Delete Call
History] [Delete Outgoing Call History]
To delete a single item, select the item you wish to delete from the list. Touch [Delete All]
to delete all items. To delete multiple items, touch [Multiple Selection].
[Delete Incoming Call History]
[Delete Missed Call History]
[Delete All Call History]
The volume of the ringtone, incoming call and outgoing call can also be adjusted.
Display screen, heater and air conditioner, and audio system4-95

Mail settings
Various settings can be changed from the Mail Settings screen.
1. Push

Phonebook
Information in the phonebook on cellular
phones can be downloaded.
"Phone and text message settings" earlier in
this section
1. Push
