DTC P1446 EVAP CANISTER VENT CONTROL VALVE
2005 QX56
DTC Confirmation ProcedureUBS00HB4
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON and wait at least 5 seconds.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
4. Start engine and let it idle for at least 1 minute.
5. Repeat next procedures 3 times.
a. Increase the engine speed up to 3,000 to 3,500 rpm and keep it
for 2 minutes and 50 seconds to 3 minutes.
Never exceed 3 minutes.
b. Fully released accelerator pedal and keep engine idle for about
5 seconds.
6. If 1st trip DTC is detected, go to EC-542, "
Diagnostic Procedure"
.
If 1st trip DTC is not detected, go to the next step.
7. Repeat next procedure 20 times.
a. Quickly increase the engine speed up to 4,000 to 4,500 rpm or more and keep it for 25 to 30 seconds.
b. Fully released accelerator pedal and keep engine idle for at least 35 seconds.
8. If 1st trip DTC is detected, go to EC-542, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF 0 58 Y
PBIB0972E

DTC P1446 EVAP CANISTER VENT CONTROL VALVE
EC-541
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56

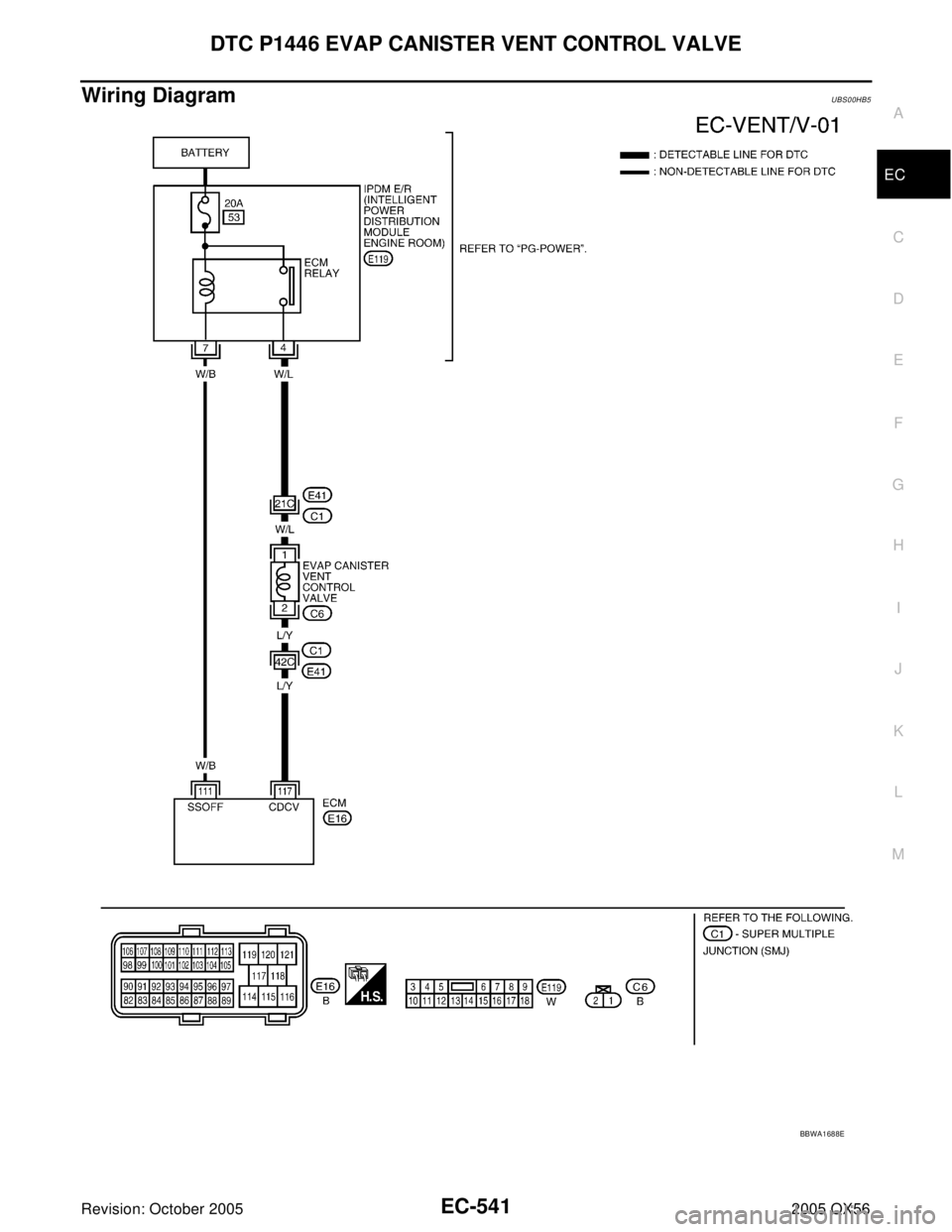

Wiring DiagramUBS00HB5
BBWA1688E

EC-542Revision: October 2005
DTC P1446 EVAP CANISTER VENT CONTROL VALVE
2005 QX56
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureUBS00HB6
1. CHECK RUBBER TUBE
1. Turn ignition switch OFF.
2. Disconnect rubber tube connected to EVAP canister vent control valve.
3. Check the rubber tube for clogging.
OK or NG
OK >> GO TO 2.
NG >> Clean rubber tube using an air blower.
2. CHECK EVAP CANISTER VENT CONTROL VALVE
Refer to EC-543, "
Component Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Replace EVAP canister vent control valve.
3. CHECK IF EVAP CANISTER SATURATED WITH WATER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.
2. Check if water will drain from the EVAP canister.
Ye s o r N o
Yes >> GO TO 4.
No >> GO TO 6.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
11 7 L / YEVAP canister vent control
valve[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
BBIA0443E
BBIA0351E

DTC P1446 EVAP CANISTER VENT CONTROL VALVE
EC-543
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
4. CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 2.5 kg (5.5 lb).
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

EVAP canister for damage

EVAP hose between EVAP canister and vehicle frame for clogging or poor connection
>> Repair hose or replace EVAP canister.
6. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR
1. Disconnect EVAP control system pressure sensor harness connector.
2. Check connectors for water.
OK or NG
OK >> GO TO 7.
NG >> Replace EVAP control system pressure sensor.
7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-334, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace EVAP control system pressure sensor.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-156, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionUBS00HB7
EVAP CANISTER VENT CONTROL VALVE
With CONSULT-II
1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion B of EVAP canister vent control valve for being
rusted.
If NG, replace EVAP canister vent control valve.
If OK, go to next step.
3. Reconnect harness connectors disconnected.
4. Turn ignition switch ON.Water should not exist.
PBIB1033E

EC-544Revision: October 2005
DTC P1446 EVAP CANISTER VENT CONTROL VALVE
2005 QX56
5. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.
6. Check air passage continuity and operation delay time.
Make sure that new O-ring is installed properly.
Operation takes less than 1 second.
If NG, replace EVAP canister vent control valve.
If OK, go to next step.
7. Clean the air passage (Portion A to B ) of EVAP canister vent control valve using an air blower.
8. Perform step 6 again.
Without CONSULT-II
1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion B of EVAP canister vent control valve for being
rusted.
3. Check air passage continuity and operation delay time under the
following conditions.
Make sure that new O-ring is installed properly.
Operation takes less than 1 second.
If NG, replace EVAP canister vent control valve.
If OK, go to next step.
4. Clean the air passage (Portion A to B ) of EVAP canister vent control valve using an air blower.
5. Perform step 3 again.
Condition VENT CONTROL/V Air passage continuity between A and B
ON No
OFF Yes
PBIB1679E
PBIB1033E
Condition Air passage continuity between A and B
12V direct current supply between
terminals 1 and 2No
OFF Yes
PBIB1034E

DTC P1564 ICC STEERING SWITCH
EC-545
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
DTC P1564 ICC STEERING SWITCHPFP:25551
Component DescriptionUBS00L1M
ICC steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of
switch, and determines which button is operated.
Refer to ACS-6, "
DESCRIPTION" for the ICC function.
CONSULT-II Reference Value in Data Monitor ModeUBS00L1N
Specification data are reference values.
On Board Diagnosis LogicUBS00L1O
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
EC-383, "
DTC P0605 ECM" .
PBIB2640E
MONITOR ITEM CONDITION SPECIFICATION
MAIN SW

Ignition switch: ONMAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW

Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW

Ignition switch: ONRESUME/ACCELERATE switch:
PressedON
RESUME/ACCELERATE switch:
ReleasedOFF
SET SW

Ignition switch: ONSET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
DIST SW

Ignition switch: ONDISTANCE switch: Pressed ON
DISTANCE switch: Released OFF
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1564
1564ICC steering switch

An excessively high voltage signal from the
ICC steering switch is sent to ECM.

ECM detects that input signal from the ICC
steering switch is out of the specified range.

ECM detects that the ICC steering switch is
stuck ON.

Harness or connectors
(The switch circuit is open or shorted.)

ICC steering switch

Combination switch (spiral cable)

ECM

EC-546Revision: October 2005
DTC P1564 ICC STEERING SWITCH
2005 QX56
DTC Confirmation ProcedureUBS00L1P
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 10 seconds.
4. Press MAIN switch for at least 10 seconds, then release it and
wait at least 10 seconds.
5. Press CANCEL switch for at least 10 seconds, then release it
and wait at least 10 seconds.
6. Press RESUME/ACCELERATE switch for at least 10 seconds,
then release it and wait at least 10 seconds.
7. Press SET/COAST switch for at least 10 seconds, then release
it and wait at least 10 seconds.
8. Press DISTANCE switch for at least 10 seconds, then release it
and wait at least 10 seconds.
9. If DTC is detected, go to EC-548, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF 0 58 Y

DTC P1564 ICC STEERING SWITCH
EC-547
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
Wiring DiagramUBS00L1Q
BBWA1785E

EC-548Revision: October 2005
DTC P1564 ICC STEERING SWITCH
2005 QX56
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureUBS00L1R
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-162, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
67 B Sensor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0V
99 G/Y ICC steering switch[Ignition switch: ON]

ICC steering switch: OFFApproximately 4.3V
[Ignition switch: ON]

MAIN switch: PressedApproximately 0V
[Ignition switch: ON]

CANCEL switch: PressedApproximately 1.3V
[Ignition switch: ON]

RESUME/ACCELERATE switch: PressedApproximately 3.7V
[Ignition switch: ON]

SET/COAST switch: PressedApproximately 3V
[Ignition switch: ON]

DISTANCE switch: PressedApproximately 2.2V
BBIA0354E

DTC P1564 ICC STEERING SWITCH
EC-549
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: October 20052005 QX56
2. CHECK ICC STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “CANCEL SW”, “RESUME/ACC SW”, “SET
SW” and “DIST SW” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check each item indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 99 and ground with press-
ing each button.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
Switch Monitor item Condition Indication
MAIN switch MAIN SWPressed ON
Released OFF
CANCEL switch CANCEL SWPressed ON
Released OFF
RESUME/ACCELERATE
switchRESUME/ACC SWPressed ON
Released OFF
SET/COAST switch SET SWPressed ON
Released OFF
DISTANCE switch DIST SWPressed ON
Released OFF
MBIB0064E
Switch Condition Voltage [V]
MAIN switchPressed Approx. 0
Released Approx. 4.3
CANCEL switchPressed Approx. 1.3
Released Approx. 4.3
RESUME/ACCELERATE
switchPressed Approx. 3.7
Released Approx. 4.3
SET/COAST switchPressed Approx. 3.0
Released Approx. 4.3
DISTANCE switchPressed Approx. 2.2
Released Approx. 4.3
PBIB0 311 E
