[CAN]
CAN SYSTEM (TYPE 4)
Revision: October 20052005 QX56
Case 7
Check TCM circuit. Refer to LAN-160, "TCM Circuit Check" .
SKIB3389E
PKIA8824E

CAN SYSTEM (TYPE 4)
LAN-143
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56
Case 8
Check ICC sensor circuit. Refer to LAN-161, "ICC Sensor Circuit Check" .
SKIB3390E
PKIA8825E

LAN-144
[CAN]
CAN SYSTEM (TYPE 4)
Revision: October 20052005 QX56
Case 9
Check ICC unit circuit. Refer to LAN-161, "ICC Unit Circuit Check" .
SKIB3391E
PKIA8826E

CAN SYSTEM (TYPE 4)
LAN-145
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56
Case 10
Check driver seat control unit circuit. Refer to LAN-162, "Driver Seat Control Unit Circuit Check" .
SKIB3392E
PKIA8827E

LAN-146
[CAN]
CAN SYSTEM (TYPE 4)
Revision: October 20052005 QX56
Case 11
Check combination meter circuit. Refer to LAN-162, "Combination Meter Circuit Check" .
SKIB3393E
PKIA8828E

CAN SYSTEM (TYPE 4)
LAN-147
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56
Case 12
Check display control unit circuit. Refer to LAN-163, "Display Control Unit Circuit Check" .
SKIB3394E
PKIA8829E

LAN-148
[CAN]
CAN SYSTEM (TYPE 4)
Revision: October 20052005 QX56

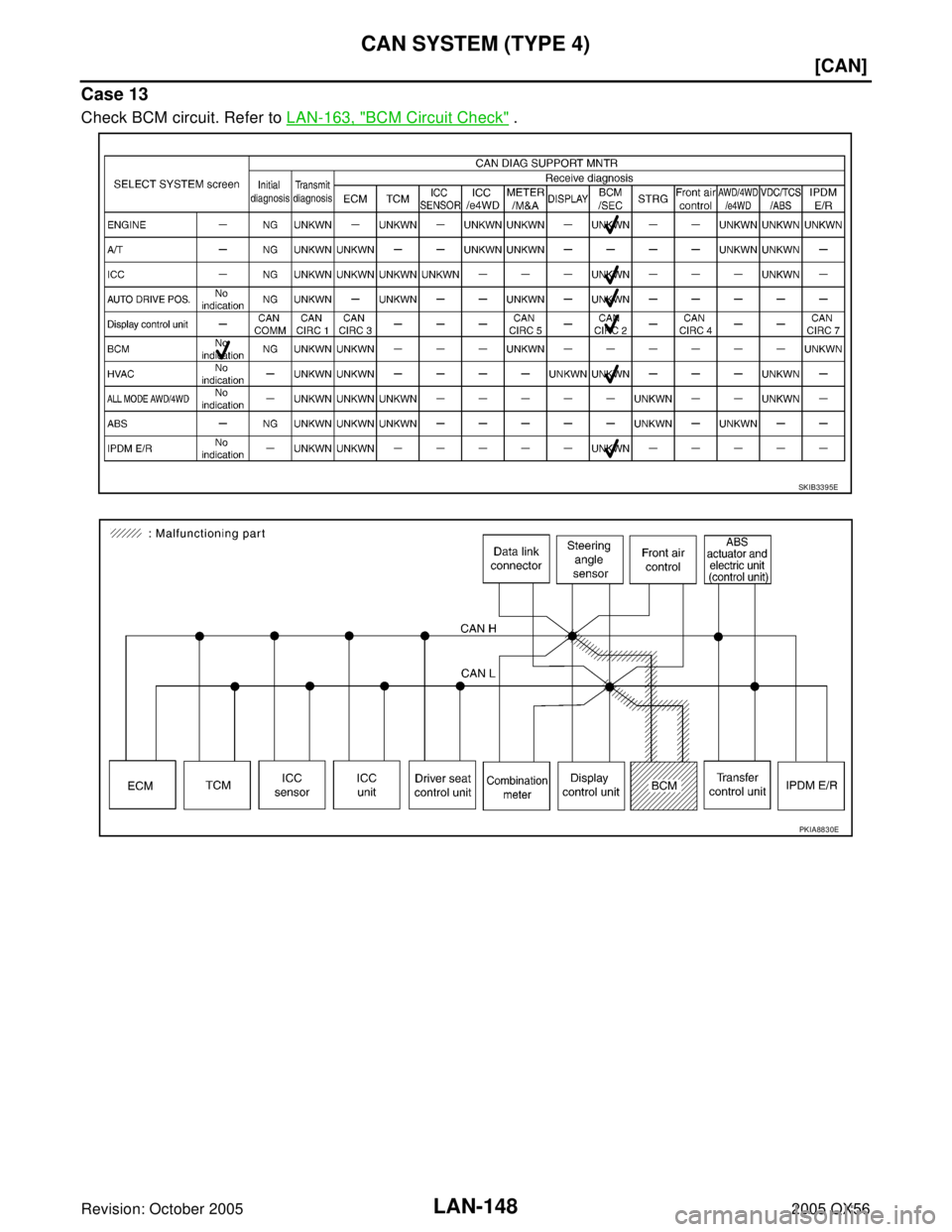

Case 13
Check BCM circuit. Refer to LAN-163, "BCM Circuit Check" .
SKIB3395E
PKIA8830E

CAN SYSTEM (TYPE 4)
LAN-149
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56

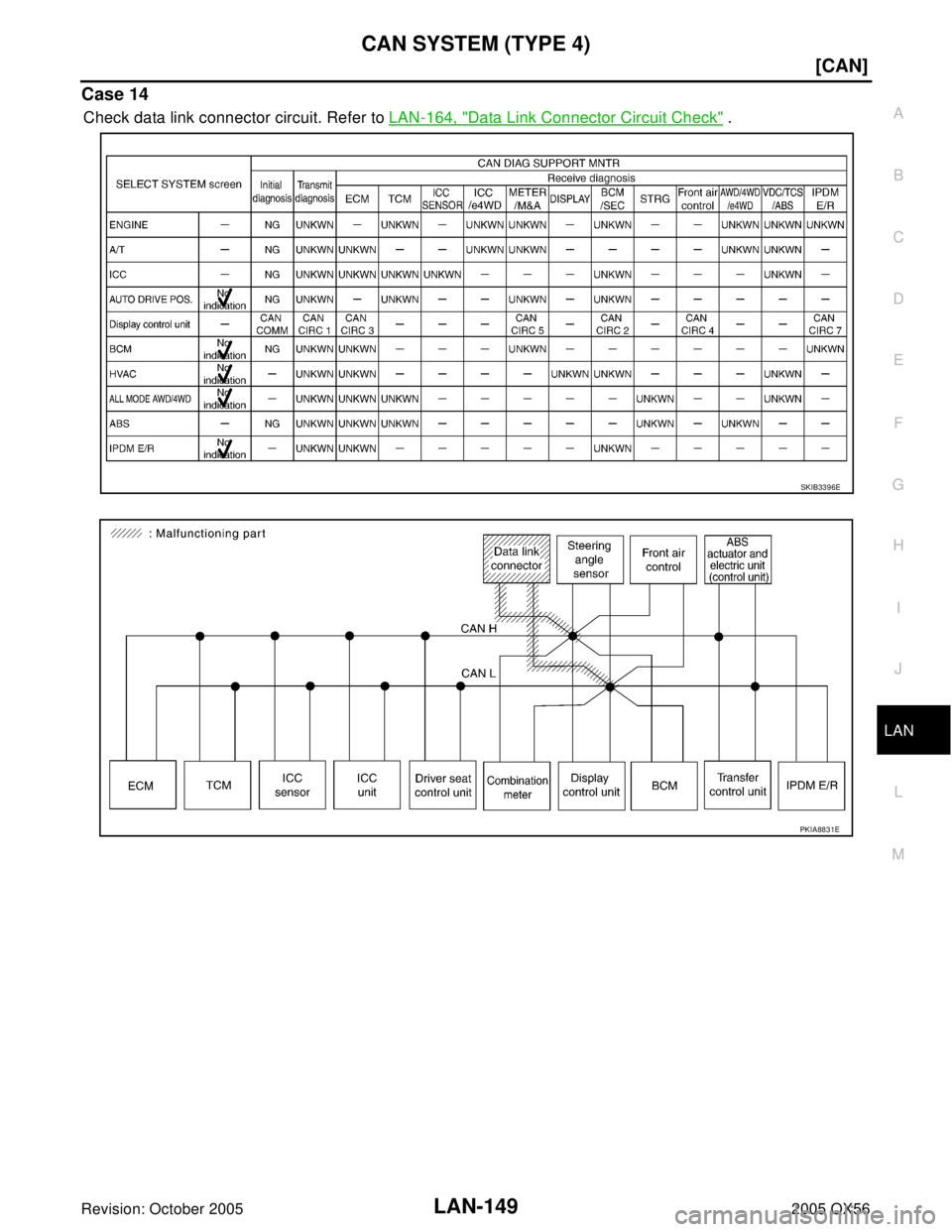

Case 14
Check data link connector circuit. Refer to LAN-164, "Data Link Connector Circuit Check" .
SKIB3396E
PKIA8831E

LAN-150
[CAN]
CAN SYSTEM (TYPE 4)
Revision: October 20052005 QX56
Case 15
Check steering angle sensor circuit. Refer to LAN-164, "Steering Angle Sensor Circuit Check" .
SKIB3397E
PKIA8832E

CAN SYSTEM (TYPE 4)
LAN-151
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56
Case 16
Check front air control circuit. Refer to LAN-165, "Front Air Control Circuit Check" .
SKIB3398E
PKIA8833E
