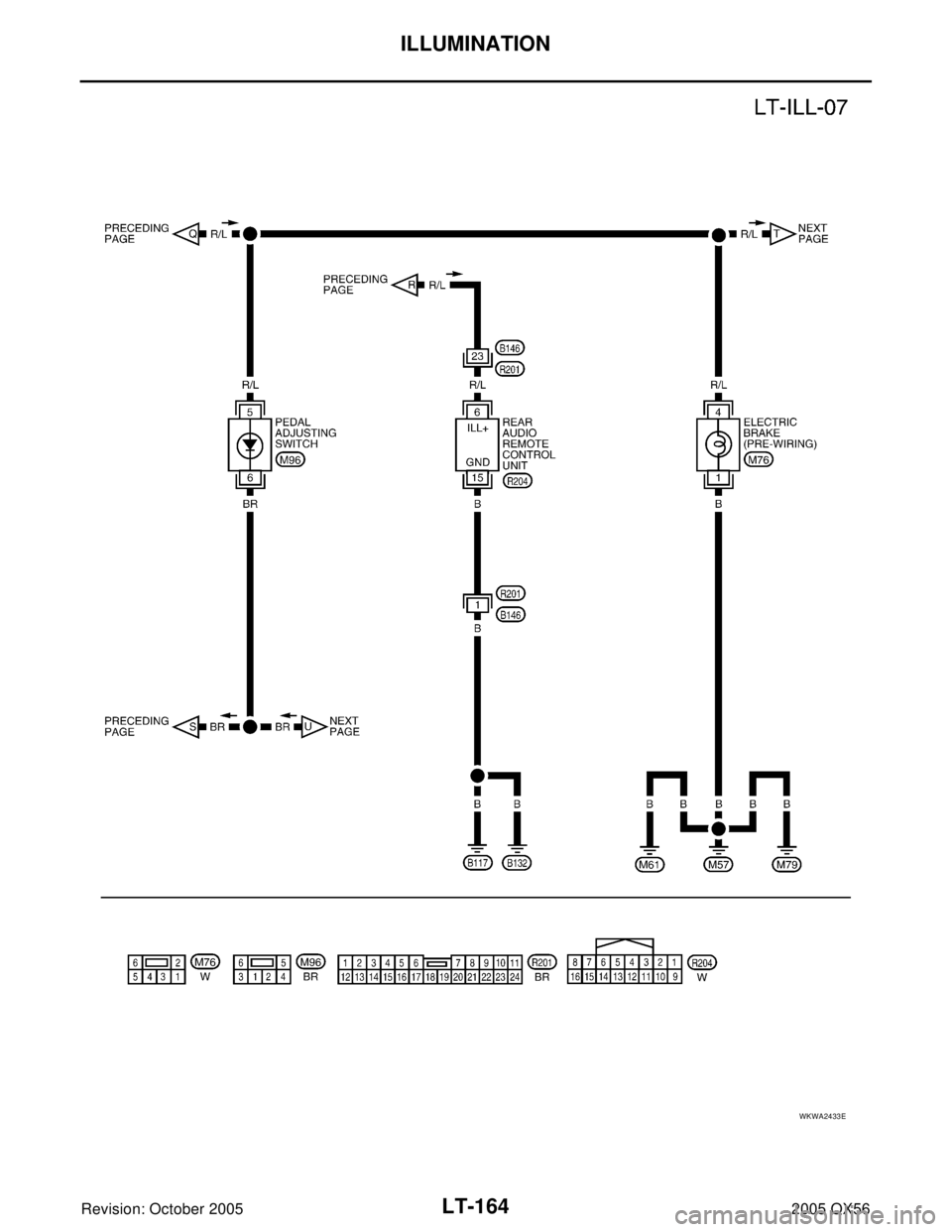

INFINITI QX4 2005 Factory Service Manual

LT-164
ILLUMINATION
Revision: October 20052005 QX56
WKWA2433E

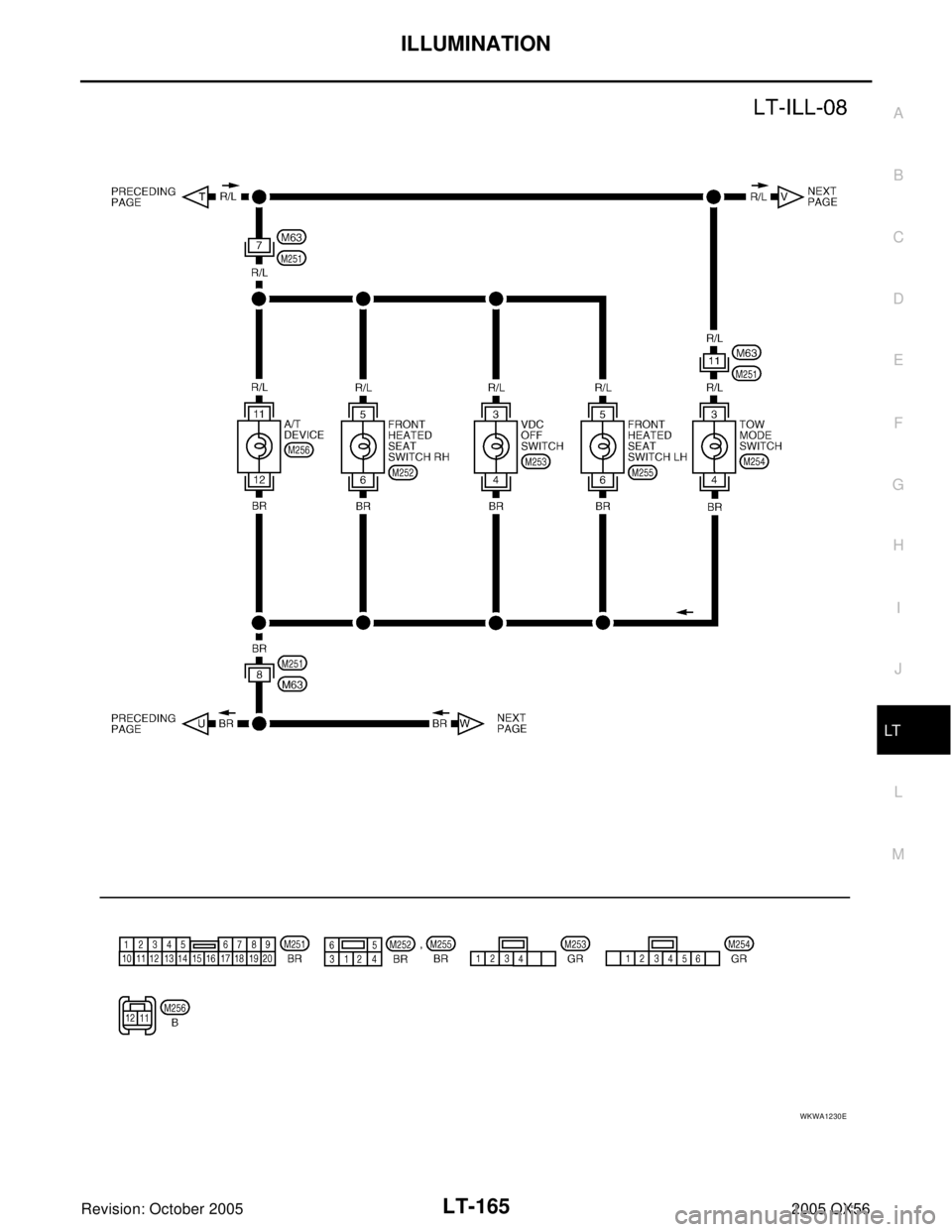

ILLUMINATION
LT-165
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
WKWA1230E

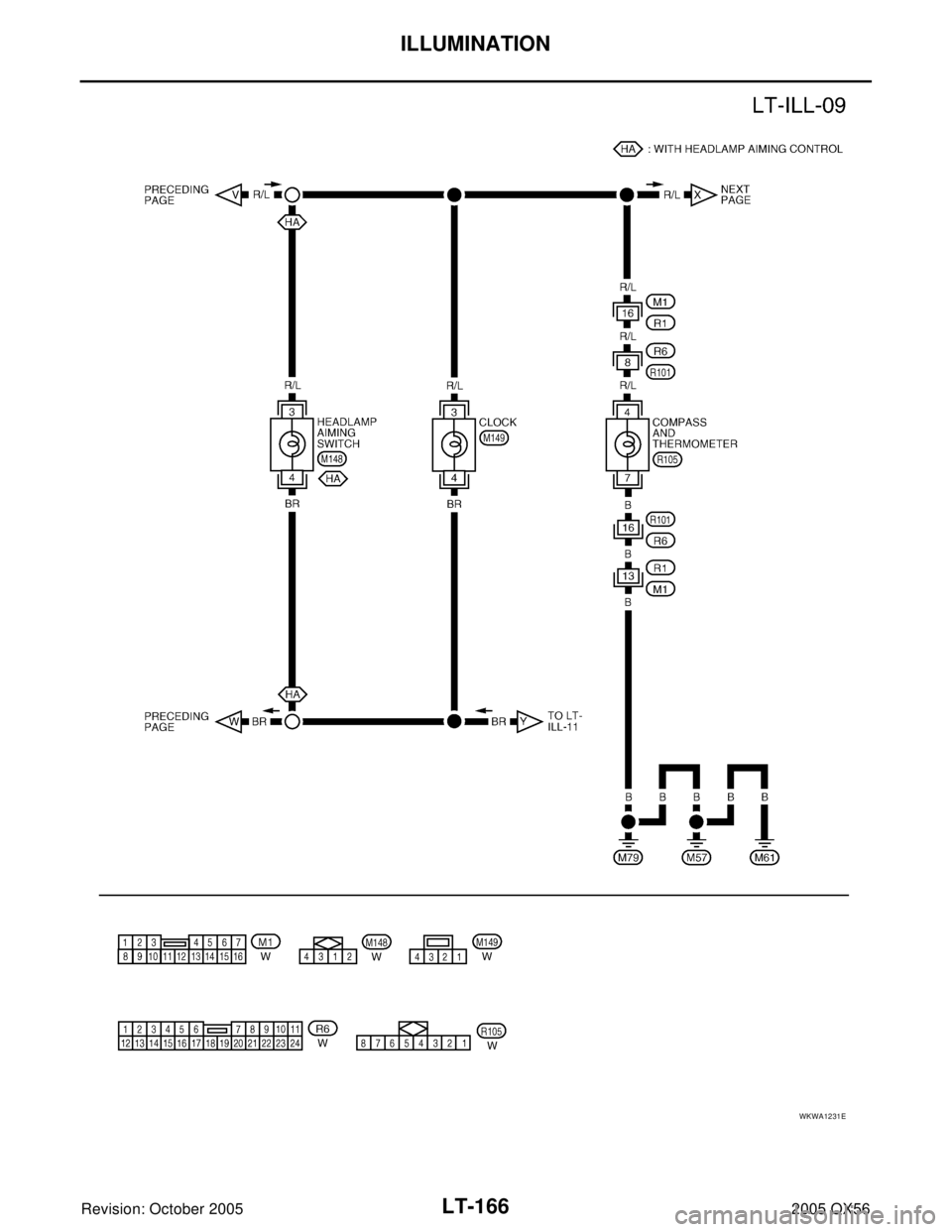

LT-166
ILLUMINATION
Revision: October 20052005 QX56
WKWA1231E

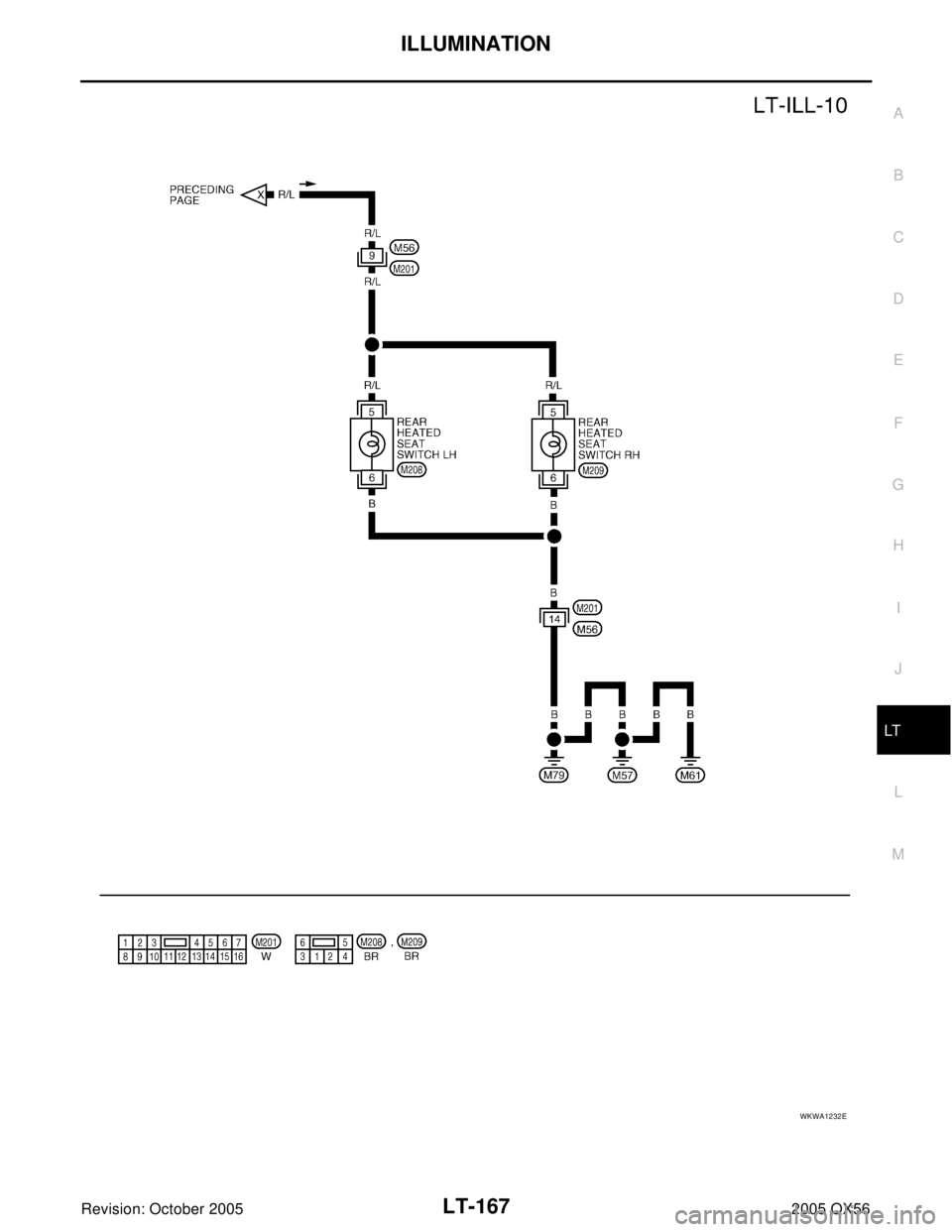

ILLUMINATION
LT-167
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
WKWA1232E

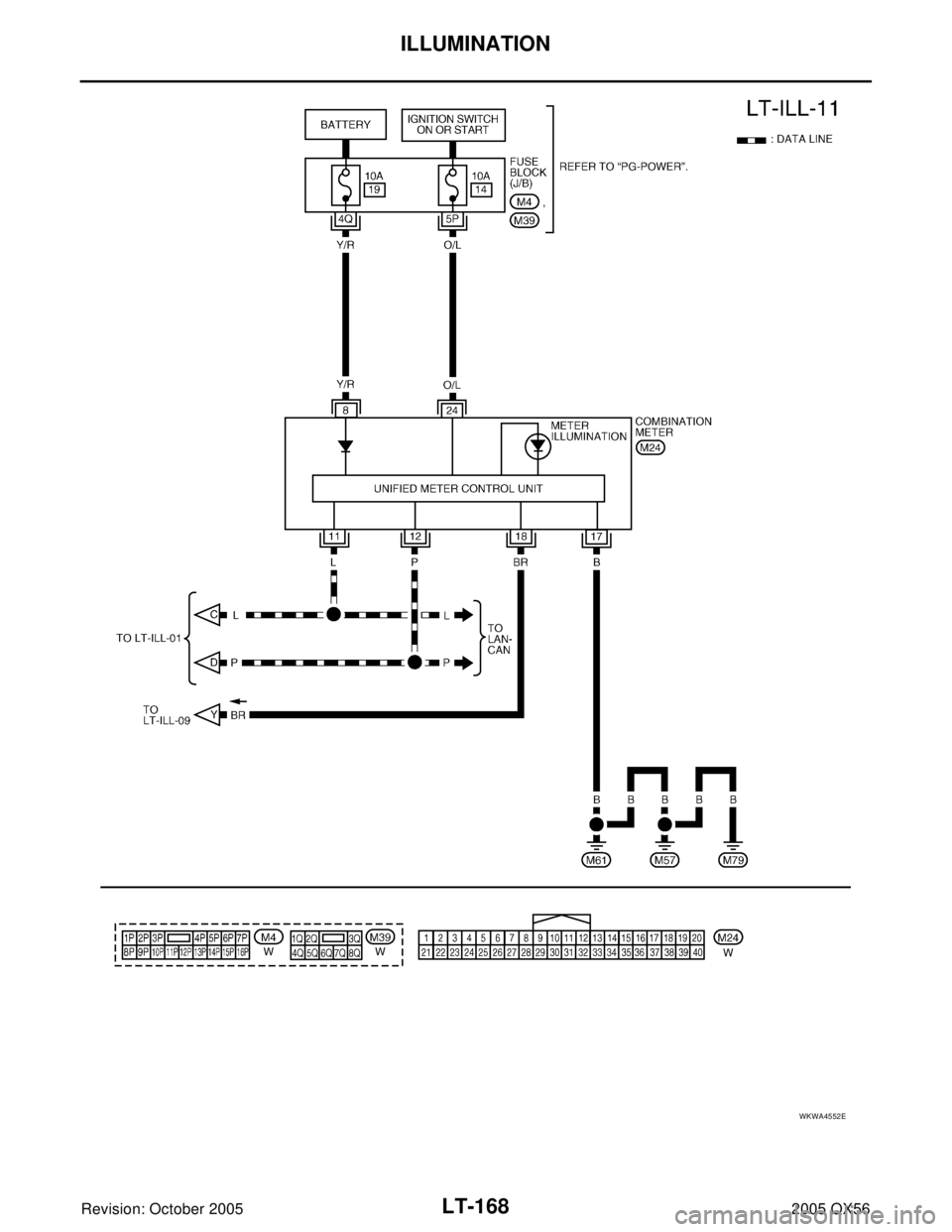

LT-168
ILLUMINATION
Revision: October 20052005 QX56
WKWA4552E

ILLUMINATION
LT-169
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
Removal and Installation of Illumination Control SwitchEKS00BBN
REMOVAL
1. Remove cluster lid A. Refer to IP-13, "Combination Meter" .
2. Carefully pry tabs and remove illumination control switch from
cluster lid A.
INSTALLATION
Installation is in the reverse order of removal.
WKIA1403E

LT-170
BULB SPECIFICATIONS
Revision: October 20052005 QX56
BULB SPECIFICATIONSPFP:26297
HeadlampEKS00D83
*: Always check with the Parts Department for the latest parts information.
Exterior LampEKS00D84
*: Always check with the Parts Department for the latest parts information.
Interior Lamp/IlluminationEKS00D85
*: Always check with the Parts Department for the latest parts information.Item Wattage (W)*
Low35 (D2R)
High60 (HB3)
Item Wattage (W)*
Front combination lampParking lamp (Inner) 7
Parking lamp (Outer) 7
Side marker 7
Rear combination lampStop/Tail lamp *
Side marker lamp *
Turn signal lamp 27
Back-up lamp18
Turn/fog lampFog 55 (H3)
Tu rn 2 1
License plate lamp5
High-mounted stop lamp*
Item Wattage (W)*
Glove box lamp3.4
Room/Map lamp8
Console box illumination lamp*
A/T device lamp2
Foot lamp3.4
Ste p la mp3.8
Cargo lamp7
Vanity lamp1.32
Personal lamp5
Puddle lamp8
Ignition keyhole illumination lamp0.74

LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION LU
A
LU
Revision: October 20052005 QX56 PRECAUTIONS .......................................................... 2
Precautions for Liquid Gasket .................................. 2
REMOVAL OF LIQUID GASKET SEALING .......... 2
LIQUID GASKET APPLICATION PROCEDURE ..... 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tool ......................................... 3
LUBRICATION SYSTEM ............................................ 5
Lubrication Circuit .................................................... 5
System Drawing ....................................................... 6
ENGINE OIL ............................................................... 7
Inspection ................................................................. 7
OIL LEVEL ............................................................ 7
OIL APPEARANCE ............................................... 7
OIL LEAKAGE ....................................................... 7
OIL PRESSURE CHECK ...................................... 7
Changing Engine Oil ................................................ 8
OIL FILTER ............................................................... 10
Removal and Installation ........................................ 10
REMOVAL ........................................................... 10
INSTALLATION ................................................... 10
INSPECTION AFTER INSTALLATION ............... 10OIL COOLER ............................................................ 11
Removal and Installation ........................................ 11
REMOVAL ........................................................... 11
INSPECTION AFTER REMOVAL ....................... 11
INSTALLATION ................................................... 12
INSPECTION AFTER INSTALLATION ................ 12
OIL PUMP ................................................................. 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
INSPECTION AFTER INSTALLATION ................ 14
Disassembly and Assembly .................................... 14
DISASSEMBLY ................................................... 14
INSPECTION AFTER DISASSEMBLY ................ 14
ASSEMBLY ......................................................... 15
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 16
Standard and Limit .................................................. 16
OIL PRESSURE .................................................. 16
OIL PUMP ........................................................... 16
REGULATOR VALVE .......................................... 16
ENGINE OIL CAPACITY (APPROXIMATE) ........ 16

LU-2Revision: October 2005
PRECAUTIONS
2005 QX56
PRECAUTIONSPFP:00001
Precautions for Liquid GasketEBS00NIH
REMOVAL OF LIQUID GASKET SEALING

After removing the bolts and nuts, separate the mating surface
and remove the old liquid gasket sealing using Tool.
CAUTION:
Do not damage the mating surfaces.

Tap the seal cutter to insert it.

In areas where the Tool is difficult to use, lightly tap to slide it.
LIQUID GASKET APPLICATION PROCEDURE
1. Remove the old liquid gasket adhering to the gasket application
surface and the mating surface using suitable tool.

Remove the liquid gasket completely from the groove of the
liquid gasket application surface, bolts, and bolt holes.
2. Thoroughly clean the mating surfaces and remove adhering
moisture, grease and foreign material.
3. Attach the liquid gasket tube to the Tool.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-45, "
Recommended Chemical Products and Sealants" .
4. Apply the liquid gasket without breaks to the specified location
with the specified dimensions.

If there is a groove for the liquid gasket application, apply the
liquid gasket to the groove.

As for the bolt holes, normally apply the liquid gasket inside
the holes. If specified in the procedure, it should also be
applied outside the holes.

Within five minutes of liquid gasket application, install the mat-
ing component.

If the liquid gasket protrudes, wipe it off immediately.

Do not retighten after the installation.

Wait 30 minutes or more after installation before refilling the
engine with engine oil and engine coolant.
CAUTION:
If there are specific instructions in this manual, observe them.Too l n u mb er : K V 1011110 0 (J -37228)
WBIA0566E
PBIC0003E
Tool number : WS39930000 ( — )
WBIA0567E
SEM 15 9F

PREPARATION
LU-3
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: October 20052005 QX56
PREPARATIONPFP:00002
Special Service ToolsEBS00LMO
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolEBS00LMP
Tool number
(Kent-Moore No.)
Tool nameDescription
ST25051001
(J-25695-1)
Oil pressure gaugeMeasuring oil pressure
Maximum measuring range:
2,452 kPa (25 kg/cm
2 , 356 psi)
ST25052000
(J-25695-2)
HoseAdapting oil pressure gauge to cylinder block
KV10111100
(J-37228)
Seal cutterRemoving steel oil pan and rear timing chain
case
KV10115801
(J-38956)
Oil filter wrenchRemoving and installing oil filter
a: 64.3 mm (2.531 in)
WS39930000
(—)
Tube presserPressing the tube of liquid gasket
S-NT050
S-NT559
NT046
S-NT375
S-NT052
