LT-154
ILLUMINATION
Revision: October 20052005 QX56
to power liftgate switch terminal 4
to front room/map lamp assembly (console box illumination) terminal 8
to AV switch terminal 4
to hazard switch terminal 4

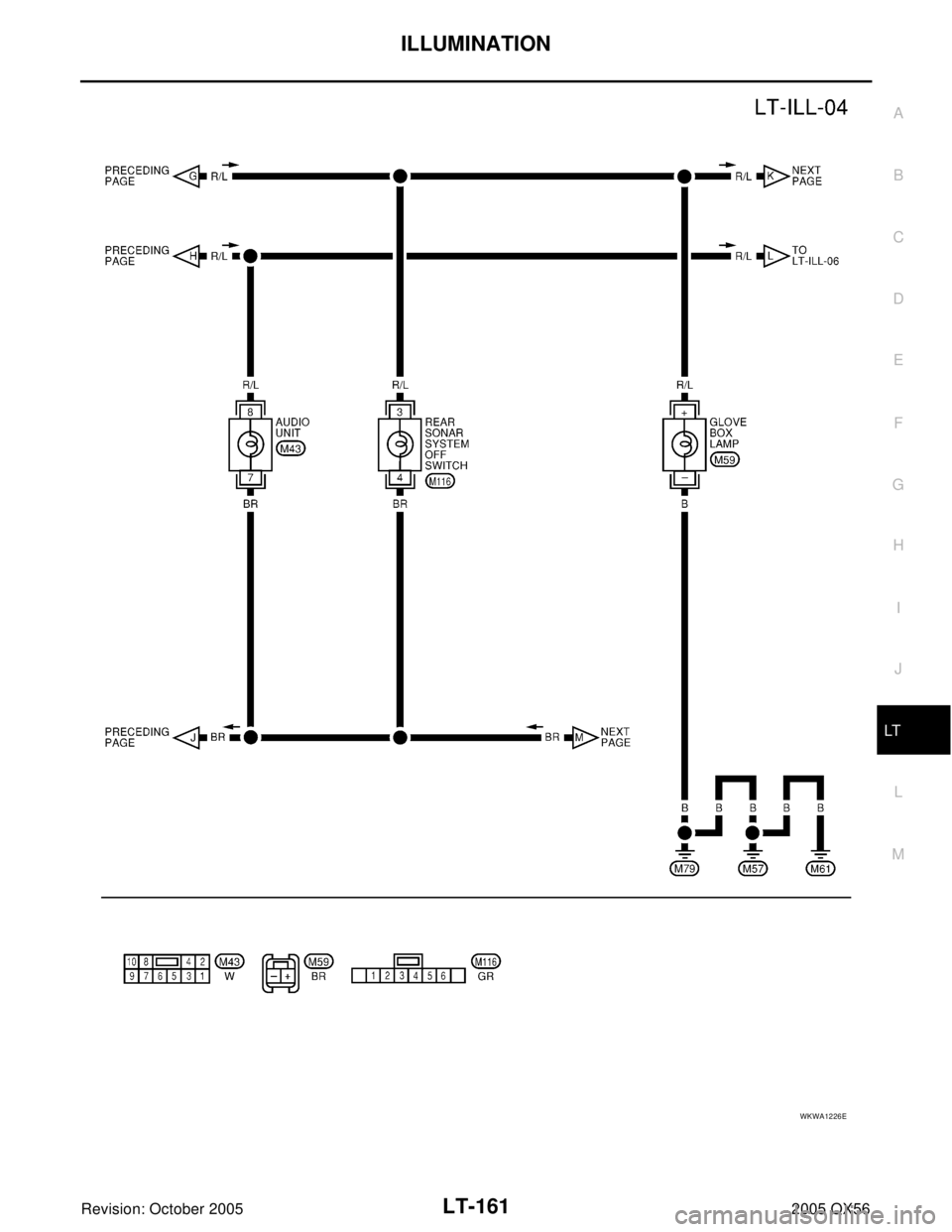

to audio unit terminal 7
to rear sonar system OFF switch terminal 4
to 4WD switch terminal 8 (with 4-wheel drive)
to front air control terminal 24

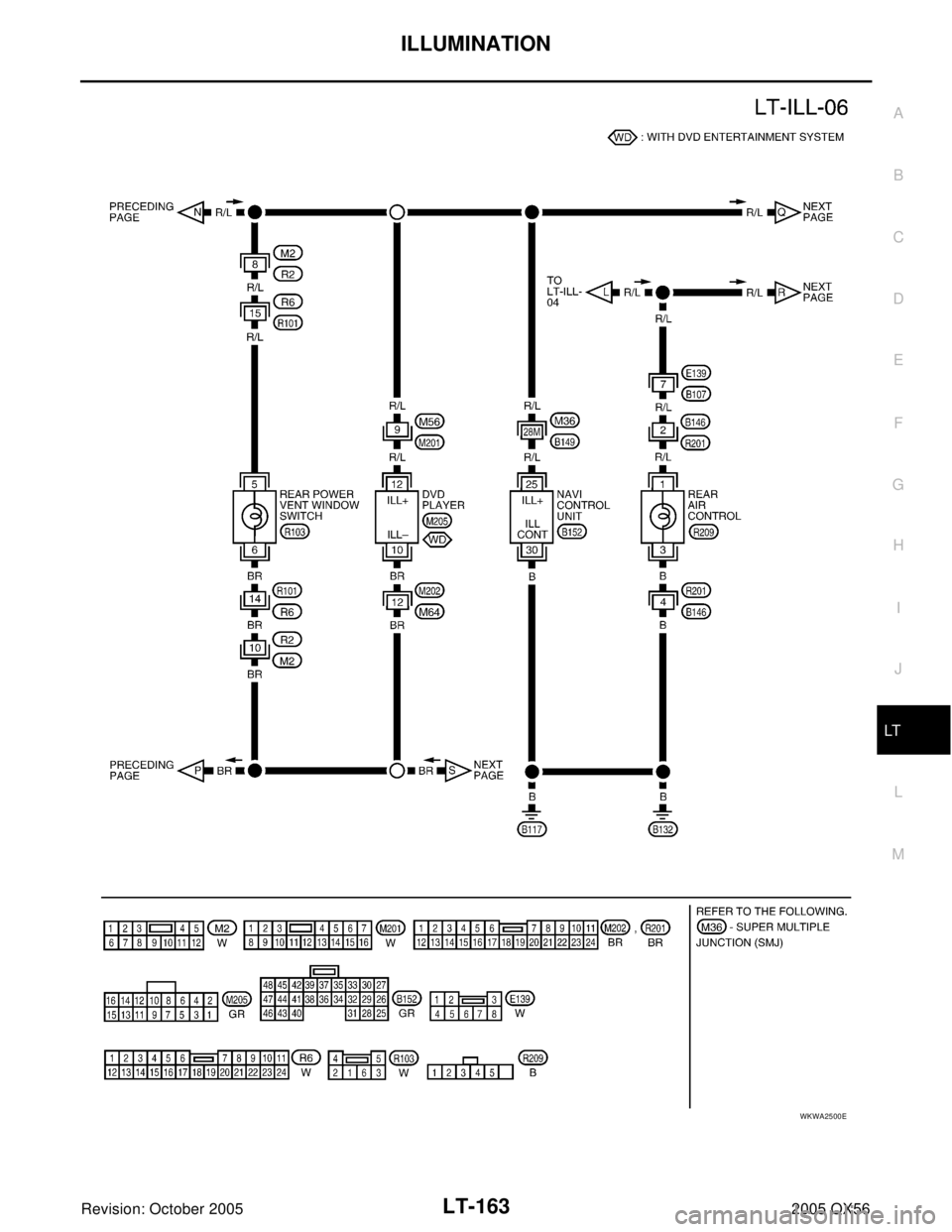

to rear power vent window switch terminal 6
to DVD player terminal 10 (with DVD entertainment system)
to pedal adjusting switch terminal 6
to A/T device terminal 12
to front heated seat switch LH and RH terminal 6
to VDC OFF switch terminal 4
to tow mode switch terminal 4
to headlamp aiming switch terminal 4 (with headlamp aiming control)
to clock terminal 4 and
to combination meter terminal 18.

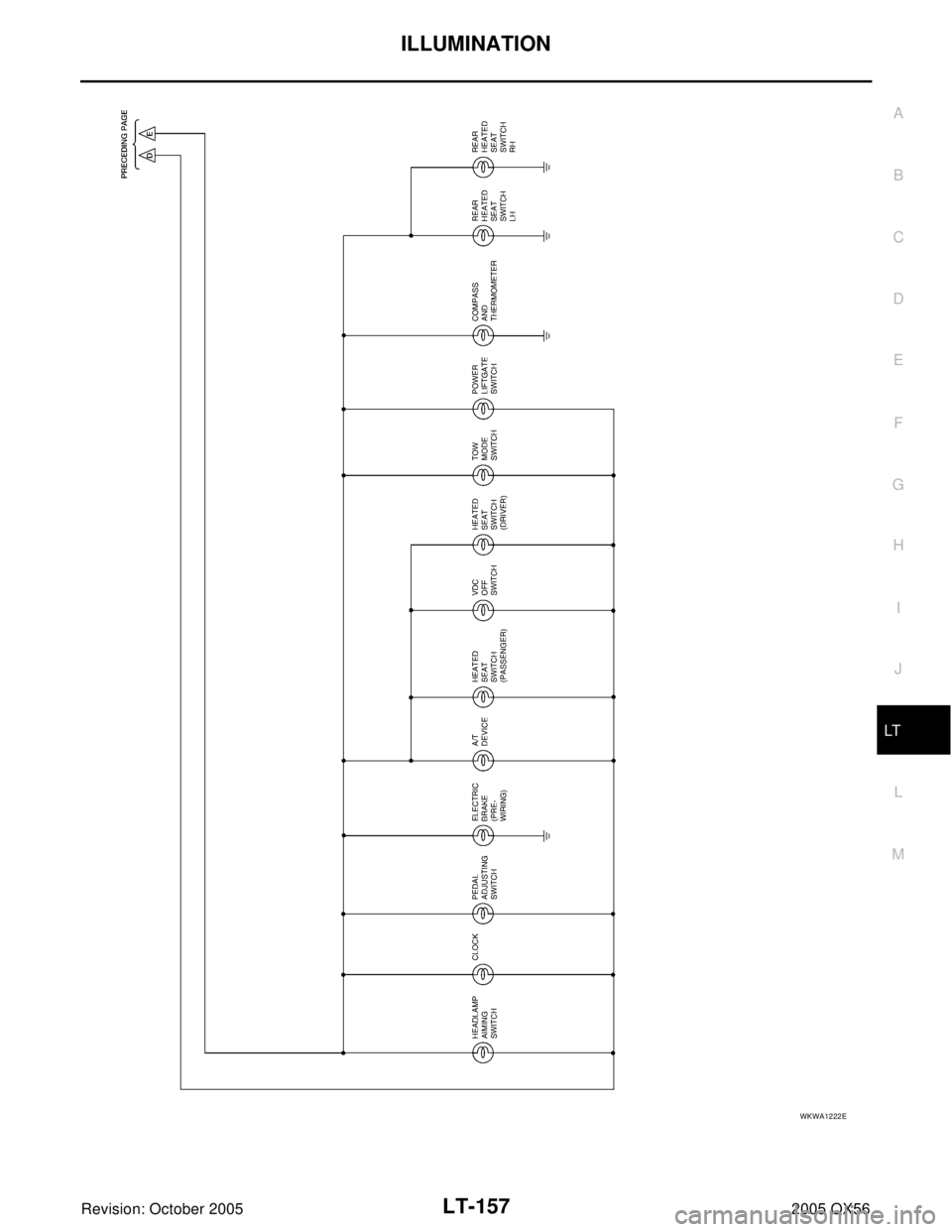

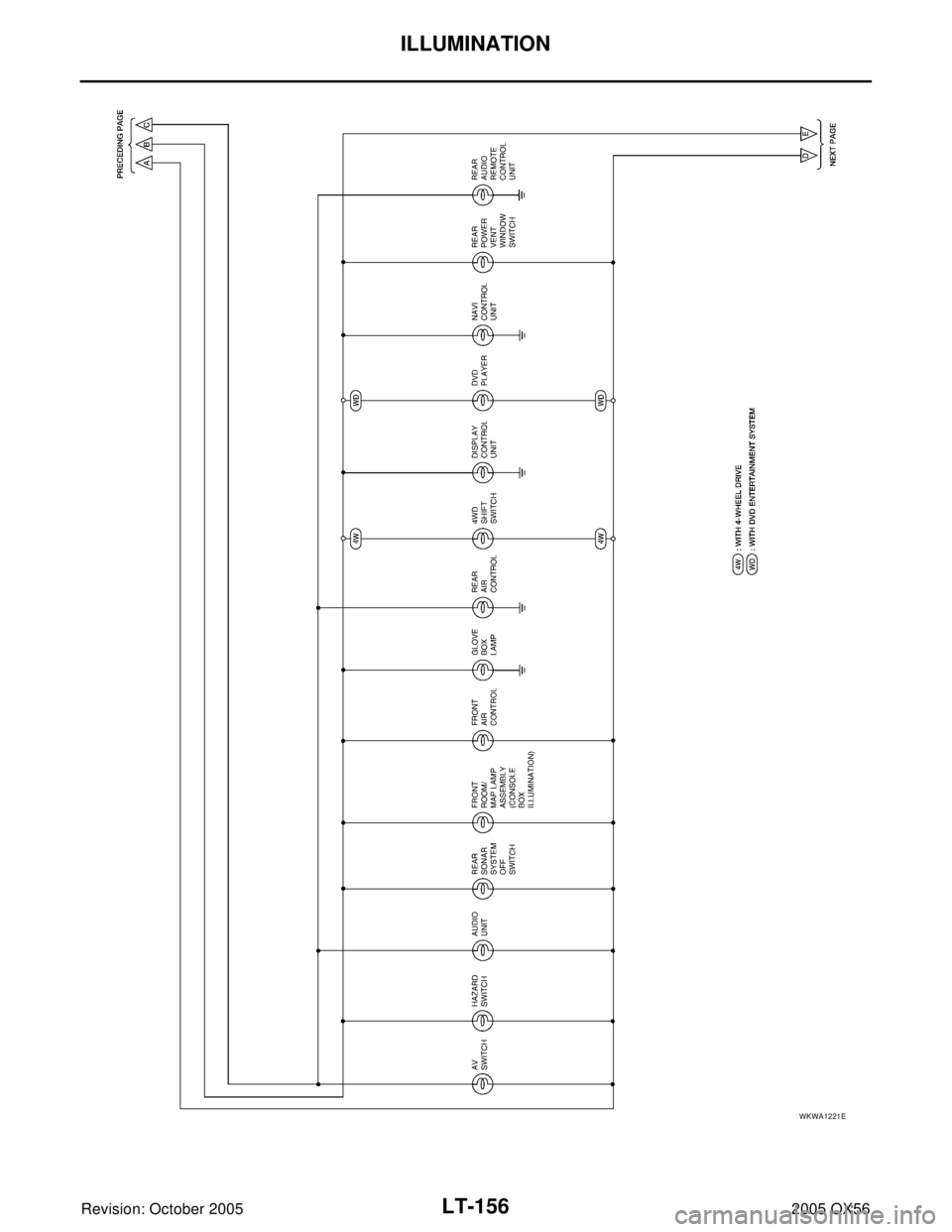

Ground is supplied
to illumination control switch terminal 3
to glove box lamp terminal –

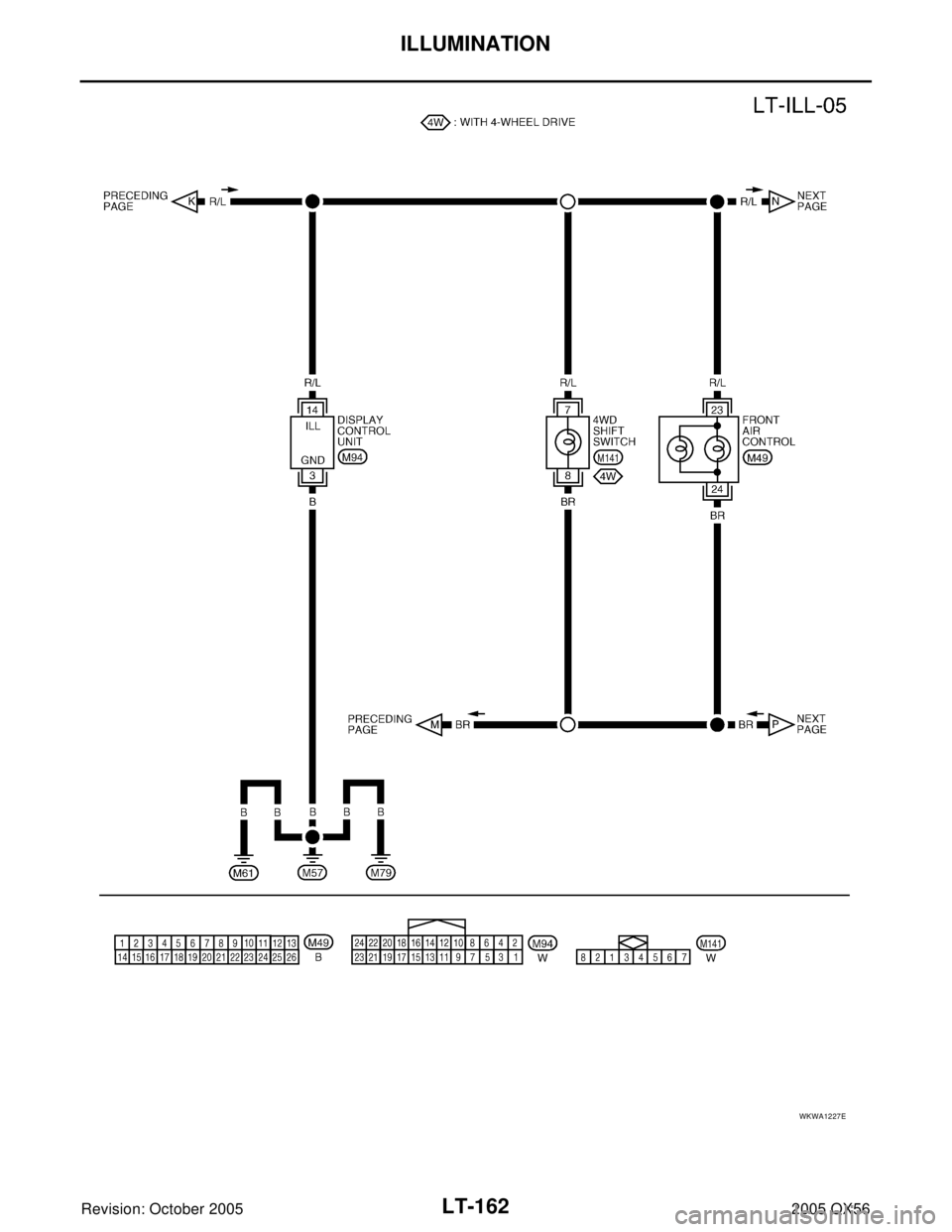

to display control unit terminal 3
to rear heated seat switches terminal 6
to electric brake (pre-wiring) terminal 1 and
to compass and thermometer terminal 7
through grounds M57, M61 and M79, and
to NAVI control unit terminal 30
to rear air control terminal 3 and
to rear audio remote control unit terminal 15
through grounds B117 and B132.
With power and ground supplied, illumination lamps illuminate.
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 1ST or 2ND position (or if auto light system is acti-
vated), and the ignition switch is turned from ON or ACC to OFF, the battery saver control function is activated.
Under this condition, the illumination lamps remain illuminated for 5 minutes, then the illumination lamps are
turned off.
When the lighting switch is turned from OFF to 1ST or 2ND position (or if auto light system is activated) after
illumination lamps are turned off by the battery saver control, the illumination lamps illuminate again.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionEKS00BBK
Refer to LAN-5, "CAN COMMUNICATION" .
