Page 3009 of 3419
SE-44
AUTOMATIC DRIVE POSITIONER
Revision: October 20052005 QX56
Sliding Motor Circuit InspectionEIS004XR
1. CHECK SEAT SLIDING MECHANISM
Check the following.
Operation malfunction caused by sliding rail deformation, pinched harness or other foreign materials
Operation malfunction caused by foreign materials adhered to the sliding motor LH or sliding rail connec-
tor rod
Operation malfunction and interference with other parts by poor installation
OK or NG
OK >> GO TO 2.
NG >> Repair or replace the malfunctioning part and check again.
2. CHECK FUNCTION
With CONSULT-II
Check operation with “SEAT SLIDE” in ACTIVE TEST.
Without CONSULT-II
GO TO 3.
OK or NG
OK >> Sliding motor circuit is OK.
NG >> GO TO 3.
3. CHECK SLIDING MOTOR CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect driver seat control unit and sliding motor LH.
3. Check continuity between driver seat control unit connector P3
terminals 35, 42 and sliding motor connector P4 terminals 4, 6.
4. Check continuity between driver seat control unit connector P3
terminals 35, 42 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
Only door mirror system does not operate (only auto-
matic operation).1. Door mirror sensor power supply and ground circuit
inspectionSE-81
Only seat system does not operate (only manual opera-
tion).1. Power seat switch ground circuit inspectionSE-71
SymptomDiagnoses / service procedure Refer to
page
Test item Description
SEAT SLIDE The sliding motor is activated by receiving the drive signal.
PIIA0265E
35 (V/W) - 6 (V/W) : Continuity should exist.
42 (O/B) - 4 (O/B) : Continuity should exist.
35 (V/W) - Ground : Continuity should not exist.
42 (O/B) - Ground : Continuity should not exist.
LIIA0696E
Page 3015 of 3419
SE-50
AUTOMATIC DRIVE POSITIONER
Revision: October 20052005 QX56
3. CHECK PEDAL ADJUSTING MOTOR CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and pedal adjusting motor.
3. Check continuity between automatic drive positioner control unit connector M34 terminals 37, 45 and
pedal adjusting motor connector E109 terminals 1, 2.
4. Check continuity between automatic drive positioner control unit
connector M34 terminals 37, 45 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT SIGNAL
1. Connect the automatic drive positioner control unit and pedal adjusting motor.
2. Check voltage between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> Replace pedal adjusting motor.
NG >> Replace automatic drive positioner control unit.
Mirror Motor LH Circuit CheckEIS004XW
1. CHECK DOOR MIRROR LH MECHANISM
Check the following items.
Operation malfunction caused by a foreign object caught in door mirror face edge.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace the malfunctioning parts, and check the symptom again.37 (G) - 1 (G) : Continuity should exist.
45 (R) - 2 (R) : Continuity should exist.
37 (G) - Ground : Continuity should not exist.
45 (R) - Ground : Continuity should not exist.
LIIA1755E
ConnectorTerminals
(Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
M3437 (G)
GroundPedal adjusting switch
ON
(FORWARD operation)Battery voltage
Other than above 0
45 (R)Pedal adjusting switch
ON
(BACKWARD opera-
tion)Battery voltage
Other than above 0
PIIA4806E
Page 3016 of 3419
AUTOMATIC DRIVE POSITIONER
SE-51
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: October 20052005 QX56

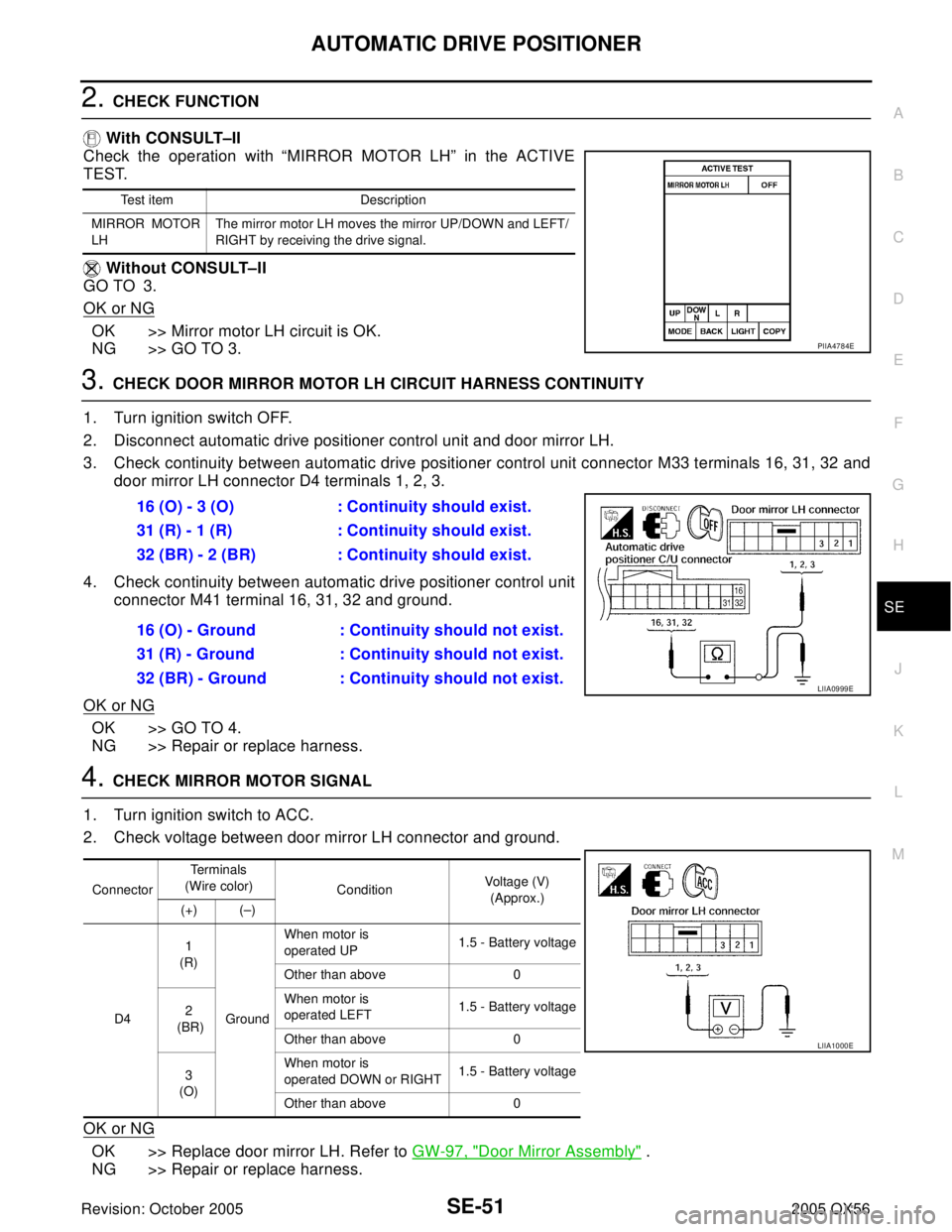

2. CHECK FUNCTION
With CONSULT–II
Check the operation with “MIRROR MOTOR LH” in the ACTIVE
TEST.
Without CONSULT–II
GO TO 3.
OK or NG
OK >> Mirror motor LH circuit is OK.
NG >> GO TO 3.
3. CHECK DOOR MIRROR MOTOR LH CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror LH.
3. Check continuity between automatic drive positioner control unit connector M33 terminals 16, 31, 32 and
door mirror LH connector D4 terminals 1, 2, 3.
4. Check continuity between automatic drive positioner control unit
connector M41 terminal 16, 31, 32 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK MIRROR MOTOR SIGNAL
1. Turn ignition switch to ACC.
2. Check voltage between door mirror LH connector and ground.
OK or NG
OK >> Replace door mirror LH. Refer to GW-97, "Door Mirror Assembly" .
NG >> Repair or replace harness.
Test item Description
MIRROR MOTOR
LHThe mirror motor LH moves the mirror UP/DOWN and LEFT/
RIGHT by receiving the drive signal.
PIIA4784E
16 (O) - 3 (O) : Continuity should exist.
31 (R) - 1 (R) : Continuity should exist.
32 (BR) - 2 (BR) : Continuity should exist.
16 (O) - Ground : Continuity should not exist.
31 (R) - Ground : Continuity should not exist.
32 (BR) - Ground : Continuity should not exist.
LIIA0999E
ConnectorTerminals
(Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
D41
(R)
GroundWhen motor is
operated UP1.5 - Battery voltage
Other than above 0
2
(BR)When motor is
operated LEFT1.5 - Battery voltage
Other than above 0
3
(O)When motor is
operated DOWN or RIGHT1.5 - Battery voltage
Other than above 0
LIIA1000E
Page 3017 of 3419
SE-52
AUTOMATIC DRIVE POSITIONER
Revision: October 20052005 QX56
Mirror Motor RH Circuit CheckEIS004XX
1. CHECK DOOR MIRROR RH MECHANISM
Check the following items.
Operation malfunction caused by a foreign object caught in door mirror face edge.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace the malfunctioning parts, and check the symptom again.
2. CHECK FUNCTION
With CONSULT–II
Check the operation with “MIRROR MOTOR RH” in the ACTIVE
TEST.
Without CONSULT–II
GO TO 3.
OK or NG
OK >> Mirror motor RH circuit is OK.
NG >> GO TO 3.
3. CHECK DOOR MIRROR RH CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror RH.
3. Check continuity between automatic drive positioner control unit connector M33 terminals 14, 15, 30 and
door mirror RH connector D107 terminals 1, 2, 3.
4. Check continuity between automatic drive positioner control unit
connector M33 terminal 14, 15, 30 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
Test item Description
MIRROR MOTOR
RHThe mirror motor RH moves the mirror UP/DOWN and LEFT/
RIGHT by receiving the drive signal.
PIIA0202E
14 (GR/R) - 1 (GR/R) : Continuity should exist.
15 (V/R) - 2 (V/R) : Continuity should exist.
30 (Y) - 3 (Y) : Continuity should exist.
14 (GR/R) - Ground : Continuity should not exist.
15 (V/R) - Ground : Continuity should not exist.
30 (Y) - Ground : Continuity should not exist.
LIIA1001E
Page 3018 of 3419
AUTOMATIC DRIVE POSITIONER
SE-53
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: October 20052005 QX56
4. CHECK MIRROR MOTOR SIGNAL
1. Turn ignition switch to ACC.
2. Check voltage between door mirror RH connector and ground.
OK or NG
OK >> Replace door mirror motor RH. Refer to GW-97, "Door Mirror Assembly" .
NG >> Repair or replace harness.
Steering Wheel Tilt Circuit InspectionEIS004XY
1. CHECK STEERING WHEEL TILT MECHANISM
Check the following.
Operation malfunction caused by pedal adjusting mechanism deformation or pinched harness or other
foreign materials
Operation malfunction and interference with other parts by poor installation
OK or NG
OK >> GO TO 2.
NG >> Repair or replace the malfunctioning part and check again.
2. CHECK FUNCTION
With CONSULT-II
Check operation with “TILT MOTOR” in ACTIVE TEST.
Without CONSULT-II
GO TO 3.
OK or NG
OK >> Steering wheel tilt motor circuit is OK.
NG >> GO TO 3.
ConnectorTerminals
(Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
D1071 (GR/R)
GroundMirror motor is operated
UP1.5 - Battery
voltage
Other than above 0
2 (V/R)Mirror motor is operated
LEFT1.5 - Battery
voltage
Other than above 0
3 (Y)Mirror motor is operated
DOWN or RIGHT1.5 - Battery
voltage
Other than above 0
LIIA1002E
Test item Description
TILT MOTOR The pedal adjust motor is activated by receiving the drive signal.
PIIA0280E
Page 3025 of 3419
SE-60
AUTOMATIC DRIVE POSITIONER
Revision: October 20052005 QX56
2. CHECK PEDAL ADJUSTING SENSOR CIRCUIT HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit and pedal adjusting sensor.
2. Check continuity between automatic drive positioner connector M33, M34 terminals 8, 33, 41 and pedal
adjusting sensor connector E110 terminals 3, 4, 5.
3. Check continuity between automatic drive positioner control unit
connector M33, M34 terminals 8, 33, 41 and ground.
OK or NG
OK >> Replace pedal adjusting motor.
NG >> Repair or replace harness.
Mirror Sensor LH Circuit Check EIS004Y4
1. CHECK DOOR MIRROR FUNCTION
Check the following items.
Operation malfunction in memory control
NOTE:
If a door mirror face position is set to an implausible angle, the set position may not be reproduced.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace the malfunctioning parts, and check the symptom again.8 (BR/Y) - 4 (BR/Y) : Continuity should exist.
33 (W/L) - 3 (W/L) : Continuity should exist.
41 (W/G) - 5 (W/G) : Continuity should exist.
8 (BR/Y) - Ground : Continuity should not exist.
33 (W/L) - Ground : Continuity should not exist.
41 (W/G) - Ground : Continuity should not exist.
LIIA1003E
Page 3026 of 3419
AUTOMATIC DRIVE POSITIONER
SE-61
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: October 20052005 QX56
2. CHECK MIRROR SENSOR INSPECTION
With CONSULT–II
Check that “ON” is displayed on “MIR/SEN LH R–L, MIR/
SEN LH U–D" in the DATA MONITOR.
Without CONSULT–II
1. Turn ignition switch to ACC.
2. Check voltage between door mirror LH connector and ground.
OK or NG
OK >> Mirror sensor LH is OK.
NG >> GO TO 3.
3. CHECK HARNESS CONTINUITY 1
1. Disconnect automatic drive positioner control unit and door mirror LH.
2. Check continuity between automatic drive positioner control unit connector M34 terminals 33, 41 and door
mirror LH connector D4 terminals 5, 6.
3. Check continuity between automatic drive positioner control unit
connector M34 terminal 33, 41 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
Monitor item [OPERATION or
UNIT]Contents
MIR/
SENLHR–L“V”Voltage output from door mirror LH sensor (LH/
RH) is displayed.
MIR/
SENLHU–D“V”Voltage output from door mirror LH sensor (UP/
DOWN) is displayed.
Con-
nectorTerminals (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
D47 (L/Y)
GroundMirror motor is
operated UP or
DOWN Changes between
3.4 (close to peak) –
0.6 (close to valley)
8 (G)Mirror motor is
operated LEFT or
RIGHTChanges between
3.4 (close to right edge) –
0.6 (close to left edge)
PIIA4568E
LIIA1482E
33 (W/L) - 5 (W/L) : Continuity should exist.
41 (W/G) - 6 (W/G) : Continuity should exist.
33 (W/L) - Ground : Continuity should not exist.
41 (W/G) - Ground : Continuity should not exist.
LIIA1483E
Page 3027 of 3419
SE-62
AUTOMATIC DRIVE POSITIONER
Revision: October 20052005 QX56
4. CHECK HARNESS CONTINUITY 2
1. Disconnect automatic drive positioner control unit and door mirror LH.
2. Check continuity between automatic drive positioner control unit connector M33 terminals 6, 22 and door
mirror LH connector D4 terminals 7, 8.
3. Check continuity between automatic drive positioner control unit
connector M33 terminals 6, 22 and ground.
OK or NG
OK >> Replace door mirror LH. Refer to GW-97, "Door Mirror
Assembly" .
NG >> Repair or replace harness.
Mirror Sensor RH Circuit Check EIS004Y5
1. CHECK DOOR MIRROR FUNCTION
Check the following items.
Operation malfunction in memory control
NOTE:
If a door mirror face position is set to an implausible angle, the set position may not be reproduced.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace the malfunctioning parts, and check the symptom again.
2. CHECK MIRROR SENSOR INSPECTION
With CONSULT–II
Check that “ON” is displayed on “MIR/SEN RH R–L, MIR/
SEN RH U–D" in the DATA MONITOR.
Without CONSULT–II
1. Turn ignition switch to ACC.
2. Check voltage between door mirror RH connector and ground.
OK or NG
OK >> Mirror sensor RH is OK.
NG >> GO TO 3.6 (L/Y) - 7 (L/Y) : Continuity should exist.
22 (G) - 8 (G) : Continuity should exist.
6 (L/Y) - Ground : Continuity should not exist.
22 (G) - Ground : Continuity should not exist.
LIIA1484E
Monitor item [OPERATION
or UNIT]Contents
MIR/
SENRHR–L“V”Voltage output from door mirror RH sensor (LH/
RH) is displayed.
MIR/
SENRHU–D“V”Voltage output from door mirror RH sensor (UP/
DOWN) is displayed.
Con-
nectorTerminals (Wire color)
ConditionVoltage(V)
(Approx.)
(+) (–)
D1077 (R/B)
GroundMirror motor is
operated UP or
DOWN Changes between
3.4 (close to peak) –
0.6 (close to valley)
8 (L/W)Mirror motor is
operated LEFT or
RIGHTChanges between
3.4 (close to left edge) –
0.6 (close to right edge)
PIIA4568E
LIIA1485E
Page 3028 of 3419
AUTOMATIC DRIVE POSITIONER
SE-63
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: October 20052005 QX56
3. CHECK HARNESS CONTINUITY 1
1. Disconnect automatic drive positioner control unit and door mirror RH.
2. Check continuity between automatic drive positioner control unit connector M34 terminals 33, 41 and door
mirror RH connector D107 terminals 5, 6.
3. Check continuity between automatic drive positioner control unit
connector M34 terminals 33, 41 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK HARNESS CONTINUITY 2
1. Disconnect automatic drive positioner control unit and door mirror RH.
2. Check continuity between automatic drive positioner control unit connector M33 terminals 5, 21 and door
mirror RH connector D107 terminals 7, 8.
3. Check continuity between automatic drive positioner control unit
connector M33 terminals 5, 21 and ground.
OK or NG
OK >> Replace door mirror RH. Refer to GW-97, "Door Mirror
Assembly" .
NG >> Repair or replace harness.33 (W/L) - 5 (W/L) : Continuity should exist.
41 (W/G) - 6 (W/G) : Continuity should exist.
33 (W/L) - Ground : Continuity should not exist.
41 (W/G) - Ground : Continuity should not exist.
LIIA1486E
5 (R/B) - 7 (R/B) : Continuity should exist.
21 (L/W) - 8 (L/W) : Continuity should exist.
5 (R/B) - Ground : Continuity should not exist.
21 (L/W) - Ground : Continuity should not exist.
LIIA1473E
Page 3039 of 3419
SE-74
AUTOMATIC DRIVE POSITIONER
Revision: October 20052005 QX56
Door Mirror Remote Control Switch (Changeover Switch) Circuit CheckEIS004YD
1. CHECK FUNCTION
With CONSULT–II
Check the operation on “MIR CHNG SW-R” or “MIR CHNG SW-L"
in the DATA MONITOR.
Without CONSULT–II
1. Turn ignition switch to ACC.
2. Check voltage between automatic drive positioner control unit
connector and ground.
OK
orNG
OK >> Door mirror remote control switch (changeover switch) is OK.
NG >> GO TO 2.
2. CHECK DOOR MIRROR REMOTE CONTROL SWITCH CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror remote control switch.
3. Check continuity between automatic drive positioner control unit
connector M33 terminals 2, 18 and door mirror remote control
switch connector D10 terminals 2, 3.
4. Check continuity between automatic drive positioner control unit
connector M33 terminals 2, 18 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
Monitor item [OPERATION
or UNIT]Contents
MIR CHNG S
W–R“ON/OFF”ON/OFF status judged from the door mirror switch
(switching to RIGHT) signal is displayed.
MIR CHNG S
W–L“ON/OFF”ON/OFF status judged from the door mirror switch
(switching to LEFT) signal is displayed.
PIIA0191E
ConnectorTerminals (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
M332 (LG)
GroundChangeover switch
RIGHT position0
Other than above 5
18 (BR/W)Changeover switch
LEFT position0
Other than above 5
PIIA4767E
2 (LG) - 2 (LG) : Continuity should exist.
18 (BR/W) - 3 (BR/W) : Continuity should exist.
2 (LG) - Ground : Continuity should not exist.
18 (BR/W) - Ground : Continuity should not exist.
LIIA1821E
