Removal and Installation for Refrigerant Pressure SensorEJS003YZ
REMOVAL
1. Discharge the refrigerant. Refer to ATC-175, "HFC-134a (R-134a) Service Procedure" .
2. Disconnect the refrigerant pressure sensor electrical connector
and remove the refrigerant pressure sensor from the condenser.
CAUTION:
Be careful not to damage the condenser fins.
INSTALLATION
Installation is in the reverse order of removal.
Refer to ATC-177, "
Components" .
CAUTION:

Be careful not to damage the condenser fins.

Apply compressor oil to the O-ring of the refrigerant pressure sensor when installing it.

After charging refrigerant, check for leaks.
Removal and Installation for CondenserEJS003Z0
REMOVAL
1. Discharge the refrigerant. Refer to ATC-175, "HFC-134a (R-134a) Service Procedure" .
2. Remove the radiator. Refer to CO-12, "
RADIATOR" .
CAUTION:
Be careful not to damage the core surface of the condenser and the radiator.
3. Disconnect the high-pressure flexible hose and the high-pressure pipe from the condenser.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
4. Disconnect the refrigerant pressure sensor connector.

Remove the refrigerant pressure sensor from the condenser
as necessary.
5. Lift the condenser out of the mounting grommets to remove the
condenser.
INSTALLATION
Installation is in the reverse order of removal.
Refer to ATC-177, "
Components" .
CAUTION:

Replace the O-rings of the high-pressure pipe and the high-pressure flexible hose with new ones,
then apply compressor oil to them after installing them.

After charging refrigerant, check for leaks.

Replace the grommets as necessary.

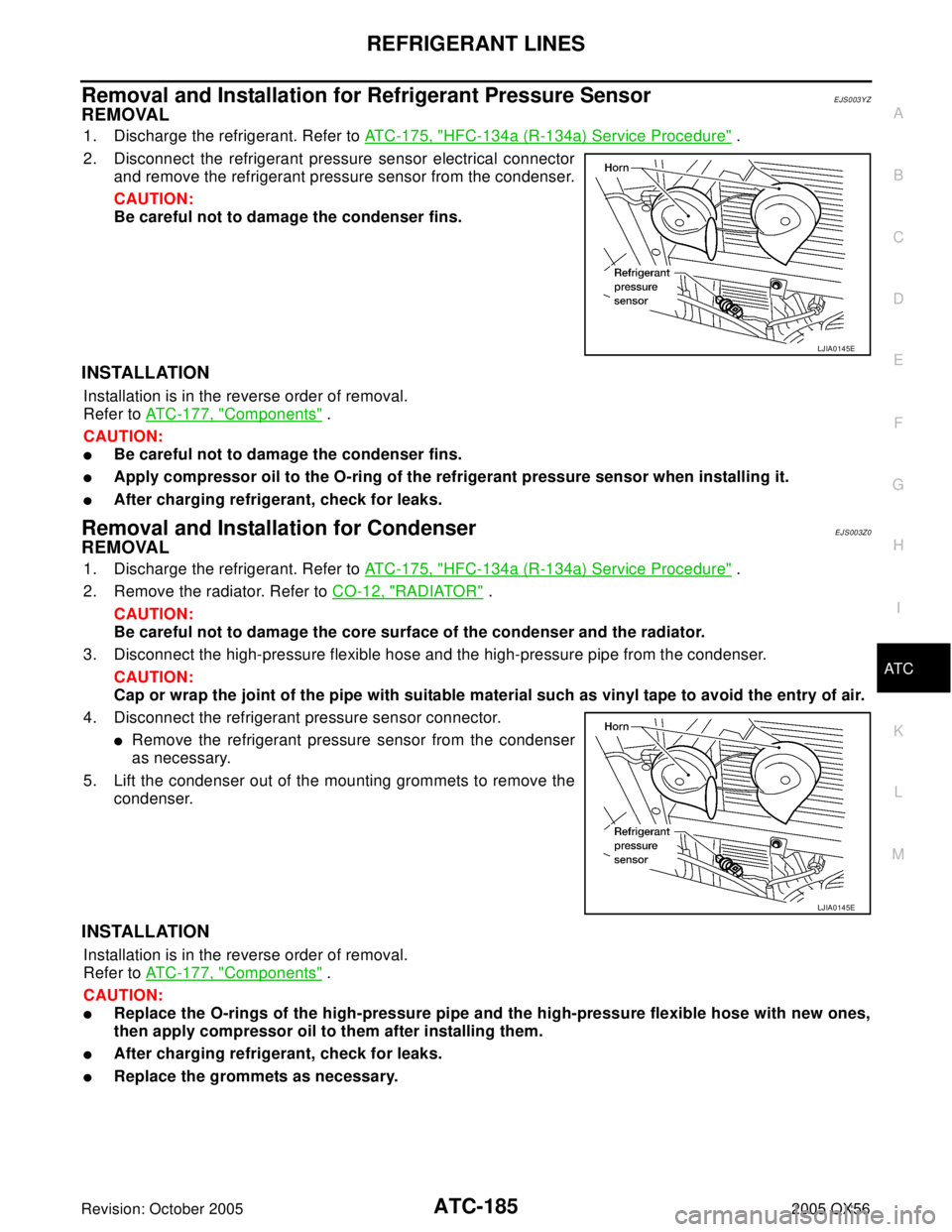

LJIA0145E
LJIA0145E

CO-1
