∙ If there is an impact to your vehicle fromany direction, your Occupant Classifica-
tion Sensor (OCS) should be checked to
verify it is still functioning correctly. It is
recommended that you visit an INFINITI
retailer for this service. The OCS should
be checked even if no air bags deploy as a
result of the impact. Failure to verify
proper OCS function may result in an im-
proper air bag deployment resulting in in-
jury or death.
1-64Safety—Seats, seat belts and supplemental restraint system

MEMO
Safety—Seats, seat belts and supplemental restraint system1-65

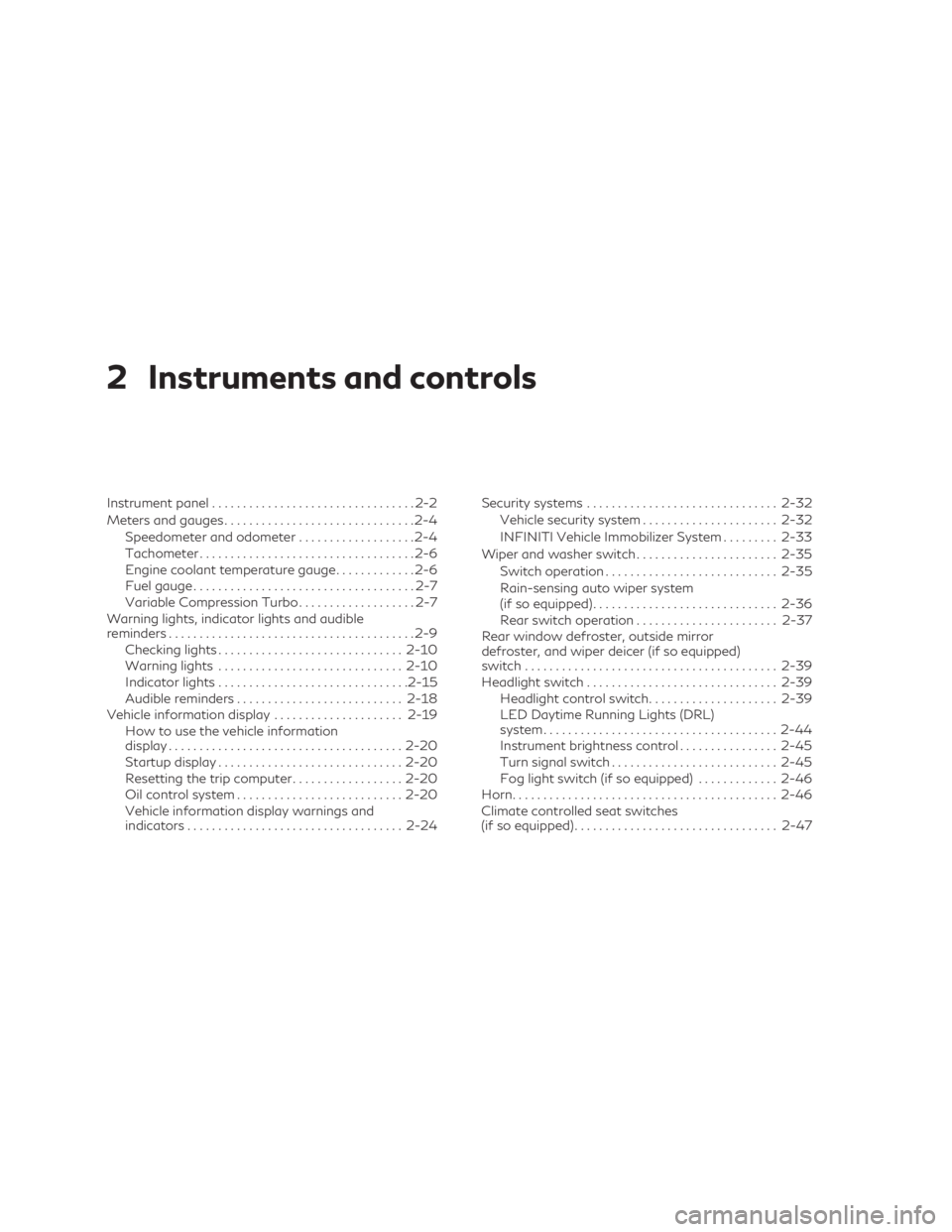

2 Instruments and controls
Instrument panel.................................2-2
Meters and gauges ...............................2-4
Speedometer and odometer ...................2-4
Tachometer ...................................2-6
Engine coolant temperature gauge .............2-6
Fuel gauge ....................................2-7
Variable Compression Turbo ...................2-7
Warning lights, indicator lights and audible
reminders ........................................2-9
Checking lights .............................. 2-10
Warning lights .............................. 2-10
Indicator lights ............................... 2-15
Audible reminders ........................... 2-18
Vehicle information display .....................2-19
How to use the vehicle information
display ...................................... 2-20
Startup display .............................. 2-20
Resetting the trip computer ..................2-20
Oil control system ........................... 2-20
Vehicle information display warnings and
indicators ................................... 2-24Security systems
............................... 2-32
Vehicle security system ......................2-32
INFINITI Vehicle Immobilizer System .........2-33
Wiper and washer switch .......................2-35
Switch operation ............................ 2-35
Rain-sensing auto wiper system
(if so equipped) .............................. 2-36
Rear switch operation ....................... 2-37
Rear window defroster, outside mirror
defroster, and wiper deicer (if so equipped)
switch ......................................... 2-39
Headlight switch ............................... 2-39
Headlight control switch .....................2-39
LED Daytime Running Lights (DRL)
system ...................................... 2-44
Instrument brightness control ................2-45
Turn signal switch ........................... 2-45
Fog light switch (if so equipped) .............2-46
Horn ........................................... 2-46
Climate controlled seat switches
(if so equipped) ................................. 2-47

Heated seat switches (if so equipped)...........2-48
Dynamic driver assistance switch (for vehicles
without ProPILOT Assist) (if so equipped) .......2-49
Steering Assist switch (for vehicles with
ProPILOT Assist) (if so equipped) ...............2-50
Front and rear sonar system switch
(if so equipped) ................................. 2-50
Head Up Display (HUD) (if so equipped) .........2-51
HowtousetheHUD........................ 2-51
Driver Assistance/Navigation linking .........2-52
E-call (SOS) switch (if so equipped) .............2-52
Power outlets .................................. 2-53
12v outlets .................................. 2-53
Extended storage switch .......................2-54
Storage ........................................ 2-55
Front-door pockets ......................... 2-55
Seatback pockets ........................... 2-55
Storage trays ............................... 2-56
Glove box ................................... 2-57
Console box ................................ 2-57
Overhead sunglasses storage ................2-57
Cup holders ................................. 2-58
Cargo area storage bin ......................2-60Luggage hooks
............................. 2-60
Coat hooks ................................. 2-61
Roof rack (if so equipped) ....................2-61
Windows ...................................... 2-66
Power windows ............................. 2-66
Moonroof (if so equipped) ......................2-68
Power moonroof ............................ 2-68
Interior lights .................................... 2-71
Map lights ................................... 2-71
Personal Lights ............................. 2-72
Cargo light .................................. 2-72
HomeLink® Universal Transceiver
(if so equipped) ................................. 2-72
Programming HomeLink® ...................2-73
Programming HomeLink®for

Canadian
customers and gate openers .................2-74
Operating the HomeLink® Universal
Transceiver ................................. 2-75
Programming trouble-diagnosis ..............2-75
Clearing the programmed information ........2-75
Reprogramming a single HomeLink®
button ...................................... 2-76
If your vehicle is stolen ......................2-76

1. Vent (P. 4-35)
2. Bluetooth® Hands-Free PhoneSystem*
Steering wheel switch for audio
control*
Center display multi-function
control buttons*
Control panel and vehicle informa-
tion display switches (P. 2-20)
3. High beam/turn signal switch
(P. 2-45)
Paddle shifters (P. 5-19)
4. Driver supplemental air bag
(P. 1-43)
Horn (P. 2-46)
5. Meters and gauges (P. 2-4) Warning and indicator lights
(P. 2-9)
Vehicle information display (P. 2-19)
6. Wiper and washer switch (P. 2-35) Rear wiper and washer switch
(P. 2-35)
7. Automatic heater and air condition-
ing controls (P. 4-36)
Driver side climate controlled seat
switches (if so equipped) (P. 2-47)
Driver side heated seat switches
(if so equipped) (P. 2-48)
LIC3793
INSTRUMENT PANEL
2-2Instruments and controls

8. Upper and lower displays*Navigation system* (if so equipped)
9. Automatic heater and air condition-
ing controls (P. 4-36)
Passenger side climate controlled
seat switches (if so equipped)
(P. 2-47)
Passenger side heated seat
switches (if so equipped) (P. 2-48)
Rear window defroster, outside
mirror defroster, and wiper deicer
(if so equipped) switch (P. 2-39)
10. Front passenger supplemental air
bag (P. 1-43)
11. Glove box (P. 2-55)
12. Audio system controls* Front passenger air bag status light
(P. 1-43)
13. INFINITI controller*
14. Power outlet (P. 2-53) USB charging port (P. 4-44)
Cup holders (P. 2-55)
Storage (P. 2-55)
15. Shift lever (P. 5-19)
16. Push-button ignition switch
(P. 5-13)
Electronic parking brake switch
(P. 5-24) 17. Hazard warning flasher switch
(P. 6-2)
18. ProPILOT Assist Switch
(if so equipped) (P. 5-108)
Cruise control switches (if so
equipped) (P. 5-82)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-84)
Distance control switch (if so
equipped) (P. 5-84)
Control panel and vehicle informa-
tion display switches (P. 2-20)
19. Tilt and telescopic steering wheel
control (P. 3-34)
20. Hood release (P. 3-24)
21. Trip reset switch (P. 2-4) Instrument brightness control
(P. 2-39)
Front and rear sonar system
(if so equipped) (P. 5-186)
Steering assist switch (for vehicles
with ProPILOT Assist)
(if so equipped) (P. 2-50)
Dynamic driver assistance switch
(for vehicles without ProPILOT
Assist) (if so equipped) (P. 2-49)
Liftgate release switch (P. 3-24)
Headlight switch (P. 2-39) Fog light switch (if so equipped)
(P. 2-46)
Head Up Display (HUD) OFF switch
(if so equipped) (P. 2-51)
*: Refer to the separate INFINITI InTouchTM
Owner’s Manual.
Refer to the page number indicated in paren-
theses for operating details.
Instruments and controls2-3

1. Tachometer
2. Warning and indicator lights
3. Vehicle information displayOdometer
Twin trip odometer
Transmission position indicator 4. Speedometer
5. Fuel gauge
6. Engine coolant temperature gauge
SPEEDOMETER AND
ODOMETER
This vehicle is equipped with a speedometer
and odometer. The speedometer is located
on the right side of the meter cluster. The
odometer is located within the vehicle infor-
mation display.
LIC3846
METERS AND GAUGES
2-4Instruments and controls

Speedometer
The speedometer indicates vehicle speed.
Odometer/Twin trip odometer
The odometer and the twin trip odometer1
are displayed in the vehicle information dis-
play when the ignition switch is placed in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance
of individual trips.Changing the display
Push the TRIP RESET switch
2on the left
side of the steering column to change the
display as follows:
Trip
→ Trip→Odometer Mile-
age →Trip
Resetting the trip odometer
Pushing the TRIP RESET switch
2for more
than 1 second resets the currently displayed
trip odometer to zero.
LIC3847LIC3848
Instruments and controls2-5

TACHOMETER
The tachometer indicates engine speed in
revolutions per minute (rpm). Do not rev the
engine into the red zone
1.
CAUTION
When engine speed approaches the red
zone, reduce engine speed. Operating the
engine in the red zone may cause serious
engine damage.
ENGINE COOLANT
TEMPERATURE GAUGE
The gauge indicates the engine coolant tem-
perature. The engine coolant temperature is
within the normal range
1when the gauge
needle points within the zone shown in the
illustration.
The engine coolant temperature varies with
the outside air temperature and driving con-
ditions.
CAUTION
If the gauge indicates coolant temperature
near the hot (H) end of the normal range,
reduce vehicle speed to decrease tempera-
ture. If the gauge is over the normal range,
stop the vehicle as soon as safely possible. If
the engine is overheated, continued opera-
tion of the vehicle may seriously damage
the engine. For additional information, re-
fer to “If your vehicle overheats” in the “In
case of emergency” section of this manual
for immediate action required.
LIC3849LIC3850
2-6Instruments and controls

FUEL GAUGE
The gauge indicates theapproximatefuel
level in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down
hills.
The gauge needle returns to 0 (Empty) after
the ignition switch is placed in the OFF posi-
tion.
The low fuel warning light comes on when
the amount of fuel in the tank is getting low. Refill the fuel tank before the gauge regis-
ters 0 (Empty).
The
indicates that the fuel-filler door
is located on the driver’s side of the vehicle.
CAUTION
∙ If the vehicle runs out of fuel, theMalfunction Indicator Light (MIL) may
come on. Refuel as soon as possible. After
a few driving trips. the
light should
turn off. If the light remains on after a
few driving trips, have the vehicle in-
spected. It is recommended that you visit
an INFINITI retailer for this service.
∙ For additional information, refer to “Malfunction Indicator Light (MIL)” in
this section.
VARIABLE COMPRESSION
TURBO
Your engine is equipped with a variable com-
pression ratio system called “Variable Com-
pression Turbo”. This system can vary the
engine compression ratio continuously.
According to driving conditions, the system
applies optimum compression ratio auto-
matically to achieve both high output and
high fuel economy efficiency.
LIC3851LIC3924
Instruments and controls2-7
