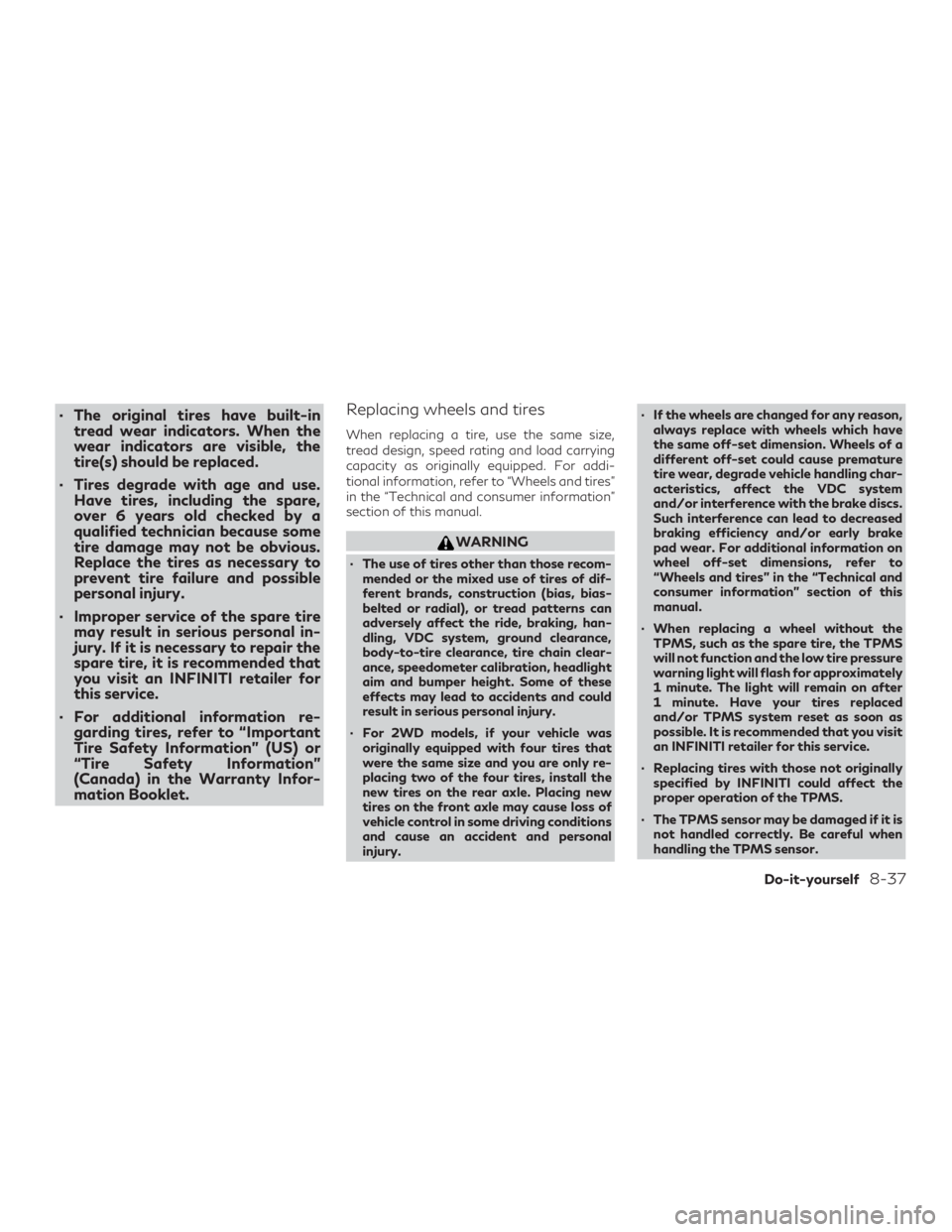

∙ The original tires have built-intread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.
∙ Tires degrade with age and use. Have tires, including the spare,
over 6 years old checked by a
qualified technician because some
tire damage may not be obvious.
Replace the tires as necessary to
prevent tire failure and possible
personal injury.
∙ Improper service of the spare tire may result in serious personal in-
jury. If it is necessary to repair the
spare tire, it is recommended that
you visit an INFINITI retailer for
this service.
∙ For additional information re- garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.Replacing wheels and tires
When replacing a tire, use the same size,
tread design, speed rating and load carrying
capacity as originally equipped. For addi-
tional information, refer to “Wheels and tires”
in the “Technical and consumer information”
section of this manual.
WARNING
∙ The use of tires other than those recom-
mended or the mixed use of tires of dif-
ferent brands, construction (bias, bias-
belted or radial), or tread patterns can
adversely affect the ride, braking, han-
dling, VDC system, ground clearance,
body-to-tire clearance, tire chain clear-
ance, speedometer calibration, headlight
aim and bumper height. Some of these
effects may lead to accidents and could
result in serious personal injury.
∙ For 2WD models, if your vehicle was originally equipped with four tires that
were the same size and you are only re-
placing two of the four tires, install the
new tires on the rear axle. Placing new
tires on the front axle may cause loss of
vehicle control in some driving conditions
and cause an accident and personal
injury. ∙ If the wheels are changed for any reason,
always replace with wheels which have
the same off-set dimension. Wheels of a
different off-set could cause premature
tire wear, degrade vehicle handling char-
acteristics, affect the VDC system
and/or interference with the brake discs.
Such interference can lead to decreased
braking efficiency and/or early brake
pad wear. For additional information on
wheel off-set dimensions, refer to
“Wheels and tires” in the “Technical and
consumer information” section of this
manual.
∙ When replacing a wheel without the TPMS, such as the spare tire, the TPMS
will not function and the low tire pressure
warning light will flash for approximately
1 minute. The light will remain on after
1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you visit
an INFINITI retailer for this service.
∙ Replacing tires with those not originally specified by INFINITI could affect the
proper operation of the TPMS.
∙ The TPMS sensor may be damaged if it is not handled correctly. Be careful when
handling the TPMS sensor.
Do-it-yourself8-37

10 Technical and consumer information
Recommended fluids/lubricants and capacities . . 10-2Fuel recommendation ....................... 10-3
Engine oil and oil filter recommendations .....10-6
Air conditioner system refrigerant and oil
recommendations ........................... 10-7
Specifications .................................. 10-8
Engine ...................................... 10-8
Wheels and tires ............................ 10-9
Dimensions and weights .....................10-9
When traveling or registering in another
country ....................................... 10-10
Vehicle identification .......................... 10-10
Vehicle Identification Number (VIN) plate . . . 10-10
Vehicle identification number
(chassis number) ........................... 10-10
Engine serial number ....................... 10-11
F.M.V.S.S./C.M.V.S.S. certification label .....10-11
Emission control information label ..........10-11
Tire and Loading Information label ..........10-12
Air conditioner specification label ...........10-12
Installing front license plate ....................10-12Vehicle loading information
....................10-14
Terms ..................................... 10-14
Vehicle load capacity ....................... 10-15
Securing the load ........................... 10-16
Loading tips ............................... 10-17
Measurement of weights ...................10-17
Towing a trailer ............................... 10-18
Maximum load limits ....................... 10-19
Towing load/specification ..................10-22
Towing safety ............................. 10-23
Flat towing for front wheel drive vehicle
(if so equipped) ............................. 10-28
Flat towing for all–wheel drive vehicle
(if so equipped) ............................. 10-28
Uniform tire quality grading ....................10-29
Emission control system warranty .............10-30
Reporting safety defects ......................10-30
Readiness for Inspection/Maintenance (I/M)
test ........................................... 10-31
Event DataRecorders

(EDR)................... 10-32
Owner’s Manual/Service Manual order
information ................................... 10-33

WHEELS AND TIRES
Wheel typeOffset in (mm) Size
Aluminum 1.54 (39)19 x 7.5J
1.73 (44) 20 x 8.5J
Tire size P235/55RF19
P255/45RF20
Spare tire Not equipped
DIMENSIONS AND WEIGHTS
Overall lengthin (mm)184.8 (4,693)
Overall width in (mm)74.9 (1,903)
Overall height in (mm)66.1 (1,679)
Front track 19 inch wheel in (mm)64.4 (1,635)
20 inch wheel in (mm)64.0 (1,625)
Rear track 19 inch wheel in (mm)64.2 (1,630)
20 inch wheel in (mm)63.8 (1,620)
Wheelbase in (mm)110.2 (2,800)
Gross vehicle weight rating lbs. (kg) Refer to the “F.M.V.S.S./C.
M.V.S.S. certification label”on the center pillar be-tween the driver’s side front and rear doors.
Gross axle weight rating
Front lbs. (kg)
Rear lbs. (kg)
Technical and consumer information10-9

Child safety rear door lock...........3-7
Chimes, audible reminders ..........2-18
Cleaning exterior and interior ......7-2,7-4
Climate control seat switch .........2-47
C.M.V.S.S. certification label ........10-11
Cold weather driving .............5-191
Console box ..................2-57
Continuously Variable Transmission
(CVT) .......................5-19
Continuously Variable Transmission (CVT)
fluid......................8-9
Driving with Continuously Variable
Transmission (CVT) ............5-19
Controls Heater and air conditioner controls . . .4-37
Coolant Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant ..........8-5
Checking engine coolant level .......8-5
Engine coolant temperature gauge ....2-6
Corrosion protection ..............7-7
Cruisecontrol..............5-82,5-83
Cupholders...................2-58
D
Defroster switch Rear window and outside mirror defroster
switch ....................2-39
Dimensionsandweights...........10-9
Dimmer switch for instrument panel ....2-45
Distance Control Assist (DCA) system . .5-138
Door locks .................3-4,3-5
Drivebelt....................8-13 Drive positioner, Automatic
.....3-38,3-41
Driving Cold weather driving ...........5-191
Driving with Continuously Variable
Transmission (CVT) ............5-19
Precautions when starting and
driving .................5-4,5-11
Driving the vehicle ...............5-19
Dual panel moonroof .............2-68
Dual power moonroof ........2-68,2-68
E
E-CALL (SOS) SWITCH ...........2-52
Economy - fuel ................5-172
Electronic parking brake ...........5-24
Emergency engine shutoff .......5-16,6-3
Emission control information label ....10-11
Emission control system warranty ....10-30
Engine Before starting the engine ........5-17
Block heater ................5-192
Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant ..........8-5
Changing engine oil .............8-7
Changing engine oil filter .........8-8
Checking engine coolant level .......8-5
Checking engine oil level ..........8-6
Engine compartment check locations . .8-3
Engine coolant temperature gauge ....2-6
Engine cooling system ...........8-4
Engine oil ...................8-6
Engine oil and oil filter
recommendation ..............10-6 Engine oil pressure warning light
....2-14
Engine oil viscosity ............10-6
Engine serial number ..........10-11
Engine specifications ...........10-8
Starting the engine ............5-17
Engine coolant temperature gauge ......
2-
6
Event Data recorders ............10-32
Exhaust gas (Carbon monoxide) .......5-4
Explanation of maintenance items ......9-2
Explanation of scheduled maintenance
items........................9-5
Extended storage switch ...........2-54
F
Flashers
(See hazard warning flasher switch) .....6-2
Flat tire ......................6-3
Floor mat positioning aid ............7-6
Fluid Brakefluid .................8-10
Capacities and recommended
fuel/lubricants............... 10-2
Continuously Variable Transmission (CVT)
fluid......................8-9
Engine coolant ................8-4
Engine oil ...................8-6
Windshield-washerfluid.........8-10
F.M.V.S.S. certification label ........10-11
Fog light switch ................2-46
Forward Emergency Braking (FEB) with
Pedestrian Detection system ....2-11,5-149
Front air bag system
(See supplemental restraint system) ....1-50
Front and rear sonar system ........5-187
11-2

U
Uniform tire quality grading ........10-29
USB/iPod® Charging Ports .........4-44
V
Vanity mirror ..................3-35
Variable voltage control system .......8-13
Vehicle dimensions and weights ......10-9
Vehicle dynamic control (VDC) system . .5-181
Vehicle Dynamic Control (VDC)
system.....................5-181
Vehicle identification ............10-10
Vehicle identification number (VIN) ....10-10
Vehicle identification number (VIN)
(Chassis number) ...............10-10
Vehicle identification number (VIN)
plate......................10-10
Vehicle immobilizer system ..........5-17
Vehicle loading information ........10-14
Vehicle recovery ................6-11
Vehicle security system ............2-32
(INFINITI vehicle immobilizer system),
engine start ..........2-33,3-4,5-17
Vents ......................4-35
Visors......................3-35
W
Warning Airbagwarninglight........1-62,2-15
Anti-lock brake warning light ......2-10
Batterychargewarninglight.......2-11 Brakewarninglight............2-10
Distance Control Assist (DCA)
.....5-138
Engine oil pressure warning light ....2-14
Hazard warning flasher switch ......6-2
Loose fuel cap warning ..........2-26
Lowfuelwarninglight ......2-13,2-26
Low tire pressure warning light .....2-12
Low windshield-washer fluid warning
light .....................2-26
Passenger air bag and status light . . .1-53
Seat belt warning light .......1-14,2-15
Supplemental air bag warning
light..................1-62,2-15
TPMS .....................2-4
Vehicle security system ..........2-32
Warning/indicator lights and audible
reminders ...........2-9,2-10,2-15
Warning labels (for SRS) .........1-62
Warning/indicator lights and audible
reminders .............2-9,2-10,2-15
Audible reminders ......2-9,2-10,2-15
Indicatorlights........2-9,2-10,2-15
Warninglights ........2-9,2-10,2-15
Warninglights ..........2-9,2-10,2-15
Warning lights, indicator lights and audible
reminders .....................2-9
Warning systems switch .......2-49,2-50
Washer switch Rear window wiper and washer
switches...................2-37
Weights (See dimensions and weights) . .10-9
Wheels and tires ................8-26
Wheel/tire size .................10-9
When traveling or registering in another
country ....................10-10
Windows ....................2-66 Locking passengers' windows
......2-66
Power rear windows ...........2-67
Power windows .............. 2-66
Rear power windows ...........2-67
Windshield-washerfluid...........8-10
Windshieldwiperblades...........8-16
Wiper Rear window wiper and washer
switches...................2-37
Wiperblades................8-16
Wiper and washer switch ..........2-35
11-7
