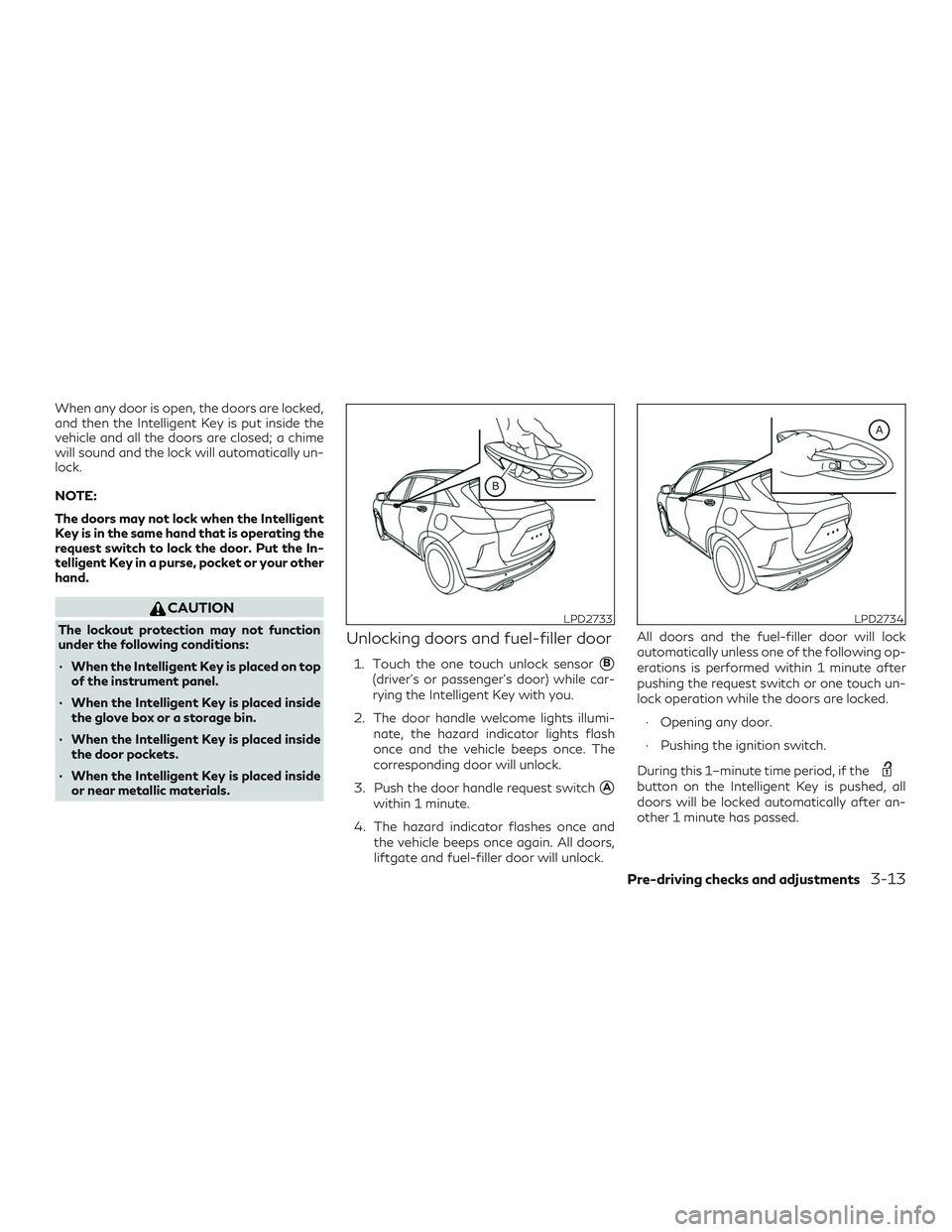

When any door is open, the doors are locked,
and then the Intelligent Key is put inside the
vehicle and all the doors are closed; a chime
will sound and the lock will automatically un-
lock.
NOTE:
The doors may not lock when the Intelligent
Key is in the same hand that is operating the
request switch to lock the door. Put the In-
telligent Key in a purse, pocket or your other
hand.
CAUTION
The lockout protection may not function
under the following conditions:
∙ When the Intelligent Key is placed on topof the instrument panel.
∙ When the Intelligent Key is placed inside the glove box or a storage bin.
∙ When the Intelligent Key is placed inside the door pockets.
∙ When the Intelligent Key is placed inside or near metallic materials.Unlocking doors and fuel-filler door
1. Touch the one touch unlock sensorB
(driver’s or passenger’s door) while car-
rying the Intelligent Key with you.
2. The door handle welcome lights illumi- nate, the hazard indicator lights flash
once and the vehicle beeps once. The
corresponding door will unlock.
3. Push the door handle request switch
A
within 1 minute.
4. The hazard indicator flashes once and the vehicle beeps once again. All doors,
liftgate and fuel-filler door will unlock. All doors and the fuel-filler door will lock
automatically unless one of the following op-
erations is performed within 1 minute after
pushing the request switch or one touch un-
lock operation while the doors are locked.
∙ Opening any door.
∙ Pushing the ignition switch.
During this 1–minute time period, if the
button on the Intelligent Key is pushed, all
doors will be locked automatically after an-
other 1 minute has passed.
LPD2733LPD2734
Pre-driving checks and adjustments3-13

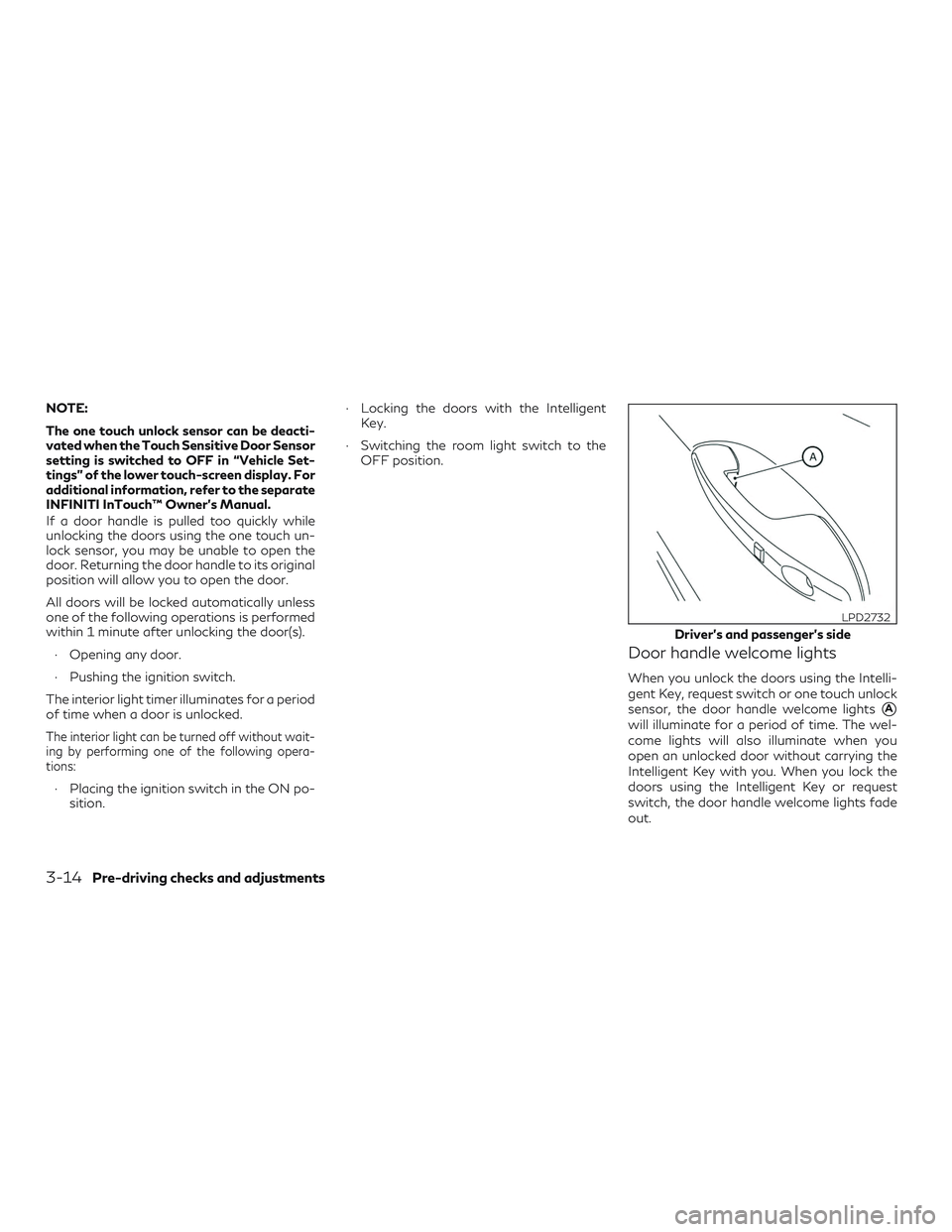

NOTE:
The one touch unlock sensor can be deacti-
vated when the Touch Sensitive Door Sensor
setting is switched to OFF in “Vehicle Set-
tings” of the lower touch-screen display. For
additional information, refer to the separate
INFINITI InTouch™ Owner’s Manual.
If a door handle is pulled too quickly while
unlocking the doors using the one touch un-
lock sensor, you may be unable to open the
door. Returning the door handle to its original
position will allow you to open the door.
All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after unlocking the door(s).∙ Opening any door.
∙ Pushing the ignition switch.
The interior light timer illuminates for a period
of time when a door is unlocked.
The interior light can be turned off without wait-
ing by performing one of the following opera-
tions:
∙ Placing the ignition switch in the ON po- sition. ∙ Locking the doors with the Intelligent
Key.
∙ Switching the room light switch to the OFF position.
Door handle welcome lights
When you unlock the doors using the Intelli-
gent Key, request switch or one touch unlock
sensor, the door handle welcome lights
A
will illuminate for a period of time. The wel-
come lights will also illuminate when you
open an unlocked door without carrying the
Intelligent Key with you. When you lock the
doors using the Intelligent Key or request
switch, the door handle welcome lights fade
out.
Driver’s and passenger’s side
LPD2732
3-14Pre-driving checks and adjustments

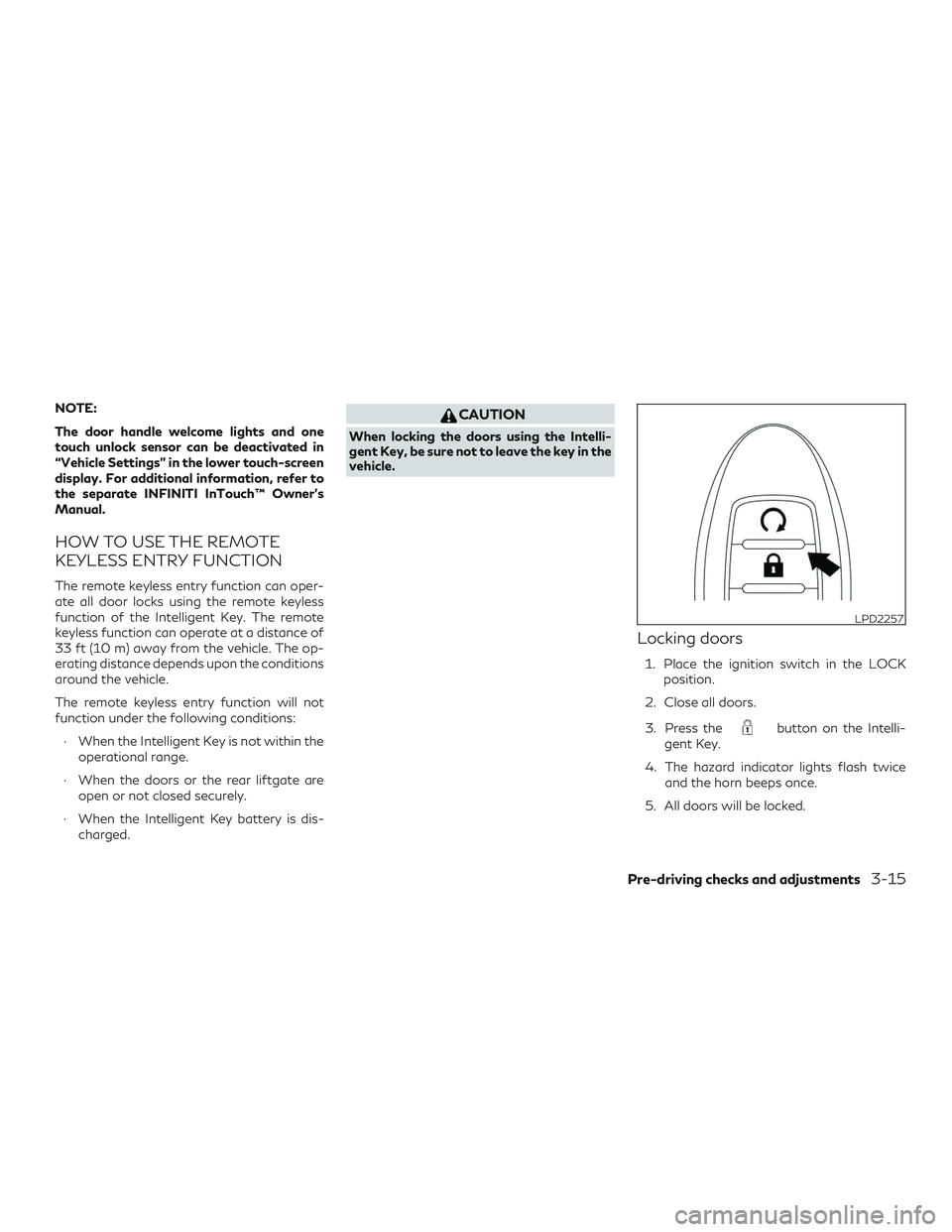

NOTE:
The door handle welcome lights and one
touch unlock sensor can be deactivated in
“Vehicle Settings” in the lower touch-screen
display. For additional information, refer to
the separate INFINITI InTouch™ Owner’s
Manual.
HOW TO USE THE REMOTE
KEYLESS ENTRY FUNCTION
The remote keyless entry function can oper-
ate all door locks using the remote keyless
function of the Intelligent Key. The remote
keyless function can operate at a distance of
33 ft (10 m) away from the vehicle. The op-
erating distance depends upon the conditions
around the vehicle.
The remote keyless entry function will not
function under the following conditions:∙ When the Intelligent Key is not within the operational range.
∙ When the doors or the rear liftgate are open or not closed securely.
∙ When the Intelligent Key battery is dis- charged.
CAUTION
When locking the doors using the Intelli-
gent Key, be sure not to leave the key in the
vehicle.
Locking doors
1. Place the ignition switch in the LOCK position.
2. Close all doors.
3. Press the
button on the Intelli-
gent Key.
4. The hazard indicator lights flash twice and the horn beeps once.
5. All doors will be locked.
LPD2257
Pre-driving checks and adjustments3-15

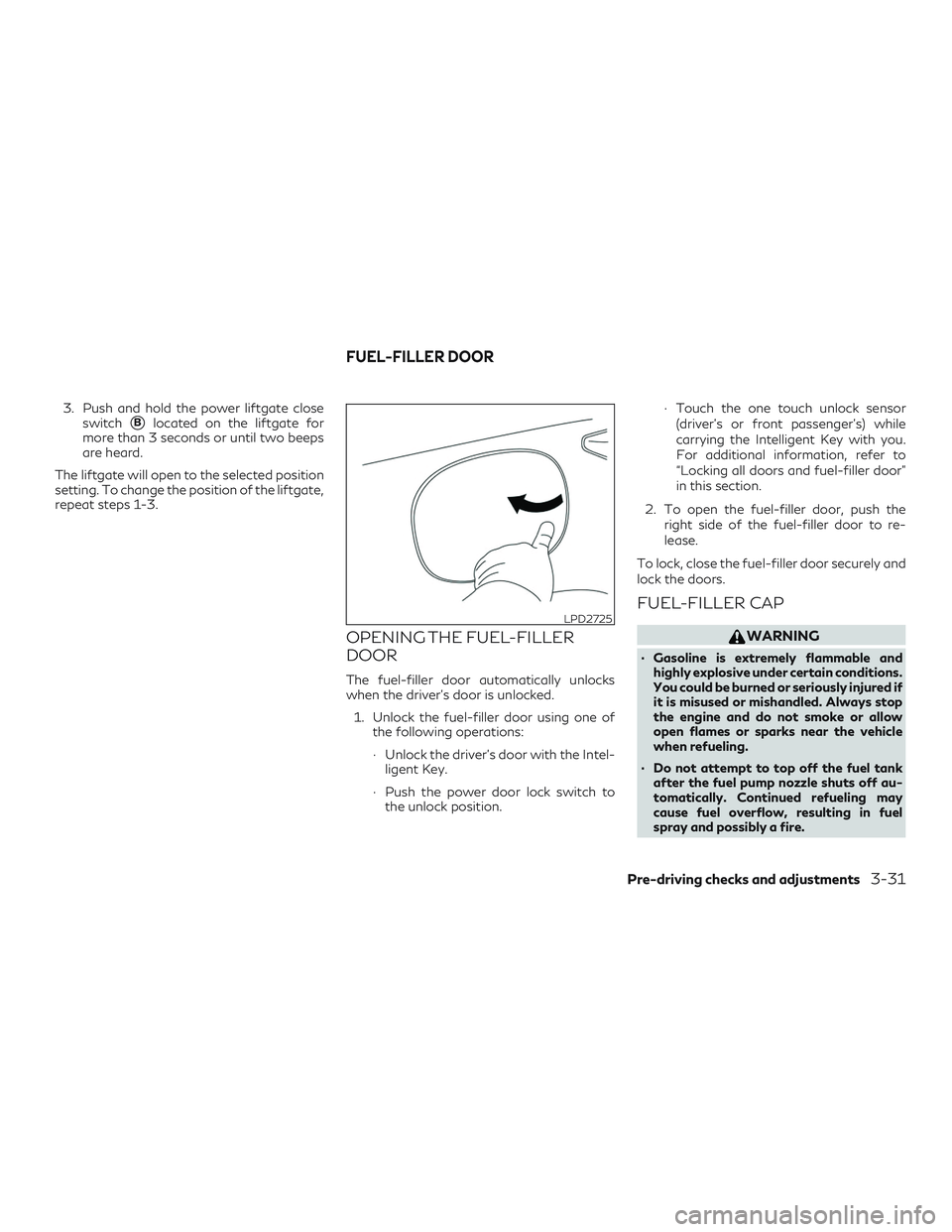

3. Push and hold the power liftgate closeswitch
Blocated on the liftgate for
more than 3 seconds or until two beeps
are heard.
The liftgate will open to the selected position
setting. To change the position of the liftgate,
repeat steps 1-3.
OPENING THE FUEL-FILLER
DOOR
The fuel-filler door automatically unlocks
when the driver’s door is unlocked. 1. Unlock the fuel-filler door using one of the following operations:
∙ Unlock the driver’s door with the Intel- ligent Key.
∙ Push the power door lock switch to the unlock position. ∙ Touch the one touch unlock sensor
(driver’s or front passenger’s) while
carrying the Intelligent Key with you.
For additional information, refer to
“Locking all doors and fuel-filler door”
in this section.
2. To open the fuel-filler door, push the right side of the fuel-filler door to re-
lease.
To lock, close the fuel-filler door securely and
lock the doors.
FUEL-FILLER CAP
WARNING
∙ Gasoline is extremely flammable and highly explosive under certain conditions.
You could be burned or seriously injured if
it is misused or mishandled. Always stop
the engine and do not smoke or allow
open flames or sparks near the vehicle
when refueling.
∙ Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off au-
tomatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.
LPD2725
FUEL-FILLER DOOR
Pre-driving checks and adjustments3-31

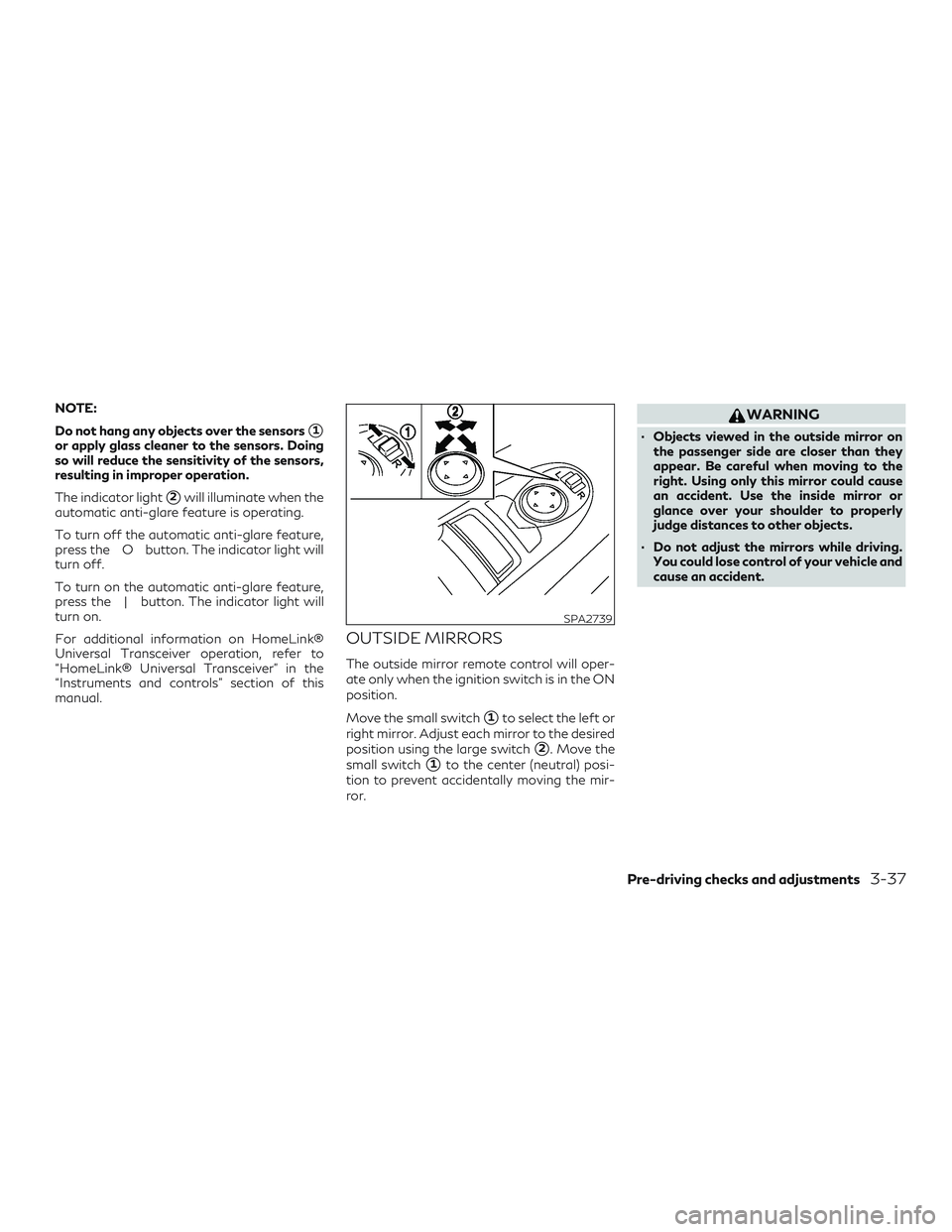

NOTE:
Do not hang any objects over the sensors
1
or apply glass cleaner to the sensors. Doing
so will reduce the sensitivity of the sensors,
resulting in improper operation.
The indicator light
2will illuminate when the
automatic anti-glare feature is operating.
To turn off the automatic anti-glare feature,
press the O button. The indicator light will
turn off.
To turn on the automatic anti-glare feature,
press the | button. The indicator light will
turn on.
For additional information on HomeLink®
Universal Transceiver operation, refer to
“HomeLink® Universal Transceiver” in the
“Instruments and controls” section of this
manual.
OUTSIDE MIRRORS
The outside mirror remote control will oper-
ate only when the ignition switch is in the ON
position.
Move the small switch
1to select the left or
right mirror. Adjust each mirror to the desired
position using the large switch
2. Move the
small switch
1to the center (neutral) posi-
tion to prevent accidentally moving the mir-
ror.
WARNING
∙ Objects viewed in the outside mirror on the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
∙ Do not adjust the mirrors while driving. You could lose control of your vehicle and
cause an accident.
SPA2739
Pre-driving checks and adjustments3-37

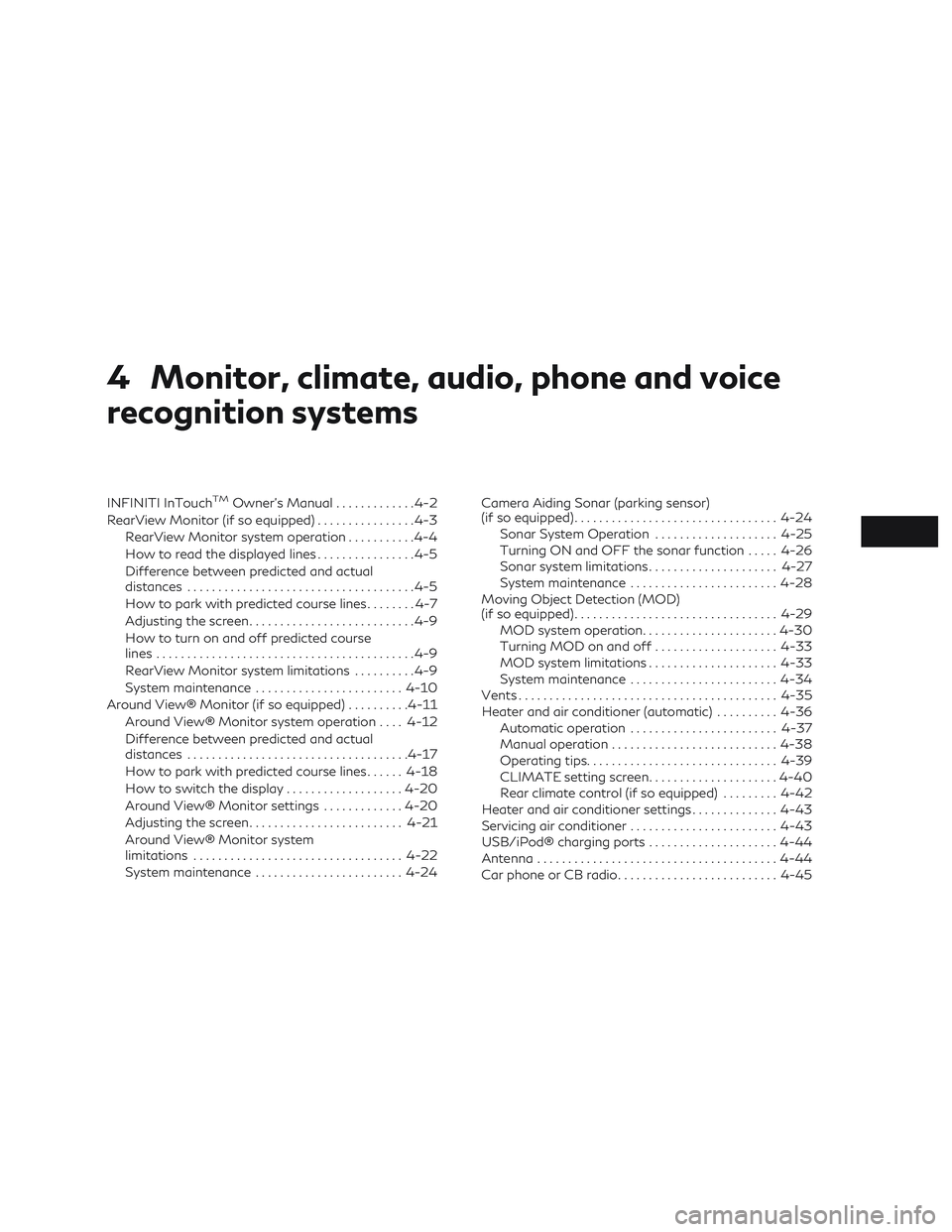

4 Monitor, climate, audio, phone and voice
recognition systems
INFINITI InTouchTMOwner’s Manual.............4-2
RearView Monitor (if so equipped) ................4-3
RearView Monitor system operation ...........4-4
How to read the displayed lines ................4-5
Difference between predicted and actual
distances .....................................4-5
How to park with predicted course lines ........4-7
Adjusting the screen ...........................4-9
How to turn on and off predicted course
lines ..........................................4-9
RearView Monitor system limitations ..........4-9
System maintenance ........................ 4-10
Around View® Monitor (if so equipped) ..........4-11
Around View® Monitor system operation ....4-12
Difference between predicted and actual
distances .................................... 4-17
How to park with predicted course lines ......4-18
How to switch the display ...................4-20
Around View® Monitor settings .............4-20
Adjusting the screen ......................... 4-21
Around View® Monitor system
limitations .................................. 4-22
System maintenance ........................ 4-24Camera Aiding Sonar (parking sensor)
(if so equipped)
................................. 4-24
Sonar System Operation ....................4-25
Turning ON and OFF the sonar function .....4-26
Sonar system limitations .....................4-27
System maintenance ........................ 4-28
Moving Object Detection (MOD)
(if so equipped) ................................. 4-29
MOD system operation ......................4-30
Turning MOD on and off ....................4-33
MOD system limitations .....................4-33
System maintenance ........................ 4-34
Vents .......................................... 4-35
Heater and air conditioner (automatic) ..........4-36
Automatic operation ........................ 4-37
Manual operation ........................... 4-38
Operating tips ............................... 4-39
CLIMATE setting screen .....................4-40
Rear

climate control (if so equipped) .........4-42
Heater and air conditioner settings ..............4-43
Servicing air conditioner ........................ 4-43
USB/iPod® charging ports .....................4-44
Antenna ....................................... 4-44
Car phone or CB radio .......................... 4-45

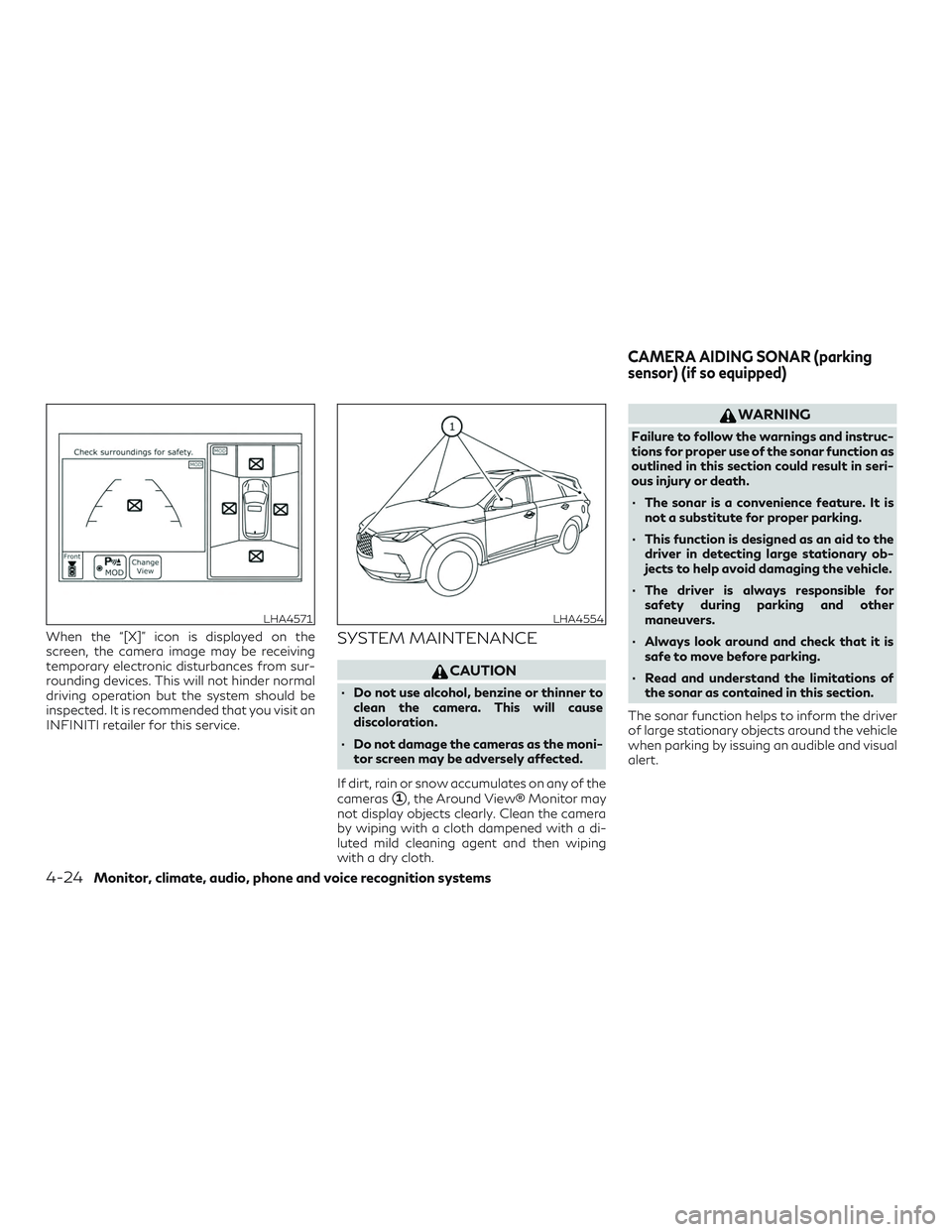

When the “[X]” icon is displayed on the
screen, the camera image may be receiving
temporary electronic disturbances from sur-
rounding devices. This will not hinder normal
driving operation but the system should be
inspected. It is recommended that you visit an
INFINITI retailer for this service.SYSTEM MAINTENANCE
CAUTION
∙ Do not use alcohol, benzine or thinner toclean the camera. This will cause
discoloration.
∙ Do not damage the cameras as the moni- tor screen may be adversely affected.
If dirt, rain or snow accumulates on any of the
cameras
1, the Around View® Monitor may
not display objects clearly. Clean the camera
by wiping with a cloth dampened with a di-
luted mild cleaning agent and then wiping
with a dry cloth.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the sonar function as
outlined in this section could result in seri-
ous injury or death.
∙ The sonar is a convenience feature. It is not a substitute for proper parking.
∙ This function is designed as an aid to the driver in detecting large stationary ob-
jects to help avoid damaging the vehicle.
∙ The driver is always responsible for safety during parking and other
maneuvers.
∙ Always look around and check that it is safe to move before parking.
∙ Read and understand the limitations of the sonar as contained in this section.
The sonar function helps to inform the driver
of large stationary objects around the vehicle
when parking by issuing an audible and visual
alert.
LHA4571LHA4554
CAMERA AIDING SONAR (parking
sensor) (if so equipped)
4-24Monitor, climate, audio, phone and voice recognition systems

Sonar function settings
To set up the sonar function to your preferred
settings, press the MENU button, select the
“Settings” key, select the “Camera/Sonar” key
and then select the “Sonar” key on the lower
display.
Designs and items displayed on the screen
may vary depending on the models.
Sonar:When this item is turned to ON, the
front and rear sonar is activated and a sonar
indicator
Cwill appear at the corner of the
vehicle to inform the driver when an obstacle
is near. Another sonar indicator
Dmay also
appear on either a side view, front or rear- wide view Around View® Monitor screen to
aid the driver when an object is near. When
this item is turned off (indicator turns off), the
front and rear sonar is deactivated. The am-
ber markers are displayed at the corners of
the vehicle icon and the sonar icon will disap-
pear from the “
” keyAon the Around
View® Monitor display. The next time the
ignition switch is placed in the on position, a
gray sonar icon will briefly flash on the upper
display, indicating that the sonar system is
off.
FR sensor only: When this item is turned to
“ON”, only the front sonar sensors are active.
Interrupt Display: When this item is turned to “ON” the upper display screen will interrupt
the current view in the display to see the
surrounding area of the vehicle.
Sonar Sensitivity:
Adjust the sensitivity level
of the sonar by touching either the “+” or “-” on
the menu screen.
Sonar Volume: Adjust the volume of the
buzzer by touching either the “+” or the “-” on
the menu screen.
SONAR SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the sonar function. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
∙ Inclement weather or ultrasonic sources such as an automatic car wash, a truck’s
compressed-air brakes or a pneumatic
drill may affect the function of the sys-
tem, including reduced performance or a
false activation.
∙ The system is not designed to prevent contact with small or moving objects.LHA4609LHA4610
Monitor, climate, audio, phone and voice recognition systems4-27

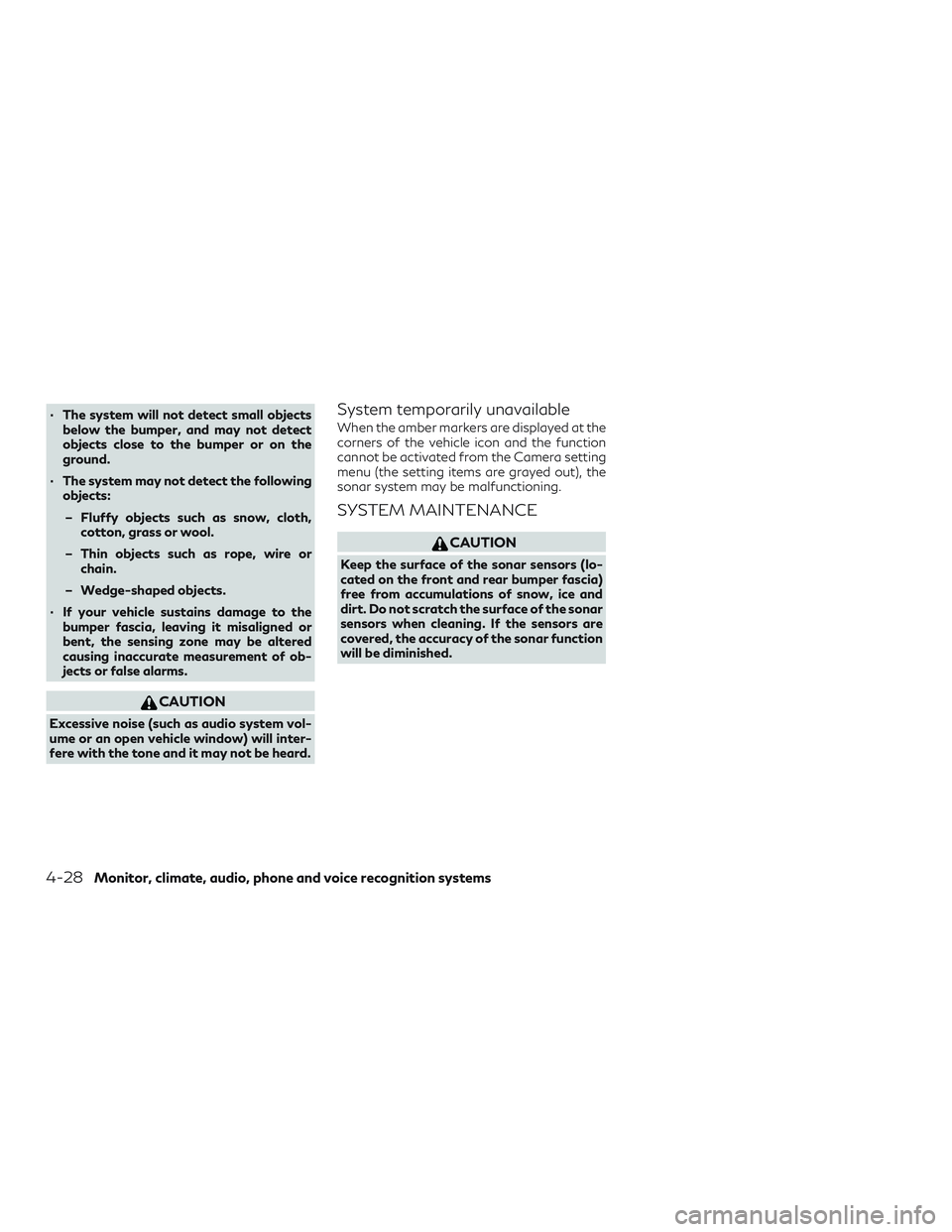

∙ The system will not detect small objectsbelow the bumper, and may not detect
objects close to the bumper or on the
ground.
∙ The system may not detect the following objects:
– Fluffy objects such as snow, cloth, cotton, grass or wool.
– Thin objects such as rope, wire or chain.
– Wedge-shaped objects.
∙ If your vehicle sustains damage to the bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
jects or false alarms.
CAUTION
Excessive noise (such as audio system vol-
ume or an open vehicle window) will inter-
fere with the tone and it may not be heard.
System temporarily unavailable
When the amber markers are displayed at the
corners of the vehicle icon and the function
cannot be activated from the Camera setting
menu (the setting items are grayed out), the
sonar system may be malfunctioning.
SYSTEM MAINTENANCE
CAUTION
Keep the surface of the sonar sensors (lo-
cated on the front and rear bumper fascia)
free from accumulations of snow, ice and
dirt. Do not scratch the surface of the sonar
sensors when cleaning. If the sensors are
covered, the accuracy of the sonar function
will be diminished.
4-28Monitor, climate, audio, phone and voice recognition systems

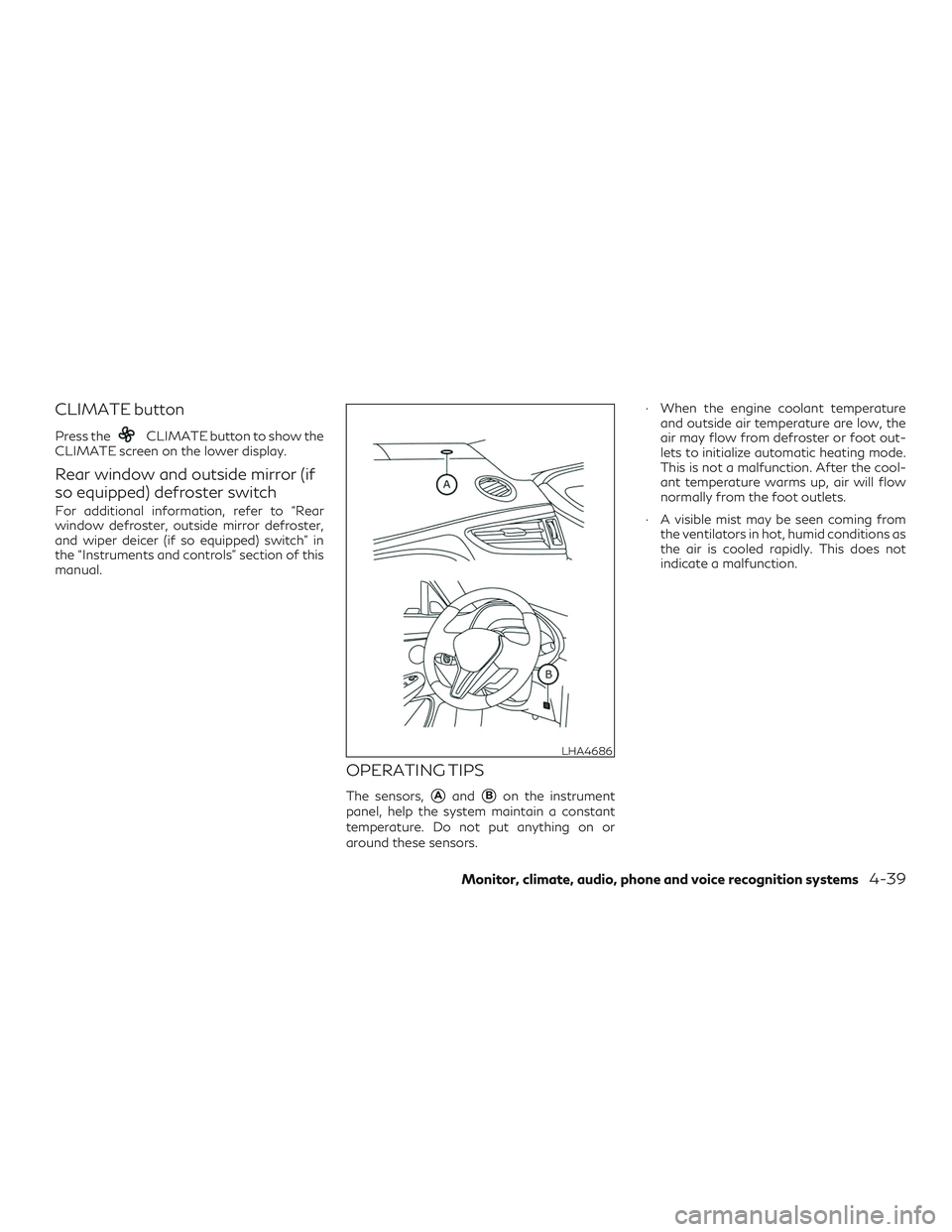

CLIMATE button
Press theCLIMATE button to show the
CLIMATE screen on the lower display.
Rear window and outside mirror (if
so equipped) defroster switch
For additional information, refer to “Rear
window defroster, outside mirror defroster,
and wiper deicer (if so equipped) switch” in
the “Instruments and controls” section of this
manual.
OPERATING TIPS
The sensors,AandBon the instrument
panel, help the system maintain a constant
temperature. Do not put anything on or
around these sensors. ∙ When the engine coolant temperature
and outside air temperature are low, the
air may flow from defroster or foot out-
lets to initialize automatic heating mode.
This is not a malfunction. After the cool-
ant temperature warms up, air will flow
normally from the foot outlets.
∙ A visible mist may be seen coming from the ventilators in hot, humid conditions as
the air is cooled rapidly. This does not
indicate a malfunction.
LHA4686
Monitor, climate, audio, phone and voice recognition systems4-39
