service indicator INFINITI QX50 2019 Owner's Manual

Malfunction
If the BSW system malfunctions, it will turn
off automatically. The system malfunction
warning message with the
BSI/BSW/BCI/RCTA indicator (orange) will
appear in the vehicle information display.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
Radio frequency statement
For USA
FCC: OAYSRR3B
This device complies with part 15 of the FCC
Rules.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
LSD2920
5-52Starting and driving

Malfunction
When the RCTA system malfunctions, it will
turn off automatically. The system malfunc-
tion warning message with the
BSI/BSW/BCI/RCTA indicator (orange) will
appear in the vehicle information display.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
Radio frequency statement
For USA
This device complies with part 15 of the FCC
Rules. (FCC Number UR8100261)
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
NOTE:
The manufacturer is not responsible for any
radio or TV interference caused by unau-
thorized modifications to this equipment.
Such modifications could void the user’s au-
thority to operate the equipment.
LSD2920
Starting and driving5-81

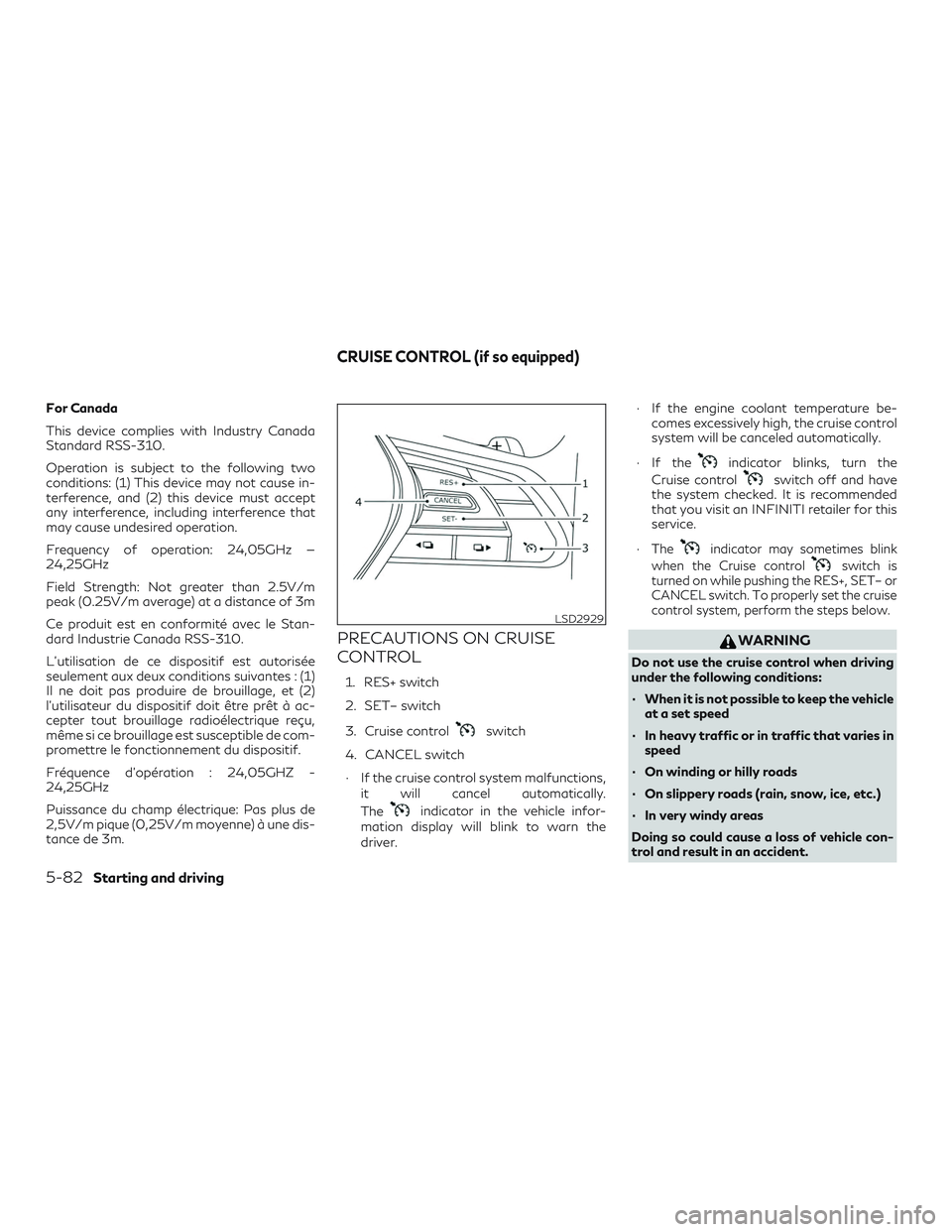

For Canada
This device complies with Industry Canada
Standard RSS-310.
Operation is subject to the following two
conditions: (1) This device may not cause in-
terference, and (2) this device must accept
any interference, including interference that
may cause undesired operation.
Frequency of operation: 24,05GHz —
24,25GHz
Field Strength: Not greater than 2.5V/m
peak (0.25V/m average) at a distance of 3m
Ce produit est en conformité avec le Stan-
dard Industrie Canada RSS-310.
L’utilisation de ce dispositif est autorisée
seulement aux deux conditions suivantes : (1)
Il ne doit pas produire de brouillage, et (2)
l’utilisateur du dispositif doit être prêt à ac-
cepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de com-
promettre le fonctionnement du dispositif.
Fréquence d’opération : 24,05GHZ -
24,25GHz
Puissance du champ électrique: Pas plus de
2,5V/m pique (0,25V/m moyenne) à une dis-
tance de 3m.
PRECAUTIONS ON CRUISE
CONTROL
1. RES+ switch
2. SET– switch
3. Cruise control
switch
4. CANCEL switch
∙ If the cruise control system malfunctions, it will cancel automatically.
The
indicator in the vehicle infor-
mation display will blink to warn the
driver. ∙ If the engine coolant temperature be-
comes excessively high, the cruise control
system will be canceled automatically.
∙ If the
indicator blinks, turn the
Cruise control
switch off and have
the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
∙
Theindicator may sometimes blink
when the Cruise control
switch is
turned on while pushing the RES+, SET– or
CANCEL switch. To properly set the cruise
control system, perform the steps below.
WARNING
Do not use the cruise control when driving
under the following conditions:
∙ When it is not possible to keep the vehicle at a set speed
∙ In heavy traffic or in traffic that varies in speed
∙ On winding or hilly roads
∙ On slippery roads (rain, snow, ice, etc.)
∙ In very windy areas
Doing so could cause a loss of vehicle con-
trol and result in an accident.
LSD2929
CRUISE CONTROL (if so equipped)
5-82Starting and driving

Action to take
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart
the engine, resume driving and set the ICC
system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still drivable under normal conditions,
have the vehicle checked. It is recommended
that you visit an INFINITI retailer for this
service.SYSTEM MAINTENANCE
The sensor for the ICC systemAis located
on the front of the vehicle.
To keep the ICC system operating properly,
be sure to observe the following:
∙ Always keep the sensor area clean.
∙ Do not strike or damage the areas around the sensor.
∙ Do not attach a sticker (including trans- parent material) or install an accessory
near the sensor. This could cause failure
or malfunction. ∙ Do not attach metallic objects near the
sensor area (brush guard, etc.) This could
cause failure or malfunction.
∙ Do not alter, remove, or paint the front bumper. Before customizing or restoring
the front bumper, it is recommended that
you visit an INFINITI retailer.
Radio frequency statement
For USA/Canada
Model: ARS4–A
IC: 4135A-ARS4A
FCC ID: OAYARS4A
This device complies with Part 15 of the FCC
Rules and with Industry Canada licence-
exempt RSS standard(s):
Operation is subject to the following two
conditions:
1. This device may not cause harmful inter- ference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
LSD2833LSD2981
5-102Starting and driving

System temporarily unavailable
A chime sounds under the following conditions
and the control is automatically canceled:
∙ When the vehicle slows down more than8 mph (13 km/h) below the set speed
∙ When the shift lever is not in the D (Drive) or manual shift mode
∙
When the electronic parking brake is applied
∙ When the VDC operates (including the traction control system)
∙ When a wheel slips
When the system is not operating properly,
the chime sounds and the color of the cruise
indicator will change to orange.
Action to take
If the color of the cruise indicator changes to
orange, stop the vehicle in a safe place and
press the Park button to place the vehicle in
the P (Park) position. Turn the engine off,
restart the engine, resume driving, and then
perform the setting again.
If it is not possible to set or the indicator
stays on, it may indicate that the system is
malfunctioning. Although the vehicle is still
drivable under normal conditions, have the
vehicle checked. It is recommended that you
visit an INFINITI retailer for this service.
LSD2942
Starting and driving5-107

∙ When distance measurement becomesimpaired due to adhesion of dirt or ob-
struction to the sensor.
∙ When the radar signal is temporarily in- terrupted.
Action to take:
When the conditions listed above are no lon-
ger present, turn the system off using the
ProPILOT Assist switch. Turn the ProPILOT
Assist system back on to use the system.
NOTE:
When the ICC system is canceled under the
following conditions at a standstill, the elec-
tronic parking brake is automatically acti-
vated: ∙ Any door is open.
∙ The driver’s seat belt is not fastened.
∙ Your vehicle has been stopped by the ICC
system for approximately 3 minutes or
longer.
∙ The shift lever is not in the D (Drive) po-
sition or manual shift mode.
∙ The VDC system is turned off. ∙
When distance measurement becomes
impaired due to adhesion of dirt or ob-
struction to the sensor.
∙ When the radar signal is temporarily in-
terrupted.
Condition B
When the radar sensor of the front bumper is
covered with dirt or is obstructed, the ICC
system will automatically be canceled.
The chime will sound and the “Unavailable:
Front Radar Blocked” warning message will
appear in the vehicle information display.
Action to take:
If the warning message appears, stop the
vehicle in a safe place, press the Park button
to place the vehicle in the P (Park) position,
and turn the engine off. When the radar sig-
nal is temporarily interrupted, clean the sen-
sor area of the front bumper and restart the
engine. If the “Unavailable: Front Radar
Blocked” warning message continues to be
displayed, have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service.
Condition C
When driving on roads with limited road
structures or buildings (for example, long bridges, deserts, snow fields, driving next to
long walls), the system may illuminate the
system warning light and display the “Un-
available: Front Radar Blocked” message.
Action to take:
When the above driving conditions no longer
exist, turn the system back on.
ICC system malfunction
If the ICC system malfunctions, it will be
turned off automatically, a chime will sound,
and the speed control status warning (or-
ange) will illuminate.
Action to take:
If the warning light comes on, stop the vehicle
in a safe place. Turn the engine off, restart
the engine and set the ICC system again. If it
is not possible to set the ICC system or the
indicator stays on, it may be a malfunction.
Although the normal driving can be contin-
ued, the ICC system should be inspected. It is
recommended that you visit an INFINITI re-
tailer for this service.
ICC sensor maintenance
The radar sensor is located on the front of the
vehicle.
Starting and driving5-127

∙ Do not modify the vehicle’s steering. Ifsteering parts are not INFINITI recom-
mended for your vehicle or are extremely
deteriorated, Direct Adaptive Steering
may not operate properly and the power
steering warning light may illuminate.
∙ If the Vehicle Dynamic Control (VDC) OFF indicator light illuminates, the
power steering warning light may also il-
luminate at the same time. Stop the ve-
hicle in a safe location, turn the engine off
and restart the engine. If the power
steering warning light continues to illu-
minate, have the system checked. It is
recommended that you visit an INFINITI
retailer for this service. For additional in-
formation, refer to “Vehicle Dynamic
Control (VDC) system” in this section.
CAUTION
∙ Do not place the ignition switch in the ON
position while the steering wheel or a tire
is removed.
∙ Do not turn the steering wheel as much as possible while the ignition switch is any
position other than the ON position.
∙ Installing an accessory on the steering wheel, or changing the steering wheel,
may reduce the steering performance. Direct Adaptive Steering is designed to con-
trol the steering force and steering angle ac-
cording to the vehicle speed and amount of
turning of the steering wheel.
The steering characteristic can be selected
using the INFINITI Drive Mode Selector. For
additional information, refer to “INFINITI
Drive Mode Selector” in this section.
If the VDC system is turned off, the setting of
steering becomes Standard mode.
If the power steering warning light illumi-
nates while the engine is running, it may indi-
cate that Direct Adaptive Steering is not
functioning properly and may need servicing.
Have the system checked. It is recommended
that you visit an INFINITI retailer for this
service. For additional information, refer to
“Power steering warning light” in the “Instru-
ments and Controls” section of the manual.
When the power steering warning light illu-
minates with the engine running, the power
assist for the steering will cease operation.
You will still have control of the vehicle. How-
ever, greater steering effort will be needed,
especially in sharp turns and at low speeds.
If Direct Adaptive Steering is malfunctioning,
the steering wheel may turn slightly even
when driving on a straight road. Under the following conditions, the steering
wheel may turn slightly even when driving on
a straight road. This is due to a protection
mechanism for Direct Adaptive Steering. The
steering wheel will return to the normal posi-
tion after the protection mechanism is deac-
tivated.
Condition A:
∙ When the engine is stalled or likely to be stalled
∙ When the steering wheel is held in the full lock position or when the front tire
touches an obstruction
∙ When the battery is discharged
To return the steering wheel to the normal
position, stop the vehicle in a safe location
and stop operating the steering wheel. Then
drive the vehicle for a short period of time.
Condition B: ∙ When the steering wheel is operated re- peatedly or continuously while parking or
driving at a very low speed. In this case,
the power assist for the steering wheel
will be reduced.
To return the steering wheel to the normal
position, stop the vehicle in a safe location
and wait for a period of time, without oper-
Starting and driving5-177

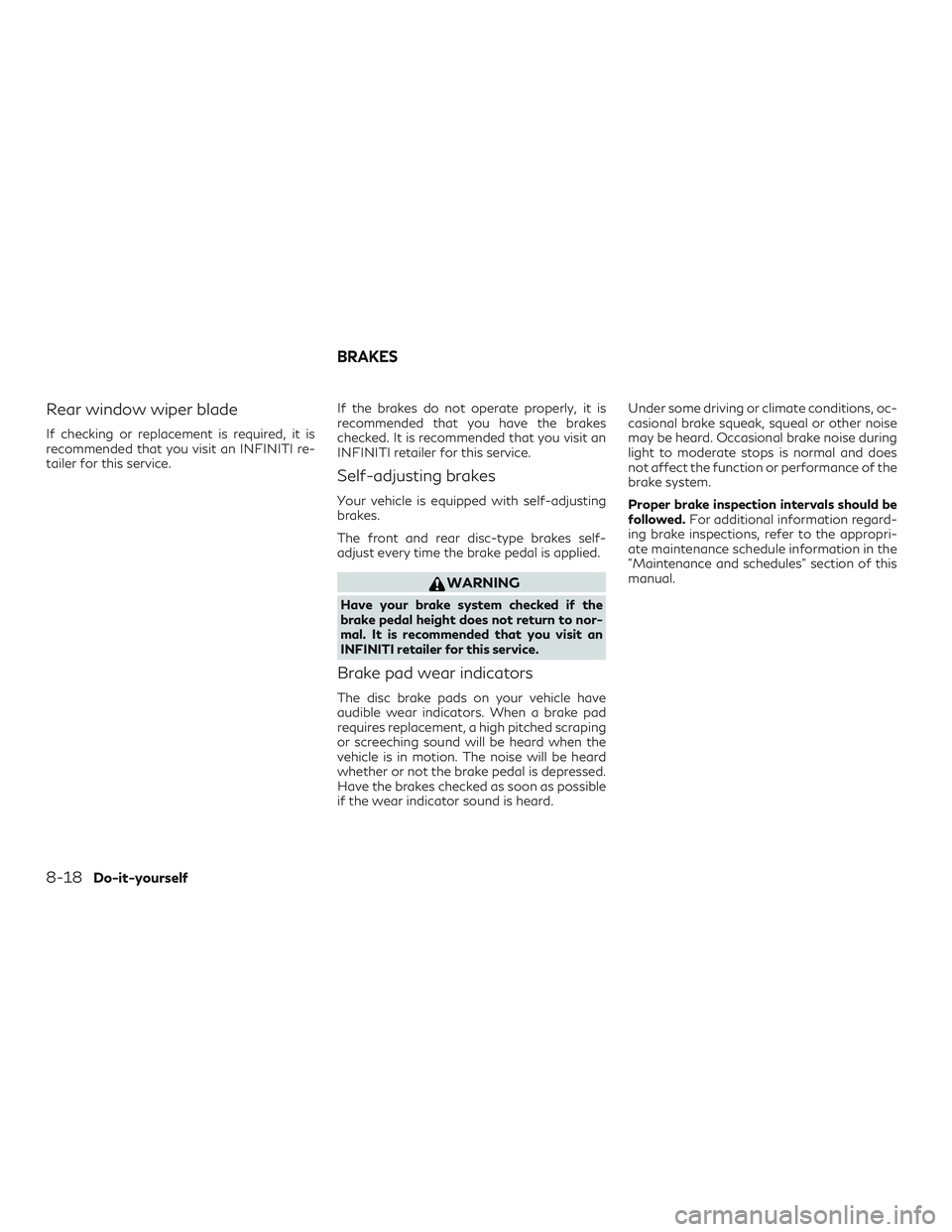

Rear window wiper blade
If checking or replacement is required, it is
recommended that you visit an INFINITI re-
tailer for this service.If the brakes do not operate properly, it is
recommended that you have the brakes
checked. It is recommended that you visit an
INFINITI retailer for this service.
Self-adjusting brakes
Your vehicle is equipped with self-adjusting
brakes.
The front and rear disc-type brakes self-
adjust every time the brake pedal is applied.
WARNING
Have your brake system checked if the
brake pedal height does not return to nor-
mal. It is recommended that you visit an
INFINITI retailer for this service.
Brake pad wear indicators
The disc brake pads on your vehicle have
audible wear indicators. When a brake pad
requires replacement, a high pitched scraping
or screeching sound will be heard when the
vehicle is in motion. The noise will be heard
whether or not the brake pedal is depressed.
Have the brakes checked as soon as possible
if the wear indicator sound is heard.Under some driving or climate conditions, oc-
casional brake squeak, squeal or other noise
may be heard. Occasional brake noise during
light to moderate stops is normal and does
not affect the function or performance of the
brake system.
Proper brake inspection intervals should be
followed.
For additional information regard-
ing brake inspections, refer to the appropri-
ate maintenance schedule information in the
"Maintenance and schedules" section of this
manual.
BRAKES
8-18Do-it-yourself

∙ The original tires have built-intread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.
∙ Tires degrade with age and use. Have tires, including the spare,
over 6 years old checked by a
qualified technician because some
tire damage may not be obvious.
Replace the tires as necessary to
prevent tire failure and possible
personal injury.
∙ Improper service of the spare tire may result in serious personal in-
jury. If it is necessary to repair the
spare tire, it is recommended that
you visit an INFINITI retailer for
this service.
∙ For additional information re- garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.Replacing wheels and tires
When replacing a tire, use the same size,
tread design, speed rating and load carrying
capacity as originally equipped. For addi-
tional information, refer to “Wheels and tires”
in the “Technical and consumer information”
section of this manual.
WARNING
∙ The use of tires other than those recom-
mended or the mixed use of tires of dif-
ferent brands, construction (bias, bias-
belted or radial), or tread patterns can
adversely affect the ride, braking, han-
dling, VDC system, ground clearance,
body-to-tire clearance, tire chain clear-
ance, speedometer calibration, headlight
aim and bumper height. Some of these
effects may lead to accidents and could
result in serious personal injury.
∙ For 2WD models, if your vehicle was originally equipped with four tires that
were the same size and you are only re-
placing two of the four tires, install the
new tires on the rear axle. Placing new
tires on the front axle may cause loss of
vehicle control in some driving conditions
and cause an accident and personal
injury. ∙ If the wheels are changed for any reason,
always replace with wheels which have
the same off-set dimension. Wheels of a
different off-set could cause premature
tire wear, degrade vehicle handling char-
acteristics, affect the VDC system
and/or interference with the brake discs.
Such interference can lead to decreased
braking efficiency and/or early brake
pad wear. For additional information on
wheel off-set dimensions, refer to
“Wheels and tires” in the “Technical and
consumer information” section of this
manual.
∙ When replacing a wheel without the TPMS, such as the spare tire, the TPMS
will not function and the low tire pressure
warning light will flash for approximately
1 minute. The light will remain on after
1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you visit
an INFINITI retailer for this service.
∙ Replacing tires with those not originally specified by INFINITI could affect the
proper operation of the TPMS.
∙ The TPMS sensor may be damaged if it is not handled correctly. Be careful when
handling the TPMS sensor.
Do-it-yourself8-37

Seats/floor mats................7-5
Security indicator light ............2-17
Security system (INFINITI vehicle immobilizer system),
engine start ..........2-33,3-4,5-17
Security systems Vehicle security system ..........2-32
Self-adjusting brakes .............8-18
Service manual order form .........10-33
Servicing air conditioner ...........4-43
Spark plug replacement ............8-14
Spark plugs ...................8-14
Specifications .................10-8
Speedometer ................2-4,2-5
Speedometer and odometer ..........2-4
SRS warning label ...............1-62
Stability control ................5-181
Standard maintenance .............9-9
Starting Before starting the engine ........5-17
Jump starting .............6-5,8-12
Precautions when starting and
driving .................5-4,5-11
Push starting .................6-7
Starting the engine ............5-17
Starting the engine ..............5-17
Steering Power steering system .....5-176, 5-176
Steering wheel .................3-34
Stoplight....................8-24
Storage.....................2-55
Storagebin...................2-60
Storagetray ..................2-56
Sunglasses case ................2-57
Sunglasses holder ...............2-57
Sunroof ......................7-5 Sun visors
....................3-35
Supplemental air bag warning labels ....1-62
Supplemental air bag warning
light....................1-62,2-15
Supplemental front impact air bag
system......................1-50
Supplemental restraint system Informationandwarninglabels.....1-62
Precautions on supplemental restraint
system ....................1-43
Supplemental restraint system
(Supplemental air bag system) ........1-43
Switch Autolight switch ..............2-40
Automatic power window switch ....2-67
Fog light switch ..............2-46
Hazard warning flasher switch ......6-2
Headlight aiming control .........2-44
Headlight and turn signal switch ....2-39
Instrument brightness control ......2-45
Power door lock switch ..........3-6
Rear window and outside mirror defroster
switch....................2-39
Rear window wiper and washer
switches ...................2-37
Turn signal switch .............2-45
T
Tachometer ...................2-6
Temperature gauge Engine coolant temperature gauge ....2-6
Theft (INFINITI vehicle immobilizer system),
engine start ..........2-33,3-4,5-17 Three-way catalyst
...............5-4
Tire Flat tire ....................6-3
Tire and Loading Information label . .10-12
Tire
chains .................8-35
Tirepressure................8-26
Tirerotation ................8-36
Types of tires ................8-32
Uniform tire quality grading ......10-29
Wheels and tires .............. 8-26
Wheel/tire size ...............10-9
Tire pressure Low tire pressure warning light .....2-12
Tire Pressure Monitoring System (TPMS) . .5-5
Top tether strap child restraint .......1-26
Towing 4-wheel drive models ...........6-10
Flattowing................10-28
Towing load/specification .......10-22
Towtrucktowing..............6-8
Trailertowing...............10-18
Towing a trailer ...............10-18
Transceiver HomeLink® Universal
Transceiver......... 2-72, 2-73, 2-74,
2-75, 2-75, 2-76
Transmission Continuously Variable Transmission (CVT)
fluid......................8-9
Driving with Continuously Variable
Transmission (CVT) ............5-19
Travel (See registering a vehicle in another
country) ....................10-10
Trip odometer ...............2-4,2-5
Trunklight.................... 2-72
Turn signal switch ............... 2-45
11-6
