Predictive Forward Collision Warning
(PFCW) indicator (if so equipped)
This indicator shows when the PFCW system
is engaged.
For additional information, refer to “Distance
Control Assist (DCA)” , “Forward Emergency
Braking (FEB) with Pedestrian Detection”
and “Predictive Forward Collision Warning
(PFCW)” in the “Starting and driving” section
of this manual.
Lane Departure Warning (LDW)/Lane De-
parture Prevention (LDP) indicator (if so
equipped)
This indicator shows when the LDW/LDP
systems are engaged.
For additional information, refer to ”Dynamic
driver assistance switch” in this section and
“Lane Departure Warning (LDW) system”
and “Lane Departure Prevention (LDP) sys-
tem” in the “Starting and driving” section of
this manual.
Blind Spot Intervention® (BSI)/ Blind Spot
Warning (BSW)/ Backup Collision Inter-
vention (BCI)/ Rear Cross Traffic Alert
(RCTA) indicator (if so equipped)
This indicator shows when the BSI, BSW,
BCI, or RCTA systems are engaged.For additional information, refer to “Blind
Spot Intervention® (BSI)” , “Blind Spot Warn-
ing (BSW)” , “Backup Collision Intervention
(BCI)” and “Rear Cross Traffic Alert (RCTA)”
in the “Starting and driving” section of this
manual.
Malfunction
This warning appears when one or more of
the following systems (if so equipped) is not
functioning properly:
∙ Backup Collision Intervention (BCI)
∙ Blind Spot Intervention® (BSI)
∙ Blind Spot Warning (BSW)
∙ Distance Control Assist (DCA)
∙ Forward Emergency Braking (FEB) with Pedestrian Detection
∙ Intelligent Cruise Control (ICC)
∙ Lane Departure Warning (LDW)
∙ Lane Departure Prevention (LDP)
∙ Predictive Forward Collision Warning (PFCW)
If one or more of these warning appears,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service. Intelligent Cruise Control (ICC) indicators
(if so equipped)
These indicators show the Intelligent Cruise
Control (ICC) system status. For additional
information, refer to “Intelligent Cruise Con-
trol (ICC)” in the “Starting and driving” section
of this manual.
Stop vehicle and Apply parking brake (if so
equipped)
This message may appear when the battery
charge is low.
Please park vehicle as soon as possible. It is
recommended that you visit an INFINITI re-
tailer.
INFINITI Drive Mode Selector indicators
These indicators show the current drive
mode of the vehicle.
For additional information, refer to “INFINITI
Drive Mode Selector” in the “Starting and
driving” section of this manual.
Cruise control indicator
This indicator shows the cruise control sys-
tem status.
When cruise control is activated, a green
circle will illuminate to indicate it is set. The
vehicle information display will also display
2-28Instruments and controls

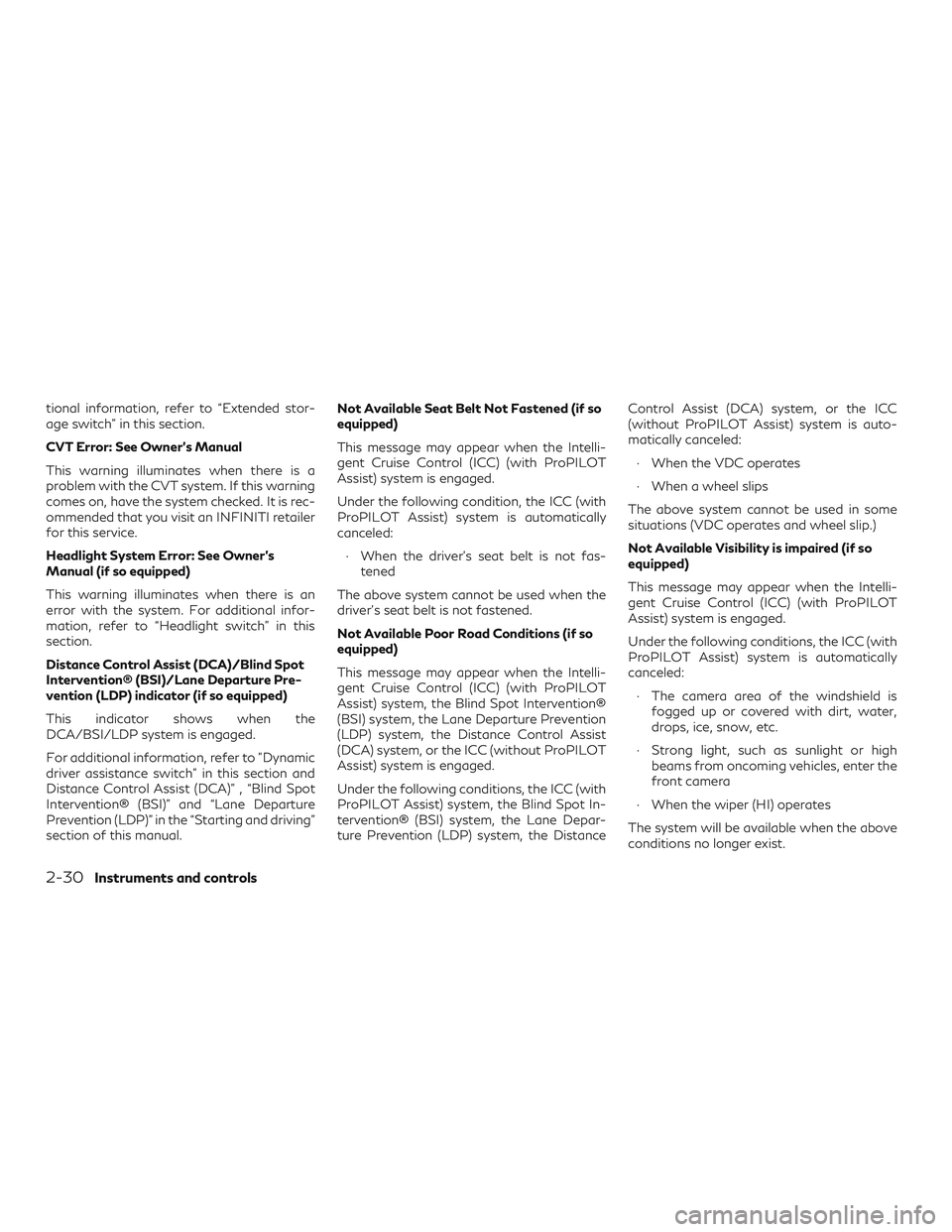

tional information, refer to “Extended stor-
age switch” in this section.
CVT Error: See Owner’s Manual
This warning illuminates when there is a
problem with the CVT system. If this warning
comes on, have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service.
Headlight System Error: See Owner’s
Manual (if so equipped)
This warning illuminates when there is an
error with the system. For additional infor-
mation, refer to “Headlight switch” in this
section.
Distance Control Assist (DCA)/Blind Spot
Intervention® (BSI)/Lane Departure Pre-
vention (LDP) indicator (if so equipped)
This indicator shows when the
DCA/BSI/LDP system is engaged.
For additional information, refer to "Dynamic
driver assistance switch” in this section and
Distance Control Assist (DCA)” , “Blind Spot
Intervention® (BSI)” and “Lane Departure
Prevention (LDP)” in the “Starting and driving”
section of this manual.Not Available Seat Belt Not Fastened (if so
equipped)
This message may appear when the Intelli-
gent Cruise Control (ICC) (with ProPILOT
Assist) system is engaged.
Under the following condition, the ICC (with
ProPILOT Assist) system is automatically
canceled:
∙ When the driver’s seat belt is not fas- tened
The above system cannot be used when the
driver’s seat belt is not fastened.
Not Available Poor Road Conditions (if so
equipped)
This message may appear when the Intelli-
gent Cruise Control (ICC) (with ProPILOT
Assist) system, the Blind Spot Intervention®
(BSI) system, the Lane Departure Prevention
(LDP) system, the Distance Control Assist
(DCA) system, or the ICC (without ProPILOT
Assist) system is engaged.
Under the following conditions, the ICC (with
ProPILOT Assist) system, the Blind Spot In-
tervention® (BSI) system, the Lane Depar-
ture Prevention (LDP) system, the Distance Control Assist (DCA) system, or the ICC
(without ProPILOT Assist) system is auto-
matically canceled:
∙ When the VDC operates
∙ When a wheel slips
The above system cannot be used in some
situations (VDC operates and wheel slip.)
Not Available Visibility is impaired (if so
equipped)
This message may appear when the Intelli-
gent Cruise Control (ICC) (with ProPILOT
Assist) system is engaged.
Under the following conditions, the ICC (with
ProPILOT Assist) system is automatically
canceled: ∙ The camera area of the windshield is fogged up or covered with dirt, water,
drops, ice, snow, etc.
∙ Strong light, such as sunlight or high beams from oncoming vehicles, enter the
front camera
∙ When the wiper (HI) operates
The system will be available when the above
conditions no longer exist.
2-30Instruments and controls

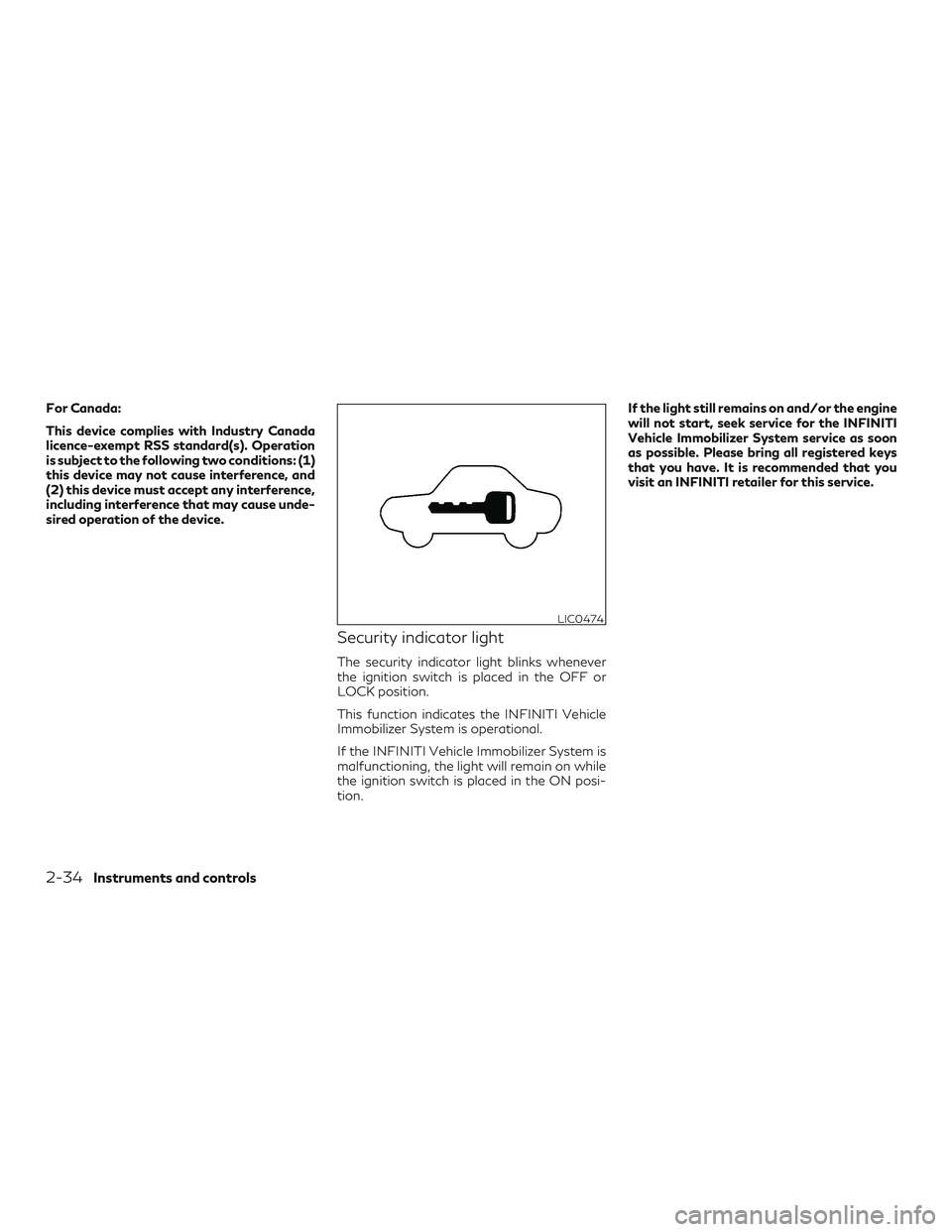

For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
Security indicator light
The security indicator light blinks whenever
the ignition switch is placed in the OFF or
LOCK position.
This function indicates the INFINITI Vehicle
Immobilizer System is operational.
If the INFINITI Vehicle Immobilizer System is
malfunctioning, the light will remain on while
the ignition switch is placed in the ON posi-
tion.If the light still remains on and/or the engine
will not start, seek service for the INFINITI
Vehicle Immobilizer System service as soon
as possible. Please bring all registered keys
that you have. It is recommended that you
visit an INFINITI retailer for this service.
LIC0474
2-34Instruments and controls

– When only one light on the oncomingvehicle or the leading vehicle is
illuminated.
– When the oncoming vehicle or the leading vehicle is a two-wheeled
vehicle.
– Road conditions (incline, curve, the road surface, etc.).
– The number of passengers and the amount of luggage.
High Beam Assist operation
To activate the High Beam Assist system,
turn the headlight switch to the AUTO posi-
tion
1and push the lever forward2(high
beam position). The High Beam Assist indica-
tor light in the meter will illuminate while the
headlights are turned on.
If the High Beam Assist indicator light does
not illuminate in the above condition, it may
indicate that the system is not functioning
properly. Have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service. When the vehicle speed lowers to less than
approximately 16 mph (25 km/h), the head-
light uses the low beam.
To turn off the High Beam Assist system, turn
the headlight switch to the
position or
select the low beam position by placing the
lever in the neutral position.
LIC3821
2-42Instruments and controls

∙ when the vehicle is driven at above16 mph (25 km/h) for the left-side head-
light. Note that the right-side low beam
headlight will swivel but the left side will
not swivel when the vehicle is at a stop
and the steering wheel is turned. The ve-
hicle must attain a speed above 16 mph
(25 km/h) before AFS activates the left-
side headlight.
AFS will also adjust the headlight to a proper
axis automatically, depending on the number
of occupants in the vehicle, the load the ve-
hicle is carrying and the road conditions.
If the AFS OFF indicator light blinks after the
ignition switch has been pushed to the ON
position, this may indicate that the AFS is not
functioning properly. Have the system
checked. It is recommended you visit an
INFINITI retailer for this service. When the
engine is started, the headlights will vibrate
to check the system condition. This is not a
malfunction.
Automatic headlight aiming control
(if so equipped)
Your vehicle is equipped with an automatic
headlight levelling system. The headlight axis
is controlled automatically. INFINITI recommends that you consult the
local regulations on the use of lights.
LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM
The LED portion of the headlights automati-
cally illuminate at 100% intensity when the
engine is started and the parking brake re-
leased. The LED Daytime Running Lights
(DRL) system operates with the headlight
switch in the OFF position. When you turn
the headlight switch to the
position for
full illumination, the LED lights switch from
LED DRL system to the park function.
If the parking brake is applied before the
engine is started, the LED DRL system does
not illuminate. The LED DRL system illumi-
nates when the parking brake is released. The
LED DRL system will remain on until the
ignition switch is placed in the OFF position.
It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.
WARNING
When the LED DRL system is active, tail
lights on your vehicle are not on. It is neces-
sary at dusk to turn on your headlights.
Failure to do so could cause an accident in-
juring yourself and others.
2-44Instruments and controls

WARNING
Do not use or allow occupants to use the
climate controlled seats if you or the occu-
pants cannot monitor seat temperatures or
have an inability to feel pain in those body
parts in contact with the seat. Use of the
climate controlled seats by such people
could result in serious injury.
CAUTION
∙ The battery could run down if the climatecontrol seat is operated while the engine
is not running. ∙ Do not use the climate control seat for
extended periods or when no one is using
the seat.
∙ Do not put anything on the seat which insulates heat, such as a blanket, cushion,
seat cover, etc. Otherwise, the seat may
become overheated.
∙ Do not place anything hard or heavy on the seat or pierce it with a pin or similar
objects. This may result in damage to the
climate controlled seat.
∙ Any liquid spilled on the seat should be removed immediately with a dry cloth.
∙ The climate controlled seat has an air fil- ter. Do not operate the climate controlled
seat without an air filter. This may result
in damage to the system.
∙ When cleaning the seat, never use gaso- line, benzine, thinner, or any similar
materials.
∙ If any malfunctions are found or the cli- mate controlled seat does not operate,
turn the switch off and have the system
checked. It is recommended that you visit
an INFINITI retailer for this service. The climate controlled seat cools down the
front seat by blowing cool air from under the
surface of the seat. The climate control
switch is located on the center console.
The climate controlled seat can be operated
as follows:
1. Place the ignition switch in the ON posi- tion.
2. Push the climate controlled seat switches to cool the seat. The indicator
light on the corresponding switch will
illuminate.
3. Adjust the desired amount of air by pushing the switch again. The climate
controlled seat blower remains on low
speed for approximately 60 seconds af-
ter pushing the switch on.
4. When the vehicle’s interior is warmed or cooled, or before you leave the vehicle,
be sure to turn off the climate controlled
seats. To turn off the climate controlled
seats, push the switch until the indicator
light does not illuminate.
To check the air filter for the climate con-
trolled seat, it is recommended that you con-
tact an INFINITI retailer.
LIC3905
CLIMATE CONTROLLED SEAT
SWITCHES (if so equipped)
Instruments and controls2-47

WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in serious
injury.
CAUTION
∙ The battery could run down if the seatheater is operated while the engine is not
running. ∙ Do not use the seat heater for extended
periods or when no one is using the seat.
∙ Do not put anything on the seat which insulates heat, such as a blanket, cushion,
seat cover, etc. Otherwise, the seat may
become overheated.
∙ Do not place anything hard or heavy on the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.
∙ Any liquid spilled on the heated seat should be removed immediately with a
dry cloth.
∙ When cleaning the seat, never use gaso- line, benzine, thinner, or any similar
materials.
∙ If any malfunctions are found or the heated seat does not operate, turn the
switch off and have the system checked.
It is recommended that you visit an
INFINITI retailer for this service.
The front seats are warmed by built-in heat-
ers. The switches are located on the center
console and can be operated independently
of each other. 1. Place the ignition switch in the ON posi- tion. 2. Push the heated seat switch and select
the desired heat range.
∙ For high heat, push the switch once.
∙ For medium heat, push the switch twice.
∙ For low heat, push the switch three times.
∙ The indicator light will illuminate when the heater is on.
3. To turn off the heater, push the heated seat switch again. Make sure that the
indicator light turns off.
The heater is controlled by a control
module, automatically turning the heater
on and off.
The indicator light will remain on as long
as the switch is on.
When the seat is warmed, or before you
leave the vehicle, be sure to turn the
switch off.
LIC3906
HEATED SEAT SWITCHES (if so
equipped)
2-48Instruments and controls

∙ Use only an original equipment type fuel-filler cap as a replacement. It has a
built-in safety valve needed for proper
operation of the fuel system and emission
control system. An incorrect cap can re-
sult in a serious malfunction and possible
injury. It could also cause the
Mal-
function Indicator Light (MIL) to come
on.
∙ Never pour fuel into the throttle body to attempt to start your vehicle.
∙ Do not fill a portable fuel container in the vehicle or trailer. Static electricity can
cause an explosion of flammable liquid,
vapor or gas in any vehicle or trailer. To
reduce the risk of serious injury or death
when filling portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel con- tainers for flammable liquid.
CAUTION
∙ Do not use a fuel containing more than15% ethanol in your vehicle. For addi-
tional information, refer to “Fuel recom-
mendation” in the “Technical and con-
sumer information” section of this
manual.
∙ The Loose Fuel Cap warning message will be displayed if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be dis-
played. Failure to tighten the fuel-filler
cap properly after the Loose Fuel Cap
warning is displayed may cause the Mal-
function Indicator Light (MIL) to
illuminate.
∙ Failure to tighten the fuel-filler cap prop- erly may cause the
Malfunction In-
dicator Light (MIL) to illuminate. If
the
light illuminates because the
fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive
the vehicle. The
light should turn
off after a few driving trips. If the
light does not turn off after a few driving
trips, have the vehicle inspected. It is rec-
ommended that you visit an INFINITI re-
tailer for this service. ∙ For additional information, refer to
“Malfunction Indicator Light (MIL)” in
the “Instruments and controls” section of
this manual.
∙ If fuel is spilled on the vehicle body, flush it away with water to avoid paint
damage.
3-32Pre-driving checks and adjustments

CAUTION
∙ Do not use leaded gasoline. Depositsfrom leaded gasoline will seriously reduce
the three-way catalyst’s ability to help
reduce exhaust pollutants.
∙ Keep your engine tuned up. Malfunctions in the ignition, fuel injection, or electrical
systems can cause over rich fuel flow into
the three-way catalyst, causing it to
overheat. Do not keep driving if the en-
gine misfires, or if noticeable loss of per-
formance or other unusual operating
conditions are detected. Have the vehicle
inspected promptly. It is recommended
that you visit an INFINITI retailer for this
service.
∙ Avoid driving with an extremely low fuel level. Running out of fuel could cause the
engine to misfire, damaging the three-
way catalyst.
∙ Do not race the engine while warming it up.
∙ Do not push or tow your vehicle to start the engine.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label.
(If your vehicle has tires of a different size
than the size indicated on the vehicle placard
or tire inflation pressure label, you should
determine the proper tire inflation pressure
for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitor-
ing System (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significantly under-inflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check all your
tires as soon as possible, and inflate them to
the proper pressure. Driving on a significantly
under-inflated tire causes the tire to overheat
and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability. Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to trigger illumination of the
TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is combined
with the low tire pressure telltale. When the
system detects a malfunction, the telltale will
flash for approximately one minute and then
remain continuously illuminated. This se-
quence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is illumi-
nated, the system may not be able to detect
or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of rea-
sons, including the installation of replace-
ment or alternate tires or wheels on the ve-
hicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunc-
tion telltale after replacing one or more tires
or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels al-
low the TPMS to continue to function prop-
erly.
Starting and driving5-5

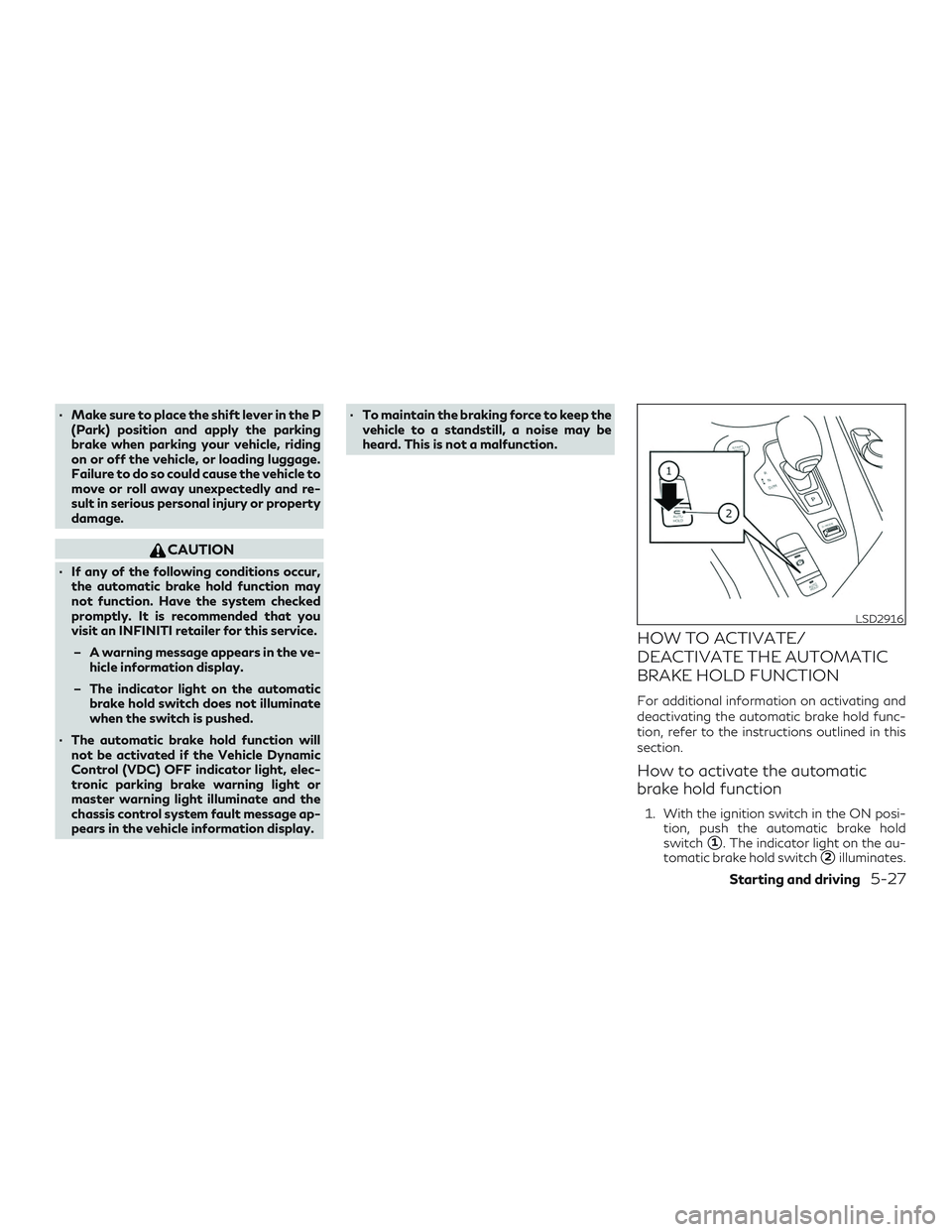

∙ Make sure to place the shift lever in the P(Park) position and apply the parking
brake when parking your vehicle, riding
on or off the vehicle, or loading luggage.
Failure to do so could cause the vehicle to
move or roll away unexpectedly and re-
sult in serious personal injury or property
damage.
CAUTION
∙ If any of the following conditions occur,the automatic brake hold function may
not function. Have the system checked
promptly. It is recommended that you
visit an INFINITI retailer for this service.
– A warning message appears in the ve- hicle information display.
– The indicator light on the automatic brake hold switch does not illuminate
when the switch is pushed.
∙ The automatic brake hold function will not be activated if the Vehicle Dynamic
Control (VDC) OFF indicator light, elec-
tronic parking brake warning light or
master warning light illuminate and the
chassis control system fault message ap-
pears in the vehicle information display. ∙ To maintain the braking force to keep the
vehicle to a standstill, a noise may be
heard. This is not a malfunction.
HOW TO ACTIVATE/
DEACTIVATE THE AUTOMATIC
BRAKE HOLD FUNCTION
For additional information on activating and
deactivating the automatic brake hold func-
tion, refer to the instructions outlined in this
section.
How to activate the automatic
brake hold function
1. With the ignition switch in the ON posi- tion, push the automatic brake hold
switch
1. The indicator light on the au-
tomatic brake hold switch
2illuminates.
LSD2916
Starting and driving5-27
