Action to take
When the conditions listed above are no lon-
ger present, turn the system off using the ICC
switch. Turn the ICC system back on to use
the system.
Condition B
When the radar sensor area of the front
bumper is covered with dirt or is obstructed,
the ICC system will automatically be can-
celed.
The chime will sound and the “Unavailable:
Front Radar Blocked” warning message will
appear in the vehicle information display.Action to take
If the warning message appears, stop the
vehicle in a safe place, press the Park button
to place the vehicle in the P (Park) position,
and turn the engine off. When the radar sig-
nal is temporarily interrupted, clean the sen-
sor area of the front bumper and restart the
engine. If the “Unavailable: Front Radar
Blocked” warning message continues to be
displayed, have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service.When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next to
long walls), the system may illuminate the ICC
system warning (yellow) and display the “Un-
available: Front Radar Blocked” message.
Action to take
When the conditions listed above are no lon-
ger present, turn the ICC system back on to
use the system.
Condition C
When the ICC system is not operating prop-
erly, a chime sounds and the ICC system
warning light (orange) will come on.
LSD2985
Starting and driving5-101

Action to take
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart
the engine, resume driving and set the ICC
system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still drivable under normal conditions,
have the vehicle checked. It is recommended
that you visit an INFINITI retailer for this
service.SYSTEM MAINTENANCE
The sensor for the ICC systemAis located
on the front of the vehicle.
To keep the ICC system operating properly,
be sure to observe the following:
∙ Always keep the sensor area clean.
∙ Do not strike or damage the areas around the sensor.
∙ Do not attach a sticker (including trans- parent material) or install an accessory
near the sensor. This could cause failure
or malfunction. ∙ Do not attach metallic objects near the
sensor area (brush guard, etc.) This could
cause failure or malfunction.
∙ Do not alter, remove, or paint the front bumper. Before customizing or restoring
the front bumper, it is recommended that
you visit an INFINITI retailer.
Radio frequency statement
For USA/Canada
Model: ARS4–A
IC: 4135A-ARS4A
FCC ID: OAYARS4A
This device complies with Part 15 of the FCC
Rules and with Industry Canada licence-
exempt RSS standard(s):
Operation is subject to the following two
conditions:
1. This device may not cause harmful inter- ference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
LSD2833LSD2981
5-102Starting and driving

Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes:1. L’appareil ne doit pas produire de brouil- lage, et
2. L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en
compromettre le fonctionnement.
Radio Frequency Radiation Exposure Infor-
mation:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and oper-
ated with minimum distance of 30 cm be-
tween the radiator and your body.
The transmitter must not be co-located or
operating in conjunction with any other an-
tenna or transmitter. Cet équipement est conforme aux limites
d’exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec un
minimum de 30 cm de distance entre la
source de rayonnement et votre corps.
FCC Notice
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
CONVENTIONAL (fixed speed)
CRUISE CONTROL MODE
This mode allows driving at a speed between
25 to 90 mph (40 to 144 km/h) without
keeping your foot on the accelerator pedal.
WARNING
∙ In the conventional (fixed speed) cruise
control mode, a warning chime does not
sound to warn you if you are too close to
the vehicle ahead, as neither the presence
of the vehicle ahead nor the vehicle-to-
vehicle distance is detected.
∙ Pay special attention to the distance be- tween your vehicle and the vehicle ahead
of you or a collision could occur. ∙ Always confirm the setting in the ICC
system display.
∙ Do not use the conventional (fixed speed) cruise control mode when driving under
the following conditions:
– When it is not possible to keep the ve- hicle at a set speed
– In heavy traffic or in traffic that varies in speed
– On winding or hilly roads
– On slippery roads (rain, snow, ice, etc.)
– In very windy areas
∙ Doing so could cause a loss of vehicle con- trol and result in an accident.
Starting and driving5-103

Conventional (fixed speed) cruise
control switches
1. CANCEL switch:Deactivates the system without erasing
the set speed
2. RES+ switch: Resumes set speed or increases speed
incrementally
3. SET- switch: Sets desired cruise speed or reduces
speed incrementally
4. ICC switch: Master switch to activate the system
Conventional (fixed speed) cruise
control mode display and indicators
The display is located in the vehicle informa-
tion display.
1. Cruise indicator: This indicator indicates the condition of
the ICC system depending on a color.
∙ Cruise control ON indicator (gray): In- dicates that the ICC switch is on
∙ Cruise control SET indicator (green): Indicates that the cruising speed is set ∙ Cruise control warning (yellow): Indi-
cates that there is a malfunction in the
ICC system
2. Set vehicle speed indicator: This indicator indicates the set vehicle
speed. For Canadian models, the speed
is displayed in km/h.
LSD3057LSD2724
5-104Starting and driving

Operating conventional (fixed
speed) cruise control mode
To turn on the conventional (fixed speed)
cruise control mode, push and hold the ICC
switch
Afor longer than about 1.5 seconds.
When pushing ICC switch on, the conven-
tional (fixed speed) cruise control mode dis-
play and indicators
Bare displayed in the
vehicle information display. After you hold
ICC switch on for longer than about 1.5 sec-
onds, the ICC system display turns off. The
cruise indicator appears. You can now set
your desired cruising speed. Pushing the ICC
switch again will turn the system completely off. When the ignition switch is placed in the
OFF position, the system is also automati-
cally turned off.
To use the ICC system again, quickly push
and release the ICC switch (vehicle-to vehicle
distance control mode) or push and hold it
(conventional cruise control mode) again to
turn it on.
CAUTION
To avoid accidentally engaging cruise con-
trol, make sure to turn the ICC switch off
when not using the ICC system.
To set cruising speed, accelerate your vehicle
to the desired speed, push the SET-
C
switch and release it. (The color of the cruise
indicator changes to green and set vehicle
speed indicator comes on.) Take your foot off
the accelerator pedal. Your vehicle will main-
tain the set speed.∙ To pass another vehicle, depress the ac- celerator pedal. When you release the
pedal, the vehicle will return to the previ-
ously set speed.
∙ The vehicle may not maintain the set speed when going up or down steep hills.
If this happens, manually maintain vehicle
speed.
LSD3058LSD3059
Starting and driving5-105

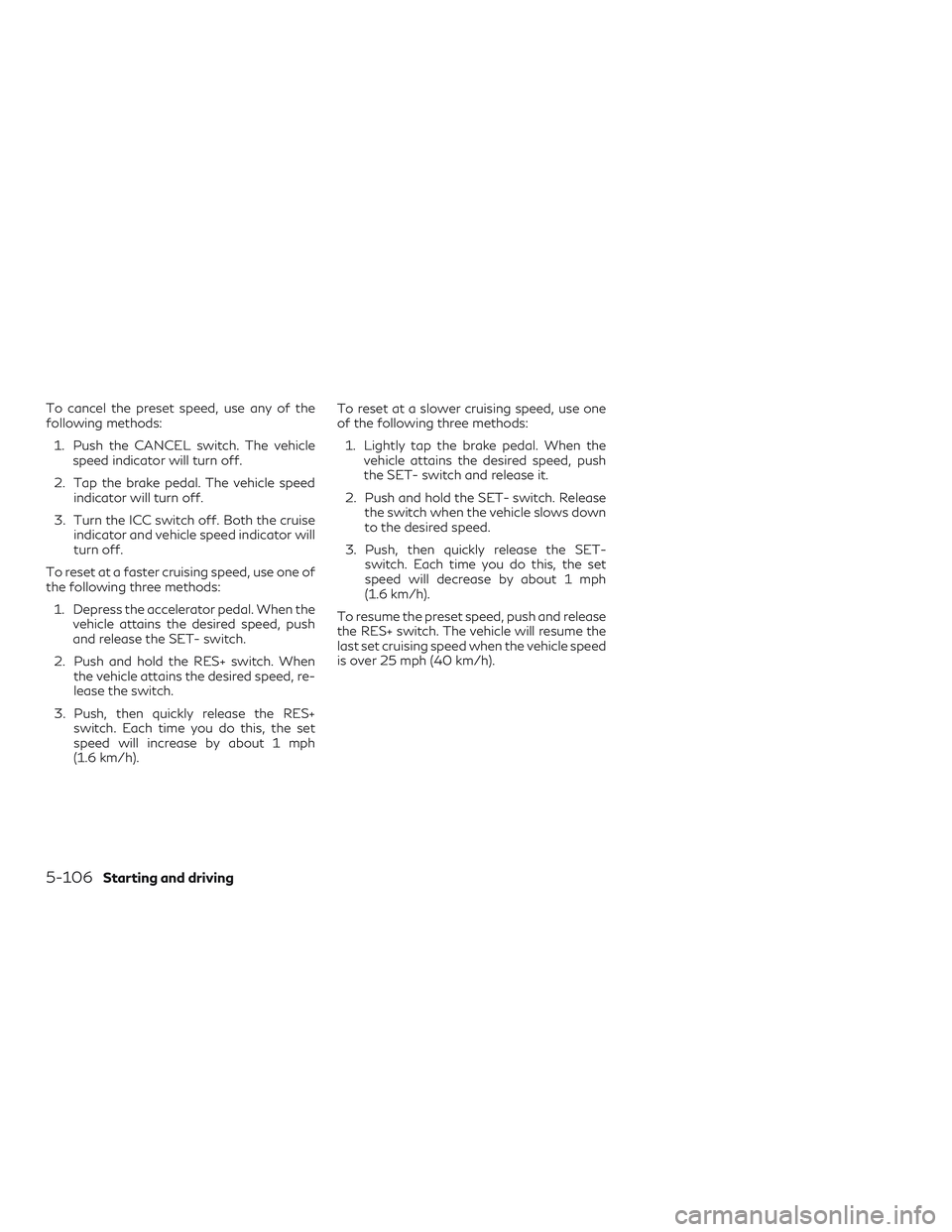

To cancel the preset speed, use any of the
following methods:1. Push the CANCEL switch. The vehicle speed indicator will turn off.
2. Tap the brake pedal. The vehicle speed indicator will turn off.
3. Turn the ICC switch off. Both the cruise indicator and vehicle speed indicator will
turn off.
To reset at a faster cruising speed, use one of
the following three methods: 1. Depress the accelerator pedal. When the vehicle attains the desired speed, push
and release the SET- switch.
2. Push and hold the RES+ switch. When the vehicle attains the desired speed, re-
lease the switch.
3. Push, then quickly release the RES+ switch. Each time you do this, the set
speed will increase by about 1 mph
(1.6 km/h). To reset at a slower cruising speed, use one
of the following three methods:
1. Lightly tap the brake pedal. When the vehicle attains the desired speed, push
the SET- switch and release it.
2. Push and hold the SET- switch. Release the switch when the vehicle slows down
to the desired speed.
3. Push, then quickly release the SET- switch. Each time you do this, the set
speed will decrease by about 1 mph
(1.6 km/h).
To resume the preset speed, push and release
the RES+ switch. The vehicle will resume the
last set cruising speed when the vehicle speed
is over 25 mph (40 km/h).
5-106Starting and driving

System temporarily unavailable
A chime sounds under the following conditions
and the control is automatically canceled:
∙ When the vehicle slows down more than8 mph (13 km/h) below the set speed
∙ When the shift lever is not in the D (Drive) or manual shift mode
∙
When the electronic parking brake is applied
∙ When the VDC operates (including the traction control system)
∙ When a wheel slips
When the system is not operating properly,
the chime sounds and the color of the cruise
indicator will change to orange.
Action to take
If the color of the cruise indicator changes to
orange, stop the vehicle in a safe place and
press the Park button to place the vehicle in
the P (Park) position. Turn the engine off,
restart the engine, resume driving, and then
perform the setting again.
If it is not possible to set or the indicator
stays on, it may indicate that the system is
malfunctioning. Although the vehicle is still
drivable under normal conditions, have the
vehicle checked. It is recommended that you
visit an INFINITI retailer for this service.
LSD2942
Starting and driving5-107

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the ProPILOT Assist
system could result in serious injury or
death.
∙ ProPILOT Assist is not a self-driving sys-tem. Within the limits of its capabilities,
as described in this manual, it helps the
driver with certain driving activities.
∙ The ProPILOT Assist system is not a re- placement for proper driving procedures
and is not designed to correct careless,
inattentive or absent-minded driving.
ProPILOT Assist will not always steer
the vehicle to keep it in the lane. The Pro-
PILOT Assist system is not designed to
prevent loss of control. It is the driver’s
responsibility to stay alert, drive safely,
keep the vehicle in the traveling lane, and
be in control of the vehicle at all times.
∙ There are limitations to the ProPILOT Assist system capability. The ProPILOT
Assist system does not function in all
driving, traffic, weather, and road condi-
tions. It is the driver’s responsibility to
stay alert, drive safely, keep the vehicle in
the traveling lane, and be in control of the
vehicle at all times. ∙ The ProPILOT Assist system is only an
aid to assist the driver and is not a colli-
sion warning or avoidance device.
∙ The ProPILOT Assist system is for high- way use only and is not intended for city
driving. Failure to apply the brakes or
steer the vehicle when necessary may re-
sult in a serious accident.
∙ Always observe posted speed limits and do not set the speed over them.
∙ Never take your hands off the steering wheel when driving. Always keep your
hands on the steering wheel and drive
your vehicle safely.
∙ The ProPILOT Assist system does not re- act to stationary and slow moving
vehicles.
∙ Always drive carefully and attentively when using the ProPILOT Assist system.
Read and understand the Owner’s
Manual thoroughly before using the Pro-
PILOT Assist system. To avoid serious in-
jury or death, do not rely on the system to
prevent accidents or to control the vehi-
cle’s speed in emergency situations. Do
not use the ProPILOT Assist system ex-
cept in appropriate road and traffic
conditions. The ProPILOT Assist system is intended to
enhance the operation of the vehicle when
following a vehicle traveling in the same lane
and direction.
The ProPILOT Assist system uses a multi-
sensing front camera
Ainstalled behind the
windshield and a radar sensor located on the
front of the vehicle
Bto measure the dis-
tance to the vehicle ahead in the same lane
and to monitor the lane markers. If the vehicle
detects a slower moving vehicle ahead, the
system will reduce the vehicle speed so that
your vehicle follows the vehicle in front at the
selected distance. The system will also help
keep the vehicle centered in the traveling lane
when clear lane markings are detected.
LSD2943
PROPILOT ASSIST (if so equipped)
5-108Starting and driving

PROPILOT ASSIST SYSTEM
OPERATION
1Steering-wheel-mounted control (left)
2Vehicle information display
3Steering-wheel-mounted control (right)
4ProPILOT Assist switch
The ProPILOT Assist system has the follow-
ing two functions: 1. Intelligent Cruise Control (ICC)
The ICC system can be set to one of two
cruise control modes:
∙ Conventional (fixed speed) cruise
control mode: For cruising at a preset
speed
NOTE:
Steering assist is not available in the conven-
tional (fixed speed) cruise control mode. ∙Vehicle-to-vehicle distance control
mode: The ICC system maintains a se-
lected distance from the vehicle in
front of you within the speed range of
0 to 90 mph (0 to 144 km/h) up to the
set speed. The set speed can be se-
lected by the driver between 20 to
LSD2996
Starting and driving5-109

90 mph (32 to 144 km/h). When the
vehicle ahead slows to a stop, your
vehicle gradually decelerates to a
standstill. When the vehicle is stopped,
the ICC system maintains braking
force to keep your vehicle stopped.
NOTE:
When your vehicle is stopped for less than
3 seconds and the vehicle ahead begins to
move, your vehicle will start moving again
automatically. – When your vehicle is at a standstill formore than 3 seconds and the vehicle
ahead begins to accelerate, push the
RES+ switch or lightly depress the ac-
celerator pedal. The ICC system starts
to follow the vehicle ahead.
– When no vehicle is detected ahead within the driver selected distance, the
vehicle travels at the speed set by the
driver. The speed must be above
20 mph (32 km/h) to use this function. NOTE:
Even if the Forward Emergency Braking
with Pedestrian Detection setting is turned
off by the driver using the “Driver Assis-
tance” menu in the lower display, Forward
Emergency Braking with Pedestrian Detec-
tion will be automatically turned on when
ICC is used.
2. Steering Assist
The Steering Assist function controls the
steering system to help keep your vehicle
within the traveling lane.
When there is no vehicle ahead, Steering
Assist is not available at speeds under
37 mph (60 km/h).
ProPILOT Assist switches
1DISTANCE switch: – Long
– Middle
– Short
2RES+ switch:Resumes set speed or increases speed
incrementally
3CANCEL switch:Deactivates the ProPILOT Assist system
LSD2945
5-110Starting and driving
