The DCA system brakes and moves the ac-
celerator pedal upward according to the dis-
tance from and the relative speed of the ve-
hicle ahead to help assist the driver in
maintaining a following distance. The system
will decelerate as necessary and if the vehicle
ahead comes to a stop, the vehicle deceler-
ates to a standstill. However, the DCA sys-
tem can only apply up to approximately 40%
of the vehicle’s total braking power. If a ve-
hicle moves into the traveling lane ahead or if
a vehicle traveling ahead rapidly decelerates,
the distance between vehicles may become
closer because the DCA system cannot de-
celerate the vehicle quickly enough. If this
occurs, the DCA system will sound a warning
chime and blink the system display to notify
the driver to take necessary action. For addi-
tional information, refer to “Approach warn-
ing” in this section.The DCA system helps assist the driver to
keep a following distance to the vehicle
ahead by braking and moving the accelerator
pedal upward in the normal driving condition.
When a vehicle is detected ahead:
The vehicle ahead detection indicator comes
on.When vehicle approaches a vehicle ahead:
∙ If the driver’s foot is not on the accelera- tor pedal, the system activates the brakes
to decelerate smoothly as necessary. If
the vehicle ahead comes to a stop, the
vehicle decelerates to a standstill within
the limitations of the system.
∙ If the driver’s foot is on the accelerator pedal, the system moves the accelerator
pedal upward to assist the driver to re-
lease the accelerator pedal.
When brake operation by driver is required:
The system alerts the driver by a warning
chime and blinking the vehicle ahead detec-
tion indicator. If the driver’s foot is on the
accelerator pedal after the warning, the sys-
tem moves the accelerator pedal upward to
assist the driver to switch to the brake pedal.
NOTE: ∙ The stop lights of the vehicle come on
when braking is performed by the DCA
system.
∙ When the brake operates, a noise may be
heard. This is not a malfunction.
LSD2991
Starting and driving5-141

Overriding the system:
The following driver’s operations override the
system operation:∙ When the driver depresses the accelera- tor pedal even further while the system is
moving the accelerator pedal upward,
the DCA system control of the accelera-
tor pedal is canceled.
∙ When the driver’s foot is on the accelera- tor pedal, the brake control by the system
is not operated.
∙ When the driver’s foot is on the brake pedal, neither the brake control nor the
alert by the system operates.
∙ When the ICC system is set, the DCA system will be canceled.Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that ve-
hicle or if another vehicle cuts in, the system
warns the driver with the chime and DCA
system display. Decelerate by depressing the
brake pedal to maintain a safe vehicle dis-
tance if:
∙ The chime sounds.
∙ The vehicle ahead detection indicator blinks.
The warning chime may not sound in some
cases when there is a short distance between
vehicles. Some examples are: ∙ When the vehicles are traveling at the same speed and the distance between
vehicles is not changing
∙ When the vehicle ahead is traveling faster and the distance between vehicles
is increasing
∙ When a vehicle cuts in near your vehicle
The warning chime will not sound when your
vehicle approaches vehicles that are parked
or moving slowly. NOTE:
The approach warning chime may sound and
the system display may blink when the radar
sensor detects objects on the side of the
road. This may cause the DCA system to de-
celerate or accelerate the vehicle. The radar
sensor may detect these objects when the
vehicle is driven on winding roads, narrow
roads, hilly roads or when entering or exiting
a curve. In these cases you will have to manu-
ally control the proper distance ahead of
your vehicle.
Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driv-
ing position in the lane) or traffic or vehicle
condition (for example, if a vehicle is being
driven with some damage).
5-142Starting and driving

HOW TO ENABLE/DISABLE THE
DCA SYSTEM
To turn on the DCA system, push the dynamic
driver assistance switch (for models without
ProPILOT Assist) or the ProPILOT Assist
switch (for models with ProPILOT Assist) on
the steering wheel after starting the engine.
The DCA system switch indicator light in the
vehicle information display will illuminate.
Push the dynamic driver assistance switch
(for models without ProPILOT Assist) or the
ProPILOT Assist switch (for models with
ProPILOT Assist) on the steering wheel again
to turn off the DCA system. The DCA system
switch indicator light will turn off.
The system will start to operate after the
vehicle speed becomes above approximately
3 mph (5 km/h).
The dynamic driver assistance switch (for
models without ProPILOT Assist) or the Pro-
PILOT Assist switch (for models with ProPI-
LOT Assist) on the steering wheel is used for
the LDP, DCA and BSI systems. When the
dynamic driver assistance switch (for models
without ProPILOT Assist) or the ProPILOT
Assist switch (for models with ProPILOT As-
sist) on the steering wheel is pushed, the LDP
system will also turn on or off simultaneously.
The DCA system can be individually set to on
LSD3144
Starting and driving5-143

or off on the display. If the system is set to
off, the system will not turn on even if the
dynamic driver assistance switch (for models
without ProPILOT Assist) or the ProPILOT
Assist switch (for models with ProPILOT As-
sist) on the steering wheel is pushed to on.
For additional information, refer to “Setting
DCA system to ON/OFF” in this section.
Setting DCA system to ON/OFF:
The DCA can be turned on/off in the lower
display.1. Press the MENU button below the lower display screen.
2. Select “Driver Assistance.”
3. Select “Forward Assist.”
4. Select “ON” to turn the “Distance Con- trol Assist” system on or off.
If the LDP, BSI and DCA systems are set to
off in the lower display and the dynamic
driver assistance switch (for models without
ProPILOT Assist) or the ProPILOT Assist
switch (for models with ProPILOT Assist) on
the steering wheel is pushed, the LDP indica-
tor light, BSI ON indicator light, and the DCA
system switch indicator light will blink for
approximately 2 seconds. For additional information on LDP and BSI,
refer to “Lane Departure Prevention (LDP)”
and “Blind Spot Intervention® (BSI)” in this
section.
DCA system display and indicators
The display is located between the speedom-
eter and tachometer.
1. DCA system switch indicator (green): Indicates that the dynamic driver assis-
tance switch (for models without ProPI-
LOT Assist) or the ProPILOT Assist
switch (for models with ProPILOT As-
sist) on the steering wheel is on.
2. DCA system warning light (orange): The light comes on if there is a malfunc-
tion in the DCA system.
LSD3034
5-144Starting and driving

DCA SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations of
the DCA system. Failure to operate the ve-
hicle in accordance with these system limi-
tations could result in serious injury or
death.
∙ This system will not adapt automaticallyto road conditions. Do not use the system
on roads with sharp curves, or on icy
roads, in heavy rain or in fog.
∙ The DCA system will not apply brake control while the driver’s foot is on the
accelerator pedal.
∙ As there is a performance limit to the dis- tance control function, never rely solely
on the DCA system. This system does not
correct careless, inattentive or absent-
minded driving, or overcome poor visibil-
ity in rain, fog, or other bad weather. De-
celerate the vehicle speed by depressing
the brake pedal, depending on the dis-
tance to the vehicle ahead and the sur-
rounding circumstances in order to main-
tain a safe distance between vehicles. ∙ The system may not detect the vehicle in
front of you in certain road or weather
conditions. To avoid accidents, never use
the DCA system under the following
conditions:
– On roads where the traffic is heavy or there are sharp curves
– On slippery road surfaces such as on ice or snow, etc.
– On off-road surfaces such as on sand or rock, etc.
– During bad weather (rain, fog, snow, etc.)
– When rain, snow or dirt adhere to the sensor area of the front bumper
– On steep downhill roads (frequent braking may result in overheating the
brakes)
– On repeated uphill and downhill roads
– When traffic conditions make it diffi- cult to keep a proper distance be-
tween vehicles because of frequent
acceleration or deceleration
– When towing a trailer or other vehicle
– Interference by other radar sources ∙ In some road or traffic conditions, a ve-
hicle or object can unexpectedly come
into the sensor detection zone and cause
automatic braking. You may need to con-
trol the distance from other vehicles us-
ing the accelerator pedal. Always stay
alert and avoid using the DCA system
when it is not recommended in this
section.
The radar sensor will not detect the following
objects: ∙ Stationary and slow moving vehicles
∙ Pedestrians or objects in the roadway
∙ Oncoming vehicles in the same lane
∙ Motorcycles traveling offset in the travel lane
The following are some conditions in which
the sensor cannot detect the signals: ∙ When the snow or road spray from trav- eling vehicles reduces the sensor’s visibil-
ity
∙ When excessively heavy baggage is loaded in the rear seat or the luggage
room of your vehicle
Starting and driving5-145

DCA DRIVING SITUATIONS
The detection zone of the sensor is limited. A
vehicle ahead must be in the detection zone
for the system to operate.
A vehicle ahead may move outside of the
detection zone due to its position within the
same lane of travel. Motorcycles may not be
detected in the same lane ahead if they are
traveling offset from the center line of the
lane. A vehicle that is entering the lane ahead
may not be detected until the vehicle has
completely moved into the lane.If this oc-
curs, the system may warn you by blinking the system indicator and sounding the
chime. The driver may have to manually con-
trol the proper distance away from the ve-
hicle traveling ahead.
DCA Detection Zone
SSD0252
5-146Starting and driving

When driving on some roads, such as wind-
ing, hilly, curved, narrow roads, or roads
which are under construction, the sensor may
detect vehicles in a different lane, or may
temporarily not detect a vehicle traveling
ahead. This may cause the system to work
inappropriately.The detection of vehicles may also be af-
fected by vehicle operation (steering maneu-
ver or traveling position in the lane, etc.) or
vehicle condition.
If this occurs, the system
may warn you by blinking the system indica-
tor and sounding the chime unexpectedly.
You will have to manually control the proper
distance away from the vehicle traveling
ahead.SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
Under the following conditions, the DCA sys-
tem is automatically canceled. The chime will
sound and the DCA system switch indicator
will blink. The system will not be able to be
set.
DCA Detection Zones On Winding Roads
SSD0253LSD3203
Starting and driving5-147

∙ When the VDC system is off (To use theDCA system, turn on the VDC, then push
the dynamic driver assistance switch [for
models without ProPILOT Assist] or the
ProPILOT Assist switch [for models with
ProPILOT Assist] on the steering wheel.)
For additional information about the
VDC system, refer to “Vehicle Dynamic
Control (VDC) system” in this section.
∙ When ABS or VDC (including the TCS) is operating
∙ When the radar signal is temporarily in- terrupted
Action to take:
When the conditions listed above are no lon-
ger present, turn the system off with the
dynamic driver assistance switch (for models
without ProPILOT Assist) or the ProPILOT
Assist switch (for models with ProPILOT As-
sist) on the steering wheel. Turn the DCA
system back on to use the system. Condition B:
When the radar sensor area is covered with
dirt or is obstructed, making it impossible to
detect a vehicle ahead, the DCA system is
automatically canceled.
The chime sounds and the DCA system
warning light (orange) will come on and the
“Unavailable: Front Radar Blocked” warning
will appear.
Action to take:
If the warning light comes on, park the vehicle
in a safe place, press the park button to place
the vehicle in the P (Park) position and turnthe engine off. When the radar signal is tem-
porarily interrupted, clean the sensor area
and restart the engine. If the “Unavailable:
Front Radar Blocked” warning continues to
be displayed, have the DCA system checked.
It is recommended you visit and INFINITI
retailer for this service.
SYSTEM MAINTENANCE
The sensor for the DCA system is common
with ICC and is located behind the front bum-
per.
For additional information, refer to “Intelli-
gent Cruise Control (ICC)” in this section.
For USA/Canada
Model: ARS4–A
IC: 4135A-ARS4A
FCC ID: OAYARS4A
This device complies with Part 15 of the FCC
Rules and with Industry Canada licence-
exempt RSS standard(s). Operation is subject
to the following two conditions: (1) This de-
vice may not cause interference, and (2) this
device must accept any interference, includ-
ing interference that may cause undesired
operation of the device.
LSD2992
5-148Starting and driving

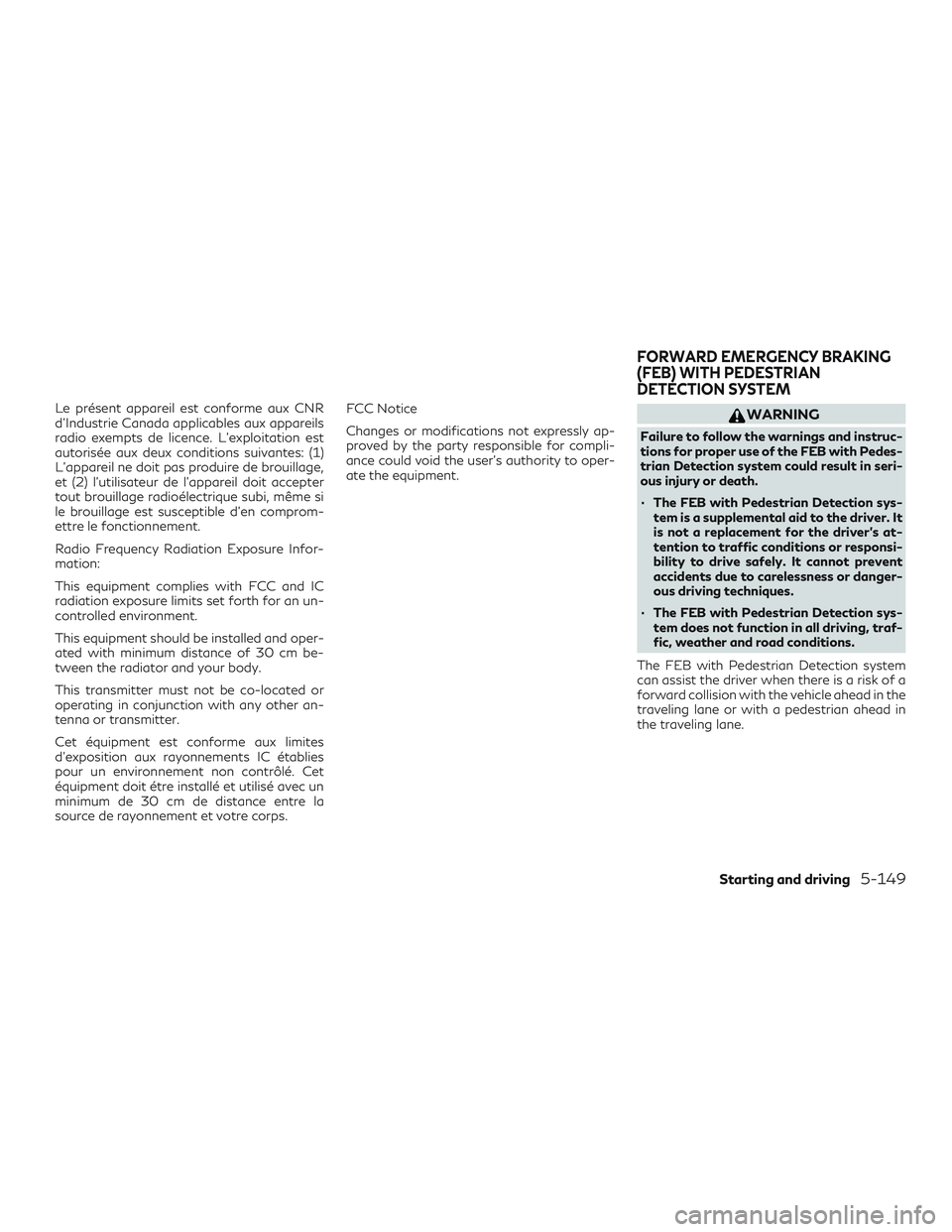

Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes: (1)
L’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en comprom-
ettre le fonctionnement.
Radio Frequency Radiation Exposure Infor-
mation:
This equipment complies with FCC and IC
radiation exposure limits set forth for an un-
controlled environment.
This equipment should be installed and oper-
ated with minimum distance of 30 cm be-
tween the radiator and your body.
This transmitter must not be co-located or
operating in conjunction with any other an-
tenna or transmitter.
Cet équipment est conforme aux limites
d’exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet
équipment doit étre installé et utilisé avec un
minimum de 30 cm de distance entre la
source de rayonnement et votre corps.FCC Notice
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.WARNING
Failure to follow the warnings and instruc-
tions for proper use of the FEB with Pedes-
trian Detection system could result in seri-
ous injury or death.
∙ The FEB with Pedestrian Detection sys-
tem is a supplemental aid to the driver. It
is not a replacement for the driver’s at-
tention to traffic conditions or responsi-
bility to drive safely. It cannot prevent
accidents due to carelessness or danger-
ous driving techniques.
∙ The FEB with Pedestrian Detection sys- tem does not function in all driving, traf-
fic, weather and road conditions.
The FEB with Pedestrian Detection system
can assist the driver when there is a risk of a
forward collision with the vehicle ahead in the
traveling lane or with a pedestrian ahead in
the traveling lane.
FORWARD EMERGENCY BRAKING
(FEB) WITH PEDESTRIAN
DETECTION SYSTEM
Starting and driving5-149

The FEB with Pedestrian Detection system
uses a radar sensor
Alocated on the front of
the vehicle to measure the distance to the
vehicle ahead in the same lane. For pedestri-
ans, the FEB with Pedestrian Detection sys-
tem uses a camera
Binstalled behind the
windshield in addition to the radar sensor.
LSD2954
LSD2955
5-150Starting and driving
