INFINITI QX50 2019 Owners Manual

Vehicle detected ahead
When a vehicle is detected in the lane ahead,
the ICC system decelerates the vehicle by
controlling the throttle and applying the
brakes to match the speed of a slower vehicle
ahead. The ICC system then controls the ve-
hicle speed based on the speed of the vehicle
ahead to maintain the driver selected dis-
tance.
NOTE:∙ The stop lights of the vehicle come on
when braking is performed by the ICC
system. ∙
When the brake is applied by the system,
a noise may be heard. This is not a mal-
function.
When the ICC system detects a vehicle
ahead, the vehicle ahead detection indicator
and the speed control status indicator (dis-
tance control mode) illuminates (solid
green
).
Vehicle ahead stops
When the vehicle ahead decelerates to stop,
your vehicle decelerates to a standstill within
the system capability. Once your vehicle
stops, the ICC system automatically applies
the brakes to keep the vehicle stopped. When
your vehicle is at a standstill, the “(RES+)
Press to start” message is displayed on the
vehicle information display.
NOTE:
When your vehicle stops for less than 3 sec-
onds, your vehicle will automatically follow
the vehicle as it accelerates from a stop.
Vehicle ahead accelerates
When your vehicle is stopped and the vehicle
ahead begins to accelerate, push the RES+
switch or lightly depress the accelerator
pedal. The ICC system starts to follow the
vehicle ahead. Vehicle ahead not detected
When a vehicle is no longer detected ahead,
the ICC system gradually accelerates your
vehicle to resume the previously set vehicle
speed. The ICC system then maintains the set
speed.
When a vehicle is no longer detected, the
vehicle ahead detection indicator turns off
and speed control status indicator (maintain
speed control mode) illuminates (green
outline
).
The ICC system gradually accelerates to the
set speed, but you can depress the accelera-
tor pedal to quickly accelerate. When a ve-
hicle is no longer detected and your vehicle is
traveling under approximately 15 mph
(24 km/h), the ICC system automatically can-
cels.
System set display with vehicle ahead
LSD2989
Starting and driving5-121

When passing another vehicle, the set speed
indicator
Bflashes when the vehicle speed
exceeds the set speed. The vehicle ahead
detection indicator turns off when the area
ahead of the vehicle is open. When the pedal
is released, the vehicle returns to the previ-
ously set speed. Even though your vehicle
speed is set in the ICC system, you can de-
press the accelerator pedal when it is neces-
sary to accelerate your vehicle rapidly.
Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that ve-
hicle or if another vehicle cuts in, the system warns the driver with the chime and ICC sys-
tem display. Decelerate by depressing the
brake pedal to maintain a safe vehicle dis-
tance if:
∙ The chime sounds.
∙ The vehicle ahead detection indicator and set distance indicator blink.
∙ You judge it necessary to maintain a safe distance.
The warning chime may not sound in some
cases when there is a short distance between
vehicles. Some examples are: ∙ When the vehicles are traveling at the same speed and the distance between
vehicles is not changing.
∙ When the vehicle ahead is traveling faster and the distance between vehicles
is increasing.
∙ When a vehicle cuts in near your vehicle.
The warning chime will not sound when: ∙ Your vehicle approaches other vehicles that are parked or moving slowly.
∙ The accelerator pedal is depressed, over- riding the system. NOTE:
The approach warning chime may sound and
the system display may flash when the radar
sensor detects objects on the side of the ve-
hicle or on the side of the road. This may
cause the ICC system to decelerate or accel-
erate the vehicle. The radar sensor may de-
tect these objects when the vehicle is driven
on winding, narrow, or hilly roads or when
the vehicle is entering or exiting a curve. In
these cases, you will have to manually con-
trol the proper distance ahead of your ve-
hicle.
Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driv-
ing position in the lane) or traffic or vehicle
conditions (for example, if a vehicle is being
driven with some damage).
LSD2720
5-122Starting and driving

ICC system limitations
WARNING
Listed below are the system limitations for
the ICC system. Failure to operate the ve-
hicle in accordance with these system limi-
tations could result in serious injury or
death:
∙ The ICC system is primarily intended foruse on straight, dry, open roads with light
traffic. It is not advisable to use the ICC
system in city traffic or congested areas.
∙ The ICC system will not adapt automati- cally to road conditions. This system
should be used in evenly flowing traffic.
Do not use the system on roads with
sharp curves or on icy roads, in heavy rain
or in fog. ∙ As there is a performance limit to the dis-
tance control function, never rely solely
on the ICC system. This system does not
correct careless, inattentive or absent-
minded driving or overcome poor visibil-
ity in rain, fog, or other bad weather. De-
celerate the vehicle speed by depressing
the brake pedal, depending on the dis-
tance to the vehicle ahead and the sur-
rounding circumstances in order to main-
tain a safe distance between vehicles.
∙ When the ICC system automatically brings the car to a stop, your vehicle can
automatically accelerate if the vehicle is
stopped for less than approximately
3 seconds. Be prepared to stop your ve-
hicle if necessary.
∙ Always pay attention to the operation of the vehicle and be ready to manually con-
trol the proper following distance. The
ICC system may not be able to maintain
the selected distance between vehicles
(following distance) or selected vehicle
speed under some circumstances.
∙ The system may not detect the vehicle in front of you in certain road or weather
conditions. To avoid accidents, never use
the ICC system under the following
conditions: – On roads with heavy, high-speed traf-
fic or sharp curves
– On slippery road surfaces such as on ice or snow, etc.
– During bad weather (rain, fog, snow, etc.)
– When rain, snow or dirt adhere to the bumper around the distance sensor
– On steep downhill roads (the vehicle may go beyond the set vehicle speed
and frequent braking may result in
overheating the brakes)
– On repeated uphill and downhill roads
– When traffic conditions make it diffi- cult to keep a proper distance be-
tween vehicles because of frequent
acceleration or deceleration
– Interference by other radar sources.
∙ Do not use the ICC system if you are tow- ing a trailer. The system may not detect a
vehicle ahead.
Starting and driving5-123

∙ In some road or traffic conditions, a ve-hicle or object can unexpectedly come
into the sensor detection zone and cause
automatic braking. Always stay alert and
avoid using the ICC system where not
recommended in this warning section.
The ICC system will not detect the following
objects: ∙ Stationary or slow moving vehicles
∙ Pedestrians or objects in the roadway
∙ Oncoming vehicles in the same lane
∙ Motorcycles traveling offset in the travel lane
The following are some conditions in which
the radar sensor cannot properly detect a
vehicle ahead and the system may not oper-
ate properly: ∙ When the sensor detection is reduced (conditions such as rain, snow, fog, dust
storms, sandstorms, and road spray from
other vehicles)
∙ Driving on a steep downhill slope or roads with sharp curves
∙ Driving on a bumpy road surface, such as an uneven dirt road ∙ If dirt, ice, snow or other material is cov-
ering the radar sensor area
∙ A complicated-shaped vehicle such as a car carrier trailer or flatbed truck/trailer is
near the vehicle ahead.
∙ Interference by other radar sources
∙ When your vehicle is towing a trailer, etc.
∙ When excessively heavy baggage is loaded in the rear seat or cargo area of
your vehicle.
The ICC system is designed to automatically
check the radar sensor’s operation within the
limitations of the system.
The detection zone of the radar sensor is
limited. A vehicle ahead must be in the detec-
tion zone for the ICC system to maintain the
selected distance from the vehicle ahead. A
vehicle ahead may move outside of the de-
tection zone due to its position within the
same lane of travel. Motorcycles may not be
detected in the same lane ahead if they are
traveling offset from the center line of the
lane. A vehicle that is entering the lane ahead
may not be detected until the vehicle has
completely moved into the lane. If this occurs, the ICC system may warn you
by blinking the system indicator and sounding
the chime. The driver may have to manually
control the proper distance away from the
vehicle traveling ahead.
The ICC system (with ProPILOT Assist) uses
a multi-sensing front camera. The following
are some conditions in which the camera may
not properly detect a vehicle and detection of
a vehicle ahead may be delayed:
∙ Poor visibility (conditions such as rain, snow, fog, dust storms, sandstorms, and
road spray from other vehicles)
∙ The camera area of the windshield is fogged up or covered with dirt, water
drops, ice, snow, etc.
∙ Strong light (for example, sunlight or high beams from oncoming vehicles) enters
the front camera
∙ A sudden change in brightness occurs (for example, when the vehicle enters or
exits a tunnel or shaded area or lightning
flashes)
5-124Starting and driving

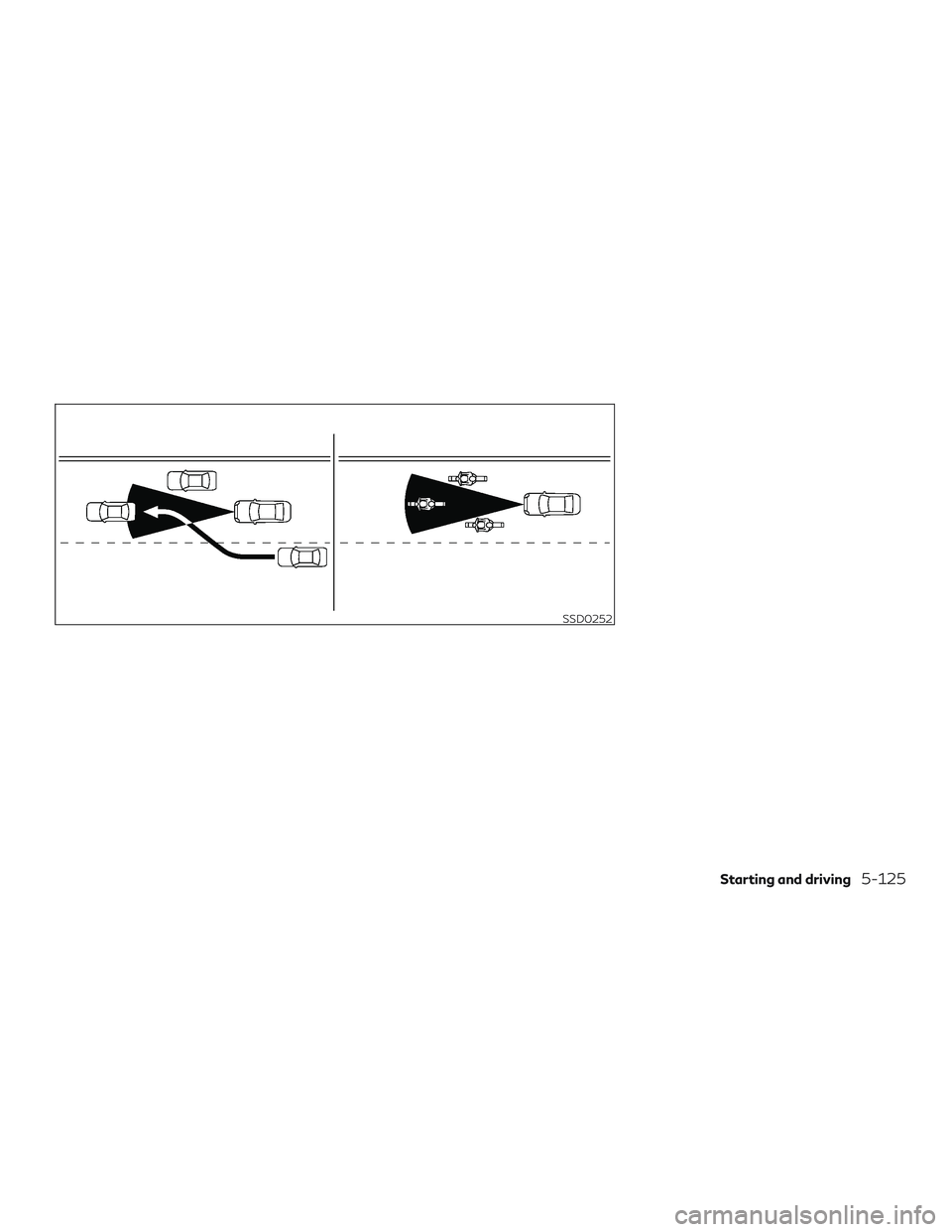

SSD0252
Starting and driving5-125

When driving on some roads, such as wind-
ing, hilly, curved, narrow roads, or roads
which are under construction, the radar sen-
sor may detect vehicles in a different lane, or
may temporarily not detect a vehicle traveling
ahead. This may cause the radar system to
decelerate or accelerate the vehicle.
The detection of vehicles may also be af-
fected by vehicle operation (steering maneu-
ver or traveling position in the lane, etc.) or
vehicle condition.If this occurs, the ICC system may warn you
by blinking the system indicator and sounding
the chime unexpectedly. You will have to
manually control the proper distance away
from the vehicle traveling ahead.
Automatic cancellation
The following are conditions in which the ICC
system may be temporarily unavailable. In
these instances, the ICC system may not can-
cel and may not be able to maintain the se-
lected following distance from the vehicle
ahead.Condition A
Under the following conditions, the ICC sys-
tem is automatically canceled. A chime will
sound and the system will not be able to be
set:
∙ Any door is open.
∙ The driver’s seat belt is not fastened.
∙ The vehicle ahead is not detected and your vehicle is traveling below the speed
of 15 mph (24 km/h).
∙ Your vehicle has been stopped by the ICC system for approximately 3 minutes or
longer.
∙ The shift lever is not in the D (Drive) po- sition or manual shift mode.
∙ The electronic parking brake is applied.
∙ The VDC system is turned off.
∙ The Forward Emergency Braking with Pedestrian Detection applies harder
braking.
∙ VDC (including the traction control sys- tem) operates.
∙ A wheel slips.
SSD0253
5-126Starting and driving

∙ When distance measurement becomesimpaired due to adhesion of dirt or ob-
struction to the sensor.
∙ When the radar signal is temporarily in- terrupted.
Action to take:
When the conditions listed above are no lon-
ger present, turn the system off using the
ProPILOT Assist switch. Turn the ProPILOT
Assist system back on to use the system.
NOTE:
When the ICC system is canceled under the
following conditions at a standstill, the elec-
tronic parking brake is automatically acti-
vated: ∙ Any door is open.
∙ The driver’s seat belt is not fastened.
∙ Your vehicle has been stopped by the ICC
system for approximately 3 minutes or
longer.
∙ The shift lever is not in the D (Drive) po-
sition or manual shift mode.
∙ The VDC system is turned off. ∙
When distance measurement becomes
impaired due to adhesion of dirt or ob-
struction to the sensor.
∙ When the radar signal is temporarily in-
terrupted.
Condition B
When the radar sensor of the front bumper is
covered with dirt or is obstructed, the ICC
system will automatically be canceled.
The chime will sound and the “Unavailable:
Front Radar Blocked” warning message will
appear in the vehicle information display.
Action to take:
If the warning message appears, stop the
vehicle in a safe place, press the Park button
to place the vehicle in the P (Park) position,
and turn the engine off. When the radar sig-
nal is temporarily interrupted, clean the sen-
sor area of the front bumper and restart the
engine. If the “Unavailable: Front Radar
Blocked” warning message continues to be
displayed, have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service.
Condition C
When driving on roads with limited road
structures or buildings (for example, long bridges, deserts, snow fields, driving next to
long walls), the system may illuminate the
system warning light and display the “Un-
available: Front Radar Blocked” message.
Action to take:
When the above driving conditions no longer
exist, turn the system back on.
ICC system malfunction
If the ICC system malfunctions, it will be
turned off automatically, a chime will sound,
and the speed control status warning (or-
ange) will illuminate.
Action to take:
If the warning light comes on, stop the vehicle
in a safe place. Turn the engine off, restart
the engine and set the ICC system again. If it
is not possible to set the ICC system or the
indicator stays on, it may be a malfunction.
Although the normal driving can be contin-
ued, the ICC system should be inspected. It is
recommended that you visit an INFINITI re-
tailer for this service.
ICC sensor maintenance
The radar sensor is located on the front of the
vehicle.
Starting and driving5-127

To keep the ICC system operating properly,
be sure to observe the following:∙ Always keep the sensor area clean.
∙ Do not strike or damage the areas around the sensor.
∙ Do not attach a sticker (including trans- parent material) or install an accessory
near the sensor. This could cause failure
or malfunction.
∙ Do not attach metallic objects near the sensor area (brush guard, etc.). This could
cause failure or malfunction.
∙ Do not alter, remove, or paint the front bumper.
Before customizing or restoring the front
bumper, it is recommended that you visit an
INFINITI retailer.
The camera sensor is located above the in-
side mirror.
To keep the proper operation of the systems
and prevent a system malfunction, be sure to
observe the following: ∙ Always keep the windshield clean.
∙ Do not attach a sticker (including trans- parent material) or install an accessory
near the camera unit. ∙ Do not place reflective materials, such as
white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability
of detecting the lane markers.
∙ Do not strike or damage the areas around the camera unit. Do not touch the camera
lens or remove the screw located on the
camera unit.
If the camera unit is damaged due to an
accident, it is recommended that you visit an
INFINITI retailer.
STEERING ASSIST
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the Steering Assist
could result in serious injury or death.
∙ The Steering Assist is not a replacement for proper driving procedures and is not
designed to correct careless, inattentive
or absent-minded driving. The Steering
Assist will not always steer the vehicle to
keep it in the lane. It is not designed to
prevent loss of control. It is the driver’s
responsibility to stay alert, drive safely,
keep the vehicle in the traveling lane, and
be in control of the vehicle at all times. ∙ As there is a performance limit to the
Steering Assist’s capability, never rely
solely on the system. The Steering Assist
does not function in all driving, traffic,
weather, and road conditions. Always
drive safely, pay attention to the opera-
tion of the vehicle, and manually control
your vehicle appropriately.
∙ The Steering Assist is intended for use on well-developed freeways or highways
with gentle (moderate) curves. To avoid
risk of an accident, do not use this system
on local or non-highway roads.
∙ The Steering Assist only steers the ve- hicle to maintain its position in the center
of a lane. The vehicle will not steer to
avoid objects in the road in front of the
vehicle or to avoid a vehicle moving into
your lane.
∙ It is the driver’s responsibility to stay alert, drive safely, keep the vehicle in the
traveling lane, and be in control of the
vehicle at all times. Never take your
hands off the steering wheel when driv-
ing. Always keep your hands on the
steering wheel and drive your vehicle
safely.
5-128Starting and driving

∙ Always drive carefully and attentivelywhen using the Steering Assist. Read and
understand the Owner’s Manual thor-
oughly before using the Steering Assist.
To avoid serious injury or death, do not
rely on the system to prevent accidents
or to control the vehicle’s speed in emer-
gency situations. Do not use the Steering
Assist except in appropriate road and
traffic conditions.
Steering Assist operation
The Steering Assist controls the steering sys-
tem to help keep your vehicle near the center
of the lane when driving. The Steering Assist
is combined with the Intelligent Cruise Con-
trol (ICC) system. For additional information,
refer to “Intelligent Cruise Control (ICC) (with
ProPILOT Assist)” in this section.
The Steering Assist can be activated when
the following conditions are met:
∙ The ICC system is activated.
∙ Lane markers on both sides are clearly detected.
∙ A vehicle ahead is detected (when the vehicle is driven at speeds under 37 mph
[60 km/h])
∙ The driver grips the steering wheel. ∙ The vehicle is driven at the center of the
lane.
∙ The turn signals are not operated.
∙ The windshield wiper is not operated in the low (LO) or high (HI) speed operation
(the steering assist function is disabled
after the wiper operates for approxi-
mately 10 seconds).
Steering Assist display and
indicators
1Steering Assist status indicator/warning
Displays the status of the Steering Assist
by the color of the indicator/warning
∙ Steering Assist indicator (gray): Steer-ing Assist standby
∙ Steering Assist indicator (green): Steering Assist active
∙ Steering Assist indicator (yellow): Steering Assist malfunction
LSD2990
Starting and driving5-129

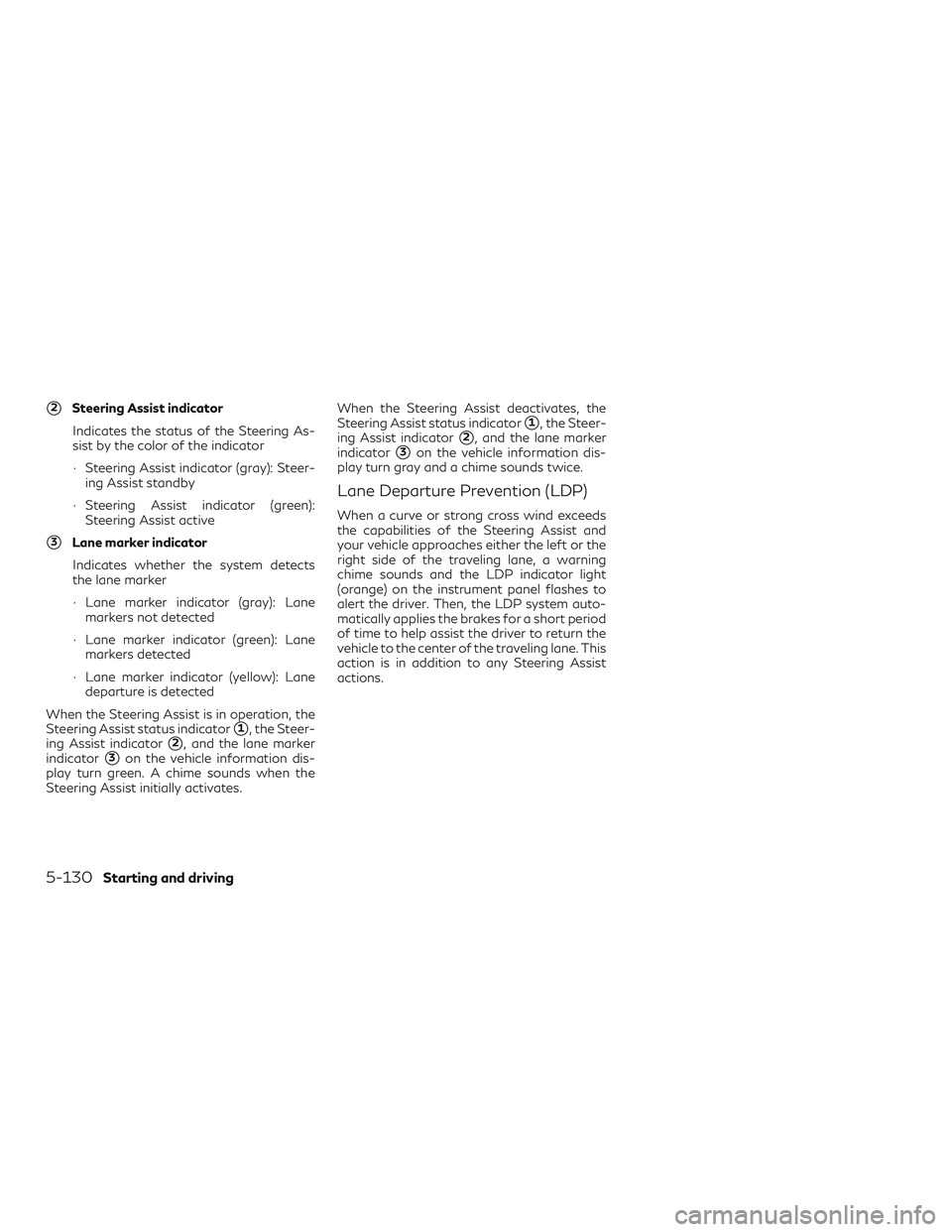

2Steering Assist indicatorIndicates the status of the Steering As-
sist by the color of the indicator
∙ Steering Assist indicator (gray): Steer- ing Assist standby
∙ Steering Assist indicator (green): Steering Assist active
3Lane marker indicator
Indicates whether the system detects
the lane marker
∙ Lane marker indicator (gray): Lane markers not detected
∙ Lane marker indicator (green): Lane markers detected
∙ Lane marker indicator (yellow): Lane departure is detected
When the Steering Assist is in operation, the
Steering Assist status indicator
1, the Steer-
ing Assist indicator
2, and the lane marker
indicator
3on the vehicle information dis-
play turn green. A chime sounds when the
Steering Assist initially activates. When the Steering Assist deactivates, the
Steering Assist status indicator
1, the Steer-
ing Assist indicator
2, and the lane marker
indicator
3on the vehicle information dis-
play turn gray and a chime sounds twice.
Lane Departure Prevention (LDP)
When a curve or strong cross wind exceeds
the capabilities of the Steering Assist and
your vehicle approaches either the left or the
right side of the traveling lane, a warning
chime sounds and the LDP indicator light
(orange) on the instrument panel flashes to
alert the driver. Then, the LDP system auto-
matically applies the brakes for a short period
of time to help assist the driver to return the
vehicle to the center of the traveling lane. This
action is in addition to any Steering Assist
actions.
5-130Starting and driving
