run flat INFINITI QX50 2019 Owners Manual

1. Engine hood (P. 3-24)
2. Wiper and washer switch (P. 2-35)Wiper blades (P. 8-16)
3. Windshield (P. 8-16)
4. Power windows (P. 2-66)
5. Door locks (P. 3-4) INFINITI Intelligent Key (P. 3-7)
Keys (P. 3-2)
6. Mirrors (P. 3-36) Side camera (if so equipped)
(P. 4-11)
7. Tire pressure (P. 8-26) Flat tire (P. 6-3)
Tire chains (P. 8-26)
8. Replacing bulbs (P. 8-23) Headlight switch (P. 2-39)
Turn signal switch (P. 2-39)
LED Daytime Running Lights (DRL)
system (P. 2-39)
9. Fog light switch (if so equipped)
(P. 2-39)
10. Sonar sensors (if so equipped)
(P. 5-186)
11. Front camera (if so equipped)
(P. 4-11)
See the page number indicated in parenthe-
ses for operating details.
LIC3787
EXTERIOR FRONT
Illustrated table of contents0-3

CAUTION
∙ Do not use leaded gasoline. Depositsfrom leaded gasoline will seriously reduce
the three-way catalyst’s ability to help
reduce exhaust pollutants.
∙ Keep your engine tuned up. Malfunctions in the ignition, fuel injection, or electrical
systems can cause over rich fuel flow into
the three-way catalyst, causing it to
overheat. Do not keep driving if the en-
gine misfires, or if noticeable loss of per-
formance or other unusual operating
conditions are detected. Have the vehicle
inspected promptly. It is recommended
that you visit an INFINITI retailer for this
service.
∙ Avoid driving with an extremely low fuel level. Running out of fuel could cause the
engine to misfire, damaging the three-
way catalyst.
∙ Do not race the engine while warming it up.
∙ Do not push or tow your vehicle to start the engine.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label.
(If your vehicle has tires of a different size
than the size indicated on the vehicle placard
or tire inflation pressure label, you should
determine the proper tire inflation pressure
for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitor-
ing System (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significantly under-inflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check all your
tires as soon as possible, and inflate them to
the proper pressure. Driving on a significantly
under-inflated tire causes the tire to overheat
and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability. Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to trigger illumination of the
TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is combined
with the low tire pressure telltale. When the
system detects a malfunction, the telltale will
flash for approximately one minute and then
remain continuously illuminated. This se-
quence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is illumi-
nated, the system may not be able to detect
or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of rea-
sons, including the installation of replace-
ment or alternate tires or wheels on the ve-
hicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunc-
tion telltale after replacing one or more tires
or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels al-
low the TPMS to continue to function prop-
erly.
Starting and driving5-5

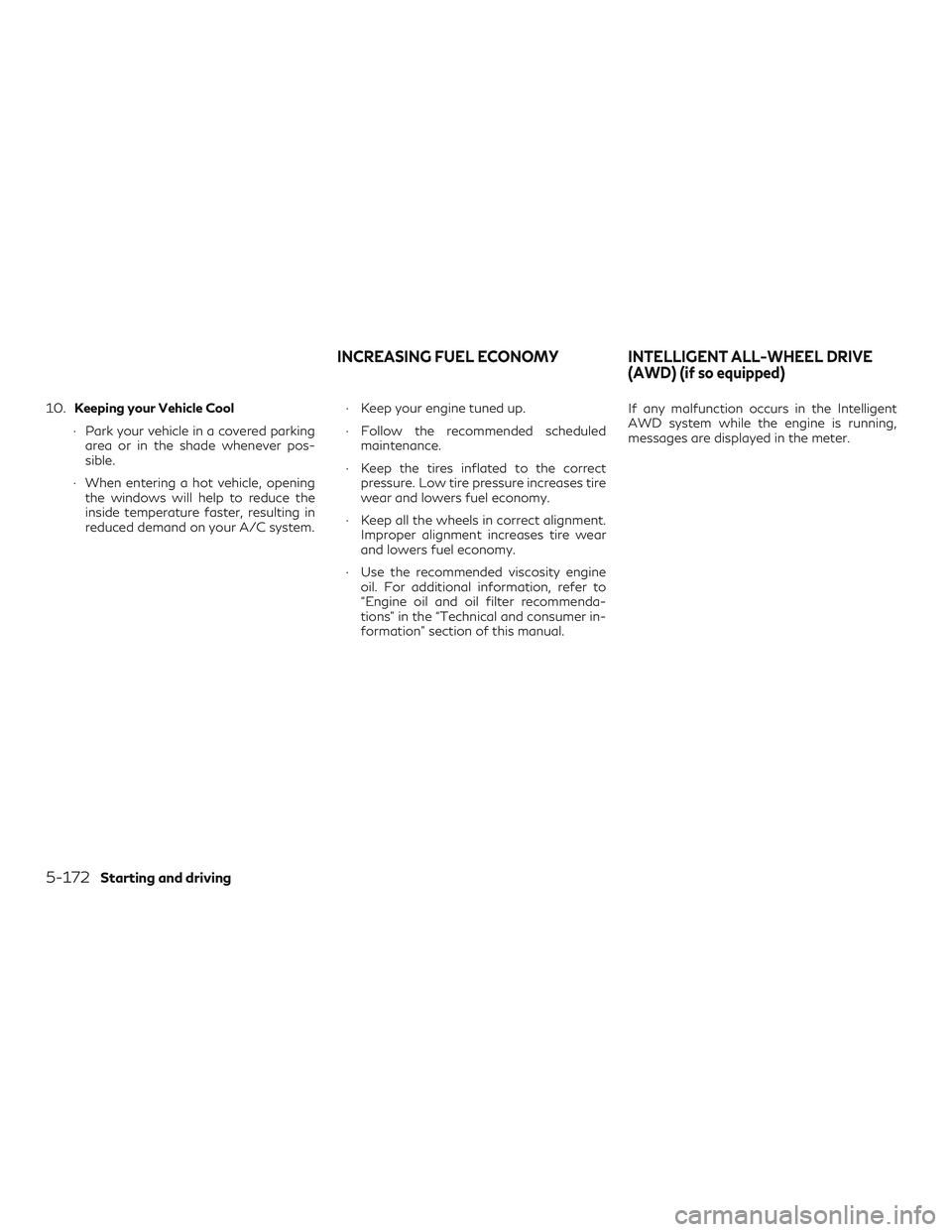

10.Keeping your Vehicle Cool
∙ Park your vehicle in a covered parking area or in the shade whenever pos-
sible.
∙ When entering a hot vehicle, opening the windows will help to reduce the
inside temperature faster, resulting in
reduced demand on your A/C system. ∙ Keep your engine tuned up.
∙ Follow the recommended scheduled
maintenance.
∙ Keep the tires inflated to the correct pressure. Low tire pressure increases tire
wear and lowers fuel economy.
∙ Keep all the wheels in correct alignment. Improper alignment increases tire wear
and lowers fuel economy.
∙ Use the recommended viscosity engine oil. For additional information, refer to
“Engine oil and oil filter recommenda-
tions” in the “Technical and consumer in-
formation” section of this manual. If any malfunction occurs in the Intelligent
AWD system while the engine is running,
messages are displayed in the meter.
INCREASING FUEL ECONOMY INTELLIGENT ALL-WHEEL DRIVE
(AWD) (if so equipped)
5-172Starting and driving

6 In case of emergency
Hazard warning flasher switch....................6-2
Roadside assistance program .....................6-2
Emergency engine shut off .......................6-3
Flat tire ..........................................6-3
Tire Pressure Monitoring System (TPMS) .......6-3
Run-flat tires ..................................6-4 Jump starting
....................................6-5
Push starting .....................................6-7
If your vehicle overheats ..........................6-7
Towing your vehicle ..............................6-8
Towing recommended by INFINITI .............6-8
Vehicle recovery (freeing a stuck vehicle) ......6-11

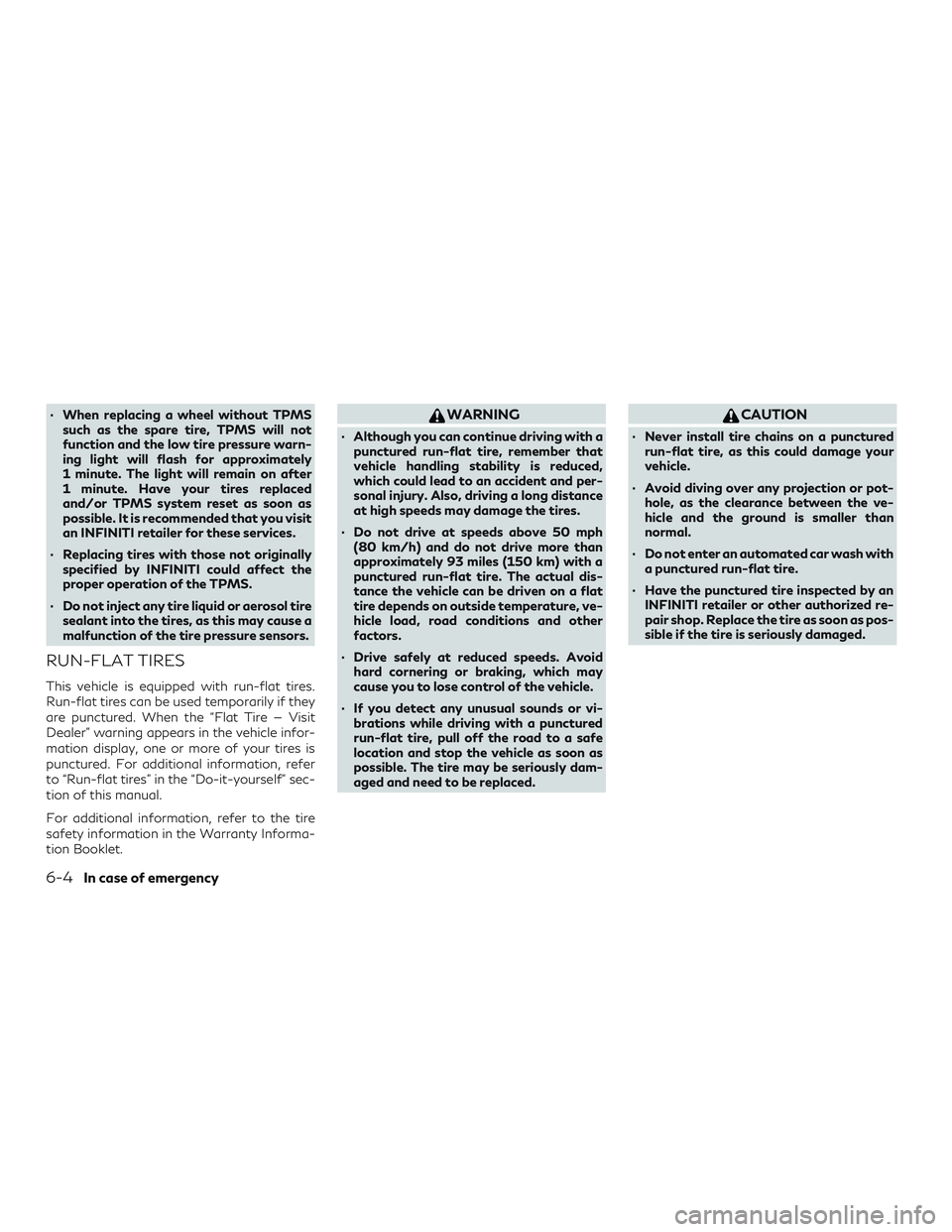

∙ When replacing a wheel without TPMSsuch as the spare tire, TPMS will not
function and the low tire pressure warn-
ing light will flash for approximately
1 minute. The light will remain on after
1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you visit
an INFINITI retailer for these services.
∙ Replacing tires with those not originally specified by INFINITI could affect the
proper operation of the TPMS.
∙ Do not inject any tire liquid or aerosol tire sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.
RUN-FLAT TIRES
This vehicle is equipped with run-flat tires.
Run-flat tires can be used temporarily if they
are punctured. When the “Flat Tire — Visit
Dealer” warning appears in the vehicle infor-
mation display, one or more of your tires is
punctured. For additional information, refer
to “Run-flat tires” in the “Do-it-yourself” sec-
tion of this manual.
For additional information, refer to the tire
safety information in the Warranty Informa-
tion Booklet.
WARNING
∙ Although you can continue driving with apunctured run-flat tire, remember that
vehicle handling stability is reduced,
which could lead to an accident and per-
sonal injury. Also, driving a long distance
at high speeds may damage the tires.
∙ Do not drive at speeds above 50 mph (80 km/h) and do not drive more than
approximately 93 miles (150 km) with a
punctured run-flat tire. The actual dis-
tance the vehicle can be driven on a flat
tire depends on outside temperature, ve-
hicle load, road conditions and other
factors.
∙ Drive safely at reduced speeds. Avoid hard cornering or braking, which may
cause you to lose control of the vehicle.
∙ If you detect any unusual sounds or vi- brations while driving with a punctured
run-flat tire, pull off the road to a safe
location and stop the vehicle as soon as
possible. The tire may be seriously dam-
aged and need to be replaced.

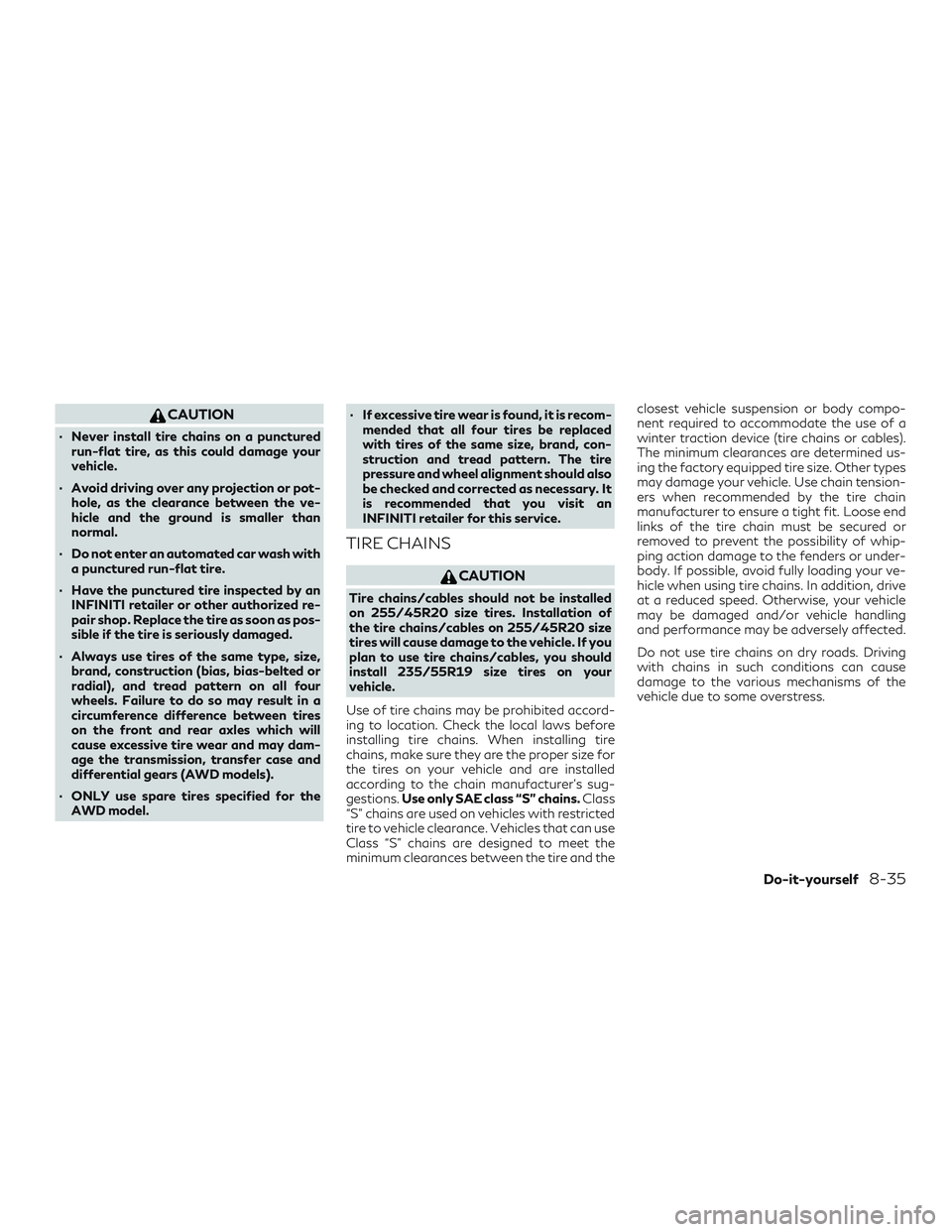

CAUTION
∙ Never install tire chains on a puncturedrun-flat tire, as this could damage your
vehicle.
∙ Avoid diving over any projection or pot- hole, as the clearance between the ve-
hicle and the ground is smaller than
normal.
∙ Do not enter an automated car wash with a punctured run-flat tire.
∙ Have the punctured tire inspected by an INFINITI retailer or other authorized re-
pair shop. Replace the tire as soon as pos-
sible if the tire is seriously damaged.
6-4In case of emergency

6. After the engine cools down, check thecoolant level in the engine coolant reser-
voir tank with the engine running. Add
coolant to the engine coolant reservoir
tank if necessary. Have your vehicle re-
paired. It is recommended that you visit
an INFINITI retailer for this service. When towing your vehicle, all jurisdictions
and local regulations for towing must be fol-
lowed. Incorrect towing equipment could
damage your vehicle. Towing instructions are
available from an INFINITI retailer. Local ser-
vice operators are generally familiar with the
applicable laws and procedures for towing.
To assure proper towing and to prevent ac-
cidental damage to your vehicle, INFINITI
recommends having a service operator tow
your vehicle. It is advisable to have the service
operator carefully read the following precau-
tions:
WARNING
∙ Never ride in a vehicle that is being
towed.
∙ Never get under your vehicle after it has been lifted by a tow truck.
CAUTION
∙ When towing, make sure that the trans-mission, axles, steering system and pow-
ertrain are in working condition. If any of
these conditions apply, dollies or a flat-
bed tow truck must be used.
∙ Always attach safety chains before towing. For additional information, refer to “Flat
towing” in the “Technical and consumer infor-
mation” section of this manual.
TOWING RECOMMENDED BY
INFINITI
INFINITI recommends towing your vehicle
based upon the type of drivetrain. For addi-
tional information, refer to the diagrams in
this section to ensure that your vehicle is
properly towed.
TOWING YOUR VEHICLE
6-8In case of emergency

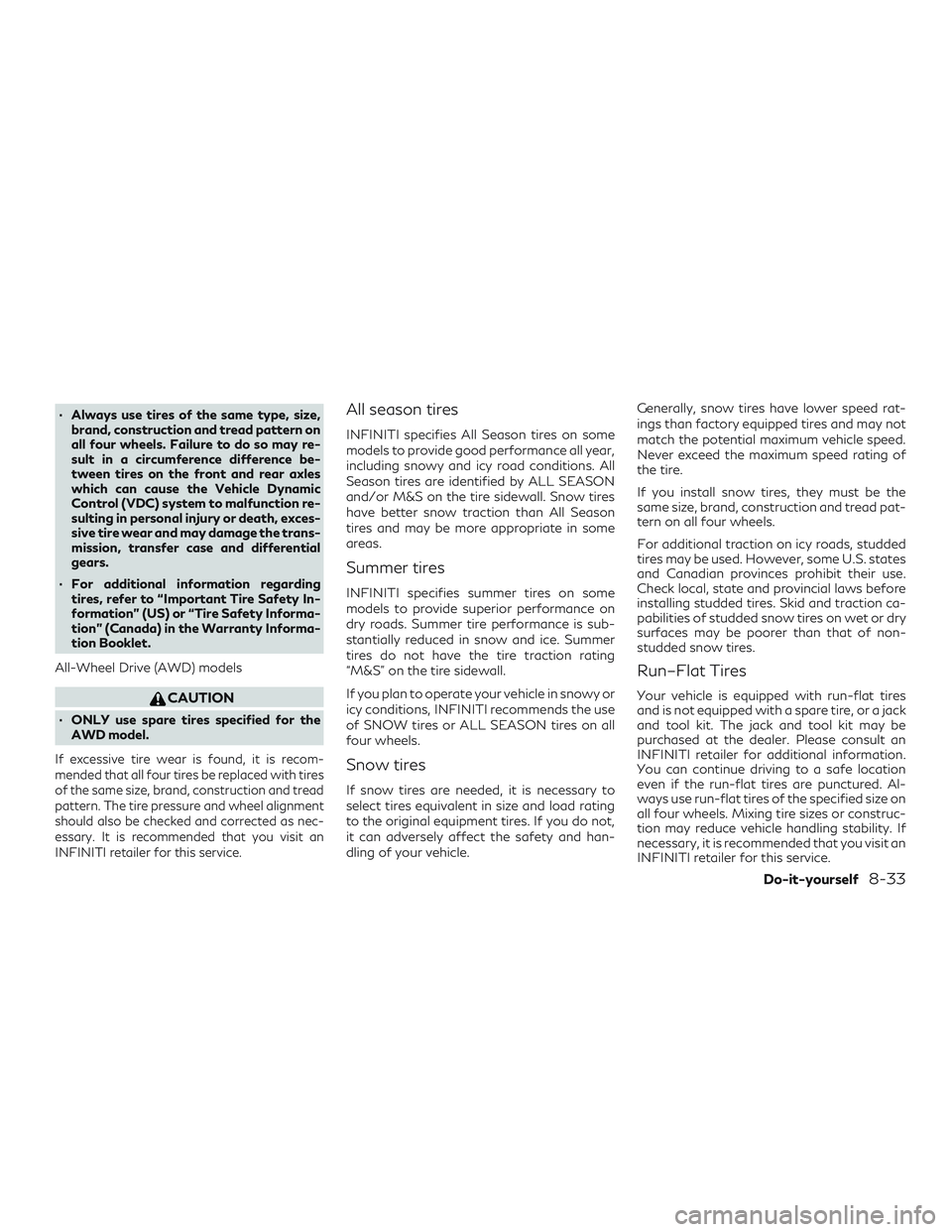

∙ Always use tires of the same type, size,brand, construction and tread pattern on
all four wheels. Failure to do so may re-
sult in a circumference difference be-
tween tires on the front and rear axles
which can cause the Vehicle Dynamic
Control (VDC) system to malfunction re-
sulting in personal injury or death, exces-
sive tire wear and may damage the trans-
mission, transfer case and differential
gears.
∙ For additional information regarding tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.
All-Wheel Drive (AWD) models
CAUTION
∙ ONLY use spare tires specified for the AWD model.
If excessive tire wear is found, it is recom-
mended that all four tires be replaced with tires
of the same size, brand, construction and tread
pattern. The tire pressure and wheel alignment
should also be checked and corrected as nec-
essary. It is recommended that you visit an
INFINITI retailer for this service.
All season tires
INFINITI specifies All Season tires on some
models to provide good performance all year,
including snowy and icy road conditions. All
Season tires are identified by ALL SEASON
and/or M&S on the tire sidewall. Snow tires
have better snow traction than All Season
tires and may be more appropriate in some
areas.
Summer tires
INFINITI specifies summer tires on some
models to provide superior performance on
dry roads. Summer tire performance is sub-
stantially reduced in snow and ice. Summer
tires do not have the tire traction rating
“M&S” on the tire sidewall.
If you plan to operate your vehicle in snowy or
icy conditions, INFINITI recommends the use
of SNOW tires or ALL SEASON tires on all
four wheels.
Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load rating
to the original equipment tires. If you do not,
it can adversely affect the safety and han-
dling of your vehicle. Generally, snow tires have lower speed rat-
ings than factory equipped tires and may not
match the potential maximum vehicle speed.
Never exceed the maximum speed rating of
the tire.
If you install snow tires, they must be the
same size, brand, construction and tread pat-
tern on all four wheels.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires. Skid and traction ca-
pabilities of studded snow tires on wet or dry
surfaces may be poorer than that of non-
studded snow tires.
Run–Flat Tires
Your vehicle is equipped with run-flat tires
and is not equipped with a spare tire, or a jack
and tool kit. The jack and tool kit may be
purchased at the dealer. Please consult an
INFINITI retailer for additional information.
You can continue driving to a safe location
even if the run-flat tires are punctured. Al-
ways use run-flat tires of the specified size on
all four wheels. Mixing tire sizes or construc-
tion may reduce vehicle handling stability. If
necessary, it is recommended that you visit an
INFINITI retailer for this service.
Do-it-yourself8-33

Frequently check the tire pressure and adjust
pressure of each tire properly. The tire pres-
sure can be also checked in the vehicle infor-
mation display.
It can be difficult to tell if a run-flat tire is
under-inflated or flat. Check the tire pres-
sures as described in this section. If the tire
becomes under-inflated while driving, the
low tire pressure warning light will illuminate
and the “Tire Pressure Low – Add Air” warn-
ing appears in the vehicle information display.
If the tire becomes flat while driving, the low
tire pressure warning light and the “Flat Tire –
Visit dealer" warning will appear.
Low tire pressure:
If the vehicle is being driven with low tire
pressure, the low tire pressure warning light
will illuminate and the “Tire Pressure Low –
Add Air” warning appears in the vehicle infor-
mation display.
Flat tire:
If the vehicle is being driven with one or more
flat tires, the low tire pressure warning light
will illuminate continuously and a chime will
sound for 10 seconds. A “Flat-Tire – Visit
dealer" warning also appears in the vehicle
information display.The chime will only sound at the first indica-
tion of a flat tire and the warning light will
illuminate continuously. When the flat tire
warning is activated, have the system reset
and the tire checked and replaced if neces-
sary. It is recommended that you visit an
INFINITI retailer for this service. Even if the
tire is inflated to the specified COLD tire
pressure, the warning light will continue to
illuminate until the system is reset. It is recom-
mended that you visit an INFINITI retailer for
this service.
If the low tire pressure warning light illumi-
nates continuously and the “Flat Tire – Visit
dealer" warning appears in the vehicle infor-
mation display:
∙ Do not exceed 50 mph (80 km/h).
∙ Increase your following distance to allow for increased stopping distances.
∙ Avoid sudden maneuvers, hard cornering and hard braking.WARNING
∙ Although you can continue driving with apunctured run-flat tire, remember that
vehicle handling stability is reduced,
which could lead to an accident and per-
sonal injury. Also, driving a long distance
at high speeds may damage the tire.
∙ Do not drive at speeds above 50 mph (80 km/h) and do not drive more than
approximately 93 miles (150 km) with a
punctured run-flat tire. The actual dis-
tance the vehicle can be driven on a flat
tire depends on outside temperature, ve-
hicle load, read conditions and other
factors.
∙ Drive safely at reduced speeds. Avoid hard cornering or braking, which may
cause you to lose control of the vehicle.
∙ If you detect any unusual sounds or vi- brations while driving with a punctured
run-flat tire, pull off the road to a safe
location and stop the vehicle as soon as
possible. The tire may be seriously dam-
aged and need to be replaced.
8-34Do-it-yourself

CAUTION
∙ Never install tire chains on a puncturedrun-flat tire, as this could damage your
vehicle.
∙ Avoid driving over any projection or pot- hole, as the clearance between the ve-
hicle and the ground is smaller than
normal.
∙ Do not enter an automated car wash with a punctured run-flat tire.
∙ Have the punctured tire inspected by an INFINITI retailer or other authorized re-
pair shop. Replace the tire as soon as pos-
sible if the tire is seriously damaged.
∙ Always use tires of the same type, size, brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels. Failure to do so may result in a
circumference difference between tires
on the front and rear axles which will
cause excessive tire wear and may dam-
age the transmission, transfer case and
differential gears (AWD models).
∙ ONLY use spare tires specified for the AWD model. ∙ If excessive tire wear is found, it is recom-
mended that all four tires be replaced
with tires of the same size, brand, con-
struction and tread pattern. The tire
pressure and wheel alignment should also
be checked and corrected as necessary. It
is recommended that you visit an
INFINITI retailer for this service.
TIRE CHAINS
CAUTION
Tire chains/cables should not be installed
on 255/45R20 size tires. Installation of
the tire chains/cables on 255/45R20 size
tires will cause damage to the vehicle. If you
plan to use tire chains/cables, you should
install 235/55R19 size tires on your
vehicle.
Use of tire chains may be prohibited accord-
ing to location. Check the local laws before
installing tire chains. When installing tire
chains, make sure they are the proper size for
the tires on your vehicle and are installed
according to the chain manufacturer’s sug-
gestions. Use only SAE class “S” chains. Class
“S” chains are used on vehicles with restricted
tire to vehicle clearance. Vehicles that can use
Class “S” chains are designed to meet the
minimum clearances between the tire and the closest vehicle suspension or body compo-
nent required to accommodate the use of a
winter traction device (tire chains or cables).
The minimum clearances are determined us-
ing the factory equipped tire size. Other types
may damage your vehicle. Use chain tension-
ers when recommended by the tire chain
manufacturer to ensure a tight fit. Loose end
links of the tire chain must be secured or
removed to prevent the possibility of whip-
ping action damage to the fenders or under-
body. If possible, avoid fully loading your ve-
hicle when using tire chains. In addition, drive
at a reduced speed. Otherwise, your vehicle
may be damaged and/or vehicle handling
and performance may be adversely affected.
Do not use tire chains on dry roads. Driving
with chains in such conditions can cause
damage to the various mechanisms of the
vehicle due to some overstress.
Do-it-yourself8-35

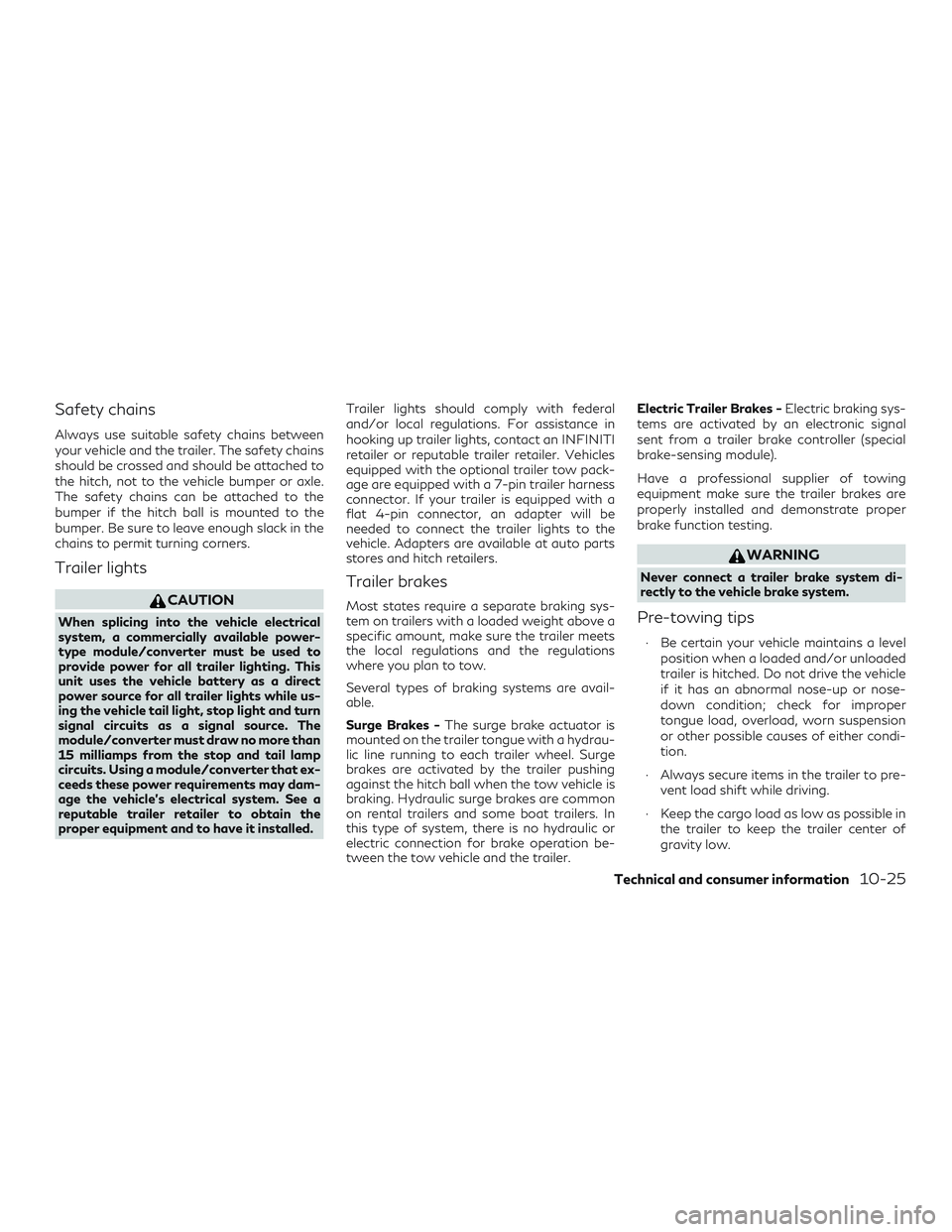

Safety chains
Always use suitable safety chains between
your vehicle and the trailer. The safety chains
should be crossed and should be attached to
the hitch, not to the vehicle bumper or axle.
The safety chains can be attached to the
bumper if the hitch ball is mounted to the
bumper. Be sure to leave enough slack in the
chains to permit turning corners.
Trailer lights
CAUTION
When splicing into the vehicle electrical
system, a commercially available power-
type module/converter must be used to
provide power for all trailer lighting. This
unit uses the vehicle battery as a direct
power source for all trailer lights while us-
ing the vehicle tail light, stop light and turn
signal circuits as a signal source. The
module/converter must draw no more than
15 milliamps from the stop and tail lamp
circuits. Using a module/converter that ex-
ceeds these power requirements may dam-
age the vehicle’s electrical system. See a
reputable trailer retailer to obtain the
proper equipment and to have it installed.Trailer lights should comply with federal
and/or local regulations. For assistance in
hooking up trailer lights, contact an INFINITI
retailer or reputable trailer retailer. Vehicles
equipped with the optional trailer tow pack-
age are equipped with a 7-pin trailer harness
connector. If your trailer is equipped with a
flat 4-pin connector, an adapter will be
needed to connect the trailer lights to the
vehicle. Adapters are available at auto parts
stores and hitch retailers.
Trailer brakes
Most states require a separate braking sys-
tem on trailers with a loaded weight above a
specific amount, make sure the trailer meets
the local regulations and the regulations
where you plan to tow.
Several types of braking systems are avail-
able.
Surge Brakes -
The surge brake actuator is
mounted on the trailer tongue with a hydrau-
lic line running to each trailer wheel. Surge
brakes are activated by the trailer pushing
against the hitch ball when the tow vehicle is
braking. Hydraulic surge brakes are common
on rental trailers and some boat trailers. In
this type of system, there is no hydraulic or
electric connection for brake operation be-
tween the tow vehicle and the trailer. Electric Trailer Brakes -
Electric braking sys-
tems are activated by an electronic signal
sent from a trailer brake controller (special
brake-sensing module).
Have a professional supplier of towing
equipment make sure the trailer brakes are
properly installed and demonstrate proper
brake function testing.
WARNING
Never connect a trailer brake system di-
rectly to the vehicle brake system.
Pre-towing tips
∙ Be certain your vehicle maintains a level position when a loaded and/or unloaded
trailer is hitched. Do not drive the vehicle
if it has an abnormal nose-up or nose-
down condition; check for improper
tongue load, overload, worn suspension
or other possible causes of either condi-
tion.
∙ Always secure items in the trailer to pre- vent load shift while driving.
∙ Keep the cargo load as low as possible in the trailer to keep the trailer center of
gravity low.
Technical and consumer information10-25
