seat adjustment INFINITI QX50 2022 Owners Manual

Table of
contentsIllustrated table of contents
Safety-Seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Monitor, climate, audio, phone and voice recognition systems
Starting and driving
In case of emergency
Appearance and care
Do-it-yourself
Maintenance and schedules
Technical and consumer information
Index
0
1
2
3
4
5
6
7
8
9
10
11

1 Safety-Seats, seat belts and supplemental
restraint system
Seats............................................1-2
Front power seat adjustment ..................1-3
Rear bench seat adjustment ...................1-5
Armrest ......................................1-5
Flexible seating ...............................1-5
Head restraints/headrests .......................1-7
Adjustable head restraint/headrest
components ..................................1-8
Non-adjustable head restraint/headrest
components ..................................1-9
Remove ......................................1-9
Install ...................................... 1-10
Adjust ...................................... 1-10
Seat belts ....................................... 1-12
Precautions on seat belt usage ...............1-12
Seat belt warning light and chime .............1-15
Injured persons .............................. 1-15
Pregnant women ............................ 1-16
Three-point type seat belt with retractor ......1-16
Seat belt extenders .......................... 1-19
Seat belt maintenance .......................1-19
Child safety .................................... 1-20
Infants ..................................... 1-20Small Children
............................... 1-21
Larger children ............................... 1-21
Child restraints .................................. 1-22
Precautions on child restraints ................1-22
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-24
Rear-facing child restraint installation
using LATCH ................................ 1-27
Rear-facing child restraint installation
using the seat belts ......................... 1-29
Forward-facing child restraint installation
using LATCH ............................... 1-32
Forward-facing child restraint installation
using the seat belts ......................... 1-34

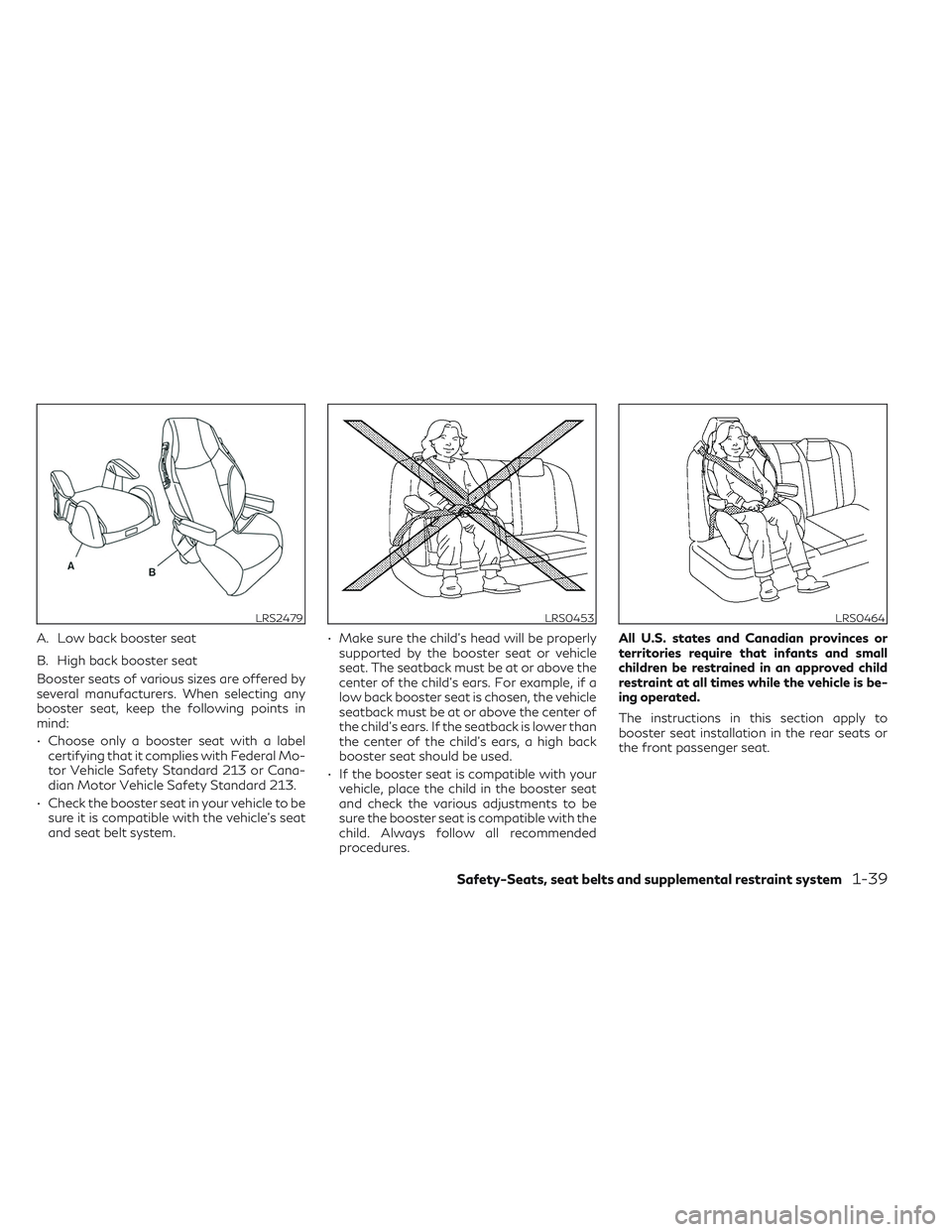

Booster seats ............................... 1-38
Supplemental Restraint System (SRS) ............1-41
Precautions on SRS .......................... 1-41
Supplemental air bag warning labels .........1-62
Supplemental air bag warning light ..........1-62
Pop-up engine hood ........................... 1-64
Pop-up engine hood activation
conditions ..................................
1-65

WARNING
• Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide un-
der the lap belt and receive serious inter-
nal injuries. •
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and up-
right in the seat with both feet on the
floor and adjust the seat properly. For
additional information, see “Precautions
on seat belt usage” (P. 1-12).
• After adjustment, gently rock in the seat
to make sure it is securely locked.
• Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls or make the
vehicle move. Unattended children could
become involved in serious accidents. •
To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause
a significant risk of injury or death to
people and pets.
• Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of control
of the vehicle.
• The seatback should not be reclined any
more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and be-
ing injured is increased.
CAUTION
When adjusting the seat positions, be sure
not to contact any moving parts to avoid
possible injuries and/or damage.
ARS1152
SEATS
1-2Safety-Seats, seat belts and supplemental restraint system

FRONT POWER SEAT
ADJUSTMENT
Operating tips
• The power seat motor has an auto-resetoverload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.
• Do not operate the power seat switch for a long period of time when the engine is off.
This will discharge the battery.
For additional information, see “Memory
seat” (P. 3-37).
Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired
position.
Reclining
Move the recline switch as shown until the
desired angle is obtained.
The reclining feature allows adjustment of
the seatback for occupants of different sizes
for added comfort and to help obtain proper
seat belt fit. For additional information, see
“Precautions on seat belt usage” (P. 1-12). Also, the seatback can be reclined to allow
occupants to rest when the vehicle is parked.
LRS2985
Safety-Seats, seat belts and supplemental restraint system1-3

REAR BENCH SEAT
ADJUSTMENT
Forward and backward
Pull the center of the barO1up and hold it
while you slide the seat forward or backward
to the desired position. Release the bar to
lock the seat in position.
Reclining
To recline the seatback, pull up on the lever
O2and lean back. To bring the seatback for-
ward, pull the lever
O2up and lean your body forward. Release the lever to lock the seat-
back in position.
The recline feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, see “Pre-
cautions on seat belt usage” (P. 1-12). Also,
the seatback can be reclined to allow occu-
pants to rest when the vehicle is parked.
WARNING
• After adjustment, gently rock in the seat
to make sure it is securely locked.
• Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide un-
der the lap belt and receive serious inter-
nal injuries.
• For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and up-
right in the seat and adjust the seat belt
properly. For additional information, see
“Precautions on seat belt usage”
(P. 1-12).
ARMREST
The rear bench seat comes equipped with an
armrest. Pull the armrest down as shown.
FLEXIBLE SEATING
WARNING
• Never allow anyone to ride in the cargo
area or on the rear seats when they are in
the fold-down position. In a collision,
people riding in these areas without
proper restraints are more likely to be
seriously injured or killed.
LRS2988LRS3336
Safety-Seats, seat belts and supplemental restraint system1-5

4. Stow the rear seat belts in the seat belthooks found on the sides of the vehicle.
5. Lift up on the recline lever on the side of the outboard seats or pull the lever on
either side of the cargo area to fold the
seatbacks flat.
• If one of the rear seatbacks does not fold flat completely, move the corre-
sponding Front Power Seat forward,
push up the seatback until it latches in
place and remove the head restraints/
headrests. For additional information,
see “Remove” (P. 1-9). 6. To return the rear bench seats to a seating
position, push up on the seatback until it
latches in place.
WARNING
Head restraints/headrests supplement the
other vehicle safety systems. They may
provide additional protection against in-
jury in certain rear end collisions. Adjust-
able head restraints/headrests must be
adjusted properly, as specified in this sec-
tion. Check the adjustment after someone
else uses the seat. Do not attach anything
to the head restraint/headrest stalk, ex-
cept for genuine INFINITI accessories spe-
cifically tested for use with the vehicle’s
head restraint/headrest stalk. Do not re-
move the head restraint/headrest. Do not
use the seat if the head restraint/headrest
has been removed. If the head restraint/
headrest was removed, reinstall and prop-
erly adjust the head restraint/headrest
before an occupant uses the seating posi-
tion. Failure to follow these instructions
can reduce the effectiveness of the head
restraints/headrests. This may increase
the risk of serious injury or death in a
collision.
LRS3008
Cargo area shown
HEAD RESTRAINTS/HEADRESTS
Safety-Seats, seat belts and supplemental restraint system1-7

The illustration shows the seating positions
equipped with head restraints/headrests.
Indicates the seating position is equipped
with a head restraint.
 Indicates the seating position is equipped
with a headrest.
+ Indicates the seating position is not
equipped with a head restraint or headrest (if
applicable).
• Your vehicle is equipped with a head restraint/headrest that may be integrated,
adjustable or non-adjustable. • Adjustable head restraints/headrests have
multiple notches along the stalk(s) to lock
them in a desired adjustment position.
• The non-adjustable head restraints/ headrests have a single locking notch to
secure them to the seat frame.
• Proper Adjustment: – For the adjustable type, align the headrestraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
– If your ear position is still higher than the recommended alignment, place the head
restraint/headrest at the highest
position.
• If the head restraint/headrest has been re- moved, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
LRS2403LRS2300
1-8Safety-Seats, seat belts and supplemental restraint system

• Grasp the shoulder belt and pull forwardquickly. The retractor should lock and re-
strict further belt movement.
If the retractor does not lock during this
check, get the system checked. It is recom-
mended that you visit an INFINITI retailer for
this service, or to learn more about seat belt
operation.
Shoulder belt height adjustment
(front seats)
The shoulder belt anchor height should be
adjusted to the position best for you. For
additional information, see “Precautions on
seat belt usage” (P. 1-12).
To adjust, push the button and then move the
shoulder belt anchor to the desired position
so that the belt passes over the center of the
shoulder. The belt should be away from your
face and neck, but not falling off of your
shoulder. Release the adjustment button to
lock the shoulder belt anchor into position.
WARNING
• After adjustment, release the adjust-
ment button and try to move the shoul-
der belt anchor up and down to make
sure it is securely fixed in position.
• The shoulder belt anchor height should
be adjusted to the position best for you.
Failure to do so may reduce the effec-
tiveness of the entire restraint system
and increase the chance or severity of
injury in an accident.
• The shoulder belt should rest on the
middle of the shoulder. It must not rest
against the neck.
• Be sure that the seat belt is not twisted
in any way.
• Be sure that the shoulder belt anchor is
secured by trying to move the shoulder
belt anchor up and down after
adjustment.
SSS0896
AShoulder belt height adjust button
1-18Safety-Seats, seat belts and supplemental restraint system

“Forward-facing child restraint in-
stallation using the seat belts”
(P. 1-34).
– Even with the INFINITI Advanced Air
Bag System, never install a rear-
facing child restraint in the front seat.
An inflating air bag could seriously in-
jure or kill a child. A rear-facing child
restraint must only be used in the rear
seat.
– Be sure to purchase a child restraint
that will fit the child and vehicle.
Some child restraints may not fit
properly in your vehicle.
– Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage
the child restraint anchorages. The
child restraint will not be properly in-
stalled using the damaged anchorage,
and a child could be seriously injured
or killed in a collision.
– Never use the anchor points for adult
seat belts, or other items. –
A child restraint with a top tether
strap should not be used in the front
passenger seat.
– Keep seatbacks as upright as possible
after fitting the child restraint.
– Infants and children should always be
placed in an appropriate child re-
straint while in the vehicle.
• When the child restraint is not in use,
keep it secured with the LATCH system
or a seat belt. In a sudden stop or colli-
sion, loose objects can injure occupants
or damage the vehicle.
CAUTION
A child restraint in a closed vehicle can be-
come very hot. Check the seating surface
and buckles before placing a child in the
child restraint.
This vehicle is equipped with a universal child
restraint anchor system, referred to as the
LATCH (Lower Anchors and Tethers for
CHildren) system. Some child restraints in-
clude rigid or webbing-mounted attachments
that can be connected to these anchors. For
additional information, see “LATCH (Lower
Anchors and Tethers for CHildren) system”
(P. 1-24). If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
Several manufacturers offer child restraints
for infants and children of various sizes.
When selecting any child restraint, keep the
following points in mind:
• Choose only a restraint with a label certify-
ing that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
• Check the child restraint in your vehicle to be sure it is compatible with the vehicle's
seat and seat belt system.
• If the child restraint is compatible with your vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child's height and weight.
Always follow all recommended
procedures.
• If the combined weight of the child and child restraint is less than 65 lbs. (29.5 kg),
you may use either the LATCH anchors or
the seat belt to install the child restraint (not
both at the same time).
• If the combined weight of the child and child restraint is greater than 65 lbs. (29.5
kg), use the vehicle's seat belt (not the lower
anchors) to install the child restraint.
Safety-Seats, seat belts and supplemental restraint system1-23

Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in
mind:
• Choose only a booster seat with a labelcertifying that it complies with Federal Mo-
tor Vehicle Safety Standard 213 or Cana-
dian Motor Vehicle Safety Standard 213.
• Check the booster seat in your vehicle to be sure it is compatible with the vehicle’s seat
and seat belt system. • Make sure the child’s head will be properly
supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat is chosen, the vehicle
seatback must be at or above the center of
the child’s ears. If the seatback is lower than
the center of the child’s ears, a high back
booster seat should be used.
• If the booster seat is compatible with your vehicle, place the child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with the
child. Always follow all recommended
procedures. All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is be-
ing operated.
The instructions in this section apply to
booster seat installation in the rear seats or
the front passenger seat.
LRS2479
A. Low back booster seat
B. High back booster seat
LRS0453LRS0464
Safety-Seats, seat belts and supplemental restraint system1-39
