CAN SYSTEM (TYPE 3)
LAN-99
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
Case 1
Check harness between TCM and driver seat control unit. Refer to LAN-115, "Circuit Check Between TCM
and Driver Seat Control Unit" .
PKIA8069E
PKIA8156E

LAN-100
[CAN]
CAN SYSTEM (TYPE 3)
Revision: August 20072004 QX56

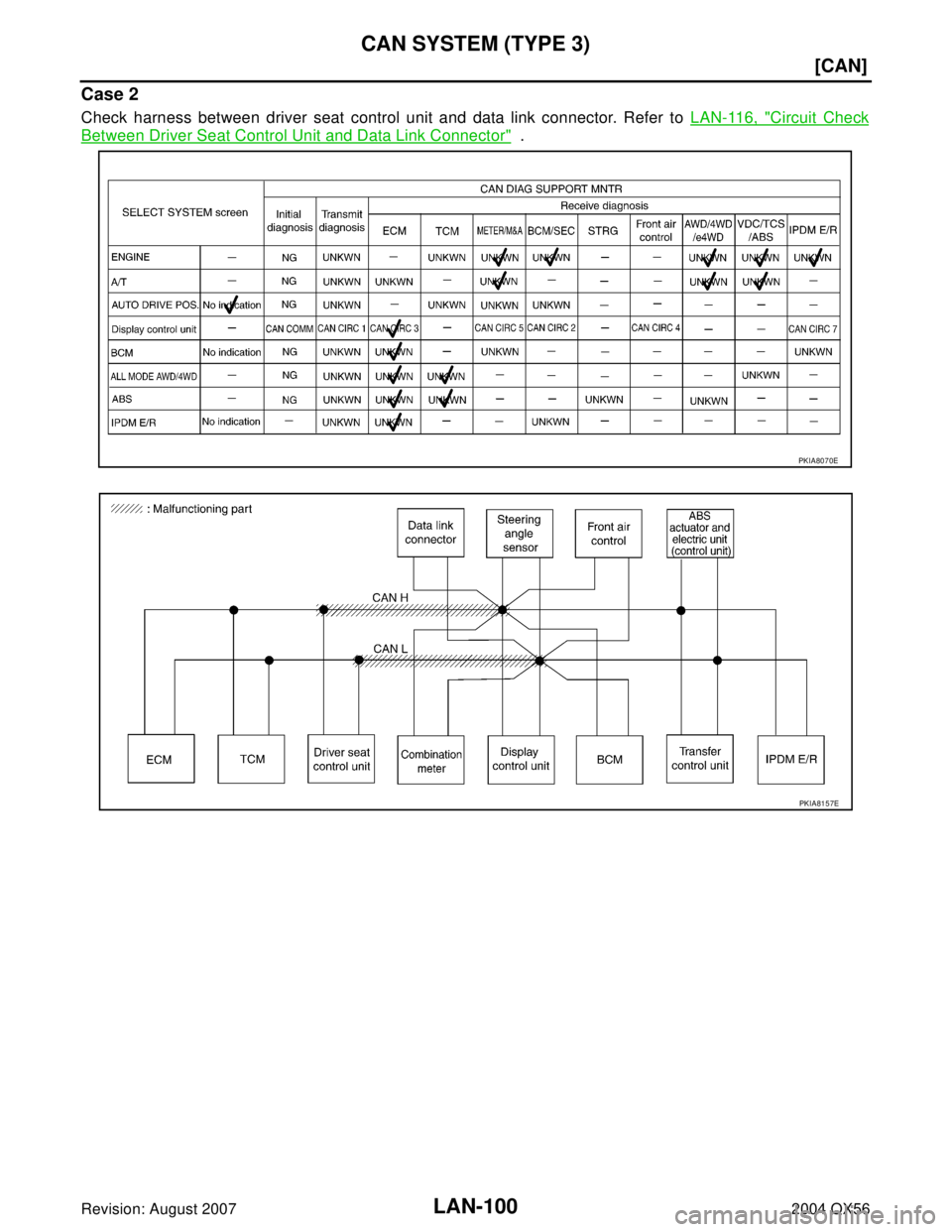

Case 2
Check harness between driver seat control unit and data link connector. Refer to LAN-116, "Circuit Check
Between Driver Seat Control Unit and Data Link Connector" .
PKIA8070E
PKIA8157E

LAN-104
[CAN]
CAN SYSTEM (TYPE 3)
Revision: August 20072004 QX56

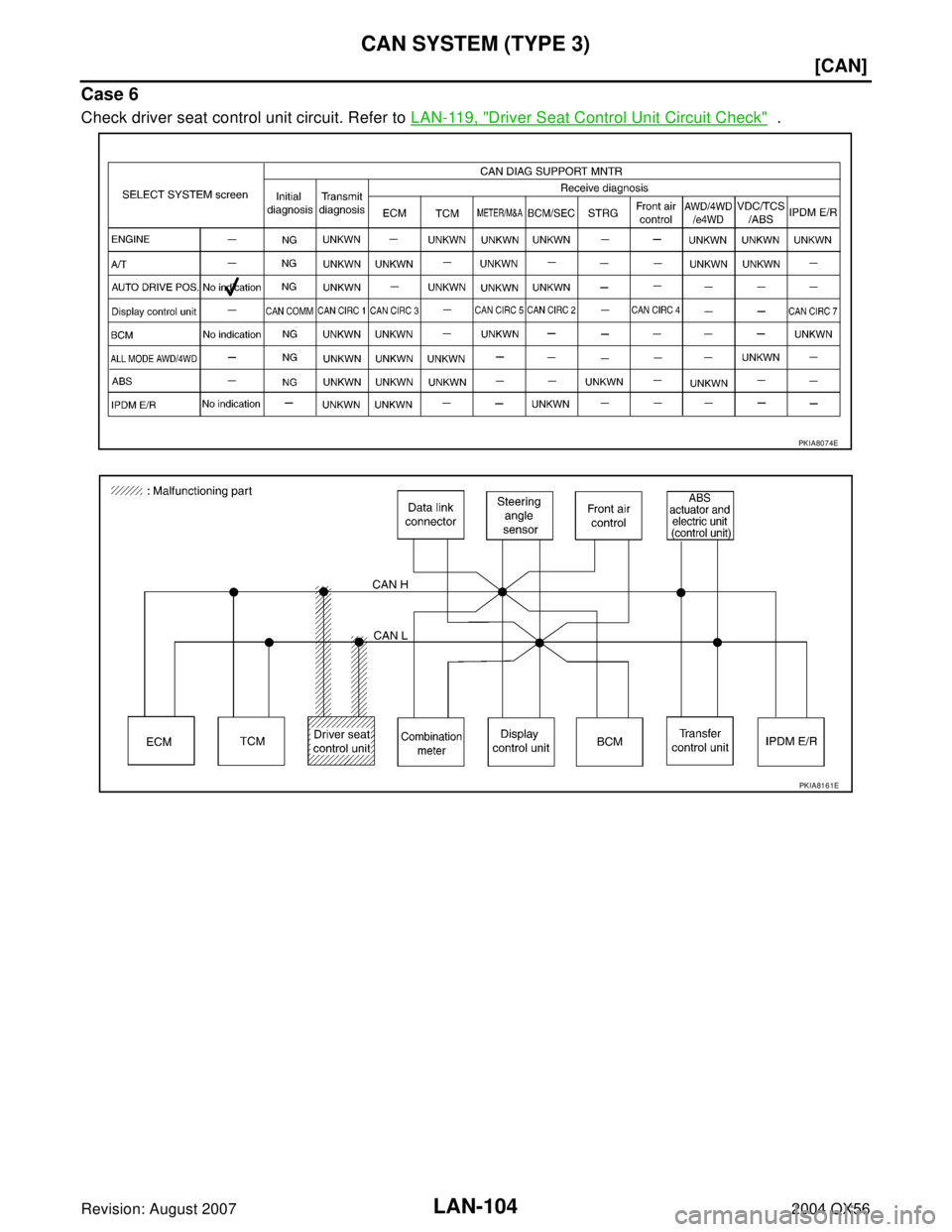

Case 6
Check driver seat control unit circuit. Refer to LAN-119, "Driver Seat Control Unit Circuit Check" .
PKIA8074E
PKIA8161E

CAN SYSTEM (TYPE 3)
LAN-115
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Case 18
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-124, "IPDM E/R Ignition Relay
Circuit Check" .
Circuit Check Between TCM and Driver Seat Control UnitUKS0019W
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector F33
–Harness connector E19
–Harness connector E34
–Harness connector B40
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector and harness connector F33.
2. Check continuity between A/T assembly harness connector F9
terminals 3 (W), 8 (R) and harness connector F33 terminals 12
(W), 11 (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
PKIA8086E
3 (W) - 12 (W) : Continuity should exist.
8 (R) - 11 (R) : Continuity should exist.
PKIA6831E

LAN-116
[CAN]
CAN SYSTEM (TYPE 3)
Revision: August 20072004 QX56
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector E34.
2. Check continuity between harness connector E19 terminals 12
(W), 11 (R) and harness connector E34 terminals 24 (W), 23 (R).
OK or NG
OK >> GO TO 4.
NG >> Repair harness.
4. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check continuity between harness connector B40 terminals 24
(W), 23 (R) and driver seat control unit harness connector P2
terminals 3 (W), 19 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-95, "
Work Flow" .
NG >> Repair harness.
Circuit Check Between Driver Seat Control Unit and Data Link ConnectorUKS0019X
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector B69
–Harness connector M40
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector and harness connector B69.
2. Check continuity between driver seat control unit harness con-
nector P2 terminals 3 (W), 19 (R) and harness connector B69
terminals 51J (W), 52J (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.12 (W) - 24 (W) : Continuity should exist.
11 (R) - 23 (R) : Continuity should exist.
PKIA6832E
24 (W) - 3 (W) : Continuity should exist.
23 (R) - 19 (R) : Continuity should exist.
PKIA6840E
3 (W) - 51J (W) : Continuity should exist.
19 (R) - 52J (R) : Continuity should exist.
PKIA6841E

CAN SYSTEM (TYPE 3)
LAN-119
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Driver Seat Control Unit Circuit CheckUKS001A1
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control unit side and
harness side).
–Driver seat control unit connector
–Harness connector P1
–Harness connector B37
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check resistance between driver seat control unit harness con-
nector P2 terminals 3 (W) and 19 (R).
OK or NG
OK >> Replace driver seat control unit.
NG >> Repair harness between driver seat control unit and har-
ness connector B69.
Combination Meter Circuit CheckUKS001A2
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of combination meter for damage, bend and loose connection (meter side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect combination meter connector.
2. Check resistance between combination meter harness connec-
tor M24 terminals 11 (W) and 12 (R).
OK or NG
OK >> Replace combination meter.
NG >> Repair harness between combination meter and data
link connector. 3 (W) - 19 (R) : Approx. 54 - 66Ω
PKIA6842E
11 (W) - 12 (R) : Approx. 54 - 66Ω
PKIA6837E

LAN-124
[CAN]
CAN SYSTEM (TYPE 3)
Revision: August 20072004 QX56
CAN Communication Circuit CheckUKS001AB
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect the following module and control unit connectors and check terminals for deformation, discon-
nection, looseness or damage.
–ECM
–A/T assembly
–Driver seat control unit
–Combination meter
–Display control unit
–BCM
–Steering angle sensor
–Front air control
–Transfer control unit
–ABS actuator and electric unit (control unit)
–IPDM E/R
OK or NG
OK >> GO TO 2.
NG >> Repair or replace as necessary.
2. CHECK HARNESS FOR SHORT CIRCUIT
With all module and control unit connectors disconnected, check
continuity between data link connector M22 terminals 6 (W) and 14
(R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M22 terminals 6 (W),
14 (R) and ground.
OK or NG
OK >> Check ECM and IPDM E/R. Refer to LAN-125, "ECM/
IPDM E/R INTERNAL CIRCUIT INSPECTION" .
NG >> Repair harness.
IPDM E/R Ignition Relay Circuit CheckUKS001AC
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-27, "IPDM E/R Power/Ground Circuit Inspection" .

Ignition power supply circuit. Refer to PG-13, "IGNITION POWER SUPPLY — IGNITION SW. IN ON
AND/OR START" . 6 (W) - 14 (R) : Continuity should not exist.
PKIA2077E
6 (W) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
PKIA2079E

CAN SYSTEM (TYPE 4)
LAN-137
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56

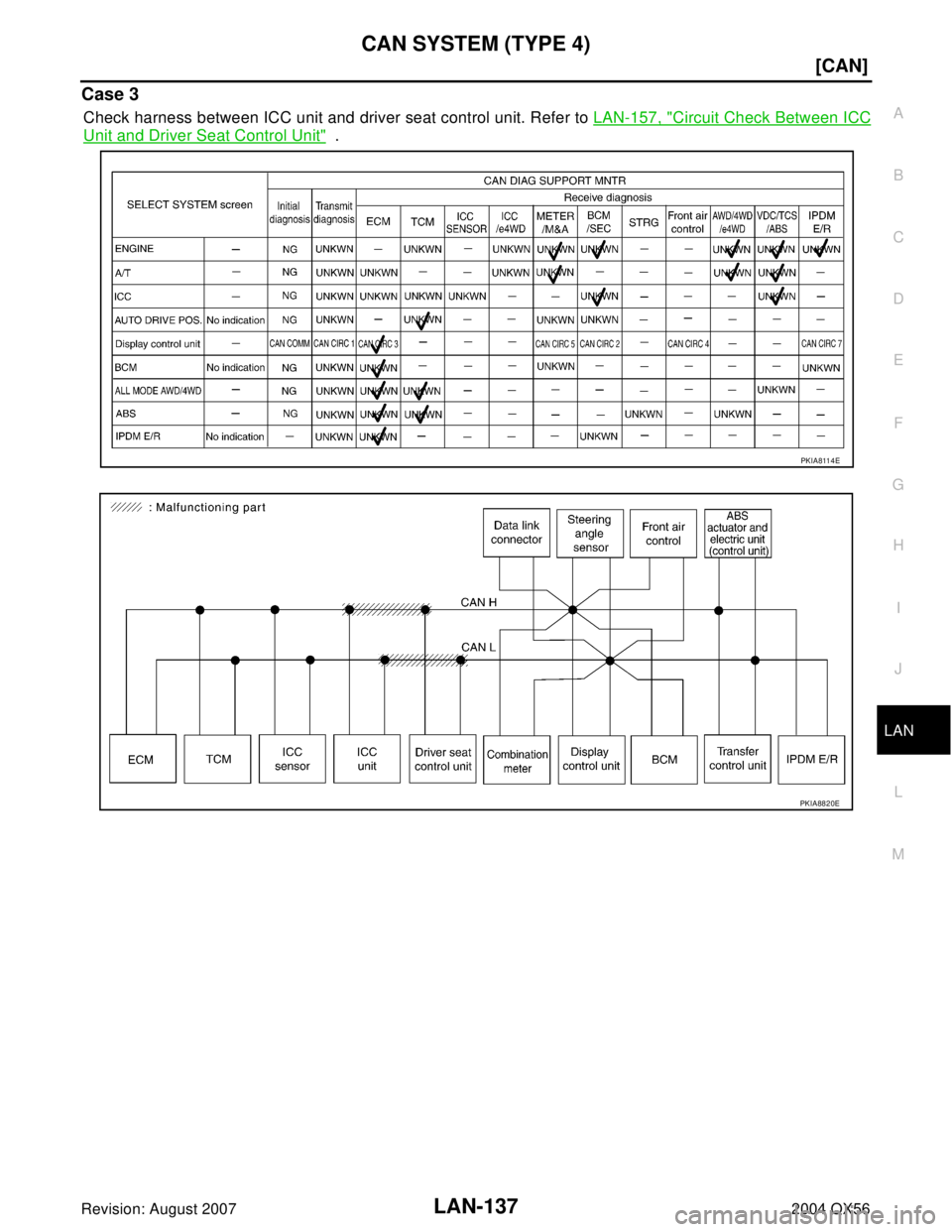

Case 3
Check harness between ICC unit and driver seat control unit. Refer to LAN-157, "Circuit Check Between ICC
Unit and Driver Seat Control Unit" .
PKIA8114E
PKIA8820E

LAN-138
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56

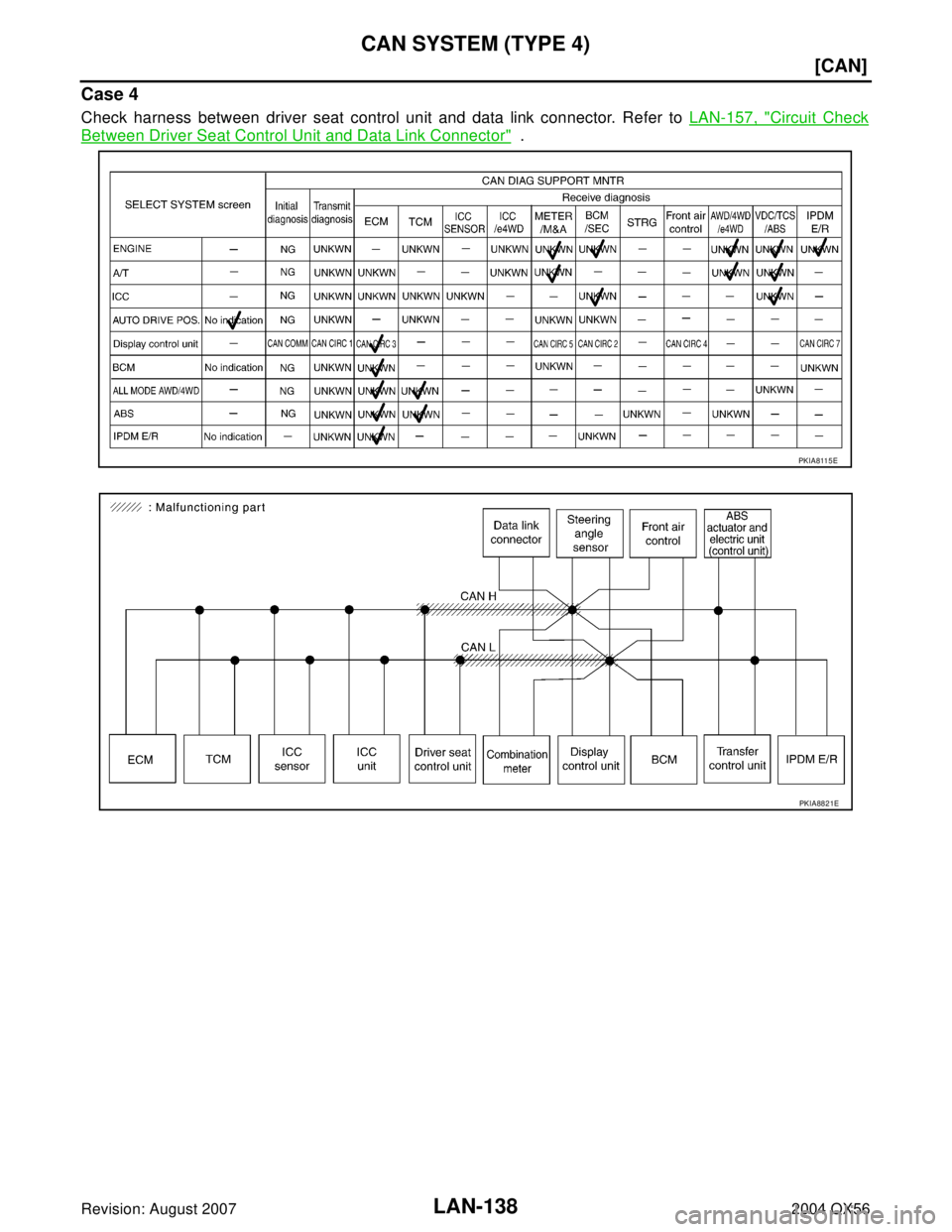

Case 4
Check harness between driver seat control unit and data link connector. Refer to LAN-157, "Circuit Check
Between Driver Seat Control Unit and Data Link Connector" .
PKIA8115E
PKIA8821E

LAN-144
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56

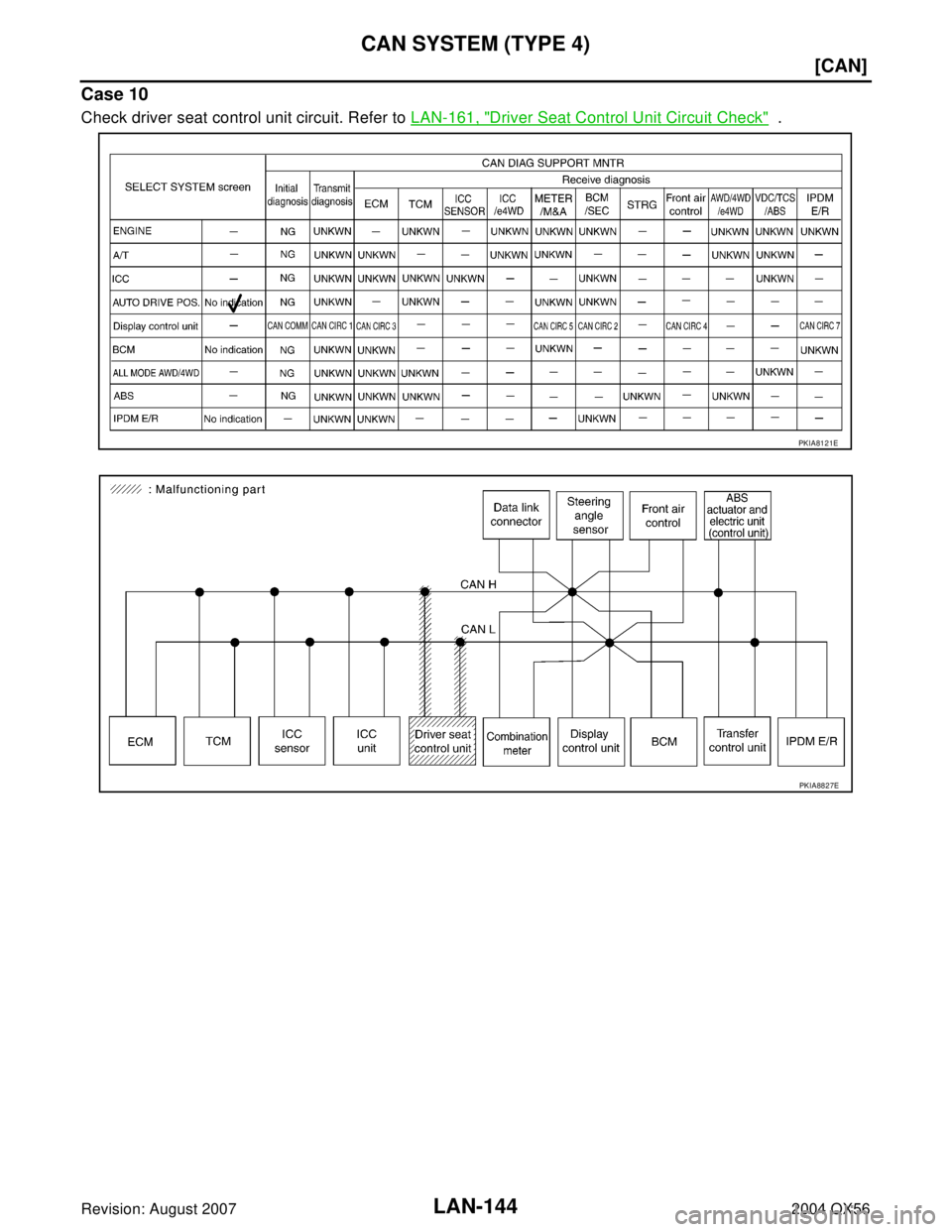

Case 10
Check driver seat control unit circuit. Refer to LAN-161, "Driver Seat Control Unit Circuit Check" .
PKIA8121E
PKIA8827E
