seat INFINITI QX56 2004 Factory Service Manual

LAN-40
[CAN]
CAN SYSTEM (TYPE 1)
Revision: August 20072004 QX56
Case 17
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-49, "IPDM E/R Ignition Relay Cir-
cuit Check" .
Circuit Check Between TCM and Driver Seat Control UnitUKS0018I
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector F33
–Harness connector E19
–Harness connector E34
–Harness connector B40
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector and harness connector F33.
2. Check continuity between A/T assembly harness connector F9
terminals 3 (W), 8 (R) and harness connector F33 terminals 12
(W), 11 (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
PKIA8066E
3 (W) - 12 (W) : Continuity should exist.
8 (R) - 11 (R) : Continuity should exist.
PKIA6831E

CAN SYSTEM (TYPE 1)
LAN-41
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector E34.
2. Check continuity between harness connector E19 terminals 12
(W), 11 (R) and harness connector E34 terminals 24 (W), 23 (R).
OK or NG
OK >> GO TO 4.
NG >> Repair harness.
4. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check continuity between harness connector B40 terminals 24
(W), 23 (R) and driver seat control unit harness connector P2
terminals 3 (W), 19 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-21, "
Work Flow" .
NG >> Repair harness.
Circuit Check Between Driver Seat Control Unit and Data Link ConnectorUKS0018J
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connector for damage, bend and loose connection (connector side and
harness side).
–Harness connector B69
–Harness connector M40
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector and harness connector B69.
2. Check continuity between driver seat control unit harness con-
nector P2 terminals 3 (W), 19 (R) and harness connector B69
terminals 51J (W), 52J (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.12 (W) - 24 (W) : Continuity should exist.
11 (R) - 23 (R) : Continuity should exist.
PKIA6832E
24 (W) - 3 (W) : Continuity should exist.
23 (R) - 19 (R) : Continuity should exist.
PKIA6840E
3 (W) - 51J (W) : Continuity should exist.
19 (R) - 52J (R) : Continuity should exist.
PKIA6841E

LAN-44
[CAN]
CAN SYSTEM (TYPE 1)
Revision: August 20072004 QX56
Driver Seat Control Unit Circuit CheckUKS0018N
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control unit side and
harness side).
–Driver seat control unit connector
–Harness connector P1
–Harness connector B37
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check resistance between driver seat control unit harness con-
nector P2 terminals 3 (W) and 19 (R).
OK or NG
OK >> Replace driver seat control unit.
NG >> Repair harness between driver seat control unit and har-
ness connector B69.
Combination Meter Circuit CheckUKS0018O
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of combination meter for damage, bend and loose connection (meter side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect combination meter connector.
2. Check resistance between combination meter harness connec-
tor M24 terminals 11 (W) and 12 (R).
OK or NG
OK >> Replace combination meter.
NG >> Repair harness between combination meter and data
link connector. 3 (W) - 19 (R) : Approx. 54 - 66Ω
PKIA6842E
11 (W) - 12 (R) : Approx. 54 - 66Ω
PKIA6837E

LAN-48
[CAN]
CAN SYSTEM (TYPE 1)
Revision: August 20072004 QX56
IPDM E/R Circuit CheckUKS0018V
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of IPDM E/R for damage, bend and loose connection (control module side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector E122
terminals 39 (W) and 40 (R).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and harness con-
nector E152.
CAN Communication Circuit CheckUKS0018W
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect the following module and control unit connectors and check terminals for deformation, discon-
nection, looseness or damage.
–ECM
–A/T assembly
–Driver seat control unit
–Combination meter
–Display control unit
–BCM
–Steering angle sensor
–Front air control
–ABS actuator and electric unit (control unit)
–IPDM E/R
OK or NG
OK >> GO TO 2.
NG >> Repair or replace as necessary.39 (W) - 40 (R) : Approx. 108 - 132Ω
PKIA8141E

CAN SYSTEM (TYPE 2)
LAN-61
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56

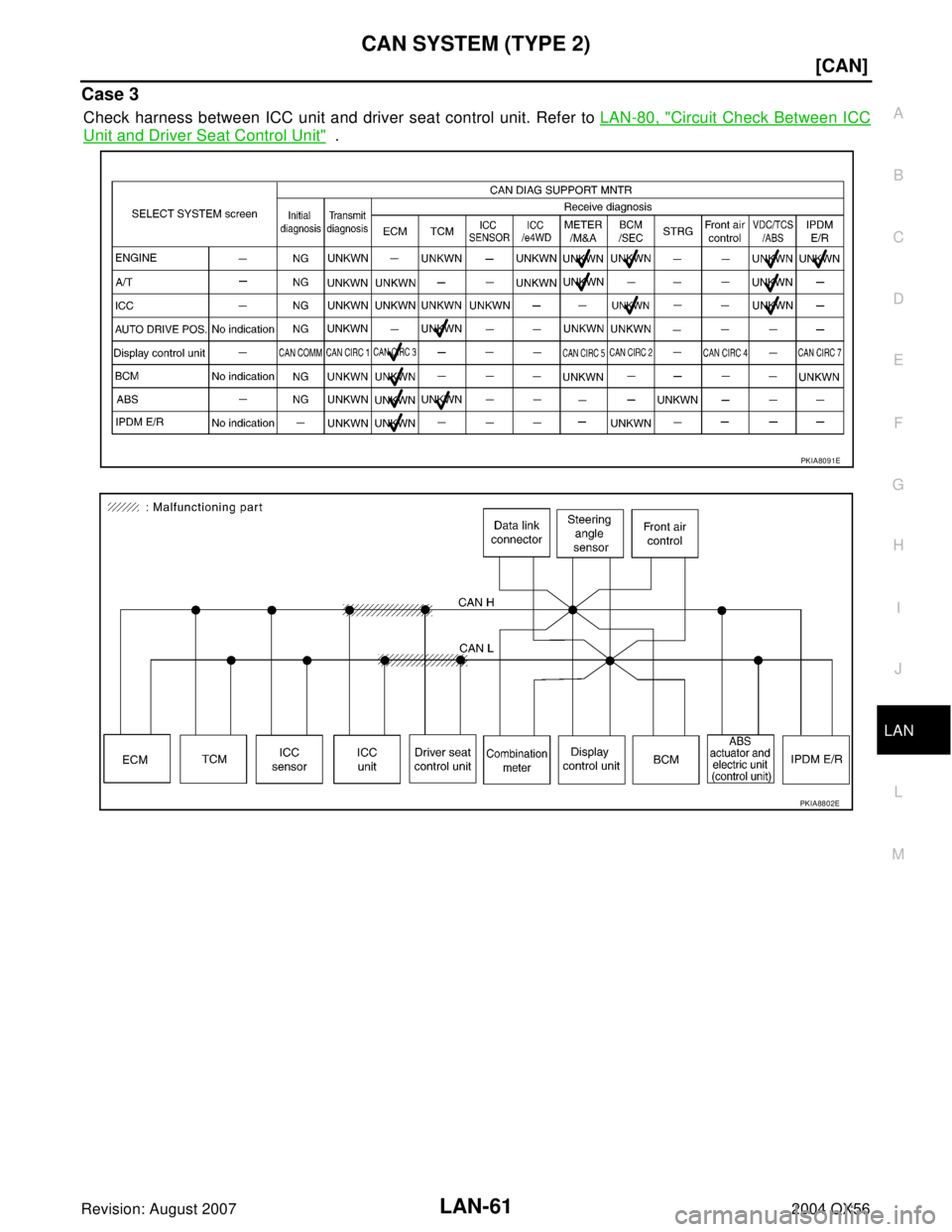

Case 3
Check harness between ICC unit and driver seat control unit. Refer to LAN-80, "Circuit Check Between ICC
Unit and Driver Seat Control Unit" .
PKIA8091E
PKIA8802E

LAN-62
[CAN]
CAN SYSTEM (TYPE 2)
Revision: August 20072004 QX56

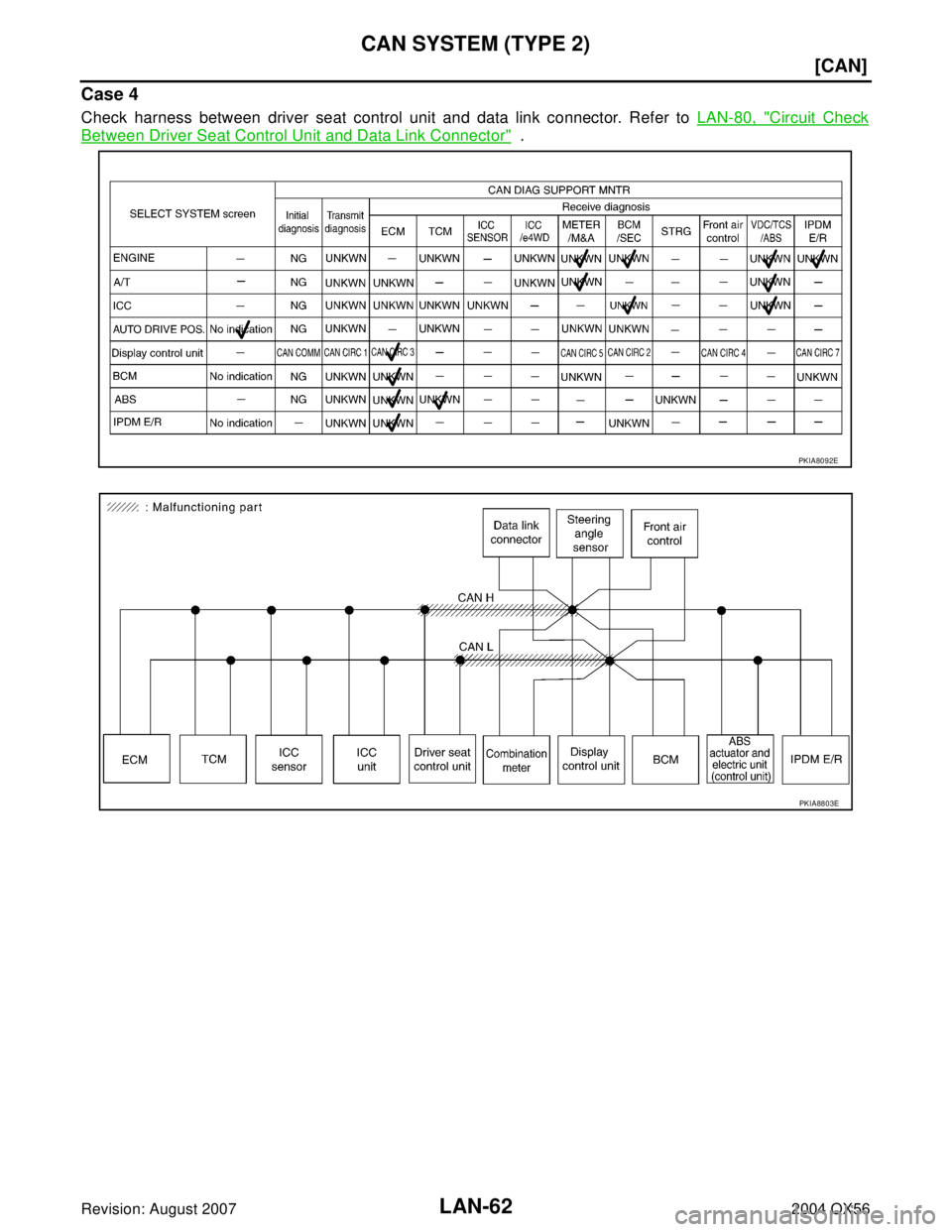

Case 4
Check harness between driver seat control unit and data link connector. Refer to LAN-80, "Circuit Check
Between Driver Seat Control Unit and Data Link Connector" .
PKIA8092E
PKIA8803E

LAN-68
[CAN]
CAN SYSTEM (TYPE 2)
Revision: August 20072004 QX56

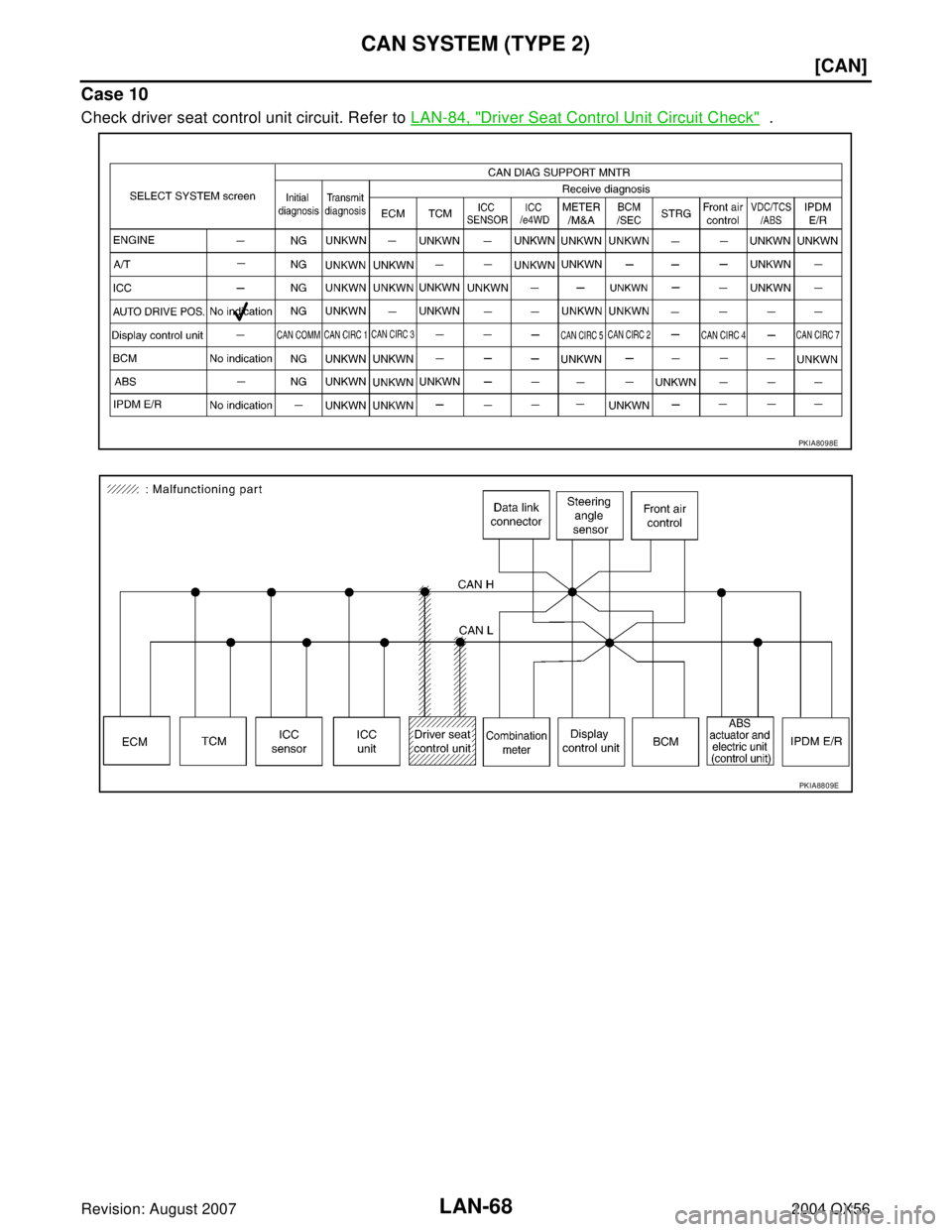

Case 10
Check driver seat control unit circuit. Refer to LAN-84, "Driver Seat Control Unit Circuit Check" .
PKIA8098E
PKIA8809E

LAN-80
[CAN]
CAN SYSTEM (TYPE 2)
Revision: August 20072004 QX56
Circuit Check Between ICC Unit and Driver Seat Control UnitUKS001PP
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect ICC unit connector and driver seat control unit connector.
4. Check continuity between ICC unit connector B13 terminals 14
(W), 5 (R) and driver seat control unit connector P2 terminals 3
(W), 19 (R).
OK or NG
OK >> Connect all connectors and diagnose again. Refer to
LAN-55, "
Work Flow" .
NG >> Repair harness.
Circuit Check Between Driver Seat Control Unit and Data Link ConnectorUKS001N9
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector B69
–Harness connector M40
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector and harness connector B69.
2. Check continuity between driver seat control unit harness con-
nector P2 terminals 3 (W), 19 (R) and harness connector B69
terminals 51J (W), 52J (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.14 (W) - 3 (W) : Continuity should exist.
5 (R) - 19 (R) : Continuity should exist.
PKIA8139E
3 (W) - 51J (W) : Continuity should exist.
19 (R) - 52J (R) : Continuity should exist.
PKIA6841E

LAN-84
[CAN]
CAN SYSTEM (TYPE 2)
Revision: August 20072004 QX56
Driver Seat Control Unit Circuit CheckUKS001ND
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control unit side and
harness side).
–Driver seat control unit connector
–Harness connector P1
–Harness connector B37
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check resistance between driver seat control unit harness con-
nector P2 terminals 3 (W) and 19 (R).
OK or NG
OK >> Replace driver seat control unit.
NG >> Repair harness between driver seat control unit and har-
ness connector B69.
Combination Meter Circuit CheckUKS001NE
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of combination meter for damage, bend and loose connection (meter side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect combination meter connector.
2. Check resistance between combination meter harness connec-
tor M24 terminals 11 (W) and 12 (R).
OK or NG
OK >> Replace combination meter.
NG >> Repair harness between combination meter and data
link connector. 3 (W) - 19 (R) : Approx. 54 - 66Ω
PKIA6842E
11 (W) - 12 (R) : Approx. 54 - 66Ω
PKIA6837E

LAN-88
[CAN]
CAN SYSTEM (TYPE 2)
Revision: August 20072004 QX56
IPDM E/R Circuit CheckUKS001NL
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of IPDM E/R for damage, bend and loose connection (control module side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector E122
terminals 39 (W) and 40 (R).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and harness con-
nector E152.
CAN Communication Circuit CheckUKS001NM
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect the following module and control unit connectors and check terminals for deformation, discon-
nection, looseness or damage.
–ECM
–A/T assembly
–ICC sensor
–ICC unit
–Driver seat control unit
–Combination meter
–Display control unit
–BCM
–Steering angle sensor
–Front air control
–ABS actuator and electric unit (control unit)
–IPDM E/R
OK or NG
OK >> GO TO 2.
NG >> Repair or replace as necessary.39 (W) - 40 (R) : Approx. 108 - 132Ω
PKIA8141E
