INFINITI QX56 2004 Factory Service Manual

EC-630Revision: August 2007
ASCD INDICATOR
2004 QX56
Diagnostic ProcedureUBS00HDW
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK DTC
Check that DTC U1000 or U1001 is not displayed.
OK or NG
OK >> GO TO 3.
NG >> Perform trouble diagnosis for DTC U1000, U1001. Refer to EC-135, "
DTC U1000, U1001 CAN
COMMUNICATION LINE" .
3. CHECK DTC WITH COMBINATION METER
Refer to DI-5, "
COMBINATION METERS" .
OK or NG
OK >> GO TO 4.
NG >> Go to DI-5, "
COMBINATION METERS" .
4. CHECK INTERMITTENT INCIDENT
Refer to EC-127, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
ASCD INDICATOR CONDITION SPECIFICATION
CRUISE LAMP

Ignition switch: ON
ON/OFF(MAIN) switch: Pressed at
the 1st time → at the 2nd timeON → OFF
SET LAMP

ON/OFF(MAIN) switch: ON

When vehicle speed is between
40 km/h (25 MPH) and 144 km/h
(89 MPH)

COAST/SET switch: Pressed ON

COAST/SET switch: Released OFF

MIL AND DATA LINK CONNECTOR
EC-631
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
MIL AND DATA LINK CONNECTORPFP:24814

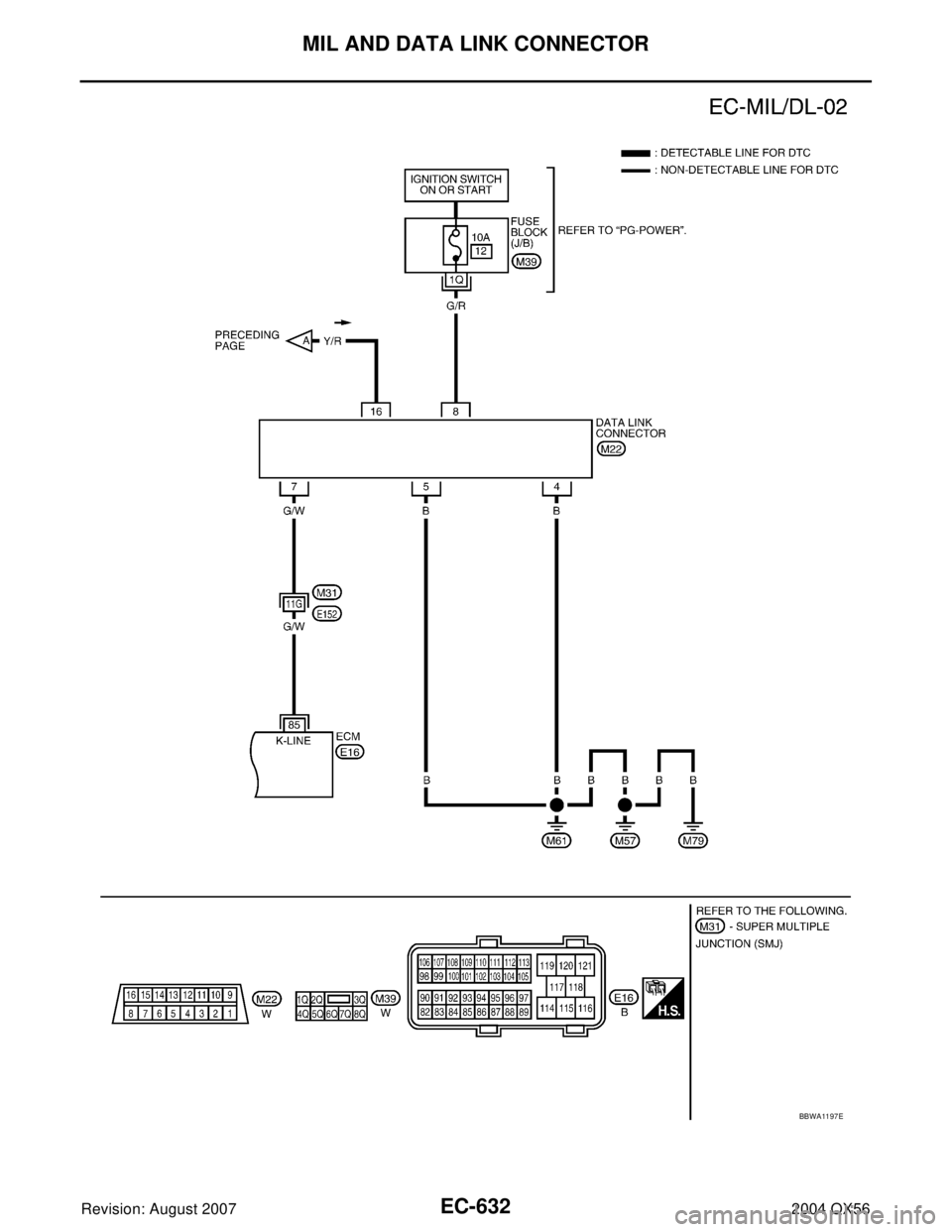

Wiring DiagramUBS00HDX
BBWA1997E

EC-632Revision: August 2007
MIL AND DATA LINK CONNECTOR
2004 QX56
BBWA11 97 E

EVAPORATIVE EMISSION SYSTEM
EC-633
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionUBS00HDY
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating and
idling.
PBIB1631E

EC-634Revision: August 2007
EVAPORATIVE EMISSION SYSTEM
2004 QX56

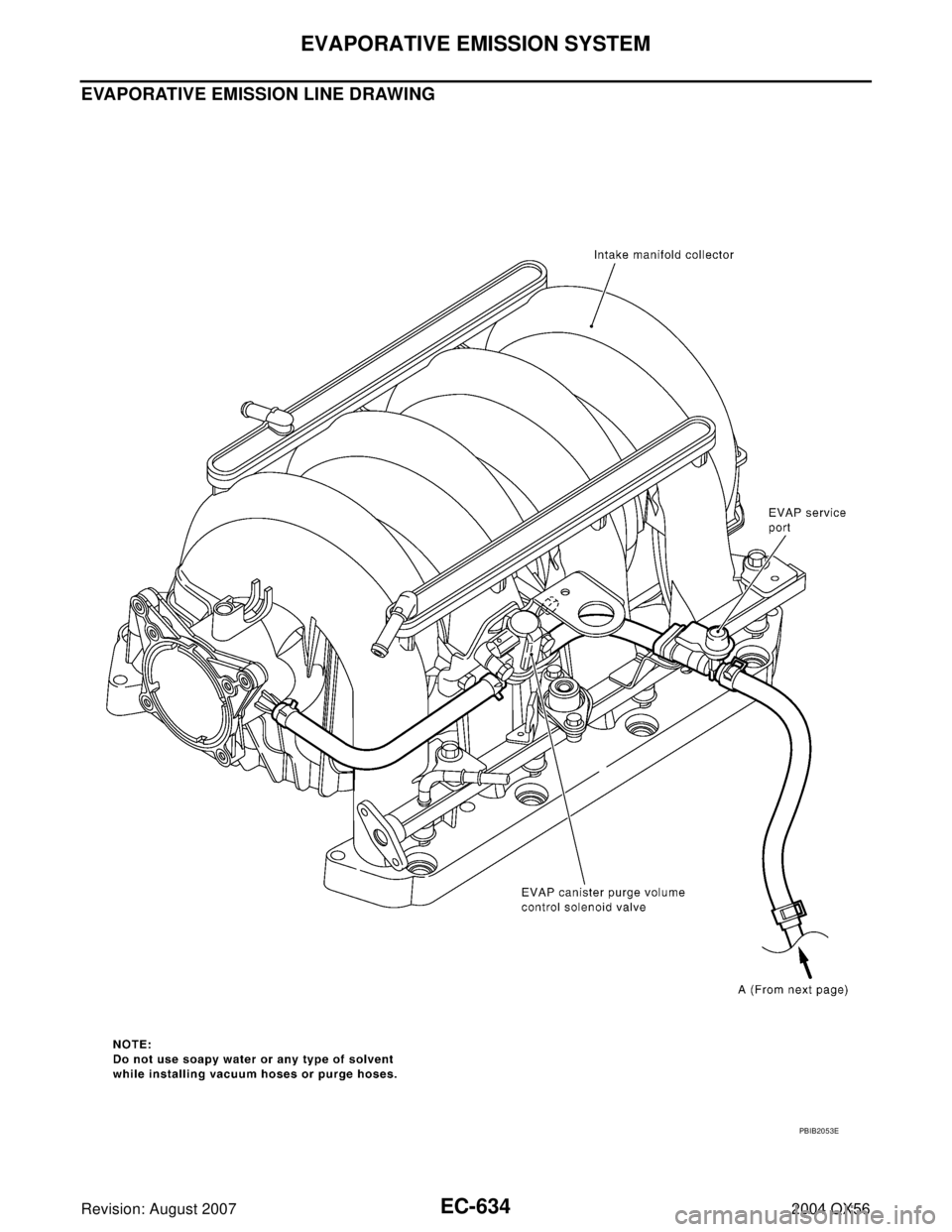

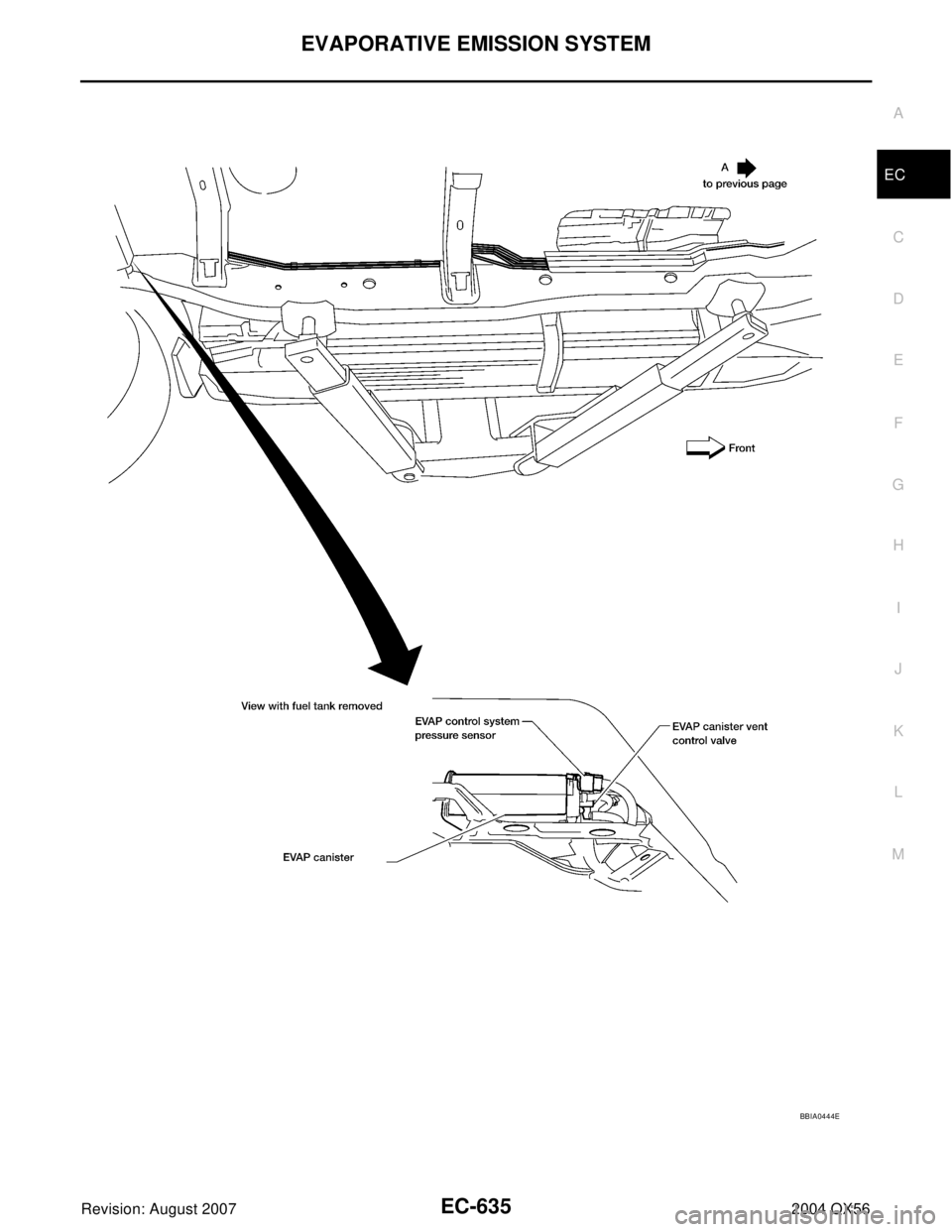

EVAPORATIVE EMISSION LINE DRAWING
PBIB2053E

EVAPORATIVE EMISSION SYSTEM
EC-635
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
BBIA0444E

EC-636Revision: August 2007
EVAPORATIVE EMISSION SYSTEM
2004 QX56
Component InspectionUBS00HDZ
EVAP CANISTER
Check EVAP canister as follows:
1. Block port B .
2. Blow air into port A and check that it flows freely out of port C .
3. Release blocked port B .
4. Apply vacuum pressure to port B and check that vacuum pres-
sure exists at the ports A and C .
5. Block port A and B .
6. Apply pressure to port C and check that there is no leakage.
FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FULLER CAP)
1. Wipe clean valve housing.
2. Check valve opening pressure and vacuum.
3. If out of specification, replace fuel filler cap as an assembly.
CAUTION:
Use only a genuine fuel filler cap as a replacement. If an incor-
rect fuel filler cap is used, the MIL may come on.
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EC-285 .
FUEL TANK TEMPERATURE SENSOR
Refer to EC-225 .
EVAP CANISTER VENT CONTROL VALVE
Refer to EC-292 .
EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-299 .
BBIA0352E
SEF 4 45 Y
Pressure:
15.3 - 20.0 kPa (0.156 - 0.204 kg/cm2 , 2.22
- 2.90 psi)
Vac uu m :
−6.0 to −3.3 kPa (−0.061 to −0.034 kg/cm
2
, −0.87 to −0.48 psi)
SEF 9 43 S

EVAPORATIVE EMISSION SYSTEM
EC-637
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
EVAP SERVICE PORT
Positive pressure is delivered to the EVAP system through the EVAP
service port. If fuel vapor leakage in the EVAP system occurs, use a
leak detector to locate the leak.
Removal and InstallationUBS00HE0
EVAP CANISTER
Tighten EVAP canister as shown in the figure.
EVAP CANISTER VENT CONTROL VALVE
1. Turn EVAP canister vent control valve counterclockwise.
2. Remove the EVAP canister vent control valve.
Always replace O-ring with a new one.
How to Detect Fuel Vapor LeakageUBS00HE1
CAUTION:

Do not use compressed air or a high pressure pump.

Do not exceed 4.12 kPa (0.042 kg/cm2 , 0.6 psi) of pressure in EVAP system.
NOTE:

Do not start engine.

Improper installation of EVAP service port adapter to the EVAP service port may cause a leak.
SEF 4 62 UA
BBIA0349E
BBIA0350E

EC-638Revision: August 2007
EVAPORATIVE EMISSION SYSTEM
2004 QX56
WITH CONSULT-II
1. Attach the EVAP service port adapter securely to the EVAP service port.
2. Also attach the pressure pump and hose to the EVAP service port adapter.
3. Turn ignition switch ON.
4. Select the “EVAP SYSTEM CLOSE” of “WORK SUPPORT
MODE” with CONSULT-II.
5. Touch “START”. A bar graph (Pressure indicating display) will
appear on the screen.
6. Apply positive pressure to the EVAP system until the pressure
indicator reaches the middle of the bar graph.
7. Remove EVAP service port adapter and hose with pressure
pump.
8. Locate the leak using a leak detector. Refer to EC-634, "
EVAP-
ORATIVE EMISSION LINE DRAWING" .
WITHOUT CONSULT-II
1. Attach the EVAP service port adapter securely to the EVAP ser-
vice port.
2. Also attach the pressure pump with pressure gauge to the EVAP
service port adapter.
PEF 8 38 U
PEF 9 17 U
SEF 2 00 U
SEF 4 62 UA

EVAPORATIVE EMISSION SYSTEM
EC-639
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
3. Apply battery voltage to between the terminals of EVAP canister vent control valve to make a closed
EVAP system.
4. To locate the leak, deliver positive pressure to the EVAP system until pressure gauge points reach 1.38 to
2.76 kPa (0.014 to 0.028 kg/cm
2 , 0.2 to 0.4 psi).
5. Remove EVAP service port adapter and hose with pressure pump.
6. Locate the leak using a leak detector. Refer to EC-634, "
EVAPORATIVE EMISSION LINE DRAWING" .
BBIA0443E
