Back up INFINITI QX56 2004 Factory Service Manual

SE-64
AUTOMATIC DRIVE POSITIONER
Revision: August 20072004 QX56
Steering Wheel Tilt Sensor Circuit InspectionEIS0038M
1. CHECK FUNCTION
With CONSULT-II
Operate the pedal adjusting switch with “TILT SEN” on the DATA
MONITOR to make sure the voltage changes.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between automatic drive positioner connector
and ground.
OK or NG
OK >> Steering wheel tilt sensor circuit is OK.
NG >> GO TO 2.
Monitor item [OPERA-
TION or UNIT]Contents
TILT
SEN“V”The tilt position (voltage) judged from the tilt sensor sig-
nal is displayed.
PIIA0295E
ConnectorTerminals
(Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
M33 7 (Y/BR) GroundPedal
front end position0.6
Pedal
back end position4.5
LIIA0485E

SE-66
AUTOMATIC DRIVE POSITIONER
Revision: August 20072004 QX56
Sliding Switch Circuit InspectionEIS002YX
1. CHECK FUNCTION
With CONSULT-II
With “SLIDE SW-FR, SLIDE SW-RR” on the DATA MONITOR, oper-
ate the sliding switch to check ON/OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between driver seat control unit connector and ground.
OK or NG
OK >> Sliding switch circuit is OK.
NG >> GO TO 2.
2. CHECK SLIDING SWITCH CIRCUIT HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and power seat switch LH connector.
2. Check continuity between driver seat control unit connector P2
terminals 11, 26 and power seat switch LH connector P8 termi-
nals 1, 7.
3. Check continuity between driver seat control unit connector P2
terminals 11, 26 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
Monitor item [OPER-
ATION or UNIT]Contents
SLIDE SW–
FR"ON/
OFF"ON / OFF status judged from the sliding switch (FR) sig-
nal is displayed.
SLIDE SW–
RR"ON/
OFF"ON / OFF status judged from the sliding switch (RR) sig-
nal is displayed.
PIIA0313E
ConnectorTe r m i n a l
(Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
P211 (R/B)
GroundSliding switch ON
(BACKWARD oper-
ation)0
Other than above Battery voltage
26 (P/B)Sliding switch ON
(FORWARD opera-
tion)0
Other than above Battery voltage
PIIA4577E
11 (R/B) - 7 (R/B) : Continuity should exist.
26 (P/B) - 1 (P/B) : Continuity should exist.
11 (R/B) - Ground : Continuity should not exist.
26 (P/B) - Ground : Continuity should not exist.
LIIA1125E

AUTOMATIC DRIVE POSITIONER
SE-67
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56
3. CHECK SLIDING SWITCH
Check continuity between power seat switch LH as follows.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace power seat switch LH.
Reclining Switch InspectionEIS002YY
1. CHECK FUNCTION
With CONSULT-II
With “RECLN SW-FR, RECLN SW-RR” on the DATA MONITOR,
operate the reclining switch to check ON/OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between driver seat control unit connector and
ground.
OK or NG
OK >> Reclining switch circuit is OK.
NG >> GO TO 2.
Terminal
Condition Continuity
(+) (–)
7
3Sliding switch ON (BACKWARD operation) Yes
Other than above No
1Sliding switch ON (FORWARD operation) Yes
Other than above No
LIIA1126E
Monitor item [OPERA-
TION or UNIT]Contents
RECLN SW
–FR“ON/
OFF”ON/OFF status judged from the reclining switch (FR)
signal is displayed.
RECLN SW
–RR“ON/
OFF”ON/OFF status judged from the reclining switch (RR)
signal is displayed.
PIIA0313E
ConnectorTe r m i n a l s
(Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
P212 (O/B)
GroundReclining switch ON
(BACKWARD oper-
ation)0
Other than above Battery voltage
27 (G/B)Reclining switch ON
(FORWARD opera-
tion)0
Other than above Battery voltage
PIIA4580E

SE-68
AUTOMATIC DRIVE POSITIONER
Revision: August 20072004 QX56
2. CHECK RECLINING SWITCH CIRCUIT HARNESS CONTINUITY
1. Disconnect driver seat control unit and power seat switch LH.
2. Check continuity between driver seat control unit connector P2
terminals 12, 27 and power seat switch LH connector P8 termi-
nals 9, 10.
3. Check continuity between driver seat control unit connector P2
terminals 12, 27 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. RECLINING SWITCH INSPECTION
Check continuity between power seat switch LH as follows.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace power seat switch LH.12 (O/B) - 9 (O/B) : Continuity should exist.
27 (G/B) - 10 (G/B) : Continuity should exist.
12 (O/B) - Ground : Continuity should not exist.
27 (G/B) - Ground : Continuity should not exist.
LIIA1127E
Terminal
Condition Continuity
(+) (–)
9
3Reclining switch ON (BACKWARD operation) Yes
Other than above No
10Reclining switch ON (FORWARD operation) Yes
Other than above No
LIIA1128E

SE-72
AUTOMATIC DRIVE POSITIONER
Revision: August 20072004 QX56
Pedal Adjusting Switch Circuit InspectionEIS002Z2
1. CHECK FUNCTION
With CONSULT-II
With “PEDAL SW-FR, PEDAL SW-RR” on the DATA MONITOR,
operate the pedal adjusting switch to check ON/OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between driver seat control unit connector and
ground.
OK or NG
OK >> Pedal adjusting switch circuit is OK.
NG >> GO TO 2.
2. CHECK PEDAL ADJUSTING SWITCH CIRCUIT HARNESS CONTINUITY
1. Disconnect driver seat control unit and pedal adjusting switch.
2. Check continuity between driver seat control unit connector P2
terminals 15, 30 and pedal adjusting switch connector M96 ter-
minals 2, 3.
3. Check continuity between driver seat control unit connector P2
terminals 15, 30 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
Monitor item [OPERATION or
UNIT]Contents
PEDAL SW–FR “ON/OFF”Operation (ON)/open (OFF) status
judged from the pedal adjusting switch
(FR) signal is displayed.
PEDAL SW–RR “ON/OFF”Operation (ON)/open (OFF) status
judged from the pedal adjusting switch
(RR) signal is displayed.
PIIA4590E
ConnectorTe r m i n a l s
(Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
P215 (L)
GroundPedal adjusting switch
ON (BACKWARD oper-
ation)0
Other than above Battery voltage
30 (R)Pedal adjusting switch
ON (FORWARD opera-
tion)0
Other than above Battery voltage
PIIA4591E
15 (L) - 2 (L/Y) : Continuity should exist.
30 (R) - 3 (R) : Continuity should exist.
15 (L) - Ground : Continuity should not exist.
30 (R) - Ground : Continuity should not exist.
LIIA0726E

AUTOMATIC DRIVE POSITIONER
SE-73
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56

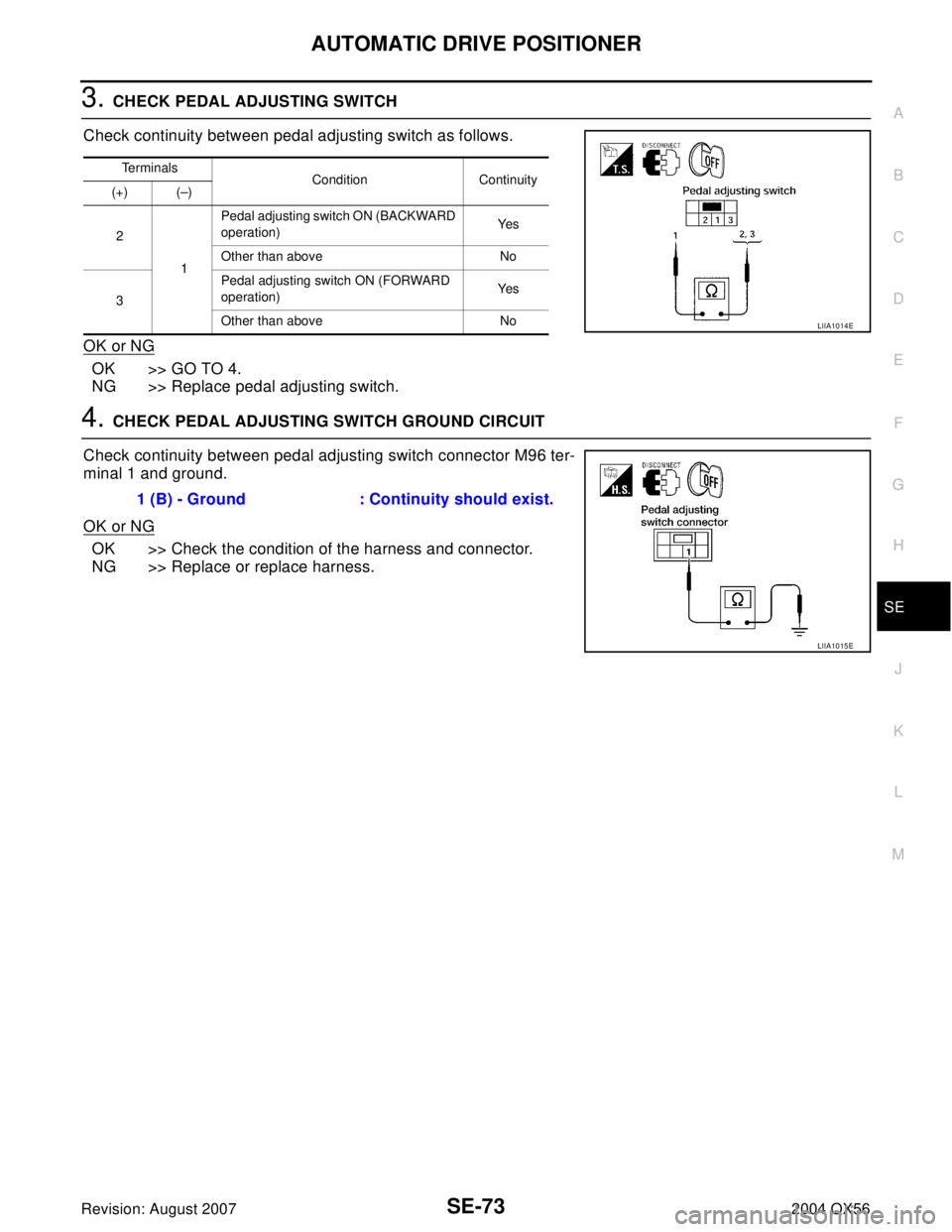

3. CHECK PEDAL ADJUSTING SWITCH
Check continuity between pedal adjusting switch as follows.
OK or NG
OK >> GO TO 4.
NG >> Replace pedal adjusting switch.
4. CHECK PEDAL ADJUSTING SWITCH GROUND CIRCUIT
Check continuity between pedal adjusting switch connector M96 ter-
minal 1 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace or replace harness.
Te r m i n a l s
Condition Continuity
(+) (–)
2
1Pedal adjusting switch ON (BACKWARD
operation)Ye s
Other than above No
3Pedal adjusting switch ON (FORWARD
operation)Ye s
Other than above No
LIIA1014E
1 (B) - Ground : Continuity should exist.
LIIA1015E

AUTOMATIC DRIVE POSITIONER
SE-85
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56
UART Communication Line Circuit InspectionEIS002ZB
1. CHECK UART LINE INPUT/OUTPUT SIGNAL 1
1. Turn ignition switch OFF.
2. Check signal between driver seat control unit connector and
ground, with oscilloscope.
OK or NG
OK >> GO TO 2.
NG >> Check the following.

When voltage wave form does not appear with a constant voltage (approx. 5V), replace driver
seat control unit.

When voltage wave form does not appear with a constant voltage (approx. 0V), replace auto-
matic driver seat control unit.
2. CHECK UART LINE INPUT/OUTPUT SIGNAL 2
Check signal between automatic drive positioner control unit con-
nector ground, with oscilloscope.
OK or NG
OK >> GO TO 3.
NG >> Check the following.

When voltage wave form does not appear with a constant voltage (approx. 5V), replace auto-
matic drive positioner control unit.

When voltage wave form does not appear with a constant voltage (approx. 0V), replace driver
seat control unit.
ConnectorTe r m i n a l s
(Wire color)
Condition Signal
(+) (–)
P2 17 (W) GroundPedal
adjusting
switch ON
(FOR-
WARD or
BACK-
WARD
operation)
PIIA4599E
PIIA4814E
ConnectorTe r m i n a l s
(Wire color)
Condition Signal
(+) (–)
M33 10 (L) GroundPedal
adjusting
switch ON
(FOR-
WARD or
BACK-
WARD
operation)
PIIA4816E
PIIA4813E

HEATED SEAT
SE-89
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56
H E AT E D S E ATPFP:87335
Description EIS002ZF

When handling seat, be extremely careful not to scratch heating unit.

To replace heating unit, seat trim and pad should be separated for front seat cushion LH. For seatback
and front seat cushion RH, complete cushion or seatback assembly must be replaced.

Do not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trim.
WIIA0031E

FRONT SEAT
SE-97
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: August 20072004 QX56
1. Headrest 2. Headrest holder with multi-position
lock 3. Seatback assembly
4. Lumbar switch bezel 5. Power seat switch escutcheon 6. Recliner switch knob
7. Slide switch knob 8. Driver power seat frame assembly 9. LH outer leg cover
10. Driver seat wiring harness 11. Bolt cover 12. Seat cushion outer finisher
13. Outer pedestal finisher 14. Seat cushion front finisher 15. Seat cushion inner finisher
16. Seat cushion frame 17. Seat cushion heating element 18. Seat cushion pad
19. Seat cushion trim cover 20. Armrest assembly 21. Headrest holder
22. Seat slide/ recline switch 23. Lumbar switch

SE-98
FRONT SEAT
Revision: August 20072004 QX56
Passenger Seat
WIIA0476E
1. Headrest 2. Headrest holder with multi-position
lock 3. Seatback board
4. Armrest assembly 5. Lumbar switch bezel 6. Fold flat link bar
