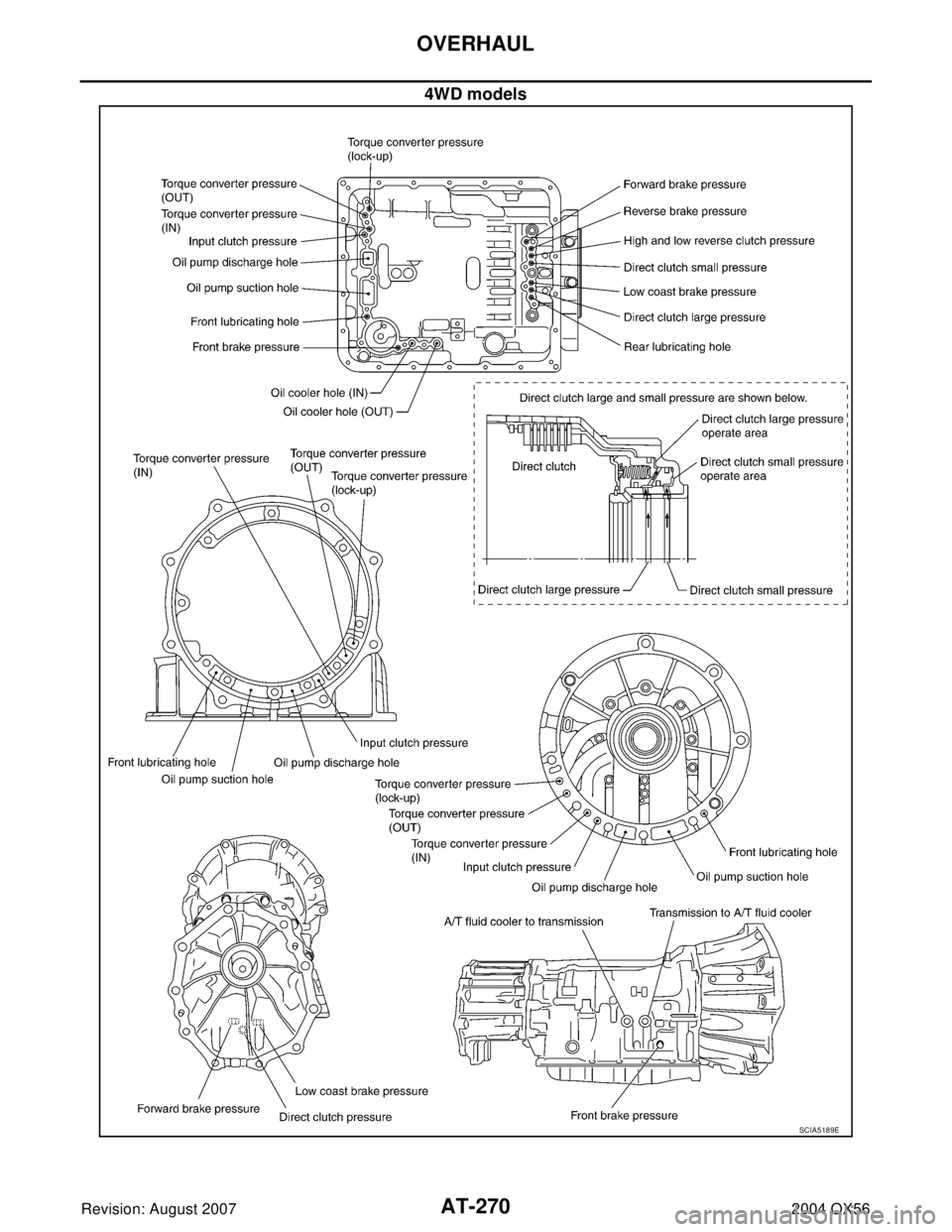

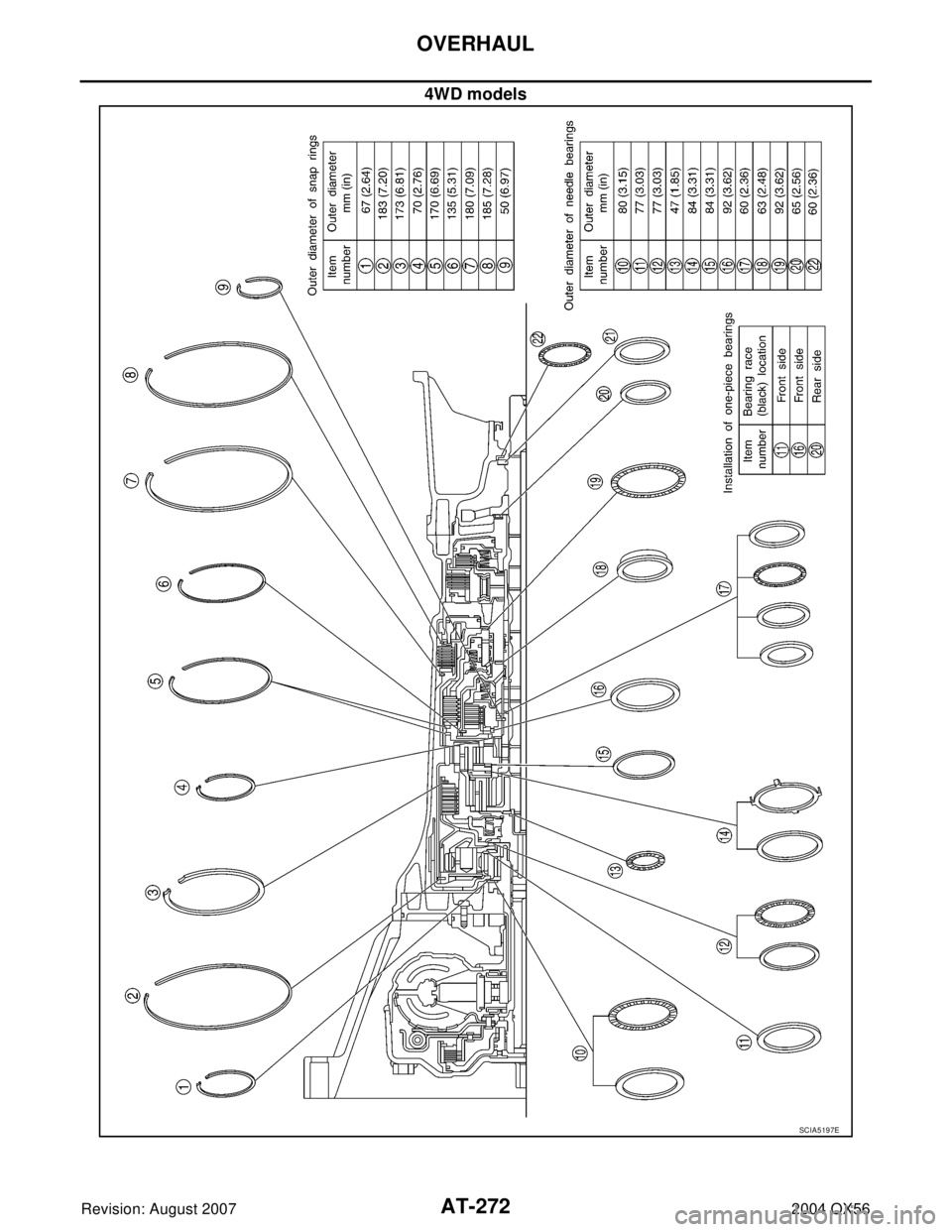

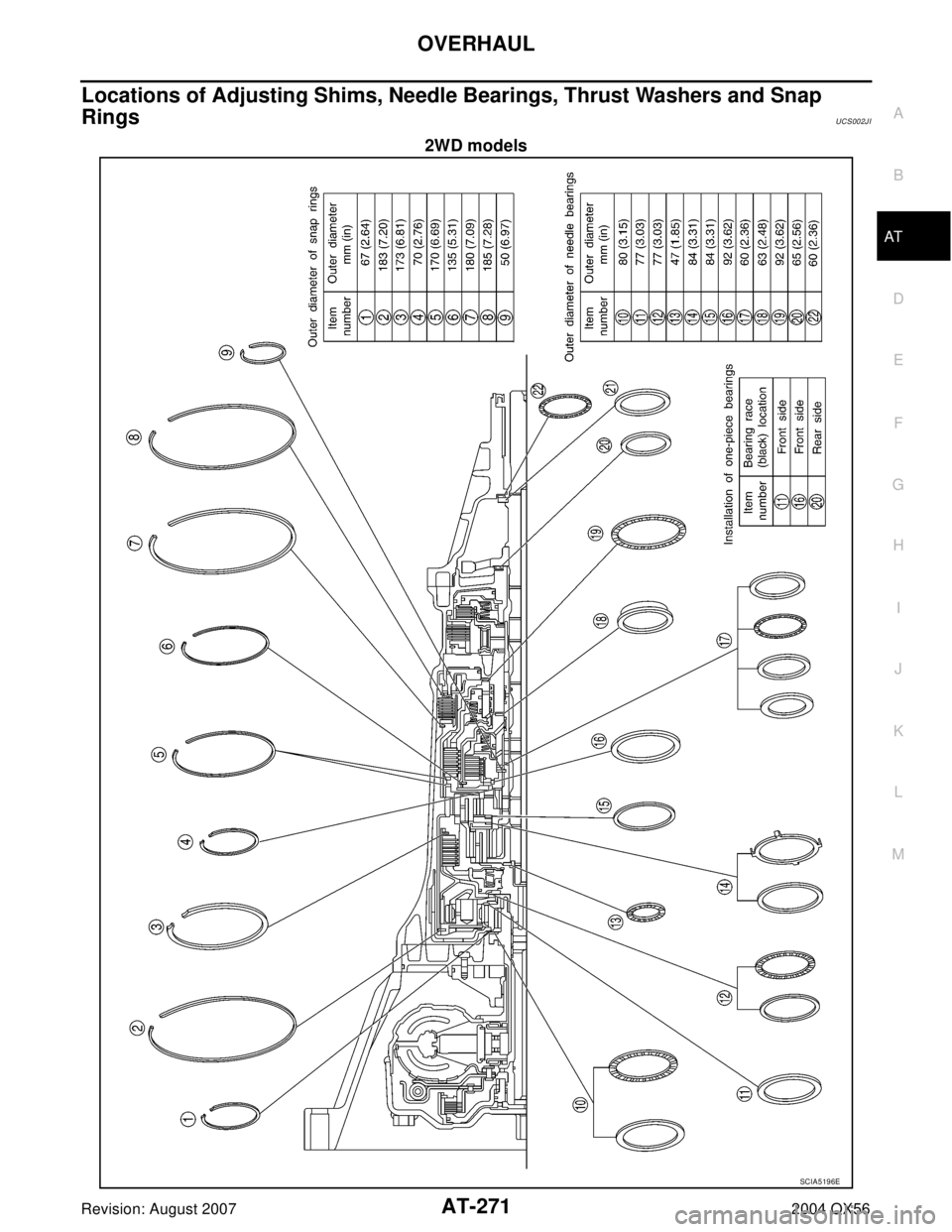

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap
Rings
UCS002J I
2WD models
SCIA5196E

AT-272
OVERHAUL
Revision: August 20072004 QX56
4WD models
SCIA5197E

DISASSEMBLY
AT-273
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56
DISASSEMBLYPFP:31020
DisassemblyUCS002JJ
CAUTION:
Do not disassemble parts behind Drum Support. Refer to AT-18, "
Cross-Sectional View (2WD models)"
or AT- 1 9 , "Cross-Sectional View (4WD models)" .
1. Drain ATF through drain plug.
2. Remove torque converter by holding it firmly and turing while
pulling straight out.
3. Check torque converter one-way clutch using check tool as
shown at figure.
a. Insert check tool into the groove of bearing support built into
one-way clutch outer race.
b. When fixing bearing support with check tool, rotate one- way
clutch spline using screwdriver.
c. Check that inner race rotates clockwise only. If not, replace
torque converter assembly.
4. Remove converter housing from transmission case.
CAUTION:
Be careful not to scratch converter housing.
SCIA5010E
SCIA3171E
SCIA5171E

AT-274
DISASSEMBLY
Revision: August 20072004 QX56
5. Remove O-ring from input clutch assembly.
6. Remove tightening bolts for oil pump assembly and transmis-
sion case.
7. Attach sliding hammer to oil pump assembly and extract it
evenly from transmission case.
CAUTION:

Fully tighten sliding hammer screw.

Make sure that bearing race is installed to the oil pump
assembly edge surface.
8. Remove O-ring from oil pump assembly.
SCIA5 011 E
SCIA2300E
SCIA5012E
SCIA5172E

DISASSEMBLY
AT-275
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56
9. Remove bearing race from oil pump assembly.
10. Remove needle bearing from front sun gear assembly.
11. Remove front sun gear assembly from front carrier assembly.
NOTE:
Remove front sun gear assembly by rotating left/right.
12. Remove seal rings from input clutch assembly.
13. Remove front carrier assembly, input clutch assembly and rear
internal gear as a unit.
CAUTION:
Be careful to remove it with needle bearing.
SCIA5252E
SCIA2808E
SCIA5014E
SCIA5269E
SCIA5173E

AT-276
DISASSEMBLY
Revision: August 20072004 QX56
14. Loosen lock nut and remove band servo anchor end pin from
transmission case.
15. Remove brake band from transmission case.

To prevent brake linings from cracking or peeling, do not
stretch the flexible band unnecessarily. When removing
the brake band, always secure it with a clip as shown in
the figure at left.
Leave the clip in position after removing the brake band.

Check brake band facing for damage, cracks, wear or
burns.
16. Remove mid carrier assembly and rear carrier assembly as a
unit.
SCIA5016E
SCIA5345E
SAT6 5 5
SCIA5344E

DISASSEMBLY
AT-277
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56
17. Remove mid carrier assembly from rear carrier assembly.
18. Remove needle bearing (front side) from mid carrier assembly.
19. Remove needle bearing (rear side) from mid carrier assembly.
20. Remove bearing race from rear carrier assembly.
21. Remove needle bearing from rear carrier assembly.
SCIA5174E
SCIA5176E
SCIA5177E
SCIA5178E
SCIA5179E

AT-278
DISASSEMBLY
Revision: August 20072004 QX56
22. Remove mid sun gear assembly, rear sun gear assembly and
high and low reverse clutch hub as a unit.
CAUTION:
Be careful to remove then with bearing races and needle
bearing.
23. Remove high and low reverse clutch assembly from direct clutch
assembly.
CAUTION:
Make sure that needle bearing is installed to the high and
low reverse clutch assembly edge surface.
24. Remove direct clutch assembly from reverse brake.
25. Remove needle bearing from drum support edge surface.
26. Remove snap ring from A/T assembly harness connector.
SCIA5018E
SCIA2306E
SCIA5019E
SCIA5198E
SCIA5021E

DISASSEMBLY
AT-279
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: August 20072004 QX56
27. Push A/T assembly harness connector.
CAUTION:
Be careful not to damage connector.
28. Remove oil pan and oil pan gasket.
29. Check foreign materials in oil pan to help determine causes of
malfunction. If the A/T fluid is very dark, smells burned, or con-
tains foreign particles, the frictional material (clutches, band)
may need replacement. A tacky film that will not wipe clean indi-
cates varnish build up. Varnish can cause valves, servo, and
clutches to stick and can inhibit pump pressure.

If frictional material is detected, perform A/T fluid cooler
cleaning. Refer to AT-15, "
A/T Fluid Cooler Cleaning" .
30. Remove magnets from oil pan.
