AT-260
TRANSMISSION ASSEMBLY
Revision: August 20072004 QX56
INSTALLATION
Installation of the remaining components is in the reverse order of
the removal, while paying attention to the following work.
If removed, install drive plate.
–Align dowel pin of crankshaft rear end with pin holes of each
parts to install.
–Install drive plate, reinforcement plate and pilot converter as
shown.
–Face chamfered or rounded edge side to crankshaft.
CAUTION:
When replacing an engine or transmission you must make
sure the dowels are installed correctly during re-assembly.
Improper alignment caused by missing dowels may cause
vibration, oil leaks or breakage of drivetrain components.
When installing transmission to the engine, attach the bolts in
accordance with the following standard.
*: No.2 bolt also secures air breather vent.
–Align the positions of tightening bolts for drive plate with those of
the torque converter, and temporarily tighten the bolts. Then,
tighten the bolts with the specified torque.
CAUTION:
When turning crankshaft, turn it clockwise as viewed from the front of the engine.
After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that
transmission rotates freely without binding.
After completing installation, check fluid leakage, fluid level, and the positions of A/T. Refer to AT-13,
"Checking A/T Fluid" , AT-234, "Checking of A/T Position" , AT-234, "Adjustment of A/T Position" .
KBIA2494E
KBIA2537E
Bolt No. 1 2* 3
Number of bolts 4 1 4
Bolt length
“”mm (in)70 (2.76) 70 (2.76) 70 (2.76)
Tightening torque
N·m (kg-m, ft-lb)11 3
(12, 83)11 3
(12, 83)
LCIA0371E
LCIA0335E

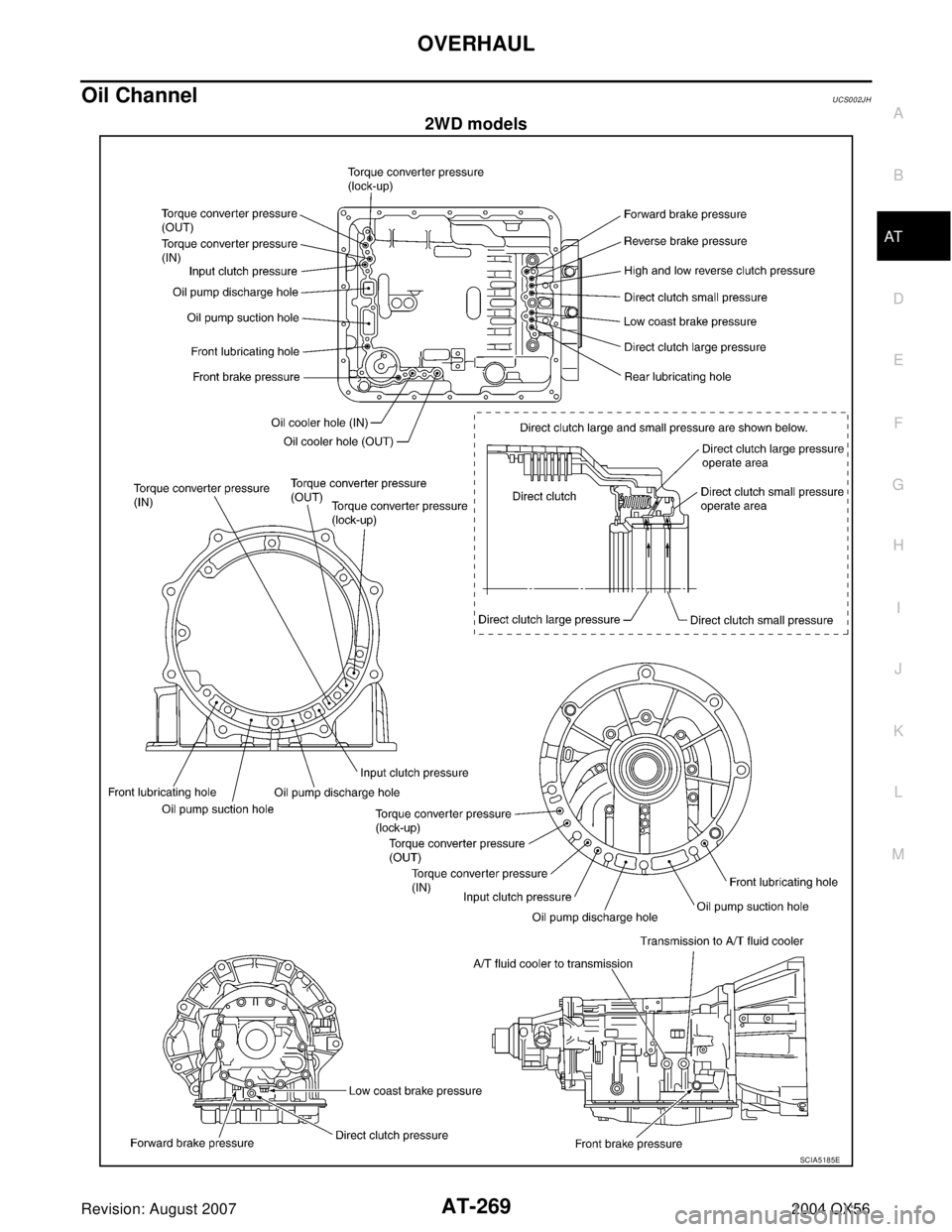

AT-262
OVERHAUL
Revision: August 20072004 QX56

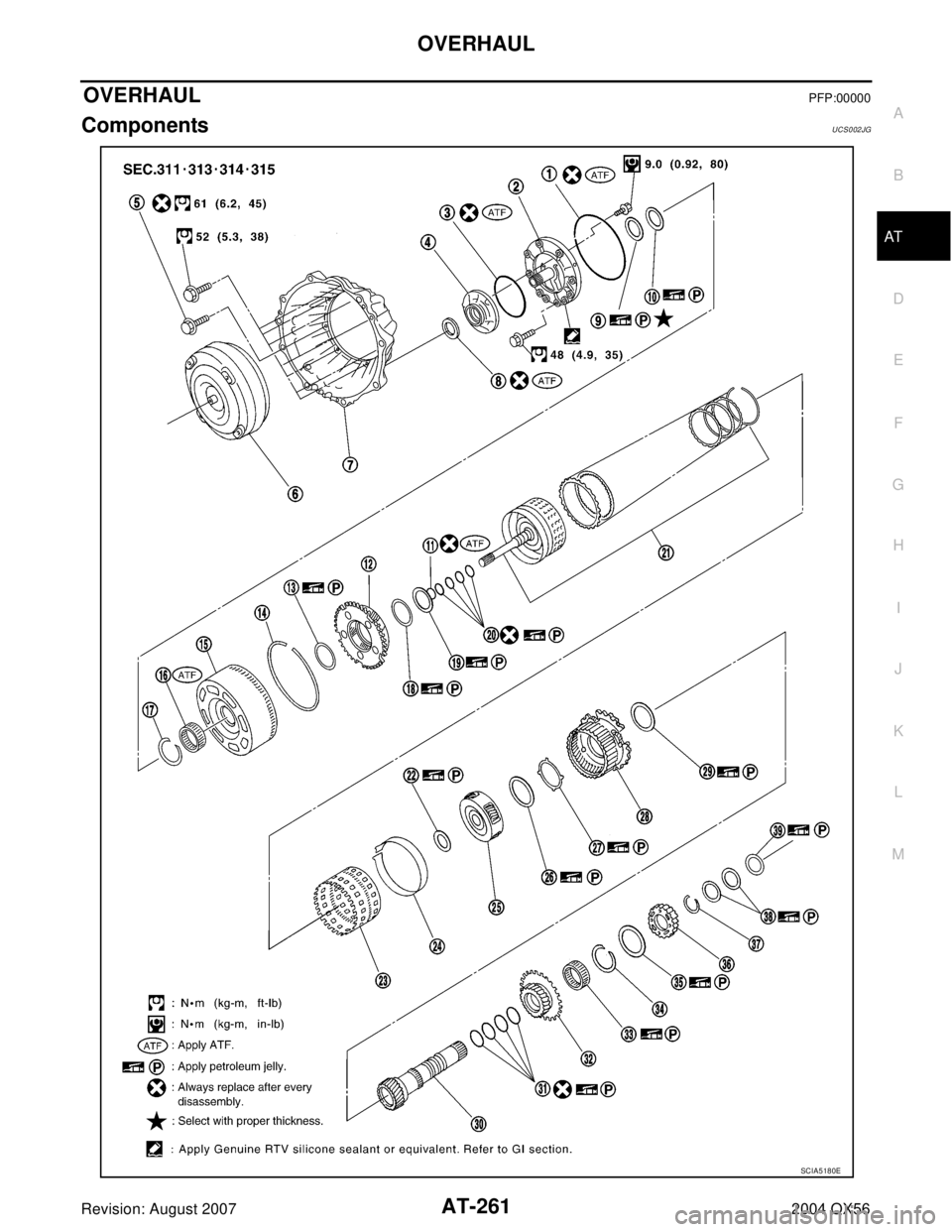

1. O-ring 2. Oil pump cover 3. O-ring
4. Oil pump housing 5. Self-sealing bolt 6. Torque converter
7. Converter housing 8. Oil pump housing oil seal 9. Bearing race
10. Needle bearing 11. O-ring 12. Front carrier assembly
13. Needle bearing 14. Snap ring 15. Front sun gear
16. 3rd one-way clutch 17. Snap ring 18. Bearing race
19. Needle bearing 20. Seal ring 21. Input clutch assembly
22. Needle bearing 23. Rear internal gear 24. Brake band
25. Mid carrier assembly 26. Needle bearing 27. Bearing race
28. Rear carrier assembly 29. Needle bearing 30. Mid sun gear
31. Seal ring 32. Rear sun gear 33. 1st one-way clutch
34. Snap ring 35. Needle bearing 36. High and low reverse clutch hub
37. Snap ring 38. Bearing race 39. Needle bearing
AT-266
OVERHAUL
Revision: August 20072004 QX56

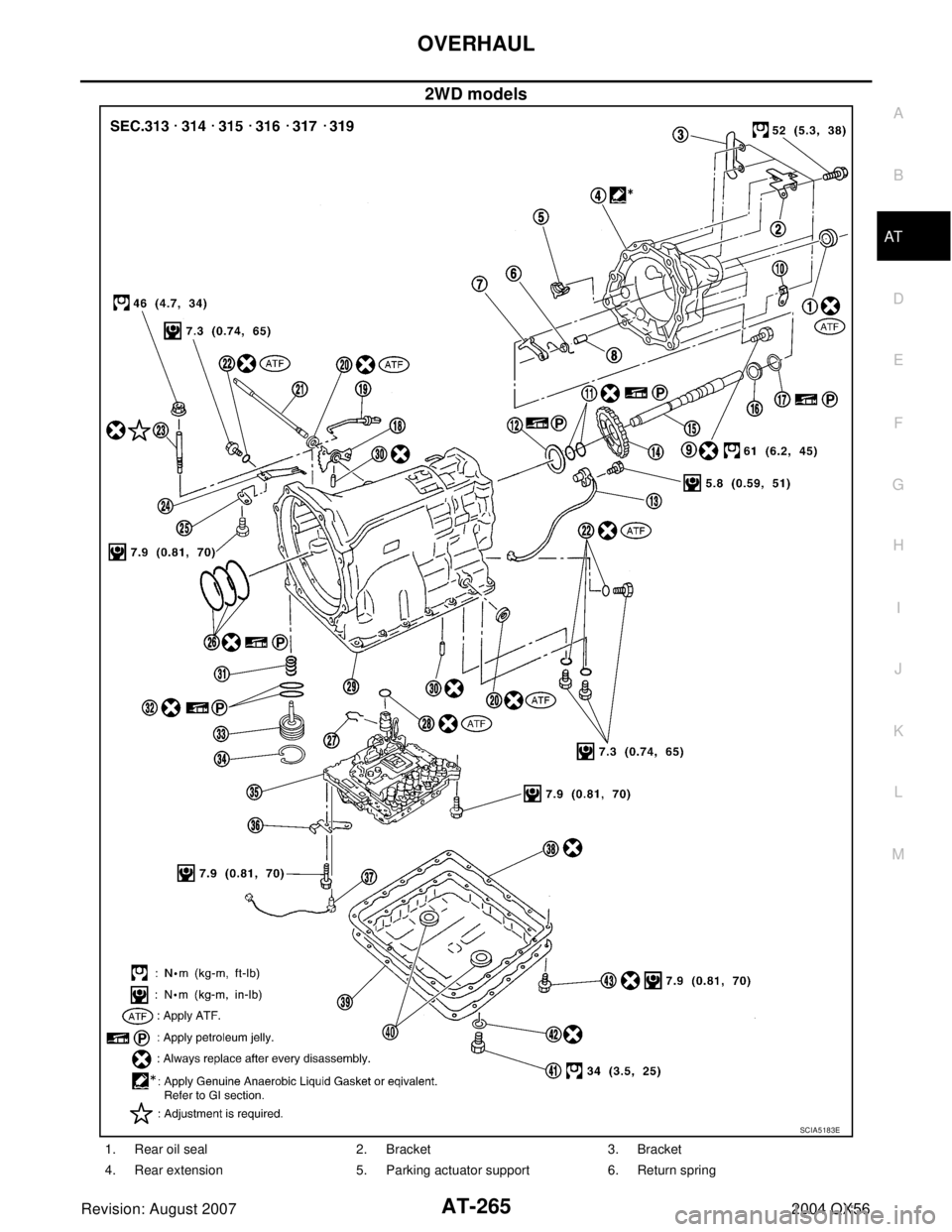

7. Parking pawl 8. Pawl shaft 9. Self-sealing bolt
10. Bracket 11. Seal ring 12. Needle bearing
13. Revolution sensor 14. Parking gear 15. Output shaft
16. Bearing race 17. Needle bearing 18. Manual plate
19. Parking rod 20. Manual shaft oil seal 21. Manual shaft
22. O-ring 23. Band servo anchor end pin 24. Detent spring
25. Spacer 26. Seal rings 27. Snap ring
28. O-ring 29. Transmission case 30. Retaining pin
31. Return spring 32. O-ring 33. Servo assembly
34. Snap ring 35. Control valve with TCM 36. Bracket
37. A/T fluid temperature sensor 2 38. Oil pan gasket 39. Oil pan
40. Magnet 41. Drain plug 42. Drain plug gasket
43. Oil pan mounting bolt
AT-268
OVERHAUL
Revision: August 20072004 QX56

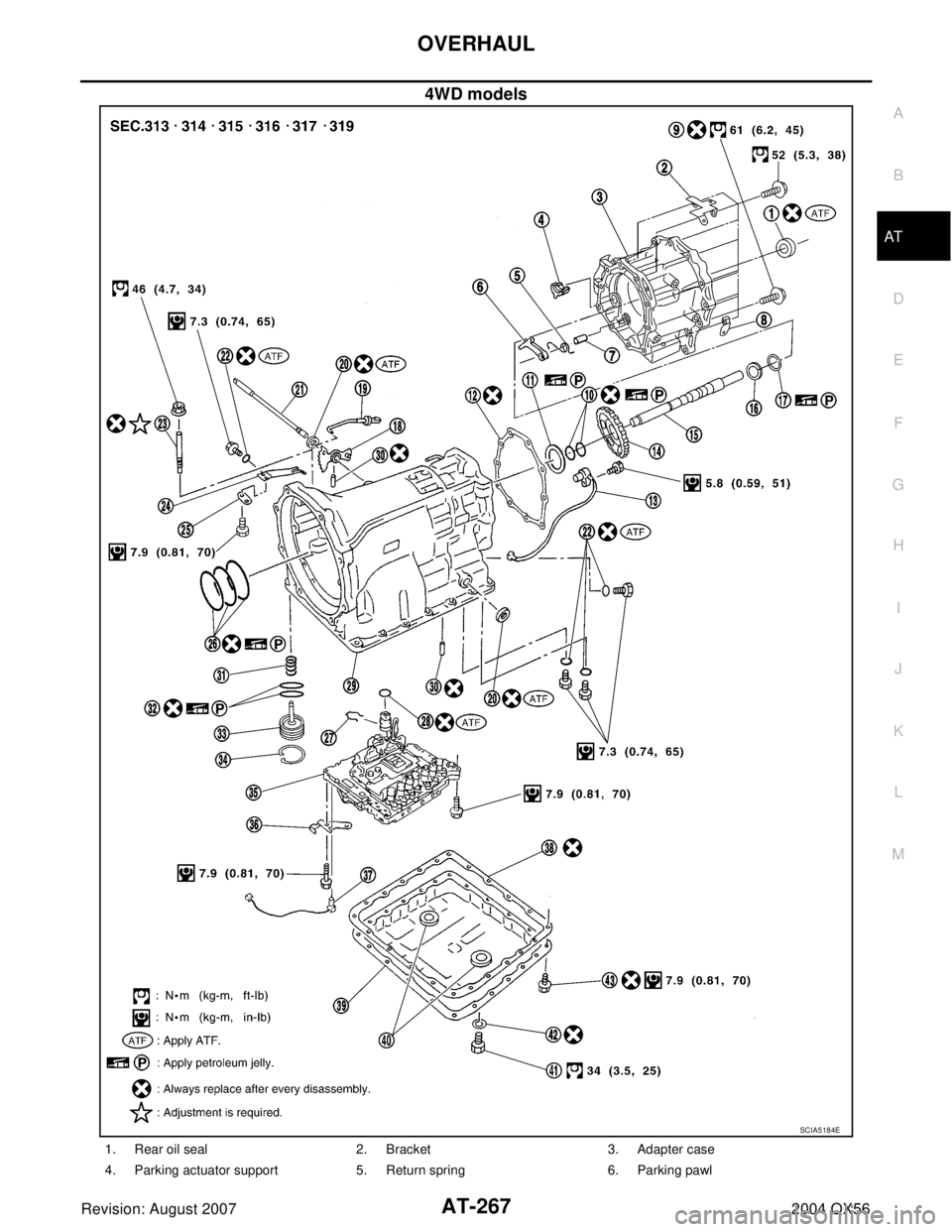

7. Pawl shaft 8. Bracket 9. Self-sealing bolt
10. Seal ring 11. Needle bearing 12. Gasket
13. Revolution sensor 14. Parking gear 15. Output shaft
16. Bearing race 17. Needle bearing 18. Manual plate
19. Parking rod 20. Manual shaft oil seal 21. Manual shaft
22. O-ring 23. Band servo anchor end pin 24. Detent spring
25. Spacer 26. Seal ring 27. Snap ring
28. O-ring 29. Transmission case 30. Retaining pin
31. Return spring 32. O-ring 33. Servo assembly
34. Snap ring 35. Control valve with TCM 36. Bracket
37. A/T fluid temperature sensor 2 38. Oil pan gasket 39. Oil pan
40. Magnet 41. Drain plug 42. Drain plug gasket
43. Oil pan mounting bolt
