Body INFINITI QX56 2004 Factory Workshop Manual

CAB AND REAR BODY
BL-159
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
CAB AND REAR BODYPFP:93020
Body MountingEIS0039X
When removing, be sure to replace bolts and nuts (sealant applied bolts or self-lock nuts are used for all
mounting).
LIIA1564E

BL-160
BODY REPAIR
Revision: August 20072004 QX56
BODY REPAIRPFP:60100
Body Exterior Paint ColorEIS0 02 U3
M: Metallic; 2S: 2-Coat Solid, 2P: 2-Coat Pearl; 3P: 3-Coat Pearl; t: New Cross Linking Clear Coat
LIIA1437E
ComponentColor code A14 B18 EY2 G10 J20 K11 K12 Q11
DescriptionOpus
RedCobalt
Blue KashmirLiquid
OnyxJadeSilver
GraphiteSilver
IndulgenceTuscan
Pearl
Clear coat t t t t t t t t
1Outside
mirrorBodyChromium
plateCr2P Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P
Base Black KH3 KH3 KH3 KH3 KH3 KH3 KH3 KH3
2Radiator
grilleCenter
and
emblemChromium
plateCr2P Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P
3 Bumpers Fascias Body color A14 B18 EY2 G10 J20 K11 K12 Q11
4 Valance Black KH3 KH3 KH3 KH3 KH3 KH3 KH3 KH3
5Running
BoardsBody Body color A14 B18 EY2 G10 J20 K11 K12 Q11
Step
padBlack KH3 KH3 KH3 KH3 KH3 KH3 KH3 KH3
6Outside
handlesChromium
plateCr2P Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P
7Side
Guard
MoldingBase Body color A14 B18 EY2 G10 J20 K11 BK12 BQ10
Top
TrimChromium
plateCr2P Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P
8License
plate fin-
isherBase Body color A14 B18 EY2 G10 J20 K11 K12 Q11
Top and
bottom
trimChromium
plateCr2P Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P Cr2P
9Cowl top
coverBody color A14 B18 EY2 G10 J20 K11 K12 Q11
10Rear
spoilerBody color A14 B18 EY2 G10 J20 K11 K12 Q11

BODY REPAIR
BL-161
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
Body Component PartsEIS002U4

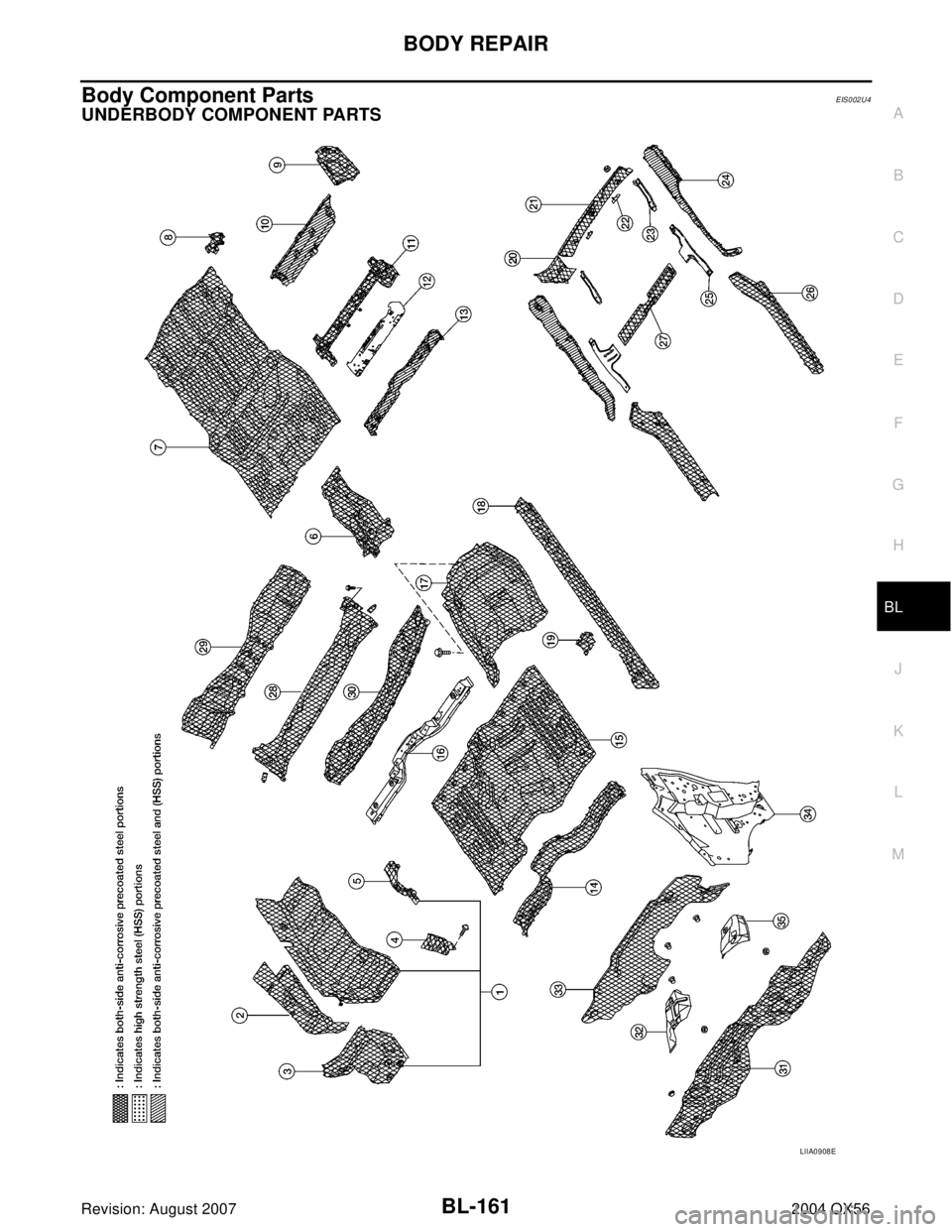

UNDERBODY COMPONENT PARTS
LIIA0908E

BL-162
BODY REPAIR
Revision: August 20072004 QX56
1. Hoodledge assembly (RH, LH)
2. Hoodledge reinforcement (RH, LH)
3. Body mounting bracket (RH, LH)
4. Hoodledge front brace (RH), Battery mounting bracket (LH)
5. Harness connector bracket
6. Rear floor reinforcement
7. Rear floor
8. Rear floor reinforcement
9. Rear floor side (RH, LH)
10. Crossmember
11. Second seat rear crossmember
12. Second seat front crossmember
13. Rear front seat crossmember
14. Second Body crossmember
15. Front floor
16. Front seat front crossmember
17. Front floor reinforcement
18. Outer sill (RH, LH)
19. Second crossmember extension
20. Rear crossmember end
21. Rear lower crossmember end
22. Rear crossmember end (RH, LH)
23. Rear side member rear reinforcement (RH, LH)
24. Rear side member (RH, LH)
25. Rear side member reinforcement (RH, LH)
26. Inner sill extension (RH, LH)
27. Rear crossmember
28. Upper dash top
29. Upper dash bottom
30. Cowl top
31. Lower dash
32. Lower dash insulator (RH)
33. Lower dash reinforcement
34. Side dash (RH, LH)
35. Lower dash insulator

BODY REPAIR
BL-163
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56

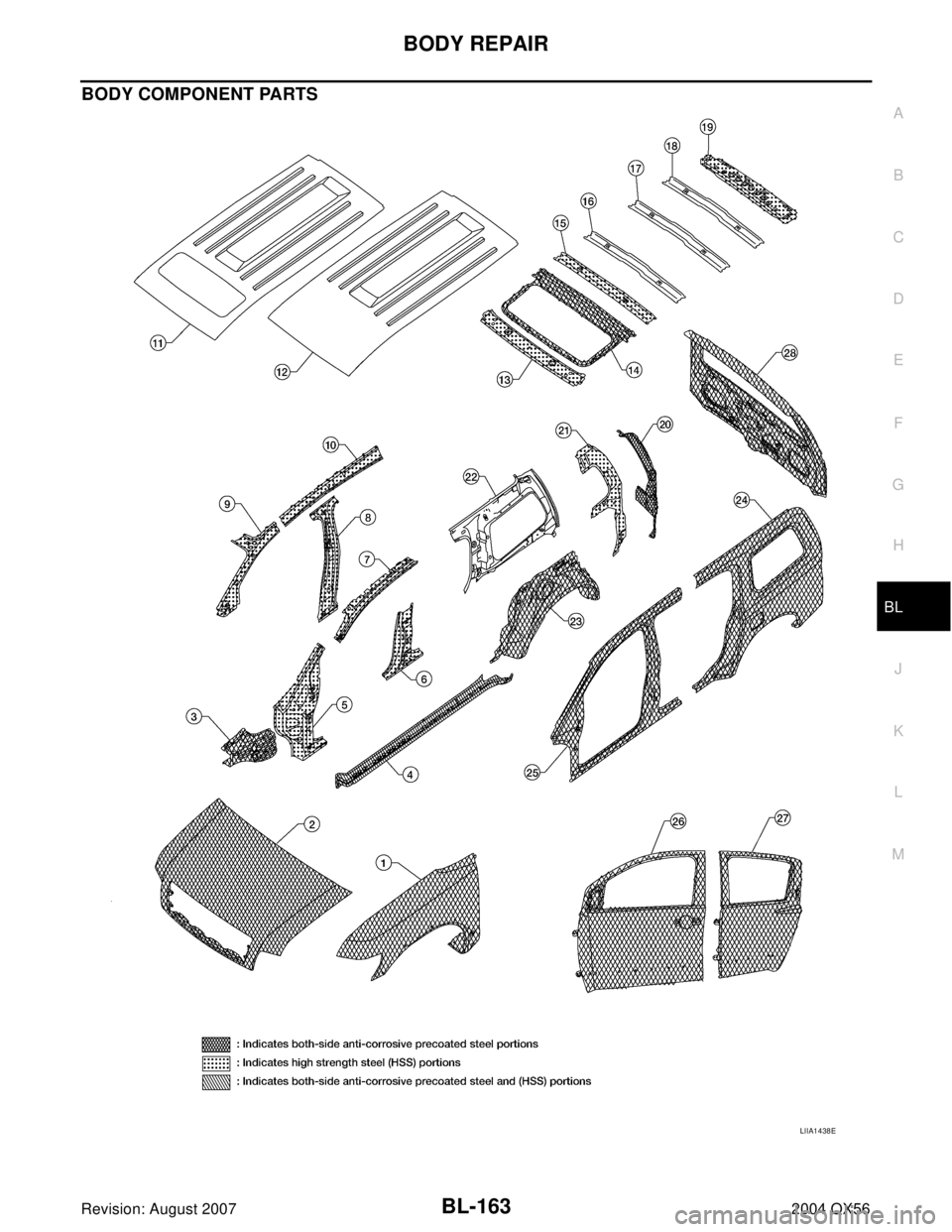

BODY COMPONENT PARTS
LIIA1438E

BL-164
BODY REPAIR
Revision: August 20072004 QX56
1. Front fender (RH, LH)
2. Hood assembly
3. Rear hoodledge reinforcement (RH, LH)
4. Outer sill reinforcement (RH, LH)
5. Front pillar hinge brace (RH, LH)
6. Center pillar hinge brace
7. Outer front pillar reinforcement (RH, LH)
8. Center inner pillar (RH, LH)
9. Front inner pillar upper (RH, LH)
10. Inner roof side rail (RH, LH)
11. Roof with sunroof opening
12. Roof
13. Front roof rail
14. Sunroof reinforcement
15. Roof 1st bow
16. Roof 2nd bow
17. Roof 3rd bow
18. Roof 4th bow
19. Rear roof rail
20. Main back pillar (RH, LH)
21. Back pillar reinforcement (RH, LH)
22. Rear inner side panel (RH, LH)
23. Rear wheel housing (RH, LH)
24. Rear body side outer (RH, LH)
25. Front body side outer (RH, LH)
26. Front door assembly (RH, LH)
27. Rear door assembly (RH, LH)
28. Lift gate assembly

BODY REPAIR
BL-165
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56

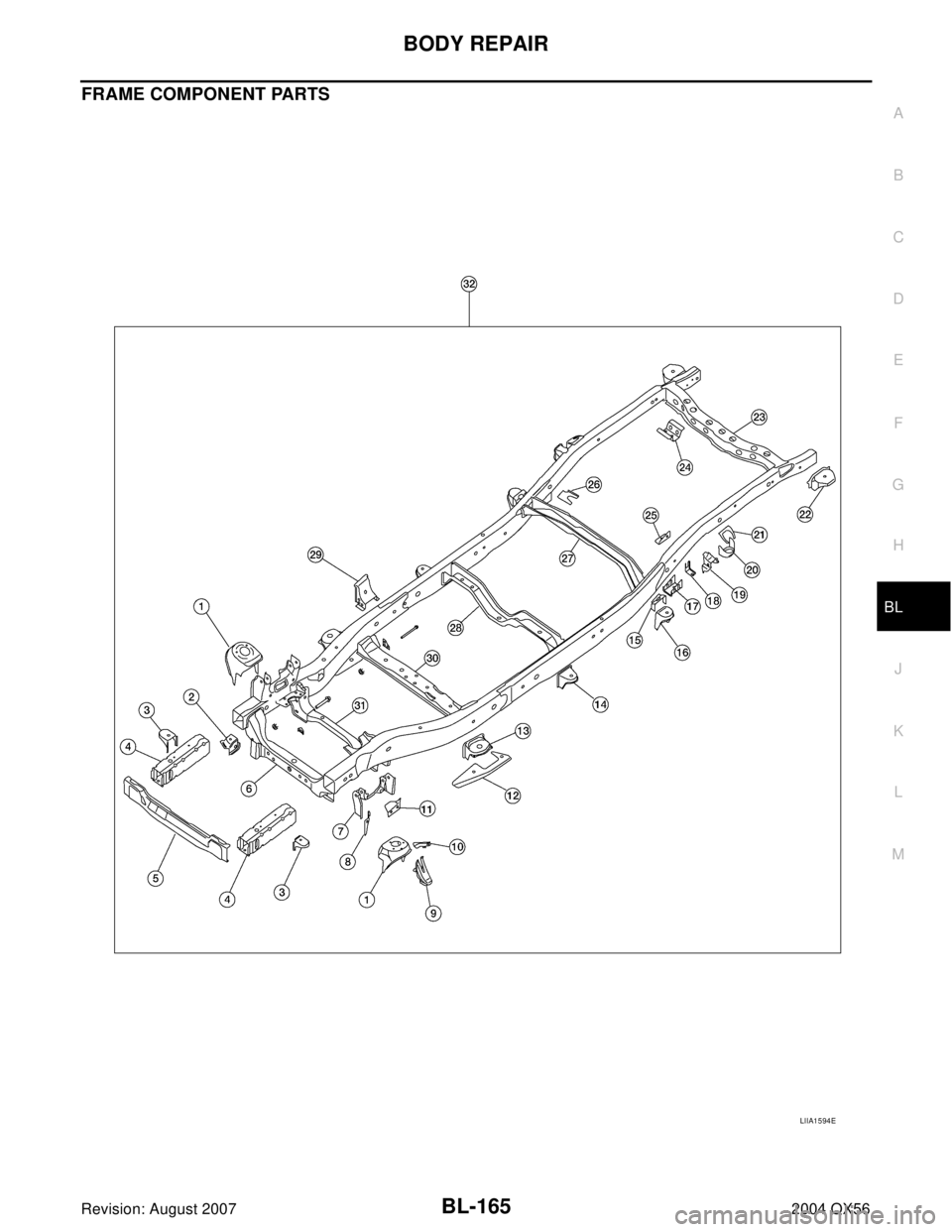

FRAME COMPONENT PARTS
LIIA1594E

BL-166
BODY REPAIR
Revision: August 20072004 QX56
1. Front shock absorber bracket RH/LH
2. Front differential mounting bracket RH/LH
3. 1st cab mounting bracket RH/LH
4. Front side member extension assembly RH/LH
5. 1st crossmember assembly
6. 2nd crossmember assembly
7. Front upper link mounting bracket RH/LH
8. Panhard rod bracket reinforcement
9. Bound bumper bracket RH/LH
10. Front brake hose bracket RH/LH
11. Panhard rod reinforcement
12. 4th crossmember gusset RH/LH
13. 2nd cab mounting bracket RH/LH
14. 3rd cab mounting bracket RH/LH
15. 4th cab mounting reinforcement RH/LH
16. 4th cab mounting bracket RH/LH
17. Rear suspension mounting bracket RH/LH
18. Rear brake hose bracket
19. Rear shock absorber bracket assembly RH/LH
20. Rear bound bumper bracket RH/LH
21. Rear bracket bumper reinforcement RH/LH
22. Cab mounting bracket assembly RH/LH
23. 9th crossmember assembly
24. Exhaust bracket assembly
25. Canister bracket, LH
26. 7th crossmember reinforcement
27. 7th crossmember assembly
28. 6th crossmember assembly
29. 4th crossmember gusset RH/LH
30. 4th crossmember assembly
31. 3rd crossmember assembly
32. Frame assembly

BODY REPAIR
BL-167
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: August 20072004 QX56
Corrosion ProtectionEIS002U5
DESCRIPTION
To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in
NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-
rosive measures.
ANTI-CORROSIVE PRECOATED STEEL (GALVANNEALED STEEL)
To improve repairability and corrosion resistance, a new type of anti-
corrosive precoated steel sheet has been adopted replacing conven-
tional zinc-coated steel sheet.
Galvannealed steel is electroplated and heated to form Zinc-iron
alloy, which provides excellent and long term corrosion resistance
with cationic electrode position primer.
Nissan Genuine Service Parts are fabricated from galvannealed steel. Therefore, it is recommended that
GENUINE NISSAN PARTS or equivalent be used for panel replacement to maintain the anti-corrosive perfor-
mance built into the vehicle at the factory.
PHOSPHATE COATING TREATMENT AND CATIONIC ELECTRODEPOSITION PRIMER
A phosphate coating treatment and a cationic electrode position primer, which provide excellent corrosion pro-
tection, are employed on all body components.
CAUTION:
Confine paint removal during welding operations to an absolute
minimum.
Nissan Genuine Service Parts are also treated in the same manner. Therefore, it is recommended that GENU-
INE NISSAN PARTS or equivalent be used for panel replacement to maintain anti-corrosive performance built
into the vehicle at the factory.
PIIA0093E
PIIA0095E

BL-168
BODY REPAIR
Revision: August 20072004 QX56
ANTI-CORROSIVE WAX
To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-
tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of
the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf
life.
LIIA0905E
