sensor INFINITI QX56 2004 Factory Service Manual

CAN SYSTEM (TYPE 2)
LAN-83
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
ICC Sensor Circuit CheckUKS001PQ
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of ICC sensor for damage, bend and loose connection (sensor side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC sensor connector.
2. Check resistance between ICC sensor harness connector E42
terminals 2 (W) and 3 (R).
OK or NG
OK >> Replace ICC sensor.
NG >> Repair harness between ICC sensor and harness con-
nector E34.
ICC Unit Circuit CheckUKS001PR
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of ICC unit for damage, bend and loose connection (control unit side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC unit connector.
2. Check resistance between ICC unit harness connector B13 ter-
minals 14 (W) and 5 (R).
OK or NG
OK >> Replace ICC unit.
NG >> Repair harness between ICC unit and harness connec-
tor B69. 2 (W) - 3 (R) : Approx. 54 - 66Ω
PKIA8172E
14 (W) - 5 (R) : Approx. 54 - 66Ω
SKIA6886E

LAN-86
[CAN]
CAN SYSTEM (TYPE 2)
Revision: August 20072004 QX56
Data Link Connector Circuit CheckUKS001NH
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of data link connector for damage, bend and loose connection (connector
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
Check resistance between data link connector M22 terminals 6 (W)
and 14 (R).
OK or NG
OK >> Diagnose again. Refer to LAN-55, "Work Flow" .
NG >> Repair harness between data link connector and combi-
nation meter.
Steering Angle Sensor Circuit CheckUKS001NI
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness con-
nector M47 terminals 3 (W) and 4 (R).
OK or NG
OK >> Replace steering angle sensor.
NG >> Repair harness between steering angle sensor and data
link connector. 6 (W) - 14 (R) : Approx. 54 - 66Ω
PKIA2077E
3 (W) - 4 (R) : Approx. 54 - 66Ω
PKIA6838E

LAN-88
[CAN]
CAN SYSTEM (TYPE 2)
Revision: August 20072004 QX56
IPDM E/R Circuit CheckUKS001NL
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of IPDM E/R for damage, bend and loose connection (control module side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector E122
terminals 39 (W) and 40 (R).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and harness con-
nector E152.
CAN Communication Circuit CheckUKS001NM
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect the following module and control unit connectors and check terminals for deformation, discon-
nection, looseness or damage.
–ECM
–A/T assembly
–ICC sensor
–ICC unit
–Driver seat control unit
–Combination meter
–Display control unit
–BCM
–Steering angle sensor
–Front air control
–ABS actuator and electric unit (control unit)
–IPDM E/R
OK or NG
OK >> GO TO 2.
NG >> Repair or replace as necessary.39 (W) - 40 (R) : Approx. 108 - 132Ω
PKIA8141E

CAN SYSTEM (TYPE 3)
LAN-109
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Case 11
Check steering angle sensor circuit. Refer to LAN-121, "Steering Angle Sensor Circuit Check" .
PKIA8079E
PKIA8166E

CAN SYSTEM (TYPE 3)
LAN-121
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Data Link Connector Circuit CheckUKS001A5
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check the terminals and connector of data link connector for damage, bend and loose connection (con-
nector side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
Check resistance between data link connector M22 terminals 6 (W)
and 14 (R).
OK or NG
OK >> Diagnose again. Refer to LAN-95, "Work Flow" .
NG >> Repair harness between data link connector and combi-
nation meter.
Steering Angle Sensor Circuit CheckUKS001A6
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness con-
nector M47 terminals 3 (W) and 4 (R).
OK or NG
OK >> Replace steering angle sensor.
NG >> Repair harness between steering angle sensor and data
link connector. 6 (W) - 14 (R) : Approx. 54 - 66Ω
PKIA2077E
3 (W) - 4 (R) : Approx. 54 - 66Ω
PKIA6838E

LAN-124
[CAN]
CAN SYSTEM (TYPE 3)
Revision: August 20072004 QX56
CAN Communication Circuit CheckUKS001AB
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect the following module and control unit connectors and check terminals for deformation, discon-
nection, looseness or damage.
–ECM
–A/T assembly
–Driver seat control unit
–Combination meter
–Display control unit
–BCM
–Steering angle sensor
–Front air control
–Transfer control unit
–ABS actuator and electric unit (control unit)
–IPDM E/R
OK or NG
OK >> GO TO 2.
NG >> Repair or replace as necessary.
2. CHECK HARNESS FOR SHORT CIRCUIT
With all module and control unit connectors disconnected, check
continuity between data link connector M22 terminals 6 (W) and 14
(R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M22 terminals 6 (W),
14 (R) and ground.
OK or NG
OK >> Check ECM and IPDM E/R. Refer to LAN-125, "ECM/
IPDM E/R INTERNAL CIRCUIT INSPECTION" .
NG >> Repair harness.
IPDM E/R Ignition Relay Circuit CheckUKS001AC
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-27, "IPDM E/R Power/Ground Circuit Inspection" .

Ignition power supply circuit. Refer to PG-13, "IGNITION POWER SUPPLY — IGNITION SW. IN ON
AND/OR START" . 6 (W) - 14 (R) : Continuity should not exist.
PKIA2077E
6 (W) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
PKIA2079E

CAN SYSTEM (TYPE 4)
LAN-135
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
Case 1
Check harness between TCM and ICC sensor. Refer to LAN-155, "Circuit Check Between TCM and ICC Sen-
sor" .
PKIA8112E
PKIA8818E

LAN-136
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56
Case 2
Check harness between ICC sensor and ICC unit. Refer to LAN-156, "Circuit Check Between ICC Sensor and
ICC Unit" .
PKIA8113E
PKIA8819E

LAN-142
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56

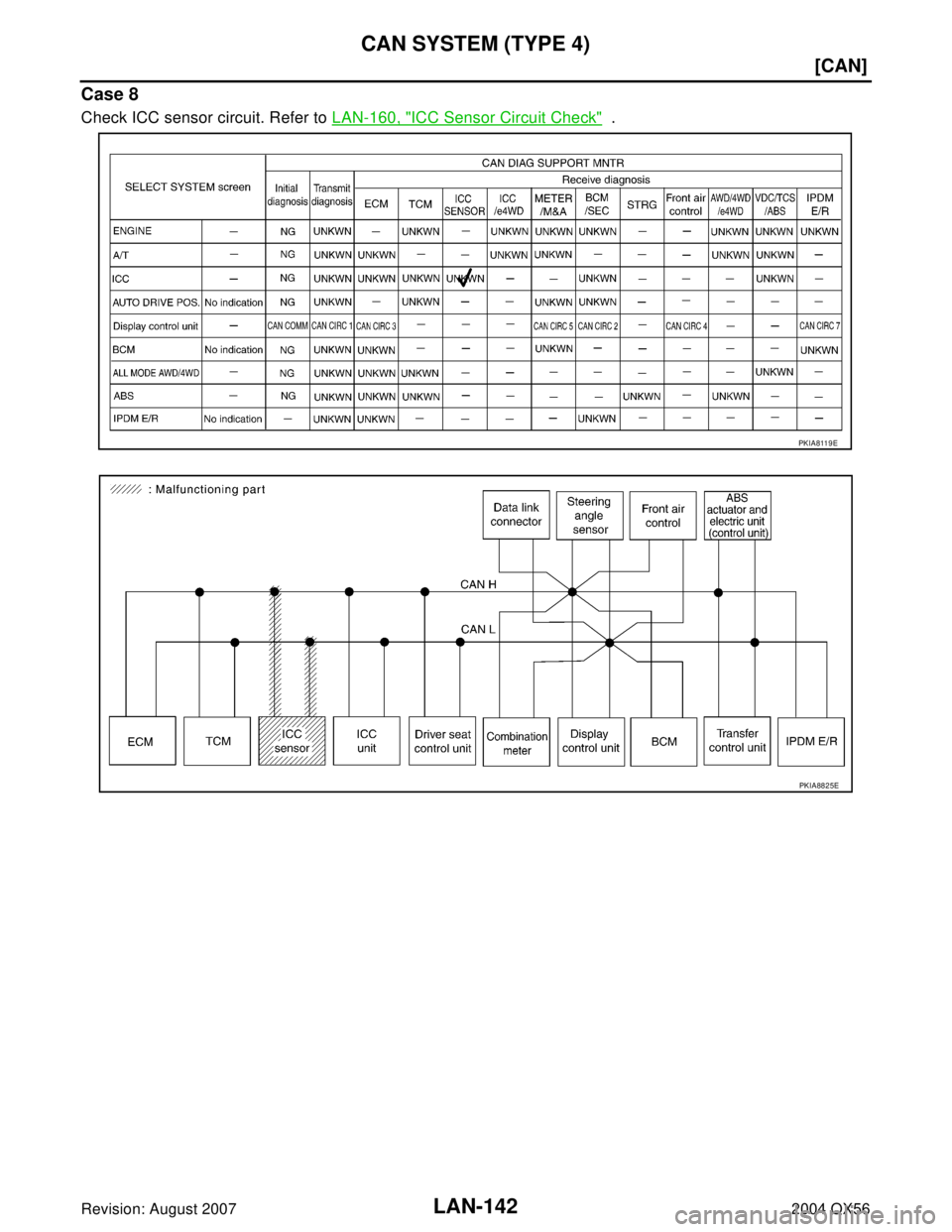

Case 8
Check ICC sensor circuit. Refer to LAN-160, "ICC Sensor Circuit Check" .
PKIA8119E
PKIA8825E

CAN SYSTEM (TYPE 4)
LAN-149
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Case 15
Check steering angle sensor circuit. Refer to LAN-163, "Steering Angle Sensor Circuit Check" .
PKIA8126E
PKIA8832E
