GW-2Revision: November 20092006 QX56
and Ground Circuit Check ...................................
... 54
Rear Power Window Motor LH Circuit Check ......... 54
Rear Power Window Motor RH Circuit Check ..... ... 55
Limit Switch Circuit Check Rear LH and RH ........ ... 56
Encoder Circuit Check Rear LH or RH ................ ... 58
Power Window Serial Link Check Rear LH or RH ... 59
Rear Power Vent Window Switch Circuit Check .. ... 60
Rear Power Vent Window Motor LH Circuit Check ... 61
Rear Power Vent Window Motor RH Circuit Check ... 61
Rear Power Vent Window Relay (OPEN) Check . ... 62
Rear Power Vent Window Relay (CLOSE) Check ... 63
FRONT DOOR GLASS AND REGULATOR .......... ... 65
Removal and Installation ..................................... ... 65
FRONT DOOR GLASS .................................... ... 65
FRONT DOOR GLASS REGULATOR ............. ... 66
SETTING AFTER INSTALLATION ................... ... 66
REAR DOOR GLASS AND REGULATOR ............ ... 68
Removal and Installation ..................................... ... 68
REAR DOOR GLASS ....................................... ... 68
REAR DOOR GLASS REGULATOR ................ ... 69
SETTING AFTER INSTALLATION ................... ... 70
SIDE WINDOW GLASS ............................................ 71 Removal and Installation ..................................... ... 71
REMOVAL ........................................................ ... 71
INSTALLATION ................................................. ... 71
INSIDE MIRROR ....................................................... 72 Wiring Diagram — I/MIRR — .............................. ... 72
Removal and Installation ..................................... ... 73
INSIDE MIRROR .............................................. ... 73
REAR WINDOW DEFOGGER ............................... ... 74
Component Parts and Harness Connector Location ... 74
System Description .............................................. ... 75
CAN Communication System Description ........... ... 75Schematic ............................................................
... 76
Wiring Diagram — DEF — ................................... ... 77
Terminal and Reference Value for BCM ............... ... 80
Terminal and Reference Value for IPDM E/R ....... ... 80
Work Flow ............................................................ ... 80
CONSULT-II Function (BCM) ............................... ... 81
CONSULT-II BASIC OPERATION PROCEDURE ... 81
DATA MONITOR ............................................... ... 82
ACTIVE TEST ................................................... ... 82
Trouble Diagnoses Symptom Chart ..................... ... 82
BCM Power Supply and Ground Circuit Check ... ... 84
Rear Window Defogger Switch Circuit Check ...... ... 85
Rear Window Defogger Circuit Check ................. ... 86
Door Mirror Defogger Power Supply Circuit Check ... 87
Door Mirror LH (Door Mirror Defogger) Circuit Check ... 89
Door Mirror RH (Door Mirror Defogger) Circuit
Check ................................................................... ... 90
Rear Window Defogger Signal Check ................. ... 90
Filament Check .................................................... ... 91
Filament Repair .................................................... ... 92
REPAIR EQUIPMENT ...................................... ... 92
REPAIRING PROCEDURE .............................. ... 92
DOOR MIRROR ...................................................... ... 93
Wiring Diagram — MIRROR — ........................... ... 93
Door Mirror Assembly .......................................... ... 94
REMOVAL ......................................................... ... 94
INSTALLATION ................................................. ... 94
Door Mirror Glass ................................................. ... 94
REMOVAL ......................................................... ... 94
INSTALLATION ................................................. ... 95

WINDSHIELD GLASSGW-11
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56
WINDSHIELD GLASSPFP:72712
Removal and InstallationEIS004TQ
REMOVAL
1. Remove inside mirror. Refer to GW-73, "Removal and Installation" .
2. Partially remove the headlining (front edge). Refer to EI-38, "
HEADLINING" .
3. Remove cowl top cover. Refer to EI-18, "
Removal and Installation" .
4. Apply a protective tape around the windshield glass to protect the painted surface from damage.

Remove glass using piano wire or power cutting tool and an inflatable pump bag.

If the windshield glass is to be reused, mark the body and the glass with mating marks.
WARNING:
When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent
glass splinters from entering your eyes or cutting your hands.
CAUTION:

When the windshield glass is to be reused, do not use a cutting knife or power cutting tool.

Be careful not to scratch the glass when removing.

Do not set or stand glass on its edge. Small chips may develop into cracks.
INSTALLATION

Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-
nished with it.

While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced
out by passenger compartment air pressure when a door is closed.

The molding must be installed securely so that it is in position and leaves no gap.
LIIA0652E
PIIA0186E

GW-72
INSIDE MIRROR
Revision: November 20092006 QX56
INSIDE MIRRORPFP:96321

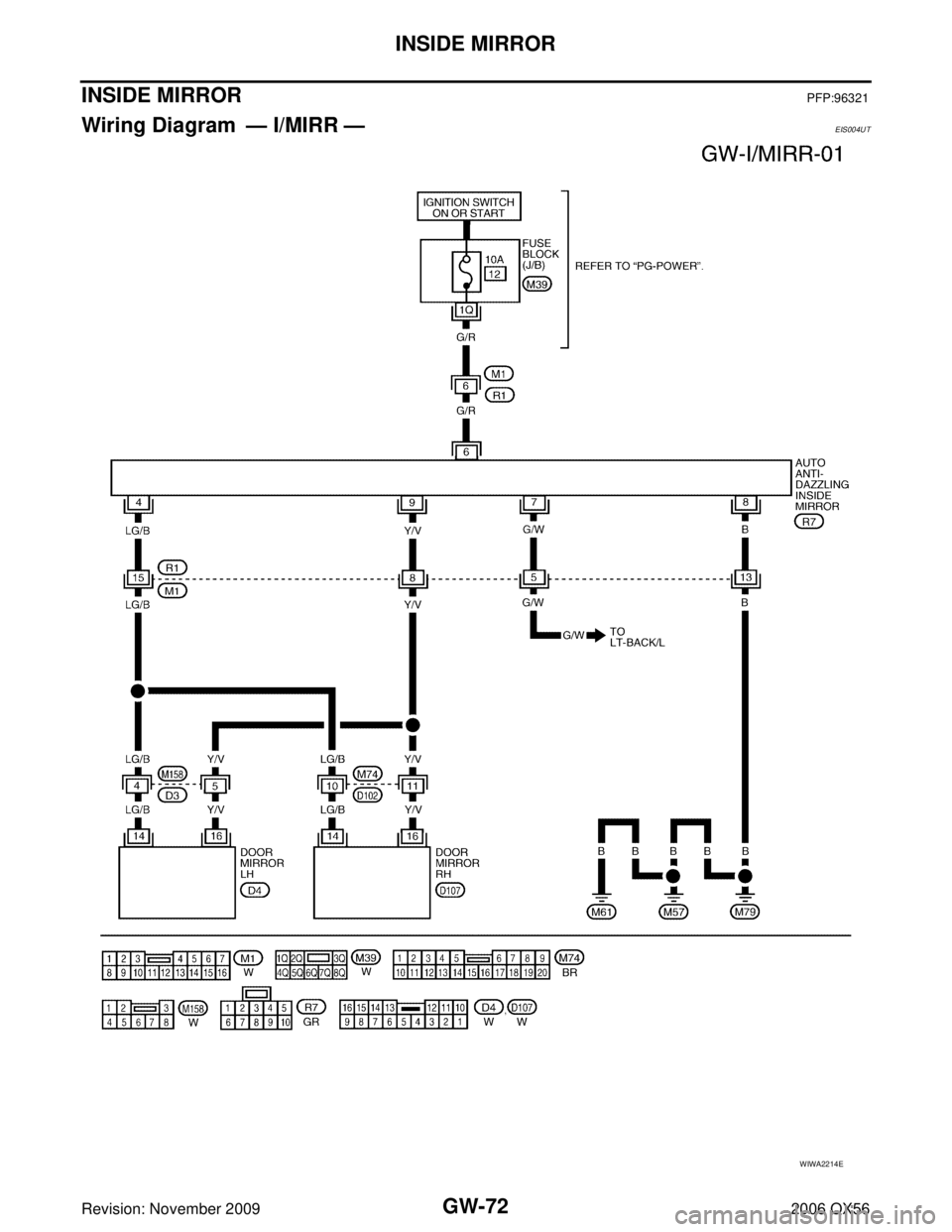

Wiring Diagram — I/MIRR —EIS004UT
WIWA2214E

INSIDE MIRRORGW-73
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56

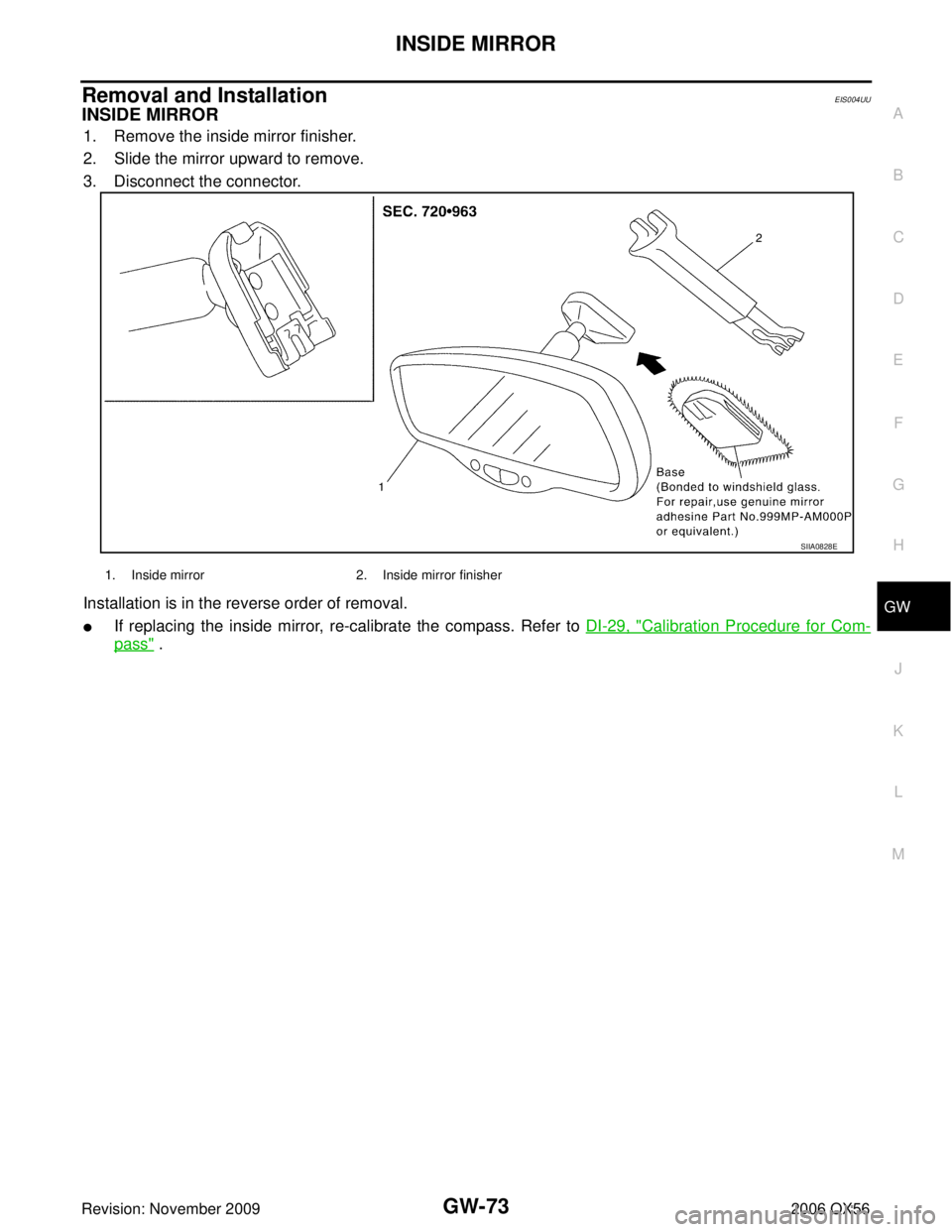

Removal and InstallationEIS004UU
INSIDE MIRROR
1. Remove the inside mirror finisher.
2. Slide the mirror upward to remove.
3. Disconnect the connector.
Installation is in the reverse order of removal.

If replacing the inside mirror, re-calibrate the compass. Refer to DI-29, "Calibration Procedure for Com-
pass" .
1. Inside mirror2. Inside mirror finisher
SIIA0828E

GW-74
REAR WINDOW DEFOGGER
Revision: November 20092006 QX56
REAR WINDOW DEFOGGERPFP:25350
Component Parts and Harness Connector LocationEIS005YM
1. IPDM E/R fuse layout2. Fuse block (J/B) 3. Fuse and fusible link box
4. Fuse and relay box 5. Data link connector M22 6. BCM M18, M20 (View with instru-
ment panel removed)
7. Front air control M49, M50 8. A. Rear window defogger ground
connector D604
B. Rear window defogger connector
D406 9. IPDM E/R E118, E120, E122, E124
10. Door mirror LH D4 Door mirror RH D107
LIIA2329E

REAR WINDOW DEFOGGERGW-75
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56
System DescriptionEIS005YN
The rear window defogger system is controlled by BCM (body control module) and IPDM E/R (intelligent
power distribution module engine room).
The rear window defogger operates only for approximately 15 minutes.
Power is supplied at all times

through 15A fuses (No. 43, 46, and 47 located in the IPDM E/R)

to rear window defogger relay and heated mirror relay (located in the IPDM E/R)

through 50A fusible link (letter f , located in the fuse and fusible link box)

to BCM terminal 70.
With the ignition switch turned to ON or START position, power is supplied

through ignition switch

to rear window defogger relay (located in the IPDM E/R)

through 10A fuse (No. 59, located in the fuse and relay box)

to BCM terminal 38

through 10A fuse [No. 8, located in the fuse block (J/B)]

to front air control terminal 14.
Ground is supplied

to BCM terminal 67

to front air control terminal 1

through body grounds M57, M61 and M79

to IPDM E/R terminals 38 and 59

through body grounds E9, E15 and E24.
When front air control (rear window defogger switch) is turned to ON, ground is supplied

to BCM terminal 9

through front air control terminal 11

through front air control terminal 1

through body grounds M57, M61 and M79.
Then rear window defogger switch is illuminated.
Then BCM recognizes that rear window defogger switch is turned to ON.
Then it sends rear window defogger switch signals to IPDM E/R and display control unit via CAN communica-
tion (CAN-H, CAN-L).
When display control unit receives rear window defogger switch signals, and displays on the screen.
When IPDM E/R receives rear window defogger switch signals, ground is supplied

to rear window defogger relay (located in the IPDM E/R)

through IPDM E/R terminal 38

through IPDM E/R terminal 59

through body grounds E9, E15 and E24
and then rear window defogger relay is energized.
With power and ground supplied, rear window defogger filaments heat and defog the rear window.
When rear window defogger relay is turned to ON, power is supplied

through heated mirror relay (located in the IPDM E/R)

through IPDM E/R terminal 23

to door mirror defogger (LH and RH) terminal 10.
Door mirror defogger (LH and RH) is grounded through body grounds M57, M61 and M79.
With power and ground supplied, rear window defogger filaments heat and defog the rear window and door
mirror defogger filaments heat and defog the mirror.
CAN Communication System DescriptionEIS005YO
Refer to LAN-26, "CAN COMMUNICATION" .

GW-80
REAR WINDOW DEFOGGER
Revision: November 20092006 QX56
Terminal and Reference Value for BCMEIS005YR
Terminal and Reference Value for IPDM E/REIS005YS
Work FlowEIS005YT
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to GW-75, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to GW-82,
"Trouble Diagnoses Symptom Chart" .
4. Does rear window defogger and door mirror defogger operate normally? YES: GO TO 5, NO: GO TO 3.
5. Inspection end.
Terminal Wire color ItemConditionVoltage (V)
(Approx.)
9Y /B Rear window defogger
switch signal When rear window defogger switch is pressed.
0
When rear window defogger switch is OFF. 5
38 W/L Ignition switch ON or START Ignition switch (ON or START position) Battery voltage
39 L CAN-H ——
40 P CAN-L ——
67 B Ground —0
70 W/B Battery power supply —Battery voltage
Terminal Wire color ItemConditionVoltage (V)
(Approx.)
38 B Ground (Power) —0
39 L CAN-H ——
40 P CAN-L ——
59 B Ground (Signal) —0
60 BRear window defogger output
signal When rear window defogger switch is ON. Battery voltage
When rear window defogger switch is OFF.
0

GW-82
REAR WINDOW DEFOGGER
Revision: November 20092006 QX56
6. Touch “REAR DEFOGGER ”.
7. Select diagnosis mode, “DATA MONITOR” and “ACTIVE TEST ”.
DATA MONITOR
Display Item List
ACTIVE TEST
Display Item List
Trouble Diagnoses Symptom ChartEIS005YV

Make sure other systems using the signal of the following systems operate normally.
LIIA0153E
BCIA0031E
Monitor item “Operation ” Content
REAR DEF SW “ON/OFF ”Displays
“Press (ON)/others (OFF) ” status determined with the rear window defogger
switch.
IGN ON SW “ON/OFF ”Displays “IGN (ON)/OFF ” status determined with the ignition switch signal.
Test item Content
REAR WINDOW DEFOGGER Gives a drive signal to the rear window defogger to activate it.
Symptom Diagnoses / Service procedureRefer to page
Rear window defogger and door mirror defoggers do not
operate. 1. BCM power supply and ground circuit check
GW-84
2. IPDM E/R auto active test check PG-24
3. Rear window defogger switch circuit checkGW-85
4. Rear window defogger circuit checkGW-86
5. Replace IPDM E/ R PG-30
Rear window defogger does not operate but both of door
mirror defoggers operate. 1. Rear window defogger circuit check
GW-862. Filament checkGW-86
3. Replace IPDM E/R PG-30
Both door mirror defoggers do not operate but rear win-
dow defogger operates. 1. Door mirror defogger power supply circuit check
GW-87
2. Replace IPDM E/R PG-30
Door mirror defogger LH does not operate. 1. Door mirror LH (door mirror defogger) circuit checkGW-89

REAR WINDOW DEFOGGERGW-83
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56
Door mirror defogger RH does not operate.1. Door mirror LH (door mirror defogger) circuit checkGW-90
Rear window defogger switch does not light, and rear win-
dow defogger is not shown on the display, but the rear win-
dow defogger operates. 1. Rear window defogger signal check
GW-90
SymptomDiagnoses / Service procedureRefer to page

REAR WINDOW DEFOGGERGW-87
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56
3. CHECK REAR WINDOW DEFOGGER GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between rear window defogger connector D604 terminal - and ground.
OK or NG
OK >> Check filament. Refer to GW-91, "Filament Check" .

If filament is OK.
Check the condition of the harness and the connector.

If filament is NG.
Repair filament.
NG >> Repair or replace harness.
4. CHECK REAR WINDOW DEFOGGER RELAY OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between IPDM E/R connector E124 terminal 60 and ground.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and Installation of IPDM E/R" .
NG >> Repair or replace harness.
Door Mirror Defogger Power Supply Circuit CheckEIS005Z0
1. CHECK FUSE
Check if any of the following fuses in fuse block (J/B) are blown.
NOTE:
Refer to GW-74, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to
GW-74, "
Component Parts and Harness Connector Location" .
- - Ground
: Continuity should exist.
LIIA0409E
ConnectorTerminals
ConditionVoltage (V)
(Approx.)
(+) (-)
E124 60 Ground Rear window defogger
switch ON.
Battery voltage
Rear window defogger
switch OFF. 0
WIIA0525E
COMPONENT PARTS
AMPEREFUSE NO.
IPDM E/R 15A43
