SE-46
AUTOMATIC DRIVE POSITIONER
Revision: November 20092006 QX56
3. CHECK PEDAL ADJUSTING MOTOR CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and pedal adjusting motor.
3. Check continuity between automatic drive positioner control unit connector M34 terminals 37, 45 and pedal adjusting motor con-
nector E109 terminals 1, 2.
4. Check continuity between automatic drive positioner control unit connector M34 terminals 37, 45 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT SIGNAL
1. Connect the automatic drive positioner control unit and pedal adjusting motor.
2. Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Replace pedal adjusting motor.
NG >> Replace automatic drive positioner control unit.
Mirror Motor LH Circuit CheckEIS004XW
1. CHECK DOOR MIRROR LH MECHANISM
Check the following items.
Operation malfunction caused by a foreign object caught in door mirror face edge.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace the malfunctioning parts, and check the symptom again. 37 - 1
: Continuity should exist.
45 - 2 : Continuity should exist.
37 - Ground : Continuity should not exist.
45 - Ground : Continuity should not exist.
LIIA1755E
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
M34 37
Ground Pedal adjusting switch
ON
(FORWARD operation)
Battery voltage
Other than above 0
45 Pedal adjusting switch
ON
(BACKWARD opera-
tion)
Battery voltage
Other than above 0
PIIA4806E
Page 2978 of 3383
AUTOMATIC DRIVE POSITIONERSE-47
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
2. CHECK FUNCTION
With CONSULT-II
Check the operation with “MIRROR MOTOR LH” in the ACTIVE
TEST.
Without CONSULT-II
GO TO 3.
OK or NG
OK >> Mirror motor LH circuit is OK.
NG >> GO TO 3.
3. CHECK DOOR MIRROR MOTOR LH CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mir- ror LH.
3. Check continuity between automatic drive positioner control unit connector M33 terminals 16, 31, 32 and door mirror LH connec-
tor D4 terminals 1, 2, 3.
4. Check continuity between automatic drive positioner control unit connector M41 terminal 16, 31, 32 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
Test item Description
MIRROR MOTOR LH The mirror motor LH moves the mirror UP/DOWN and
LEFT/RIGHT by receiving the drive signal.
PIIA4784E
16 - 3
: Continuity should exist.
31 - 1 : Continuity should exist.
32 - 2 : Continuity should exist.
16 - Ground : Continuity should not exist.
31 - Ground : Continuity should not exist.
32 - Ground : Continuity should not exist.
LIIA0999E
Page 2979 of 3383
SE-48
AUTOMATIC DRIVE POSITIONER
Revision: November 20092006 QX56
4. CHECK MIRROR MOTOR SIGNAL
1. Connect automatic drive positioner control unit and door mirror LH.
2. Turn ignition switch to ACC.
3. Check voltage between door mirror LH connector and ground.
OK or NG
OK >> Replace door mirror LH. Refer to GW-94, "Door Mirror Assembly" .
NG >> Repair or replace harness.
Mirror Motor RH Circuit CheckEIS004XX
1. CHECK DOOR MIRROR RH MECHANISM
Check the following items.
Operation malfunction caused by a foreign object caught in door mirror face edge.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace the malfunctioning parts, and check the symptom again.
2. CHECK FUNCTION
With CONSULT-II
Check the operation with “MIRROR MOTOR RH” in the ACTIVE
TEST.
Without CONSULT-II
GO TO 3.
OK or NG
OK >> Mirror motor RH circuit is OK.
NG >> GO TO 3.
Connector Terminals
Condition Voltage (V)
(Approx.)
(+) (-)
D4 1
Ground When motor is
operated UP
1.5 - Battery voltage
Other than above 0
2 When motor is
operated LEFT
1.5 - Battery voltage
Other than above 0
3 When motor is
operated DOWN or RIGHT
1.5 - Battery voltage
Other than above 0
LIIA1000E
Test item Description
MIRROR MOTOR RH The mirror motor RH moves the mirror UP/DOWN and
LEFT/RIGHT by receiving the drive signal.
PIIA0202E
Page 2980 of 3383
AUTOMATIC DRIVE POSITIONERSE-49
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
3. CHECK DOOR MIRROR RH CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mir- ror RH.
3. Check continuity between automatic drive positioner control unit connector M33 terminals 14, 15, 30 and door mirror RH connec-
tor D107 terminals 1, 2, 3.
4. Check continuity between automatic drive positioner control unit connector M33 terminal 14, 15, 30 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK MIRROR MOTOR SIGNAL
1. Connect automatic drive positioner control unit and door mirror RH.
2. Turn ignition switch to ACC.
3. Check voltage between door mirror RH connector and ground.
OK or NG
OK >> Replace door mirror motor RH. Refer to GW-94, "Door Mirror Assembly" .
NG >> Repair or replace harness.
Steering Wheel Tilt Circuit InspectionEIS004XY
1. CHECK STEERING WHEEL TILT MECHANISM
Check the following.
Operation malfunction caused by pedal adjusting mechanism deformation or pinched harness or other
foreign materials
Operation malfunction and interference with other parts by poor installation
OK or NG
OK >> GO TO 2.
NG >> Repair or replace the malfunctioning part and check again. 14 - 1
: Continuity should exist.
15 - 2 : Continuity should exist.
30 - 3 : Continuity should exist.
14 - Ground : Continuity should not exist.
15 - Ground : Continuity should not exist.
30 - Ground : Continuity should not exist.
LIIA1001E
ConnectorTerminals
ConditionVoltage (V)
(Approx.)
(+) (-)
D107 1
Ground Mirror motor is operated
UP
1.5 - Battery
voltage
Other than above 0
2 Mirror motor is operated
LEFT
1.5 - Battery
voltage
Other than above 0
3 Mirror motor is operated
DOWN or RIGHT
1.5 - Battery
voltage
Other than above 0
LIIA1002E
Page 2987 of 3383
SE-56
AUTOMATIC DRIVE POSITIONER
Revision: November 20092006 QX56
Mirror Sensor LH Circuit Check EIS004Y4
1. CHECK DOOR MIRROR FUNCTION
Check the following items.
Operation malfunction in memory control
NOTE:
If a door mirror face position is set to an implausible angle, the set position may not be reproduced.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace the malfunctioning parts, and check the symptom again.
2. CHECK MIRROR SENSOR INSPECTION
With CONSULT-II
Check that “ON” is displayed on “MIR/SEN LH R-L, MIR/
SEN LH U-D" in the DATA MONITOR.
Without CONSULT-II
1. Turn ignition switch to ACC.
2. Check voltage between door mirror LH connector and ground.
OK or NG
OK >> Mirror sensor LH is OK.
NG >> GO TO 3.
Monitor item [OPERATION or UNIT] Contents
MIR/SEN LH R-L “V ” Voltage output from door mirror LH sensor (LH/
RH) is displayed.
MIR/SEN LH U-D “V ” Voltage output from door mirror LH sensor (UP/
DOWN) is displayed.
PIIA4568E
Con-
nector Terminals
Condition Voltage (V)
(Approx.)
(+) (-)
D4 7
Ground Mirror motor is
operated UP or
DOWN
Changes between
3.4 (close to peak) -
0.6 (close to valley)
8 Mirror motor is
operated LEFT or
RIGHT Changes between
3.4 (close to right edge) - 0.6 (close to left edge)
LIIA1482E
Page 2988 of 3383
AUTOMATIC DRIVE POSITIONERSE-57
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56

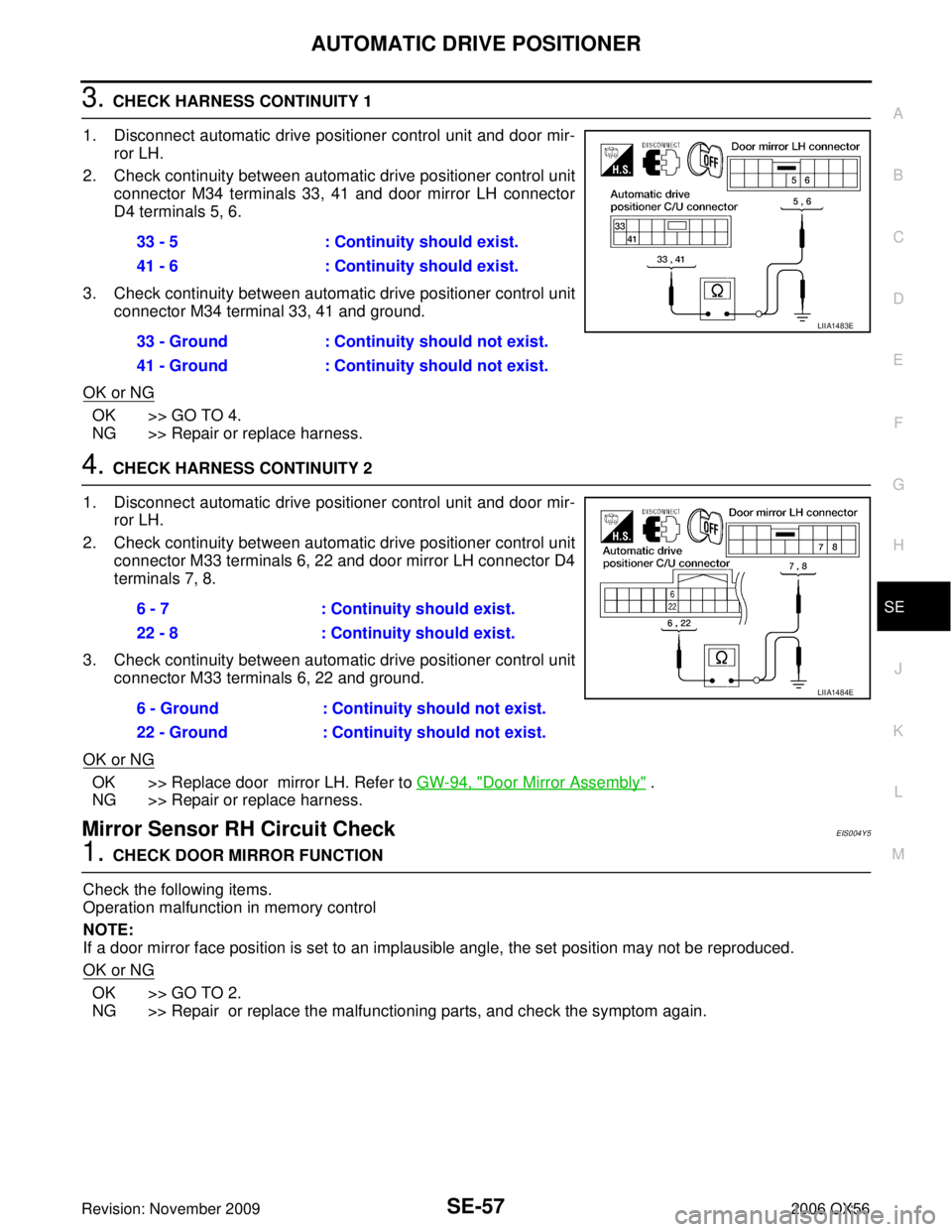

3. CHECK HARNESS CONTINUITY 1
1. Disconnect automatic drive positioner control unit and door mir- ror LH.
2. Check continuity between automatic drive positioner control unit connector M34 terminals 33, 41 and door mirror LH connector
D4 terminals 5, 6.
3. Check continuity between automatic drive positioner control unit connector M34 terminal 33, 41 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK HARNESS CONTINUITY 2
1. Disconnect automatic drive positioner control unit and door mir- ror LH.
2. Check continuity between automatic drive positioner control unit connector M33 terminals 6, 22 and door mirror LH connector D4
terminals 7, 8.
3. Check continuity between automatic drive positioner control unit connector M33 terminals 6, 22 and ground.
OK or NG
OK >> Replace door mirror LH. Refer to GW-94, "Door Mirror Assembly" .
NG >> Repair or replace harness.
Mirror Sensor RH Circuit Check EIS004Y5
1. CHECK DOOR MIRROR FUNCTION
Check the following items.
Operation malfunction in memory control
NOTE:
If a door mirror face position is set to an implausible angle, the set position may not be reproduced.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace the malfunctioning parts, and check the symptom again. 33 - 5
: Continuity should exist.
41 - 6 : Continuity should exist.
33 - Ground : Continuity should not exist.
41 - Ground : Continuity should not exist.
LIIA1483E
6 - 7: Continuity should exist.
22 - 8 : Continuity should exist.
6 - Ground : Continuity should not exist.
22 - Ground : Continuity should not exist.
LIIA1484E
Page 2989 of 3383
SE-58
AUTOMATIC DRIVE POSITIONER
Revision: November 20092006 QX56
2. CHECK MIRROR SENSOR INSPECTION
With CONSULT-II
Check that “ON” is displayed on “MIR/SEN RH R-L, MIR/
SEN RH U-D" in the DATA MONITOR.
Without CONSULT-II
1. Turn ignition switch to ACC.
2. Check voltage between door mirror RH connector and ground.
OK or NG
OK >> Mirror sensor RH is OK.
NG >> GO TO 3.
3. CHECK HARNESS CONTINUITY 1
1. Disconnect automatic drive positioner control unit and door mir- ror RH.
2. Check continuity between automatic drive positioner control unit connector M34 terminals 33, 41 and door mirror RH connector
D107 terminals 5, 6.
3. Check continuity between automatic drive positioner control unit connector M34 terminals 33, 41 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
Monitor item [OPERATION or UNIT] Contents
MIR/SEN RH R-L “V ” Voltage output from door mirror RH sensor (LH/
RH) is displayed.
MIR/SEN RH U-D “V ” Voltage output from door mirror RH sensor (UP/
DOWN) is displayed.
PIIA4568E
Con-
nector Terminals
Condition Voltage(V)
(Approx.)
(+) (-)
D107 7
Ground Mirror motor is
operated UP or
DOWN
Changes between
3.4 (close to peak) - 0.6 (close to valley)
8 Mirror motor is
operated LEFT or
RIGHT Changes between
3.4 (close to left edge) -
0.6 (close to right edge)
LIIA1485E
33 - 5 : Continuity should exist.
41 - 6 : Continuity should exist.
33 - Ground : Continuity should not exist.
41 - Ground : Continuity should not exist.
LIIA1486E
Page 2990 of 3383
AUTOMATIC DRIVE POSITIONERSE-59
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
4. CHECK HARNESS CONTINUITY 2
1. Disconnect automatic drive positioner control unit and door mir- ror RH.
2. Check continuity between automatic drive positioner control unit connector M33 terminals 5, 21 and door mirror RH connector
D107 terminals 7, 8.
3. Check continuity between automatic drive positioner control unit connector M33 terminals 5, 21 and ground.
OK or NG
OK >> Replace door mirror RH. Refer to GW-94, "Door Mirror Assembly" .
NG >> Repair or replace harness.
Steering Wheel Tilt Sensor Circuit InspectionEIS004Y6
1. CHECK FUNCTION
With CONSULT-II
Operate the pedal adjusting switch with “TILT SEN” on the DATA
MONITOR to make sure the voltage changes.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between automatic drive positioner connector and ground.
OK or NG
OK >> Steering wheel tilt sensor circuit is OK.
NG >> GO TO 2. 5 - 7
: Continuity should exist.
21 - 8 : Continuity should exist.
5 - Ground : Continuity should not exist.
21 - Ground : Continuity should not exist.
LIIA1473E
Monitor item [OPERA-
TION or UNIT] Contents
TILT SEN “V ” The tilt position (voltage) judged from the tilt sensor sig-
nal is displayed.
PIIA0295E
Connector Terminals
ConditionVoltage (V)
(Approx.)
(+) (-)
M33 7 Ground Pedal front end position 0.6
Pedal back end position 4.5
LIIA0485E
Page 3000 of 3383
AUTOMATIC DRIVE POSITIONERSE-69
C
DE
F
G H
J
K L
M A
B
SE
Revision: November 2009 2006 QX56
Door Mirror Remote Control Switch (Changeover Switch) Circuit CheckEIS004YD
1. CHECK FUNCTION
With CONSULT-II
Check the operation on “MIR CHNG SW-R” or “MIR CHNG SW-L"
in the DATA MONITOR.
Without CONSULT-II
1. Turn ignition switch to ACC.
2. Check voltage between automatic drive positioner control unit connector and ground.
OK
orNG
OK >> Door mirror remote control switch (changeover switch) is OK.
NG >> GO TO 2.
2. CHECK DOOR MIRROR REMOTE CONTROL SWITCH CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mir- ror remote control switch.
3. Check continuity between automatic drive positioner control unit connector M33 terminals 2, 18 and door mirror remote control
switch connector D10 terminals 2, 3.
4. Check continuity between automatic drive positioner control unit connector M33 terminals 2, 18 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
Monitor item [OPERATION or UNIT] Contents
MIR CHNG SW-R “ON/OFF ”ON/OFF status judged from the door mirror
switch (switching to RIGHT) signal is displayed.
MIR CHNG SW-L “ON/OFF ”ON/OFF status judged from the door mirror
switch (switching to LEFT) signal is displayed.
PIIA0191E
Connector Terminals
ConditionVoltage (V)
(Approx.)
(+) (-)
M33 2
Ground Changeover switch
RIGHT position
0
Other than above 5
18 Changeover switch
LEFT position
0
Other than above 5
PIIA4767E
2 - 2: Continuity should exist.
18 - 3 : Continuity should exist.
2 - Ground : Continuity should not exist.
18 - Ground : Continuity should not exist.
LIIA1821E
Page 3001 of 3383
SE-70
AUTOMATIC DRIVE POSITIONER
Revision: November 20092006 QX56
3. CHECK DOOR MIRROR REMOTE CONTROL SWITCH (CHANGEOVER SWITCH)
Check continuity between door mirror remote control switch termi-
nals as follows.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace door mirror remote control switch.
Door Mirror Remote Control Switch (Mirror Switch) Circuit CheckEIS004YE
1. CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH) SIGNAL
With CONSULT-II
Check the operation on “MIR CON SW-UP/DN” and
“MIR CON SW-RH/LH ” in the DATA MONITOR.
Without CONSULT-II
1. Turn ignition switch to ACC.
2. Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Door mirror remote control switch (mirror switch) circuit is OK.
NG >> GO TO 2.
Terminals ConditionContinuity
3 13Changeover switch RIGHT position Yes
Other than above
No
2 Changeover switch LEFT position Yes
Other than above
No
LIIA2052E
Monitor item [OPERATION or
UNIT] Contents
MIR CON SW-UP “ON/OFF ”ON/OFF status judged from the door mirror
switch (UP) signal is displayed.
MIR CON SW-DN “ON/OFF ”ON/OFF status judged from the door mirror
switch (DOWN) signal is displayed.
MIR CON SW-RH “ON/OFF ”ON/OFF status judged from the door mirror
switch (RIGHT) signal is displayed.
MIR CON SW-LH “ON/OFF ”ON/OFF status judged from the door mirror
switch (LEFT) signal is displayed.
PIIA0199E
Connector Terminals
ConditionVoltage (V)
(Approx.)
(+) (-)
M33 3
Ground Mirror switch UP operation
0
Other than above 5
4 Mirror switch LEFT operation 0
Other than above
5
19 Mirror switch DOWN operation 0
Other than above
5
20 Mirror switch RIGHT operation 0
Other than above
5
PIIA4771E
