INFINITI QX56 2006 Factory Service Manual

GW-26
POWER WINDOW SYSTEM
Revision: November 20092006 QX56

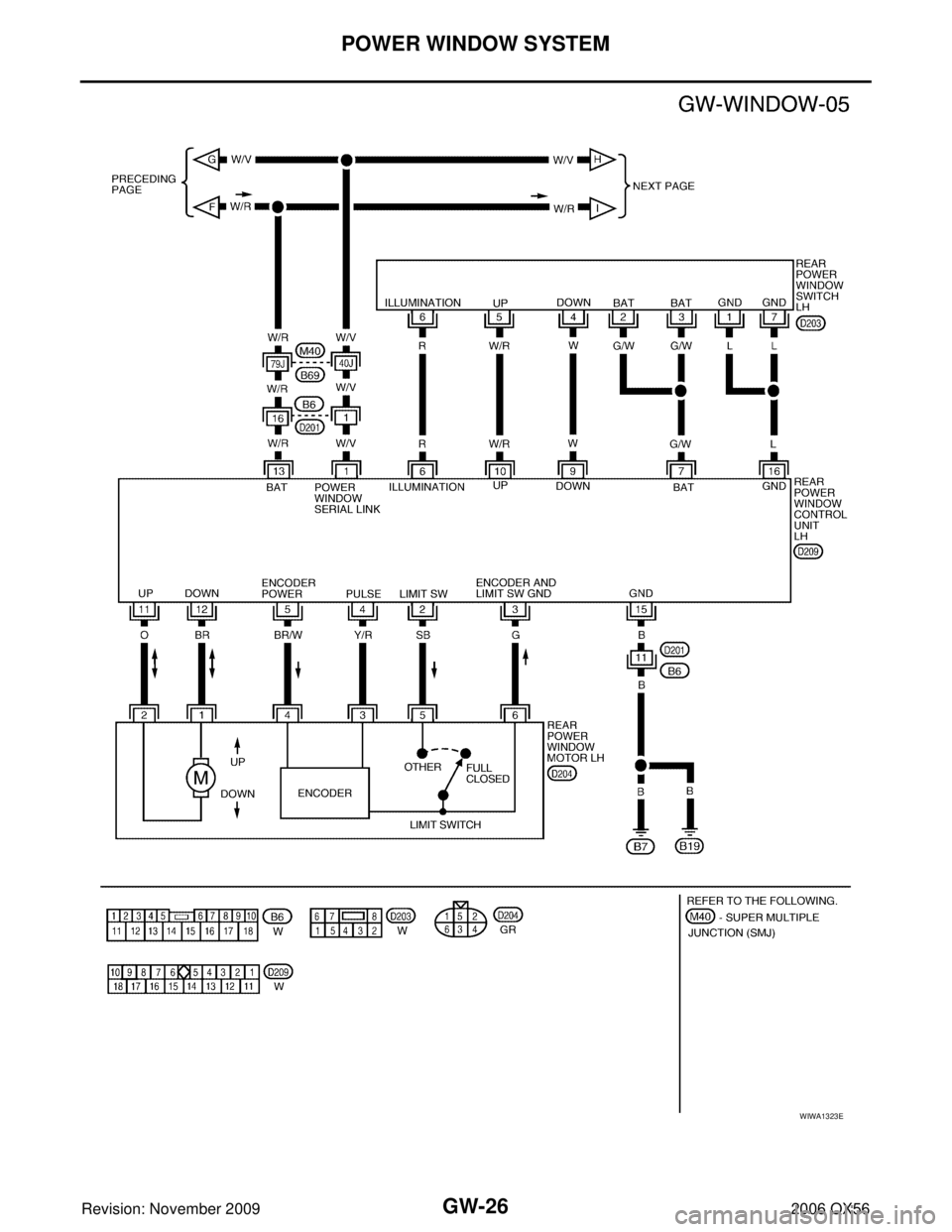

WIWA1323E

POWER WINDOW SYSTEMGW-27
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56

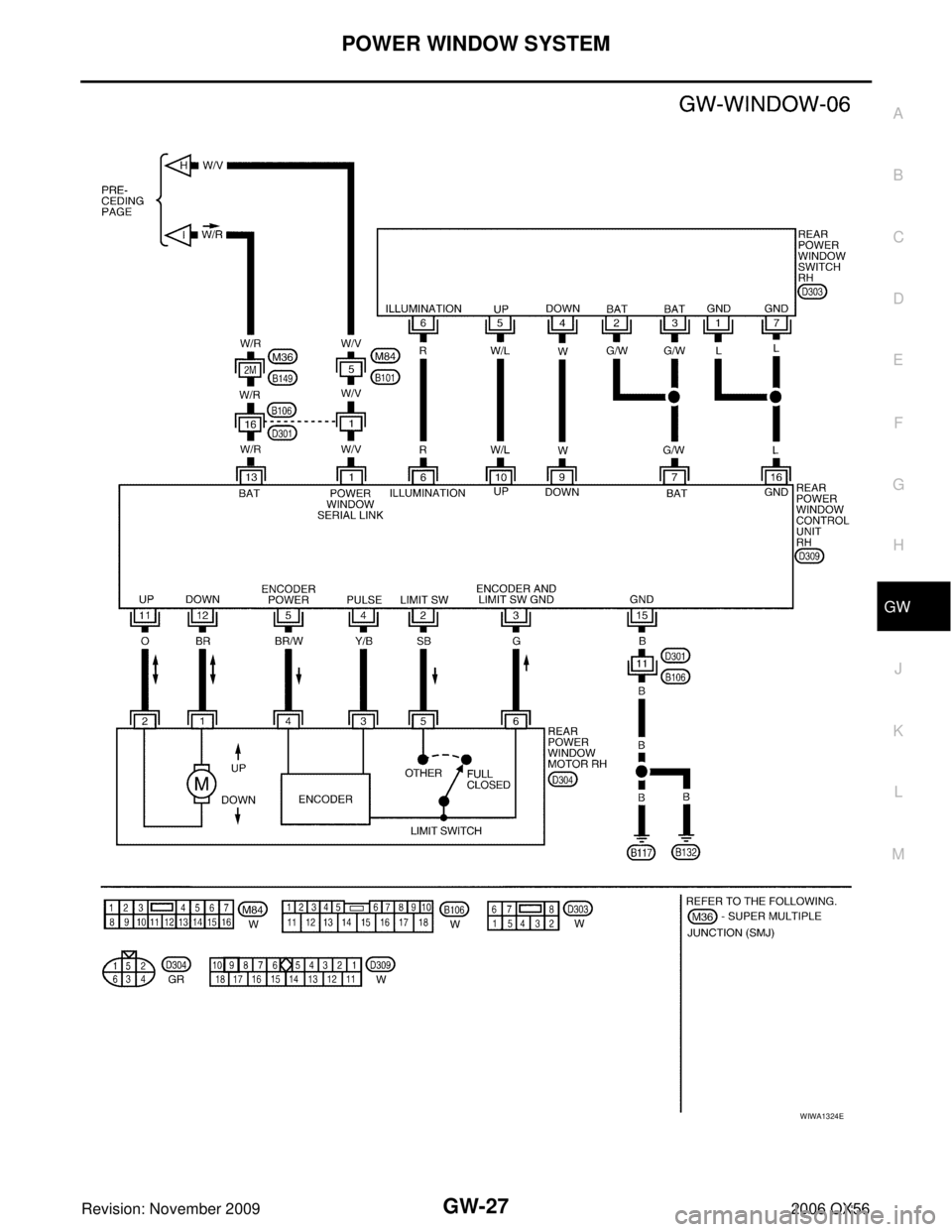

WIWA1324E

GW-28
POWER WINDOW SYSTEM
Revision: November 20092006 QX56

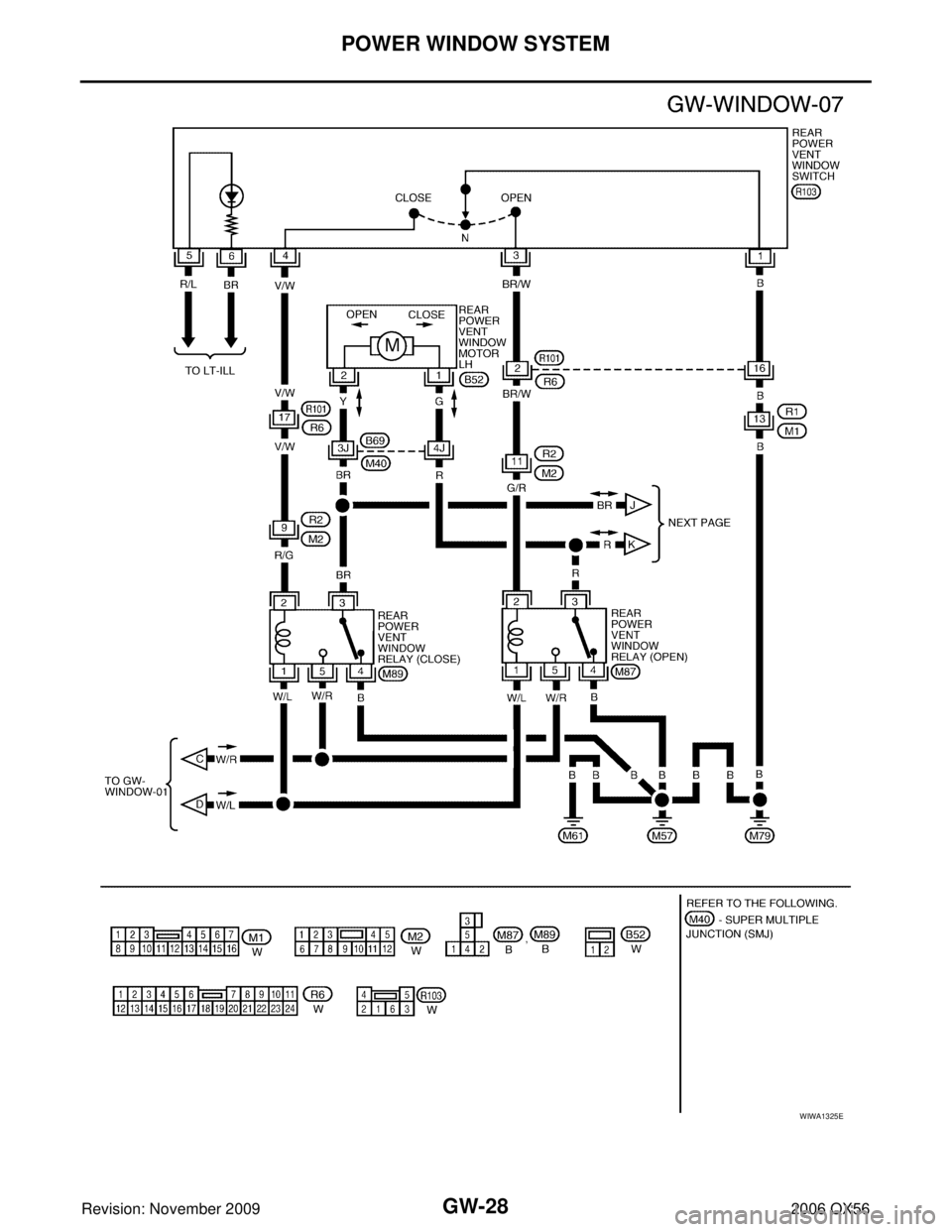

WIWA1325E

POWER WINDOW SYSTEMGW-29
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56

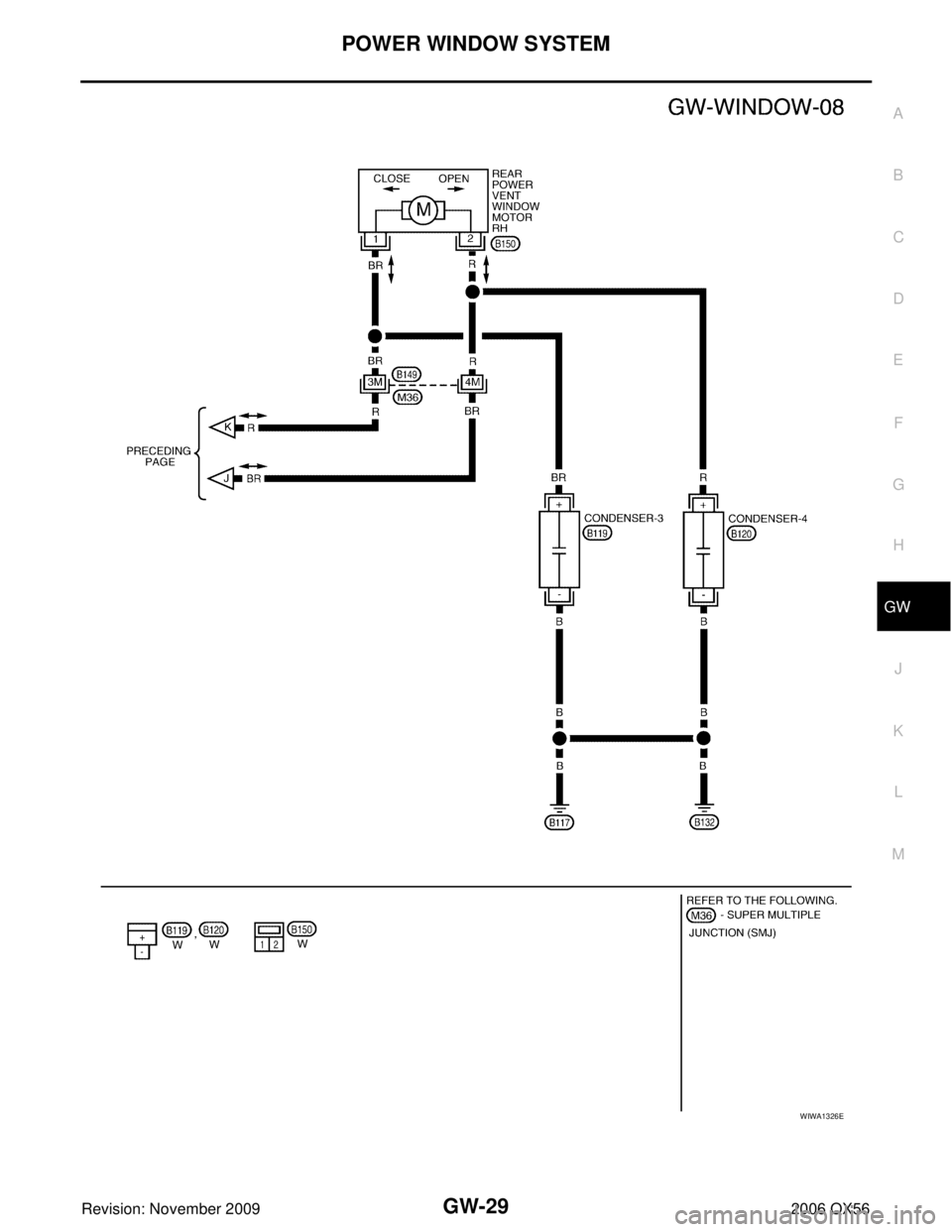

WIWA1326E

GW-30
POWER WINDOW SYSTEM
Revision: November 20092006 QX56
Terminal and Reference Value for Main Power Window and Door Lock/Unlock
Switch
EIS005XS
Terminal and Reference Value for Power Window and Door Lock/Unlock Switch
RH
EIS005XT
Terminal Wire ColorItemCondition Voltage (V)
(Approx.)
2 W/B Limit switch and encoder ground — 0
4L Front door key cylinder switch LH
lock signal Key position
(Neutral
→ Unlocked) 5
→ 0
6R Front door key cylinder LH switch
unlock signal Key position
(Neutral
→ Locked) 5
→ 0
8G/R Front power window motor LH UP
signal When power window motor is
operated UP
Battery voltage
9 O Limit switch signal Front power window LH is
between fully-open and just
before fully-closed position (ON)
0
Front power window LH is
between just before fully-closed
position and fully-closed position
(OFF) 5
10 W/L RAP signal When ignition switch ON
Battery voltage
Within 45 seconds after ignition
switch is turned to OFF Battery voltage
More than 45 seconds after igni-
tion switch is turned to OFF 0
When front door LH or RH open
or power window timer operates 0
11 G/W Front power window motor LH
DOWN signal When power window motor is
operated DOWN
Battery voltage
13 G/Y Encoder pulse signal When power window motor oper-
ates
14 LG/W Power window serial link When ignition switch ON or
power window timer operates
15 BR Encoder power supply When ignition switch ON or
power window timer operates10
17 B Ground —0
19 W/R Battery power supply —Battery voltage
OCC3383D
PIIA2344J
Terminal Wire Color ItemCondition Voltage (V)
(Approx.)
3 W/B Limit switch and encoder ground — 0
4 G/R Encoder power supply When ignition switch ON or
power window timer operates10

POWER WINDOW SYSTEMGW-31
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56
8LFront power window motor RH UP
signal When power window motor is
operated UP
Battery voltage
9G Front power window motor RH
DOWN signal When power window motor is
operated DOWN
Battery voltage
10 W/R Battery power supply —Battery voltage
11 B Ground —0
12 G/Y Encoder pulse signal When power window motor oper-
ates
15 G/W Limit switch signal Rear power window RH is
between fully-open and just
before fully-closed position (ON)
0
Rear power window RH is
between just before fully-closed
position and fully-closed position
(OFF) 5
16 LG/W Power window serial link When ignition switch is ON or
power window timer operating
Terminal Wire Color
ItemCondition Voltage (V)
(Approx.)
OCC3383D
PIIA2344J

GW-32
POWER WINDOW SYSTEM
Revision: November 20092006 QX56
Terminal and Reference Value for BCMEIS005XU
Terminal Wire ColorItemCondition Voltage (V)
(Approx.)
11 O Ignition switch (ACC or ON) Ignition switch
(ACC or ON position) Battery voltage
12 R/L Front door switch RH signal ON (Open)
Battery voltage
OFF (Close) 0
22 W/V BUS When ignition switch ON or
power window timer operates
38 W/L Ignition switch (ON or START) Ignition switch
(ON or START position)
Battery voltage
47 SB Front door switch LH signal ON (Open)
Battery voltage
OFF (Close) 0
67 B Ground —0
68 W/L Power window power supply
(RAP) When ignition switch ON
Battery voltage
Within 45 seconds after ignition
switch is turned to OFF Battery voltage
More than 45 seconds after igni-
tion switch is turned to OFF 0
When front door LH or RH is
open or power window timer
operates 0
69 W/R Power window power supply
(BAT) —
Battery voltage
70 W/B Battery power supply —Battery voltage
PIIA2344J

POWER WINDOW SYSTEMGW-33
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56
Work FlowEIS005XV
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to GW-16, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to GW-35, "
Trouble Diagnoses Symptom Chart" .
4. Does power window system operate normally? Yes, GO TO 5, If No, GO TO 3.
5. Inspection End.
CONSULT-II Function (BCM)EIS005XW
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II INSPECTION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
2. Turn ignition switch ON.
3. Touch “START (NISSAN BASED VHCL) ”.
BCM diagnostic
test item Diagnostic mode
Content
Inspection by part WORK SUPPORT
Supports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time. ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The results of transmit/receive diagnosis of CAN communication can be read. ECU PART NUMBER BCM part number can be read.CONFIGURATION Performs BCM configuration read/write functions.
BBIA0369E
BCIA0029E

GW-34
POWER WINDOW SYSTEM
Revision: November 20092006 QX56
4. Touch “BCM”.
If “BCM ” is not indicated, refer to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
5. Touch “RETAINED PWR ”.
6. Select diagnosis mode. “ACTIVE TEST ”, “WORK SUPPORT ” and "DATA MONITOR"
are available.
ACTIVE TEST
WORK SUPPORT
DATA MONITOR
BCIA0030E
LIIA0163E
BCIA0031E
Test Item Description
RETAINED PWR This test is able to supply RAP signal (power) from BCM (body control module) to power window
system and power sunroof system (if equipped). Those systems can be operated when turning on
“
RETAINED PWR ” on CONSULT-II screen even if the ignition switch is turned OFF.
NOTE:
During this test, CONSULT-II can be operated with ignition switch in OFF position. “ RETAINED
PWR ” should be turned “ ON” or “OFF ” on CONSULT-II screen when ignition switch is ON. Then
turn ignition switch OFF to check retained power operation. CONSULT-II might be stuck if
“ RETAINED PWR ” is turned “ON ” or “OFF ” on CONSULT-II screen when ignition switch is OFF.
Work item Description
RETAINED PWR RAP signal
’s power supply period can be changed by mode setting. Selects RAP signal ’s power
supply period between three steps

MODE1 (45 sec.) / MODE2 (OFF) / MODE 3 (2 min.).
Work item Description
IGN ON SW Indicates (ON / OFF) condition of ignition switch

POWER WINDOW SYSTEMGW-35
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56
Trouble Diagnoses Symptom ChartEIS005XX

Check that other systems using the signal of the following systems operate normally.
DOOR SW-DRIndicates (ON/OFF) condition of front door switch driver side
DOOR SW-AS Indicates (ON/OFF) condition of front door switch passenger side
Symptom Repair orderRefer to page
None of the power windows can be operated using any switch 1. BCM power supply and ground circuit check
GW-37
2. Main power window and door lock/unlock
power supply and ground circuit checkGW-38
3. Power window serial link check front LH and
RHGW-39
Front power window LH alone does not operate 1. Main power window and door lock/unlock
power supply and ground circuit check
GW-382. Front power window motor LH circuit check
GW-40
3. Replace main power window and door lock/
unlock switch EI-32
Front power window RH alone does not operate 1. Power window and door lock/unlock switch
RH power supply and ground circuit check
GW-392. Power window serial link check front LH and
RHGW-51
3. Front power window motor RH circuit check
GW-41
4. Replace BCMBCS-20
Rear power window LH alone does not operate 1. Rear power window control unit LH or RH
power supply and ground circuit check
GW-53
2. Rear power window switch LH or RH power
supply and ground circuit checkGW-54
3. Rear power window motor LH circuit check
GW-54
4. Power window serial link check rear LH and
RHGW-59
5. Replace BCM
BCS-20
Rear power window RH alone does not operate 1. Rear power window control unit LH or RH
power supply and ground circuit check
GW-53
2. Rear power window switch LH or RH power
supply and ground circuit checkGW-54
3. Rear power window motor RH circuit check
GW-55
4. Power window serial link check rear LH and
RHGW-59
5. Replace BCM
BCS-20
Rear power vent windows do not operate 1. Rear power vent window switch circuit checkGW-61
Rear power vent window LH alone does not operate 1. Rear power vent window motor LH circuit
checkGW-61
Rear power vent window RH alone does not operate
1. Rear power vent window motor RH circuit
checkGW-61
Rear power vent windows do not open 1. Rear power vent window relay (OPEN)
check
GW-61
Rear power vent windows do not close 1. Rear power vent window relay (CLOSE)
checkGW-61
