INFINITI QX56 2006 Factory Service Manual

LT-44
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: November 20092006 QX56
2. CHECK PARKING BRAKE SWITCH SIGNAL
1. Turn ignition switch OFF.
2. Disconnect parking brake switch connector.
3. Turn ignition switch ON.
4. Check voltage between parking brake switch connector M11 ter- minal 1 and ground.
OK or NG
OK >> Replace parking brake switch.
NG >> GO TO 3.
3. CHECK PARKING BRAKE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector.
3. Check continuity between combination meter connector M24 (A) terminal 23 and parking brake switch connector M11 (B) terminal
1.
OK or NG
OK >> Replace combination meter. Refer to IP-13, "COMBINA-
TION METER" .
NG >> Repair harness or connector.
CONSULT-II FunctionsEKS00B8L
Refer to LT- 1 6 , "CONSULT-II Function (BCM)" in HEADLAMP (FOR USA).
Refer to LT- 1 9 , "
CONSULT-II Function (IPDM E/R)" in HEADLAMP (FOR USA).
Daytime Light Control Does Not Operate Properly (Normal Headlamps Operate
Properly)
EKS00D6B
1. CHECK DAYTIME LIGHT RELAY POWER SUPPLY CIRCUIT
1. Remove daytime light relay.
2. Check voltage between daytime light relay connector E103 ter- minals 2, 5 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector. 1 - Ground
: Battery voltage should exist.
WKIA4609E
1 - 23: Continuity should exist.
WKIA4610E
2, 5 - Ground : Battery voltage should exist.
WKIA4611E

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -LT-45
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
2. CHECK DAYTIME LIGHT RELAY
1. Apply battery voltage to daytime light relay terminal 2 and ground terminal 1.
2. Check continuity between terminals 3 and 5.
OK or NG
OK >> GO TO 3.
NG >> Replace daytime light relay.
3. CHECK DAYTIME LIGHT RELAY CIRCUIT
1. Disconnect IPDM E/R connector E122.
2. Check continuity between daytime light relay connector E103 (B) terminal 1 and front combination lamp LH connector E122
(A) terminal 44.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK INPUT SIGNAL
1. Connect daytime light relay and IPDM E/R connector.
2. Start engine and release parking brake. Headlamp switch OFF.
3. Select "IPDM E/R" on CONSULT-II. With data monitor, make sure "DTRL REQ" turns ON-OFF linked with operation of park-
ing brake switch.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and
Installation of IPDM E/R" .
NG >> GO TO 5.
5. CHECKING CAN COMMUNICATIONS
Select "BCM" on CONSULT-II and perform self-diagnosis for BCM.
Displayed self-diagnosis results
NO DTC>> Replace BCM. Refer to BCS-20, "BCM" .
CAN COMM CIRCUIT>> Check BCM CAN communication system.
Refer to BCS-13, "
CAN Communication Inspection
Using CONSULT-II (Self-Diagnosis)" .
3 - 5 : Continuity should exist.
SKIB4671E
44 - 1
: Continuity should exist.
WKIA4612E
Parking brake ON : DTRL REQ ON
Parking brake OFF : DTRL REQ OFF
WKIA1449E
SKIA1039E

LT-46
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: November 20092006 QX56
Aiming AdjustmentEKS00D6C
Refer to LT- 2 9 , "Aiming Adjustment" .
Bulb ReplacementEKS00D6D
Refer to LT- 3 0 , "Bulb Replacement" .
Removal and InstallationEKS00D6E
Refer to LT- 3 1 , "Removal and Installation" .
Disassembly and AssemblyEKS00D6F
Refer to LT- 3 2 , "Disassembly and Assembly" .

AUTO LIGHT SYSTEMLT-47
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
AUTO LIGHT SYSTEMPFP:28491

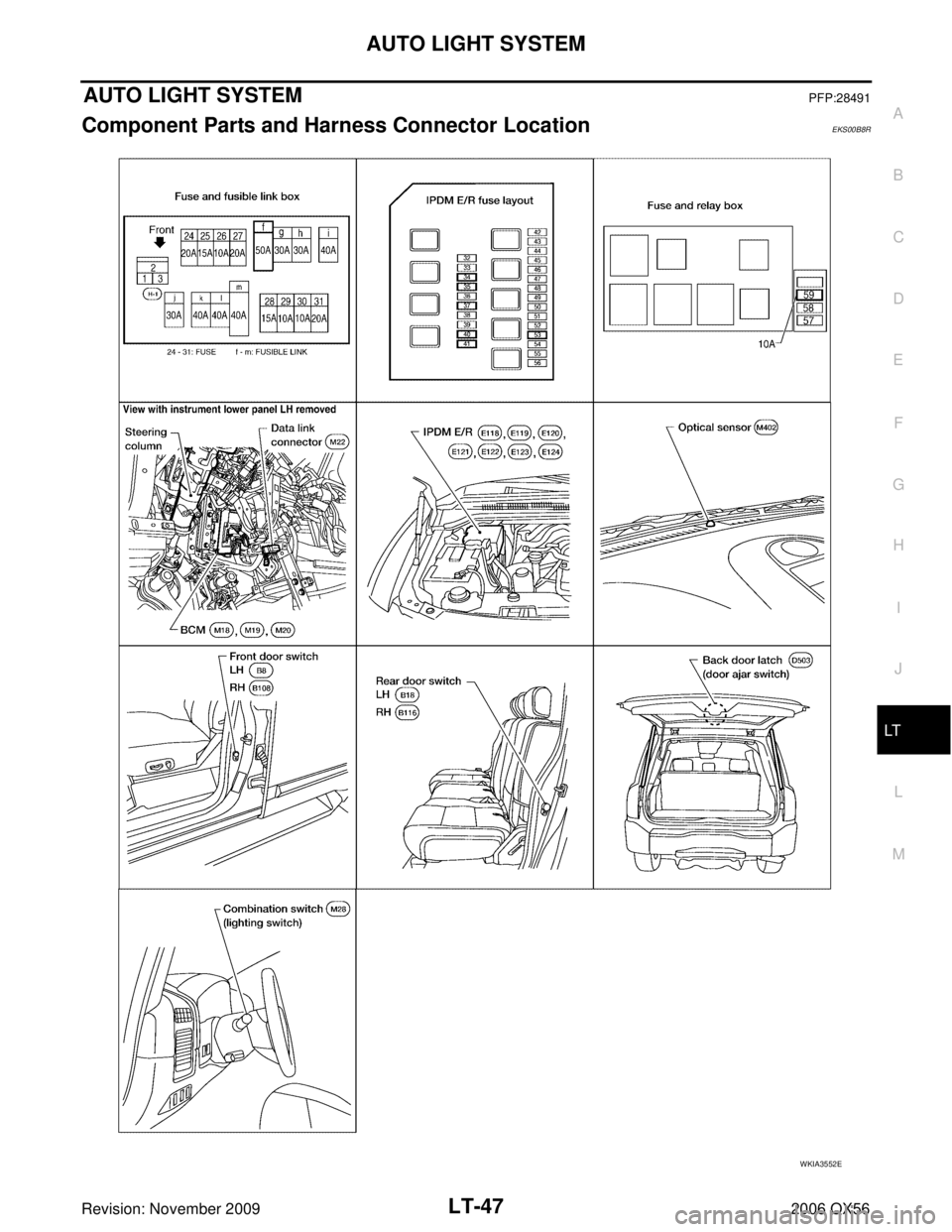

Component Parts and Harness Connector LocationEKS00B8R
WKIA3552E

LT-48
AUTO LIGHT SYSTEM
Revision: November 20092006 QX56
System DescriptionEKS00B8S
Automatically turns on/off the parking lamps and the headlamps in accordance with ambient light.
Timing for when the lamps turn on/off can be selected using four modes.
OUTLINE
The auto light control system uses an optical sensor that detects outside brightness.
When the lighting switch is in "AUTO" position, it automatically turns on/off the parking lamps and the head-
lamps in accordance with the ambient light. Sensitivity can be adjusted in four steps. For the details of the set-
ting, refer to LT- 5 5 , "
SETTING CHANGE FUNCTIONS" .
Optical sensor ground is supplied

to optical sensor terminal 3

through BCM (body control module) terminal 18.
When ignition switch is turned to “ON” position and when outside brightness is darker than prescribed level,
input is supplied

to BCM terminal 58

through optical sensor terminal 4.
The headlamps will then illuminate. For a description of headlamp operation, refer to LT- 5 , "
System Descrip-
tion" .
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the AUTO position, and the ignition switch is turned from
ON or ACC to OFF, and one of the front doors is opened, the battery saver control feature is activated.
Under this condition, the headlamps remain illuminated for 5 minutes, then the headlamps are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
DELAY TIMER FUNCTION
When the ignition switch is ON and auto light switch is ON, the BCM turns on/off the headlamps. In delay timer
function, ignition is OFF, auto light sensor power source is OFF and the headlamps are not turned on/off by the
BCM. On condition that:

when the state of ignition switch ON or ACC is ON and output judgment by auto light function is headlamp
ON changes to ignition switch and ACC are OFF and any door switch is ON, output judgment by BCM
should be headlamp ON for 5 minutes by timer. After time out, output judgment by BCM should be head-
lamp OFF.

when the state of any door switch is turned to ON from OFF while 45 second or 5 minute timer is counting,
timer stops, and restarts counting for 5 minutes, then BCM judges output as headlamp ON. After time out,
BCM judges output as headlamp OFF.

when the state of front door switch (LH), front door switch (RH), rear door switch LH, rear door switch RH
or back door latch (door ajar switch) is ON turns to all door switches are OFF while 45 second or 5 minute
timer is counting, timer stops, and restarts counting for 45 seconds, then BCM judges output as headlamp
ON. After timer out, BCM judges output as headlamp OFF.

when the state is ignition switch ON or ACC is ON or auto light switch OFF while timer is counting, timer
stops counting and BCM turns on/off lamps according to headlamp function, front fog lamp function, auto
light function and headlamp battery save function.
Delay timer control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionEKS00B8T
Refer to LAN-26, "CAN COMMUNICATION" .
Major Components and FunctionsEKS00B8U
Components Functions
BCM

Turns on/off circuits of tail light and headlamp according to signals from light sensor, lighting switch
(AUTO), front door switch LH, front door switch RH, rear door switch, back door latch (door ajar
switch), and ignition switch (ON, OFF).
Optical sensor

Converts ambient light (lux) to voltage, and sends it to BCM. (Detects lightness of 50 to 1,300 lux)

AUTO LIGHT SYSTEMLT-49
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56

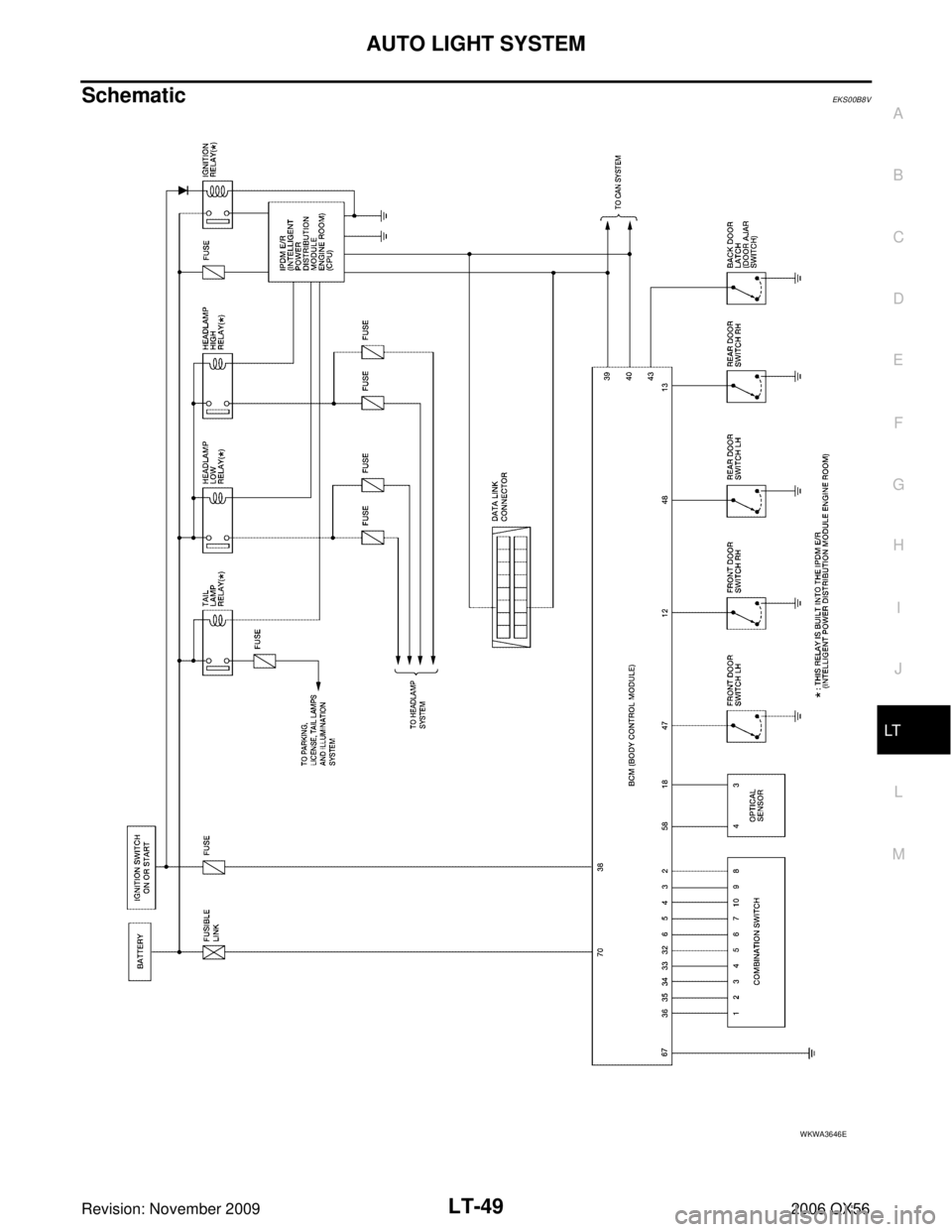

SchematicEKS00B8V
WKWA3646E

LT-50
AUTO LIGHT SYSTEM
Revision: November 20092006 QX56

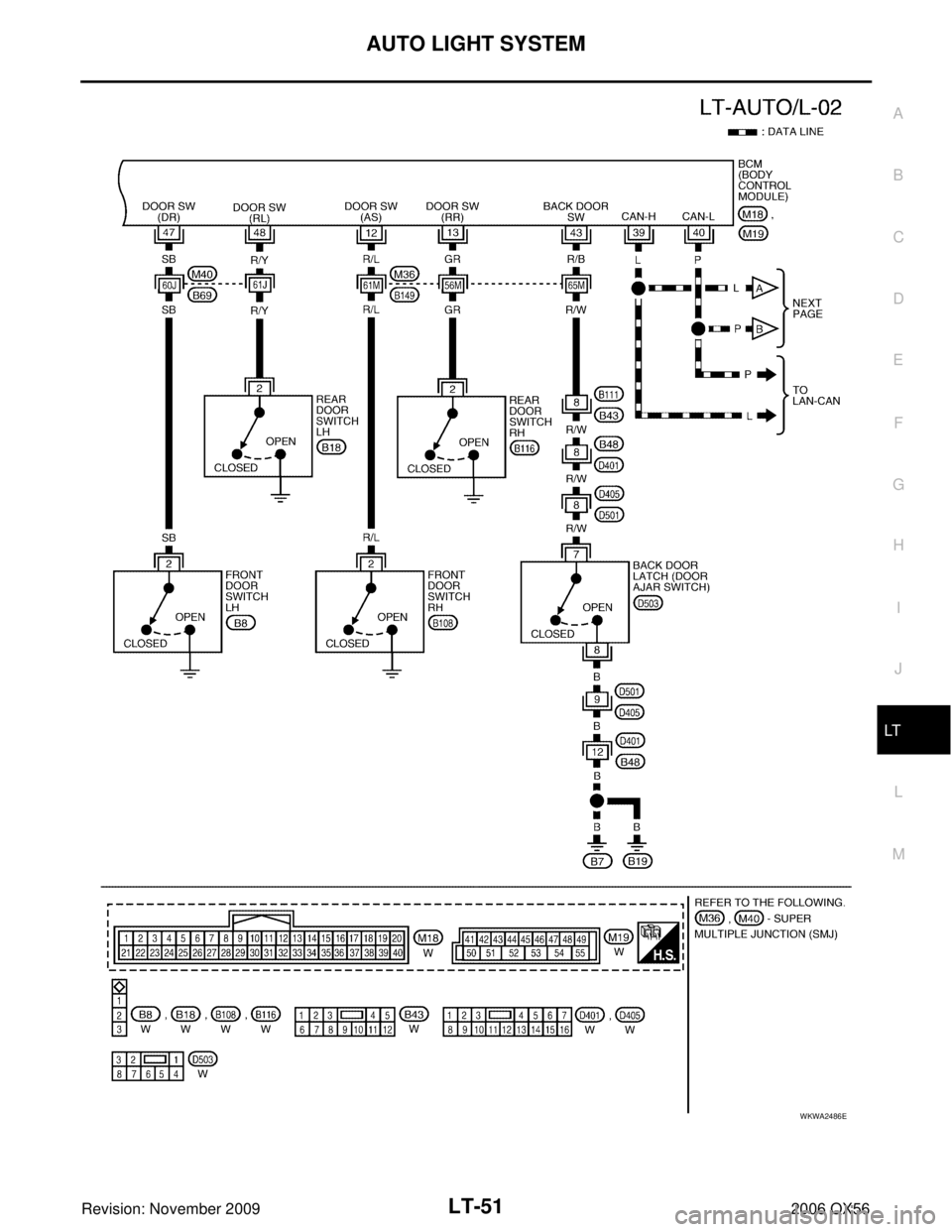

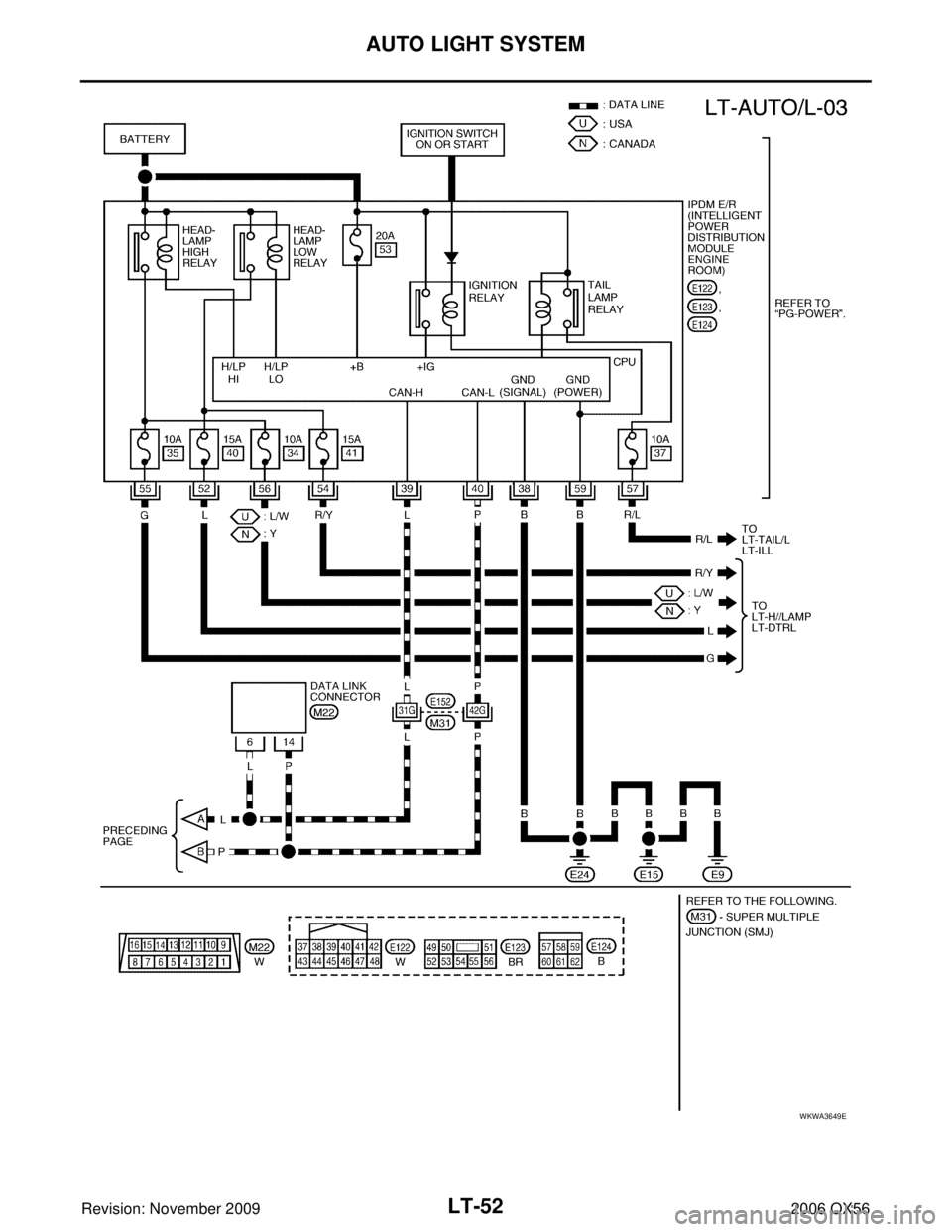

Wiring Diagram — AUTO/L —EKS00B8W
WKWA3647E

AUTO LIGHT SYSTEMLT-51
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
WKWA2486E

LT-52
AUTO LIGHT SYSTEM
Revision: November 20092006 QX56
WKWA3649E

AUTO LIGHT SYSTEMLT-53
C
DE
F
G H
I
J
L
M A
B
LT
Revision: November 2009 2006 QX56
Terminals and Reference Values for BCMEKS00B8X
Te r m i n a l
No. Wire
color Signal name Measuring condition
Reference value
(Approx.)
Ignition
switch Operation or condition
2 SB Combination switch input 5 ON Lighting, turn, wiper OFF
Wiper dial position 4
3 G/Y Combination switch input 4 ON Lighting, turn, wiper OFF
Wiper dial position 4
4 Y Combination switch input 3 ON Lighting, turn, wiper OFF
Wiper dial position 4
5 G/B Combination switch input 2 ONLighting, turn, wiper OFF
Wiper dial position 4
6 V Combination switch input 1
12 R/L Front door switch RH signal OFF Front door
switch RH ON (open)
0V
OFF (closed) Battery voltage
13 GR Rear door switch RH OFFRear door
switch RH ON (open)
0V
OFF (closed) Battery voltage
18 P Sensor ground ON— 0V
32 R/G Combination switch output 5 ON Lighting, turn, wiper OFF
Wiper dial position 4
33 R/Y Combination switch output 4 ON Lighting, turn, wiper OFF
Wiper dial position 4
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
