AT-210
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: November 20092006 QX56
2. CHECK 4TH POSITION SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch “ ON”.
2. Select "ECU INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Read out "OD CONT SW" switch moving selector lever to each position.
Without CONSULT-II
1. Turn ignition switch “ ON”. (Do not start engine)
2. Check voltage between A/T device harness connector terminal and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. CHECK A/T FLUID LEVEL
Check the A/T fluid level. Refer to AT- 1 2 , "
Checking Automatic
Transmission Fluid (ATF)" .
OK or NG
OK >> GO TO 4.
NG >> Refill ATF.
Monitor item Condition Display value
OD CONT SW When setting the selector
lever to "4" and "3" posi-
tion.
ON
When setting selector
lever to other positions. OFF
LCIA0339E
Item Connector No. Terminal No. Condition Data
(Approx.)
4th position switch M203 1 - Ground When setting
the selector
lever to "4"
and "3" posi-
tion.
0V
When setting
selector lever
to other posi-
tions. Battery volt-
age
LCIA0340E
SAT638A

AT-212
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: November 20092006 QX56
9. DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 1 ,
"Symptom Chart" (Symptom No.14).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
A/T Does Not Shift: 4th gear → 3rd gearECS00CKK
SYMPTOM:
When shifted from 44 to 33 position, does not downshift from 4th to 3rd gears.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Perform self-diagnosis. Refer to AT- 8 6 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnosis results indicate PNP switch, ATF pressure switch 1, ATF pressure switch 3?
YES >> Check the malfunctioning system. Refer to AT- 1 0 5 , "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" , AT- 1 5 9 , "DTC P1841 ATF PRESSURE SWITCH 1" , AT- 1 6 1 , "DTC P1843 ATF PRES-
SURE SWITCH 3" .
NO >> GO TO 2.
2. CHECK A/T FLUID LEVEL
Check the A/T fluid level. Refer to AT- 1 2 , "
Checking Automatic
Transmission Fluid (ATF)" .
OK or NG
OK >> GO TO 3.
NG >> Refill ATF.
3. CHECK CONTROL CABLE
Check the control cable.

Refer to AT- 2 2 7 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 4.
NG >> Adjust control cable. Refer to AT- 2 2 7 , "
Adjustment of A/
T Position" .
SAT638A
LCIA0345E

AT-214
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: November 20092006 QX56
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Perform self-diagnosis. Refer to AT- 8 6 , "
SELF-DIAGNOSTIC RESULT MODE" .
Do the self-diagnosis results indicate PNP switch, ATF pressure switch 6?
YES >> Check the malfunctioning system. Refer to AT- 1 0 5 , "DTC P0705 PARK/NEUTRAL POSITION
SWITCH" , AT- 1 6 5 , "DTC P1846 ATF PRESSURE SWITCH 6" .
NO >> GO TO 2.
2. CHECK A/T FLUID LEVEL
Check the A/T fluid level. Refer to AT- 1 2 , "
Checking Automatic
Transmission Fluid (ATF)" .
OK or NG
OK >> GO TO 3.
NG >> Refill ATF.
3. CHECK CONTROL CABLE
Check the control cable.

Refer to AT- 2 2 7 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 4.
NG >> Adjust control cable. Refer to AT- 2 2 7 , "
Adjustment of A/
T Position" .
4. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 0 , "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 1 , "
Fluid Condition
Check" .
OK or NG
OK >> GO TO 5.
NG >> GO TO 8.
5. DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 1 ,
"Symptom Chart" (Symptom No.16).
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
SAT638A
LCIA0345E
SCIA5199E

AT-216
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: November 20092006 QX56
2. CHECK 1ST POSITION SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch “ ON”.
2. Select "ECU INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Read out "1 POSITION SW" switch moving selector lever to each position.
Without CONSULT-II
1. Turn ignition switch “ ON”. (Do not start engine)
2. Check voltage between A/T device harness connector terminal and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. CHECK A/T FLUID LEVEL
Check the A/T fluid level. Refer to AT- 1 2 , "
Checking Automatic
Transmission Fluid (ATF)" .
OK or NG
OK >> GO TO 4.
NG >> Refill ATF.
Monitor item Condition Display value
1 POSITION SW When setting the selector
lever to "1" position.
ON
When setting selector
lever to other positions. OFF
LCIA0339E
Item Connector No. Terminal No. Condition Data
(Approx.)
1st position switch M203 7 - Ground When setting
the selector
lever to "1"
position.
0V
When setting
selector lever
to other posi-
tions. Battery volt-
age
LCIA0341E
SAT638A

TROUBLE DIAGNOSIS FOR SYMPTOMSAT-219
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56

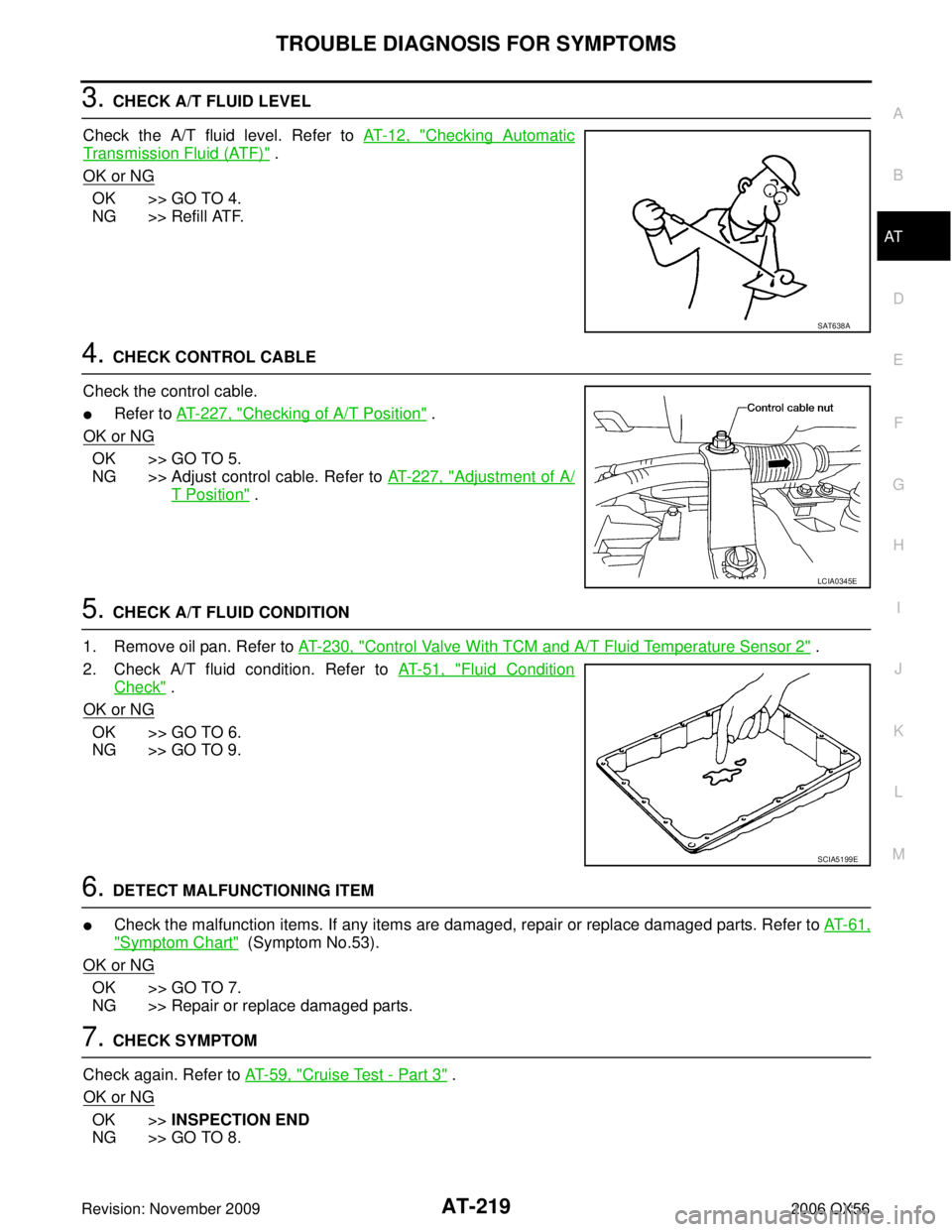

3. CHECK A/T FLUID LEVEL
Check the A/T fluid level. Refer to AT- 1 2 , "
Checking Automatic
Transmission Fluid (ATF)" .
OK or NG
OK >> GO TO 4.
NG >> Refill ATF.
4. CHECK CONTROL CABLE
Check the control cable.

Refer to AT- 2 2 7 , "Checking of A/T Position" .
OK or NG
OK >> GO TO 5.
NG >> Adjust control cable. Refer to AT- 2 2 7 , "
Adjustment of A/
T Position" .
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 0 , "
Control Valve With TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 1 , "
Fluid Condition
Check" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 9.
6. DETECT MALFUNCTIONING ITEM

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 1 ,
"Symptom Chart" (Symptom No.53).
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again. Refer to AT- 5 9 , "
Cruise Test - Part 3" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 8.
SAT638A
LCIA0345E
SCIA5199E

AT-228
ON-VEHICLE SERVICE
Revision: November 20092006 QX56
ON-VEHICLE SERVICEPFP:00000
Oil PanECS00EPZ
REMOVAL AND INSTALLATION
Removal
1. Drain A/T fluid. Refer to AT- 1 2 , "Changing Automatic Transmission Fluid (ATF)" .
2. Remove oil pan and gasket.
3. Check foreign materials in oil pan to help determine cause of malfunction. If the A/T fluid is very dark, has some burned smell, or contains foreign particles, friction material (clutches, band) may need replacement.
A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves, servo, and
clutches to stick and can inhibit pump pressure.
CAUTION:
If friction material is detected, flush the transmission cooler after repair. Refer to AT- 1 4 , "
A/T Fluid
Cooler Cleaning" .
4. Remove magnets from oil pan.
Installation
1. Install the oil pan magnets as shown.
SCIA2308E
SCIA5200E
SCIA5200E

ON-VEHICLE SERVICEAT-237
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
13. Connect revolution sensor connector.
14. Securely fasten revolution sensor harness with terminal clips.
15. Install oil pan to transmission case. Refer to AT- 2 2 8 , "
Installation" .
16. Pull up A/T assembly harness connector. CAUTION:
Be careful not to damage connector.
17. Install snap ring to A/T assembly harness connector.
18. Connect A/T assembly harness connector.
19. Pour ATF into transmission assembly. Refer to AT- 1 2 , "
Chang-
ing Automatic Transmission Fluid (ATF)" .
20. Connect the negative battery terminal
CAUTION:
After completing installation, check A/T fluid leakage and fluid
level. Refer to AT- 1 2 , "
Changing Automatic Transmission Fluid
(ATF)" , AT- 1 2 , "Checking Automatic Transmission Fluid (ATF)"
.
SCIA5024E
SCIA7022E
SCIA5038E
SCIA5039E

ON-VEHICLE SERVICEAT-239
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
Installation
1. Install A/T fluid temperature sensor 2 to bracket.
2. Install A/T fluid temperature sensor 2 (with bracket) in control
valve with TCM. Tighten A/T fluid temperature sensor 2 bolt to
the specified torque. Refer to AT- 2 5 0 , "
Components" .
CAUTION:
Adjust bolt hole of bracket to bolt hole of control valve with
TCM.
3. Connect A/T fluid temperature sensor 2 connector.
4. Securely fasten A/T temperature sensor 2 harness with terminal clip.
5. Install oil pan to transmission case. Refer to AT- 2 2 8 , "
Installation" .
6. Connect the negative battery terminal
CAUTION:
After completing installation, check for A/T fluid leakage and fluid level. Refer to AT- 1 2 , "
Changing
Automatic Transmission Fluid (ATF)" , AT- 1 2 , "Checking Automatic Transmission Fluid (ATF)" .
SCIA5264E
SCIA5253E
SCIA5023E
SCIA5146E

AT-240
ON-VEHICLE SERVICE
Revision: November 20092006 QX56
Rear Oil SealECS00EQ1
REMOVAL AND INSTALLATION
Removal
1. Remove rear propeller shaft. Refer to PR-9, "REMOVAL" .
2. Remove transfer from transmission (4WD models). Refer to TF-
145, "REMOVAL" .
3. Remove rear oil seal using suitable tool. CAUTION:
Be careful not to scratch rear extension assembly (2WD
models) or adapter case assembly (4WD models).
Installation
1. Install new rear oil seal until it is flush with component face intothe extension case (2WD models) using Tool, or adapter case
(4WD models) using suitable tool.
CAUTION:

Apply ATF to rear oil seal.

Do not reuse rear oil seal.
2. Install transfer to transmission (4WD models). Refer to TF-145,
"INSTALLATION" .
3. Install rear propeller shaft. Refer to PR-9, "
INSTALLATION" .
CAUTION:
After completing installation, check for A/T fluid leakage and
fluid level. Refer to AT- 1 2 , "
Changing Automatic Transmission
Fluid (ATF)" and AT- 1 2 , "Checking Automatic Transmission
Fluid (ATF)" .
SCIA5254E
Tool number : ST33400001 (J-26082)
SCIA5583E

AT-244
TRANSMISSION ASSEMBLY
Revision: November 20092006 QX56
8. Remove crankshaft position sensor (POS) from A/T assembly.
CAUTION:

Do not subject it to impact by dropping or hitting it.

Do not disassemble.

Do not allow metal filings or foreign material to get on the
sensor front edge magnetic area.

Do not place in an area affected by magnetism.
9. Remove fluid cooler tube.
10. Remove dust cover from converter housing.
11. Turn crankshaft to access and remove the four bolts for drive plate and torque converter.
CAUTION:
When turning crankshaft, turn it clockwise as viewed from
the front of the engine.
12. Support A/T assembly with a transmission jack. CAUTION:
When setting the transmission jack, be careful not to allow
it to collide against the drain plug.
13. Remove cross member using power tool.
14. Remove air breather hose. Refer to AT- 2 4 1 , "
Removal and
Installation" .
15. Disconnect A/T assembly connector.
16. Remove A/T fluid indicator pipe from A/T assembly.
17. Plug any openings such as the A/T fluid indicator pipe hole.
18. Remove the A/T assembly to engine bolts using power tool.
19. Remove A/T assembly from vehicle using transmission jack. CAUTION:

Secure torque converter to prevent it from dropping.

Secure A/T assembly to a transmission jack.
INSPECTION
Installation and Inspection of Torque Converter

After inserting a torque converter to a transmission, be sure to
check dimension A to ensure it is within specifications.
LCIA0334E
LCIA0335E
SCIA0499E
Dimension A : 24.0 mm (0.94 in) or more
SAT017B
