Page 242 of 3383
MAIN POWER SUPPLY AND GROUND CIRCUITAT-167
DE
F
G H
I
J
K L
M A
B
AT
Revision: November 2009 2006 QX56
MAIN POWER SUPPLY AND GROUND CIRCUITPFP:00100

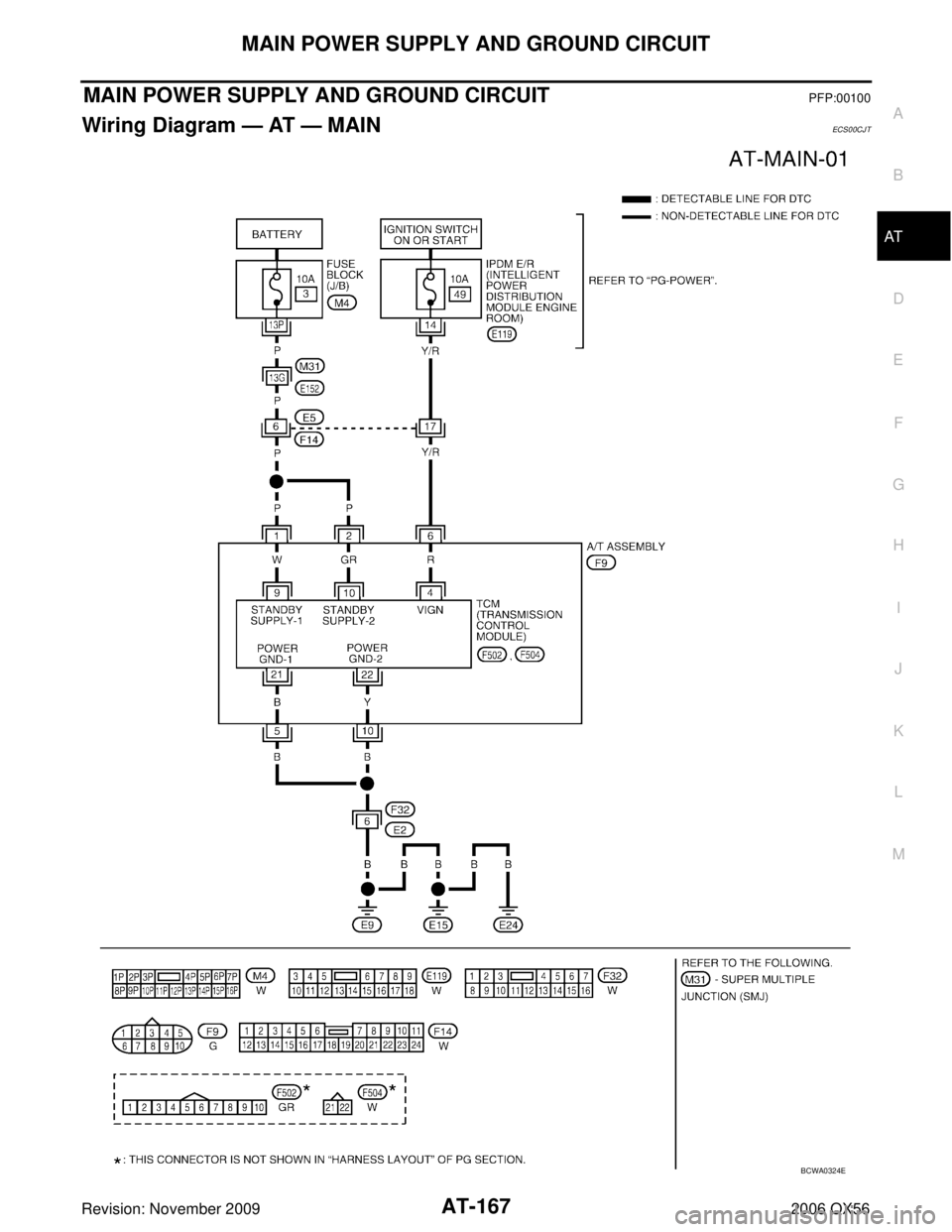

Wiring Diagram — AT — MAINECS00CJT
BCWA0324E
Page 249 of 3383
AT-174
TOW MODE SWITCH
Revision: November 20092006 QX56
Wiring Diagram — AT — TMSWECS00CK0
BCWA0498E
Page 251 of 3383
AT-176
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: November 20092006 QX56
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007

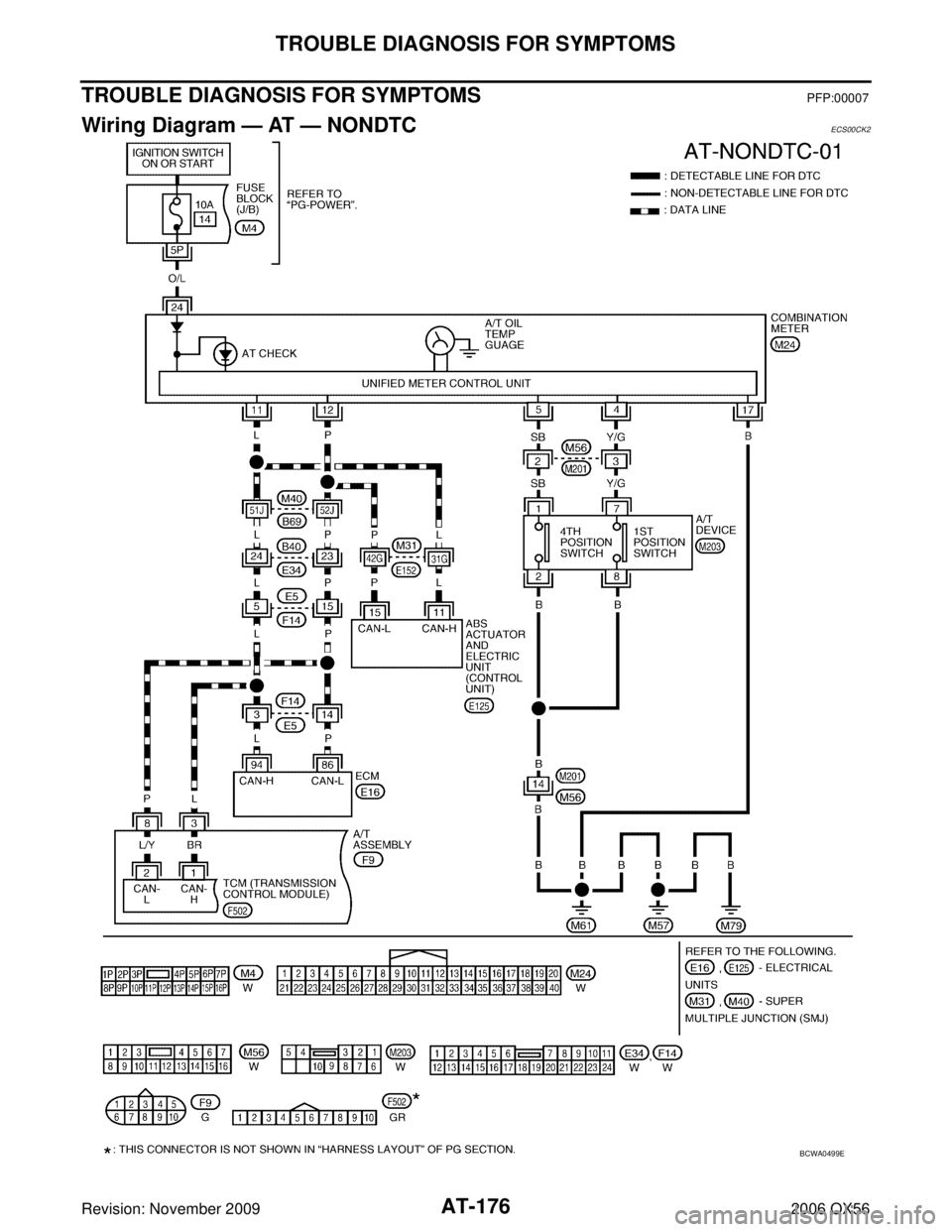

Wiring Diagram — AT — NONDTCECS00CK2
BCWA0499E
Page 297 of 3383
AT-222
A/T SHIFT LOCK SYSTEM
Revision: November 20092006 QX56
Wiring Diagram — A/T — SHIFTECS00ENW
BCWA0502E
Page 403 of 3383
ATC-2Revision: November 20092006 QX56
CONSULT-II BASIC OPERATION ....................
... 34
SELF-DIAGNOSIS ........................................... ... 35
DATA MONITOR ............................................... ... 35
CONSULT-II Function (BCM) ............................... ... 37
CONSULT-II BASIC OPERATION .................... ... 37
DATA MONITOR ............................................... ... 38
How to Perform Trouble Diagnosis for Quick and
Accurate Repair ................................................... ... 39
WORK FLOW ................................................... ... 39
SYMPTOM TABLE ........................................... ... 39
Component Parts and Harness Connector Location ... 40
ENGINE COMPARTMENT ............................... ... 40
FRONT PASSENGER COMPARTMENT ......... ... 41
REAR PASSENGER COMPARTMENT ............... 42
Schematic ............................................................ ... 43
Wiring Diagram — A/C,A — ................................ ... 44
Front Air Control Terminals and Reference Value ... 54
PIN CONNECTOR TERMINAL LAYOUT ......... ... 54
TERMINALS AND REFERENCE VALUE FOR
FRONT AIR CONTROL .................................... ... 54
A/C System Self-diagnosis Function ................... ... 56
DESCRIPTION ................................................. ... 56
Operational Check (Front) ................................... ... 58
CHECKING MEMORY FUNCTION .................. ... 58
CHECKING BLOWER ...................................... ... 58
CHECKING DISCHARGE AIR ......................... ... 58
CHECKING RECIRCULATION (, ONLY) .......... ... 58
CHECKING TEMPERATURE DECREASE ...... ... 58
CHECKING TEMPERATURE INCREASE ....... ... 59
CHECK A/C SWITCH ....................................... ... 59
CHECKING AUTO MODE ................................ ... 59
Operational Check (Rear) .................................... ... 60
CHECKING BLOWER ...................................... ... 60
CHECKING TEMPERATURE DECREASE ...... ... 60
CHECKING TEMPERATURE INCREASE ....... ... 60
Power Supply and Ground Circuit for Front Air Con-
trol ........................................................................ ... 61
INSPECTION FLOW ........................................ ... 61
COMPONENT DESCRIPTION ......................... ... 62
DIAGNOSTIC PROCEDURE FOR A/C SYSTEM ... 62
Mode Door Motor Circuit ........................................ 64 INSPECTION FLOW ........................................ ... 64
SYSTEM DESCRIPTION ................................. ... 65
COMPONENT DESCRIPTION ......................... ... 66
DIAGNOSTIC PROCEDURE FOR MODE
DOOR MOTOR ................................................ ... 66
Air Mix Door Motor Circuit ................................... ... 70
INSPECTION FLOW ........................................ ... 70
SYSTEM DESCRIPTION ................................. ... 71
COMPONENT DESCRIPTION ......................... ... 72
DIAGNOSTIC PROCEDURE FOR AIR MIX
DOOR MOTOR (DRIVER) ................................ ... 72
DIAGNOSTIC PROCEDURE FOR AIR MIX
DOOR MOTOR (PASSENGER) ....................... ... 76
DIAGNOSTIC PROCEDURE FOR AIR MIX
DOOR MOTOR (REAR) ................................... ... 79
Intake Door Motor Circuit ..................................... ... 83
INSPECTION FLOW ........................................ ... 83
SYSTEM DESCRIPTION ................................. ... 84COMPONENT DESCRIPTION .........................
... 85
DIAGNOSTIC PROCEDURE FOR INTAKE
DOOR MOTOR ................................................. ... 85
Defroster Door Motor Circuit ................................ ... 87
SYMPTOM: ....................................................... ... 87
INSPECTION FLOW ......................................... ... 87
SYSTEM DESCRIPTION .................................. ... 88
COMPONENT DESCRIPTION ......................... ... 88
DIAGNOSTIC PROCEDURE FOR
DEFROSTER DOOR MOTOR .......................... ... 89
Front Blower Motor Circuit ................................... ... 93
INSPECTION FLOW ......................................... ... 93
SYSTEM DESCRIPTION .................................. ... 94
COMPONENT DESCRIPTION ......................... ... 95
DIAGNOSTIC PROCEDURE FOR BLOWER
MOTOR ............................................................. ... 95
COMPONENT INSPECTION ............................ .100
Rear Blower Motor Circuit .................................... .101
INSPECTION FLOW ......................................... .101
SYSTEM DESCRIPTION .................................. .102
DIAGNOSTIC PROCEDURE FOR REAR
BLOWER MOTOR ............................................ .102
COMPONENT INSPECTION ............................ .110
Rear Air Control Circuit ........................................ .112
INSPECTION FLOW ......................................... .112
SYSTEM DESCRIPTION .................................. .113
DIAGNOSTIC PROCEDURE FOR REAR AIR
CONTROL ........................................................ .113
Magnet Clutch Circuit ........................................... .115
INSPECTION FLOW ......................................... .115
SYSTEM DESCRIPTION .................................. .116
DIAGNOSTIC PROCEDURE FOR MAGNET
CLUTCH ........................................................... .116
Insufficient Cooling ............................................... .121
INSPECTION FLOW ......................................... .121
PERFORMANCE TEST DIAGNOSES ............. .122
PERFORMANCE CHART ................................. .124
TROUBLE DIAGNOSES FOR UNUSUAL PRES-
SURE ................................................................ .125
Insufficient Heating .............................................. .128
INSPECTION FLOW ......................................... .128
Noise .................................................................... .129
INSPECTION FLOW ......................................... .129
Self-diagnosis ...................................................... .130
INSPECTION FLOW ......................................... .130
Memory Function ................................................. .131
INSPECTION FLOW ......................................... .131
Water Valve Circuit ............................................... .132
COMPONENT DESCRIPTION ......................... .132
DIAGNOSTIC PROCEDURE FOR WATER
VALVE ............................................................... .132
Ambient Sensor Circuit ........................................ .134
COMPONENT DESCRIPTION ......................... .134
AMBIENT TEMPERATURE INPUT PROCESS .134
DIAGNOSTIC PROCEDURE FOR AMBIENT
SENSOR ........................................................... .134
COMPONENT INSPECTION ............................ .136
In-vehicle Sensor Circuit ...................................... .137
COMPONENT DESCRIPTION ......................... .137
Page 406 of 3383
PRECAUTIONSATC-5
C
DE
F
G H
I
K L
M A
B
AT C
Revision: November 2009 2006 QX56
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EJS003WO
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER ”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Working with HFC-134a (R-134a)EJS003WP
WARNING:
CFC-12 (R-12) refrigerant and HFC-134a (R-134a) refrigerant are not compatible. If the refrigerants
are mixed compressor failure is likely to occur. Refer to AT C - 5 , "
Contaminated Refrigerant" . To
determine the purity of HFC-134a (R-134a) in the vehicle and recovery tank, use recovery/recycling
equipment and refrigerant identifier.
Use only specified oil for the HFC-134a (R-134a) A/C system and HFC-134a (R-134a) components.
If oil other than that specified is used, compressor failure is likely to occur.
The specified HFC-134a (R-134a) oil rapidly absorbs moisture from the atmosphere. The following
handling precautions must be observed:
–When removing refrigerant components from a vehicle, immediately cap (seal) the component to
minimize the entry of moisture from the atmosphere.
–When installing refrigerant components to a vehicle, do not remove the caps (unseal) until just
before connecting the components. Connect all refrigerant loop components as quickly as possi-
ble to minimize the entry of moisture into system.
–Only use the specified oil from a sealed container. Immediately reseal containers of oil. Without
proper sealing, oil will become moisture saturated and should not be used.
–Avoid breathing A/C refrigerant and oil vapor or mist. Exposure may irritate eyes, nose and throat.
Remove HFC-134a (R-134a) from the A/C system using certified service equipment meeting
requirements of SAE J2210 [HFC-134a (R-134a) recycling equipment], or J2209 [HFC-134a (R-134a)
recovery equipment]. If accidental system discharge occurs, ventilate work area before resuming
service. Additional health and safety information may be obtained from refrigerant and oil manu-
facturers.
–Do not allow oil, NISSAN A/C System Oil Type S (DH-PS) or equivalent, to come in contact with sty-
rofoam parts. Damage may result.
Contaminated RefrigerantEJS003WQ
If a refrigerant other than pure HFC-134a (R-134a) is identified in a vehicle, your options are:
Explain to the customer that environmental regulations prohibit the release of contaminated refrigerant
into the atmosphere.
Explain that recovery of the contaminated refrigerant could damage your service equipment and refriger-
ant supply.
Suggest the customer return the vehicle to the location of previous service where the contamination may
have occurred.
Page 445 of 3383
ATC-44
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56

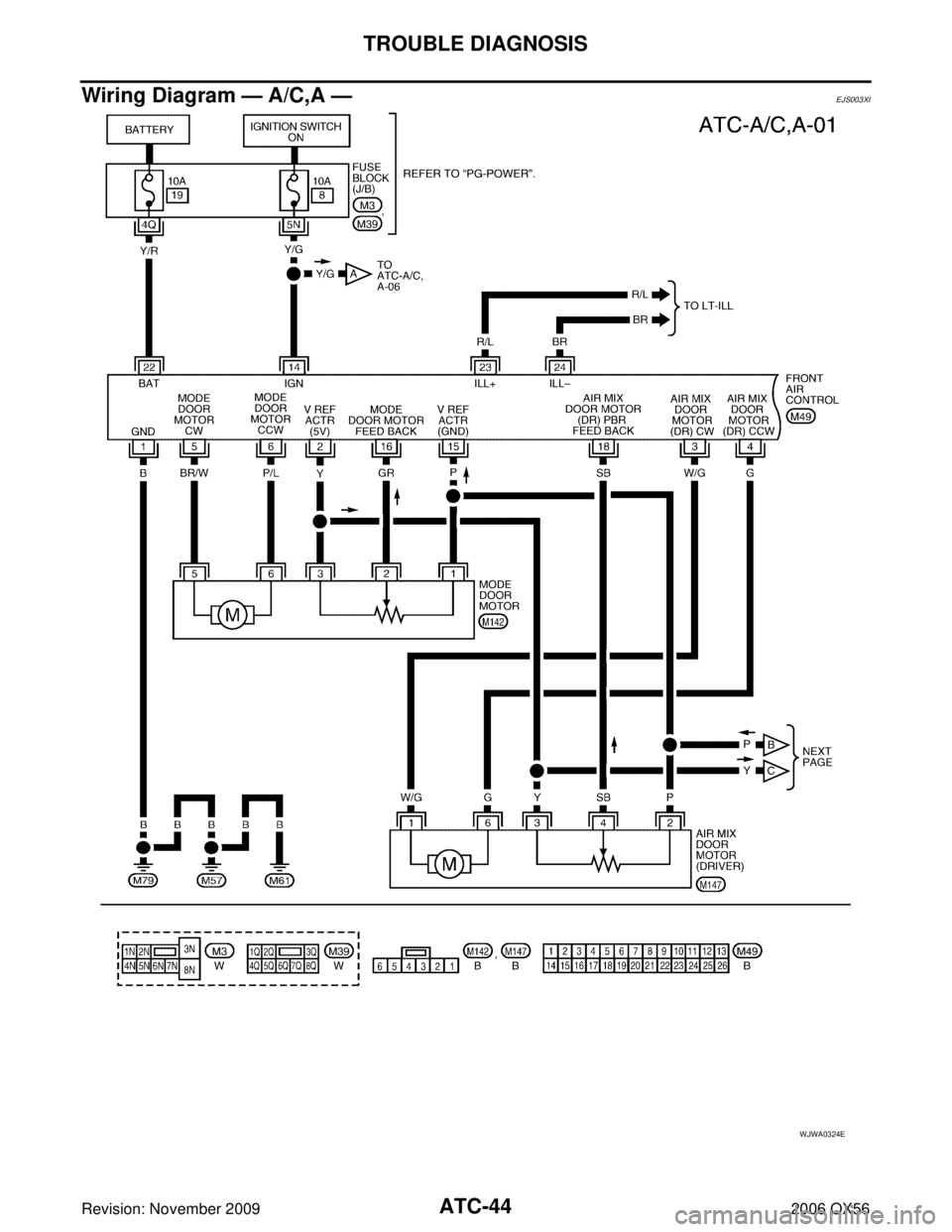

Wiring Diagram — A/C,A —EJS003XI
WJWA0324E
Page 594 of 3383
AV-1
AUDIO, VISUAL, NAVIGATION & TELEPHONE SYS-TEM
K ELECTRICAL
CONTENTS
C
D
E
F
G H
I
J
L
M
SECTION
A
B
AV
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 4
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 4
PREPARATION ...................................................... ..... 5
Commercial Service Tool .................................... ..... 5
AUDIO .................................................................... ..... 6
Component Parts and Harness Connector Location ..... 6
System Description ............................................. ..... 8
REAR AUDIO REMOTE CONTROL UNIT ...... ..... 8
SATELLITE RADIO TUNER (PRE-WIRING) ... ..... 9
SATELLITE RADIO TUNER (FACTORY
INSTALLED) .................................................... ..... 9
SPEED SENSITIVE VOLUME SYSTEM ......... ..... 9
Schematic ........................................................... ... 10
Wiring Diagram — AUDIO — .............................. .... 11
Terminals and Reference Value for Audio Unit .... ... 22
Terminals and Reference Value for BOSE Speaker
Amp. .................................................................... ... 25
Terminals and Reference Value for Rear Audio
Remote Control Unit ............................................ ... 28
Terminals and Reference Value for AV Switch .... ... 29
Terminals and Reference Value for Satellite Radio
Tuner (Factory Installed) ..................................... ... 30
AV Switch Self-Diagnosis Function ..................... ... 31
STARTING THE SELF-DIAGNOSIS MODE .... ... 31
EXITING THE SELF-DIAGNOSIS MODE ........ ... 31
DIAGNOSIS FUNCTION .................................. ... 31
Trouble Diagnosis ............................................... ... 32
MALFUNCTION WITH RADIO AND CD .......... ... 32
FOR RADIO ONLY ........................................... ... 32
FOR CD ONLY ................................................. ... 33
FOR SATELLITE RADIO TUNER (FACTORY
INSTALLED) ONLY .......................................... ... 33
Noise Inspection .................................................. ... 33
TYPE OF NOISE AND POSSIBLE CAUSE ..... ... 33
Power Supply Circuit Inspection ......................... ... 35
Satellite Radio Tuner (Factory Installed) Power and
Ground Supply Circuit Inspection ........................ ... 37
Satellite Radio Tuner (Factory Installed) Commu- nication Circuit Inspection ....................................
... 38
Satellite Radio Tuner (Factory Installed) Left Chan-
nel Audio Signal Circuit Inspection ...................... ... 40
Satellite Radio Tuner (Factory Installed) Right
Channel Audio Signal Circuit Inspection ............. ... 41
Steering Switch Check ......................................... ... 41
AV Switch Check ................................................. ... 43
Audio Communication Line Check ...................... ... 44
Sound Is Not Heard From Front Door Speaker or
Front Tweeter ...................................................... ... 44
Sound Is Not Heard From Rear Door Speaker or
Rear Door Tweeter ................................................. 48
Sound Is Not Heard From Center Speaker ......... ... 51
Sound Is Not Heard From Subwoofer .................... 52
Removal and Installation ..................................... ... 55
AUDIO UNIT ..................................................... ... 55
AV SWITCH ...................................................... ... 55
BOSE SPEAKER AMP. .................................... ... 55
CENTER SPEAKER ......................................... ... 56
FRONT DOOR SPEAKER ............................... ... 56
FRONT TWEETER .......................................... ... 56
REAR AUDIO REMOTE CONTROL UNIT ....... ... 57
REAR DOOR SPEAKER .................................. ... 57
REAR DOOR TWEETER ................................. ... 57
SATELLITE RADIO ANTENNA ........................ ... 58
SATELLITE RADIO TUNER ............................. ... 58
STEERING WHEEL AUDIO CONTROL
SWITCHES ...................................................... ... 59
SUBWOOFER .................................................. ... 59
AUDIO ANTENNA ................................................. ... 60
System Description .............................................. ... 60
Wiring Diagram — W/ANT — .............................. ... 61
Location of Antenna ............................................. ... 62
Window Antenna Repair ...................................... ... 62
ELEMENT CHECK ........................................... ... 62
ELEMENT REPAIR .......................................... ... 63
TELEPHONE .......................................................... ... 64
Component Parts and Harness Connector Location ... 64
System Description .............................................. ... 65
BLUETOOTH® HANDS-FREE PHONE SYS-
Page 595 of 3383
AV-2Revision: November 20092006 QX56
TEM ..................................................................
... 65
Wiring Diagram — H/PHONE — ......................... ... 67
Terminals and Reference Value for Bluetooth Con-
trol Unit ................................................................... 69
Bluetooth Control Unit Self-Diagnosis Function .. ... 71
BLUETOOTH CONTROL UNIT INITIALIZATION
CHECKS ........................................................... ... 71
STARTING THE DIAGNOSTIC MODE ............ ... 71
Power Supply and Ground Circuit Check for Blue-
tooth Control Unit ................................................. ... 72
Removal and Installation ..................................... ... 73
BLUETOOTH CONTROL UNIT ........................ ... 73
BLUETOOTH ON INDICATOR ......................... ... 73
MICROPHONE ................................................. ... 73
DVD ENTERTAINMENT SYSTEM ......................... ... 75
Component Parts and Harness Connector Location ... 75
Description ........................................................... ... 76
Schematic ............................................................ ... 77
Wiring Diagram — DVD — .................................. ... 78
Trouble Diagnosis ................................................ ... 81
Power Supply Circuit Inspection .......................... ... 82
Removal and Installation ..................................... ... 83
DVD PLAYER ...................................................... 83
VIDEO MONITOR ............................................ ... 83
NAVIGATION SYSTEM .......................................... ... 84
System Description .............................................. ... 84
TRAVEL DISTANCE ......................................... ... 84
TRAVEL DIRECTION ....................................... ... 84
MAP-MATCHING .............................................. ... 85
GPS (GLOBAL POSITIONING SYSTEM) ....... ... 85
COMPONENT DESCRIPTION ......................... ... 86
CAN Communication System Description ........... ... 86
Component Parts Location .................................. ... 87
Schematic ............................................................ ... 88
Wiring Diagram — NAVI — .................................. ... 89
Schematic ............................................................ ... 96
Wiring Diagram — COMM — .............................. ... 97
Terminals and Reference Value for NAVI Control
Unit ...................................................................... .100
Terminals and Reference Value for Display Control
unit ....................................................................... .102
Terminals and Reference Value for Display unit .. .106
Terminals and Reference Value for AV Switch .... .108
Terminals and Reference Value for BCM ............. .109
On Board Self-Diagnosis Function ...................... ..111
DESCRIPTION ................................................. ..111
DIAGNOSIS ITEM ............................................ ..111
Self-Diagnosis Mode (DCU) ................................ .112
OPERATION PROCEDURE ............................. .112
SELF–DIAGNOSIS RESULT ............................ .113
Self-Diagnosis Mode (NAVI) ................................ .114
OPERATION PROCEDURE ............................. .114
SELF–DIAGNOSIS RESULT ............................ .115
Confirmation/Adjustment Mode ........................... .117
OPERATION PROCEDURE ............................. .117
DISPLAY DIAGNOSIS ...................................... .118
VEHICLE SIGNALS .......................................... .118
NAVIGATION .................................................... .119
DISPLAY DIAGNOSIS ...................................... .119VEHICLE SIGNALS ..........................................
.120
ERROR HISTORY ............................................ .120
DIAGNOSIS BY ERROR HISTORY ................. .120
NAVIGATION .................................................... .122
CAN DIAG SUPPORT MONITOR ....................... .124
OPERATION PROCEDURE ............................. .124
AV Switch Self-Diagnosis Function ...................... .125
Power Supply and Ground Circuit Check for NAVI
Control Unit .......................................................... .126
Power Supply and Ground Circuit Check for Display
Control Unit .......................................................... .127
Power Supply and Ground Circuit Check for Display
Unit ....................................................................... .128
Power Supply and Ground Circuit Check for AV
Switch .................................................................. .130
Vehicle Speed Signal Check for NAVI Control Unit .131
Vehicle Speed Signal Check for Display Control Unit .132
Illumination Signal Check for NAVI Control Unit .. .133
Illumination Signal Check for Display Control Unit .133
Ignition Signal Check for NAVI Control Unit ......... .133
Ignition Signal Check for Display Control Unit ..... .134
Reverse Signal Check for NAVI Control Unit ....... .134
Reverse Signal Check for Display Control Unit ... .134
AV Communication Line Check (Between Display
Control Unit and NAVI Control Unit) ..................... .135
Audio Communication Line Check (Between Dis-
play Control Unit and Audio Unit) ......................... .136
Display Communication Line Check (Between Dis-
play Control Unit and Display Unit) ...................... .138
AV Communication Line Check (Between Display
Control Unit and AV Switch) ................................. .139
CAN Communication Line Check ........................ .140
If NAVI Control Unit Detects That DVD-ROM Map
is Not Inserted ...................................................... .140
If NAVI Control Unit Detects That Inserted DVD-
ROM Map is Malfunctioning or If It is Impossible to
Load Data from DVD-ROM Map .......................... .141
If Connection Between NAVI Control Unit and GPS
Antenna is Malfunctioning .................................... .141
Operating Screen for Audio and A/C is Not Dis-
played When Showing NAVI Screen .................... .142
Color of RGB Image is Not Proper (Only NAVI
Screen Looks Bluish) ........................................... .143
Color of RGB Image is Not Proper (Only NAVI
Screen Looks Reddish) ........................................ .144
Color of RGB Image is Not Proper (Only NAVI
Screen Looks Yellowish) ...................................... .145
Color of RGB Image is Not Proper (All Screens Look
Bluish) .................................................................. .146
Color of RGB Image is Not Proper (All Screens Look
Reddish) ............................................................... .147
Color of RGB Image is Not Proper (All Screens Look
Yellowish) ............................................................. .148
NAVI Screen is Rolling ......................................... .150
Guide Sound is Not Heard ................................... .152
Screen is Not Shown ........................................... .153
A/C Screen is Not Shown (NAVI Screen is Shown) .153
FUEL ECONOMY Screen is Not Shown .............. .153
Average Fuel Economy Displayed is Not Shown (“
Page 597 of 3383
AV-4
PRECAUTIONS
Revision: November 20092006 QX56
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS00BI4
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER ”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
