BRC-16
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56

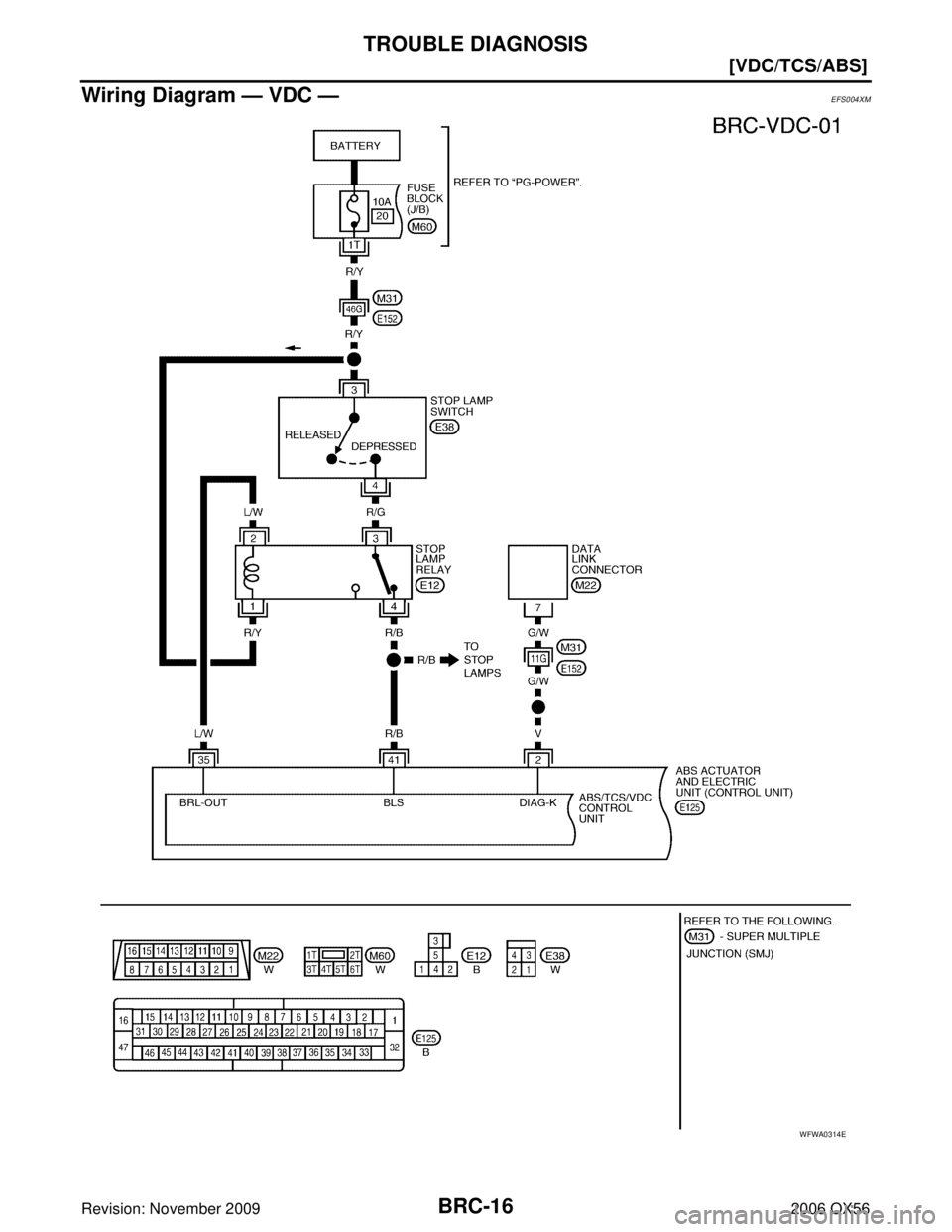

Wiring Diagram — VDC —EFS004XM
WFWA0314E

BRC-38
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: November 20092006 QX56
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSPFP:00000
Wheel Sensor System InspectionEFS004XR
INSPECTION PROCEDURE
1. CONNECTOR INSPECTION
Disconnect the ABS actuator and electric unit (control unit) connector E125 and wheel sensor of malfunction-
ing code.
Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace as necessary.
2. CHECK WHEEL SENSOR OUTPUT SIGNAL
1. Connect ABS active wheel sensor tester (J-45741) to wheel sensor using appropriate adapter.
2. Turn on the ABS active wheel sensor tester power switch. NOTE:
The green POWER indicator should illuminate. If the POWER indicator does not illuminate, replace the
battery in the ABS active wheel sensor tester before proceeding.
3. Spin the wheel of the vehicle by hand and observe the red SENSOR indicator on the ABS active wheel sensor tester. The red SENSOR indicator should flash on and off to indicate an output signal.
NOTE:
If the red SENSOR indicator illuminates but does not flash, reverse the polarity of the tester leads and
retest.
Does the ABS active wheel sensor tester detect a signal?
YES >> GO TO 3.
NO >> Replace the wheel sensor. Refer to BRC-64, "
Removal and Installation" .
3. CHECK TIRES
Check for inflation pressure, wear and size of each tire.
Are tire pressure and size correct and is tire wear within specifications?
YES >> GO TO 4.
NO >> Adjust tire pressure or replace tire(s).
4. CHECK WHEEL BEARINGS
Check wheel bearing axial end play. Refer to FA X - 5 , "
WHEEL BEARING INSPECTION" or RAX-5, "WHEEL
BEARING INSPECTION" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace as necessary. Refer to FAX-5, "
WHEEL BEARING INSPECTION" or RAX-5,
"WHEEL BEARING INSPECTION" .
5. CHECK WIRING HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connec- tor and wheel sensor connector of malfunction code No.
2. Check continuity between wheel sensor harness connector ter- minals and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair the circuit. Continuity should not exist.
WFIA0343E

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSBRC-39
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
6. CHECK WIRING HARNESS FOR OPEN CIRCUIT
1. Check continuity between ABS actuator and electric unit (control unit) harness connector E125 and the malfunctioning wheel sensor harness connector E18, E117, C10, or C11.
OK or NG
OK >> Replace the ABS actuator and electric unit (control unit). Refer to BRC-66, "Removal and Installa-
tion" .
NG >> Repair the circuit.
Engine System InspectionEFS004XS
INSPECTION PROCEDURE
1. SELF-DIAGNOSIS RESULT CHECK
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> Inspection End.
2. ENGINE SYSTEM INSPECTION
1. Perform ECM self-diagnosis and repair as necessary. Refer to EC-118, "
SELF-DIAG RESULTS MODE" .
2. Perform ABS actuator and electric unit (control unit) self-diagnosis again.
OK or NG
OK >> Inspection End.
NG >> Repair or replace as necessary.
Wheel sensor ABS actuator and
electric unit (control unit) Wheel sensor
Continuity
Connector Terminal Connector Terminal
Front LH
E12545
E18 1
Ye s
46
2
Front RH 34
E117 1
33 2
Rear LH 37
C11 2
36 1
Rear RH 42
C10 2
43 1
Continuity should exist.
Self-diagnosis results
ENGINE SIGNAL 1
ENGINE SIGNAL 2
ENGINE SIGNAL 3
ENGINE SIGNAL 4
ENGINE SIGNAL 6

TROUBLE DIAGNOSES FOR SYMPTOMSBRC-59
[VDC/TCS/ABS]
C
DE
G H
I
J
K L
M A
B
BRC
Revision: November 2009 2006 QX56
Long Stopping DistanceEFS004YB
1. CHECK BASE BRAKING SYSTEM PERFORMANCE
1. Disable ABS by disconnecting ABS actuator and electric unit (control unit) connector.
2. Drive vehicle and check brake operation. NOTE:

Stopping distance may be longer than vehicles without ABS when road condition is slippery.

Driving the vehicle with the ABS actuator and electric unit (control unit) disconnected may induce DTCs
in electrical control units using CAN communication. After the inspection, clear all DTCs. Refer to BRC-
10, "CAN COMMUNICATION" .
OK or NG
OK >> Go to BRC-57, "ABS Works Frequently" .
NG >> Perform Basic Inspection. Refer to BRC-23, "
Basic Inspection" .
ABS Does Not WorkEFS004YC
CAUTION:
The ABS does not operate when the vehicle speed is 10 km/h (6 MPH) or less.
1. CHECK WARNING LAMP ACTIVATION
Turn ignition switch ON and check for warning lamp activation.

Warning lamp should activate for approximately 2 seconds after turning the ignition switch ON.
OK or NG
OK >> Carry out self-diagnosis. Refer to BRC-29, "SELF-DIAGNOSIS" .
NG >> Go to BRC-60, "
ABS Warning Lamp Does Not Come On When Ignition Switch Is Turned On" .
Pedal Vibration or ABS Operation NoiseEFS004YD
NOTE:
During ABS activation, pedal vibration may be felt and a noise may be heard. This is normal and does not indi-
cate a malfunction.
1. CHECK SYMPTOM
1. Apply brake.
2. Start engine.
Does the symptom occur only when engine is started?
YES >> Carry out self-diagnosis. Refer to BRC-29, "SELF-DIAGNOSIS" .
NO >> GO TO 2.
2. RECHECK SYMPTOM
Does the symptom occur only when electrical equipment switches (such as headlamps) are turned on?
YES >> Check for radio, antenna or related wiring that is routed too close to the ABS actuator and electric unit (control unit) and reroute as necessary.
NO >> Go to BRC-57, "
ABS Works Frequently" .

CO-2Revision: November 2009
PRECAUTIONS
2006 QX56
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EBS00RE2
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER ”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Liquid GasketEBS00RE3
REMOVAL OF LIQUID GASKET SEALING

After removing the bolts and nuts, separate the mating surface
and remove the old liquid gasket sealing using Tool.
CAUTION:
Do not damage the mating surfaces.

Tap the seal cutter to insert it.

In areas where the Tool is difficult to use, lightly tap to slide it.
LIQUID GASKET APPLICATION PROCEDURE
1. Remove the old liquid gasket adhering to the gasket application surface and the mating surface using suitable tool.

Remove the liquid gasket completely from the groove of the
liquid gasket application surface, bolts, and bolt holes.
2. Thoroughly clean the mating surfaces and remove adhering moisture, grease and foreign material.Tool number
: KV10111100 (J-37228)
WBIA0566E
PBIC0003E

DI-1
DRIVER INFORMATION SYSTEM
K ELECTRICAL
CONTENTS
C
DE
F
G H
I
J
L
M
SECTION
A
B
DI
Revision: November 2009 2006 QX56
PRECAUTION .......................................................
..... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
PREPARATION ...................................................... ..... 4
Commercial Service Tool .................................... ..... 4
COMBINATION METERS ...................................... ..... 5
System Description ............................................. ..... 5
UNIFIED METER CONTROL UNIT ................. ..... 5
POWER SUPPLY AND GROUND CIRCUIT ... ..... 6
WATER TEMPERATURE GAUGE ................... ..... 6
ENGINE OIL PRESSURE GAUGE .................. ..... 6
A/T OIL TEMPERATURE GAUGE ................... ..... 6
VOLTAGE GAUGE ........................................... ..... 6
TACHOMETER ................................................ ..... 6
FUEL GAUGE ....................................................... 6
SPEEDOMETER .............................................. ..... 6
CAN COMMUNICATION SYSTEM DESCRIP-
TION ................................................................. ..... 6
Component Parts and Harness Connector Location ..... 7
Combination Meter .............................................. ..... 8
CHECK ............................................................. ..... 8
Schematic ........................................................... ..... 9
Wiring Diagram — METER — ............................. ... 10
Terminals and Reference Value for Combination
Meter ................................................................... ... 12
Meter/Gauge Operation and Odo/Trip Meter ...... ... 13
SELF-DIAGNOSIS FUNCTION ....................... ... 13
HOW TO INITIATE COMBINATION METER
SELF- DIAGNOSIS MODE .............................. ... 13
COMBINATION METER SELF-DIAGNOSIS
MODE FUNCTIONS ........................................ ... 13
How to Proceed With Trouble Diagnosis ............. ... 17
Diagnosis Flow .................................................... ... 17
Power Supply and Ground Circuit Inspection ..... ... 18
Symptom Chart ................................................... ... 19
Vehicle Speed Signal Inspection ......................... ... 19
Engine Oil Pressure Signal Inspection ................ ... 19
Water Temperature Signal Inspection ................. ... 21
Engine Speed Signal Inspection ......................... ... 21Fuel Level Sensor Unit Inspection .......................
... 22
FUEL LEVEL SENSOR UNIT .......................... ... 22
LOW-FUEL WARNING LAMP .......................... ... 22
Fuel Gauge Fluctuates, Indicates Wrong Value, or
Varies ................................................................... ... 24
Fuel Gauge Does Not Move to Full-position ........ ... 24
Electrical Components Inspection ....................... ... 25
FUEL LEVEL SENSOR UNIT CHECK ............. ... 25
Removal and Installation of Combination Meter .. ... 25
COMPASS AND THERMOMETER ........................ ... 26
System Description .............................................. ... 26
OUTSIDE TEMPERATURE DISPLAY .............. ... 26
DIRECTION DISPLAY ...................................... ... 26
Wiring Diagram — COMPAS — .......................... ... 27
Trouble Diagnoses .............................................. ... 28
PRELIMINARY CHECK FOR THERMOMETER ... 28
INSPECTION/COMPASS AND THERMOME-
TER .................................................................. ... 28
Calibration Procedure for Compass .................... ... 29
CORRECTION FUNCTIONS OF COMPASS ... ... 29
INITIAL CORRECTION PROCEDURE FOR
COMPASS ........................................................ ... 30
WARNING LAMPS ................................................. ... 31
Schematic ............................................................ ... 31
Wiring Diagram — WARN — ............................... ... 32
Oil Pressure Warning Lamp Stays Off (Ignition
Switch ON) .......................................................... ... 38
Oil Pressure Warning Lamp Does Not Turn Off (Oil
Pressure Is Normal) ............................................. ... 40
A/T INDICATOR ..................................................... ... 41
Wiring Diagram — AT/IND — .............................. ... 41
A/T Indicator Does Not Illuminate ........................... 42
WARNING CHIME .................................................. ... 43
Component Parts and Harness Connector Location ... 43
System Description .............................................. ... 44
FUNCTION ....................................................... ... 44
IGNITION KEY WARNING CHIME .................. ... 44
LIGHT WARNING CHIME ................................ ... 44
SEAT BELT WARNING CHIME ........................ ... 44
CAN Communication System Description ........... ... 45

DI-2Revision: November 20092006 QX56
Wiring Diagram — CHIME — ..............................
... 46
Terminals and Reference Value for BCM ............. ... 48
Terminals and Reference Value for Combination
Meter ................................................................... ... 49
How to Proceed With Trouble Diagnosis ............. ... 49
Preliminary Check ............................................... ... 50
INSPECTION FOR POWER SUPPLY AND
GROUND CIRCUIT .......................................... ... 50
CONSULT-II Function (BCM) ............................... ... 51
CONSULT-II BASIC OPERATION PROCEDURE ... 51
DATA MONITOR ............................................... ... 52
ACTIVE TEST .................................................. ... 52
SELF-DIAGNOSTIC RESULTS ........................ ... 53
All Warning Chimes Do Not Operate ................... ... 53
Key Warning Chime and Light Warning Chime Do
Not Operate (Seat Belt Warning Chime Does Oper-
ate) ...................................................................... ... 54
Key Warning Chime Does Not Operate ............... ... 55
Light Warning Chime Does Not Operate ............. ... 57
Seat Belt Warning Chime Does Not Operate ...... ... 58
REAR SONAR SYSTEM ........................................ ... 60
Component Parts and Harness Connector Location ... 60
System Description .............................................. ... 61
FUNCTION ....................................................... ... 61
REAR SONAR SYSTEM OFF SWITCH ........... ... 61
SONAR BUZZER ............................................. ... 61
REAR SONAR SENSOR ..................................... 62
Wiring Diagram — SONAR — ............................. ... 63
Terminals And Reference Value For Sonar Control
Unit ...................................................................... ... 65
How to Proceed With Trouble Diagnosis ............. ... 65
Pre-diagnosis Inspection ..................................... ... 66
SENSOR STATUS CHECK ................................. 66
Self-diagnosis Function ....................................... ... 66
ENTERING DIAGNOSTICS MODE ................. ... 66
REQUESTING NUMBER OF FAULT CODES
MODE ............................................................... ... 66
REQUESTING FAULT CODES MODE ............ ... 67
IDLING OR CLEARING FAULT CODES MODE ... 67
Preliminary Check ............................................... ... 68
INSPECTION FOR POWER SUPPLY AND GROUND CIRCUIT ..........................................
... 68
Symptom Chart .................................................... ... 69
Component Inspection ......................................... ... 70
SONAR BUZZER .............................................. ... 70
REAR SONAR SYSTEM OFF SWITCH ........... ... 70
REAR SONAR SYSTEM OFF INDICATOR ...... ... 70
Removal and Installation ...................................... ... 70
REAR SONAR SENSORS ................................ ... 70
SONAR CONTROL UNIT ................................. ... 70
CLOCK ................................................................... ... 71
Wiring Diagram — CLOCK — .............................. ... 71
Removal and Installation of Clock ........................ ... 72
REMOVAL ......................................................... ... 72
INSTALLATION ................................................. ... 72
REAR VIEW MONITOR .......................................... ... 73
Component Parts and Harness Connector Location ... 73
System Description .............................................. ... 74
POWER SUPPLY AND GROUND .................... ... 74
AV COMMUNICATION LINE ............................ ... 74
REAR VIEW CAMERA OPERATION ............... ... 74
Schematic ............................................................ ... 75
Wiring Diagram — R/VIEW — ............................. ... 76
Terminals and Reference Value for Rear View Cam-
era Control Unit .................................................... ... 79
CONSULT-II Function (REARVIEW CAMERA) ... ... 80
CONSULT-II BASIC OPERATION .................... ... 80
WORK SUPPORT ............................................ ... 81
DATA MONITOR ............................................... ... 81
Side Distance Guideline Correction ..................... ... 82
SIDE DISTANCE GUIDELINE CORRECTION
PROCEDURE ................................................... ... 82
Power Supply and Ground Circuit Inspection ...... ... 84
Rear View Is Not Displayed With The A/T Selector
Lever In R Position ............................................... ... 85
Removal and Installation of Rear View Camera Con-
trol Unit ................................................................. ... 90
REMOVAL ......................................................... ... 90
INSTALLATION ................................................. ... 90
Removal and Installation of Rear View Camera .. ... 90
REMOVAL ......................................................... ... 90
INSTALLATION ................................................. ... 90

PRECAUTIONDI-3
C
DE
F
G H
I
J
L
M A
B
DI
Revision: November 2009 2006 QX56
PRECAUTION PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS00BBR
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER ”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

DI-10
COMBINATION METERS
Revision: November 20092006 QX56

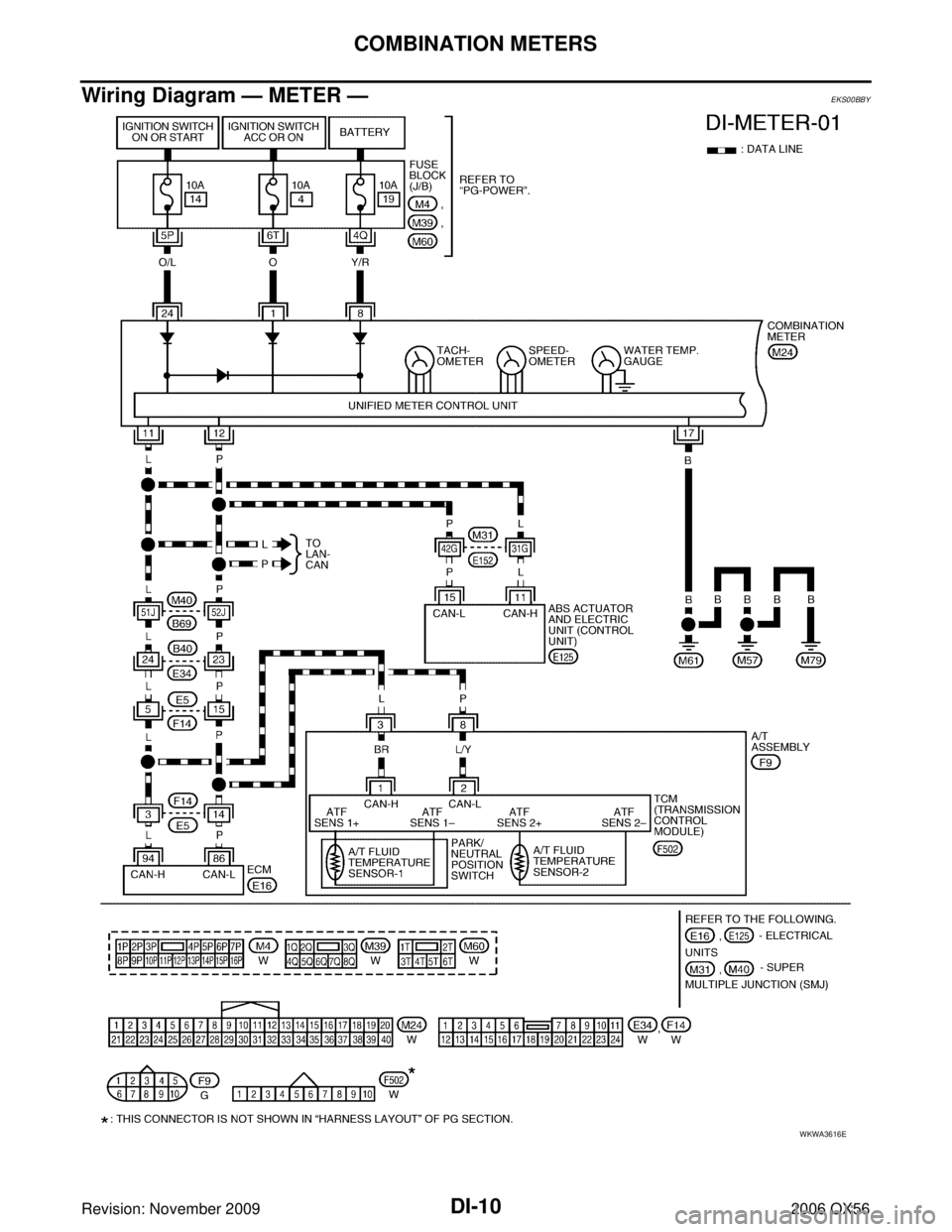

Wiring Diagram — METER —EKS00BBY
WKWA3616E

DI-18
COMBINATION METERS
Revision: November 20092006 QX56
Power Supply and Ground Circuit InspectionEKS00BC3
1. CHECK FUSES
Check for blown combination meter fuses.
Refer to DI-10, "Wiring Diagram — METER —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
4, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect combination meter connector.
2. Check voltage between combination meter harness connector terminals and ground.
OK or NG
OK >> GO TO 3.
NG >> Check the harness for open between combination meter and fuse.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between combination meter harness connector terminal and ground.
OK or NG
OK >> Inspection End.
NG >> Repair harness or connector.
Unit Power source Fuse No.
Combination meter Battery
19
Ignition switch ON or START 14
Ignition switch ACC or ON 4
TerminalsIgnition switch position
(+) (– )OFFACC ON
Connector Terminal
M24 1
Ground 0V
Battery
voltage Battery
voltage
8 Battery
voltage Battery
voltage Battery
voltage
24 0V 0VBattery
voltage
WKIA1815E
Terminals
Continuity
(+)
(– )
Connector Terminal
M24 17 Ground Yes
WKIA1526E
