INFINITI QX56 2006 Factory Service Manual

TF-26
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
BDWA0102E

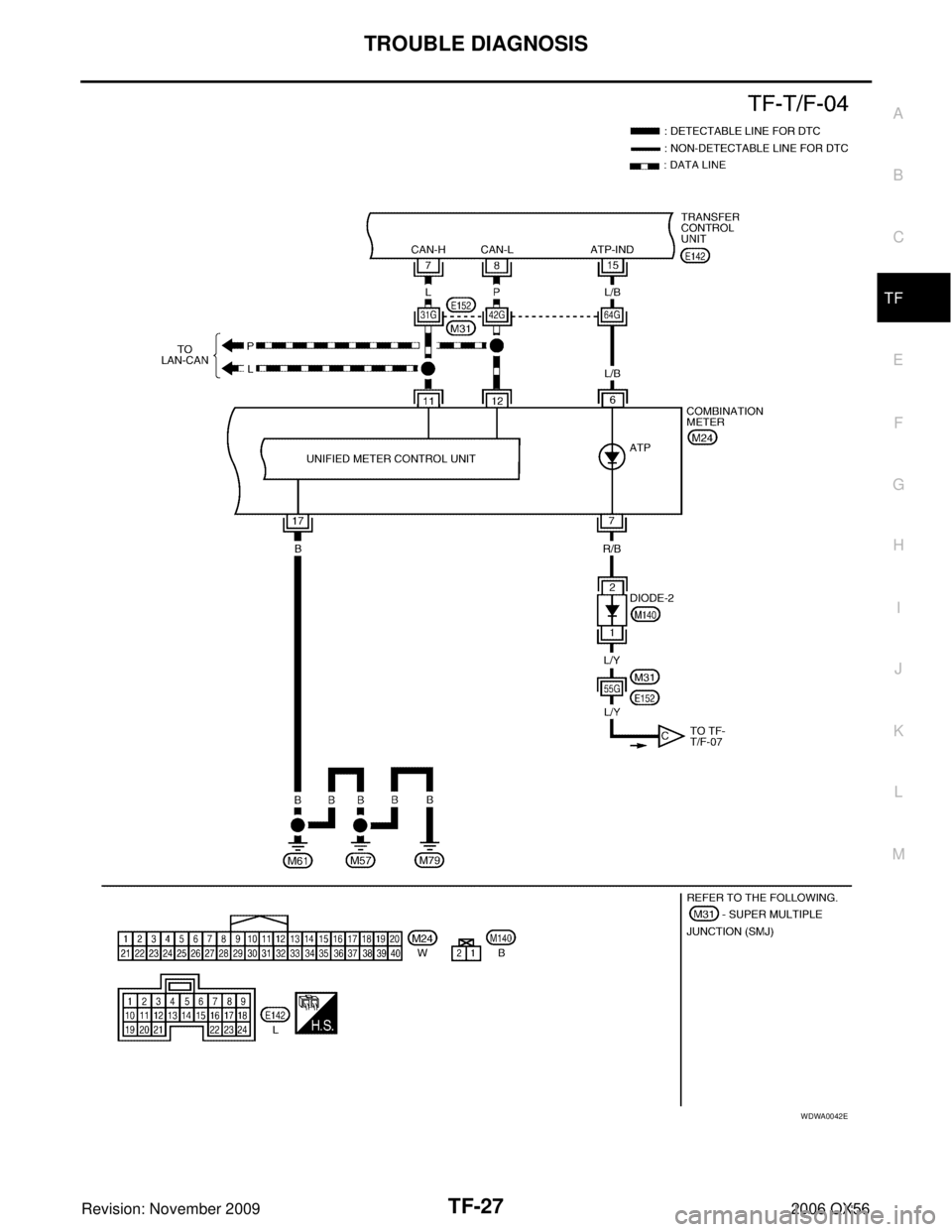

TROUBLE DIAGNOSISTF-27
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
WDWA0042E

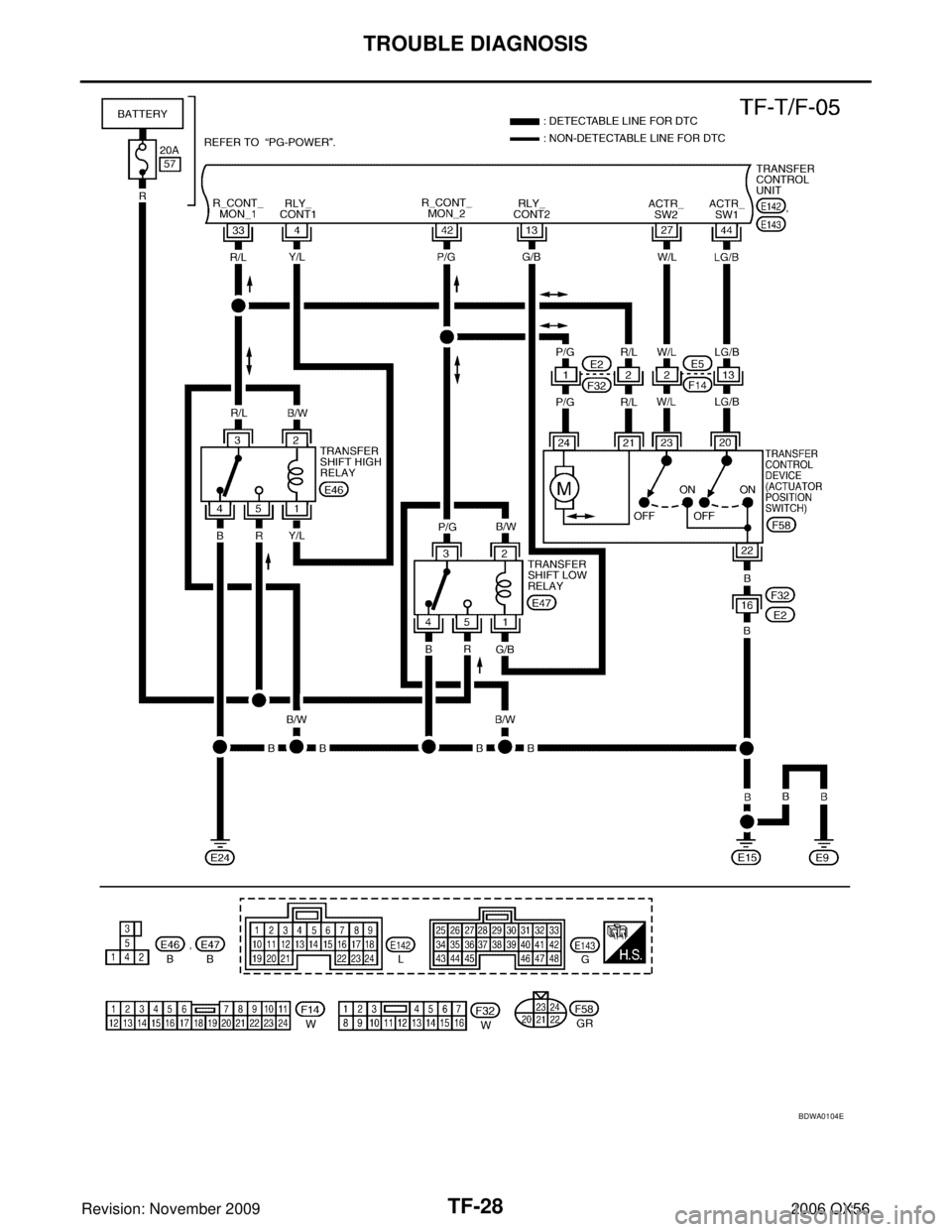

TF-28
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
BDWA0104E

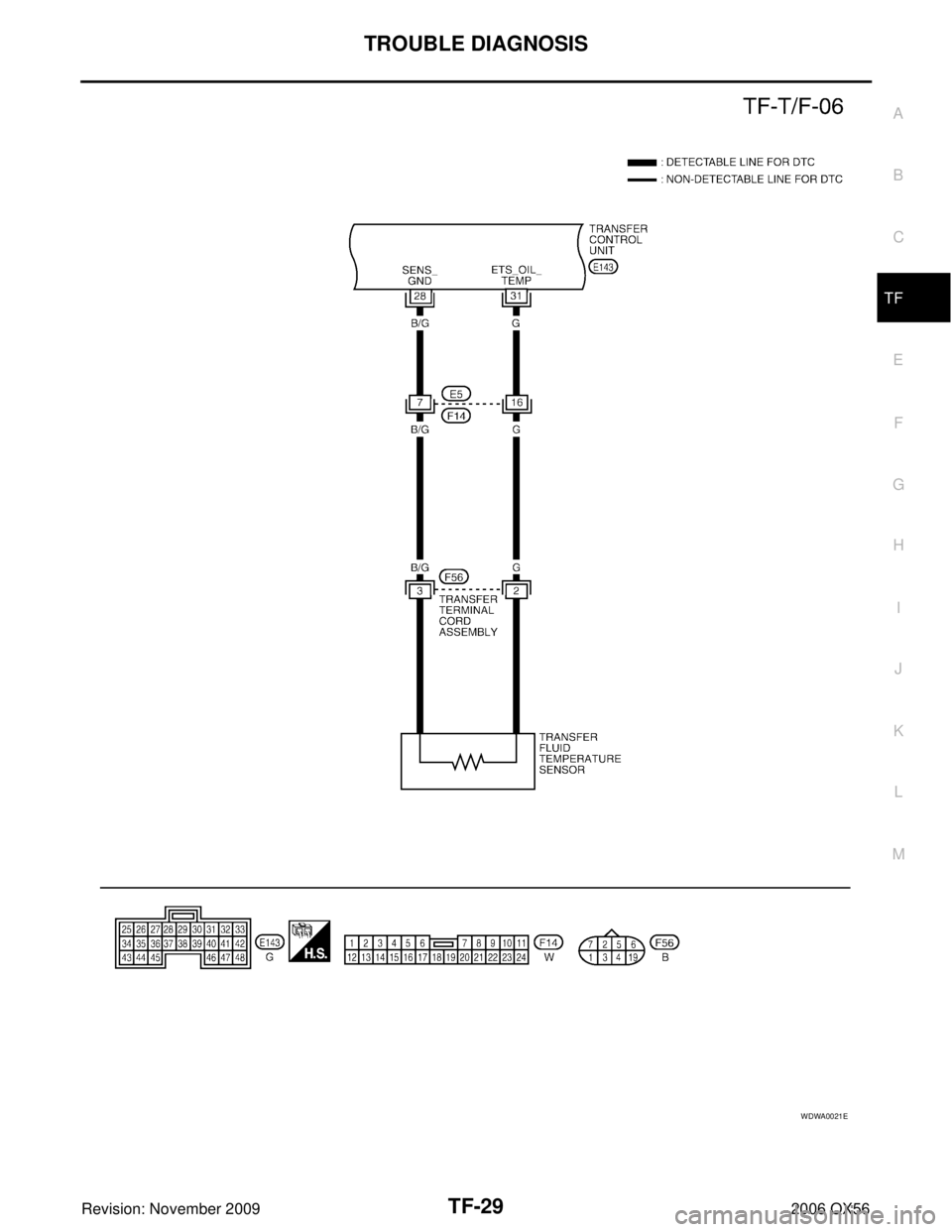

TROUBLE DIAGNOSISTF-29
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
WDWA0021E

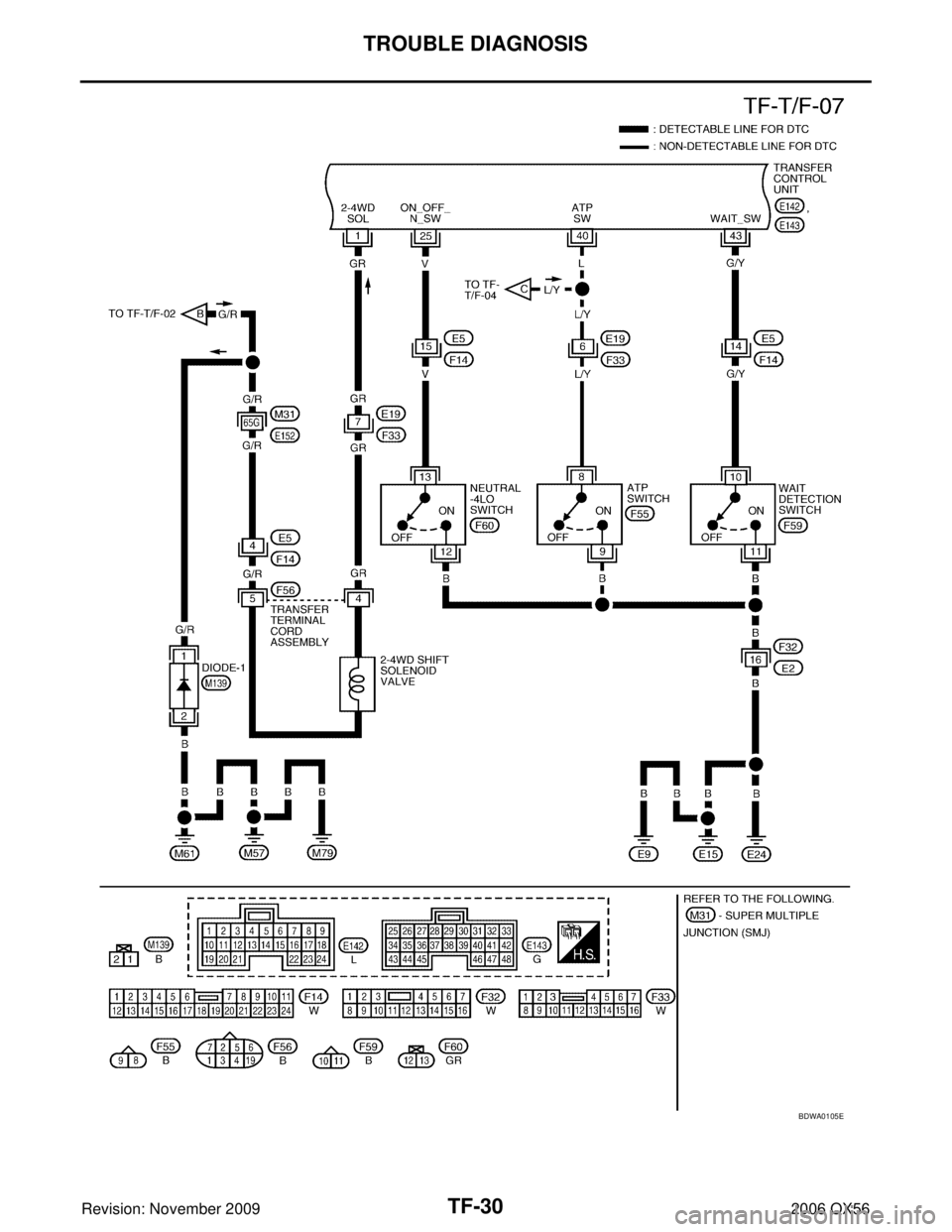

TF-30
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
BDWA0105E

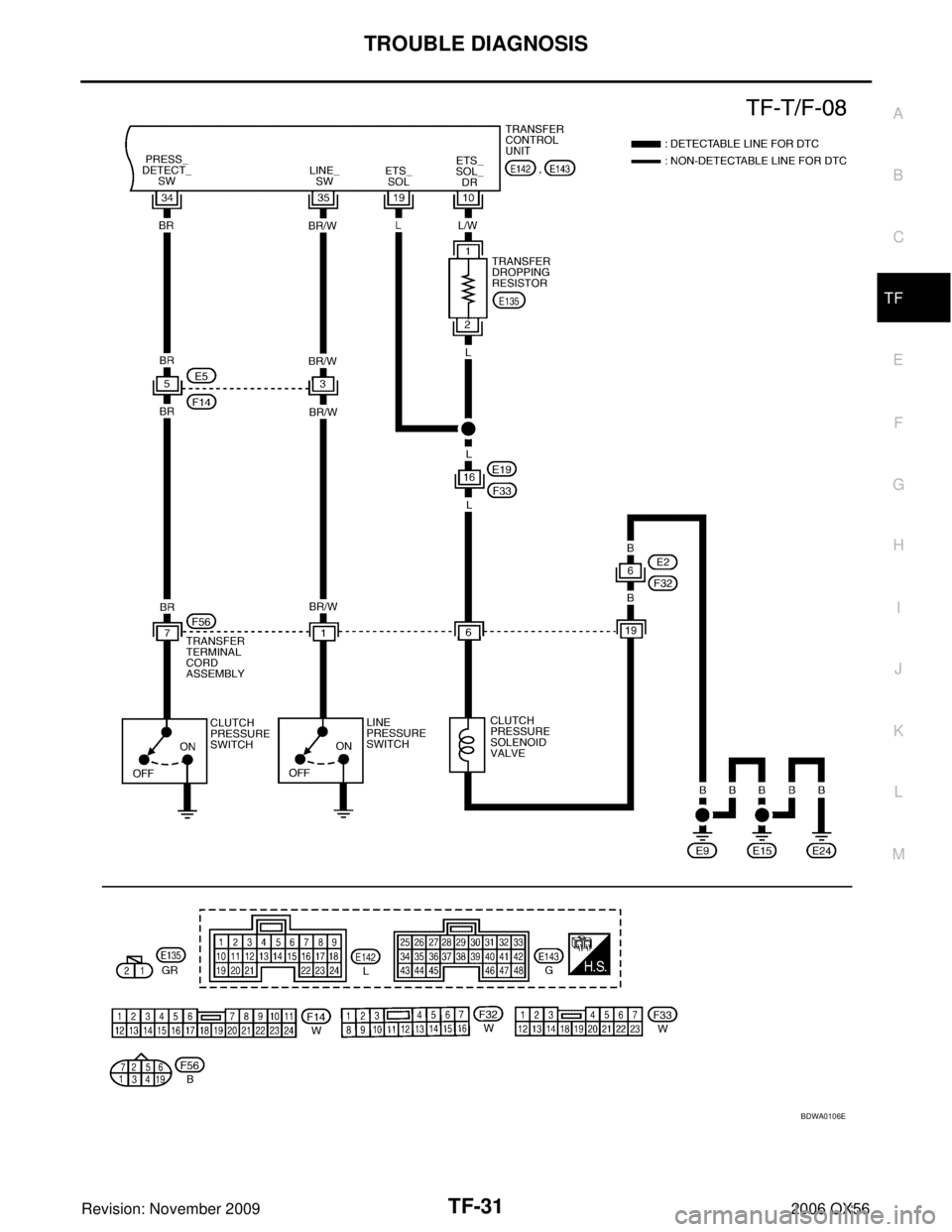

TROUBLE DIAGNOSISTF-31
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
BDWA0106E

TF-32
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
Inspections Before Trouble DiagnosisEDS002HH
TRANSFER FLUID CHECK
Check fluid for leaks and fluid level. Refer to TF-11, "Inspection" .
PREPARATION FOR ROAD TEST

The purpose of the test is to determine overall performance of
transfer and analyze causes of problems.

When a malfunction is found in any part of transfer, perform the
road test to locate the malfunction area and repair the malfunc-
tion parts.

The road test consists of the following three parts.
–Check before engine is started. Refer to TF-32, "CHECK
BEFORE ENGINE IS STARTED" .
–Check at idle. Refer to TF-32, "CHECK AT IDLE" .
–Cruise test. Refer to TF-33, "CRUISE TEST" .
CHECK BEFORE ENGINE IS STARTED
1. CHECK 4WD SHIFT INDICATOR LAMP
1. Park vehicle on flat surface.
2. Turn ignition switch to “OFF ” position.
3. Move A/T selector lever to “P ” position.
4. Set 4WD shift switch to “2WD” position.
5. Turn ignition switch to “ON ” position. (Do not start engine.)
Does 4WD shift indicator lamp turn ON for approximately 1 second?
YES >> GO TO 2.
NO >> Go to TF-117, "
4WD Shift Indicator Lamp and 4LO Indicator Lamp Do Not Turn ON" .
2. CHECK 4WD WARNING LAMP
1. Turn ignition switch to “OFF ” position.
2. Move A/T selector lever to “P ” position.
3. Set 4WD shift switch to “2WD” position.
4. Turn ignition switch to “ON ” position. (Do not start engine.)
Does 4WD warning lamp turn ON?
YES >> GO TO TF-32, "CHECK AT IDLE" .
NO >> GO TO TF-121, "
4WD Warning Lamp Does Not Turn ON" .
CHECK AT IDLE
1. CHECK 4WD SHIFT INDICATOR LAMP
1. Park vehicle on flat surface and engage the parking brake.
2. Turn ignition switch to “OFF ” position.
3. Move A/T selector lever to “P ” position.
4. Set 4WD shift switch to “2WD” position.
5. Start engine.
Does 4WD shift indicator lamp turn ON?
YES >> GO TO 3.
NO >> GO TO 2.
SMT089D

TROUBLE DIAGNOSISTF-33
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
2. CHECK 4WD WARNING LAMP
Check 4WD warning lamp state?
Is 4WD warning lamp turned ON?
YES >> Perform the self-diagnosis. Refer to TF-50, "SELF-DIAGNOSTIC PROCEDURE (WITH CON-
SULT-II)" (with CONSULT-II) or TF-50, "SELF-DIAGNOSTIC PROCEDURE (WITHOUT CON-
SULT-II)" (without CONSULT-II).
NO >> Go to TF-123, "
4WD Shift Indicator Lamp or 4LO Indicator Lamp Does Not Change" .
3. CHECK 4WD SHIFT INDICATOR AND 4LO INDICATOR OPERATION
1. Brake pedal depressed.
2. Move A/T selector lever to “N” position.
3. Set 4WD shift switch to “2WD”, “AUTO ”, “4H ”, “4LO ”, “4H ”,
“AUTO ” and “2WD” in order. (Stay at each switch position for at
least 1 second.)
Do 4WD shift indicator and 4LO indicator lamps change properly?
Does buzzer sound?
YES >> GO TO TF-33, "CRUISE TEST" .
NO >> GO TO TF-123, "
4WD Shift Indicator Lamp or 4LO Indi-
cator Lamp Does Not Change" .
CRUISE TEST
1. CHECK INPUT SIGNAL
1. Warm up engine to normal operating temperature.
2. Park vehicle on flat surface.
3. Move A/T selector lever to “P” position.
4. Set 4WD shift switch to “AUTO” position.
5. Start engine.
6. Drive vehicle for at least 30 seconds at a speed higher than 20 km/h (12 MPH).
Check 4WD warning lamp turned ON?
On steady>>Perform the self-diagnosis. Refer to TF-50, "SELF-DIAGNOSTIC PROCEDURE (WITH CON-
SULT-II)" (with CONSULT-II) or TF-50, "SELF-DIAGNOSTIC PROCEDURE (WITHOUT CON-
SULT-II)" (without CONSULT-II).
Flash rapidly>>GO TO TF-128, "
4WD Warning Lamp Flashes Rapidly" .
Flash slowly>>GO TO TF-129, "
4WD Warning Lamp Flashes Slowly" .
NO >> GO TO 2.
WDIA0136E

TF-34
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
2. CHECK TIGHT CORNER BRAKING SYMPTOM (1)
1. Set 4WD shift switch to “AUTO” position.
2. Drive vehicle at speed lower than 20 km/h (12 MPH) with steering wheel fully turned.
Does tight corner braking symptom occur?
YES >> GO TO TF-130, "Heavy Tight-corner Braking Symptom Occurs" .
NO >> GO TO 3.
3. CHECK TIGHT CORNER BRAKING SYMPTOM (2)
1. Set 4WD shift switch to “4HI” position.
2. Drive vehicle at speed lower than 20 km/h (12 MPH) with steering wheel fully turned.
Does tight corner braking symptom occur?
YES >> Inspection End.
NO >> GO TO TF-131, "
4WD System Does Not Operate" .
Trouble Diagnosis Chart for SymptomsEDS002HI
If 4WD warning lamp turns ON, perform self-diagnosis. Refer to TF-50, "Self-diagnostic Procedure" .
Symptom ConditionCheck itemReference page
4WD shift indicator lamp and 4LO indicator
lamp do not turn ON
(4WD shift indicator lamp and 4LO indicator
lamp check) Ignition switch: ONPower supply and ground for transfer
control unit
TF-117
Transfer shut off relay
Combination meter
4WD warning lamp does not turn ON
(4WD warning lamp check) Ignition switch: ONPower supply and ground for transfer
control unit
TF-121
Transfer shut off relay
Combination meter
4WD shift indicator lamp or 4LO indicator
lamp does not change Engine running4WD shift switch
TF-123
Wait detection switch
Neutral-4LO switch
AT P s w i t c h
2-4WD solenoid
Transfer control device
Actuator motor
Actuator position switch
Transfer inner parts
ATP warning lamp turns ON Engine running CAN communication line
TF-125
4WD shift switch
PNP switch signal
AT P s w i t c h
Combination meter
Transfer inner parts
4LO indicator lamp repeats flashing Engine running Wait detection switch
TF-127
Neutral-4LO switch
Transfer inner parts
4WD warning lamp flashes rapidly (2 times/
second) While drivingTransfer fluid temperature
TF-128
Tire size is different between front and
rear of vehicle

TROUBLE DIAGNOSISTF-35
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
NOTE:

Light tight-corner braking symptom may occur depending on driving conditions in AUTO mode. This is not
a malfunction.

Heavy tight-corner braking symptom occurs when vehicle is driven in the following conditions: 4WD shift
switch is "4H" or "4LO", steering wheel is turned fully to either side.
Transfer Control Unit Input/Output Signal Reference ValuesEDS002HJ
TRANSFER CONTROL UNIT INSPECTION TABLE
Specifications with CONSULT-II
4WD warning lamp flashes slowly
(1 time/2 seconds)While drivingTire size is different between front and
rear of vehicle.
TF-129
Transfer fluid temperature
Clutch pressure switch
Heavy tight-corner braking symptom occurs
(See NOTE.)

While driving

AUTO mode

Steering wheel is
turned fully to either
side CAN communication line
TF-130
4WD shift switch
Accelerator pedal position signal
Clutch pressure solenoid
Transfer inner parts
4WD system does not operate While driving 4WD shift switch
TF-131
Clutch pressure switch
Transfer inner parts
Symptom
ConditionCheck itemReference page
Monitored item [Unit] Content ConditionDisplay value
VHCL/S SEN ·FR [km/h]
or [mph] Front wheel speed Vehicle stopped
0 km/h (0 MPH)
Vehicle running
CAUTION:
Check air pressure of tire under standard condition. Approximately
equal to the indi-
cation on speed-
ometer (Inside of
±
10%)
VHCL/S SEN ·RR [km/h]
or [mph] Rear wheel speed Vehicle stopped
0 km/h (0 MPH)
Vehicle running
CAUTION:
Check air pressure of tire under standard condition. Approximately
equal to the indi-
cation on speed-
ometer (Inside of
±
10%)
ENGINE SPEED [rpm] Engine speed Engine stopped
(Engine speed: Less than 400 rpm)
0 rpm
Engine running
(Engine speed: 400 rpm or more) Approximately
equal to the indi-
cation on tachom-
eter
THRTL POS SEN [V] Accelerator pedal posi-
tion (APP) sensor signal
voltage Accelerator pedal: Release
Approx. 0.5V
Accelerator pedal: Fully depressed Approx. 4.0V
FLUID TEMP SE [V] Transfer fluid tempera-
ture signal voltage Transfer fluid temperature approx. 20 - 80°C (68 - 176
°F) Approx. 1.1 - 0.3V
BATTERY VOLT [V] Power supply voltage for
transfer control unit
Ignition switch: ON
Battery voltage
2WD SWITCH [ON/OFF] Input condition from
4WD shift switch 4WD shift switch: 2WD
ON
4WD shift switch: AUTO, 4H or 4LO OFF
AUTO SWITCH [ON/
OFF] Input condition from
4WD shift switch 4WD shift switch: AUTO
ON
4WD shift switch: 2WD, 4H or 4LO OFF
