INFINITI QX56 2006 Factory Owner's Guide

ACS-18
[ICC]
ELECTRICAL UNITS LOCATION
Revision: November 20092006 QX56
ELECTRICAL UNITS LOCATIONPFP:25230

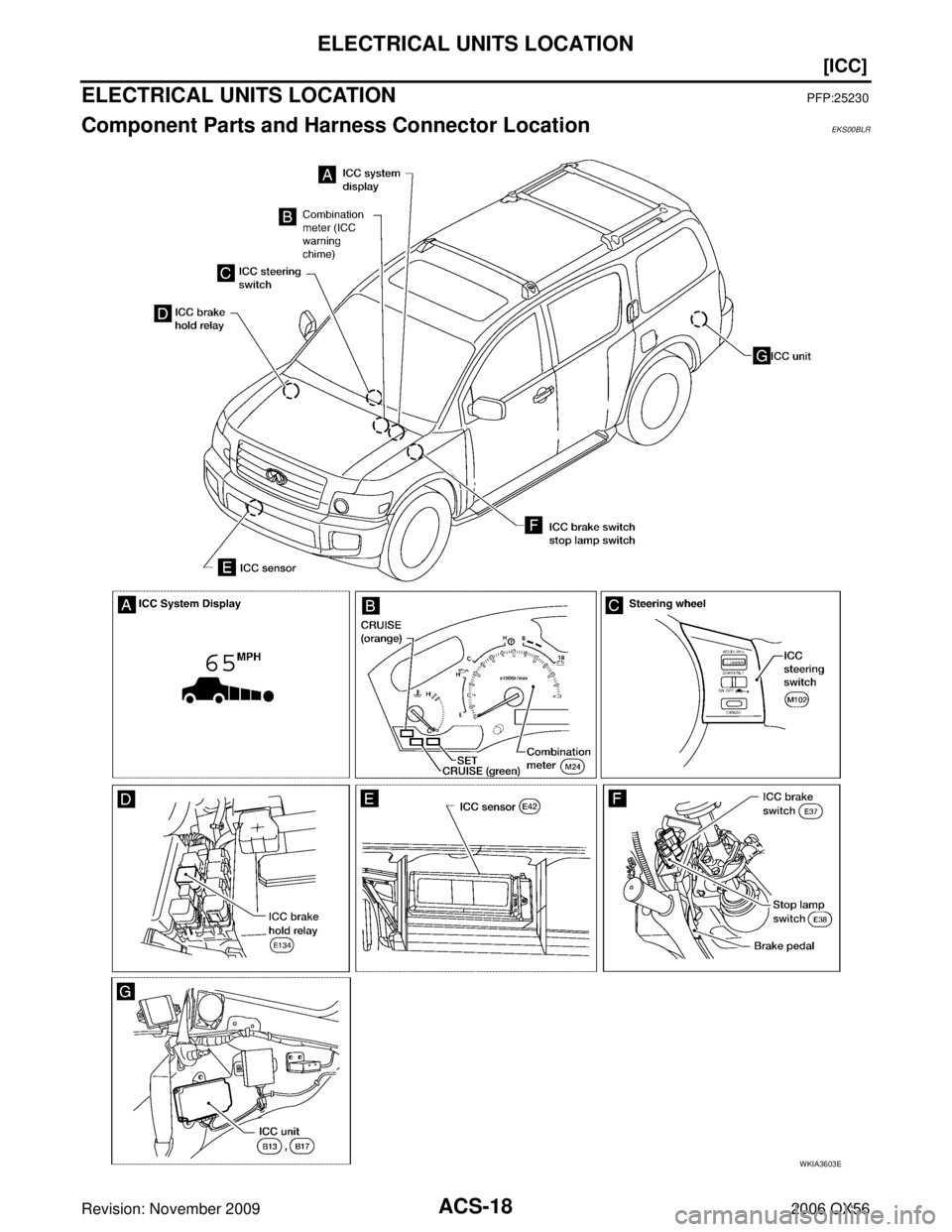

Component Parts and Harness Connector LocationEKS00BLR
WKIA3603E

WIRING DIAGRAMACS-19
[ICC]
C
DE
F
G H
I
J
L
M A
B
ACS
Revision: November 2009 2006 QX56
WIRING DIAGRAMPFP:00000
SchematicEKS00BLS
WKWA3631E

ACS-20
[ICC]
WIRING DIAGRAM
Revision: November 20092006 QX56
Wiring Diagram — ICC —EKS00BLT
WKWA3632E

WIRING DIAGRAMACS-21
[ICC]
C
DE
F
G H
I
J
L
M A
B
ACS
Revision: November 2009 2006 QX56
WKWA3633E

ACS-22
[ICC]
WIRING DIAGRAM
Revision: November 20092006 QX56
WKWA3634E

WIRING DIAGRAMACS-23
[ICC]
C
DE
F
G H
I
J
L
M A
B
ACS
Revision: November 2009 2006 QX56
WKWA3635E

ACS-24
[ICC]
TERMINALS AND REFERENCE VALUE
Revision: November 20092006 QX56
TERMINALS AND REFERENCE VALUEPFP:00000
Terminals and Reference Values for ICC UnitEKS00BLU
Terminals and Reference Values for ICC SensorEKS00BLV
Te r m i n a lWire
color Item Condition
Voltage (V)
(Approx.)
Ignition
switch Operation
1W/L Battery power supply OFF— Battery voltage
2W/L
5 P CAN-L —— —
7 B/R N-P RANGE ON A/T selector lever in "P" or "N"Battery voltage
10 V/R Brake booster signal ON—
14 L CAN-H —— —
19 B Ground
ON——
20 B
29 BR/W ICC brake switch
(normally closed) Selector
lever: Not in “N ” or “P ”
position Depress the brake
pedal
0
Release the brake
pedal Battery voltage
30 L DDL-TX —— —
33 R/B Ignition switch power supply ON —
Battery voltage
38 R/G Stop lamp switch
(normally open)
OFFDepress the brake pedal
Release the brake pedal
0
39 V/W DDL-RX —— —
40 G Parking brake signal
ONParking brake is ON
0
Parking brake is OFF Battery voltage
42 R/B Ignition switch power supply —Battery voltage
46 B Ground ——
47 BR Stop lamp drive output signal Brake operating with ICC system
Battery voltage
Brake not operating with ICC
system 0
SKIA1243E
TerminalWire
color Item Condition
Voltage (V)
Ignition
switch Operation
1 R/B Ignition switch power supply
ON—
Battery voltage
2 L CAN-H ——
3 P CAN-L ——
4 B Ground ——

TROUBLE DIAGNOSIS — GENERAL DESCRIPTIONACS-25
[ICC]
C
DE
F
G H
I
J
L
M A
B
ACS
Revision: November 2009 2006 QX56
TROUBLE DIAGNOSIS — GENERAL DESCRIPTIONPFP:00004
Work FlowEKS00BLW

Reference 1··· Refer to ACS-31, "Self-Diagnostic Function" .

Reference 2 ··· Refer to ACS-36, "Diagnostic Trouble Code (DTC) Chart" .

Reference 3 ··· Refer to ACS-52, "Symptom Chart" .

Reference 4 ··· Refer to GI-40, "CONSULT-II Data Link Connector (DLC) Circuit" and ACS-33, "SELF-
DIAGNOSIS BY ICC SYSTEM DISPLAY WILL NOT RUN" .
SKIA1227E

ACS-26
[ICC]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Revision: November 20092006 QX56
CONSULT-II Function (ICC)EKS00BLX
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL) ”.
5. Touch “ICC” on "SELECT SYSTEM" screen.
If “ICC ” is not indicated, go to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
ICC diagnostic mode Description
WORK SUPPORT Supports inspections and adjustments. Commands are transmitted to the ICC unit for setting the sta-
tus suitable for required operation, input/output signals are received from the ICC unit and received
data is displayed.
SELF-DIAG RESULTS Displays ICC unit self-diagnosis results. DATA MONITOR Displays ICC unit input/output data in real-time.
CAN DIAG SUPPORT MNTR The results of transmit/receive diagnosis of CAN communication can be read. ACTIVE TEST Operation of electrical loads can be checked by sending driving signal to them.
ECU PART NUMBER ICC unit part number can be read.
BBIA0369E
BCIA0029E
BCIA0030E

TROUBLE DIAGNOSIS — GENERAL DESCRIPTIONACS-27
[ICC]
C
DE
F
G H
I
J
L
M A
B
ACS
Revision: November 2009 2006 QX56
6. Touch “WORK SUPPORT ”, “SELF-DIAG RESULTS ”, “DATA
MONITOR ”, "CAN DIAG SUPPORT MNTR", “ACTIVE TEST” or
“ECU PART NUMBER ” on selection screen.
WORK SUPPORT
Work Item
Cause of Auto-Cancel
1. Touch “WORK SUPPORT ” on "SELECT DIAG MODE" screen.
2. Touch “CAUSE OF AUTO-CANCEL ” on "SELECT WORK ITEM"
screen.
3. Cause of automatic cancellation screen will be shown.
4. The last five causes of automatic cancellation of ICC system will be displayed.
Possible Causes of "Auto-Cancel"
Laser Beam Adjust
For details, refer to ACS-12, "LASER BEAM AIMING ADJUSTMENT" .
BCIA0031E
Operation Function
CAUSE OF AUTO-CANCEL Indicates causes of automatic cancellation of the ICC system.
LASER BEAM ADJUST Outputs laser beam, calculates dislocation of the beam, and indicates adjustment direction.
SKIA6191E
Cause of cancellation Description
OPERATING WIPER Windshield wipers were operated at HI or LO speed operation.
OPERATING ABS ABS function was operated.
OPERATING TCS TCS function was operated.
OPERATING VDC VDC function was operated.
ECM CIRCUIT ECM did not permit ICC operation.
OPE SW VOLT CIRC Voltage outside the standard was detected.
LASER SUN BEAM Intense light such as sunlight entered ICC sensor light sensing part.
LASER TEMP Temperature around ICC sensor became low.
WHL SPD ELEC NOISE Wheel speed sensor signal caught electromagnetic noise.
OP SW DOUBLE TOUCH ICC steering switches were pressed at the same time.
VDC/TCS OFF SW VDC OFF switch was pressed.
WHEEL SPD UNMATCH Wheel speed became different from AT vehicle speed.
TIRE SLIP Wheel slipped.
PKB SW ON Parking brake is applied.
IGN LOW VOLT Power supply voltage became low.
NO RECORD —
