TROUBLE DIAGNOSIS
2006 QX56
LOAD SIGNAL
Ignition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2nd.
ON
Rear window defogger switch is OFF
and lighting switch is OFF. OFF
IGNITION SW

Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW

Engine: After warming up, idle
the engine Heater fan control switch: ON
ON
Heater fan control switch: OFF OFF
BRAKE SW

Ignition switch: ON Brake pedal: Fully released
OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1
INJ PULSE-B2

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle
2.0 - 2.8 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle
10° - 20 ° BTDC
2,000 rpm 25° - 45 ° BTDC
CAL/LD VALUE

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle
14% - 33%
2,500 rpm 12% - 25%
MASS AIRFLOW

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle
3.0 - 9.0 g·m/s
2,500 rpm 9.0 - 28.0 g·m/s
PURG VOL C/V

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle
(Accelerator pedal: Not depressed
even slightly, after engine starting.)
0%
2,000 rpm —
AIR COND RLY

Engine: After warming up, idle
the engine Air conditioner switch: OFF
OFF
Air conditioner switch: ON
(Compressor: Operates) ON
FUEL PUMP RLY

For 1 second after turning ignition switch ON

Engine running or cranking ON

Except above conditions
OFF
VENT CONT/V

Ignition switch: ON OFF
THRTL RELAY

Ignition switch: ON ON
COOLING FAN

Engine: After warming up, idle
the engine

Air conditioner switch: OFF Engine coolant temperature: 99
°C
(210 °F) or less OFF
Engine coolant temperature: 100 °C
(212 °F) or more HI
HO2S2 HTR (B1)
HO2S2 HTR (B2)

Engine speed: Below 3,600 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load ON

Engine speed: Above 3,600 rpm
OFF
I/P PULLY SPD

Vehicle speed: More than 20 km/h (12 MPH) Almost the same speed as the
tachometer indication
MONITOR ITEM CONDITION SPECIFICATION

EC-156Revision: November 2009
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
2006 QX56
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATERPFP:22693
DescriptionUBS00H71
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating
condition to keep the temperature of A/F sensor 1 element at the specified range.
CONSULT-II Reference Value in Data Monitor ModeUBS00H72
Specification data are reference values.
On Board Diagnosis LogicUBS00H73
DTC Confirmation ProcedureUBS00H74
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and let it idle for at least 10 seconds.
3. If 1st trip DTC is detected, go to EC-160, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Sensor Input Signal to ECM ECM functionActuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS) Engine speed
Air fuel ratio (A/F) sensor 1
heater controlAir fuel ratio (A/F) sensor 1
heater
Mass air flow sensor Amount of intake air
MONITOR ITEM CONDITIONSPECIFICATION
A/F S1 HTR (B1)
A/F S1 HTR (B2)

Engine: After warming up, idle the engine 0 - 100%
DTC No. Trouble diagnosis nameDTC detecting conditionPossible cause
P0031
0031
(Bank 1) Air fuel ratio (A/F) sensor
1 heater control circuit
low The current amperage in the air fuel ratio (A/F)
sensor 1 heater circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the air fuel ratio (A/F) sensor 1 heater.)

Harness or connectors
(The A/F sensor 1 heater circuit is
open or shorted.)

A/F sensor 1 heater
P0051
0051
(Bank 2)
P0032
0032
(Bank 1)
Air fuel ratio (A/F) sensor
1 heater control circuit
high The current amperage in the air fuel ratio (A/F)
sensor 1 heater circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the air fuel ratio (A/F) sensor 1 heater.)

Harness or connectors
(The A/F sensor 1 heater circuit is
shorted.)

A/F sensor 1 heater
P0052
0052
(Bank 2)
SEF058Y

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATEREC-157
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
Wiring DiagramUBS00H75
BANK 1
BBWA2113E

EC-158Revision: November 2009
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
2006 QX56
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
2 O/B A/F sensor 1 heater
(bank 1) [Engine is running]

Warm-up condition

Idle speed Approximately 5V
16 BR/R A/F sensor 1 (bank 1) [Engine is running]

Warm-up condition

Idle speed Approximately 3.1V
35 BR/G Approximately 2.6V
56 LG/B Approximately 2.3V
75 P/B Approximately 2.3V
PBIB1584E

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATEREC-159
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56

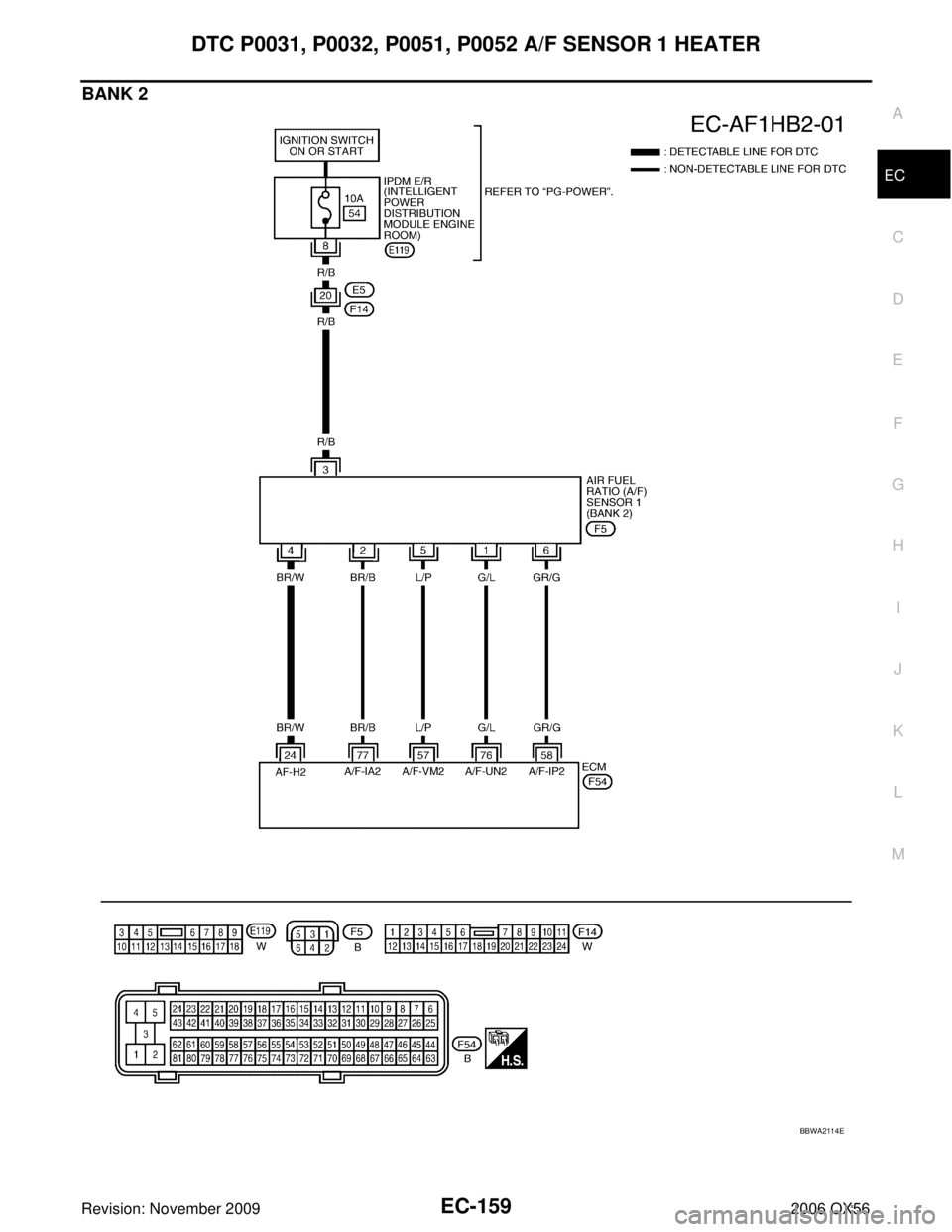

BANK 2
BBWA2114E

EC-160Revision: November 2009
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
2006 QX56
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureUBS00H76
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
24 BR/W A/F sensor 1 heater
(bank 2) [Engine is running]

Warm-up condition

Idle speed Approximately 5V
57 L/P A/F sensor 1 (bank 2) [Engine is running]

Warm-up condition

Idle speed Approximately 2.6V
58 GR/G Approximately 2.3V
76 G/L Approximately 3.1V
77 BR/B Approximately 2.3V
PBIB1584E
BBIA0354E

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATEREC-161
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
2. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect air fuel ratio (A/F) sensor 1 harness connector.
2. Turn ignition switch ON.
3. Check voltage between A/F sensor 1 terminal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E5, F14

IPDM E/R harness connector E119

10A fuse

Harness for open or short between A/F sensor 1 and fuse
>> Repair or replace harness or connectors.
4. CHECK A/F SENSOR 1 HEATER OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 2 (bank 1) or 24 (bank 2) and A/F sensor 1 terminal 4. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK A/F SENSOR 1 HEATER
Refer to EC-162, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 7. Voltage: Battery voltage
BBIA0376E
PBIB1683E
Continuity should exist.

EC-162Revision: November 2009
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
2006 QX56
6. CHECK INTERMITTENT INCIDENT
Perform EC-144, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace.
7. REPLACE AIR FUEL RATIO (A/F) SENSOR 1
Replace air fuel ratio (A/F) sensor 1.
CAUTION:

Discard any air fuel ratio (A/F) sensor which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a concrete floor; use a new one.

Before installing new air fuel ratio (A/F) sensor, clean exhaust system threads (using Oxygen Sen-
sor Thread Cleaner tool J-43897-18 or J-43897-12) and approved anti-seize lubricant.
>>INSPECTION END
Component InspectionUBS00H77
AIR FUEL RATIO (A/F) SENSOR 1 HEATER
Check resistance between terminals 3 and 4.
Check continuity between terminals 3 and 1, 2, 5, 6, terminals 4 and
1, 2, 5, 6.
If NG, replace the A/F sensor 1.
CAUTION:

Discard any A/F sensor which has been dropped from a
height of more than 0.5 m (19.7 in) onto a hard surface such
as a concrete floor; use a new one.

Before installing new A/F sensor, clean exhaust system
threads using Heated Oxygen Sensor Thread Cleaner tool
J-43897-18 or J-43897-12 and approved anti-seize lubricant.
Removal and Installation UBS00H78
AIR FUEL RATIO (A/F) SENSOR 1
Refer to EM-21, "EXHAUST MANIFOLD AND THREE WAY CATALYST" .
Resistance: 2.3 - 4.3Ω
at 25°C (77 °F)
Continuity should not exist.
PBIB1684E

DTC P0037, P0038, P0057, P0058 HO2S2 HEATEREC-163
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
DTC P0037, P0038, P0057, P0058 HO2S2 HEATERPFP:226A0
DescriptionUBS00H0N
SYSTEM DESCRIPTION
The ECM performs ON/OFF control of the heated oxygen sensor 2 heater corresponding to the engine speed,
amount of intake air and engine coolant temperature.
OPERATION
CONSULT-II Reference Value in Data Monitor ModeUBS00ODP
Specification data are reference values.
On Board Diagnosis LogicUBS00H0P
SensorInput signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS) Engine speed
Heated oxygen sensor 2
heater controlHeated oxygen sensor 2 heater
Engine coolant temperature sensor Engine coolant temperature
Mass air flow sensor Amount of intake air
Engine speed rpm Heated oxygen sensor 2 heater
Above 3,600 OFF
Below 3,600 rpm after the following conditions are met.

Engine: After warming up

Keeping the engine speed between 3,500 and 4,000 rpm for 1
minute and at idle for 1 minute under no load ON
MONITOR ITEM
CONDITION SPECIFICATION
HO2S2 HTR (B1)
HO2S2 HTR (B2)

Engine speed: Above 3,600 rpm OFF

Below 3,600 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load ON
DTC No. Trouble diagnosis name
DTC detecting conditionPossible cause
P0037
0037
(Bank 1) Heated oxygen sensor 2
heater control circuit low The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the heated oxygen sensor 2 heater.)

Harness or connectors
(The heated oxygen sensor 2 heater
circuit is open or shorted.)

Heater oxygen sensor 2 heater
P0057
0057
(Bank 2)
P0038
0038
(Bank 1)
Heated oxygen sensor 2
heater control circuit high The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively high voltage signal is sent to
ECM through the heated oxygen sensor 2
heater.)

Harness or connectors
(The heated oxygen sensor 2 heater
circuit is shorted.)

Heater oxygen sensor 2 heater
P0058
0058
(Bank 2)

EC-164Revision: November 2009
DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
2006 QX56
DTC Confirmation ProcedureUBS00H0Q
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-II.
2. Start engine and warm it up to the normal operating tempera- ture.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start the engine and keep the engine speed between 3,500 rpm and 4,000 rpm for at least 1 minute under no load.
5. Let engine idle for 1 minute.
6. If 1st trip DTC is detected, go to EC-168, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF174Y
