heater INFINITI QX56 2006 Factory Repair Manual

DTC P0037, P0038, P0057, P0058 HO2S2 HEATEREC-165
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56

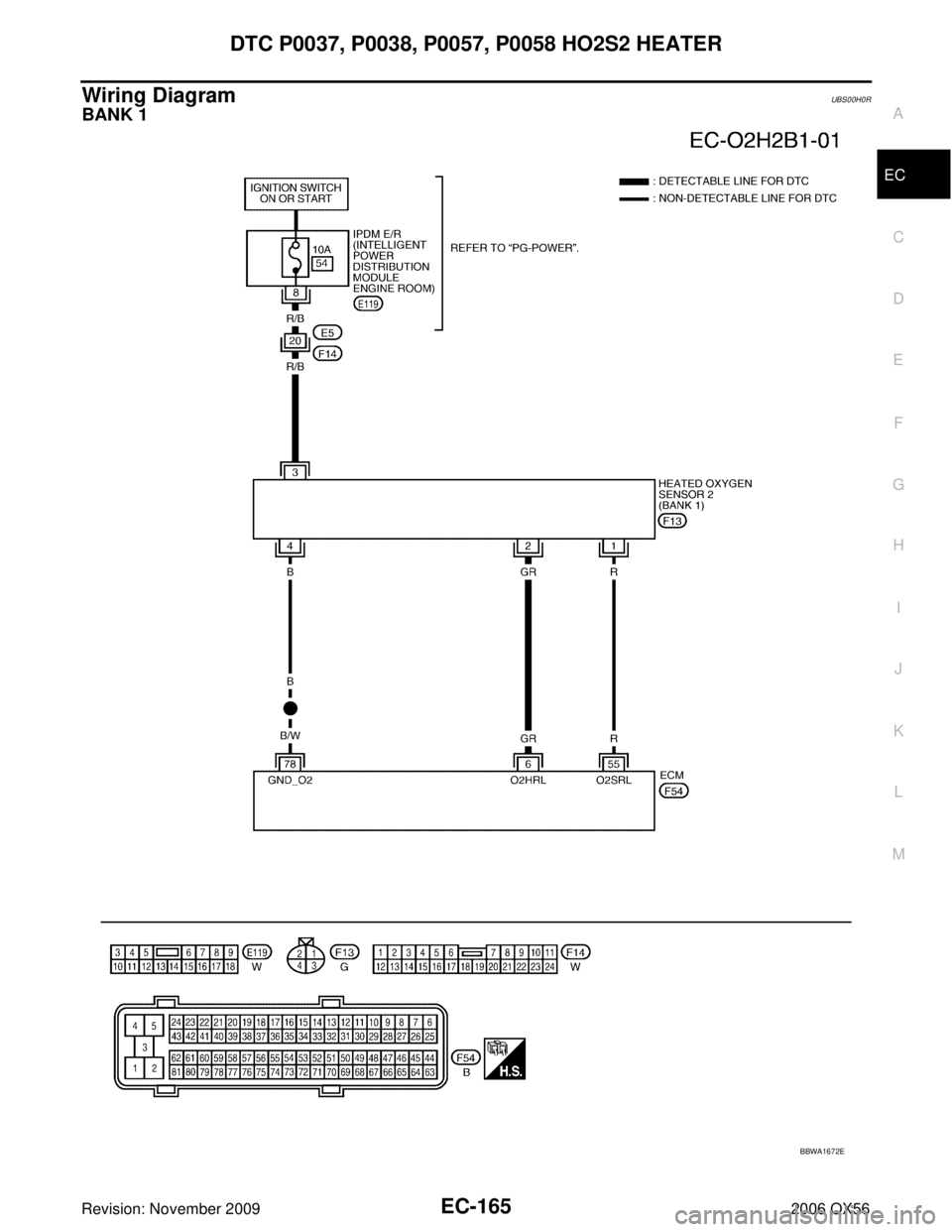

Wiring DiagramUBS00H0R
BANK 1
BBWA1672E

EC-166Revision: November 2009
DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
2006 QX56
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
6GR Heated oxygen sensor 2
heater (bank 1) [Engine is running]

Engine speed: Below 3,600 rpm after the
following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load
0 - 1.0V
[Ignition switch: ON]

Engine: Stopped
[Engine is running]

Engine speed: Above 3,600 rpm. BATTERY VOLTAGE
(11 - 14V)
55 R Heated oxygen sensor 2
(bank 1) [Engine is running]

Revving engine from idle to 3,000 rpm
quickly after the following conditions are
met.
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load
0 - Approximately 1.0V
78 B/W Sensor ground
(Heated oxygen sensor 2) [Engine is running]

Warm-up condition

Idle speed
Approximately 0V

DTC P0037, P0038, P0057, P0058 HO2S2 HEATEREC-167
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56

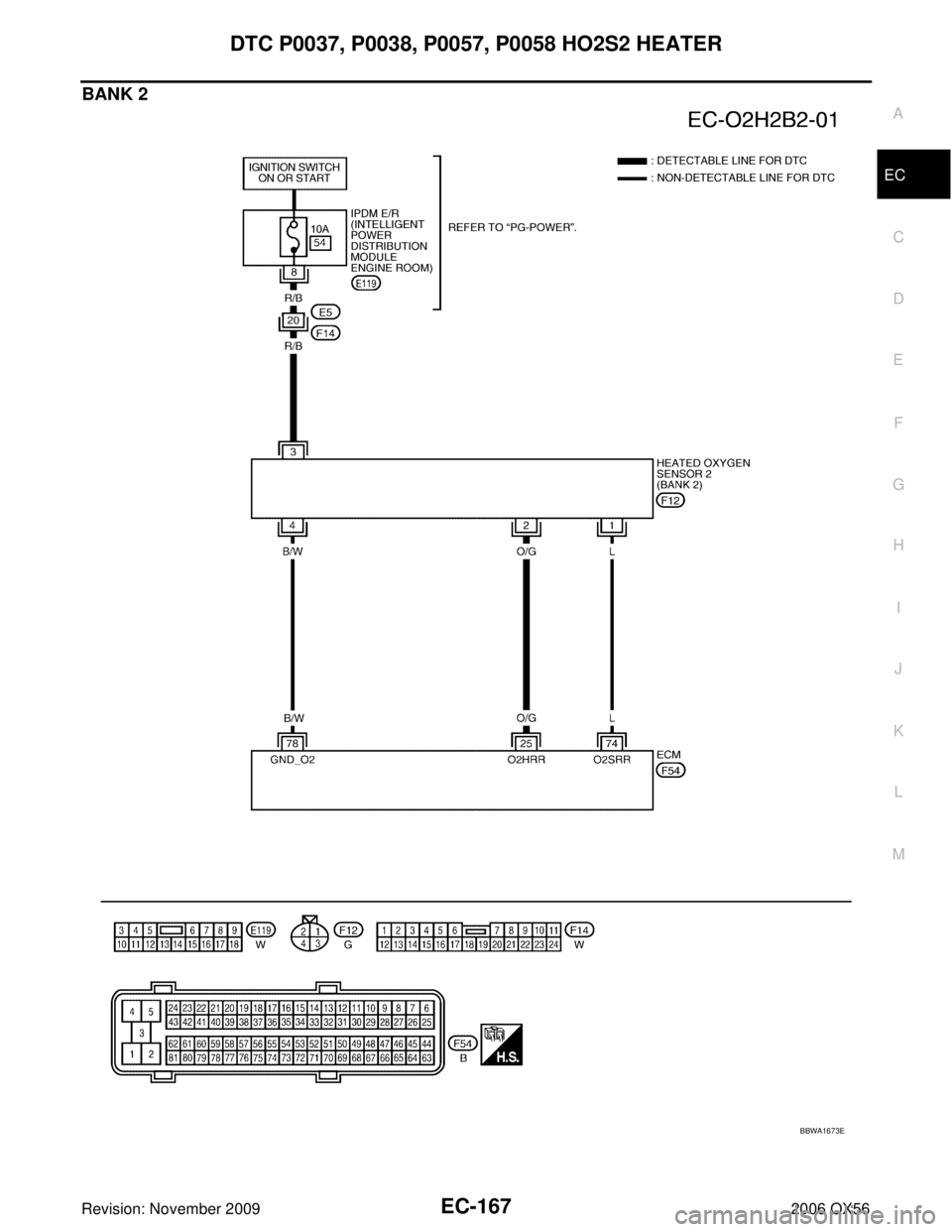

BANK 2
BBWA1673E

EC-168Revision: November 2009
DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
2006 QX56
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureUBS00H0S
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
25 O/G Heated oxygen sensor 2
heater (bank 2) [Engine is running]

Engine speed: Below 3,600 rpm after the
following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load
0 - 1.0V
[Ignition switch: ON]

Engine: Stopped
[Engine is running]

Engine speed: Above 3,600 rpm. BATTERY VOLTAGE
(11 - 14V)
74 L Heated oxygen sensor 2
(bank 2) [Engine is running]

Revving engine from idle to 3,000 rpm
quickly after the following conditions are
met.
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load
0 - Approximately 1.0V
78 B/W Sensor ground
(Heated oxygen sensor 2) [Engine is running]

Warm-up condition

Idle speed
Approximately 0V
BBIA0354E

DTC P0037, P0038, P0057, P0058 HO2S2 HEATEREC-169
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
2. CHECK HO2S2 POWER SUPPLY CIRCUIT
1. Disconnect heated oxygen sensor 2 harness connector.
2. Turn ignition switch ON.
3. Check voltage between HO2S2 terminal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E5, F14

IPDM E/R connector E119

10A fuse

Harness for open or short between heated oxygen sensor 2 and fuse
>> Repair harness or connectors.
4. CHECK HO2S2 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal and HO2S2 terminal as follows. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
BBIA0435E
Voltage: Battery voltage
PBIB0112E
DTC Te r m i n a l s
Bank
ECM Sensor
P0037, P0038 6 21
P0057, P0058 25 22
Continuity should exist.

EC-170Revision: November 2009
DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
2006 QX56
5. CHECK HEATED OXYGEN SENSOR 2 HEATER
Refer to EC-170, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace malfunctioning heated oxygen sensor 2.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-144, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionUBS00H0T
HEATED OXYGEN SENSOR 2 HEATER
1. Check resistance between HO2S2 terminals as follows.
2. If NG, replace heated oxygen sensor 2.
CAUTION:

Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard sur-
face such as a concrete floor; use a new one.

Before installing new oxygen sensor, clean exhaust system
threads using Oxygen Sensor Thread Cleaner tool J-43897-
18 or J-43897-12 and approved anti-seize lubricant.
Removal and InstallationUBS00H0U
HEATED OXYGEN SENSOR 2
Refer to EM-21, "EXHAUST MANIFOLD AND THREE WAY CATALYST" .
Terminal No. Resistance
2 and 3 5.0 - 7.0 Ω at 25°C (77 °F)
1 and 2, 3, 4 \b Ω
(Continuity should not exist)
4 and 1, 2, 3
SEF249Y

DTC P0130, P0150 A/F SENSOR 1EC-213
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
DTC P0130, P0150 A/F SENSOR 1PFP:22693
Component DescriptionUBS00HA7
The air fuel ratio (A/F) sensor 1 is a planar dual-cell limit current sen-
sor. The sensor element of the A/F sensor 1 is the combination of a
Nernst concentration cell (sensor cell) with an oxygen-pump cell,
which transports ions. It has a heater in the element.
The sensor is capable of precise measurement = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide range (0.7 <
< air).
The exhaust gas components diffuse through the diffusion gap at the
electrode of the oxygen pump and Nernst concentration cell, where
they are brought to thermodynamic balance.
An electronic circuit controls the pump current through the oxygen-
pump cell so that the composition of the exhaust gas in the diffusion
gap remains constant at = 1. Therefore, the A/F sensor 1 is able to
indicate air/fuel ratio by this pumping of current. In addition, a heater
is integrated in the sensor to ensure the required operating tempera-
ture of 700 - 800 °C (1,292 - 1,472 °F).
CONSULT-II Reference Value in Data Monitor ModeUBS00HA8
Specification data are reference values.
On Board Diagnosis LogicUBS00HA9
To judge the malfunction, the diagnosis checks that the A/F signal computed by ECM from the A/F sensor 1
signal fluctuates according to fuel feedback control.
DTC Confirmation ProcedureUBS00HAA
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “A/F SEN1 (B1) ” or “A/F SEN1 (B2) ” in “DATA MONITOR” mode with CONSULT-II.
3. Check “A/F SEN1 (B1)” or “A/F SEN1 (B2)” indication.
SEF579Z
SEF580Z
MONITOR ITEM CONDITIONSPECIFICATION
A/F SEN1 (B1)
A/F SEN1 (B2)

Engine: After warming up Maintaining engine speed at
2,000 rpm Fluctuates around 1.5V
DTC No. Trouble diagnosis name
DTC detecting conditionPossible Cause
P0130
0130
(Bank 1) Air fuel ratio (A/F) sensor 1
circuit

The A/F signal computed by ECM from the A/F
sensor 1 signal is constantly approx. 1.5V.

Harness or connectors
(The A/F sensor 1 circuit is open or
shorted.)

Air fuel ratio (A/F) sensor 1
P0150
0150
(Bank 2)

DTC P0130, P0150 A/F SENSOR 1EC-217
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
2O/B A/F sensor 1 heater
(bank 1) [Engine is running]

Warm-up condition

Idle speed Approximately 5V
16 BR/R A/F sensor 1 (bank 1) [Engine is running]

Warm-up condition

Idle speed Approximately 3.1V
35 BR/G Approximately 2.6V
56 LG/B Approximately 2.3V
75 P/B Approximately 2.3V
PBIB1584E

DTC P0130, P0150 A/F SENSOR 1EC-219
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureUBS00HAD
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
24 BR/W A/F sensor 1 heater
(bank 2) [Engine is running]

Warm-up condition

Idle speed Approximately 5V
57 L/P A/F sensor 1 (bank 2) [Engine is running]

Warm-up condition

Idle speed Approximately 2.6V
58 GR/G Approximately 2.3V
76 G/L Approximately 3.1V
77 BR/B Approximately 2.3V
PBIB1584E
BBIA0354E

DTC P0131, P0151 A/F SENSOR 1EC-223
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
DTC P0131, P0151 A/F SENSOR 1PFP:22693
Component DescriptionUBS00H9F
The air fuel ratio (A/F) sensor 1 is a planar dual-cell limit current sen-
sor. The sensor element of the A/F sensor 1 is the combination of a
Nernst concentration cell (sensor cell) with an oxygen-pump cell,
which transports ions. It has a heater in the element.
The sensor is capable of precise measurement = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide range (0.7 <
< air).
The exhaust gas components diffuse through the diffusion gap at the
electrode of the oxygen pump and Nernst concentration cell, where
they are brought to thermodynamic balance.
An electronic circuit controls the pump current through the oxygen-
pump cell so that the composition of the exhaust gas in the diffusion
gap remains constant at = 1. Therefore, the A/F sensor 1 is able to
indicate air/fuel ratio by this pumping of current. In addition, a heater
is integrated in the sensor to ensure the required operating tempera-
ture of 700 - 800 °C (1,292 - 1,472 °F).
CONSULT-II Reference Value in Data Monitor ModeUBS00H9G
Specification data are reference values.
On Board Diagnosis LogicUBS00H9H
To judge the malfunction, the diagnosis checks that the A/F signal computed by ECM from the A/F sensor 1
signal is not inordinately low.
DTC Confirmation ProcedureUBS00H9I
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “A/F SEN1 (B1) ” or “A/F SEN1 (B2) ” in “DATA MONITOR” mode with CONSULT-II.
SEF579Z
SEF580Z
MONITOR ITEM CONDITIONSPECIFICATION
A/F SEN1 (B1)
A/F SEN1 (B2)

Engine: After warming up Maintaining engine speed at
2,000 rpm Fluctuates around 1.5V
DTC No. Trouble diagnosis name
DTC detecting conditionPossible Cause
P0131
0131
(Bank 1) Air fuel ratio (A/F) sensor 1
circuit low voltage

The A/F signal computed by ECM from the
A/F sensor 1 signal is constantly approx. 0V.

Harness or connectors
(The A/F sensor 1 circuit is open or
shorted.)

Air fuel ratio (A/F) sensor 1
P0151
0151
(Bank 2)
