HARNESS
G4 B101 W/16 : To M84
A4 B105 B/3 : Rear combination lamp RH
E4 B106 W/18 : To D301
G4 B107 W/8 : To E139
E4 B108 W/3 : Front door switch RH
G 3 B 111 W / 1 6 : To B 4 3
E4 B113 Y/12 : Air bag diagnosis sensor unit
E5 B114 Y/2 : RH side air bag (satellite) sensor
D4 B116 W/3 : Rear door switch RH
F4 B117 — : Body ground
F4 B118 W/3 : Front seat heater RH
A4 B119 W/2 : Condenser-3
A3 B120 W/2 : Condenser-4
F4 B124 W/6 : To B32
F4 B126 Y/2 : Front RH side air bag module
E5 B127 Y/2 : Front RH seat belt pre-tensioner
C3 B128 Y/2 : RH side rear curtain air bag module
G3 B129 Y/2 : RH side front curtain air bag module
A4 B130 B/3 : Rear combination lamp RH
A5 B132 — : Body ground
A5 B133 W/4 : Variable blower control (rear)
B5 B134 W/2 : Rear blower motor
E4 B136 W/8 : To B350
E4 B137 W/3 : Belt tension sensor
B3 B138 B/3 : Rear cargo power socket
A3 B139 W/16 : To D602
A2 B140 W/6 : To D601
D2 B145 W/16 : To R200
E2 B146 BR/24 : To R201
G3 B149 SMJ : To M36
B3 B150 W/2 : Rear power vent window motor RH
B2 B153 W/2 : Cargo lamp
F5 B154 W/2 : To B303
B4 B155 B/6 : Air mix door motor (rear)
B4 B156 B/6 : Mode door motor (rear)
F4 B157 Y/4 : Seat belt buckle pre-tensioner assembly
RH (seat belt buckle switch)
G4 B161 W/20 : To M157
C4 B162 W/6 : Third row power folding seat switch
RH side (front)
B4 B163 BR/6 : Third row power folding seat switch
RH side (rear)
C4 B164 BR/6 : Third row power folding seat switch
LH side (front)
Revision: March 2010
2008 QX56

PG
HARNESSPG-55
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
ROOM LAMP HARNESS
A4 B165 BR/6
: Third row power folding seat switch
LH side (rear)
B2 B166 B/2 : Rear sonar buzzer
ALMIA0219GB
A4 R1 W/16 : To M1 C3 R107 W/8 : To R9
A4 R2 W/12 : To M2 C2 R108 B/6 : Rear air control (front)
Revision: March 2010 2008 QX56

PG-56
< COMPONENT DIAGNOSIS >
HARNESS
FRONT DOOR LH HARNESS
D3 R3 W/2 : Vanity lamp LHD2 R109 W/4 : Microphone
C3 R4 GR/10 : Sunroof motor assembly Room lamp sub-harness B
C2 R6 W/16 : To R101 D1 R200 W/16 : To B145
C3 R7 GR/10 : Auto anti-dazzling inside mirror D1 R201 BR/24 : To B146
B3 R8 W/2 : Vanity lamp RH C2 R202 W/12 : Video monitor
D3 R9 W/8 : To R107 D1 R203 W/3 : Personal lamp 2ND row
Room lamp sub-harness A D2 R204 W/16 : Rear audio remote control unit
C2 R101 W/16 : To R6 E1 R205 W/3 : Personal lamp 3RD row
C3 R102 GR/8 : Front room/map lamp assembly D2 R209 B/6 : Rear air control (rear)
D3 R104 GR/6 : Sunroof switch E1 R210 W/2 : Inside key antenna 4 (over head console area)
ALMIA0215GB
D1 W/24 : To M9 D9 GR/6 : Front power window motor LH
D2 W/16 : To M8 D10 W/16 : Door mirror remote control switch
D3 W10 : To M158 D11 W/2 : Front step lamp LH
D4 W/16 : Door mirror LH D12 W/2 : Front door speaker LH
D5 W/8 : Seat memory switch D14 B/6 : Front door lock assembly LH
D7 W/16 : Main power window and door lock/unlock
switch D15 B/6 : Front outside antenna
D8 W/3 : Main power window and door lock/unlock
switch
D16 GR/2 : Front door request switch LH
Revision: March 2010
2008 QX56

PG
HARNESSPG-57
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
FRONT DOOR RH HARNESS
ALMIA0218GB
D101 W/10 : To M75
D109 W/2 : Front step lamp RH
D102 BR/20 : To M74 D112 W/2 : Front door speaker RH
D104 GR/6 : Front power window motor RH D114 B/6 : Front door lock actuator RH
D105 W/16 : Power window and door lock/unlock
switch RH
D115 GR/2 : Front outside antenna RH
D107 W/16 : Door mirror RH D116 GR/2 : Front door request switch RH
Revision: March 2010 2008 QX56

PG-58
< COMPONENT DIAGNOSIS >
HARNESS
REAR DOOR LH HARNESS
AWMIA0109GB
D201 W/18 : To B6 D206 W/2 : Rear step lamp LH
D203 W/8 : Rear power window switch LH D207 W/2 : Rear door speaker LH
D204 GR/6 : Rear power window motor LH D208 BR/2 : Rear door tweeter LH
D205 B/6 : Rear door lock actuator LH D209 W/18 : Rear power window control unit LH
Revision: March 2010 2008 QX56

PG
HARNESSPG-59
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
REAR DOOR RH HARNESS
AWMIA0110GB
D301 W/18 : To B106
D306 W/2 : Rear step lamp RH
D303 W/8 : Rear power window switch RHD307 W/2 : Rear door speaker RH
D304 GR/6 : Rear power wi ndow motor RHD308 BR/2 : Rear door tweeter RH
D305 B/6 : Rear door lock actuator RH D309 W/18 : Rear power window control unit RH
Revision: March 2010 2008 QX56

PG-60
< COMPONENT DIAGNOSIS >
HARNESS

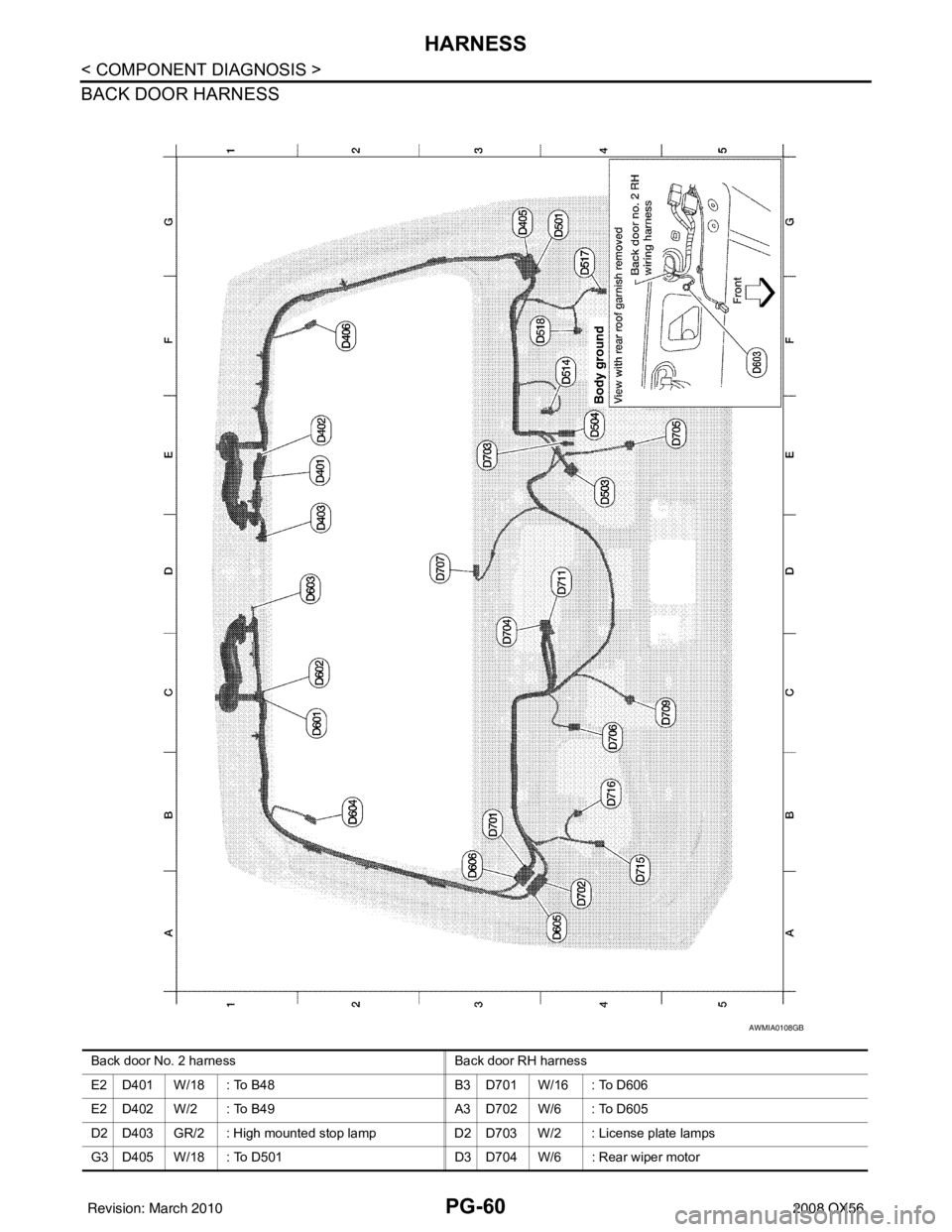

BACK DOOR HARNESS
AWMIA0108GB
Back door No. 2 harnessBack door RH harness
E2 D401 W/18 : To B48 B3 D701 W/16 : To D606
E2 D402 W/2 : To B49 A3 D702 W/6 : To D605
D2 D403 GR/2 : High mounted stop lamp D2 D703 W/2 : License plate lamps
G3 D405 W/18 : To D501 D3 D704 W/6 : Rear wiper motor
Revision: March 2010 2008 QX56

PG
HARNESSPG-61
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
F2 D406 B/1 : Rear window defogger
D2 D705 GR/8 : Back-up lamp LH
Back door LH harness C4 D706 W/4 : Back door and glass hatch switch assembly
G3 D501 W/18 : To D405 D2 D707 B/1 : Glass hatch ajar switch
E4 D503 W/8 : Back door latch D3 D708 W/4 : Back door lock actuator
E4 D504 W/4 : Rear view camera B4 D709 GR/8 : Back-up lamp RH
F4 D514 BR/2 : Back door warning chime B4 D710 W/4 : Glass hatch switch
F4 D517 BR/2 : Pinch strip LH B4 D711 W/4 : Glass hatch lock actuator
F4 D518 BR/2 : Back door speaker LH B4 D715 BR/2 : Pinch strip RH
Back door No. 2 RH harness B4 D716 BR/2 : Back door speaker RH
C2 D601 W/6 : To B140
C2 D602 W/16 : To B139
D2 D603 — : Body ground
B2 D604 B/1 : Rear window defogger
A3 D605 W/6 : To D702
B3 D606 W/16 : To D701
Revision: March 2010 2008 QX56

PG-62
< COMPONENT DIAGNOSIS >
