FRONT BUMPER
Removal and InstallationINFOID:0000000003776104
1. Lower energy absorber 2. Front bumper side bracket RH 3. Front bumper stay RH
4. Upper bumper reinforcement 5. Upper energy absorber (part of up- per bumper reinforcement) 6. Sonar sensors (if equipped)
AWKIA1559ZZ
Revision: December 20092009 QX56

EXT-14
< SERVICE INFORMATION >
FRONT BUMPER
REMOVAL
1. Remove the side screws from the front fascia assembly.
2. Remove the screws from the front of fender protector. Refer to EXT-23
.
3. Remove the fog turn/fog lamp finisher and the fog turn/fog lamp. • Disconnect the harnesses.
4. Disconnect the sonar sensor, if equipped harness connector under the front fascia assembly.
5. Remove the fasteners, release the clips and remove the front fascia assembly.
6. Remove the plastic clips and remove the upper energy absorber.
7. Remove the upper bumper reinforcement.
8. Remove the plastic clips and remove the lower energy absorber.
9. Remove the front bumper stays and the front bumper side brackets, LH and RH.
10. Disconnect the sonar sensors, if equipped from the sonar sensor retainers, if equipped.
11. Remove the sonar sensors, if equipped and harness from the front fascia assembly. • Disconnect the sonar sensors, if equipped from the harness.
• Remove the sonar sensor retainers, if equipped from the front fascia assembly.
INSTALLATION
Installation is in the reverse order of removal.
7. Sonar sensor harness (if equipped) 8. Front fascia assembly 9. Sonar sensor retainers (if equipped)
10. Engine under cover 11. Front fascia bracket12. License plate bracket
13. Fog turn/fog lamp finisher LH/RH 14. Fog turn/fog lamp 15. Front bumper stay LH
16. Front bumper side bracket LH 17. Headlamp finisher (RH shown) A. Clip C103
B. Clip CS101
Revision: December 20092009 QX56

REAR BUMPEREXT-15
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P
REAR BUMPER
Removal and InstallationINFOID:0000000003776105
1. Retainer assembly 2. Clip C1033. S clip
4. Rear bumper assembly 5. Rear bumper side bracket6. Energy absorber
7. Sonar sensors 8. Sonar sensor harness9. Quarter panel trim cover LH
AWKIA1633GB
Revision: December 20092009 QX56

EXT-16
< SERVICE INFORMATION >
REAR BUMPER
REMOVAL
1. Remove the rear combination lamps LH and RH. Refer to EXL-157, "Removal and Installation".
2. Remove the rear fascia assembly screws under the rear combination lamps LH and RH.
3. Remove the quarter panel trim covers LH and RH.
4. Disconnect the sonar sensor harness c onnector under the rear fascia assembly.
5. Release the retainer clips on both sides of the rear fascia assembly with a 1/4 turn and top S clips and remove the fascia assembly.
6. Detach the I-key antenna from the energy absorber.
7. Remove the energy absorber.
8. Remove the reinforcement assembly.
9. Remove the nuts and remove the retainer assembly. • Remove the S clips from the retainer assembly.
10. Disconnect the sonar sensors from the sonar sensor retainers.
11. Remove the sonar sensors and harness from the rear fascia assembly. • Disconnect the sonar sensors from the harness.
• Remove the sonar sensor retainers from the rear fascia assembly.
12. Remove the bolts on each side of the tow hitch and remove the tow hitch.
13. Remove the drafter duct from under the LH quarter panel.
INSTALLATION
Installation is in the reverse order of removal.
10. Drafter duct 11. Retainer clip 12. Rear fascia assembly
13. Sonar sensor retainer 14. Reinforcement assembly15. Tow hitch
16. Quarter panel trim cover RH
Revision: December 20092009 QX56

FRONT GRILLEEXT-17
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P
FRONT GRILLE
Removal and InstallationINFOID:0000000003776106
REMOVAL
1. Remove the bolts and nuts attaching grille.
2. Remove the front grille.
INSTALLATION
Installation is in the reverse order of removal.

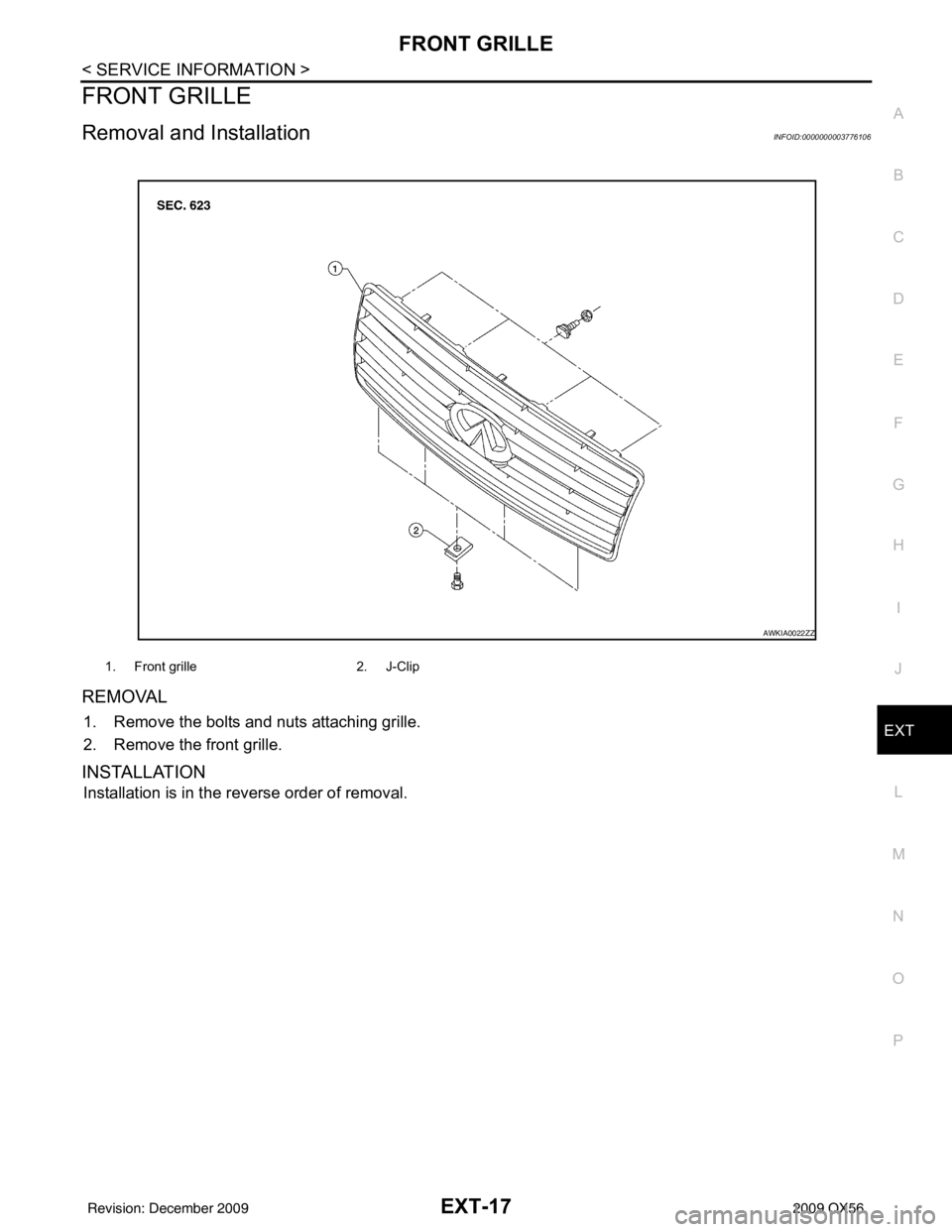

1. Front grille 2. J-Clip
AWKIA0022ZZ
Revision: December 20092009 QX56

EXT-18
< SERVICE INFORMATION >
COWL TOP
COWL TOP
Removal and InstallationINFOID:0000000003776107
REMOVAL
1. Remove the right and left wiper arms. Refer to WW-74, "Front Wiper Arms".
2. Remove the cowl top seal. • Release the plastics clips on the cowl top seal which go through the cowl tops LH and RH and the cowltop extension.
3. Remove the cowl top covers LH and RH. • Release the plastic clips under the cowl top covers attaching to grommets on hoodledge.
• Disconnect the washer tubes from the wa sher nozzles under the cowl top covers.
4. Remove the cowl top extension brackets LH and RH. • Disconnect the wiper motor harness from the cowl top extension bracket LH.
• The cowl top extension bracket LH must be removed prior to the removal of the wiper motor and con-
necting rod assembly.
5. Remove the wiper motor and connecting rod linkage. Refer to WW-75, "
Wiper Motor and Linkage".
1. Clip CG1042. Clip C103 3. Cowl top cover RH
4. Cowl top seal 5. Drain tube6. Cowl top extension bracket RH
7. Cowl top extension 8. Cowl top extension bracket LH 9. Cowl top cover LH
WIIA0955E
Revision: December 20092009 QX56

COWL TOPEXT-19
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P
6. Disconnect the windshield washer tube. Refer to WW-76, "Washer Tube Layout".
7. Remove the water cut valve bracket from the cowl top extension. Refer to EXT-18, "
Removal and Installa-
tion".
8. Remove the A/C line bracket from the cowl top extension. Refer to EXT-18, "
Removal and Installation".
9. Remove the drain tube from each side of the cowl top extension.
10. Remove the cowl top extension.
INSTALLATION
Installation is in the reverse order of removal.
Revision: December 20092009 QX56

EXT-20
< SERVICE INFORMATION >
FRONT FENDER
FRONT FENDER
Removal and InstallationINFOID:0000000003776108
REMOVAL
1. Remove the headlamp assembly. Refer to EXL-147, "Removal and Installation".
2. Remove the over fender. Refer to EXT-21
.
3. Remove the fender protector. Refer to EXT-23
.
4. Remove the hood stay. Refer to DLK-230, "
Removal and Installation of Hood Assembly".
5. Remove the front fender.
INSTALLATION
Installation is in the reverse order of removal.
1. Front fender 2. Over fender3. Headlamp assembly
4. Fender protector
WIIA0956E
Revision: December 20092009 QX56

OVER FENDEREXT-21
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P
OVER FENDER
Removal and InstallationINFOID:0000000003776109
REMOVAL
1. Remove the screws from the front and/or rear over fender.
CAUTION:
Never apply tack-paper adhesive remover to body pa nel surface finished with lacquer-based paints.
• Original over fenders are affixed to body panel with double-faced adhesive tape.
2. Heat the over fender to between 30 ° and 40 °C (86° to 104 °F) with a heat gun.
3. Raise the end of the over fender and cut away tape, release the plastic clips and remove the over fender.
Remove all traces of tape.
INSTALLATION
• On vehicles coated with Hard Clear Coat, use double-faced 3M adhesive tape Product No, 4210 or equiva- lent, after priming with 3M primer Product No. N200, C-100 or equivalent.
• The repair parts are also affixed with double-faced adhesive tape.
• To re-use existing over fender, clean all traces of double-faced tape from the over fender and apply new dou-
ble-faced tape to the over fender.
1. Clean the panel surface with isopropyl alcohol or equivalent to degrease the surface.
2. Heat the panel and double-faced tape surface to 30 ° to 40° C (86° to 104 °F).
3. Remove the backing sheet from the tape surface.
4. Align the plastic clips on the back side of the front and/or rear over fender to the mounting grommets.
5. Press the ends by hand and use a roller to apply 5 kg-f (11lbs-f) to press the over fender surface to body panel.
CAUTION:
To secure contact, do not wash vehic le for 24 hours after installation.
1. Clip CG104 2. Front over fender3. Clip CF118
4. Double-faced adhesive tape 5. J-clip 6. Rear over fender
7. Double-faced adhesive tape
WIIA0957E
Revision: December 20092009 QX56

EXT-22
< SERVICE INFORMATION >
OVER FENDER
6. Install the front and/or rear over fender screws.
