INFINITI QX56 2010 Factory Service Manual

LAN
DIAGNOSIS AND REPAIR WORKFLOWLAN-23
< BASIC INSPECTION > [CAN FUNDAMENTAL]
C
D
E
F
G H
I
J
K L
B A
O P
N
c. Reception item of “AV”: “UNKWN” is not indicated. This indicates normal communication between AV and
its receiving units. Do not draw any line.
d. Reception item of “BCM”: On “TCM”, “UNKWN” is indicated. This means BCM cannot receive the signal from TCM. Draw a line to indicate an error between BCM and TCM (line 2-d in the figure below).
e. Reception item of “EPS” and “I-KEY”: “UNKWN” is not indicated. This indicates normal communication between EPS and I-KEY and their receiv ing units. Do not draw any line.
NOTE:
PKID1215E
Revision: April 20092010 QX56

LAN-24
< BASIC INSPECTION >[CAN FUNDAMENTAL]
DIAGNOSIS AND REPAIR WORKFLOW
On CAN DIAG SUPPORT MNTR (without PAST), “UNK
WN” is indicated even though the item is not used
in the trouble diagnosis. For the details of each item on CAN diagnostic support monitor, refer to LAN-47,
"CAN Diagnostic Support Monitor".
f. Reception item of “M&A”: On “TCM”, “UNKWN” is indicated. This means M&A cannot receive the signal
from TCM. Draw a line to indicate an error between M&A and TCM (line 2-f in the figure below).
g. Reception item of “ADP”: On “TCM”, “UNKWN” is indicated. This means ADP cannot receive the signal
from TCM. Draw a line to indicate an error between ADP and TCM (line 2-g in the figure below).
PKID1216E
Revision: April 20092010 QX56

LAN
DIAGNOSIS AND REPAIR WORKFLOWLAN-25
< BASIC INSPECTION > [CAN FUNDAMENTAL]
C
D
E
F
G H
I
J
K L
B A
O P
N
h. Reception item of “ABS”: “UNKWN” is not indicated. This indicates normal communication between ABS
and its receiving units. Do not draw any line.
i. Reception item of “IPDM-E”: “UNKWN” is not indicated. This indicates normal communication between IPDM-E and its receiving units. Do not draw any line.
3. Based on information received from “CAN DIAG SUPPORT MNTR”, place a check mark on the known good CAN communication line between ECM and IPDM-E.
a. Through the previous procedure, the circuit betw een ADP splice and TCM has the most amount of lines
(shade 3-a in the figure below).
b. Place a check mark on the known good lines to establish the error circuit.
PKID1217E
Revision: April 20092010 QX56

LAN-26
< BASIC INSPECTION >[CAN FUNDAMENTAL]
DIAGNOSIS AND REPAIR WORKFLOW
Reception item of “IPDM-E”: On “ECM”, “OK” is indicated. IPDM-E
communicates normally with ECM. Put
a check mark on the normal circuit between ECM and IPDM-E (check mark 3-b in the figure below).
4. Through the above procedure, the error is detected in the TCM branch line (shaded in the figure below). NOTE:
For abbreviations, refer to LAN-36, "
Abbreviation List".
PKID1218E
Revision: April 20092010 QX56

LAN
DIAGNOSIS AND REPAIR WORKFLOWLAN-27
< BASIC INSPECTION > [CAN FUNDAMENTAL]
C
D
E
F
G H
I
J
K L
B A
O P
N
5. Perform the inspection for the detected error circui
t. For the inspection procedure, refer to “MALFUNC-
TION AREA CHART”.
Present Error — Short Circuit —
When the symptoms listed below exist, a short circui t of the CAN communication line is a possible cause.
Received data
Error symptom• Most the units connected to the CAN communication system go into fail-safe mode or are deactivated.
Inspection procedure
PKID1219E
Item (CONSULT-III) Indication

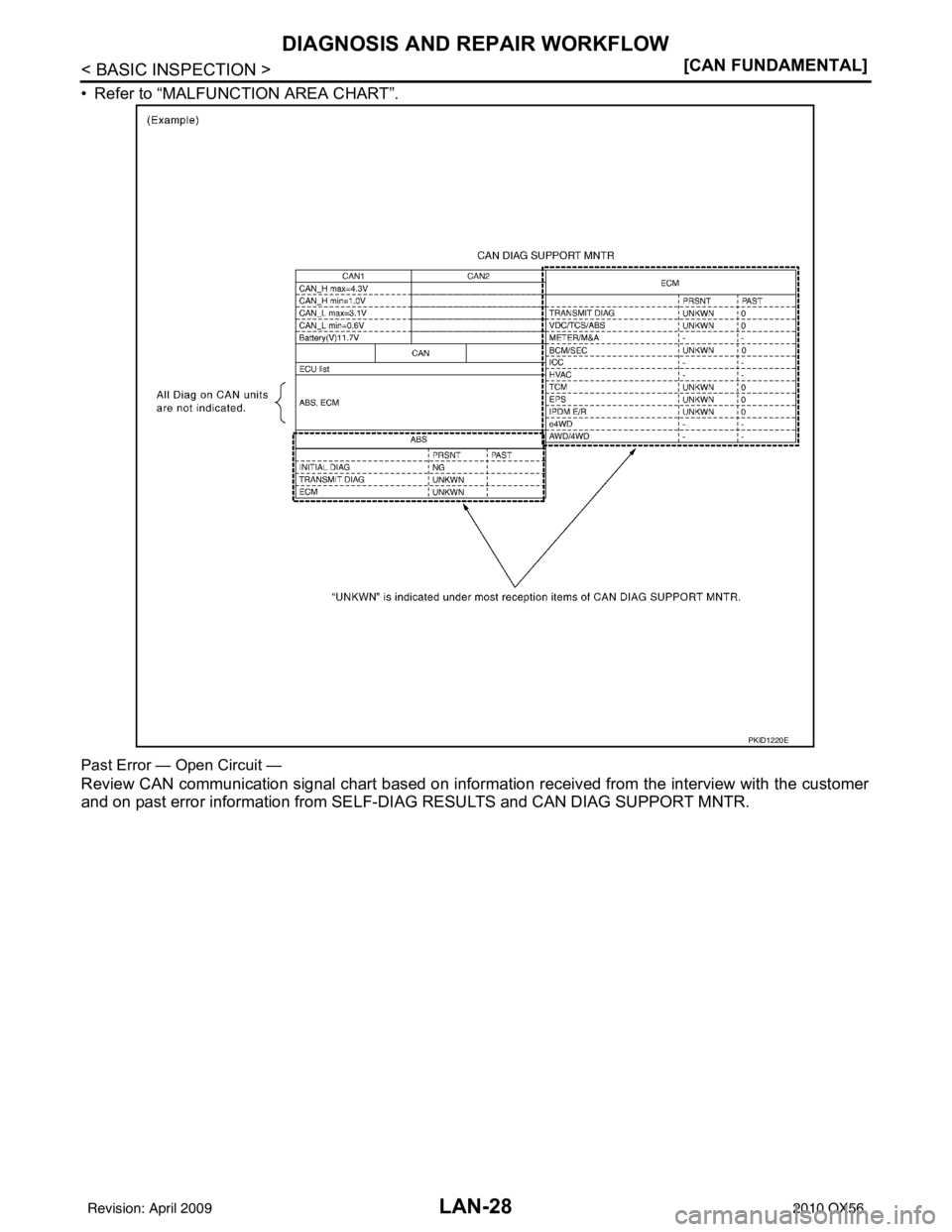

ECU list (on the CAN DIAG SUPPORT MNTR) A ll Diag on CAN units are not indicated.
CAN DIAG SUPPORT MNTR “UNKWN” is indicated under “TRANSMIT DIAG” and most reception items.
Revision: April 20092010 QX56

LAN-28
< BASIC INSPECTION >[CAN FUNDAMENTAL]
DIAGNOSIS AND REPAIR WORKFLOW
• Refer to “MALFUNCTION AREA CHART”.
Past Error — Open Circuit —
Review CAN communication signal chart based on information received from the interview with the customer
and on past error information from SELF-DIAG RESULTS and CAN DIAG SUPPORT MNTR.
PKID1220E
Revision: April 20092010 QX56

LAN
DIAGNOSIS AND REPAIR WORKFLOWLAN-29
< BASIC INSPECTION > [CAN FUNDAMENTAL]
C
D
E
F
G H
I
J
K L
B A
O P
N
1. SELF-DIAG RESULTS: Inspect the control units
indicating “U1000” or “U1001” on SELF-DIAG RESULTS.
2. CAN DIAG SUPPORT MNTR (with PAST): Check the CAN DIAG SUPPORT MNTR (with PAST) of units indicating “U1000” or “U1001” on SELF-DIAG RESULTS. Draw a line on the diagnosis sheet to indicate
the possible error circuit.
NOTE:
For the details of each indication on CAN DIAG SUPPORT MNTR, refer to LAN-47, "
CAN Diagnostic Sup-
port Monitor".
a. Reception item of “ECM”: “VDC/TCS/ABS”, “3” is indicated in the “PAST”. This means ECM could not receive the signal from ABS in the past. Draw a line between ECM and ABS (line 2-a in the figure below).
b. Reception item of “M&A”: “VDC/TCS/ABS”, “3” is indicated in the “PAST”. This means M&A could not
receive the signal from ABS in the past. Draw a line between M&A and ABS (line 2-b in the figure below).
PKID1221E
Revision: April 20092010 QX56

LAN-30
< BASIC INSPECTION >[CAN FUNDAMENTAL]
DIAGNOSIS AND REPAIR WORKFLOW
c. Reception item of “TCM”: “VDC/TCS/ABS”, “3” is indicated in the “PAST”. This means TCM could not
receive the signal from ABS in the past. Draw a line between TCM and ABS (line 2-c in the figure below).
3. CAN DIAG SUPPORT MNTR (without PAST): Chec k the CAN DIAG SUPPORT MNTR (without PAST) of
units indicating “U1000” or “U1001” on SELF-DIAG RESULTS. Draw a line on the diagnosis sheet to indi-
cate the possible error circuit.
NOTE:
• While an error occurred in the past according to SE LF-DIAG RESULTS, it is unclear which signal is not
received. Assume that errors were detected from all reception items.
• Draw a single line among the unit and all reception it ems. (Work flow differs from CAN DIAG SUPPORT
MNTR (with PAST).)
a. Reception item of “EPS”: Assume that the unit could not receive the signals from ECM, ABS, and M&A. Draw a line among EPS, ECM, ABS, and M&A (line 3-a in the figure below).
PKID1222E
Revision: April 20092010 QX56

LAN
DIAGNOSIS AND REPAIR WORKFLOWLAN-31
< BASIC INSPECTION > [CAN FUNDAMENTAL]
C
D
E
F
G H
I
J
K L
B A
O P
N
b. Reception item of “ABS”: Assume that the unit
could not receive the signal from ECM. Draw a line
between ABS and ECM (line 3-b in the figure below).
4. Search for the possible cause using CAN communication signal chart using information from the interview with the customer.
NOTE:
For the details of CAN communication signal, refer to LAN-44, "
CAN Communication Signal Chart".
a. ABS warning lamp turned ON and speedometer did not move: This means that “ABS warning lamp signal”
and “Vehicle speed signal” could not communicate between M&A and ABS (4-a in the figure below).
PKID1223E
Revision: April 20092010 QX56

LAN-32
< BASIC INSPECTION >[CAN FUNDAMENTAL]
DIAGNOSIS AND REPAIR WORKFLOW
b. The tachometer moved normally: This means that “Engine speed signal” could communicate normally
between ECM and M&A (4-b in the figure below).
5. Fill out the diagnosis sheet based on information from step 4.
a. The ABS warning lamp turned ON and speedometer did not move: Assume that a possible cause is no communication between M&A and ABS. Draw a line between M&A and ABS. (Line 5-a in the figure
below).
SKIB8895E
Revision: April 20092010 QX56
