INFINITI QX60 2020 Owner's Manual

Unless checked and repaired, the supplemen-
tal restraint system (air bag system) and/or
the pretensioners may not function properly.
For additional information, refer to “Supple-
mental Restraint System (SRS)” in the
“Safety—Seats, seat belts and supplemental
restraint system” section of this manual.
WARNING
If the supplemental air bag warning light is
on, it could mean that the front air bag, side
air bag, curtain air bag and/or pretensioner
systems will not operate in an accident. To
help avoid injury to yourself or others, have
your vehicle checked as soon as possible. It
is recommended that you visit an INFINITI
retailer for this service.
INDICATOR LIGHTS
For additional information, refer to “Vehicle
information display” in this section.
Continuously VariableTransmission (CVT) position
indicator light
When the ignition switch is placed in the ON
position, this indicator light shows the shift
lever position. For additional information, re- fer to “Driving the vehicle” in the “Starting and
driving” section of this manual.
Front fog light indicator
light (green)
The front fog light indicator light illuminates
when the front fog lights are ON. For addi-
tional information, refer to “Fog light switch”
in this section.
Front passenger air bagstatus light
The front passenger air bag status light will
be lit and the passenger front air bag will be
off depending on how the front passenger
seat is being used.
For additional information, refer to “Front
passenger air bag and status light” in the
“Safety — Seats, seat belts and supplemental
restraint system” section of this manual.
High Beam Assist indicatorlight (green) (if so equipped)
This indicator light illuminates when the
headlights come on while the headlight
switch is in the AUTO position with the high
beams selected. This indicates that the high
beam assist is operational. For additional information, refer to “Head-
light and turn signal switch” in this section.
High beam indicator light
(blue)
This blue light comes on when the headlight
high beams are on and goes out when the
low beams are selected.
The high beam indicator light also comes on
when the passing signal is activated.
Malfunction Indicator Light(MIL)
If this indicator light comes on steady or
blinks while the engine is running, it may indi-
cate a potential emission control malfunc-
tion.
The MIL may also come on steady if the
fuel-filler cap is loose or missing, or if the
vehicle runs out of fuel. Check to make sure
the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least 3 gal
(11.4 L) of fuel in the fuel tank.
After a few driving trips, the
light
should turn off if no other potential emission
control system malfunction exists.
Instruments and controls2-13

If this indicator light comes on steady for
20 seconds and then blinks for 10 seconds
when the engine is not running, it indicates
that the vehicle is not ready for an emission
control system inspection/maintenance test.
For additional information, refer to “Readi-
ness for inspection/maintenance (I/M) test”
in the “Technical and consumer information”
section of this manual.
Operation
The MIL will come on in one of two ways:∙ MIL on steady — An emission control sys- tem malfunction has been detected.
Check the fuel-filler cap if the Loose Fuel
Cap warning appears in the vehicle infor-
mation display. If the fuel-filler cap is
loose or missing, tighten or install the cap
and continue to drive the vehicle.
The
light should turn off after a
few driving trips. If the
light does
not turn off after a few driving trips, have
the vehicle inspected. It is recommended
that you visit an INFINITI retailer for this
service. You do not need to have your
vehicle towed to the retailer. ∙ MIL blinking — An engine misfire has been
detected which may damage the emis-
sion control system. To reduce or avoid
emission control system damage:
– do not drive at speeds above 45 mph (72 km/h).
– avoid hard acceleration or decelera- tion.
– avoid steep uphill grades.
– if possible, reduce the amount of cargo being hauled or towed.
The MIL may stop blinking and come on
steady. Have the vehicle inspected. It is rec-
ommended that you visit an INFINITI retailer
for this service. You do not need to have your
vehicle towed to the retailer.CAUTION
Continued vehicle operation without hav-
ing the emission control system checked
and repaired as necessary could lead to
poor driveability, reduced fuel economy,
and possible damage to the emission con-
trol system.
Security indicator light
This light blinks whenever the ignition switch
is in the LOCK, OFF or ACC position. This
function indicates the security system
equipped on the vehicle is operational.
For additional information, refer to “Security
systems” in this section.
Side light and headlight indicator light (green)
The side light and headlight indicator light
illuminates when the side light or headlight
position is selected. For additional informa-
tion, refer to “Headlight and turn signal
switch” in this section.
Slip indicator light
This indicator will blink when the VDC system
is operating, thus alerting the driver to the
fact that the road surface is slippery and the
vehicle is nearing its traction limits.
You may feel or hear the system working; this
is normal.
The light will blink for a few seconds after the
VDC system stops limiting wheel spin.
2-14Instruments and controls

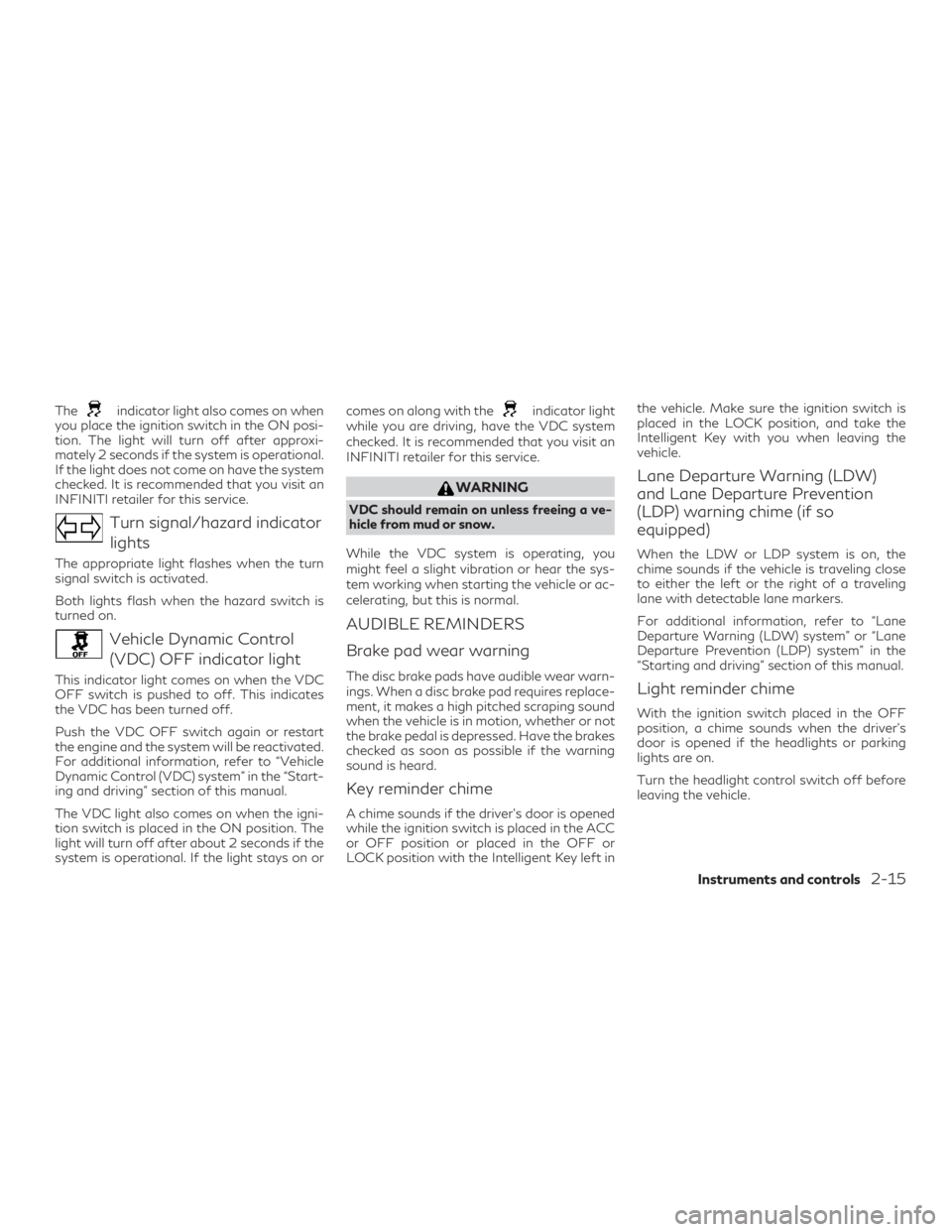

Theindicator light also comes on when
you place the ignition switch in the ON posi-
tion. The light will turn off after approxi-
mately 2 seconds if the system is operational.
If the light does not come on have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
Turn signal/hazard indicator
lights
The appropriate light flashes when the turn
signal switch is activated.
Both lights flash when the hazard switch is
turned on.
Vehicle Dynamic Control(VDC) OFF indicator light
This indicator light comes on when the VDC
OFF switch is pushed to off. This indicates
the VDC has been turned off.
Push the VDC OFF switch again or restart
the engine and the system will be reactivated.
For additional information, refer to “Vehicle
Dynamic Control (VDC) system” in the “Start-
ing and driving” section of this manual.
The VDC light also comes on when the igni-
tion switch is placed in the ON position. The
light will turn off after about 2 seconds if the
system is operational. If the light stays on or comes on along with the
indicator light
while you are driving, have the VDC system
checked. It is recommended that you visit an
INFINITI retailer for this service.
WARNING
VDC should remain on unless freeing a ve-
hicle from mud or snow.
While the VDC system is operating, you
might feel a slight vibration or hear the sys-
tem working when starting the vehicle or ac-
celerating, but this is normal.
AUDIBLE REMINDERS
Brake pad wear warning
The disc brake pads have audible wear warn-
ings. When a disc brake pad requires replace-
ment, it makes a high pitched scraping sound
when the vehicle is in motion, whether or not
the brake pedal is depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.
Key reminder chime
A chime sounds if the driver’s door is opened
while the ignition switch is placed in the ACC
or OFF position or placed in the OFF or
LOCK position with the Intelligent Key left in the vehicle. Make sure the ignition switch is
placed in the LOCK position, and take the
Intelligent Key with you when leaving the
vehicle.
Lane Departure Warning (LDW)
and Lane Departure Prevention
(LDP) warning chime (if so
equipped)
When the LDW or LDP system is on, the
chime sounds if the vehicle is traveling close
to either the left or the right of a traveling
lane with detectable lane markers.
For additional information, refer to “Lane
Departure Warning (LDW) system” or “Lane
Departure Prevention (LDP) system” in the
“Starting and driving” section of this manual.
Light reminder chime
With the ignition switch placed in the OFF
position, a chime sounds when the driver’s
door is opened if the headlights or parking
lights are on.
Turn the headlight control switch off before
leaving the vehicle.
Instruments and controls2-15

Intelligent Key door buzzer
The Intelligent Key door buzzer sounds if any
one of the following improper operations is
found.∙ The Intelligent Key is left inside the ve- hicle when locking the doors.
∙ The Intelligent Key is taken outside the vehicle when operating the vehicle.
When the buzzer sounds, be sure to check
both the vehicle and the Intelligent Key Sys-
tem. For additional information, refer to
“INFINITI Intelligent Key” in the “Pre-driving
checks and adjustments” section of this
manual. The vehicle information display is located to
the left of the speedometer. It displays such
items as:
∙ Vehicle settings
∙ Trip computer information
∙ Drive system warnings and settings (if so equipped)
∙ Cruise control system information (if so equipped)
∙ Intelligent Cruise Control (ICC) (if so equipped) system information ∙ Intelligent Key operation information
∙ Indicators and warnings
∙ Tire Pressure information
∙ Other information
LIC2205
VEHICLE INFORMATION DISPLAY
2-16Instruments and controls

HOW TO USE THE VEHICLE
INFORMATION DISPLAY
The vehicle information display can be navi-
gated using the
,, ENTER ,
and
buttons located on the steering
wheel.
1.
— select/enter the vehicle infor-
mation display menu items or to change
from one display screen to the next (i.e.
trip, TPMS, fuel economy) 2.
— navigate through the items in
the vehicle information display
ENTER — change or select an item in the
vehicle information display
3.
— go back to the previous menu
The ENTER and
buttons also control
audio and control panel functions. For addi-
tional information, refer to the separate
INFINITI InTouch
TMOwner’s Manual.
STARTUP DISPLAY
When the vehicle in placed in the ON or ACC
position the screens that display in the vehicle
information include:
∙ Active system status (if so equipped)
∙ Trip computer
∙ Tire pressure information
∙ Fuel economy
∙ Warnings
Warnings will only display if there are any
present. For additional information refer to,
“Vehicle information display warnings and in-
dicators” section of this manual.
To control what items display in the vehicle
information display, refer to “Main menu se-
lection” section of this manual.
RESETTING THE TRIP
COMPUTER
1. Press thebutton until you reach
the trip computer mode.
2. Press the
button again for more
than 1.5 seconds to reset average fuel
consumption, average speed, distance
to empty, and journey time.
SETTINGS
The setting mode allows you to change the
information displayed in the vehicle informa-
tion display:
∙ Driver Assistance (if so equipped)
∙ Vehicle Settings
∙ Main Menu Selection
∙ Body Color
∙ Maintenance
∙ Alarms
∙ Language
∙ Unit
∙ Welcome Effects
∙ Factory Reset
LIC2245
Instruments and controls2-17

Driver Assistance (if so equipped)
The driver assistance menu allows the user to
change the various driving aids.
Menu itemResult
Driving Aids Displays available driving aids. Forward (if so equipped) Displays available forward driving aids. Assistance (DCA) Allows user to turn the Distance Control Assist (DCA) system on or off. For additional information, refer to “Distance Control Assist (DCA)” in the “Starting and driving” section of this manual.
Lane (if so equipped) Displays available lane driving aids.
Lane Allows user to turn the Lane Departure Warning (LDW) system on or off. For additional information, refer
to “Lane Departure Warning (LDW)” in the “Starting and driving” section of this manual.
Assistance (LDP) (if so equipped) Allows user to turn the Lane Departure Prevention (LDP) system on or off. For additional information, refer to “Lane Departure Prevention (LDP)” in the “Starting and driving” section of this manual.
Blind Spot Displays available blind spot driving aids and settings.
Blind Spot Allows user to turn the Blind Spot Warning (BSW) and Rear Cross Traffic Alert (RCTA) systems on or off.
For additional information, refer to “Blind Spot Warning (BSW)” and “Rear Cross Traffic Alert (RCTA)” in the
“Starting and driving” section of this manual.
Assistance (BSI) Allows user to turn the Blind Spot Intervention® (BSI) system on or off. For additional information, refer to
“Blind Spot Intervention® (BSI)” in the “Starting and driving” section of this manual.
Brightness (if so equipped) Allows user to choose between standard (STD), dark or bright settings for the blind spot display.
Back-Up Collision Interv. (if so equipped) Displays available Backup Collision Intervention (BCI) options.
Ignition On Status Allows user to turn the Backup Collision Intervention (BCI) system on or off. For additional information, re-
fer to “Backup Collision Intervention (BCI)” in the “Starting and driving” section of this manual.
Emergency Braking Displays available emergency braking options.
System Allows user to turn the emergency braking system on or off. For additional information, refer to “Forward
Emergency Braking (FEB) with Pedestrian Detection system” and “Predictive Forward Collision Warning
(PFCW)” in the “Starting and driving” section of this manual.
2-18Instruments and controls

Vehicle Settings
The vehicle settings allow the user to change
the settings for lights, wipers, locking, keys,
and other vehicle settings.
Menu itemResult
Rear Door Alert Displays available Rear Door Alert options. Off When selected, no alert or horn will be active.
Alert & Horn When selected, the alert is displayed and horn sounds.
Alert Only When selected, only the alert is displayed.
Welcome Light (if so equipped) Allows the user the turn the welcome light on or off.
Auto Room Lamp Allows the user to turn the auto room lamp on or off.
Light Sensitivity Allows the user to change when the lights illuminate based on the brightness outside the vehicle.
Light Off Delay Allows the user to change the duration of time, from 0 to 180 seconds, that the automatic headlights stay on af-
ter the vehicle is shut off.
Rain Sensor (if so equipped) Allows user to turn the rain sensor on or off. For additional information, refer to “Wiper and washer switch” in this
section.
Wiper with Speed (if so equipped) Allows user to turn the wiper with speed feature on or off. For additional information, refer to Wiper and washer
switch” in this section.
I-Key Door Lock Allows user to turn the I-Key door lock on or off. When this item is turned on, the request switch on the door is
activated.
Selective Unlock Allows user to turn selective unlock on or off. When turned on, only the driver’s door is unlocked after the door
unlock operation. When the door handle request switch on the driver’s or front passenger’s side door is pushed to
be unlocked, only the corresponding door is unlocked first. All the doors can be unlocked if the door unlock opera-
tion is performed again within 1 minute. When this item is turned off, all the doors will be unlocked after the door
unlock operation is performed once.
Auto Door Unlock Displays the options for the auto door unlock.
Off Doors will have to be manually unlocked.
IGN Off Doors will unlock when the ignition is turned off.
Shift into P Doors will unlock when the vehicle is shifted into P (Park).
Instruments and controls2-19

Menu itemResult
Answer Back Horn Allows user to turn answer back horn on or off. When turned on, the horn will chirp and the hazard indicators will flash once when locking the vehicle with the Intelligent Key. For additional information, refer to “Answer back
horn feature” in the “Pre-driving checks and adjustments” section of this manual.
Remote Start (if so equipped) Allows user to turn the Remote Engine Start on or off. When turned off, the vehicle cannot be started using the
Intelligent Key.
Battery Saver Allows the user to turn the battery saver feature on or off. When turned on, this feature will turn off the ignition
switch after a period of time if left in the ACC or ON position.
Exit Seat Slide (if so equipped) Allows the user to turn the exit seat slide on or off. When turned on, this feature will move the driver’s seat back-
ward for an easy exit when the ignition is turned off and the driver’s door is opened. After getting into the vehicle
and placing the ignition switch in the ACC position, the driver’s seat will move to the previous set position. For
additional information, refer to “Automatic drive positioner” in the “Pre-driving checks and adjustments” section of
this manual.
Exit Steering Up (if so equipped) Allows the user to turn the exit steering up feature on or off. When turned on, this feature will move the steering
wheel upward for an easy exit when the ignition is turned off and the driver’s door is opened. After getting into
the vehicle and placing the ignition switch in the ACC position, the steering wheel moves to the previous position.
For additional information, refer to “Automatic drive positioner” in the “Pre-driving checks and adjustments” sec-
tion of this manual.
2-20Instruments and controls

Main Menu Selection
The main menu selection menu allows the
user to customize the information that ap-
pears in the vehicle information display when
the ignition is placed in the ON position.
Menu itemResult
Tire Pressures Allows user to turn the tire pressures display on or off in the vehicle information display.
Trip Computer Allows user to turn the trip computer display on or off in the vehicle information display.
Audio Allows user to turn the audio display on or off in the vehicle information display.
Navigation (if so equipped) Allows user to turn the navigation display on or off in the vehicle information display.
Driver Assistance (if so equipped) Allows user to turn the driver assistance display on or off in the vehicle information display.
Fuel Economy Allows user to turn the fuel economy display on or off in the vehicle information display.
Body Color
The body color menu allows the user to select
the color of vehicle that appears in the vehicle
information display.
Menu item Result
Body Color Displays the available colors for the vehicle in the vehicle information display.
Instruments and controls2-21

Maintenance
The maintenance menu allows the user to set
reminders for various vehicle maintenance
items.
WARNING
The tire replacement indicator is not a sub-
stitute for regular tire checks, including tire
pressure checks. For additional informa-
tion, refer to “Changing wheels and tires” in
the “Do-it-yourself” section of this manual.
Many factors including tire inflation, align-
ment, driving habits and road conditions
affect tire wear and when tires should be
replaced. Setting the tire replacement indi-
cator for a certain driving distance does not
mean your tires will last that long. Use thetire replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks, in-
cluding tire pressure checks could result in
tire failure. Serious vehicle damage could
occur and may lead to a collision, which
could result in serious personal injury or
death.
Menu item
Result
Service This indicator appears when the customer set distance is reached for checking or replacing maintenance items other
than the engine oil, oil filter and tires. Other maintenance items can include such things as air filter or tire rotation. You
can set or reset the distance for checking or replacing the items. You can set or reset the distance for service type
items.
For scheduled maintenance items and intervals, refer to the “Maintenance and schedules” section of this manual.
Tire This indicator appears when the customer set distance is reached for replacing tires. You can set or reset the distance
for replacing tires.
Other This indicator appears when the customer set distance is reached for checking or replacing maintenance items other
than the engine oil, oil filter and tires. Other maintenance items can include such things as air filter or tire rotation. The
distance for checking or replacing the items can be set or reset.
2-22Instruments and controls
