INFINITI QX60 2020 Owner's Manual

Alarms
The alarms menu allows the user to set vari-
ous alerts.
Menu itemResult
Outside Temp. Allows user to turn the outside temp. alarm on or off.
Timer Alert Allows user to set the timer alert for a specific interval.
Language
The language menu allows the user to
change the languages displayed in the vehicle
information display.
Menu item Result
Language Displays available language options for the vehicle information display.
Unit
The unit menu allows the user to customize
the information that appears in the vehicle
information display.
Menu item Result
Mileage Displays available mileage options shown in the vehicle information display.
Tire Pressures (if so equipped) Displays available tire pressures options shown in the vehicle information display.
Temperature Displays available temperature options shown in the vehicle information display.
Instruments and controls2-23

Welcome Effect
The welcome effect menu allows the user to
control the welcome effect feature.
Menu itemResult
Welcome Effect Allows user to turn the welcome effect feature on or off.
Factory Reset
The factory reset menu allows the user to
restore the vehicle information display set-
tings to factory status.
Menu item Result
Factory Reset Allows user to reset the vehicle information display settings to the original factory settings. Once selected, the user can confirm or cancel the reset.
2-24Instruments and controls

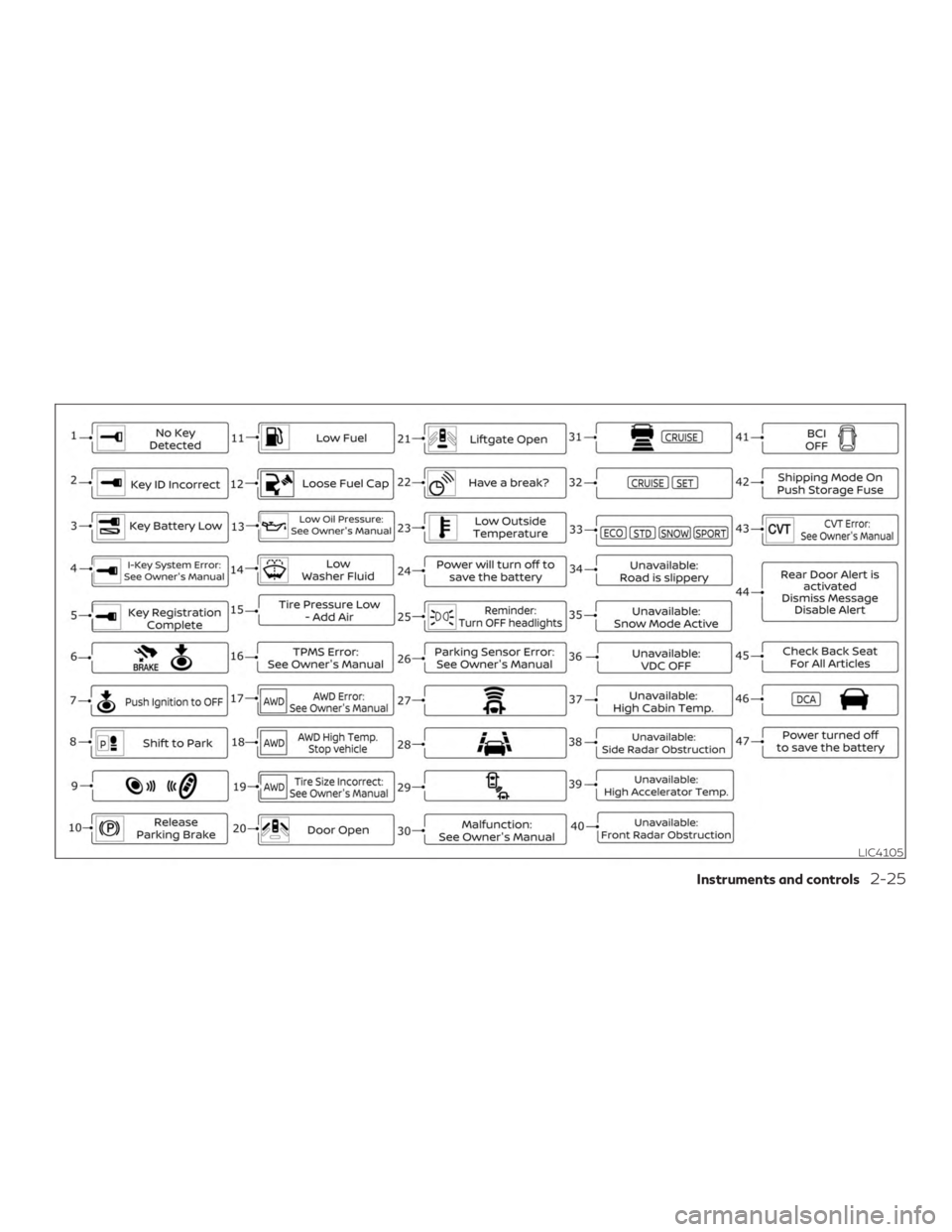

LIC4105
Instruments and controls2-25

VEHICLE INFORMATION
DISPLAY WARNINGS AND
INDICATORS
1. No Key Detected
2. Key ID Incorrect
3. Key Battery Low
4. I-Key System Error: See Owner’sManual
5. Key Registration Complete
6. Push brake and start switch to drive
7. Push Ignition to OFF
8. Shift to Park
9. Engine start operation for Intelligent Key system (if I-Key battery level is low)
10. Release Parking Brake
11. Low Fuel
12. Loose Fuel Cap
13. Low Oil Pressure: See Owner’s Manual
14. Low Washer Fluid
15. Tire Pressure Low - Add Air
16. TPMS Error: See Owner’s Manual 17. AWD Error: See Owner’s Manual (if so
equipped)
18. AWD High Temp. Stop vehicle (if so equipped)
19. Tire Size Incorrect: See Owner’s Manual (if so equipped)
20. Door Open
21. Liftgate Open
22. Timer Alert – Have a break?
23. Low Outside Temperature
24. Power will turn off to save the battery
25. Reminder: Turn OFF headlights
26. Parking Sensor Error: See Owner’s Manual
27. Predictive Forward Collision Warning (PFCW) indicator
28. Lane Departure Warning (LDW)/Lane Departure Prevention (LDP) indicator (if
so equipped)
29. Blind Spot Warning (BSW) and Rear Cross Traffic Alert (RCTA) (if so
equipped) indicator
30. Malfunction: See Owner’s Manual (if so equipped) 31. Intelligent Cruise Control (ICC) indica-
tors (if so equipped)
32. Cruise control indicators (if so equipped)
33. INFINITI Drive Mode Selector indicators
34. Unavailable: Road is slippery (if so equipped)
35. Unavailable: Snow Mode Active (if so equipped)
36. Unavailable: VDC OFF (if so equipped)
37. Unavailable: High Cabin Temp. (if so equipped)
38. Unavailable: Side Radar Obstruction (if so equipped)
39. Unavailable: High Accelerator Temp. (if so equipped)
40. Unavailable: Front Radar Obstruction (if so equipped)
41. BCI OFF (if so equipped)
42. Shipping Mode On Push Storage Fuse
43. CVT Error: See Owner’s Manual
44. Rear Door Alert is activated
45. Check Back Seat For All Articles
2-26Instruments and controls

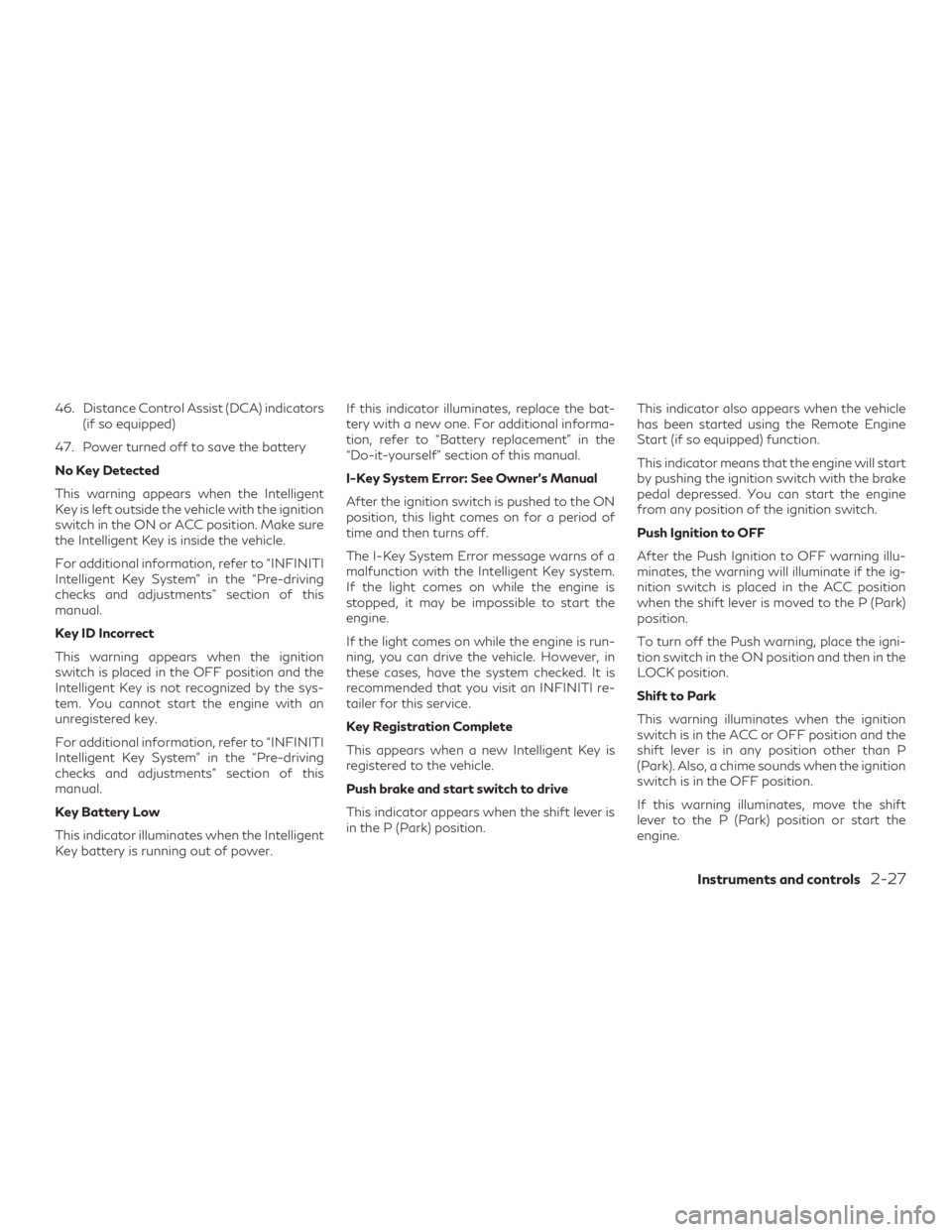

46. Distance Control Assist (DCA) indicators(if so equipped)
47. Power turned off to save the battery
No Key Detected
This warning appears when the Intelligent
Key is left outside the vehicle with the ignition
switch in the ON or ACC position. Make sure
the Intelligent Key is inside the vehicle.
For additional information, refer to “INFINITI
Intelligent Key System” in the “Pre-driving
checks and adjustments” section of this
manual.
Key ID Incorrect
This warning appears when the ignition
switch is placed in the OFF position and the
Intelligent Key is not recognized by the sys-
tem. You cannot start the engine with an
unregistered key.
For additional information, refer to “INFINITI
Intelligent Key System” in the “Pre-driving
checks and adjustments” section of this
manual.
Key Battery Low
This indicator illuminates when the Intelligent
Key battery is running out of power. If this indicator illuminates, replace the bat-
tery with a new one. For additional informa-
tion, refer to “Battery replacement” in the
“Do-it-yourself” section of this manual.
I-Key System Error: See Owner’s Manual
After the ignition switch is pushed to the ON
position, this light comes on for a period of
time and then turns off.
The I-Key System Error message warns of a
malfunction with the Intelligent Key system.
If the light comes on while the engine is
stopped, it may be impossible to start the
engine.
If the light comes on while the engine is run-
ning, you can drive the vehicle. However, in
these cases, have the system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
Key Registration Complete
This appears when a new Intelligent Key is
registered to the vehicle.
Push brake and start switch to drive
This indicator appears when the shift lever is
in the P (Park) position.
This indicator also appears when the vehicle
has been started using the Remote Engine
Start (if so equipped) function.
This indicator means that the engine will start
by pushing the ignition switch with the brake
pedal depressed. You can start the engine
from any position of the ignition switch.
Push Ignition to OFF
After the Push Ignition to OFF warning illu-
minates, the warning will illuminate if the ig-
nition switch is placed in the ACC position
when the shift lever is moved to the P (Park)
position.
To turn off the Push warning, place the igni-
tion switch in the ON position and then in the
LOCK position.
Shift to Park
This warning illuminates when the ignition
switch is in the ACC or OFF position and the
shift lever is in any position other than P
(Park). Also, a chime sounds when the ignition
switch is in the OFF position.
If this warning illuminates, move the shift
lever to the P (Park) position or start the
engine.
Instruments and controls2-27

For additional information, refer to “INFINITI
Intelligent Key System” in the “Pre-driving
checks and adjustments” section of this
manual.
Engine start operation for Intelligent Key
system (if I-Key battery level is low)
This indicator appears when the battery of
the Intelligent Key is low and when the Intel-
ligent Key system and the vehicle are not
communicating normally.
If this appears, touch the ignition switch with
the Intelligent Key while depressing the brake
pedal. For additional information, refer to
“INFINITI Intelligent Key battery discharge” in
the “Starting and driving” section of this
manual.
Release Parking Brake
This warning illuminates in the message area
of the vehicle information display when the
parking brake is set and the vehicle is driven.
Low Fuel
This warning illuminates when the fuel level in
the fuel tank is getting low. Refuel as soon as
it is convenient, preferably before the fuel
gauge reaches 0 (Empty).There will be a
small reserve of fuel in the tank when the fuel
gauge needle reaches 0 (Empty). Loose Fuel Cap
This warning appears when the fuel-filler cap
is not tightened correctly after the vehicle has
been refueled. For additional information, re-
fer to “Fuel-filler cap” in the “Pre-driving
checks and adjustments” section of this
manual.
Low Oil Pressure: See Owner’s Manual
This warning appears in the message area of
the vehicle information display if low oil pres-
sure is detected. This gauge is not designed
to indicate low oil level.
The low oil pressure
warning is not designed to indicate a low oil
level. Use the dipstick to check the oil level.
For additional information, refer to “Engine
oil” in the “Do-it-yourself” section of this
manual.
Low Washer Fluid
This warning illuminates when the
windshield-washer fluid is at a low level. Add
windshield-washer fluid as necessary. For
additional information, refer to “Windshield-
washer fluid” in the “Do-it-yourself” section
of this manual.
Tire Pressure Low - Add Air
This warning appears when the low tire pres-
sure warning light in the meter illuminates and low tire pressure is detected. The warn-
ing appears each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated. If this warning appears, stop the ve-
hicle and adjust the tire pressures of all four
tires to the recommended COLD tire pres-
sure shown on the Tire and Loading Informa-
tion label. For additional information, refer to
“Low tire pressure warning light” in this sec-
tion and “Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving” section
of this manual.
TPMS Error: See Owner’s Manual
This warning appears when there is an error
with your TPMS. If this warning comes on,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
AWD Error: See Owner’s Manual (if so
equipped)
This warning appears when the all-wheel
drive system is not functioning properly while
the engine is running.
AWD High Temp. Stop vehicle (if so
equipped)
This warning may appear while trying to free
a stuck vehicle due to increased oil tempera-
2-28Instruments and controls

ture. The driving mode may change to
2-Wheel Drive (2WD). If this warning is dis-
played, stop the vehicle with the engine idling,
as soon as it is safe to do so. Then if the
warning turns off, you can continue driving.
Tire Size Incorrect: See Owner’s Manual (if
so equipped)
This warning may appear if there is a large
difference between the diameters of the
front and rear wheels. Pull off the road in a
safe area, with the engine idling. Check that
all the tire sizes are the same, that the tire
pressure is correct and that the tires are not
excessively worn.
Door Open
This warning illuminates when a door has
been opened.
Liftgate Open
This warning illuminates when the liftgate
has been opened.
Timer Alert — Have a break?
This indicator appears when the set time is
reached. The time can be set up to six hours.
For additional information, refer to “Settings”
in this section.Low Outside Temperature
This warning appears if the outside tempera-
ture is below 37°F (3°C). The temperature
can be changed to display in Celsius or Fahr-
enheit. For additional information, refer to
“Settings” in this section.
Power will turn off to save the battery
This message appears in the vehicle informa-
tion display after a period of time if the igni-
tion switch is in the ACC or the ON position
and if the vehicle is in P (Park). For additional
information, refer to “Push-button ignition
switch positions” in the “Starting and driving”
section of this manual.
Reminder: Turn OFF headlights
This warning appears when the headlights
are left in the ON position when exiting the
vehicle. Place the headlight switch in the OFF
or AUTO position. For additional informa-
tion, refer to “Headlight and turn signal
switch” in this section.
Parking Sensor Error: See Owner’s Manual
This warning illuminates when there is an
error with the system. For additional infor-
mation, refer to “Front and rear sonar sys-
tem” in the “Starting and driving” section of
this manual.Predictive Forward Collision Warning
(PFCW) indicator
This indicator shows when the PFCW system
is engaged.
For additional information, refer to “Warning
systems switch” in this section and “Predic-
tive Forward Collision Warning (PFCW)” in
the “Starting and driving” section of this
manual.
Lane Departure Warning (LDW)/Lane De-
parture Prevention (LDP) indicator (if so
equipped)
This indicator shows when the LDW/LDP
system is engaged.
For additional information, refer to ”Warning
systems switch” in this section and “Lane De-
parture Warning (LDW)” and “Lane Depar-
ture Prevention (LDP)” in the “Starting and
driving” section of this manual.
Blind Spot Warning (BSW) and Rear Cross
Traffic Alert (RCTA) (if so equipped) indicator
This indicator shows when the following sys-
tems (if so equipped) are engaged:
∙ Blind Spot Intervention® (BSI)
∙ Blind Spot Warning (BSW)
∙ Rear Cross Traffic Alert (RCTA)
Instruments and controls2-29

For additional information, refer to “Blind
Spot Intervention® (BSI)” , “Blind Spot Warn-
ing (BSW)” and “Rear Cross Traffic Alert
(RCTA)” in the “Starting and driving” section
of this manual.
Malfunction: See Owner’s Manual (if so
equipped)
This warning appears when one or more of
the following systems (if so equipped) is not
functioning properly:∙ Backup Collision Intervention (BCI)
∙ Blind Spot Intervention® (BSI)
∙ Blind Spot Warning (BSW)
∙ Distance Control Assist (DCA)
∙ Forward Emergency Braking (FEB) with Pedestrian Detection
∙ Intelligent Cruise Control (ICC)
∙ Lane Departure Prevention (LDP)
∙ Lane Departure Warning (LDW)
∙ Predictive Forward Collision Warning (PFCW)
∙ Rear Cross Traffic Alert (RCTA) If one or more of these warning appears,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
Intelligent Cruise Control (ICC) indicators
(if so equipped)
These indicators show the Intelligent Cruise
Control (ICC) system status. For additional
information, refer to “Intelligent Cruise Con-
trol (ICC)” in the “Starting and driving” section
of this manual.
Cruise control indicators (if so equipped)
These indicators show the cruise control sys-
tem status.
For additional information, refer to “Cruise
control” in the “Starting and driving” section
of this manual.
INFINITI Drive Mode Selector indicators
These indicators show the current drive
mode of the vehicle.
For additional information, refer to “INFINITI
Drive Mode Selector” in the “Starting and
driving” section of this manual.
Unavailable: Road is slippery (if so
equipped)
This message appears when the Distance
Control Assist (DCA), Lane Departure Pre-
vention (LDP), or Blind Spot Intervention®
(BSI) systems become unavailable because
the road is slippery. For additional informa-
tion, refer to “Distance Control Assist (DCA),”
“Lane Departure Prevention (LDP),” or “Blind
Spot Intervention® (BSI)” in the “Starting and
driving” section of this manual.
Unavailable: Snow Mode Active (if so
equipped)
This message appears when the Distance
Control Assist (DCA), Lane Departure Pre-
vention (LDP), or Blind Spot Intervention®
(BSI) systems become unavailable because
the Snow Mode is selected. For additional
information, refer to “Distance Control Assist
(DCA),” “Lane Departure Prevention (LDP),”
or “Blind Spot Intervention® (BSI)” in the
“Starting and driving” section of this manual.
Unavailable: VDC OFF (if so equipped)
This message appears when the Distance
Control Assist (DCA), Lane Departure Pre-
vention (LDP), or Blind Spot Intervention®
(BSI) systems become unavailable because
the Vehicle Dynamic Control (VDC) is turned
2-30Instruments and controls

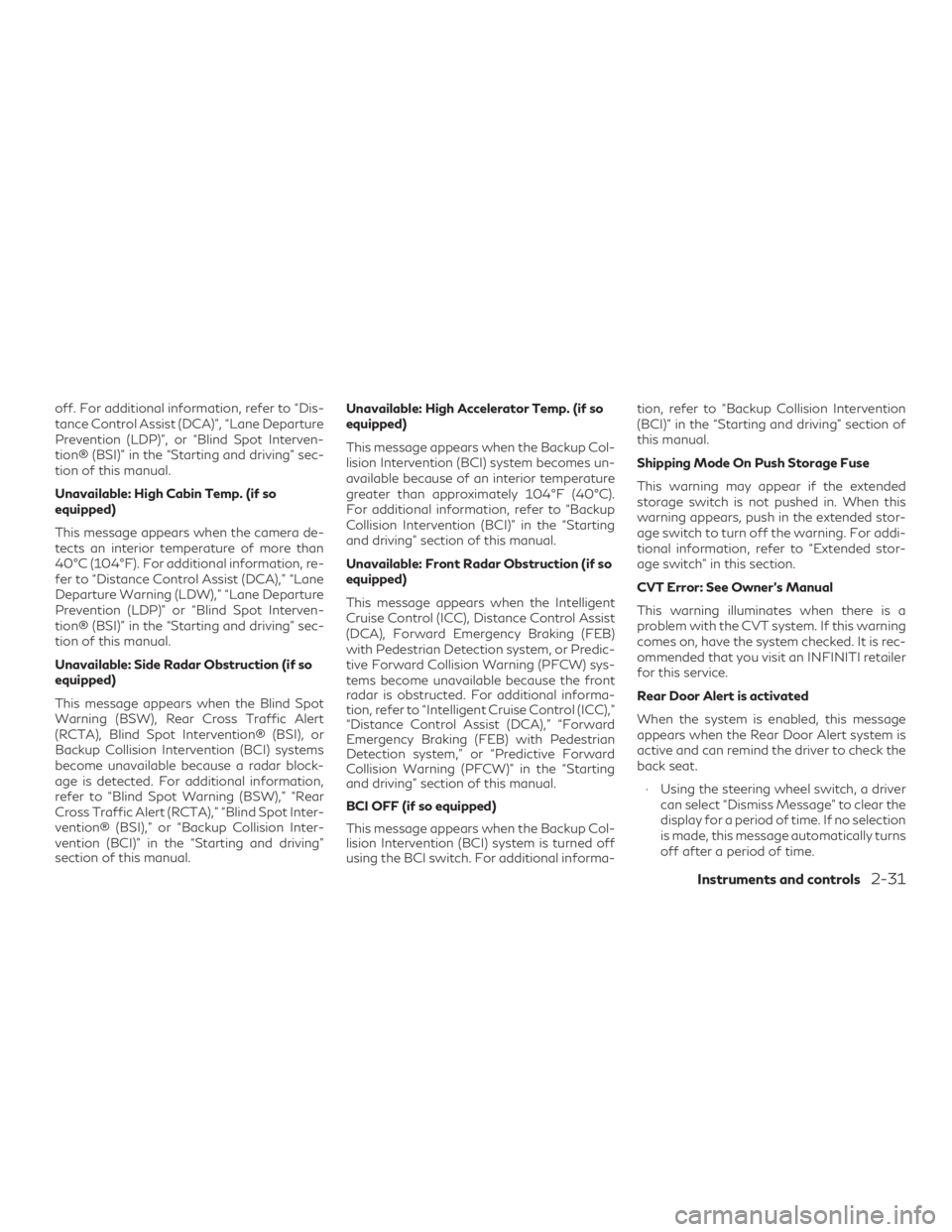

off. For additional information, refer to “Dis-
tance Control Assist (DCA)”, “Lane Departure
Prevention (LDP)”, or “Blind Spot Interven-
tion® (BSI)” in the “Starting and driving” sec-
tion of this manual.
Unavailable: High Cabin Temp. (if so
equipped)
This message appears when the camera de-
tects an interior temperature of more than
40°C (104°F). For additional information, re-
fer to “Distance Control Assist (DCA),” “Lane
Departure Warning (LDW),” “Lane Departure
Prevention (LDP)” or “Blind Spot Interven-
tion® (BSI)” in the “Starting and driving” sec-
tion of this manual.
Unavailable: Side Radar Obstruction (if so
equipped)
This message appears when the Blind Spot
Warning (BSW), Rear Cross Traffic Alert
(RCTA), Blind Spot Intervention® (BSI), or
Backup Collision Intervention (BCI) systems
become unavailable because a radar block-
age is detected. For additional information,
refer to “Blind Spot Warning (BSW),” “Rear
Cross Traffic Alert (RCTA),” “Blind Spot Inter-
vention® (BSI),” or “Backup Collision Inter-
vention (BCI)” in the “Starting and driving”
section of this manual.Unavailable: High Accelerator Temp. (if so
equipped)
This message appears when the Backup Col-
lision Intervention (BCI) system becomes un-
available because of an interior temperature
greater than approximately 104°F (40°C).
For additional information, refer to “Backup
Collision Intervention (BCI)” in the “Starting
and driving” section of this manual.
Unavailable: Front Radar Obstruction (if so
equipped)
This message appears when the Intelligent
Cruise Control (ICC), Distance Control Assist
(DCA), Forward Emergency Braking (FEB)
with Pedestrian Detection system, or Predic-
tive Forward Collision Warning (PFCW) sys-
tems become unavailable because the front
radar is obstructed. For additional informa-
tion, refer to “Intelligent Cruise Control (ICC),”
“Distance Control Assist (DCA),” “Forward
Emergency Braking (FEB) with Pedestrian
Detection system,” or “Predictive Forward
Collision Warning (PFCW)” in the “Starting
and driving” section of this manual.
BCI OFF (if so equipped)
This message appears when the Backup Col-
lision Intervention (BCI) system is turned off
using the BCI switch. For additional informa-tion, refer to “Backup Collision Intervention
(BCI)” in the “Starting and driving” section of
this manual.
Shipping Mode On Push Storage Fuse
This warning may appear if the extended
storage switch is not pushed in. When this
warning appears, push in the extended stor-
age switch to turn off the warning. For addi-
tional information, refer to “Extended stor-
age switch” in this section.
CVT Error: See Owner’s Manual
This warning illuminates when there is a
problem with the CVT system. If this warning
comes on, have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service.
Rear Door Alert is activated
When the system is enabled, this message
appears when the Rear Door Alert system is
active and can remind the driver to check the
back seat.
∙ Using the steering wheel switch, a driver can select “Dismiss Message” to clear the
display for a period of time. If no selection
is made, this message automatically turns
off after a period of time.
Instruments and controls2-31

∙ Using the steering wheel switch, a drivercan select “Disable Alert” to disable the
horn alert for the remainder of the cur-
rent trip.
WARNING
Selecting “Dismiss Message” during a stop
within a trip temporarily dismisses the mes-
sage for that stop without turning the sys-
tem off. Alerts can be provided for other
stops during the trip. Selecting “Disable
Alert” turns off the Rear Door Alert system
for the remainder of a trip and no audible
alert will be provided.
NOTE:
This system is disabled until a driver enables
it using the vehicle information display. For
additional information, refer to “How to use
the vehicle information display” in this sec-
tion.
For additional information, refer to “Rear
Door Alert” in this section.
Check Back Seat For All Articles
When the system is enabled, this message
appears when the vehicle comes to a com-
plete stop, the vehicle is transitioned from the
D (Drive) position to P (Park) position, and the driver exits the vehicle. This message alerts
the driver, after a period of time, to check for
items in the rear seat after the audible alert
has been provided.
NOTE:
This system is disabled until a driver enables
it using the vehicle information display. For
additional information, refer to “How to use
the vehicle information display” in this sec-
tion.
For additional information, refer to “Rear
Door Alert” in this section.
Distance Control Assist (DCA) indicators (if
so equipped)
These indicators show the Distance Control
Assist (DCA) system status. For additional
information, refer to “Distance Control Assist
(DCA)” in the “Starting and driving” section of
this manual.
Power turned off to save the battery
This message appears after the ignition
switch is automatically turned off. For addi-
tional information, refer to “Push-button ig-
nition switch positions” in the “Starting and
driving” section of this manual.
Your vehicle has two types of security sys-
tems:
∙ Vehicle security system
∙ INFINITI Vehicle Immobilizer System
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual
and audible alarm signals if someone opens
the doors, liftgate or hood when the system is
armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs.
LIC0661
SECURITY SYSTEMS
2-32Instruments and controls
