NOTE:∙ The FEB with Pedestrian Detection sys-
tem will be automatically turned on
when the engine is restarted.
∙ The PFCW system is integrated into the
FEB with Pedestrian Detection system.
There is not a separate selection in the
vehicle information display for the
PFCW system. When the FEB with Pe-
destrian Detection is turned off, the
PFCW system is also turned off.
FEB WITH PEDESTRIAN
DETECTION SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations for
the FEB with Pedestrian Detection system.
Failure to operate the vehicle in accordance
with these system limitations could result
in serious injury or death.
∙ The FEB with Pedestrian Detection sys-
tem cannot detect all vehicles or pedes-
trians under all conditions.
∙ The radar sensor FEB with Pedestrian Detection system does not detect the
following objects: – Small pedestrians (including small
children), animals and cyclists.
– Pedestrians in wheelchairs or using mobile transport such as scooters,
child-operated toys, or skateboards.
– Pedestrians who are seated or other- wise not in a full upright standing or
walking position.
– Oncoming vehicles
– Crossing vehicles
– Obstacles on the roadside
∙ The FEB with Pedestrian Detection sys- tem has some performance limitations.
– If a stationary vehicle is in the vehicle’s path, the FEB with Pedestrian Detec-
tion system will not function when the
vehicle is driven at speeds over ap-
proximately 50 mph (80 km/h).
– For pedestrian detection, the FEB with Pedestrian Detection system will
not function when the vehicle is driven
at speeds over approximately 37 mph
(60 km/h) or below approximately
6 mph (10km/h). ∙ The FEB with Pedestrian Detection sys-
tem will not function for pedestrians in
darkness or in tunnels, even if there is
street lighting in the area.
∙ For pedestrians, the FEB with Pedestrian Detection system will not issue the first
warning and will not push the accelerator
pedal up.
∙ The FEB with Pedestrian Detection sys- tem may not function if the vehicle ahead
is narrow (for example, a motorcycle).
∙ The FEB with Pedestrian Detection sys- tem may not function if speed difference
between the two vehicles is too small.
∙ The radar sensor FEB with Pedestrian Detection system may not function prop-
erly or detect a vehicle ahead in the fol-
lowing conditions:
– Poor visibility (conditions such as rain, snow, fog, dust storms, sandstorms,
and road spray from other vehicles).
– Driving on a steep downhill slope or roads with sharp curves.
– Driving on a bumpy road surface, such as an uneven dirt road.
Starting and driving5-115

– If dirt, ice, snow or other material iscovering the radar sensor area.
– Interference by other radar sources.
– The camera area of windshield is fogged up, or covered with dirt, water
drops, ice, snow, etc.
– Strong light (for example, sunlight or high beams from oncoming vehicles)
enters the front camera. Strong light
causes the area around the pedestrian
to be cast in a shadow, making it diffi-
cult to see.
– A sudden change in brightness occurs. (For example, when the vehicle enters
or exits a tunnel or a shaded area or
lightning flashes.)
– The poor contrast of a person to the background, such as having clothing
color or pattern which is similar to the
background.
– The pedestrian’s profile is partially obscured or unidentifiable due to the
pedestrian transporting luggage,
wearing bulky or very loose-fitting
clothing or accessories. ∙ The system performance may degrade in
the following conditions:
– The vehicle is driven on a slippery road.
– The vehicle is driven on a slope.
– Excessively heavy baggage is loaded in the rear seat or the trunk room of
your vehicle.
∙ The system is designed to automatically check the sensor’s (radar and camera)
functionality, within certain limitations.
The system may not detect blockage of
sensor areas covered by ice, snow or
stickers, for example. In these cases, the
system may not be able to warn the
driver properly. Be sure that you check,
clean and clear sensor areas regularly.
∙ In some road and traffic conditions, the FEB with Pedestrian Detection system
may unexpectedly apply partial braking.
When acceleration is necessary, depress
the accelerator pedal to override the
system.
∙ Excessive noise will interfere with the warning chime sound, and the chime may
not be heard.
5-116Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
In the following conditions, the FEB with Pe-
destrian Detection system warning light
blinks and the system will be turned off auto-
matically.∙ The radar sensor picks up interference from another radar source.
∙ The camera area of the windshield is misted or frozen.
∙ Strong light is shining from the front.
∙ The cabin temperature is over approxi- mately 104°F (40°C) in direct sunlight.
∙ The camera area of the windshield glass is continuously covered with dirt, etc.
Action to take
When the above conditions no longer exist,
the FEB with Pedestrian Detection system
will resume automatically.
LSD2591
Starting and driving5-117

NOTE:
When the inside of the windshield or camera
area is misted or frozen, it will take a period
of time to remove it after A/C turns ON. If
dirt appears on this area, have it checked. It
is recommended that you visit an INFINITI
retailer for this service.
Condition B:
In the following conditions, the FEB with Pe-
destrian Detection system warning light will
illuminate and the system will be turned off
automatically and the “Unavailable: Front
Radar Obstruction” warning message will ap-
pear in the vehicle information display.∙ The sensor area of the front bumper is covered with dirt or is obstructed.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift lever
in the P (Park) position and turn the engine
off. Clean the radar sensor area of the front
bumper or the camera area of the windshield
with a soft cloth, and restart the engine. If the
warning light continues to illuminate, have
the FEB with Pedestrian Detection system
checked. It is recommended that you visit an
INFINITI retailer for this service. NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system will also
stop working.
SYSTEM MALFUNCTION
If the FEB with Pedestrian Detection system
malfunctions, it will be turned off automati-
cally, a chime will sound, the FEB with Pedes-
trian Detection system warning light (orange)
will illuminate and the warning message
[Malfunction] will appear in the vehicle infor-
mation display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the FEB with
Pedestrian Detection system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system will also
stop working.
SYSTEM MAINTENANCE
The radar sensorAis located behind the
lower grille of the front bumper. The camera
Bis located on the upper side of the wind-
shield.
To keep the FEB with Pedestrian Detection
system operating properly, be sure to ob-
serve the following:
∙ Always keep sensor areas of the front bumper and windshield clean.
∙ Do not strike or damage the areas around the sensors (ex. Bumper, windshield).
LSD2703
5-118Starting and driving

∙ Do not cover or attach stickers, or installany accessory near the sensors. This
could block sensor signals, and/or cause
failure or malfunction.
∙ Do not attach metallic objects near the radar sensor (brush guard, etc.). This
could cause failure or malfunction.
∙ Do not place reflective materials, such as white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s detection
capability.
∙ Do not alter, remove or paint the front bumper. Before customizing or restoring
the front bumper, it is recommended that
you visit an INFINITI retailer.
Radio frequency statement
For USA
FCC ID: OAYARS3–B
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration. FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
For Canada
IC: 4135A-ARS3B
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1)
This device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
Droit applicable : Canada 310
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes: (1)
L’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en comprom-
ettre le fonctionnement.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the PFCW system
could result in serious injury or death.
∙ The PFCW system can help warn the
driver before a collision occurs but will
not avoid a collision. It is the driver’s re-
sponsibility to stay alert, drive safely and
be in control of the vehicle at all times.
The PFCW system can help alert the driver
when there is a sudden braking of a second
vehicle traveling in front of the vehicle ahead
in the same lane.
PREDICTIVE FORWARD COLLISION
WARNING (PFCW)
Starting and driving5-119

The PFCW system uses a radar sensorA
located behind the lower grille of the front
bumper to measure the distance to the ve-
hicle ahead in the same lane.
LSD2702
5-120Starting and driving

1. Vehicle ahead detection indicator
2. FEB with Pedestrian Detection systemwarning light
LSD2612
Starting and driving5-121

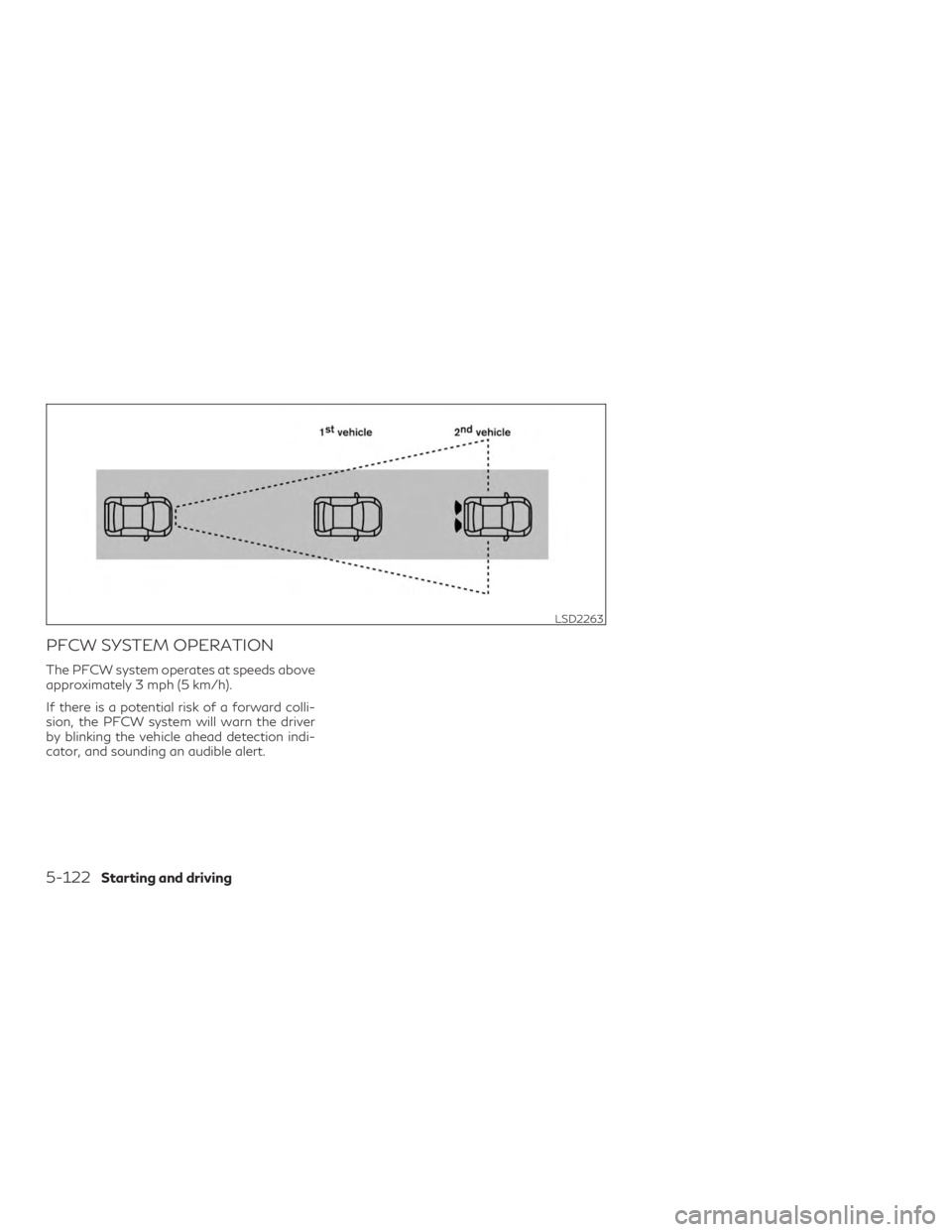

PFCW SYSTEM OPERATION
The PFCW system operates at speeds above
approximately 3 mph (5 km/h).
If there is a potential risk of a forward colli-
sion, the PFCW system will warn the driver
by blinking the vehicle ahead detection indi-
cator, and sounding an audible alert.
LSD2263
5-122Starting and driving

TURNING THE PFCW SYSTEM
ON/OFF
Perform the following steps to turn the
PFCW system ON or OFF.1. Press the
button until “Settings”
displays in the vehicle information dis-
play. Use the
button to select
“Driver Assistance.” Then press the EN-
TER button.
2. Select “Emergency Braking” and press the ENTER button.
3. Select “System” and press the ENTER button.
When the PFCW system is turned off, the
FEB with Pedestrian Detection system warn-
ing light illuminates.
NOTE:
∙ The PFCW system will be automatically
turned on when the engine is restarted.
∙ The PFCW system is integrated into the
FEB with Pedestrian Detection system.
There is not a separate selection in the
vehicle information display for the
PFCW system. When the FEB with Pe-
destrian Detection system is turned off,
the PFCW system is also turned off.
LSD2817
Starting and driving5-123

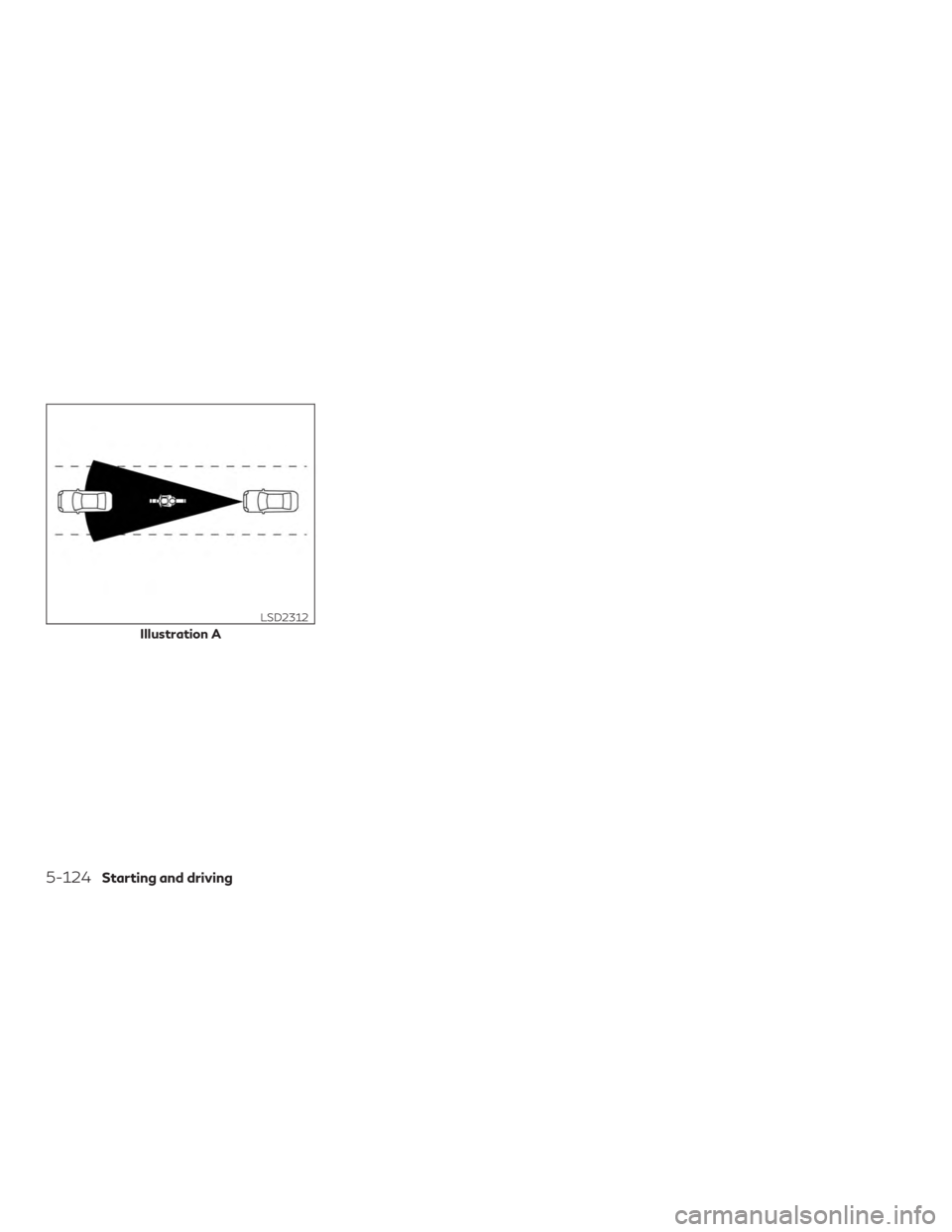

Illustration A
LSD2312
5-124Starting and driving
